INTRODUCTION
Introduction
Thank you for purchasing the X-605 LiPro Balance Charger .This product is a rapid charger with
a high performance microprocessor and specialized operating software. Please read this entire
operating manual completely and attentively before using this product, as it covers a wide range
of information on operating and safety. Or please do use this product in company with a
specialist!

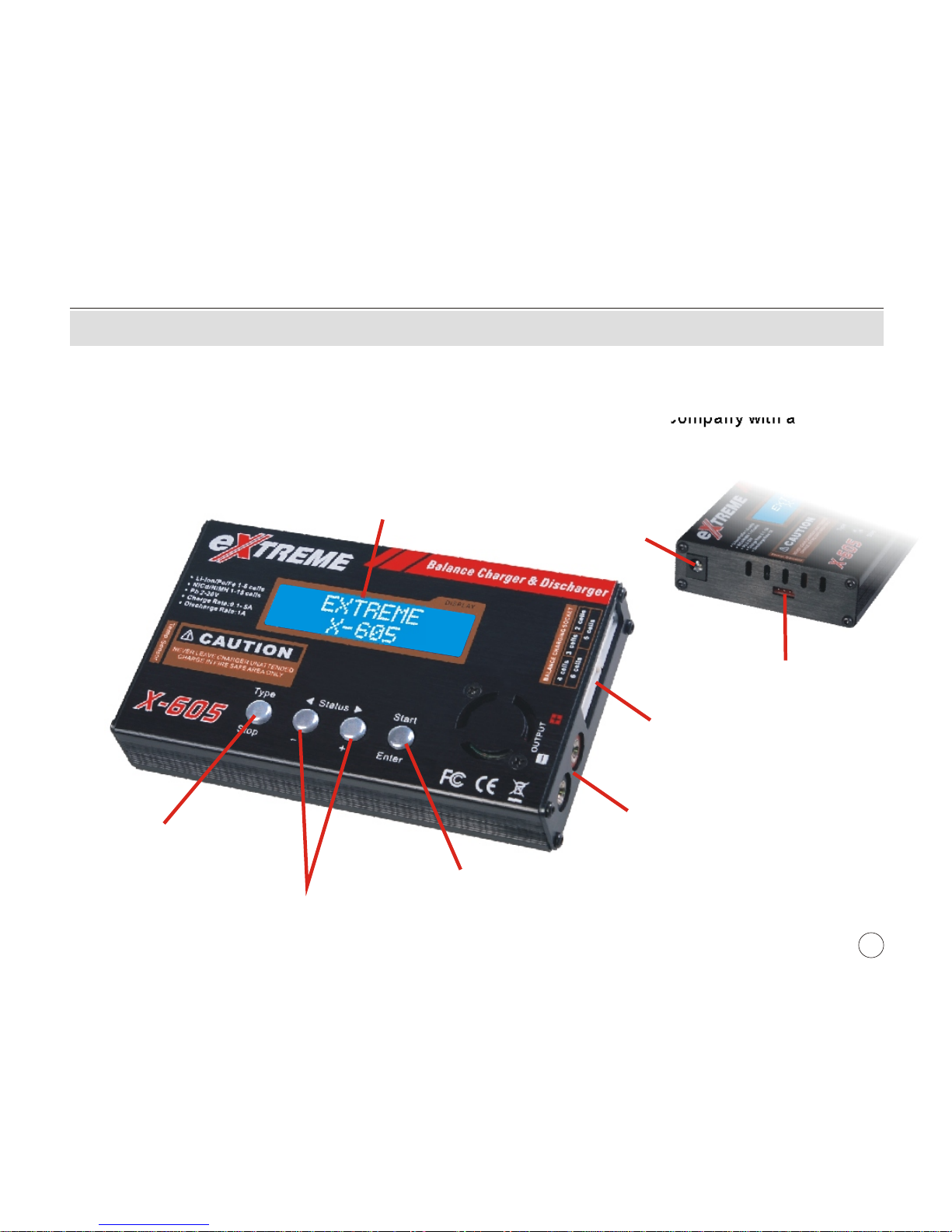

LCD screen
.Scroll through the Main Menu
.Stop any charge processes
Alter values
cells in balance charge mode
See the status of individual
.Resume or start charge processes
.Confirm an action
Temp.Sensor
Input power cable
11-18V DC
Balance led sockets
JST-XH ports
Output charge lead
4mm banana plug

SPECIAL FEATURES
Special features
Optimized operating software
X-605 features the so-called AUTO function that set the feeding current during the process of
charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which
may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and
alarm once detecting any malfunction. All the programs of this product were controlled through
two way linkage and communication, to achieve the maximum safety and minimize the trouble.
All the settings can be configured by users!
Internal independent lithium battery balancer
X-605 employs an individual-cell-voltage balancer. It isn't necessary to connect an
external balancer for balance charging.
Balancing individual cells battery discharging
During the process of discharging, X-605 can monitor and balance each cell of the battery
individually. Error message will be indicated and the process will be ended automatically if the
voltage of any single one cell is abnormal.
Adaptable to various type of lithium battery
X-605 is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe
series of batteries.
Fast and storage mode of lithium battery
Purposes to charge Lithium battery varies, fast charge reduce the duration of
charging, whereas store state can control the final voltage of your battery, so
as to store for a long time and protect useful time of the battery.
02

Maximum safety
Delta-peak sensitivity: The automatic charge termination program based on the
principle of the Delta-peak voltage detection. When the battery's voltage
exceeds the threshold, the process will be terminated automatically.
SPECIAL FEATURES
Automatic charging current limit
You can set up the upper limit of the charging current when charging your NiCd or
NiMH battery; it is useful for the NiMH battery of low impedance and capacity in
the 'AUTO' charging mode.
Capacity limit
The charging capacity is always calculated as the charging current multiplied by
time. If the charging capacity exceeds the limit, the process will be terminated
automatically when you set the maximum value.
Temperature threshold*
The battery's internal chemical reaction will cause the temperature of the
battery to rise. If the temperature limit is reached, the process will be terminated.
* This function is available by connecting optional temperature probe, which is
not included in the package.
Processing time limit:
You can also limit the maximum process time to avoid any possible defect.
Data store/load
The maximum ten batteries data can be stored for users convenience. You can keep the
data pertaining to program setting of the battery of continuous charging or discharging.
Users can call out these data at any time without any special program setting.
03
Cyclic charging/discharging
1 to 5 cyclic and continuous process of charge> discharge or discharge> charge is
operable for battery refreshing and balancing to stimulate the battery’s activity.

04
Operating voltage range:
Circuit power:
Charge current range:
Discharge current range:
Current drain for balancing Li-po:
NiCd/NiMH battery cell count:
li-ion/Polymer cell count:
Pb battery voltage:
Weight:
Dimensions:
DC11.0~18.0 Volt
AC to DC adaptor (DC11.0~18.0V/5A)
Max. charge power 50W
Max. discharge power5W
0.1~5.0A
0.1~1.0A
300mAh/cell
1~15cell
1~6 series
2V~20V
265g(Net Weight)
133.2×80.6×33mm
Specifications
SPECIAL FEATURES

Fai lure to connect as show n in thi s di agram will dam age thi s char ger.
WARNING:
The main bat ter y leads must be connect ed along with the bal ance lead connect or as shown bef or e char ging
your bat ter y ..
If usi ng cr ocodi le cl ips as shown in above diagr am , make sur e they are unabl e to touch
toget her !
WARNING:
LITHIUM POLYMER BALANCE CHARGE PROGRAM
CONNECTION DIAGRAM
Lithium polymer balance charge program
connection diagram

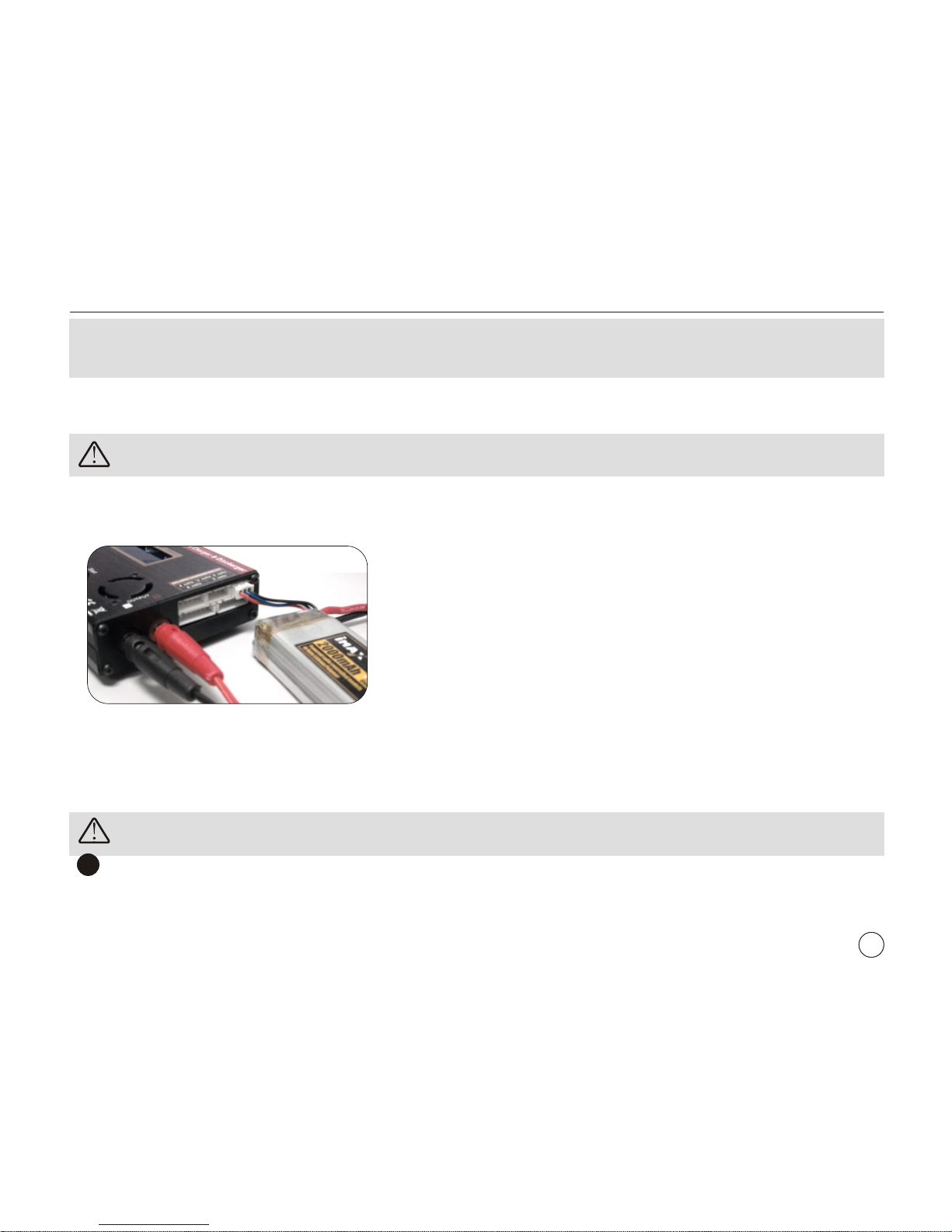

This diagram shows the correct way to connect your battery to the X-605 while charging in the
balance charge program mode only.
!
05

WARNING AND SAFETY NOTES
WARNING AND SAFETY NOTES
These warnings and safety notes are particularly important.Please follow the instructions
for maximum safety; otherwise the charger and the battery can be damagedor at worst it
can cause a fire.
Never leave the charger unattended when it is connected to its power supply. If any
malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the operation
manual.
Keep the charger well away from dust, damp, rain, heat, direct sunshine and
vibration. Never drop it.
The allowable input voltage is 11~18V DC
This charger and the battery should be put on a heat-resistant, noninflammable and
nonconductive surface. Never place them on a car seat, carpet or similar. Keep all the
inflammable volatile materials away from operating area.
Make sure you know the specifications of the battery to be charged or discharged to
ensure it meets the requirements of this charger. If the program is set up incorrectly,
the battery and charger may be damaged .It can cause fire or explosion due to
overcharging. This warranty is not valid for any damage or subsequent damage
arising as a result of a misuse or failure to observe the procedures outlined in this
manual.
06

WARNING AND SAFETY NOTES
07
Voltage level: 2.0V/cell
(Lead-acid) Max. charge voltage: 2.46V/cell
Allowable fast charge current: 0.4C or less
Discharge voltage cut off level: 1.75V/cell or higher
Voltage level: 3.3V/cell
Max. charge voltage: 3.6V/cell
Allowable fast charge current: 4C or less
Discharge voltage cut off level: 2.0V/cell or higher
Voltage level: 3.7V/cell
Max. charge voltage: 4.2V/cell
Allowable fast charge current: 1C or less
Discharge voltage cut off level: 3.0V/cell or higher
Voltage level: 3.6V/cell
Max. charge voltage: 4.1V/cell
Allowable fast charge current: 1C or less
Min. discharge voltage cut off level: 2.5V/cell or higher
Voltage level: 1.2V/cell
Allowable fast charge current: 1C-2C (depends on the performance of cell)
Discharge voltage cut off level: 0.85V/cell (NiCd), 1.0V/cell(NiMH)
NiCd/NiMH
Li-ion
LiPo
LiFe
Pb

WARNING AND SAFETY NOTES
To avoid short circuit between the charge lead always connect the charge cable to the
charger first, then connect the battery. Reverse the sequence when disconnecting.
!
!
!
Do not connect more than one battery pack to this charger at any one time.
Never attempt to charge or discharge the following types of batteries.
A battery pack which consists of different types of cells (including
different manufacturers)
A battery that is already fully charged or just slightly discharged.
Non-rechargeable batteries (Explosion hazard).
Batteries that require a different charge technique from NiCd, NiMh, LiPo
or Gel cell (Pb, Lead acid).
A faulty or damaged battery.
A battery fitted with an integral charge circuit or a protection circuit.
Batteries installed in a device or which are electrically linked to other
components.
Batteries that are not expressly stated by the manufacturer to be suitable
for the currents the charger delivers during the charge process.
08

WARNING AND SAFETY NOTES
!
!
Please bear in mind the following points before commencing charging:
Did you select the appropriate program suitable for the type of battery you are
charging?
Did you set up adequate current for charging or discharging?
Have you checked the battery voltage? Lithium battery packs can be wired in
parallel and in series, i.e. a 2 cell pack can be 3.7V (in parallel) or 7.4V (in
series).
Have you checked that all connections are firm and secure? Make sure there
are no intermittent contacts at any point in the circuit.
Charging
During charge process, a specific quantity of electrical energy is fed into the battery. The
charge quantity is calculated by multiplying charge current by charge time. The maximum
permissible charge current varies depending on the battery type or its performance, and can
be found in the information by the battery manufacturer. Only batteries that are expressly
stated to be capable of quick-charge are allowed to be charged at rates higher than the
standard charge current.
Connect the battery to the terminal of the charger: red is positive and black is negative. Due to
the difference between resistance of cable and connector, the charger can not detect
resistance of the battery pack, the essential requirement for the charger to work properly is
that the charge lead should be of adequate conductor cross-section, and high quality
connectors which are normally gold-plated should be fitted to both ends.
09

WARNING AND SAFETY NOTES
!Discharging
10
Always refer to the manual by the battery manufacturer pertaining to charging methods,
recommended charging current and charging time. Especially, the Lithium battery should be
charged according the charging instruction provided by the manufacturer strictly.
Attention should be paid to the connection of Lithium battery especially.
Do not attempt to disassemble the battery pack arbitrarily.
Please get highlighted that Lithium battery packs can be wired in parallel and in series. In the
parallel connection, the battery's capacity is calculated by multiplying single battery's capacity by
the number of cells with total voltage stay the same. The voltage's imbalance may cause fire or
explosion .Lithium battery is recommended to charge in series.
The main purpose of discharging is to clean residual capacity of the battery, or to reduce the
battery’s voltage to a defined level. The same attention should be paid to the discharging process
as charging. The final discharge voltage should be set up correctly to avoid deep-discharging.
Lithium battery can not be discharged to lower than the minimum voltage, or it will cause a rapid
loss of capacity or a total failure. Generally, Lithium battery doesn’t need to be discharged. Please
pay attention to the minimum voltage of Lithium battery to protect the battery.
Some rechargeable batteries have a memory effect. If they are partly used and recharged before
the whole charge is accomplished, they remember this and will only use that part of their capacity
next time. This is a ‘memory effect’. It is said that NiCd and NiMH batteries are suffering from
memory effect. NiCd has more memory effect than NiMH.
Lithium batteries are recommended to be discharged partially rather than fully discharged.
Frequent full discharging should be avoided if possible. Instead, charge the battery more often
or use a battery of larger capacity.Full capacity cannot be reached until it has been subjected
to 10 or more charge cycles. The cyclic process of charge and discharge will optimize the
capacity of battery pack.

PROGRAM FLOW CHART
Program flow chart
11
Continue on next page!

PROGRAM FLOW CHART
12
Program flow chart

As default this charger will be set to typical user settings when it is connected to DC 11~18V for
the first time. The screen displays the following information in sequence and the user can change
the parameter on each screen.
If you need to alter the parameter value in the program, press “Start/Enter” key to make it blink
then change the value with “INC” or “DEC” key. The value will be stored by pressing
“Start/Enter” key once.
13
INC
DEC INC
INCDEC
User setup starting screen.
The screen displays the nominal voltage of Lithium battery. There are three
kinds of Lithium battery: LiFe(3.3V), Lilo(3.6V) or LiPo(3.7V). This is very
important so you have to check the battery carefully and set it up correctly. If it
is different from correct value the battery may be exploded during charge
process.
X-605 recognize the cell count of Lithium battery automatically at the
beginning of charge or discharge process to avoid from erroneous setting by
user. But deeply discharged battery can be perceived incorrectly. To prevent
the error, you can set the time term to verify the cell count by the processor.
Normally, 10 minutes are enough to perceive the cell count correctly. For the
battery of larger capacity, you may extend the time term. But if you set the time
term to long for the battery of smaller capacity, the charge or discharge
process can be finished within the time term with the erroneous cell count. This
may cause the fatal result. If the processor recognizes the cell count
incorrectly at the beginning of charge or discharge process, you may extend
the time. Otherwise, you had better use with the default value.
INITIAL PARAMETER SETUP (USERS SET UP)

14
INCDEC
INCDEC
DEC INC
DEC INC
DEC INCDEC INC
INCDEC

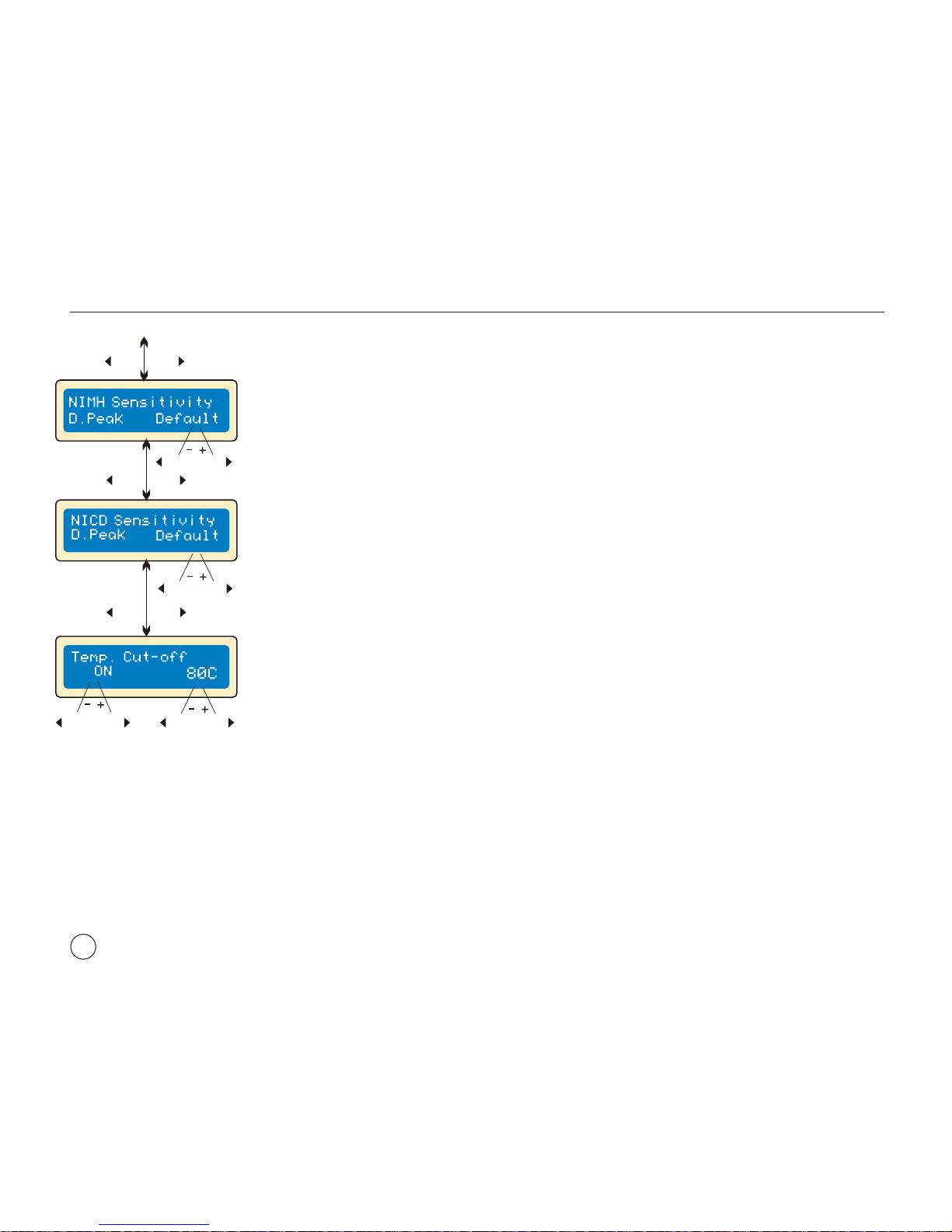

This shows the trigger voltage for automatic charge termination of NiMH
and NiCd battery. The effective value ranges from 5 to 20mV per cell. If the
trigger voltage is set higher, there is a danger of overcharging the battery; if
it is set lower, there is a possibility of premature termination. Please refer
the technical specification of the battery. (NiCd default: 12mV, NiMH
default: 7mV)
An optional feature using temperature probe contacting the surface of bat
tery, the temperature cut-off can be on or off. If it is on, set the maximum tem
perature at which the charger should allow battery to reach during charge.
Once a battery reaches this temperature during charge, the process will be
terminated to protect the battery.
INITIAL PARAMETER SETUP (USERS SET UP)

INC
INC
INC
INC
INC
INC
DE C
DE C
DE C
DE C
DE C
DE C
-
-
-
-
+
+
+
+

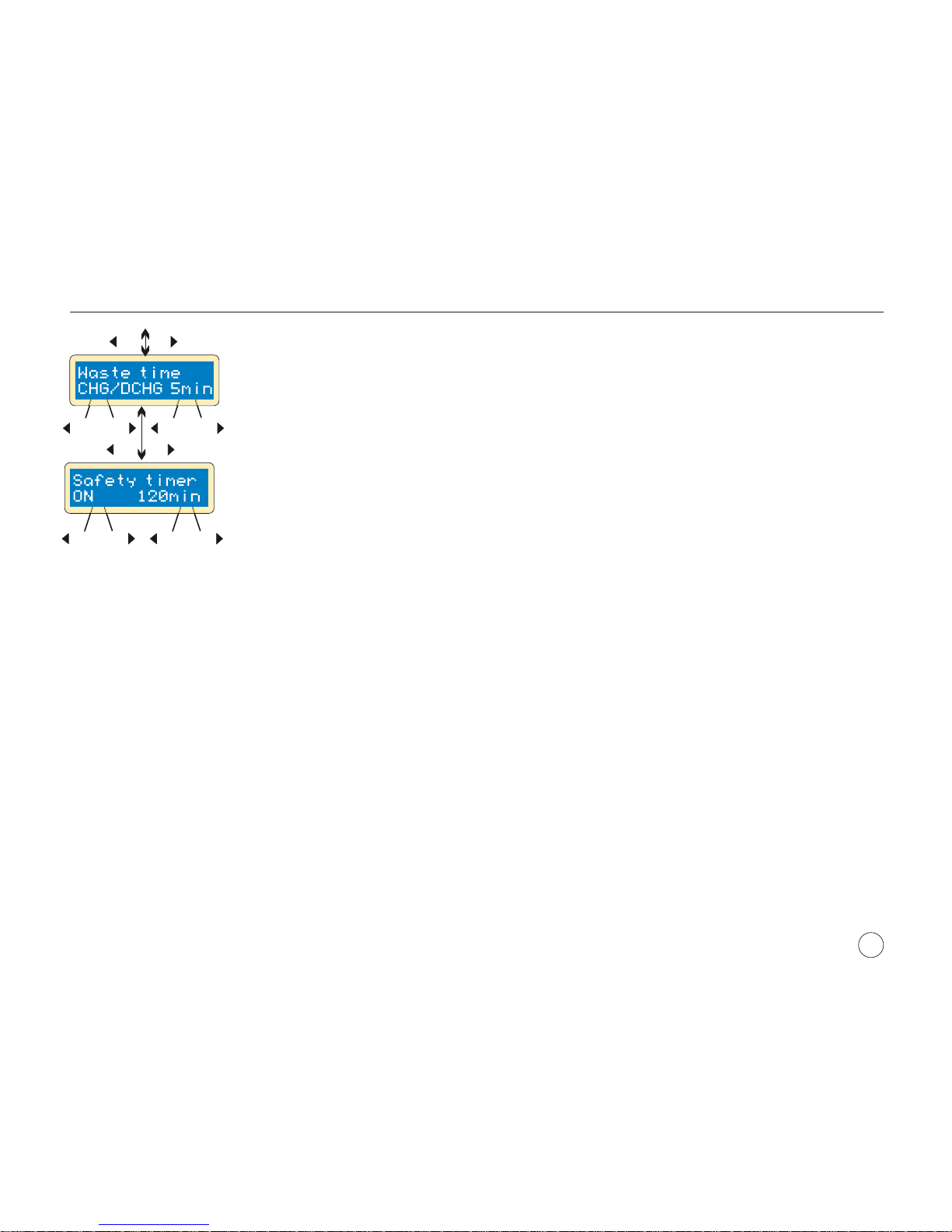

The battery becomes warm after cycles of charge/discharge process. The
program will insert a time delay after each charge/discharge process to
allow the battery enough time to cool down before beginning next cycle of
charge/discharge process. The valid value ranges from 0 to 60 minutes.
When the charge process starts, the integrated safety timer starts to run
simultaneously. If error detected or the termination circuit can not detect
whether the battery is fully charged or not, this unit is programmed to
prevent overcharging. Please refer to the below statement to calculate
the timer you set.
Safe timer Calculation
When charging NiCd or NiMH batteries, divide the capacity by current, then
divide the result by 11.9, set this number of minutes as the value for safety
timer setting. If the charger stopped at this time threshold, about 140% of the
capacity will have been fed into the battery.
For example:
Capacity Current Safety Time
2000mAh 2.0A (2000/2.0=1000)/11.9=84 minutes
3300mAh 3.0A (3300/3.0=1100)/11.9=92 minutes
1000mAh 1.2A (1000/1.2=833)/11.9=70 minutes
15
INITIAL PARAMETER SETUP (USERS SET UP)

The program is only suitable for charging/discharging Lithium(LiPo/LiIo/LiFe) batteries with a
nominal voltage of 3.3/3.6/3.7V/cell. Different batteries have different charge technique. There
are two methods termed as constant voltage and constant current. The charge current varies
according to battery capacity and specification. The final voltage is very important; it should
precisely match the voltage of the battery: LiPo is 4.2V, LiIo is 4.1V and LiFe is 3.6V. The current
and voltage of the battery should be correctly set.
When you want to change the values of parameters, please press START/ENTER key to make it
blink and then use DEC or INC to change the value. Then press START/ENTER key again to
store the value.
Lithium (LiPo/Lilo/LiFe) program
16
INC
INC
INCINC
DE C
DE C
DE CDE C -
-+
+
INC INC
DE C DE C
-+
The program provides maximum capacity protection function. If the Delta-
peak voltage can not be detected or the safety timer times out, the charge
process will stop automatically, when the battery reaches the user-set
maximum charge capacity,
The beep to confirm users' operation sounds every time a button is pressed.
The beep or melody sounds at various times during operation to confirm
different mode change. These functions can be switched on or off.
This function monitors the voltage of the input battery used to power this
charger. If the voltage is lower than user-set value, the program will end
forcibly to protect the input battery.
INITIAL PARAMETER SETUP (USERS SET UP)

INC
INC DEC
DEC -
-+
+
Start
Enter
Batt type
Stop
Start
Enter
Charged
capacity
Number
of
cells
Charging
time
Charging
current
Battery
voltage

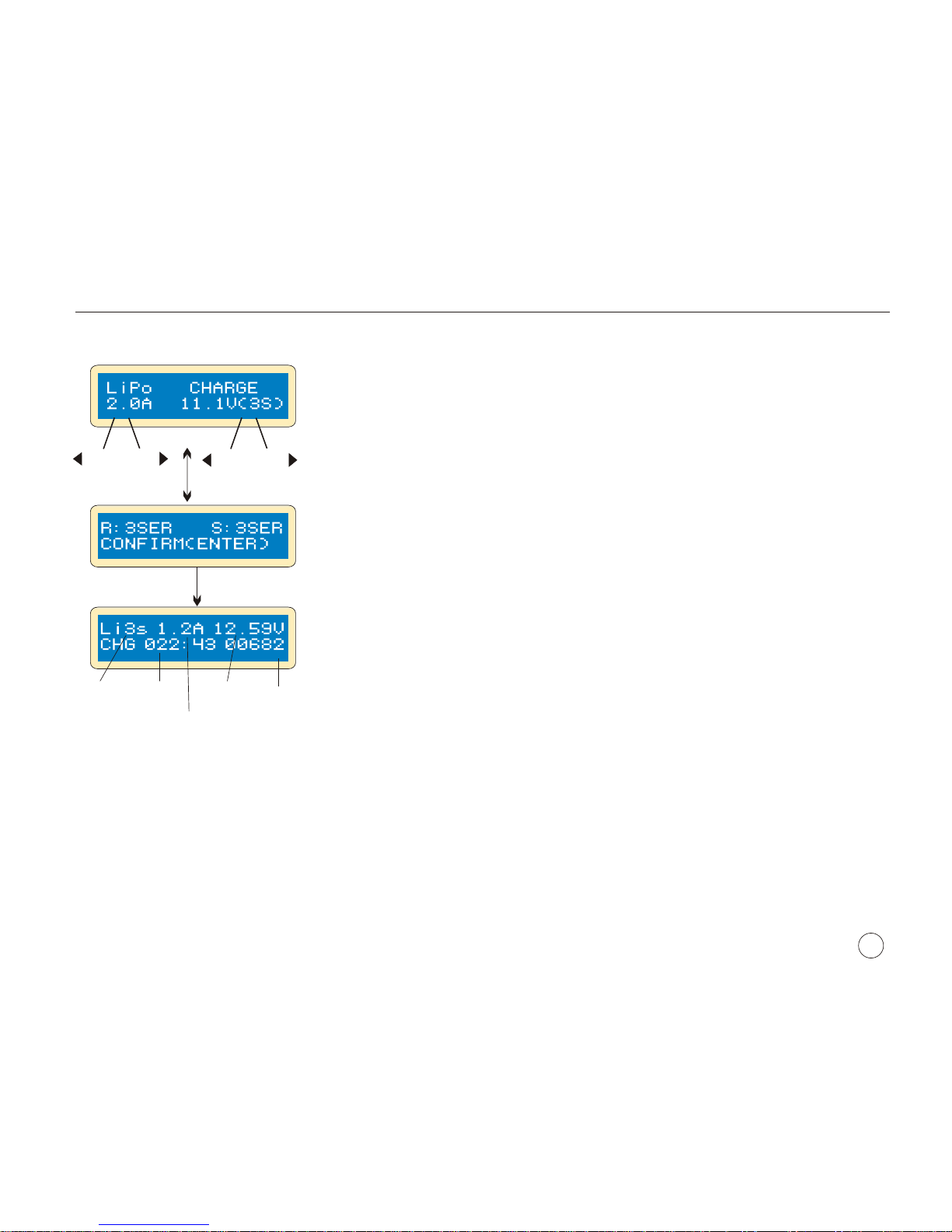

The left side of the first line shows the type of battery you choose.
The value on the left of the second line of the charger is current
user set, After setting the current and voltage, press
START/ENTER key for more than 3 seconds to start the
process.(charge current: 0.1-5.0A, voltage: 3.7-22.2V).
This displays the number of cells you set up and the processor
detects. “R” shows the number of cells detected by the charger
and “S” is the number of cells set by you at the previous screen.
If both numbers are identical you can start charging by press
START/ENTER button. If not, press BATT TYPE/STOP button to
go back to previous screen to carefully check the number of cells
of the battery pack before going ahead.
This screen shows the real-time status during charge process.
Press BATT TYPE/STOP key once to stop the charge process.
Charging of Lithium battery
Charging of lithium battery
This charging mode is for charging Li-Po/Ion/Fe battery without balance lead.
Charging lithium battery in the charge mode
17
‘>3 second’

INC
INC DEC
DEC -
-+
+
Start
Enter
Batt type
Stop
Start
Enter
Charged
capacity
Number
of
cells
Charging
time
Charging
current
Battery
voltage
The left side of the first line shows the type of battery
you choose. The value on the left of the second line of
the charger is current user set, After setting the
current and voltage, press START/ENTER key for more than
3 seconds to start the process.(charge current: 0.1-
5.0A, voltage: 3.7-22.2V).
This displays the number of cells you set up and the processor
detects. “R” shows the number of cells detected by the charger
and “S” is the number of cells set by you at the previous screen.
If both numbers are identical you can start charging by press
START/ENTER button. If not, press BATT TYPE/STOP button to
go back to previous screen to carefully check the number of cells
of the battery pack before going ahead.
This screen shows the real-time status during charge
process. Press BATT TYPE/STOP key once to stop the
charge process.
BALANCE CHARGING OF LITHIUM BATTERY
Balance charging of lithium battery
This function is for balancing the voltage of Lithium-polymer battery cells while charging. In the
balance mode, the battery needs to have a balance lead to connect to the individual balance port
at the right side of the charger. And you need to connect the battery's power lead to the output of
charger.
Charging in this mode is different from the normal modes, because the built-in processor
monitors voltage of individual cell and control input current fed into each cell to equalized
voltage of individual cell.
Charging lithium battery in the balance mode
18
‘>3 second’
