extronics iTAG100-7 User manual

Operating Manual
iTAG100-7, iTAG100-7-CB
iTAG100-7D, iTAG100-7D-CB

2
Document Number 406724(4) (See DDM for the latest Version)
For warranty information, refer to Terms and Conditions at http://www.extronics.com
©2020 Extronics Limited. This document is Copyright Extronics limited.
Extronics reserve the right to change this manual and its contents without notice, the latest
version applies.

3
Contents
1Introduction.......................................................................................................... 4
2Safety Information and Notes .............................................................................. 5
2.1 Storage of this Manual................................................................................... 5
2.1 Special Conditions for Safe Use .................................................................... 5
2.1.1 Class I Zone 0......................................................................................... 5
2.1.2 Class I Zone 1......................................................................................... 5
2.1.3 Class II Zone 21...................................................................................... 5
2.2 List of Notes .................................................................................................. 5
2.3 Class and Zone Approval Information .......................................................... 6
3Installation and Setting-to-Work .......................................................................... 7
3.1 Assembly and Disassembly........................................................................... 7
3.2 Installation ..................................................................................................... 7
3.3 Adjustment .................................................................................................... 7
4Intended Purpose Usage..................................................................................... 8
4.1 Transport ....................................................................................................... 8
4.2 Authorized Persons ....................................................................................... 8
4.3 Cleaning and Maintenance............................................................................ 8
4.4 Cleaning and Maintenance Intervals ............................................................. 9
4.5 Aggressive substances and environments .................................................... 9
4.6 Exposure to external stresses ....................................................................... 9
5Type Codes ......................................................................................................... 9
6Manufacturer ..................................................................................................... 10
7Radio Equipment –FCC Warning Statement .................................................... 10
8Label Drawings.................................................................................................. 11

4

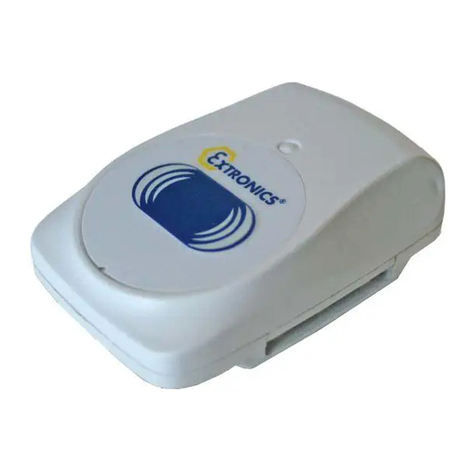

1 Introduction
The iTAG100-7, iTAG100-7-CB, iTAG100-7D, iTAG100-7D-CB are MET Canada
approved, intrinsically safe versions of the Stanley T2 Tag. This is the most advanced
Wi-Fi based Active RFID tag on the market, from the company that originated the
Wi-Fi tag industry. The device is a small, long-life Wi-Fi based active RFID device
that can be placed on any asset, allowing the Stanley system to locate assets that
are not Wi-Fi enabled.

5
2 Safety Information and Notes
2.1 Storage of this Manual
Keep this user manual safe and in the vicinity of the product. All persons required work on or
with the product should be advised on where the manual is stored.
2.1 Special Conditions for Safe Use
2.1.1 Class I Zone 0
None
2.1.2 Class I Zone 1
None
2.1.3 Class II Zone 21
None
2.2 List of Notes
The notes supplied in this chapter provide information on the following.
•Danger! / Warning!
oPossible hazard to life or health.
•Caution
oPossible damage to property.
•Important
oPossible damage to the tag.
•Information
oNotes on the optimum use of the device
Warning! This product can be delivered in a number of different variants; each
variant has restrictions on where it can be used. Please read the
information in the type codes section fully and ensure that your iTAG100
is suitable for the hazardous area in which it is to be used.
Warning! All iTAG100 devices should only be cleaned with a damp cloth.
Warning! All MET approved variants should only be fitted with the iTAG100-B1-
MET / TAC-237 battery. This is a special battery which has an
encapsulated end, and should only be installed by manufacturer-
approved competent persons.
Warning! Any iTAG100 batteries should only be replaced in the safe area, by a
competent person who is approved by the manufacturer.

6
Warning! The iTAG100 contains a source of RF power, which is software limited to
<100mW; this is compliant with the requirements of IEC 60079-0:2011
Table 4. The user must not attempt to modify the software to exceed this
power level.
Warning! The iTAG100 variants have different permissible ambient temperature
ranges for different temperature classes as follows:
Warning! Do not open the iTAG100. There are no user-serviceable parts inside.
Warning! Any repairs or replacement of parts MUST be performed by the
manufacturer or its nominated sub-contractor or agent.
2.3 Class and Zone Approval Information
The iTAG100-7, iTAG100-7-CB carry the following approval:
MET Canada
Class I, Zone 0, Ex ia IIB T6..T4 Ga
Class I, Zone 1, Ex ia IIC T6..T4 Gb
The iTAG100-7D, iTAG100-7D-CB carry the following approval:
MET Canada
Class I, Zone 0, Ex ia IIB T6..T4 Ga
Class I, Zone 1, Ex ia IIC T6..T4 Gb
Class II, Zone 21, Ex ia IIIC TX Gb
TX stands for
T135°C (-30°C ≤ Ta ≤ 75°C)
T100°C (-30°C ≤ Ta ≤ 45°C)
T85°C (-30°C ≤ Ta ≤ 30°C)
The products are approved to the following standards:
UL60950-1/CSA C22.2 No. 60950-1 Safety of Information Technology Equipment Rev.
March 27 2007
CSA-C22.2 No. 60079-0:2011, Explosive atmospheres - Part 0: Equipment - General
requirements.
CSA-C22.2 No. 60079-11:2014, Explosive atmospheres - Part 11: Equipment protection by
intrinsic safety “i”.
ATEX/IECEx
Temperature Class
CEC Section 18
Temperature Class
Permissible Ambient
Temperature Range
T4
T4
-30oC ≤Ta ≤+75oC
T5
T5
-30oC ≤Ta ≤+45oC
T6
T6
-30oC ≤Ta ≤+30oC

7
3 Installation and Setting-to-Work
3.1 Assembly and Disassembly
The iTAG100 is provided ready assembled and should not be dismantled by the user.
3.2 Installation
The iTAG100 should be mounted on the asset to be tracked, or worn by the person
who is to be tracked.
Warning! Attention should be paid to the Temperature Class (T Class) of the area
which the asset or person could be entering. Restrictions on the ambient
temperature apply to the certification of the iTAG100. Please refer to this
manual and marking on the tag for the maximum ambient temperature
permitted for each T Class.
3.3 Adjustment
No user adjustment of the iTAG100 is possible.

8
4 Intended Purpose Usage
Important Before setting the units to work, read the technical documentation
carefully.
Important The latest version of the technical documentation or the corresponding
technical supplements is valid in each case.
Important For the installation, maintenance and cleaning of the units, it is
absolutely necessary to observe the applicable regulations and
provisions concerned with explosion protection (IEC 60079-0, IEC 60079-
11, IEC 60079-14, CEC 18).
The iTAG100 is built using modern components and is extremely reliable in
operation; however it must only be used for its intended purpose. Please note that
the intended purpose also includes compliance with the instructions issued by the
manufacturer for installation, setting up and service.
Any other use is regarded as conflicting with the intended purpose. The manufacturer
is not liable for any subsequent damage resulting from such inadmissible use. The
user bears the sole risk in such cases.
4.1 Transport
All iTAG100 devices must be so transported and stored that they are not subjected to
any excessive mechanical stresses.
4.2 Authorized Persons
Only persons trained for the purpose are authorized to handle the iTAG100; they
must be familiar with the unit and must be aware of the regulation and provisions
required for explosion protection as well as the relevant accident prevention
regulations.
4.3 Cleaning and Maintenance
The iTAG100 and all of its components require no maintenance and are self-
monitoring. All work on the iTAG100 by personnel who are not expressly qualified for
such activities will cause the safety approval and the guarantee to become void.

9
4.4 Cleaning and Maintenance Intervals
The cleaning interval depends on the environment where the system is installed.
4.5 Aggressive substances and environments
The iTAG100 is not designed to come into contact with aggressive substances or
environments, please be aware that additional protection may be required.
4.6 Exposure to external stresses
The iTAG100 is not designed to be subjected to excessive stresses e.g. vibration,
heat, impact. Additional protection is required to protect against these external
stresses.
The iTAG100 will require additional protection if it is installed in a location where it
may be subjected to damage.
5 Type Codes
See page 6 above for TX temperature codes
Type Code
Description
iTAG100-7
Tag
MET Canada Certified,
Class I Zone 0 IIB T4,T5,T6, Listing E113811
Class I Zone 1 IIC T4,T5,T6, Listing E113811
iTAG100-7-CB
Tag With Call Button
MET Canada Certified,
Class I Zone 0 IIB T4,T5,T6, Listing E113811
Class I Zone 1 IIC T4,T5,T6, Listing E113811
iTAG100-7D
Tag
MET Canada Certified,
Class I Zone 0 IIB T4,T5,T6, Listing E113811
Class I Zone 1 IIC T4,T5,T6, Listing E113811
Class II Zone 21 IIIC TX, Listing E113811
iTAG100-7D-CB
Tag With Call Button
MET Canada Certified,
Class I Zone 0 IIB T4,T5,T6, Listing E113811
Class I Zone 1 IIC T4,T5,T6, Listing E113811
Class II Zone 21 IIIC TXx, Listing E113811

10
6 Manufacturer
The iTAG100 is manufactured by:
Extronics Ltd,
1 Dalton Way,
Midpoint 18,
Middlewich
Cheshire
CW10 0HU
UK
Tel. [phone]
Fax. [phone]
E-mail: [email protected]
Web: www.extronics.com
7 Radio Equipment –FCC Warning Statement
FCC warning statement:
•This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
•This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. End users must follow the specific
operating instructions for satisfying RF exposure compliance. This
transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
•Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment

11
8 Label Drawings
Notes
1 Additional marking if required
2 Optional logos here
