EYEBEAM SOAP S User manual

SOAP
ELECTRIC SYSTEM
EYEBEAM s.rl
Via A. Volta, 17
33082 Azzano Decimo / PN - ITALY
Tel.:[phone]
www.eyebeam.it - e-mail:[email protected]
C.F. / P.Iva 01731150932
Front VIEW
S
M
L
: fixing point center
in case of vertical positioning the control graphics must be kept on the right hand side, while for horizontal
positioning the control graphics must be kept on the lower side.
Material 4mm tempered glass + 1mm etched foil
+ 4mm tempered glass
El. power supply 230-240 V / 50Hz - 1,30 m long power
supply cable
No. of fixing points 4
Package Cardboard box with inner polystyrene
protections
Standard included
equipment
Remote control, wall-mounting remote
control holder, wall-fixing brackets,
user’s manual
>100
mm
43/51
mm
52/60
mm
9 mm
overall
thickness

This appliance is intended for domestic use for room heating.
It shall not be put to any other use.
In the bathroom or shower the appliance must be fitted outside the safety zone.
The control devices must be out of reach for people in the bathroom or shower.

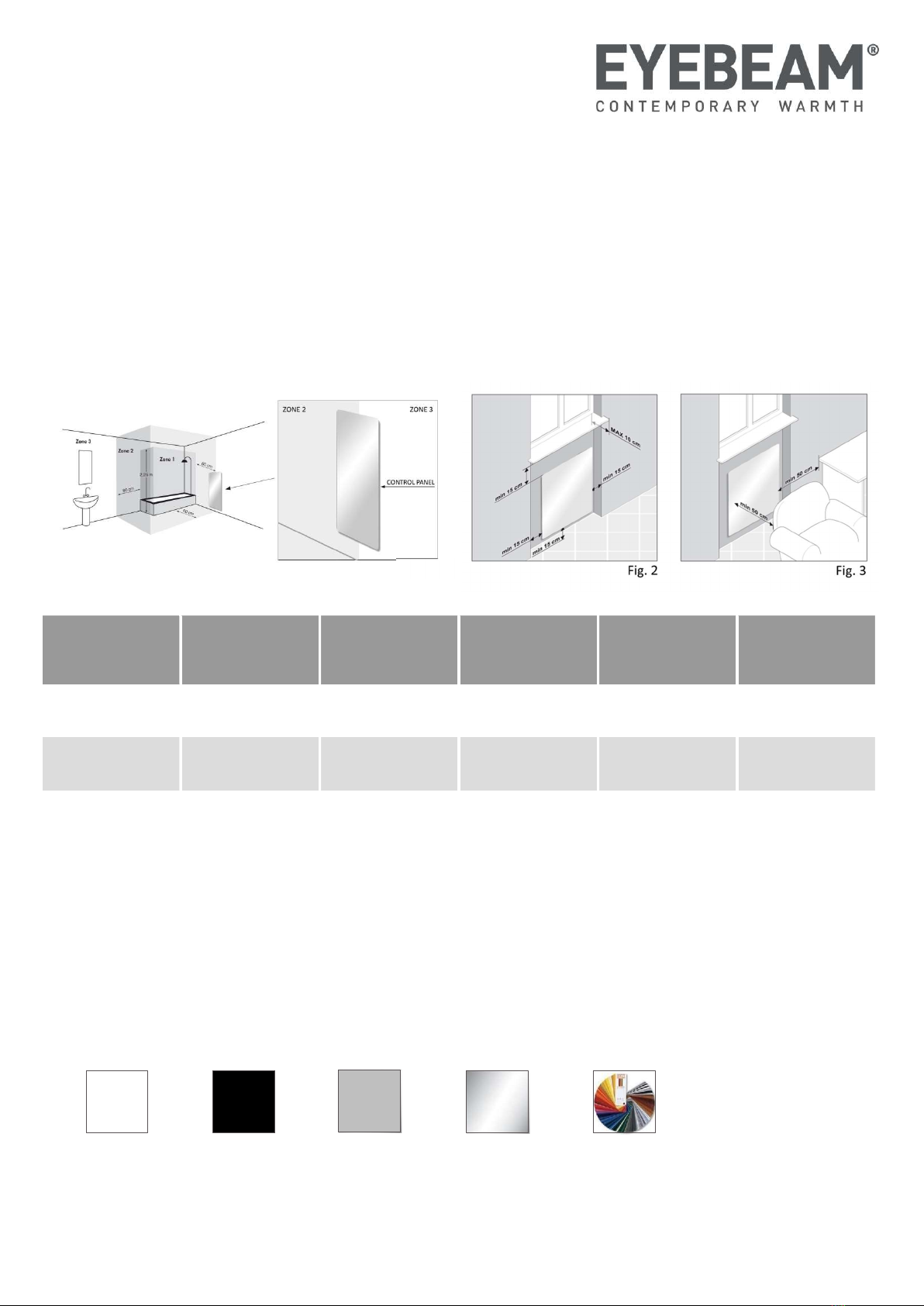

The controls must be placed in zone 3. (Fig. 1) Keep the given minimum distances. (Fig. 2-3)
Model Power supply Height Width Weight Watt
S ELECTRIC 1380 500 13.08 700
M ELECTRIC 1660 600 19.40 1000
L ELECTRIC 1900 600 22.02 1500
The radiators are equipped with an advanced control system with touch screen controls and light indicators
which indicate the set function.
FINISHING
White
Ral 9016
Black
Ral 9005
Grey
Ral 7012
Mirror Ral colours
On demand
(Stand: Dec 2020)
Fig.1.
