  9. EZTRUNK PHANTOM JK User manual

EZTRUNK PHANTOM JK User manual

BEFORE BEGINNING,SEE THE ASSEMBLY INSTRUCTION VIDEO ON EZTRUNK.NET
PHANTOM JK-JKU Aluminum Tube Doors _Ver. A
07/05/22
CUSTOMER SERVICE: [email protected]
Text & Call : 203-901-0055 / Call 203-591-9060
Page 1
PO#
:
Print the latest manual &
Watch the EZTRUNK Video
Scan QR CODE for Video &
PDF MANUALS
MAKE IT
MAN
U
A
L
A
SS
EMBL
Y
WE CAN HELP YOU!
Customer Service
Any question? WE ARE HERE TO HELP!
EMAIL US: [email protected]
Text or Call 203-901-0055 / Call 203-591-9060
7 days a week 8:30 am EST
PHANTOM JK-JKU Aluminum Tube Doors
#1911 0072 #1911 0074
BEFORE BEGINNING,SEE THE ASSEMBLY INSTRUCTION VIDEO ON EZTRUNK.NET
CUSTOMER SERVICE: [email protected]
Text & Call : 203-901-0055 / Call 203-591-9060
Page 2 PHANTOM JK-JKU Aluminum Tube Doors _Ver. A
15/03/22
Please read instructions fully before beginning assembly

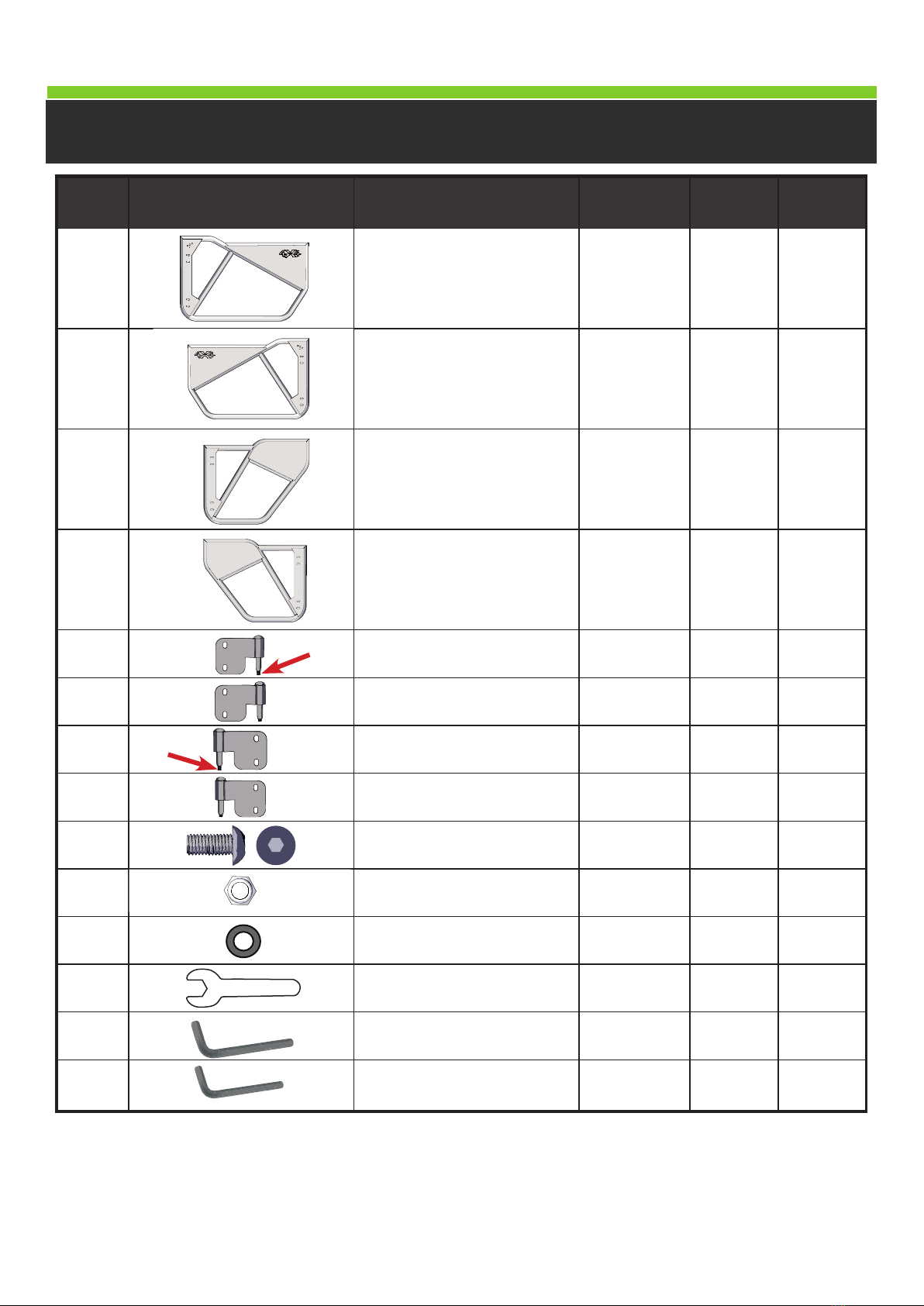

NO Illustration Description Part# 2Dr QTY.
#1911 0072
4Dr QTY
#1911 0074
1 Driver / Left Front Door 1911007FD 1 1
2Passenger / Right Front Door 1911007FP 1 1
3 Driver / Left Rear Door 1911007RD \ 1
4 Passenger / Right Rear Door 1911007RP \ 1
5 Driver Side Long Pin Upper Hinge 100701 1 2
6 Driver Side Short Pin Lower Hinge 100702 1 2
7Passenger Side Long Pin Upper
Hinge 100711 1 2
8Passenger Side Short Pin Lower
Hinge 100712 1 2
9 Hinge Bolt M8x20 28201 8+1 extra 16+1 extra
10 Hinge Lock Nut M8 10082 8+1 extra 16+2 extra
11 Metal Washer 1508012 16+1 extra 32+2 extra
12 Wrench #13 1 1
13 Allen Wrench #5 1 1
14 Allen Wrench #4 #4 1 1
WARNING This product is intended to provide added “off-road” convenience and utility to your vehicle.This product is not intended to provide occupant
containment or protection in the event of an accident or rollover. Further, “on road” use may involve increased risk of serious injury in the event of side-impact
accidents. To reduce risk from these types of injuries: Always wear seat belt and shoulder harness for all vehicle occupants.Keep arms and body inside vehicle. Drive
safely, read and understand all manufacturers warnings and product instructions before installation. Periodically check and adjust all latches and fasteners, Failure to
do so could result in the doors not latching securely.
BEFORE BEGINNING,SEE THE ASSEMBLY INSTRUCTION VIDEO ON EZTRUNK.NET
PHANTOM JK-JKU Aluminum Tube Doors _Ver. A
07/05/22
CUSTOMER SERVICE: [email protected]
Text & Call : 203-901-0055 / Call 203-591-9060
Page 3
Attach the 2 door hinges to the new door using the 4 supplied M8x20 bolts and
hardware. Leave the bolts snug only at this time, IMPORTANT INSTALL the
longer pin hinge on upper position of door and shorter pin hinge on lower position.
The upper hinge with longer pin ,which can be use to assist in guiding the door into
place.
1 2
CAUTION ! To avoid risk of injury latch mechanism must be properly adjusted
before use. Inspect and adjust as necessary should wear alter alignment of latch
and striker. Do not use door/latch if damaged.
3
With the door closed, loosen the four screws from the hinges (using a #5 allen
wrench and #13 open wrench), adjust door 2 directions position as needed and
proceed to tightened the screws.
4
Adjust the rubber stop so the doors do not move when driving. Turn the rubber to
adjust. Adjust the 2 screws if needed.
5
WE CAN HELP YOU!
Customer Service
Any question? WE ARE HERE TO HELP!
EMAIL US: [email protected]
Text or Call 203-901-0055 / Call 203-591-9060
7 days a week 8:30 am EST
Leave a little space between the Jeep and the lock
IMPORTANT
Keep hinge angle side faceing outside
LONG PIN UPPER HINGE
