EzyFast 20JS00042901 User manual

Instruction Manual
SKU: 20JS00042901
EZYFAST GAZEBO 12'X10'

page 1 of 10
WARNING:
CARE AND MAINTENANCE
KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT
FABRIC. This tent is made with fabric that meets CPAI-84
specification for flame resistance. It is not fire proof. The fabric will
burn if left in continuous contact with any flame source. The
application of any foreign substance to the tent fabric may render
the flame-resistant properties ineffective.
Always secure the gazebo with pegs and guy ropes. It's
crucial to do this any time you have the gazebo up to minimize
the impact of unexpected wind gust. Extra weight down at
legs is highly recommended.
Do not use in extreme weather conditions. Do not use in
lightning storms. Do not use in very windy weather. Do not over
use in rainy weather. Take down the gazebo before extreme
weather events.
Be cautious when handling the frame. Avoid pinching hands or
fingers in any moving parts as frame opens and closes.
The gazebo is designed for temporary use, not a permanent
structure. Do not leave up for extended periods and do not leave
the gazebo unattended. Take down the gazebo and store away
after use.
Keep children away from the set up area.
Utility Hook for small hanging object only. Do not hang any
object heavier than 5 lbs. Check the hook every time before use.
Do not use if it comes loose!
Avoid twisting the frame during set up. Raise legs evenly. The
frame tubes may break if you twist the frame too much.
Wash frame and canopy with a mild solution of soap and water,
rinse thoroughly. Dry completely. Do not use bleach or solvents.
Inspect frame periodically to ensure all bolts and nuts are tight.
Always return the gazebo to storage bag after use. Suggest to
take the canopy off the frame for separate storage in the bag. Be
sure the canopy is completely dry before storing it.

page 2 of 10
NEVER forcefully setup or takedown.
NEVER twist the frame.
NEVER assume there is no-wind.
NEVER leave your shelter unattended.
NEVER use in prolonged raining situation.
CAUTION sudden wind can blow shelter over and cause
damage.
CAUTION forceful operation can damage or destroy frame.
CAUTION any unattended shelter can cause serious injury
and or damage.
ALWAYS anchor or weight down.
ALWAYS take down in wind greater than 15mph.
ALWAYS takedown in lighting storm.
ALWAYS refer to instruction manual.
NOTES

Stand frame upright.Starting at the
corners, with partner standing on the
opposite side, grasp the two outer
legs, slightly lift the frame off the
ground and step backward, stopping
at full arms’ length.
First, upack the fabric canopy top and
locate the small piece of fabric Vent
Cover. Lift up the top tier canopy
holding rods. Pull the corner pockets
over the raised vent tubes on top frame.
Second, place the main canopy top over
the top frame. Match the Velcro Loop
pads at 4 canopy corners to the Velcro
Hook pads at 4 upper frame legs right
under the plastic top caps.
Each partner should then grasp the
bottom of the middle frame section
(cross beams)where it forms diamond.
Lift slightly and slowly walk backward
until the frame is fully extended. Be
careful not to pinch your finger and
not pull backward too hard as this
may result in the bending of cross
beams.
1.
2.
3.
SET-UP INSTRUCTIONS
IMPORTANT: DO NOT USE EXCESSIVE FORCE DURING ANY PART OF
SET-UP!
page 3 of 10

Suggest to remove the canopy top after use.
In case leave the canopy top on, please
double check all the straps are released
and carefully avoid fabric getting into the
trusses which may cut and tear your fabric
during the frame closing processes.

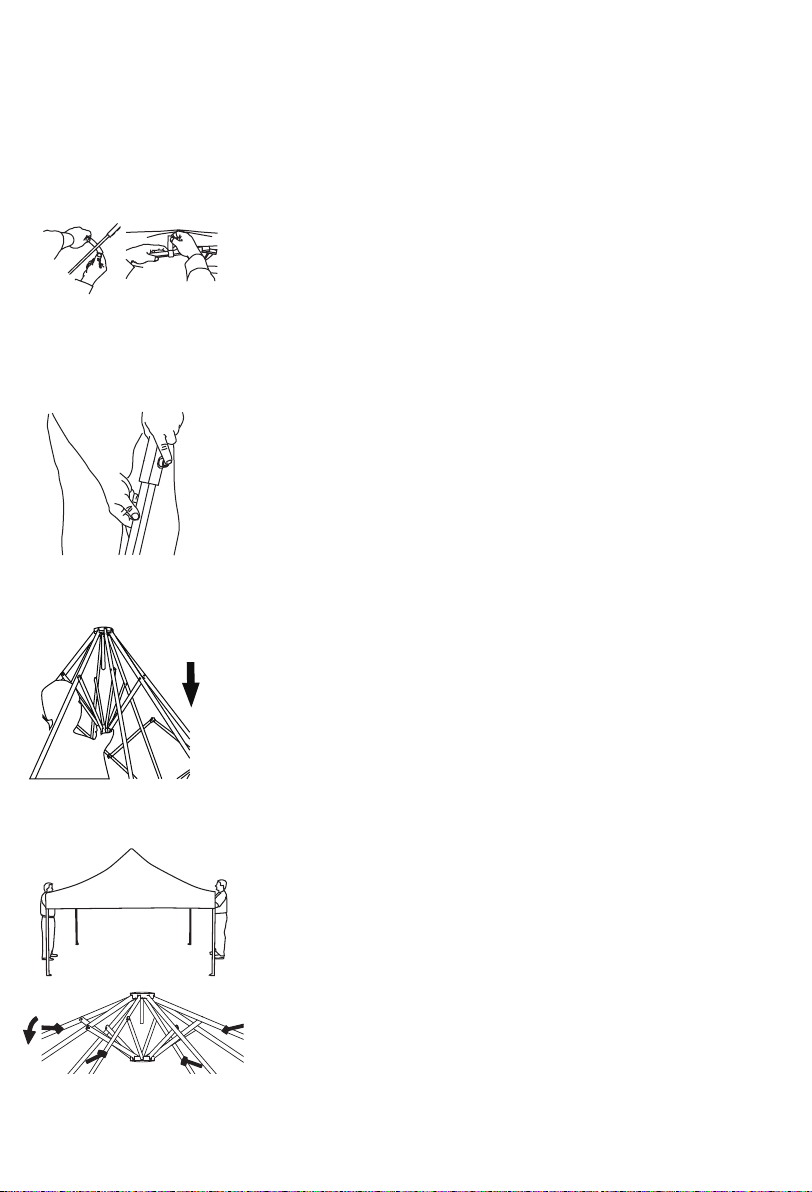

Lower top tier canopy holding rods before
fully close the frame.
Disengaging the roof frame
Get under the roof. Simply pull down the
lower roof hub till the frame is partially
closed.
Lift two adjacent outer legs and pull out
inner legs gently until snap button pops in
position. Repeat on the other two legs. Please
raise the legs in turns. Avoid twisting the
frame too much during the process. It could
break the frame tubes due to the excessive
twisting or bending the frame.The gazebo has
three height levels. To adjust, lift the leg up.
carefully depress the snap button and slowly
pull out the inner leg tillthe snap button pops
in next position. Repeat on the other legs. Be
careful do not overpull the leg.
7.
4.
To secure the fabric top to the frame, please
wrap the hook and loop straps around roof
tubes and cross beams.
Use the Velcro pads to secure each corner
of the fabric top to the frame under the
plastic leg caps.
6.
5.
Push up and engage the roof frame
Extend the frame to be almost opened.One
person get under the canopy roof, push
the lower roof hub fully up till the central
rod get into the hub. The frame is then self
locked.
page 4 of 10

page 5 of 10

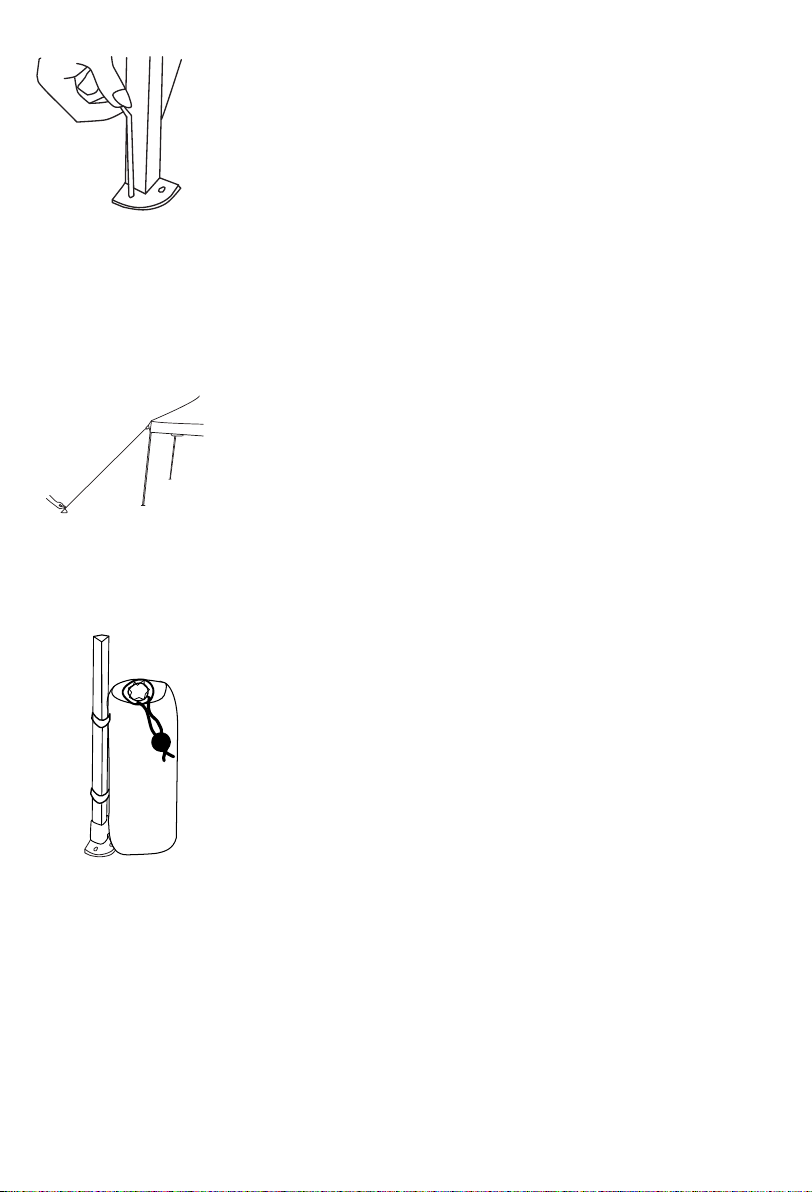

Peg down the gazebo by driving the 4
small pegs through one of the holes on
the base of each foot. This will keep the
legs from moving sideways in mild weather
conditions.
Tie up one end of each guy rope to the
triangular shaped rope holder located on
the outside fabric corners. Pull the guy rope
out from the corner of the gazebo towards
the ground at a 45 degree angle. Hammer
one of the larger pegs in to the ground and
secure the guy rope firmly to it. Make sure
the guy ropes have adequate tension.
THE GAZEBO MUST BE SECURED TO THE
GROUND WITH ANCHORS AND GUY ROPES!
8.
9.
A gust of wind may blow over the gazebo,
make sure you weight down the gazebo.
The bonus weight bags may be provided
for your convenience that you may fill them
with sands or other heavy objects. Suggest
you to have other stronger heavy weights to
hold down the gazebo properly.
10.

Unpack the screen kit, locate the zipper
end of the screen panel, position it in the
middle of two legs. Place the screen out
around the frame.
Match the screen up to frame. Attach the
screen panels to cross tubes by hook & loop
straps.
Tuck the upper corner of screen up into the
corner of fabric valance. Secure to the upper
corner frame with hook & loop straps.
4.
3.
Further secure screen to legs with hook &
loop straps.
5.You may zip the screen all around to keep
insects out. Or leave one side unzipped as
an entrance, by adjusting the attachement
location of screen panels at cross beams,
you may hold back the screen panels with
tiebacks for a drapery look.
SCREEN ASSEMBLY
2.
1.
SUGGESTED SCREEN USAGES
page 6 of 10

Release snap button on each leg and
shorten the frame to its original height
prior to extending the legs during set-up.
2.
4.
3.
Suggest to remove the canopy top after use.
In case leave the canopy top on, please
double check all the straps are released
and carefully avoid fabric getting into the
trusses which may cut and tear your fabric
during the frame closing processes.
Lower top tier canopy holding rods before
fully close the frame.
Undo the hook and loop straps of the
fabric top from around the roof tubes
and cross beams. Failure to do so may
tear the fabric during take-down.
Remove spikes or weighted anchors.
PACK-DOWN INSTRUCTIONS
IMPORTANT: DO NOT USE EXCESSIVE FORCE DURING TAKING-DOWN.
PLEASE REMOVE ANCHORS AND GUY ROPES BEFORE TAKING-DOWN.
1.
Disengaging the roof frame
Get under the roof. Simply pull down the
lower roof hub till the frame is partially
closed.
page 7 of 10

First, upack the fabric canopy top and
locate the small piece of fabric Vent
Cover. Lift up the top tier canopy
holding rods. Pull the corner pockets
over the raised vent tubes on top frame.
Second, place the main canopy top over
the top frame. Match the Velcro Loop
pads at 4 canopy corners to the Velcro
Hook pads at 4 upper frame legs right
under the plastic top caps.
(cross beams)where it forms diamond.
page 8 of 10

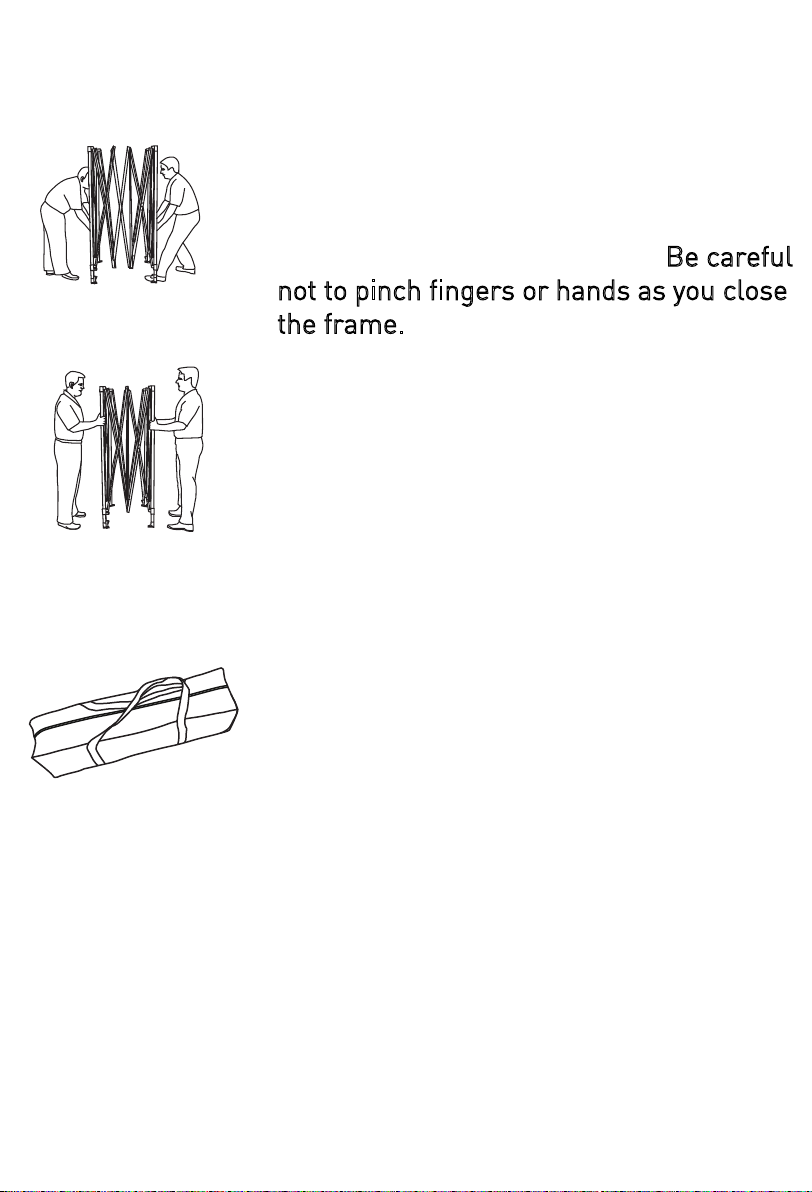

With partner on the opposite side, grasp
the middle section of the frame and lift up
slightly. Walk forward slowly allowing the
frame to fold inward and close. Be careful
not to pinch fingers or hands as you close
the frame.
Grap the out legs and completely close
the frame. It will fit into the bag.
Put the compressed frame into the
storage bag first and then the folded
fabric top and screen. Make sure
everything is completely dry before
storing away.
7.
6.
5.
