EzyFast 6414000 User manual

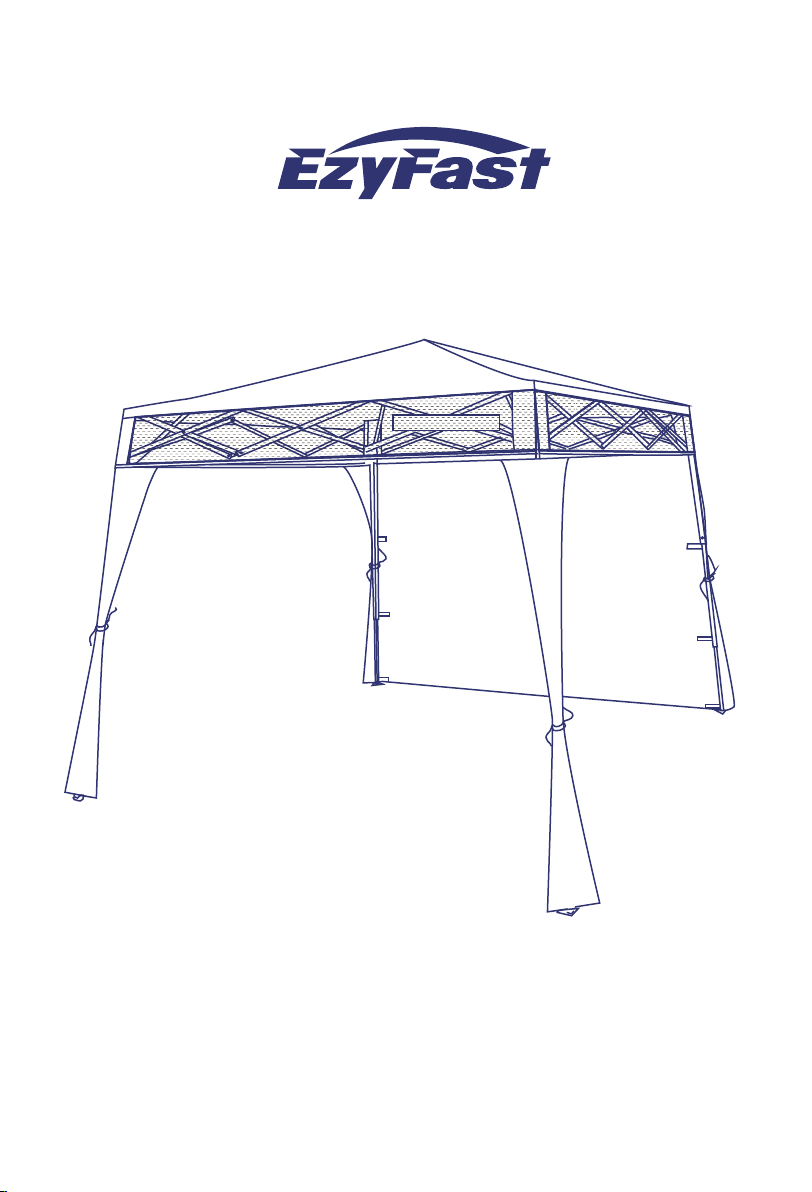

8’x8’ Shade Handy Gazebo
Instruction Manual
SKU: 6414000

page 1 of 6
PLEASE READ
THIS IS A SHADE STRUCTURE, NOT A PERMANENT STRUCTURE.
GAZEBO MUST BE PACKED DOWN WHEN NOT IN USE.
THISGAZEBO SHOULD NOT BELEFT UNATTENDED IN HEAVY RAIN.
DO NOT USE
DURING SEVERE
WEATHER
CONDITIONS.
CARE AND MAINTENANCE:
•HAND WASH CANOPY WITH A MILD SOLUTION OF SOAP AND
WATER. RINSE THOROUGHLY, AND DRY COMPLETELY. DO NOT USE
BLEACH OR SOLVENTS.
•TO CLEAN THE FRAME, SIMPLY WIPE DOWN WITH A DAMP CLOTH.
•GENTLY TIGHTEN BOLTS AND NUTS IF FRAME COMES LOOSE.
•THE GAZEBO IS DESIGNED AS A TEMPORARY SUN SHELTER, NOT
A PERMANENT STRUCTURE. DO NOT LEAVE UP FOR EXTENDED
PERIODS AND DO NOT LEAVE THE GAZEBO UNATTENDED.
TAKE DOWN THE GAZEBO AND STORE AWAY AFTER USE.
•ENSURE YOU READ THE USER MANUAL AND FAMILIARISE
YOURSELF WITH THE PRODUCT BEFORE USE.
MODEL: AO-G20 PRODUCT CODE: 62475/62476 V.1
KEEP AWAY FROM
HEAT SOURCES AND
OPEN FLAMES.
DO NOT USE IN WINDY
CONDITIONS.
CARE AND MAINTENANCE:
•HAND WASH CANOPY WITH A MILD SOLUTION OF SOAP AND
WATER. RINSE THOROUGHLY, AND DRY COMPLETELY. DO NOT USE
BLEACH OR SOLVENTS.
•TO CLEAN THE FRAME, SIMPLY WIPE DOWN WITH A DAMP CLOTH.
•GENTLY TIGHTEN BOLTS AND NUTS IF FRAME COMES LOOSE.
•THE GAZEBO IS DESIGNED AS A TEMPORARY SUN SHELTER, NOT
A PERMANENT STRUCTURE. DO NOT LEAVE UP FOR EXTENDED
PERIODS AND DO NOT LEAVE THE GAZEBO UNATTENDED.
TAKE DOWN THE GAZEBO AND STORE AWAY AFTER USE.
•ENSURE YOU READ THE USER MANUAL AND FAMILIARISE
YOURSELF WITH THE PRODUCT BEFORE USE.
MODEL: AO-G20 PRODUCT CODE: 62475/62476 V.1
KEEP AWAY FROM
HEAT SOURCES AND
OPEN FLAMES.
SECURE THE FRAME
WITH PEGS.
110mm
80mm
CONSUMER WARNING LABEL - (QTY X 2)
Sew into Seam of Carry Bag: OUTSIDE OF BAG / AND GAZEBO CANOPY
DO NOT USE DURING
SEVERE WEATHER
CONDITIONS.
CARE AND MAINTENANCE
Extra weight down at legs is highly recommended.
Do not use in extreme weather conditions. Do not use in lightning storms.
Do not use in very windy weather. Do not over use in rainy weather.
Take down the gazebo before extreme weather events.
Be cautious when handling the frame. Avoid pinching hands or fingers in
any moving parts as frame opens and closes.
The gazebo is designed for temporary use, not a permanent structure.
Do not leave up for extended periods and do not leave the gazebo
unattended. Take down the gazebo and store away after use.
Keep children away from the set-up area.
Avoid twisting the frame during set up. Raise legs evenly. The frame
tubes may break if you twist the frame too much.
Wash frame and canopy with a mild solution of soap and water, rinse
thoroughly. Dry completely. Do not use bleach or solvents.
Inspect frame periodically to ensure all bolts and nuts are tight.
Always return the gazebo to storage bag after use. Suggest taking the
canopy off the frame for separate storage in the bag. Be sure the
canopy is completely dry before storing it.
There could be some minor leaking or dripping from the seams,
recommend using seam-sealer spray, available at most hardware
stores or on-line stores.
DO NOT ASSUME NO WIND. THE WEATHER IS FULL OF SURPRISES!
THE SHELTER MUST BE SUFFICIENTLY SECURED AT ALL TIMES.
PLEASE TAKE ALL MEASURES TO HOLD THE SHELTER DOWN ONCE
SET UP. USING ROPES TO TIE TO HEAVY OBJECTS OR PEGS, AND
PLACING HEAVY WEIGHTS ON POSTS ARE HIGHLY RECOMMENDED.
THIS MAY PROVIDE SUPPORT DURING A SUDDEN GUST OF WIND.
IGNORING THIS WARNING MAY CAUSE THE SHELTER TO BE BLOWN
AWAY AND CAUSE SERIOUS DAMAGE AND INJURY.
AT ALL
TIMES!
110mm
80mm
CONSUMER WARNING LABEL - (QTY X 2)
Sew into Seam of Carry Bag: OUTSIDE OF BAG / AND GAZEBO CANOPY
SECURE THE FRAME
WITH PEGS ADD EXTRA
WEIGHT TO LEGS
IF NEEDED.
SECURE
KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC.
This Tent is Made With Fabric That Meets CPAl-84 Specification For Flame
Resistance. lt is Not Fireproof . The Fabric Will Burn lf Left ln Continuous
Contact With Any Flame Source. The application of any foreign substance
to the tent fabric may render the flame-resistant properties ineffective.
WARNING:
KEEP AWAY FROM
HEAT SOURCES AND
OPEN FLAMES.

page 2 of 6
Common Mistakes and Misuses to Avoid
Mistake 1. Incorrect setup
Ensure you are following our assembly instructions when setting up a gazebo. Set up without reading the
instruction manual can cause unnecessary damage to the gazebo and increase unnecessary wear and tear.
Mistake 2. Using Gazebos without being properly anchored
This is the single biggest mistake inexperienced users can make. A sudden wind can cause serious
damage. Gazebos must be secured to a fixed structure in any circumstances to provide additional stability by
using pegs and guy ropes. This is essential to avoid wind damage. Further support can be achieved by using
leg weights, like sandbags and steel leg weights.
Mistake 3. Using a gazebo in extreme weather conditions
The gazebo is designed as a temporary sun shelter. It works for normal weather conditions for a period of time.
Do not recommend using in rainy and windy days. Strictly avoid use in extreme weather conditions. The power
of nature is incredible.
Mistake 4. Your gazebo is left up overnight or left attended
Gazebo shall be not left outside overnight. Weather change constantly and largely unpredictable. Unexpected
rain, sudden strong wind, or temperature changes may cause serious damage to your gazebo. Nature is full
of surprise.
Mistake 5. Forcefully take the canopy top away without undoing the Velcro ties
This may cause tears at the points that Velcro ties are sewn. Velcro ties and loops are used to secure the
canopy top to the frame after setting up. They must be untied before take-down.
Mistake 6. The canopy is left on the frame when it’s folding down
Unnecessary wear and tear will increase if the canopy was left on the frame when it’s folded down. The moving
truss tubes may catch the fabric and cut it during the closing, causing tears. This wrongful operation will weaken
or tear your canopy.
Mistake 7. Retract the dirty telescoping legs
While used on the beach or other wet and dirty ground, the sands or dirt may get into the telescoping tubes
and cause them to get stuck if not removed and cleaned before retracting. Always make sure the legs are cleaned
and free from sand and dirt before retracting.
Mistake 8. Repack a wet or damp gazebo after using
Repack a wet or damp gazebo after using can cause mildew. Take your gazebo down when it is completely
dry, then fold the cover neatly and store it back in the bag.
Mistake 9. Ignore the effect of damaged parts
Damaged parts on your gazebo can cause further damage. Check the gazebos framework for a damaged roof,
brackets, bent truss bars, and loose or missing bolts, and replace/tighten as necessary.
Mistake 10. Excess water or use chlorine-containing cleaning chemicals to wash the gazebo
It is a good idea to give our gazebos a regular clean to prevent the build-up of dirt and the formation of mold.
Using a hose is a good way to get rid of dirt from the canopy. In some circumstances, excess and unattended
water on the frame can cause the materials to rust. The proper way to clean your gazebo(both cover and frame)
is to use cold water and a soft cloth together with a mild soap such as bleach-free dish-washing detergent or mild
soap. We recommend you apply some silicone spray to the joints from time to time to keep them in good working
order.
Reminders for Canopy Users
NEVER forcefully setup or takedown. NEVER twist the frame. NEVER assume there is no wind. NEVER
leave your shelter unattended. NEVER use it in prolonged raining situations.
CAUTION sudden wind can blow shelter over and cause damage. CAUTION forceful operation can damage
or destroy the frame. CAUTION any unattended shelter can cause serious injury and or damage.
ALWAYS anchor or weight down. ALWAYS take down in wind greater than 15mph. ALWAYS take down in
a lightning storm. ALWAYS refer to the instruction manual.

SET-UP INSTRUCTINOS
IMPORTANT: DO NOT USE EXCESSIVE FORCE DURING ANY PART
OF SET-UP
Take out the frame and canopy top from the
carry bag and stand the frame on its feet.
STEP 1
STEP 2
STEP 3
Pull opposite corners away from each other
to expand frame as far as possible.
Engage the sliders at each corner by pushing
up the slider with one hand while holding
down the top of the leg with the other hand
until it locks into place.
page 3 of 6

Gently pull out the telescopic legs stage by
stage until the spring buttons pop in
position. There are three telescopic leg
heights. Please do not push in the spring
button while pulling the legs and do not
over pull each leg! You may lower the
height by pressing the pin in and
re-adjusting to the desired height. Repeat
for each leg.
STEP 5
Drop the sunblock fabric wall and attach
to the legs.
STEP 6
Pull down the leg fabric and hook onto the
hole of lower leg. Repeat on the
remaining legs.
STEP 7
Weight pockets on the leg fabric can be
filed with sand or water bottles to help
hold down the Gazebo.
STEP 8
STEP 4
Place the canopy over the top frame. Use
the Velcro pads to secure the canopy to the
frame at each comer.
page 4 of 6

page 5 of 6
Remove the canopy top from the frame
and fold it up nicely. Do not put it in the
carrying bag before frame.
Release the spring button lock and shorten the
telescopic legs.
STEP 9
STEP 10
Release sliders at all four corners by
pushing the red plastic button and gently
push the sliders down to leave the locking
position.
STEP 11

page 6 of 6
PACK-DOWN INSTRUCTINOS
IMPORTANT: DO NOT USE EXCESSIVE FORCE DURING TAKING DOWN.
PLEASE REMOVE ANCHORS AND GUY ROPES BEFORE TAKING DOWN.
Put the compressed frame into the carrying
bag and then slide the folded canopy into the
carrying bag also. Zip close the carrying bag.
Ensure canopy and gazebo is completely dry
before storing away.
STEP 3
With all four corners locking released,
lift and walk one comer of the frame
towards the opposite corner to close
the frame.
Be cautious not to pinch hands or
fingers!
STEP 1
Fully compress frame so it will fit easily
into the bag.
STEP 2
IMPORTANT: PRINT SPECS
NUMBER OF COLOURS TO PRINT
DO NOT ALTER ARTWORK/DIELINE
3
MAGENTA YELLOW BLACK
DIELINE
Sew into Seam of Carry Bag: OUTSIDE OF BAG / AND GAZEBO CANOPY
IMPORTANT: PRINT SPECS
NUMBER OF COLOURS TO PRINT
DO NOT ALTER ARTWORK/DIELINE
3
MAGENTA YELLOW BLACK
DIELINE

SKU: 6414000 Code: 17JS01060202
