FA goods FA-TH16X100A31 User manual

1
Input Terminal Module
FA-TH16XRA20S,FA-TH16X100A31,FA-TH16X200A31,
FA-TH16X24D31,FA-TH16X100A31L,FA-TH16X200A31L,
FA-TH16X24D31L,FA-TH16X48D31L,FA-TH16X100D31L
User's Manual
Thank you for purchasing the FA Goods products.
Before using the products, please read this manual and the relevant manuals carefully to
handle the products correctly.
SAFETY PRECAUTIONS
(Read these precautions before using the FA Goods products.)
Before using the products, please read this manual and the relevant manuals carefully, and pay full
attention to safety to handle the products correctly.
The precautions given in this manual are concerned with the FA Goods products only.
For the safety precautions of the programmable controller system, refer to the user's manual for the
programmable controller used.
In this manual, the safety precautions are classified into two levels: " WARNING" and " CAUTION".
WARNING Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
CAUTION Indicates that incorrect handling may cause hazardous
conditions, resulting in minor or moderate injury or
property damage.
Under some circumstances, failure to observe the precautions given under " CAUTION" may lead
to serious consequences.
Observe the precautions of both levels because they are important for personal and system safety.

2
[Design Precautions]
WARNING
●Configure safety circuits externally to ensure that the entire system operates safely even when a fault occurs in the external power
supply, the programmable controller, or the FA Goods products. Failure to do so may result in an accident due to an incorrect
output or malfunction.
(1) Emergency stop circuits, protection circuits, and protective interlock circuits for conflicting operations (such as
forward/reverse rotations or upper/lower limit positioning) must be configured externally.
(2) Outputs may remain on or off due to a failure of a component such as a relay, transistor, and triac in an output terminal
module. Configure an external circuit for monitoring output signals that could cause a serious accident.
●In an output circuit of an output terminal module, when a load current exceeding the rated current or an overcurrent caused by a
load short-circuit flows for a long time, it may cause smoke and fire. To prevent this, configure an external safety circuit, such as
a fuse.
●Configure a circuit so that the programmable controller is turned on first and then the external power supply. If the external power
supply is turned on first, an accident may occur due to an incorrect output or malfunction.
[Design Precautions]
CAUTION
●Do not install the control lines or communication cables together with the main circuit lines or power cables. Keep a distance of
100mm (3.94 inches) or more between them. Failure to do so may result in malfunction or failure due to noise.
●When using a terminal block conversion module for a high-speed counter module, do not install the control lines or communication
cables together with the main circuit lines or power cables. Keep a distance of 150mm (5.91 inches) or more between them.
Failure to do so may result in malfunction or failure due to noise.
●Keep a distance of 100mm (3.94 inches) or more between a thermocouple or RTD (Resistance Temperature Detector) and the
main circuit line or AC control lines. Also, keep the thermocouple or RTD away from a circuit that includes harmonics, such as a
high-voltage circuit and a load circuit of an inverter. If not, the thermocouple or RTD is more likely to be affected by noise, surges,
and induction.
●At power-on or power-off, a voltage may occur or a current may flow between output terminals for a moment. To use an analog
signal converter or analog terminal block conversion module, start the control after analog outputs become stable.
●Do not place an analog signal converter or analog terminal block conversion module near a device that generates magnetic noise.
●When a device such as a lamp, heater, or solenoid valve is controlled through an output terminal module, a large current
(approximately 10 times greater than normal) may flow when the output is turned from off to on. Therefore, use an output terminal
module that has a sufficient current rating.
[Installation Precautions]
WARNING
●Shut off the external power supply (all phases) used in the system before installation. Failure to do so may result in electric shock
or damage to the products.

3
[Installation Precautions]
CAUTION
●Use FA Goods products in an environment that meets the general specifications in this manual. Failure to do so may result in
electric shock, fire, malfunction, or damage to or deterioration of the products.
●Securely fix the products with a DIN rail or screws. Incorrect installation may cause malfunction, failure, or drop of the module.
When using the products in an environment of frequent vibrations, fix the products with screws.
●Tighten the screws within the specified torque range. Undertightening can cause drop of the screw, short circuit, or malfunction.
Overtightening can damage the screw and/or products, resulting in drop, short circuit, or malfunction.
●Attach DIN rail stoppers on the right and left sides of the spring clamp conversion module (FA1-TESV**) to fix the module securely.
●Shut off the external power supply (all phases) used in the system before mounting or removing the products. Failure to do so may
result in damage to, malfunction of, or failure of the products.
●Do not directly touch any conductive parts and electronic components of the products. Failure to do so may cause malfunction or
failure of the products.
●Install the products in the correct orientation if it is specified. Failure to do so may result in damage to or deterioration of the
products.
●When drilling screw holes, be careful not to drop chips into the inside of the products or conductive parts. Such foreign matter can
cause a fire, failure, or malfunction.
●When using replacement relays/triacs/transistors for a terminal module or signal conversion modules, use them in the correct
combination. Incorrect combination may cause failure.
●Shut off the power supply before installing/removing a replacement relay/triac/transistor for a terminal module. Failure to do so
may cause failure or malfunction.
●Securely install replacement relays/triacs/transistors on a terminal module and securely mount a signal conversion modules on an
installation base. Failure to do so may cause damage to or drop of the products, or malfunction due to poor contact. Follow the
correct procedure to install/remove them. Failure to do so may cause damage to or drop of the products, or malfunction due to
poor contact.
●When relay/triac/transistor modules are installed on a terminal module or a signal conversion module is mounted on the installation
base, hold the terminal module or installation base to transport them or install them to a panel. Holding the relay/triac/transistor
or signal conversion module may cause drop or failure of the terminal module or installation base.
[Wiring Precautions]
WARNING
●Shut off the external power supply (all phases) used in the system before wiring. Failure to do so may result in electric shock or
damage to the products.
●After wiring, attach the included terminal cover to the products before turning them on for operation. Failure to do so may result in
electric shock.

4
[Wiring Precautions]
CAUTION
●Use applicable solderless terminals and tighten them within the specified torque range. Failure to do so may cause failure, damage,
or malfunction.
●Check the rated voltage and terminal layout before wiring to the products, and connect the cables correctly. Connecting a power
supply with a different voltage rating or incorrect wiring may cause a fire or failure.
●Do not install the control lines or communication cables together with the main circuit lines or power cables. Keep a distance of
100mm or more between them. Failure to do so may result in malfunction due to noise.
●When using a terminal block conversion module for a high-speed counter module, do not install the control lines or communication
cables together with the main circuit lines or power cables. Keep a distance of 150mm (5.91 inches) or more between them.
Failure to do so may result in malfunction or failure due to noise.
●Keep a distance of 100mm (3.94 inches) or more between a thermocouple or RTD (Resistance Temperature Detector) and the
main circuit line or AC control lines. Also, keep the thermocouple or RTD away from a circuit that includes harmonics, such as a
high-voltage circuit and a load circuit of an inverter. If not, the thermocouple or RTD is more likely to be affected by noise, surges,
and induction.
●Do not place an analog signal converter or analog terminal block conversion module near a device that generates magnetic noise.
●Place the cables in a duct or clamp them. If not, dangling cable may swing or inadvertently be pulled, resulting in damage to the
products or cables or malfunction due to poor contact.
●Tighten the terminal screws within the specified torque range. Undertightening can cause short circuit, fire, or malfunction.
Overtightening can damage the screw and/or products, resulting in drop, short circuit, or malfunction.
●Tighten the connector screws within the specified torque range. Undertightening can cause short circuit, fire, or malfunction.
Overtightening can damage the screw and/or products, resulting in drop, short circuit, fire, or malfunction.
●Securely connect connectors to the products. Failure to do so may cause malfunction.
●When disconnecting a cable from the products, do not pull the cable by the cable part. For the cable with connector, hold the
connector part of the cable. For the cable connected to the terminal block, loosen the terminal screw. Pulling the cable connected
to the products may result in malfunction or damage to the products or cable.
●Check the interface type and correctly connect the cable. Incorrect wiring (connecting the cable to an incorrect interface) may
cause failure of the products and external device.
●Prevent foreign matter such as dust or wire chips from entering the products. Such foreign matter can cause a fire, failure, or
malfunction.
●The products must be installed in control panels. Connect the main power supply to the products in the control panel through a
relay terminal block. Wiring and replacement of the products must be performed by qualified maintenance personnel with
knowledge of protection against electric shock.
●When connecting the products with a programmable controller, check that the product configuration is correct. An incorrect
configuration may cause failure or malfunction.
●Use the products with no force applied to their connectors. Applied force may cause failure or disconnection.
●Attach protective covers or signal conversion modules to unused connectors or empty slots of the products. Failure to do so may
cause a fire, failure, or malfunction due to foreign matter.
●When using replacement relays/triacs/transistors for a terminal module or signal conversion modules, use them in the correct
combination. Incorrect combination may cause failure of a programmable controller, terminal module, installation base, or external
device.
●Securely install replacement relays/triacs/transistors on a terminal module and securely mount a signal conversion modules on an
installation base. Failure to do so may cause damage to or drop of the products, or malfunction due to poor contact. Follow the
correct procedure to install/remove them. Failure to do so may cause damage to or drop of the products, or malfunction due to
poor contact.
●Individually ground the FG terminal of the products with a ground resistance of 100 ohms or less. Failure to do so may result in
electric shock or malfunction.

5
[Startup and Maintenance Precautions]
WARNING
●Do not touch any terminal while power is on. Doing so will cause electric shock or malfunction.
●Shut off the external power supply (all phases) used in the system before cleaning the products or retightening the terminal screws,
connector screws, or products fixing screws. Failure to do so may result in electric shock or cause failure or malfunction of the
products. Undertightening can cause drop of the screw, short circuit, or malfunction. Overtightening can damage the screw and/or
products, resulting in drop, short circuit, or malfunction.
[Startup and Maintenance Precautions]
CAUTION
●Do not disassemble or modify the products. Doing so may cause failure, malfunction, injury, or a fire.
●Use any radio communication device such as a cellular phone or PHS (Personal Handy-phone System) more than 25cm away in
all directions from the programmable controller and FA Goods products. Failure to do so may cause malfunction.
●Shut off the external power supply (all phases) used in the system before mounting or removing the products. Failure to do so may
cause failure or malfunction of or damage to the products.
●After the first use of the products, do not connect/remove the products and cables more than 50 times (IEC 61131-2 compliant).
Exceeding the limit may cause malfunction.
●Startup and maintenance of a control panel must be performed by qualified maintenance personnel with knowledge of protection
against electric shock. Lock the control panel so that only qualified maintenance personnel can operate it.
●Before handling the products, touch a conducting object such as a grounded metal to discharge the static electricity from the
human body. Failure to do so may cause failure or malfunction of the products.
[Disposal Precautions]
CAUTION
●When disposing of the products, treat them as industrial waste.
[Transportation Precautions]
CAUTION
●Do not apply shock that exceeds the shock resistance described in the general specifications during transportation since the
products are precision devices. Doing so may cause failure of the module.
●The halogens (such as fluorine, chlorine, bromine, and iodine), which are contained in a fumigant used for disinfection and pest
control of wood packaging materials, may cause failure of the products. Prevent the entry of fumigant residues into the product
or consider other methods (such as heat treatment) instead of fumigation. The disinfection and pest control measures must be
applied to unprocessed raw wood.
EMC and Low Voltage Directives
Compliance with the EMC Directive, which is one of the EU directives, has been mandatory for products sold within EU
member states since 1996 as well as compliance with the Low Voltage Directive since 1997.
For products compliant to the EMC and Low Voltage Directives, their manufacturers are required to declare compliance
and affix the CE marking.
(1) Sales representative in EU member states
The sales representative in EU member states is:
Company: MITSUBISHI ELECTRIC EUROPE B.V.
Address: Mitsubishi-Electric-Platz 1, 40882 Ratingen, Germany
(2) Method of ensuring compliance
To ensure that FA Goods products maintain EMC and Low Voltage Directives when incorporated into other machinery
or equipment, certain measures may be necessary. Please refer to "EMC and Low Voltage Directives Compliant
Manual" (50D-FA9010-108).

6
REVISIONS
*The manual number is given on the bottom left of the last page.
Print Date *Manual Number Revision
March, 2018 50D-FG0233 First edition
This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent licenses. Mitsubishi
Electric Engineering cannot be held responsible for any problems involving industrial property rights which may occur as a result of
using the contents noted in this manual.
© 2018 MITSUBISHI ELECTRIC ENGINEERING COMPANY LIMITED

7
CONTENTS
SAFETY PRECAUTIONS ·········································································································································· 1
1. INTRODUCTION·················································································································································· 8
2. GENERAL SPECIFICATIONS································································································································· 8
3. PERFORMANCE SPECIFICATIONS························································································································ 9
3-1. FA-TH16XRA20S··········································································································································· 9
3-2. FA-TH16X100A31········································································································································ 10
3-3. FA-TH16X200A31········································································································································ 10
3-4. FA-TH16X24D31 ········································································································································· 11
3-5. FA-TH16X100A31L ······································································································································ 11
3-6. FA-TH16X200A31L ······································································································································ 12
3-7. FA-TH16X24D31L········································································································································ 12
3-8. FA-TH16X48D31L········································································································································ 13
3-9. FA-TH16X100D31L ······································································································································ 14

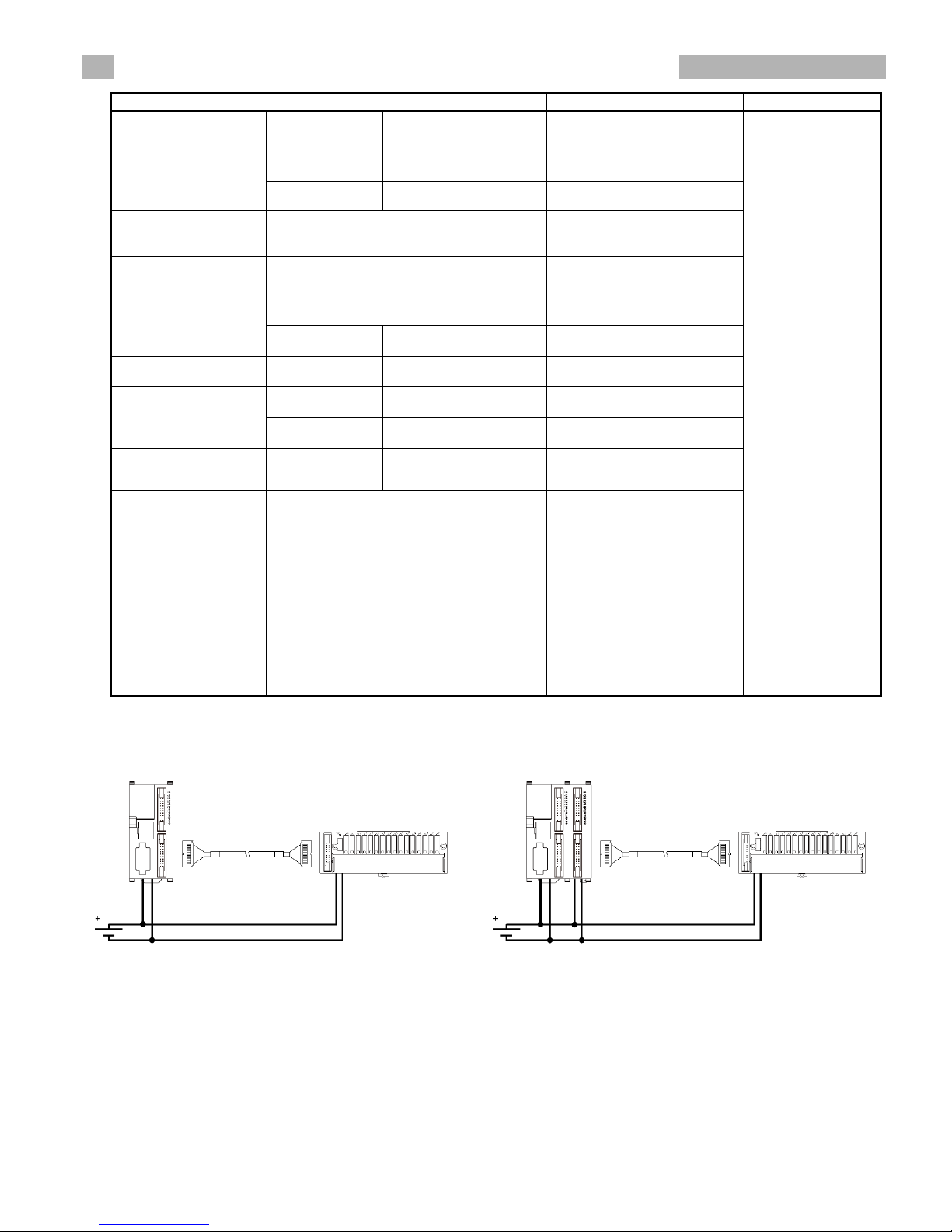

4. TARGET PLC MODULES AND CONNECTION CABLES ··························································································· 15
5. EXTERNAL DIMENSIONS ··································································································································· 16

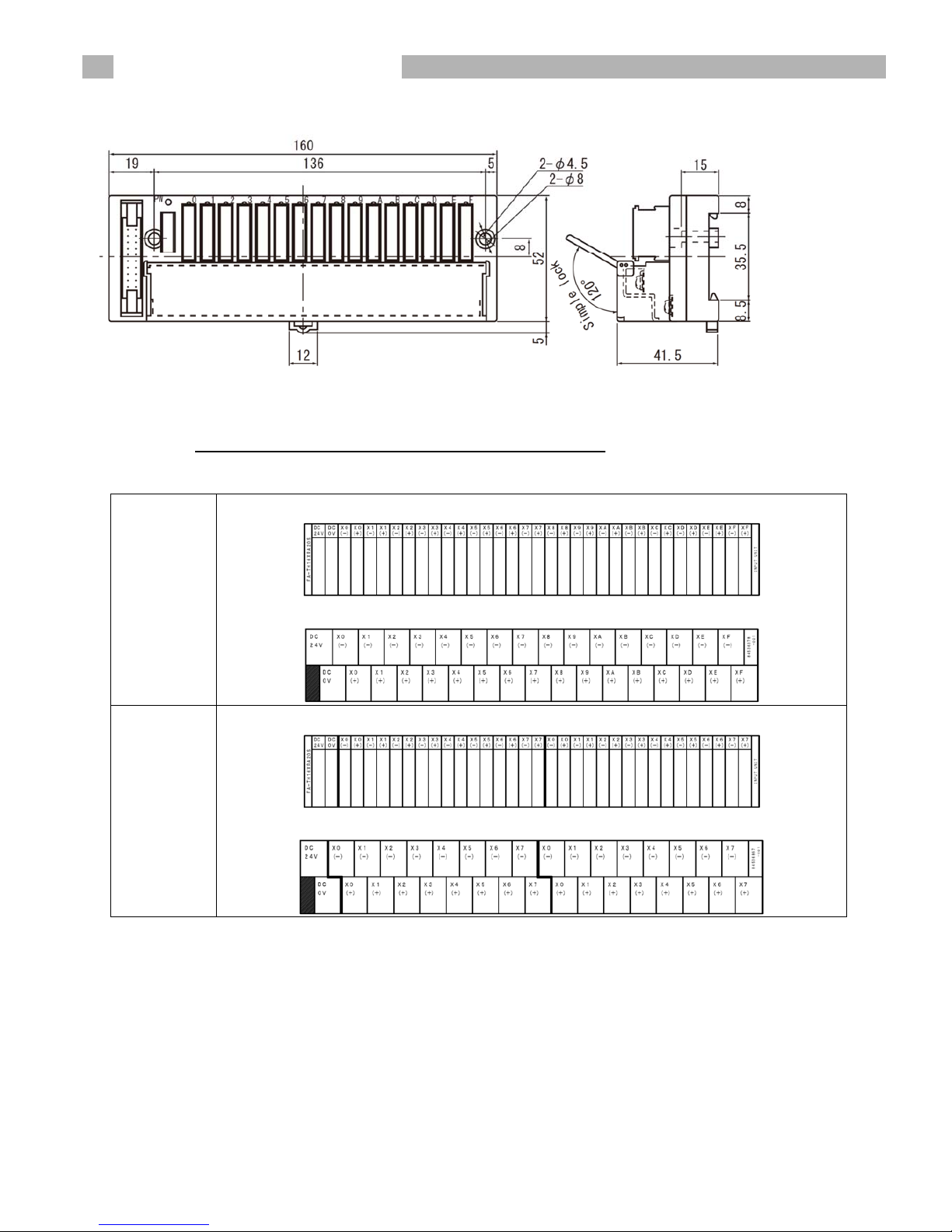

5-1. FA-TH16XRA20S········································································································································· 16

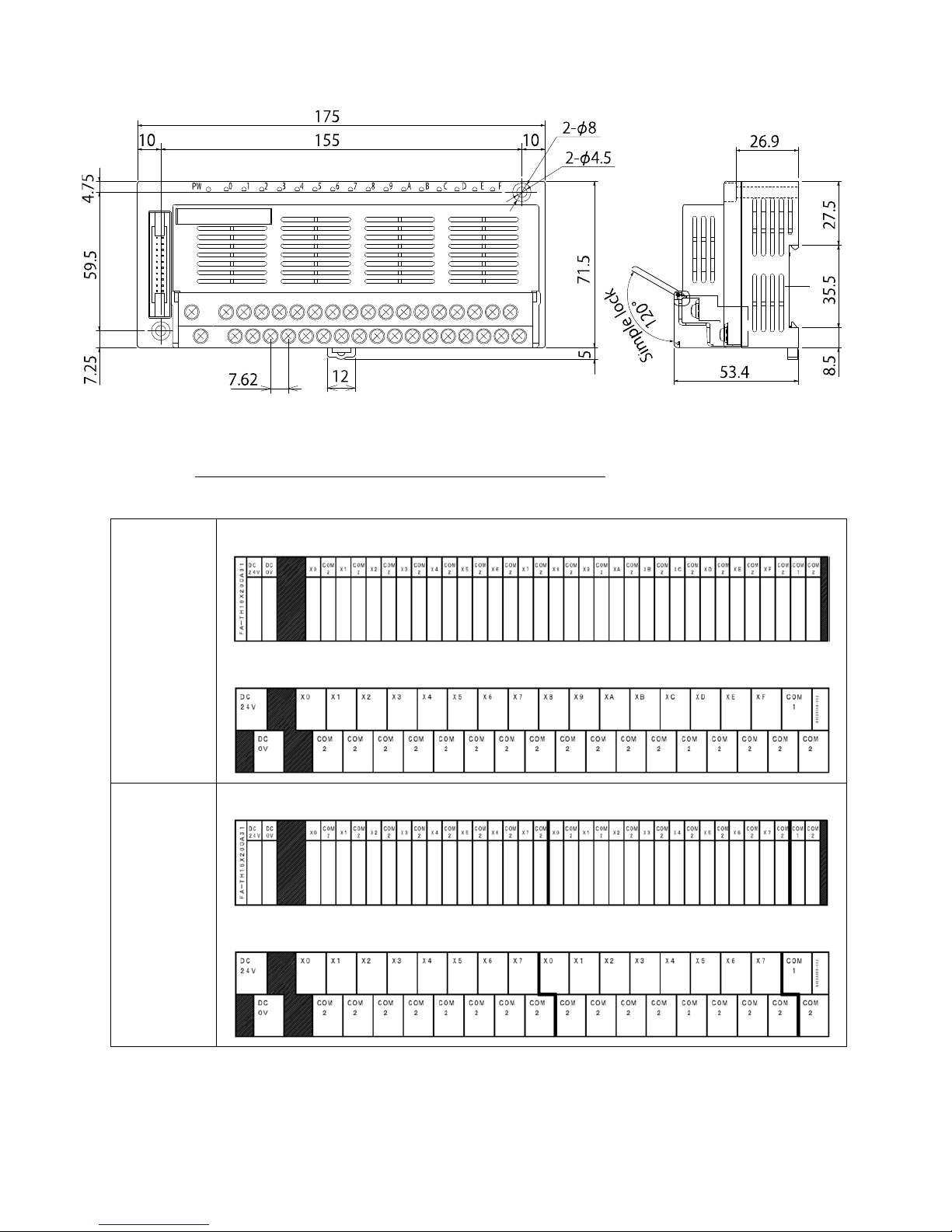

5-2. FA-TH16X100A31········································································································································ 17
5-3. FA-TH16X200A31········································································································································ 18
5-4. FA-TH16X24D31 ········································································································································· 19
5-5. FA-TH16X100A31L ······································································································································ 20
5-6. FA-TH16X200A31L ······································································································································ 21
5-7. FA-TH16X24D31L········································································································································ 22
5-8. FA-TH16X48D31L········································································································································ 23
5-9. FA-TH16X100D31L ······································································································································ 24
6. INSTALLATION ORIENTATION ···························································································································· 25
6-1. FA-TH16XRA20S········································································································································· 25
6-2. FA-TH16X100A31/200A31/24D31/100A31L/200A31L/24D31L/48D31L/100D31L ····················································· 25
7. CONNECTING METHOD····································································································································· 26
7-1. Connection example with a terminal block module of a programmable controller ······················································· 26
7-1-1. When a cable with a terminal block is used·································································································· 26
7-1-2. When a discrete cable is used ·················································································································· 27
7-2. Connection example with a connector module of a programmable controller ···························································· 28
7-2-1. When a cable with a 40P connector is used ································································································· 28
7-2-2. When a cable with a 20P connector is used ································································································· 29
7-3. How to use the extraction tool (FA-TH16XRA20S) ······························································································ 30
8. EXTERNAL CONNECTION EXAMPLE ··················································································································· 30
8-1. FA-TH16XRA20S········································································································································· 30
8-2. FA-TH16X100A31, FA-TH16X100A31L ············································································································ 31
8-3. FA-TH16X200A31, FA-TH16X200A31L ············································································································ 31
8-4. FA-TH16X24D31, FA-TH16X24D31L ··············································································································· 32
8-5. FA-TH16X48D31L········································································································································ 32
8-6. FA-TH16X100D31L ······································································································································ 33
9. APPLICABLE SOLDERLESS TERMINALS·············································································································· 34
9-1. FA-TH16XRA20S, FA-TH16X100A31, FA-TH16X200A31, FA-TH16X24D31···························································· 34
9-2. FA-TH16X100A31L, FA-TH16X200A31L, FA-TH16X24D31L, FA-TH16X48D31L, FA-TH16X100D31L·························· 35
10. PRECAUTIONS ··············································································································································· 36
11. GRATIS WARRANTY TERMS AND GRATIS WARRANTY RANGE ············································································ 36
12 . EXCLUSION FROM LIABILITY FOR OPPORTUNITY LOSS AND SECONDARY LOSS······································································· 36
13 . TRADEMARKS···················································································································································· 36

8
1. INTRODUCTION
This manual describes the specifications and handling of the terminal module used in combination with
Mitsubishi Electric Corporation DC input modules.
2. GENERAL SPECIFICATIONS
Item Specifications
Operating ambient
temperature
0 to 55C
Storage ambient
temperature
-25 to 75C
Operating ambient
humidity
5 to 95%RH, non-condensing
Storage ambient
humidity
5 to 95%RH, non-condensing
Vibration resistance
Applicable standard JIS B 3502, IEC 61131-2
Frequency Constant
acceleration
Half amplitude Sweep count
Under intermittent
vibration
5 to 8.4Hz －3.5mm 10 times each in X, Y,
and Z directions
8.4 to 150Hz 9.8m/s2(1G) －
Under continuous
vibration
5 to 8.4Hz －1.75mm －
8.4 to 150Hz 4.9m/s2(0.5G) －
Shock resistance Compliant with JIS B 3502 and IEC 61131-2 (147m/s2 (15G), 3 times each in X, Y, and Z bidirections)
Operating atmosphere No corrosive gases
Operating altitude*1 2000m or lower
Installation location Inside a control panel
Overvoltage
category*2 II or less
Pollution degree*3 2 or less
*1: Do not use or store the products under pressure higher than the atmospheric pressure of altitude 0m. Doing so may cause
malfunction.
*2: This category indicates the section of the power supply to which the equipment is assumed to be connected between the public
electrical power distribution network and the machinery within premises.
*3: This index indicates the degree to which conductive material is generated in terms of the environment in which the equipment is
used.

9
3. PERFORMANCE SPECIFICATIONS
3-1. FA-TH16XRA20S
Model
Item FA-TH16XRA20S
Number of I/O points, Input device numbers 16 points, X0 to XF
Insulation method Relay
Rated input voltage/current Voltage: 24VDC (CLASS 2), Current: Approx. 10mA (24VDC)
Operating voltage range 21.6 to 26.4VDC (24VDC±10% (ripple ratio: within 5%), CLASS 2)
Maximum number of contacts simultaneously ON 100% (3-directional attachment)
ON voltage/ON current 19.2VDC or higher / 8.1mA or higher
OFF voltage/OFF current 24VDC or lower / 1.0mA or lower
Input impedance Approx. 2.2kΩ
Response time OFF→ON 10ms or less (excluding programmable controller response time)
ON→OFF 12ms or less (excluding programmable controller response time)
Minimum switching load 24VDC 1mA or higher
Maximum switching frequency 1800 times/hr (ON 1 second or longer, OFF 1 second or longer)
Mechanical life 20000000 times or more
Electrical life 100000 times or more (at contact side) at 24VDC, 100mA
Wiring method for common All points independent
External power supply 24VDC ±10% (ripple ratio: within 5%, CLASS 2)
Current consumption Approx. 10mA when 24VDC (not including current consumption of programmable controller)
Withstand voltage, insulation resistance Between each input, between external power supply and inputs: 2500 VAC 1 minute, 10MΩor
higher
Noise immunity Simulator noise 500Vp-p, noise width 1μs
(based on noise simulator with noise frequency of 25 to 60Hz)
Operation indication LED on with power supply ON and input ON
Socket Yes (relay module replaceable)
Module replacement count 50 times
Module mixing Not possible
Terminal block Terminal block screw
M3 screw, Number of terminals: 34P, 7.62mm pitch, Spring-up screw with finger protection cover
Tightening torque range: 58.8 to 88.2N·cm (6 to 9kgf·cm, 5.22 to 7.5lbf·in),
UL standard conformity tightening torque: 59N·cm, 5.22 lbf·in
Applicable wire 22 to 14 AWG: 0.3 to 2.0mm2(when solderless terminals are used)
Installation
method
Screw M4 × 0.7mm × 22mm or more
Tightening torque range: 78 to 118N·cm (8 to 12kgf·cm, 7 to 10lbf·in)
DIN rail Applicable DIN rail: TH35-7.5Fe, TH35-7.5Al (compliant with IEC 60715)
Weight Approx. 300g

10
3-2. FA-TH16X100A31
Model
Item FA-TH16X100A31
Number of I/O points, Input device numbers 16 points, X0 to XF
Insulation method Photocoupler
Rated input voltage/current *1 Voltage: 100 to 110VAC (50/60 Hz),
Current: Approx. 8mA (100VAC 60Hz), Approx. 7mA (100VAC 50Hz)
Operating voltage range 85 to 132VAC (50/60Hz ± 3Hz (distortion factor within 5%))
Maximum number of contacts
simultaneously ON 100% (5-directional attachment)
ON voltage/ON current 80VAC or higher / 5mA or higher (50Hz, 60Hz)
OFF voltage/OFF current 30VAC or lower / 1.7mA or lower (50Hz, 60Hz)
Inrush current Within max. 200mA 1ms (132VAC)
Input impedance Approx. 12kΩ(60Hz), Approx. 15kΩ(50Hz)
Response time OFF→ON 15ms or less (excluding programmable controller response time)
ON→OFF 35ms or less (excluding programmable controller response time)
Wiring method for common 16 points/common (2-wire type, WET method)
External power supply 24VDC ±10% (ripple ratio: within 5%, CLASS 2)
Current consumption Approx. 25mA when 24VDC (not including current consumption of programmable controller)
Withstand voltage, insulation resistance 1780Vrms AC / 3 cycles (altitude: 2000m), 10MΩor higher
Noise immunity Simulator noise 1500Vp-p, noise width 1μs
(based on noise simulator with noise frequency of 25 to 60Hz)
Operation indication LED on with power supply ON and input ON
Terminal block
Terminal block
screw
M3 screw, Number of terminals:36P, 7.62mm pitch, Spring-up screw with finger protection cover
Tightening torque range: 58.8 to 88.2N·cm (6 to 9kgf·cm, 5.22 to 7.5lbf·in),
UL standard conformity tightening torque: 59N·cm, 5.22 lbf·in
Applicable wire 22 to 14 AWG: 0.3 to 2.0mm2(when solderless terminals are used)
Installation method Screw M4 × 35mm or more Tightening torque range: 78 to 118N·cm (8 to 12kgf·cm, 7 to 10lbf·in)
DIN rail Applicable DIN rail: TH35-7.5Fe, TH35-7.5Al (compliant with IEC 60715)
Weight Approx. 310g
*1: Use a power supply which can be supplied from the secondary side which is isolated by a transformer or converter, etc.
3-3. FA-TH16X200A31
Model
Item FA-TH16X200A31
Number of I/O points, Input device numbers 16 points, X0 to XF
Insulation method Photocoupler
Rated input voltage/current *1 Voltage: 200 to 220VAC (50/60 Hz),
Current: Approx. 7.5mA (200VAC 60Hz), Approx. 6mA (200VAC 50Hz)
Operating voltage range 170 to 264VAC (50/60Hz ± 3Hz (distortion factor within 5%))
Maximum number of contacts
simultaneously ON 100% (5-directional attachment)
ON voltage/ON current 160VAC or higher / 4.8mA or higher (50Hz, 60Hz)
OFF voltage/OFF current 60VAC or lower / 2.3mA or lower (50Hz, 60Hz)
Inrush current Within max. 500mA 1ms (264VAC)
Input impedance Approx. 27kΩ(60Hz), Approx. 32kΩ(50Hz)
Response time OFF→ON 15ms or less (200VAC 60Hz) (excluding programmable controller response time)
ON→OFF 35ms or less (200VAC 50Hz) (excluding programmable controller response time)
Wiring method for common 16 points/common (2-wire type, WET method)
External power supply 24VDC ±10% (ripple ratio: within 5%, CLASS 2)
Current consumption Approx. 25mA when 24VDC (not including current consumption of programmable controller)
Withstand voltage, insulation resistance 2830Vrms AC / 3 cycles (altitude: 2000m), 10MΩor higher
Noise immunity Simulator noise 1500Vp-p, noise width 1μs
(based on noise simulator with noise frequency of 25 to 60Hz)
Operation indication LED on with power supply ON and input ON
Terminal block
Terminal block
screw
M3 screw, Number of terminals:36P, 7.62mm pitch, Spring-up screw with finger protection cover
Tightening torque range: 58.8 to 88.2N·cm (6 to 9kgf·cm, 5.22 to 7.5lbf·in),
UL standard conformity tightening torque: 59N·cm, 5.22 lbf·in
Applicable wire 22 to 14 AWG: 0.3 to 2.0mm2(when solderless terminals are used)
Installation method Screw M4 × 35mm or more Tightening torque range: 78 to 118N·cm (8 to 12kgf·cm, 7 to 10lbf·in)
DIN rail Applicable DIN rail: TH35-7.5Fe, TH35-7.5Al (compliant with IEC 60715)
Weight Approx. 320g
*1: Use a power supply which can be supplied from the secondary side which is isolated by a transformer or converter, etc.
