FABER S.p.A. ZOOM User manual

Instructions Manual

2
2
INDEX
SAFETYINFORMATION......................................................................................................................................................... 3
CHARACTERISTICS.............................................................................................................................................................6
INSTALLATION.................................................................................................................................................................... 20
USE......................................................................................................................................................................................30
CAREANDCLEANING.........................................................................................................................................................32
EN

EN 3
3
SAFETY INFORMATION
For your safety and correct operation of the appliance, read this manual
carefully before installation and use. Always keep these instructions
with the appliance even if you move or sell it. Users must fully know the
operation and safety features of the appliance.
The wire connection has to be done by specialized technician.
 The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
 The minimum safety distance between the cooker top and the extractor
hood is 650 mm (some models can be installed at a lower height,
please refer to the paragraphs on working dimensions and installation).
 If the instructions for installation for the gas hob specify a greater
distance, this must be respected.
 Check that the mains voltage corresponds to that indicated on the
rating plate fixed to the inside of the hood.
 Means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules.
 For Class I appliances, check that the domestic power supply
guarantees adequate earthing.
 Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
 Regulations concerning the discharge of air have to be fulfilled.
 Do not connect the extractor hood to exhaust ducts carrying
combustion fumes (boilers, fireplaces, etc.).

EN 4
4
 If the extractor is used in conjunction with non-electrical appliances
(e.g. gas burning appliances), a sufficient degree of aeration must be
guaranteed in the room in order to prevent the backflow of exhaust gas.
When the cooker hood is used in conjunction with appliances supplied
with energy other than electric, the negative pressure in the room must
not exceed 0,04 mbar to prevent fumes being drawn back into the room
by the cooker hood.
 The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
 If the supply cord is damaged, it must be replaced from the manufac-
turer or its service agent.
 Connect the plug to a socket complying with current regulations, lo-
cated in an accessible place.
 With regards to the technical and safety measures to be adopted for
fume discharging it is important to closely follow the regulations pro-
vided by the local authorities.
WARNING: Before installing the Hood, remove the protective films.
 Use only screws and small parts in support of the hood.
WARNING: Failure to install the screws or fixing device in accordance
with these instructions may result in electrical hazards.
 Do not look directly at the light through optical devices (binoculars,
magnifying glasses…).
 Do not flambè under the range hood; risk of fire.
 This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and under-
stand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
 Children should be supervised to ensure that they do not play with the
appliance.

EN 5
5
 The appliance is not to be used by persons (including children) with re-
duced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction.
Accessible parts may become hot when used with cooking appliances.
 Clean and/or replace the Filters after the specified time period (Fire
hazard). See paragraph Care and Cleaning.
 There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels (not
applicable to appliances that only discharge the air back into the room).
 The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of elec-
trical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed informa-
tion about recycling of this product, please contact your local city office,
your household waste disposal service or the shop where you pur-
chased the product.

EN 6
6
CHARACTERISTICS
Components (Zoom model)
Ref. Q.ty Product Components
11 Hood Canopy complete with: Controls, Light, Filters, Motor.
21 Hood support plate.
41 Cable raceway
14 1 Pawl
Ref. Q.ty Installation Components
11 4 Wall plugs ø 10
12h 4 Screws M5 x 70
12g 1 Screws for pawl
Q.ty Documentation
1 Instruction Manual

EN 7
7

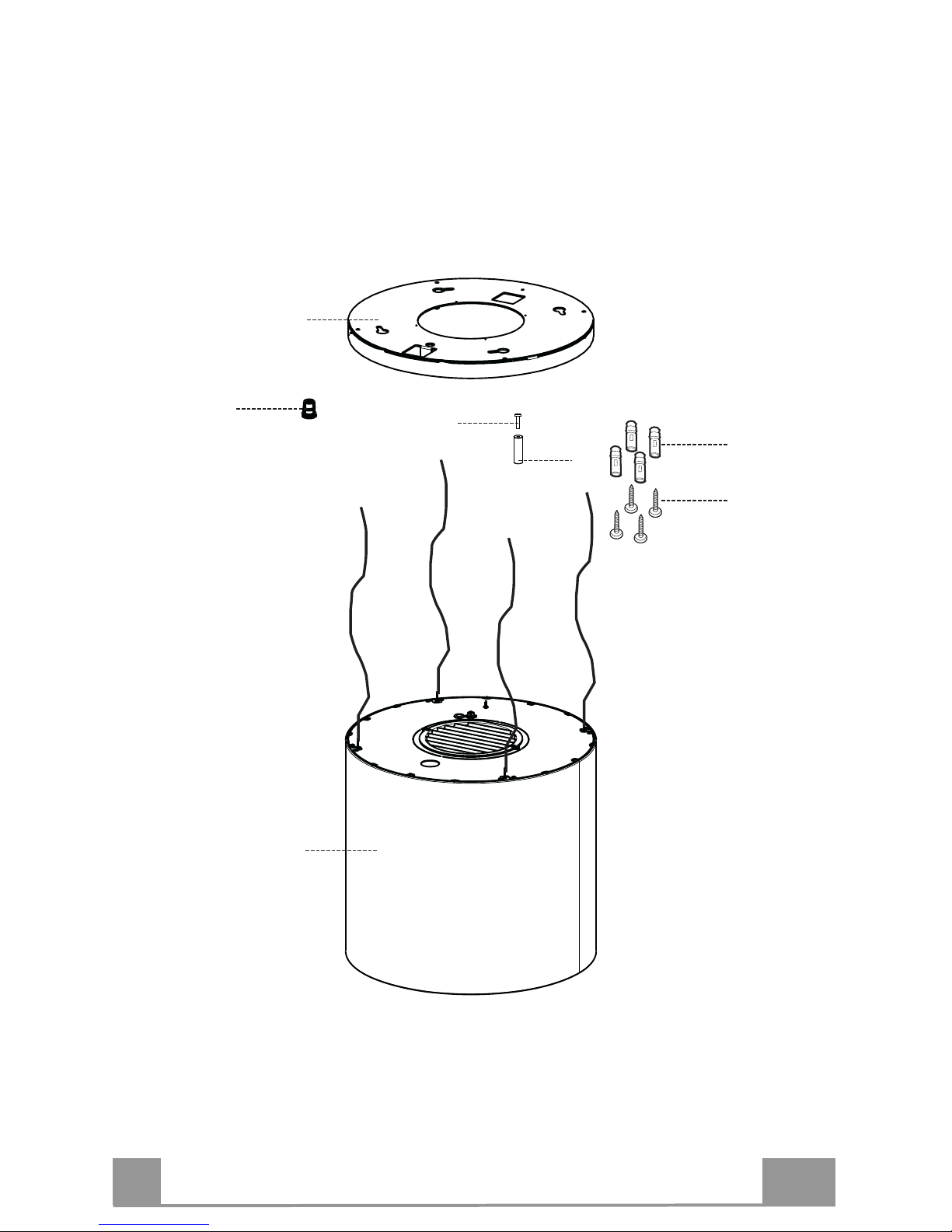

ZOOM (15 Kg)
12h
11
2
4
1
12g
14

EN 8
8
Components (Chic-Vanilla models)
Ref. Q.ty Product Components
11 Hood Canopy complete with: Controls, Light, Filters, Motor.
21 Hood support Plate (with lamp holder).
41 Cable raceway
53 Glass
63 Glass fixing plates
14 1 Pawl
Ref. Q.ty Installation Components
11 4 Wall plugs ø 10
12h 4 Screws M5 x 70
12d 6 Screws M4 x 20
12e 6 Screws M4 x 10
12g 1 Screws for pawl
22 12 Rubber washers
Q.ty Documentation
1 Instruction Manual

EN 9
9
CHIC / VANILLA (30 Kg)
12h
11
2
4
22
5
12d
12e
22
22
6
12d
22
12e
22
12e
22
12d
12g
14
1
12d
6
22
12d
22
5
5
6
22
12e
22
12d
22
12e

EN 1
10
Components (Nest models)
Ref. Q.ty Product Components
11 Hood Canopy complete with: Controls, Light, Filters, Motor.
21 Hood support Plate (with lamp holder)
2.1 2 Hood support plate extension
41 Cable raceway
54 Glass (Glass products manually)
14 1 Pawl
Ref. Q.ty Installation Components
7.1 8 Glass fixing brackets with bush
11 10 Wall plugs ø 10
12h 10 Screws M5 x 70
12d 24 M4 Nut (fixing Brackets to Plate extension)
12e 8 Glass fixing knobs
12f 8 Glass protection gaskets
12g 1 Screw for pawl
12h 8 Glass protection gaskets
Q.ty Documentation
1 Instruction Manual

EN 1
11
NEST (39 Kg)
12h
11
2
4
2 1
12h
11
12h
11
12f
12e
5
2 1
12d
7 1
12g
14
1
12f
12e
12f
12f
12f
12f
12f
12f
12e
12e
12e
12e
12e
12e
5
5
5
11 11
11
11
12h
12h
12h
12h
7 1
7 1 7 1
7 1
7 1
7 1
12h
12h
12h
12d
12d 12d

EN 1
12
Components (Vertigo model)
Ref. Q.ty Product Components
11 Hood Canopy complete with: Controls, Light, Filters, Motor.
21 Hood support Plate (with lamp holder)
41 Cable raceway
51 Glass or Panels the other material
14 1 Pawl
Ref. Q.ty Installation Components
11 4 Wall plugs ø 10
12h 4 Screws M5 x 70
12d 4 Chrome plated glass fixing Pin/Screw
12g 1 Screw for pawl
Q.ty Documentation
1 Instruction Manual

EN 1
13

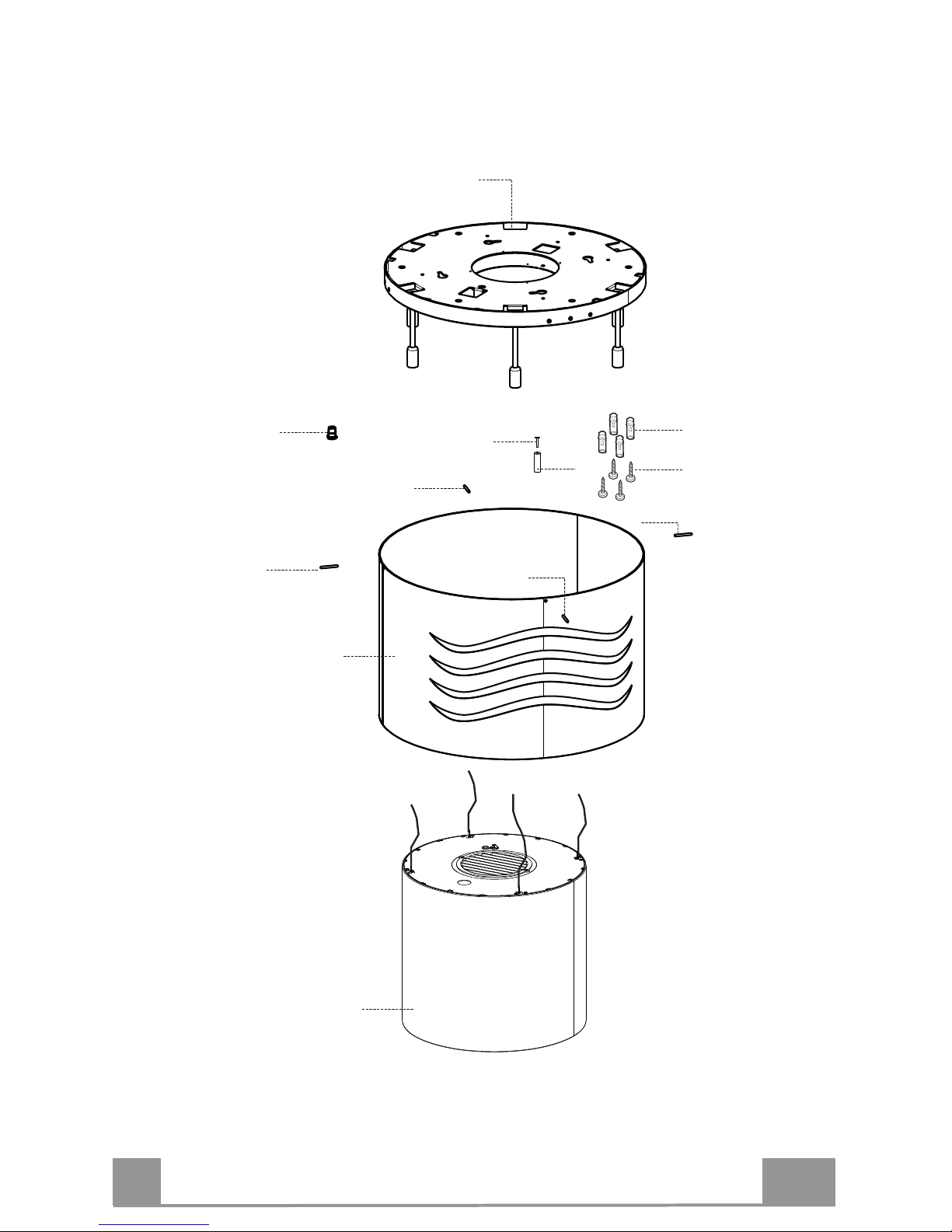

VERTIGO (20 Kg)
12h
11
2
4
5
12d
12g
14
1
12d
12d
12d

EN 1
14
Components (Kaleidos model)
Ref. Q.ty Product Components
11 Hood Canopy complete with: Controls, Light, Filters, Motor.
21 Hood support Plate (with lamp holder)
41 Cable raceway
51 Glass or Panels the other material
14 1 Pawl
Ref. Q.ty Installation Components
11 4 Wall plugs ø 10
12h 4 Screws M5 x 70
12d 4 Chrome plated glass fixing Pin/Screw
12g 1 Screws for pawl
Q.ty Documentation
1 Instruction Manual

EN 1
15
KALEIDOS (18 Kg)
2
12h
11
4
5
12d
12g
14
12d
12d
12d
1

EN 1
16
Components (Luxia model)
Ref. Q.ty Product Components
11 Hood Canopy complete with: Controls, Light, Filters, Motor.
21 Hood support Plate (with lamp holder)
31 Power supply cable lock
51 Glass
14 1 Pawl
Ref. Q.ty Installation Components
11 4 Wall plugs ø 10
12h 4 Screws M5 x 70
12d 4 Chrome plated glass fixing Pin/Screw
12g 1 Screw for pawl
Q.ty Documentation
1 Instruction Manual

EN 1
17
LUXIA (30 Kg)
2
12h
11
4
5
12d
12g
14
1
12d
12d
12d

EN 1
18

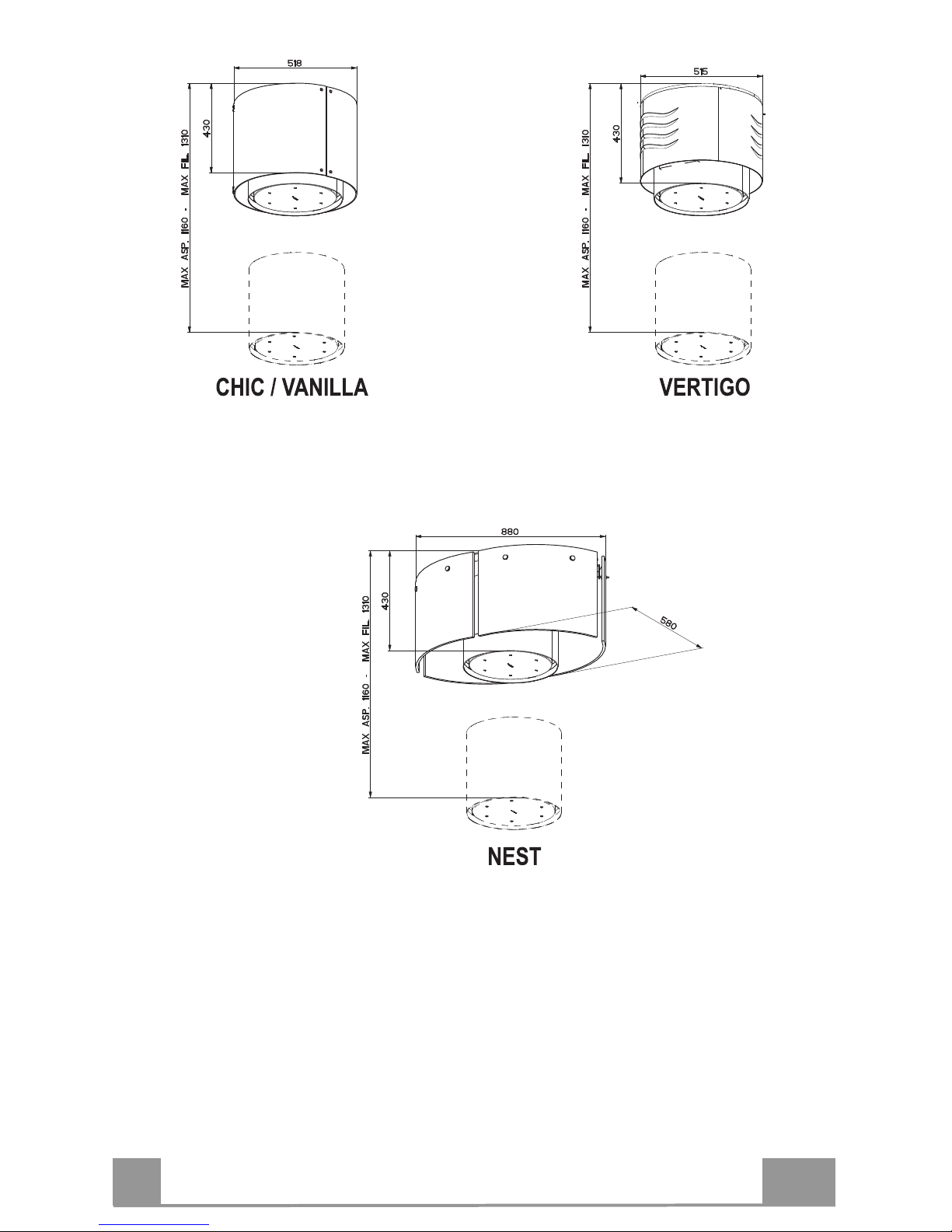

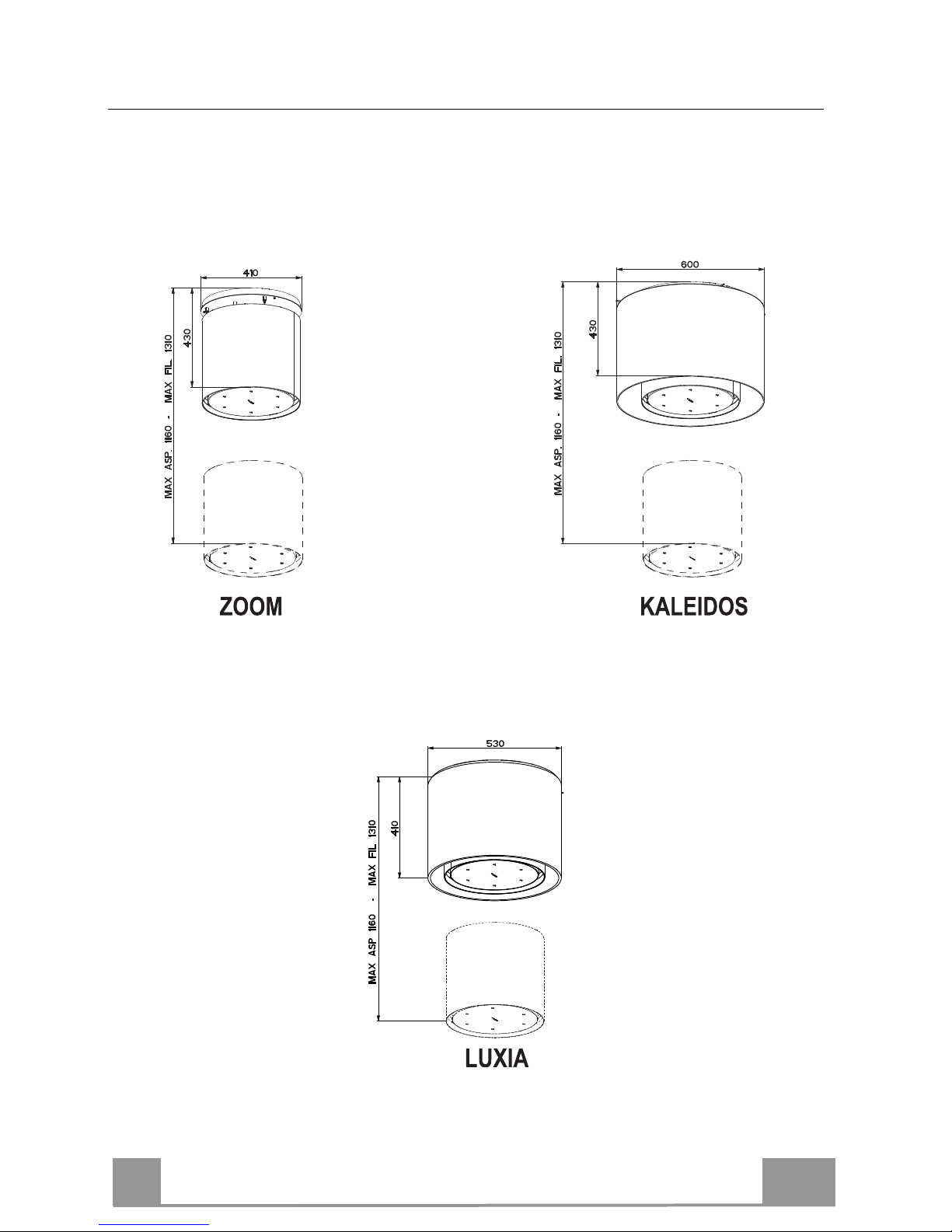

Dimensions

EN 1
19

EN 2
20
INSTALLATION
This hood is designed to be mounted on the ceiling/on a shelf, above a free-standing Hob (min. 650
mm), in:
• Ducting version: Evacuation to the outside.
• Recirculation version: Internal recirculation.
Warning: The F-Light hood is a system comprising hood + lamp, so that two separate electrical
wiring systems must be provided, one for the hood and one for the lamp.
The Zoom model is not fitted with a lamp.
Sequence of operations - Installation
• Preparing for installation
• Drilling the Ceiling/Shelf and Fixing the support plate
• Connections
• Fitting the hood body
• Functional Check
• Disposal of Packaging
Fitting the Limiter pawl
• Unfasten the 3 screw that join the parts of the Plate (of different shapes and/or sizes) using
the wrench provided.
• Take the Pawl and fix it to the plate on the bracket in the position indicated in the figure,
using the screw provided.
• Take the bulb holders and slot them onto the
brackets provided, which can be seen by
their fork-shaped ends.
Warning: the clamps used to fix the wires
must not be cut.
• Tighten the Screw fixing the bulb holders to
the bracket, in such a way as to hold the
latter between the 2 washers.
