1Dear user
Congratulations on your purchase of a Faber fire! A
quality product from which you will experience
warmth and atmosphere for many years. We rec-
ommend that you read this manual carefully be-
fore using the fireplace. If any problem arises de-
spite our strict quality control, you can always con-
tact your dealer or Glen Dimplex Benelux B.V.
For any warranty claims, it is essential you first
register your fireplace. During this registration,
you’ll find all information regarding our warranty.
Please note!
The details of your fireplace can be found
in the user manual.
You can register your fire at: www.faberfires.com
Glen Dimplex Benelux B.V.
Address: Saturnus 8
NL-8448 CC
Heerenveen
Tel: [phone]
Email: [email protected]m
Info: www.faberfires.com
1.1 Introduction
Installation and maintenance of the appliance must
be carried out by a professional with proven
knowledge and competence. A professional takes
into account all technical aspects such as heat radi-
ation and gas connection as well as flue gas ex-
haust requirements.
Where the installation instructions are not clear,
national/local regulations must be followed.
1.2 Check
Check the fireplace for transport damage and im-
mediately report any damage to your supplier.
1.3 CE Declaration
We hereby declare that Glen Dimplex Benelux B.V.
released Faber gas-atmosphere heating appliance
by its design and construction method complies
with the Regulation (EU): 2016/426 and (EU)
2015/1188.
Product: gas room heater
Model: MatriX 800/500 RD
MatriX 800/500 ST
This declaration will become null and void as soon
as the unit is in any way modified without written
authorization of Glen Dimplex Benelux B.V.
2Safety instructions
Please note!
It is advisable to always install a screen for the fire-
place if children, elderly or disabled people are
present in the same room as the fireplace. If regu-
larly vulnerable persons can be present in the
room without supervision, sufficient protection
must always be placed around the fireplace.
•This appliance must be installed according
with the rules in force and used only in a
sufficiently space.
•The appliance must be checked annually
in accordance with this installation man-
ual and the applicable national and local
regulations.
•Ensure that the data on the type label
matches the local gas type and pressure.
•The appliance is designed for atmosphere
and heating purposes. This means that all
visible surfaces, including the glass, can
become hotter than 100°C. An exception
by free standing models is the underside
of the fireplace and the control buttons.
•Do not use the remote control and / or
app outside the room where the fire is lo-
cated. So that you are always aware of the
situation around the fireplace when it is
being operated.
•The settings and the construction of the
fireplace must not be changed!
•Do not place extra imitation wood or
other material on the burner or in the
combustion chamber.
•Do not place any combustible materials
within 0,5m of the radiation area of the
fire.
•Through the natural air circulation of the
fireplace moisture and uncured volatile
components from paint, building materi-
als and carpeted floors, etc. are attracted.
These parts can settle as soot on cold sur-
faces. Therefore do not light the fireplace
shortly after installation.
2.1 Using the fire for the first time
Provide extra ventilation and open all the windows
of the room during the initial start-up of the fire-
place. Heat the stove for a few hours at the highest
setting so that the paint gets the chance to harden
and any released vapors are safely removed. Keep
vulnerable people and pets out of this room during
this process.

Installation manual MatriX 800/500 RD,ST
7 <<<<
3Installation requirements
3.1 Appliance
•This appliance may not be installed in a
chlorine-containing environment. (Pools
etc.).
•This appliance must be built into an exist-
ing or new false chimney.
•For transport reasons, for appliances with
flexible gas pipes, the control unit (fig.
1.4) is mounted at the bottom of the
crate. Detach and mount it together with
the control box and remote access door in
as low as possible position in the false
chimney. (See supplied instruction manual
40011721).
(To prevent damage to cables and pipes
during transport, they are bound together
by tie wraps. Remove these to ensure
proper operation of the appliance.)
•If desired, a 2 meter pipe set is available
(article number 20901530).
3.2 False chimney
•The false chimney should be of non-com-
bustible material.
•The space above the fire should always be
ventilated using grids with minimal free
passage of 200cm² per grid.
•Use for finishing special decorative plaster
(min. 100°C resistant) or fiberglass wallpa-
per to prevent discoloration and cracks
etc., minimum drying time 24 hours per
mm applied finish.
•The false chimney construction should not
rest on the build-in frame of the fireplace.
3.3 Discharge and outlet requirements
First, carry out a flue calculation (see chapter 11)
and place the right flue restrictor before installing
the outlet! (Generally a 30mm flue restrictor is in-
stalled).
•For supply and discharge always use the
prescribed and to be supplied Faber flue
materials. Please contact Glen Dimplex
Benelux B.V. Only with use of these mate-
rials Faber can guarantee proper perfor-
mance.
•The distance to combustible materials
must be min. 50mm, calculated from out-
side of the flue material (EN 1856-1 T600
N1 D Vm –L20040 O(50)).

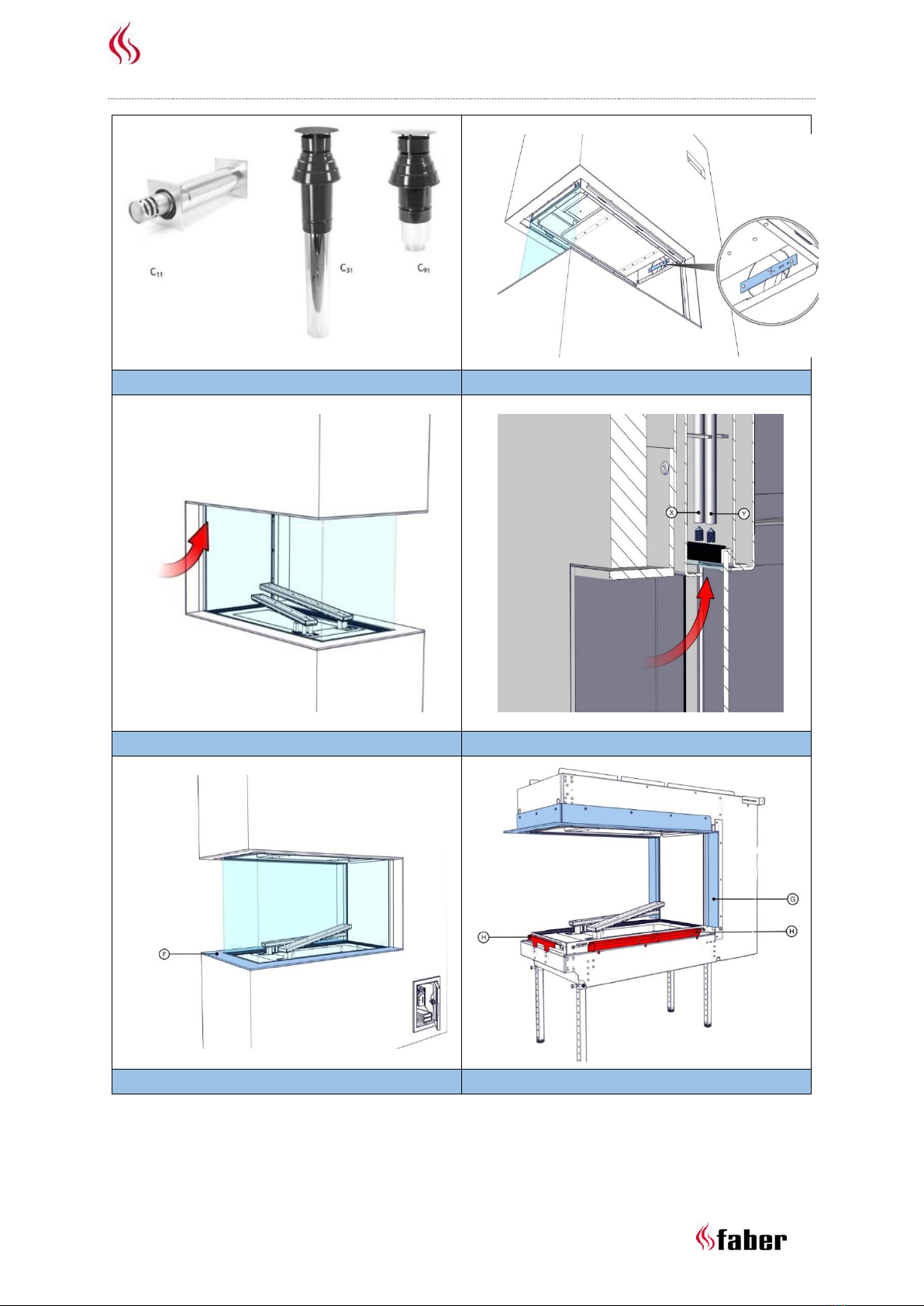

Outlets (fig. 1.6)
The balanced flue pipe for combined air supply and
discharge can use a wall terminal or a roof termi-
nal. Verify that the desired outlet meets the local
regulations regarding pollution and ventilation
openings.
Please note!
For proper functioning, the outlet must at
least be 0,5m away from:
•Corners of the building;
•Roof overhangs and balconies;
•Roof edges (with the exception of the
ridge edge, see chapter 15).
C11, outlet via facade
Through a wall or façade, use a Faber wall outlet.
Depending on the flue calculation this can be
100/150mm or 130/200mm.
C31, outlet via roof
For a (flat) roof, use a Faber roof outlet with a di-
ameter of 100/150mm.
C91, existing chimney
For an existing chimney, use a Faber chimney out-
let with a diameter of 100/150mm.
In this case the existing chimney acts as air inlet an
inserted flexible stainless steel pipe discharges the
flue gas. The top (Faber chimney cover plate) and
the bottom (Faber chimney connection set) should
be airtight.
Depending on the calculated flue diameter, you
must use a flexible stainless steel pipe of
Ø100mm (article number AJ005503) or Ø130mm
(article number AJ005603) as specified by Faber.
For this, contact Glen Dimplex Benelux B.V.
Please note!
•The minimum chimney diameter for a
130mm flexible stainless steel pipe must
be 200x200mm and for a 100mm flexible
stainless steel pipe and 150x150mm.
•Don’t connect more than one fire at the
existing chimney.
•The chimney must be in good condition:
oNo leakage;
oWell cleaned.
For more information about the connections to ex-
isting chimney ducts, please request the installa-
tion instructions “Chimney Connection Set”.

Installation manual MatriX 800/500 RD,ST
8 <<<<
4Preparation and installation instruc-
tions
4.1 Gas connection
The gas connection must comply with the applica-
ble local standards.
Please note!
•Provide a flexible gas connection with at
least 0,5m extra length, so that the con-
trol unit can be removed for installation
and service!
•Calculate the gas pipe so that no pres-
sure drop occurs.
We advise using a gas connection directly from the
gas meter to the appliance, with a shut-off valve in
the proximity of the appliance, which must always
be freely accessible. Position the gas connection so
that it is easily accessible for service and the
burner unit can be disassembled at any time.
4.2 Electrical connection
Install a 230VAC/50Hz wall socket near the fire-
place for connecting the Control box FAB1806.

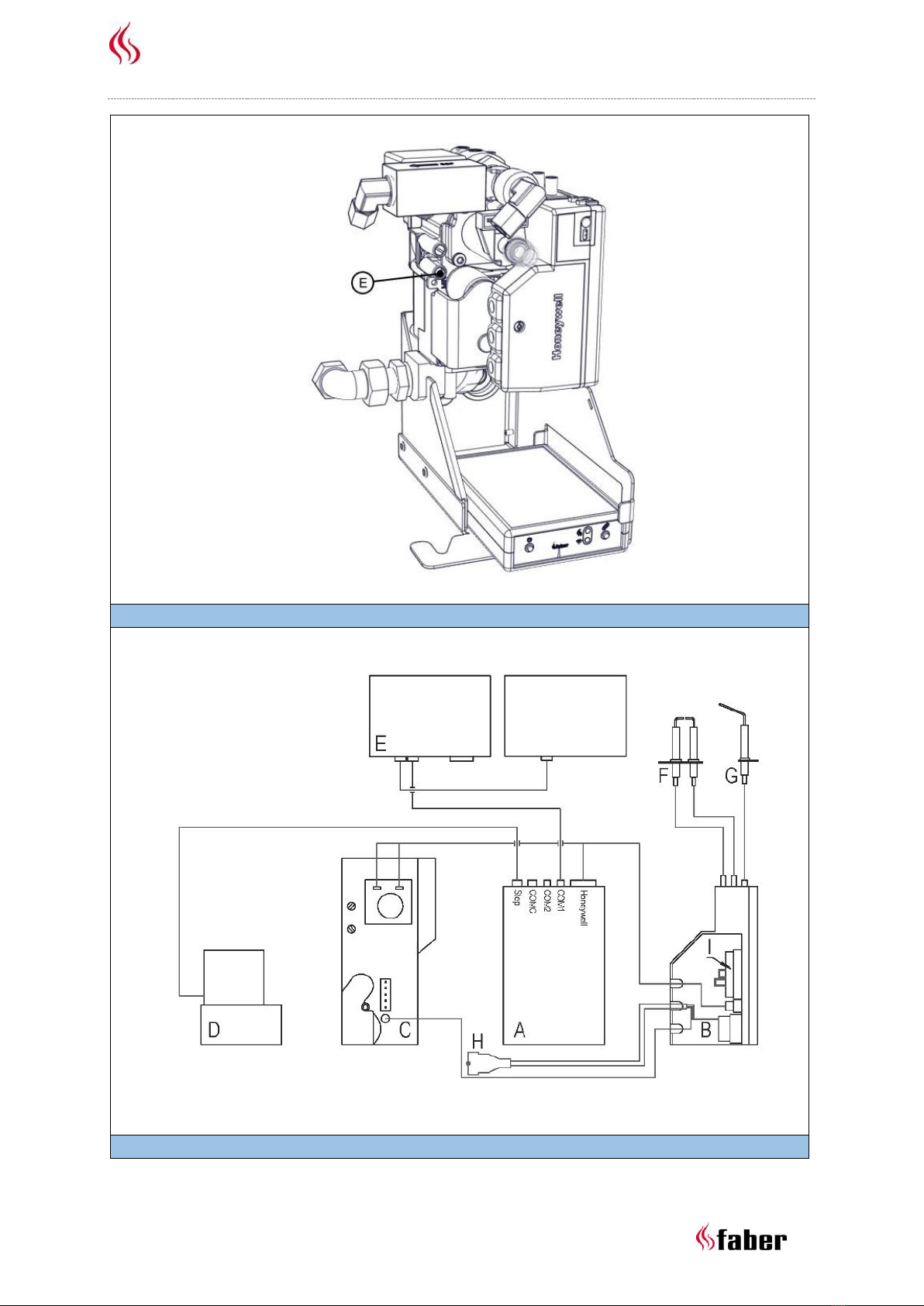

See fig. 1.5 for the wiring diagram:
A = I.T.C. (Intelligent Technical Controller)
B = electronics
C = gas valve
D = solenoid valve
E = symbio LED module (optional)
F = ignition pin
G = ionization pin
H = power cable
I = configuration plug
4.3 Smart Home installation
The controller can be connected to an external
source, such as a Domotica system, by using a Fa-
ber Interface Unit (article number A9323000).
4.4 Preparing the fireplace
•Remove the fireplace from its packaging.
Ensure that the gas supply pipes under
the appliance are not damaged.
•Remove the glass and any mouldings,
store them at a safe place and remove the
packaged parts from the fireplace.
•Prepare the gas connection on the regula-
tor.
4.5 Positioning the fireplace
Take into account the installation requirements
(see chapter 3). Place the fireplace at the right
place and level it (see “C” in fig. 1.0 and 1.2).
Rough height adjustment:
•With the adjustable (optional) legs.
Accurate height adjustment:
•With the adjustable feet.
4.6 Installing the flue pipes
Install the flue pipes according to the installation
manual supplied with the appliance!
•The distance to combustible materials
must be min. 50mm, calculated from the
outside of the flue pipe.
•Never start immediately with length-ad-
justable concentric flue pipe on the appli-
ance.
•Horizontal sections should be installed to
allow a slope towards the appliance
(3 degrees).
•Build the system from the appliance. If
this is not possible you can make use of an
extendable adapter section.
•For fitting of the flue system, the 0,5m
length-adjustable pipe must be used.
Make sure that the inner pipe is always
15mm longer than the outer pipe. Wall-
and roof terminal can also be cut. These
components must be secured with a self-
tapping screw.
4.7 Constructing the false chimney
Before positioning the false chimney, we advise to
perform a functional test with the fireplace as de-
fined in chapter 7 “Checking the installation”.
False chimney
•Construct the false chimney of non-com-
bustible material in combination with
metal profiles or of masonry/concrete
blocks.
•Always use a lintel or reinforcing bars
while bricking the false chimney. They
should not be placed directly on the fire-
place.
•Make sure that the fireplace never func-
tions as a load-bearing construction, be-
cause of the expansion of the fireplace
through warmth.
Ventilation
Correct ventilation prevents damaging overheating
of the gas regulator block and its electronics and
also limits the temperature of the convection air.

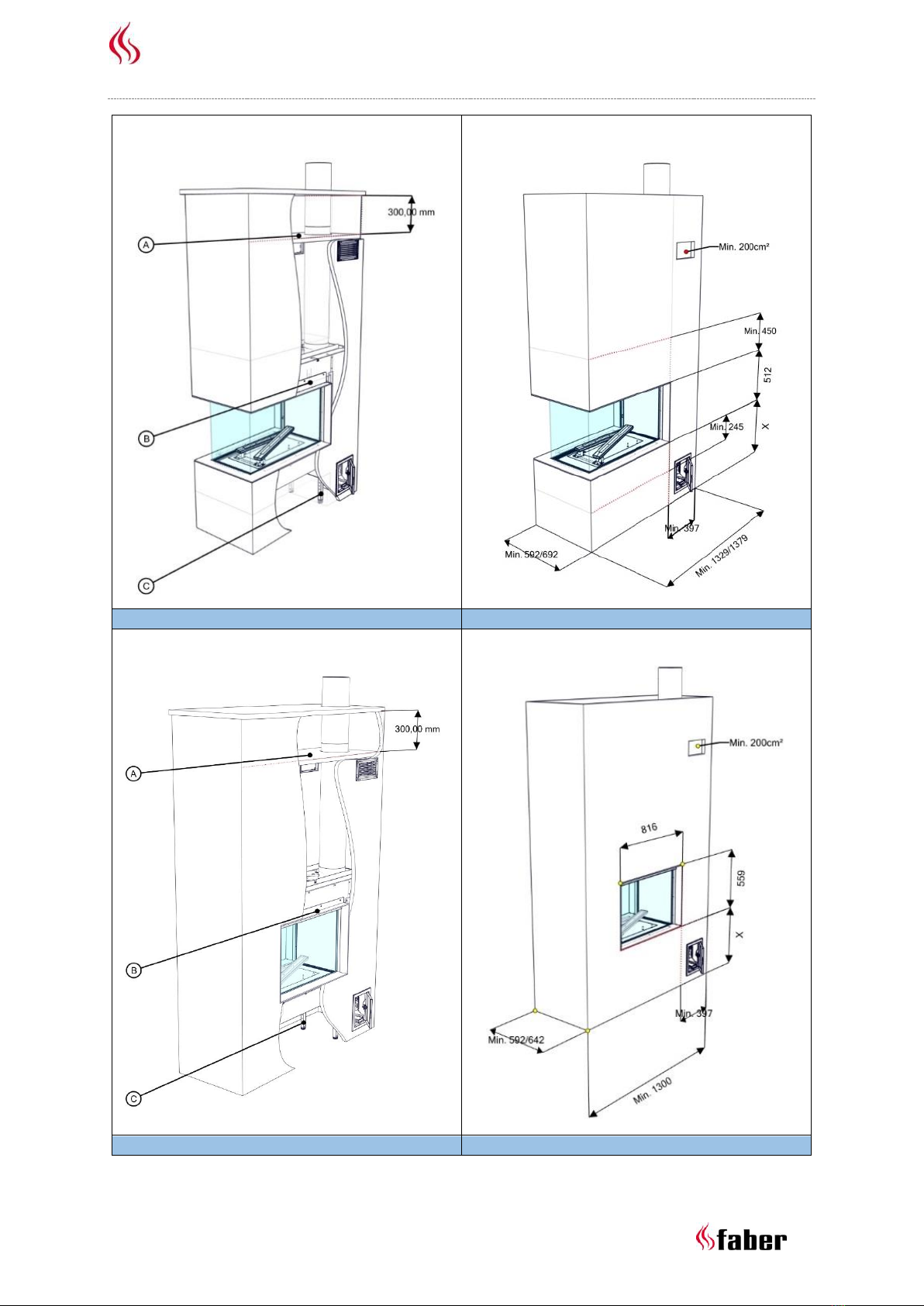

Use the supplied Faber ventilation grids or a similar
alternative with a minimum free passage of
200cm² per grid, in the space above the fire, when
building the false chimney. Within the false chim-

Installation manual MatriX 800/500 RD,ST
9 <<<<
ney, a horizontal screen plate, made of non-com-
bustible material, must be installed just above the
ventilation openings. (see A in fig. 1.0 and 1,2).
Installation and finishing
Please note!
•Take into account a minimum distance of
2 mm due to expansion of the fireplace.
•Take into account the thickness of any fin-
ishing layer!
Method I: installation WITH cover strip
(see F, Fig. 3.0a)
For installation and finishing the following
points are of interest (fig. 3.0b):
G = Build-in frame
H = Spacer profile
•Build the false chimney against the build-
in frame Gand the spacer profile H(Fig.
3.0b).
•Do not build the false chimney (under-
neath the appliance) higher than the top
of the distance profile H.

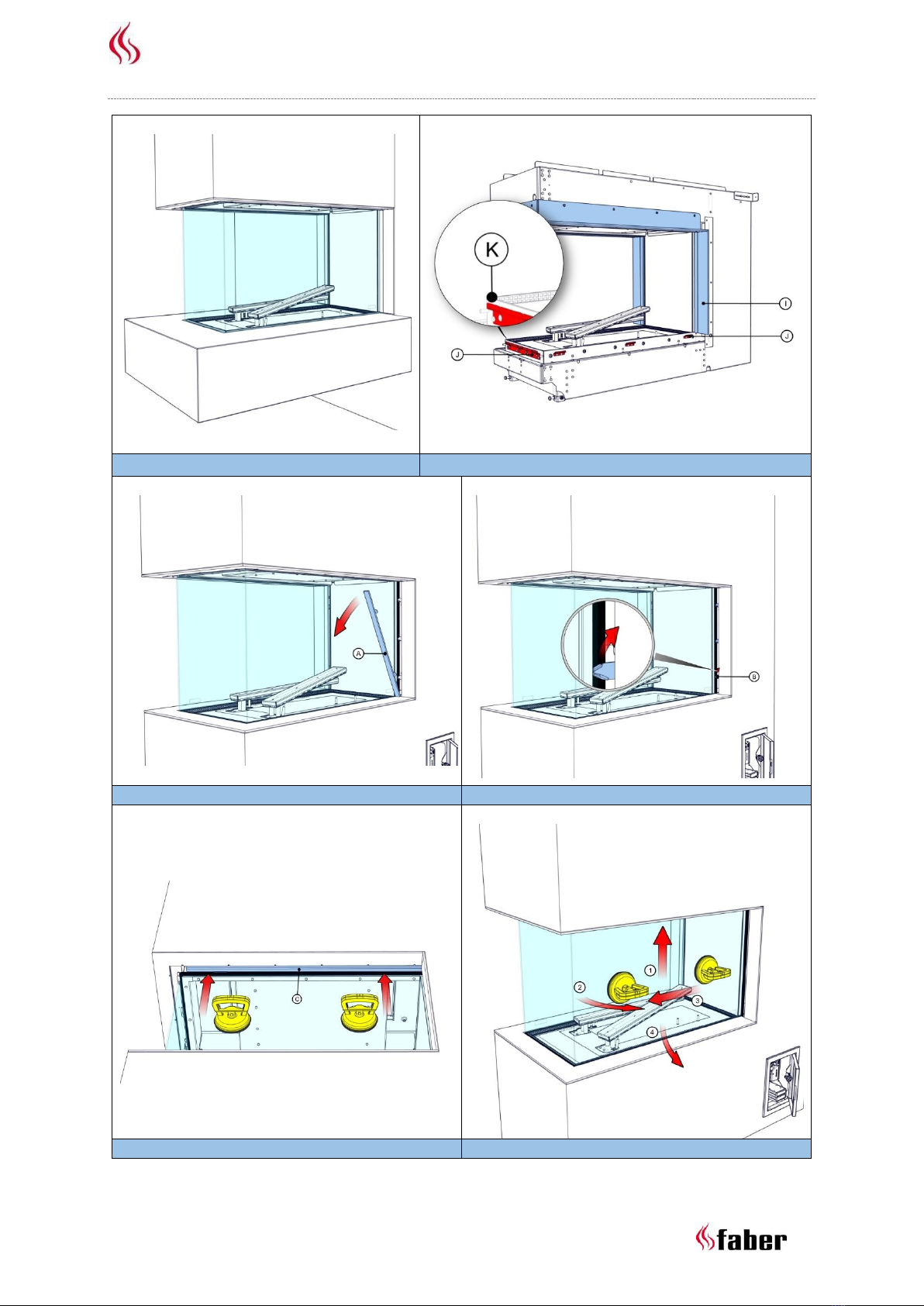

Method II without cover strip (see Fig. 3.1a)
For installation and finishing the following
points are of interest (fig. 3.1b:
I = Build-in frame
J = Glass support
K = Upper side of combustion chamber
setting
•Remove all-round spacer profile H
(Fig. 3.0b).
Please note!
Ensure that the screws of the spacer profiles H
are replaced to ensure the air tightness of the
device.
•For the height of the platform, observe
point K(Fig. 3.1b).
•Due to the expansion of the fireplace,
there should be at least 2mm play be-
tween the platform and the glass supports
J(Fig. 3.1b).
5Removing the glass
5.1 MatriX 800/500 RD
Removing the glass from the front

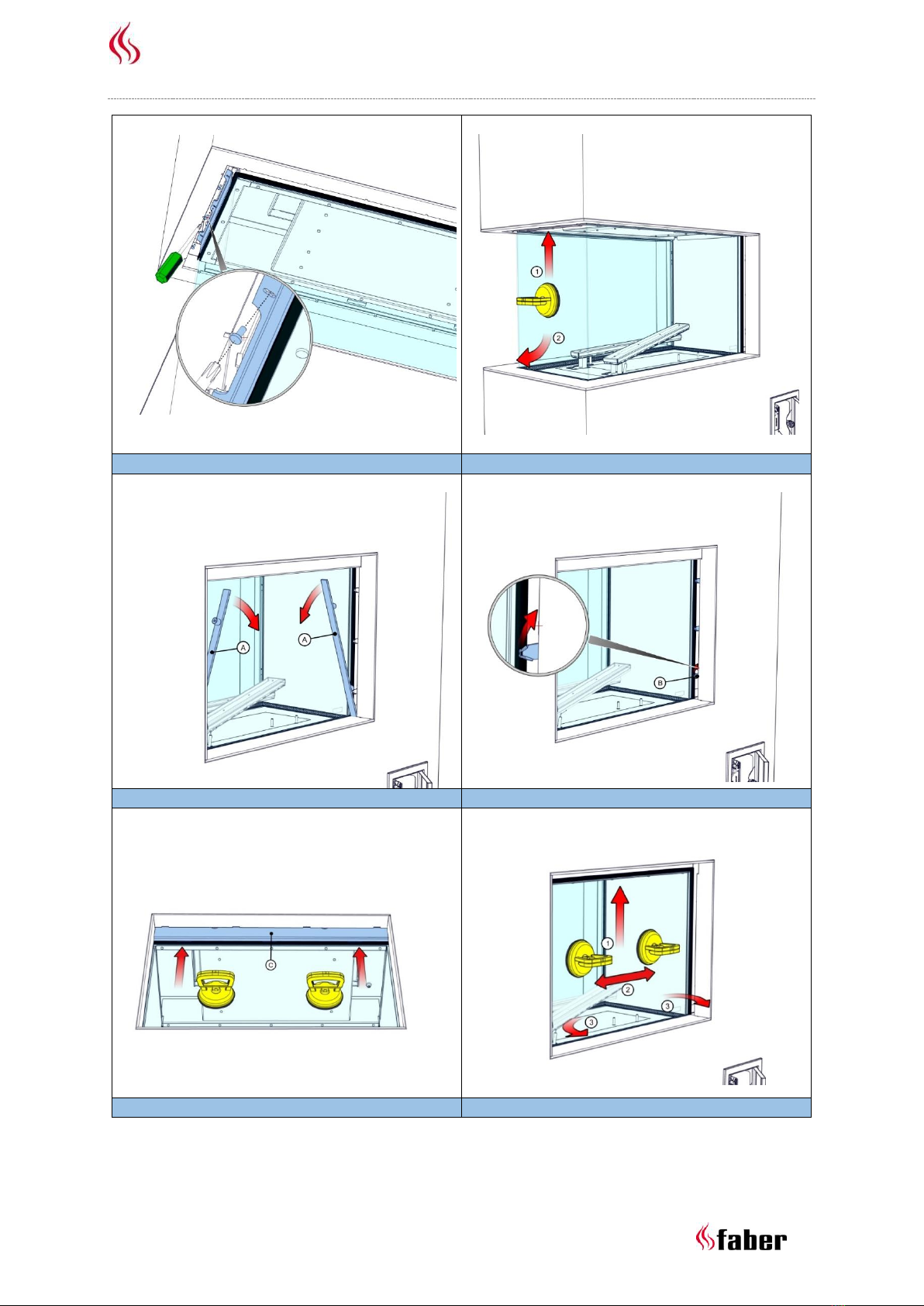

•Remove cover strip “A” (Fig. 4.0a).
Rotate clamp “B” clockwise (fig. 4.0b).
•Place the suction cups on the glass and
slide the upper frame “C” upward (fig.
4.0c).
•See fig. 4.0d:
1. Slide the glass to the top so that the
bottom is released from the slot.
2. Bring the left side slightly towards
you.
3. Slide the glass a little to the left.
4. Pull the glass down and store it at a
safe place.
For replacing the glass repeat the steps in reverse
order.
Please note!
Avoid fingerprints on the glass, these are no
longer removable once the fire is used.
Removing the glass from the side
It is not necessary to take out the glass from the
side to place the wood set or for maintenance.
•Remove the glass strip at the top (fig.
4.1a).
•Place the suction cup on the glass (fig.
4.1b).
•See fig. 4.1b:
1. Slide the glass to the top so that the
bottom is released from the slot.
2. Pull the glass down and store it at a
safe place.
For replacing the glass repeat the steps in reverse
order.
Please note!
Avoid fingerprints on the glass, these are no
longer removable once the fire is used.

Installation manual MatriX 800/500 RD,ST
10 <<<<
5.2 MatriX 800/500 ST
•Remove cover strips “A” (fig. 4.2a).
Rotate clamp “B” clockwise on both sides
(fig. 4.2b).
•Place the suction cups on the glass and
slide the upper frame “C” upward (fig.
4.2c).
•See fig. 4.2d:
1. Slide the glass to the top so that the
bottom is released from the slot.
2. Now carefully slide the glass to the
left or right.
3. Bring the released side towards you
and store the glass at a safe place.
Replace the glass in reverse order.
Please note!
Avoid fingerprints on the glass; these are no
longer removable once the fire is used.
6Placing the decorative material
It is not permitted to use other or to add more ma-
terial in the combustion chamber.
Please note!
Always keep space (min. 1cm):
•Around the base of the burner (fig. 17.2d);
•Under the burners (fig. 17.2b and c);
•At the ignition pin (fig. 17.2e);
•At the ionization pin (fig. 17.2d).
See fig. 17.0 to 17.5 or the log set instruction card:
•Distribute the glass granules on the entire
base plate (fig. 17.0). Where the burners
go up, a little more may be placed.
•Distribute the chips (natural) around the
outer edge of the base plate (fig. 17.1).
•Distribute the chips (black) in the middle
of the base plate (fig. 17.2a).
•Place the first large wooden log (fig. 17.3).
To place it, pull up the other burner a lit-
tle.
•Place the small log, which has a hole at
the bottom of the pin (fig. 17.3 and 17.4).
•Place the other large log (fig. 17.5).
Check again that both burners, ignition and ionisa-
tion pins are free of glass granules and chips!
•Start the fireplace as described in the user
manual.
•Assess whether the flame distribution
and, if any, the Symbio effect (glow bed),
is good. Move or remove any chips/glass
granules to create a nice glow bed.
•Install the front glass and check the fire
image.
7Checking the installation
Checking for gas leaks
Check with a gas leak finder all connections and
pipes for gas leakage.
Check primary pressure
Check if the primary pressure correspond to the
data on the rating plate.
Measuring the primary pressure:
•Close the shutoff valve. Turn the measur-
ing nipple “E” (fig. 1.4) a few turns to
open and connect a measuring hose to
the gas regulator.
•Take this measurement when the fire-
place runs at high and low settings.
•Do not connect the unit if the pressure is
too high (+20% or -20%).

Please note!
Close the pressure measuring nipple and check
for gas leakage.
Check ignition and burner
Ignite the fireplace by using the remote control as
described in the user manual and test all burner
possibilities.
Now repeat the above check by using the APP.
(App set to Dealer level).
Check:
•the Actual measured values;
•the Diagnosis messages.
7.1 Checking the flame image
Let the fireplace burn for at least 20 minutes at
highest setting and check the flame for:
•flame distribution;
•colour of the flames.
If one or both points are not acceptable then
check:
•The position of the logs and/or the
amount of chips/glass granulates.
•The pipe connections for leaks.
(in case of blue flames);
•That the correct flue restrictor is fitted
(see fig. 2.0);

Installation manual MatriX 800/500 RD,ST
11 <<<<
•The outlet:
oWall terminal has the correct po-
sition and side up;
oRoof terminal has the correct po-
sition.
oIf the maximum lengths of the
flue gas outlet is not exceeded.
•If possible, carry out a flue gas analysis
(see section 7.2).
7.2 Flue gas analysis
It is possible to check the combustion gases and
supply air with a CO/CO2flue gas analyser.
There are two measuring pipes between the build-
in frame and the front glass (fig. 2.1a,b).
X = measuring pipe air supply
Y = measuring pipe flue gas
The ratio CO2 and CO must not be greater than
1:100.
Example:
CO2 is 4% and CO is 400ppm, measured at the
highest point.
If the ratio is greater than 1:100 or flue gases are
measured in the air supply, check the points in sec-
tion 7.1.
8Instructions for client
•Recommend that the fire should be
checked annually by a qualified specialist
to ensure the safe use and to guarantee a
long service life.
•Provide instructions on the operation of:
othe appliance;
othe remote control;
othe App and its settings.
•Give advice and instructions on care and
cleaning of the glass:
•Emphasize the danger of fingerprint burns
at the glass.
•Handover to customer:
oinstallation manual;
ouser manual;
odecoration instruction card;
osuction cups;
osample Faber glass polish.
9Annual maintenance
Check
Check and clean if necessary:
•the combustion chamber;
•the burner;
•the wooden logs for breakage;
•the glass;
•the outlet.
Replace chips and/or glass granulate if necessary.
Cleaning
Remove the front glass (see chapter 5).
You can clean the glass with Faber glass polish.
This is a specially formulated cleaning agent that
can be ordered at authorized Faber dealers.
Never use aggressive cleaning agents or abrasive
products.
Please note!
Avoid fingerprints on the glass; these are no
longer removable once the fire is used.
Now carry out check-up as described in chapter 7.
For an extensive maintenance instruction "mainte-
nance protocol gas fires" see:
10 Conversion to other gas type
This can only be done by replacing the burner. To
do so, please contact your dealer. Always provide
the type and serial number of the appliance when
ordering.

Installation manual MatriX 800/500 RD,ST
12 <<<<
11 Flue calculation
A simple way to calculate whether the exhaust
configuration is possible in combination with your
fireplace, use the “Faber Flue App V2”:
This is available free of charge and can be down-
loaded via:
Internet:
Android and PC (Windows Store, (Windows 10)).
App Store:
iPhone, iPad and Mac.
Google Play:
Android smart phones and Android tablets.
Alternatively, you can use the calculation sheet
(see chapter 13).
The options for flue lengths and any flue restrictors
are defined in a restrictor table, see 11.1 till 11.2.
Start Length (STL), Total Vertical Height (TVH) and
Total Horizontal Length (THL) are used in the table.
•Start length (STL):
The first part that is placed on the fire-
place and represents a certain value (fig.
12.1, 12.2 and 12.3 A, N and F). You can
find this value in the upper row of the re-
strictor table.

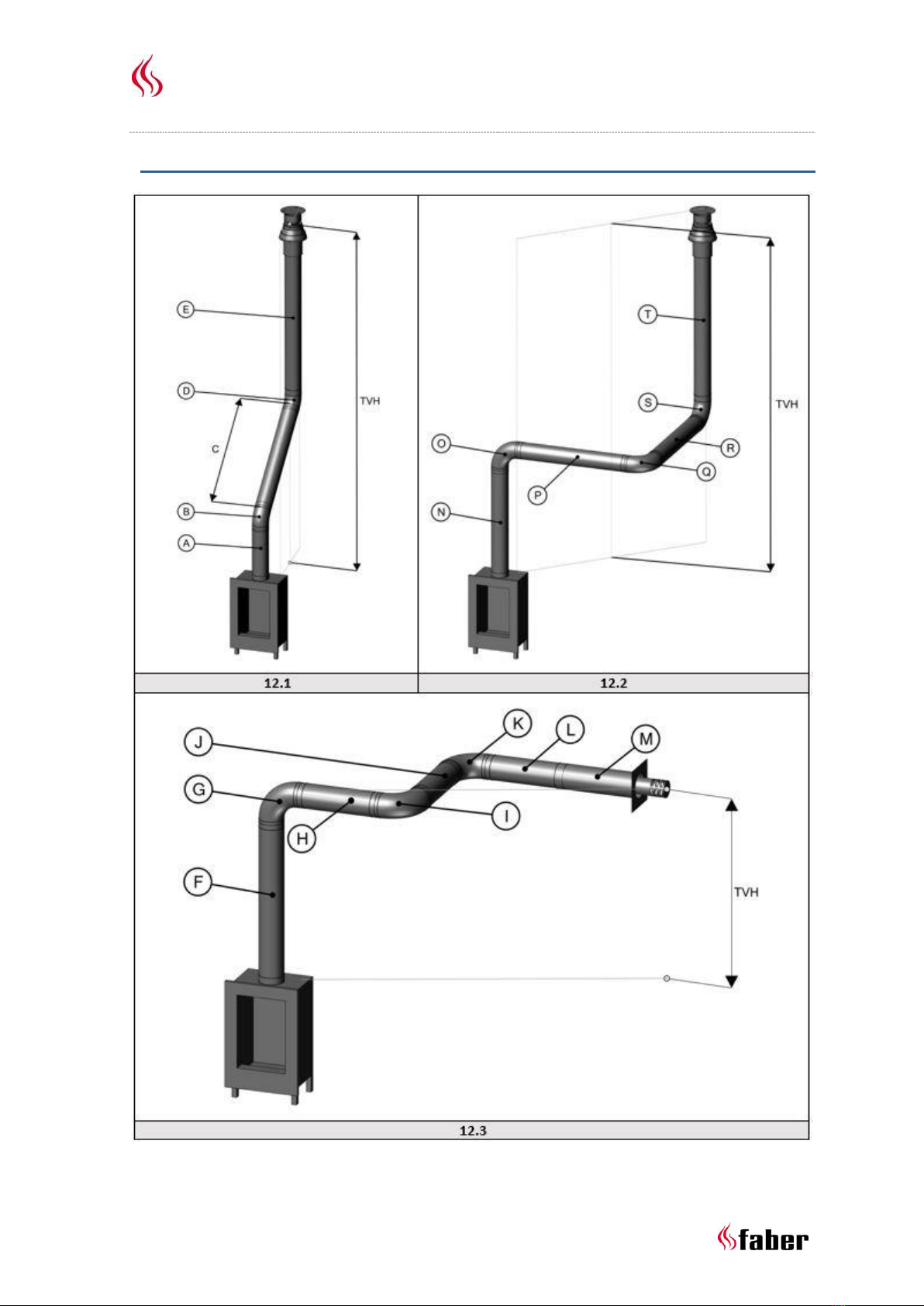

•Total Vertical Height (TVH):
TVH is the height difference measured
from the top of the appliance to the out-
let. This can be measured or determined
in the building plan. For clarification, see
also the TVH indication in the drawings
(fig. 12.1, 12.2 and 12.3).
•Total Horizontal Length (THL):
THL is the Total Horizontal Length and
consists of elbows and pipes entirely in
the horizontal plane. See elbows I, K and Q
and the elements H, J, L, M, P and R
(fig. 12.1 and 12.2).
•Horizontal length:
The Horizontal Length consists of the ele-
ments H, J, L, M, P and R
(fig. 12.1 and 12.2).
•Elbows 90° in the horizontal plane:
Horizontal elbows are elbows entirely in
the horizontal plane
(fig. 12.1, 12.2 and 12.3 I, K and Q).
•Elbows 45° or 30° in the horizontal plane.
Horizontal elbows are elbows entirely in
the horizontal plane.
•Elbows 90° vertical to horizontal:
These are 90° elbows, which proceed from
horizontal to vertical (fig. 12.2 and 12.3 G,
O and S).
•Elbows 45° or 30° vertical to horizontal
plane:
These are 30° or 45° elbows vertically off-
set less than 45° (fig. 12.1 B and D).
•Pipes at an angle of inclination:
These are pipes vertically ascending at an
angle of 30° or 45° (fig. 12.1 C). Fill in only
in combination with at least two 30° or
45° elbows in the vertical part.
•Restrictor table:
See restrictor table for the correct vertical
(TVH) and horizontal length (THL).
In case of an “X” or if the values are outside the re-
strictor table, the combination is not permitted.
Then adjust TVH or THL.
If a value is indicated, check that the calculated STL
value is not lower than indicated in the restrictor
table. In this case STL must be adjusted.
The value found indicates the width of the flue re-
strictor to be placed (“0” means no flue restrictor).
Generally a 30mm flue restrictor is installed (fig.
2.0).

Installation manual MatriX 800/500 RD,ST
13 <<<<
11.1 Restrictor table (100/150) MatriX 800/500 RD,ST
Start length (STL) Vertical (TVH) and Horizontal (THL)
STL
THL
0
1
2
3
4
5
6
7
8
9
10
TVH
0
x
x
x
x
x
x
x
x
x
x
x
0.5
x
x
x
x
x
x
x
x
x
x
x
1
x
x
x
x
x
x
x
x
x
x
x
1.5
x
x
x
x
x
x
x
x
x
x
x
2
30.2
x
x
x
x
x
x
x
x
x
x
3
30.2
x
x
x
x
x
x
x
x
x
x
4
30.2
x
x
x
x
x
x
x
x
x
x
5
40.2
x
x
x
x
x
x
x
x
x
x
6
40.2
x
x
x
x
x
x
x
x
x
x
7
50.2
x
x
x
x
x
x
x
x
x
x
8
55.2
x
x
x
x
x
x
x
x
x
x
9
55.2
x
x
x
x
x
x
x
x
x
x
10
60.2
x
x
x
x
x
x
x
x
x
x
11
60.2
x
x
x
x
x
x
x
x
x
x
12
60.2
x
x
x
x
x
x
x
x
x
x
13
70.2
x
x
x
x
x
x
x
x
x
x
14
70.2
x
x
x
x
x
x
x
x
x
x
15
70.2
x
x
x
x
x
x
x
x
x
x
16
70.2
x
x
x
x
x
x
x
x
x
x
17
80.2
x
x
x
x
x
x
x
x
x
x
18
80.2
x
x
x
x
x
x
x
x
x
x
19
80.2
x
x
x
x
x
x
x
x
x
x
20
80.2
x
x
x
x
x
x
x
x
x
x
21
80.2
x
x
x
x
x
x
x
x
x
x
22
80.2
x
x
x
x
x
x
x
x
x
x
23
80.2
x
x
x
x
x
x
x
x
x
x
24
80.2
x
x
x
x
x
x
x
x
x
x
25
80.2
x
x
x
x
x
x
x
x
x
x
26
80.2
x
x
x
x
x
x
x
x
x
x
27
80.2
x
x
x
x
x
x
x
x
x
x
28
80.2
x
x
x
x
x
x
x
x
x
x
29
80.2
x
x
x
x
x
x
x
x
x
x
30
80.2
x
x
x
x
x
x
x
x
x
x

Installation manual MatriX 800/500 RD,ST
14 <<<<
11.2 Restrictor table (130/200) MatriX 800/500 RD,ST
Start length (STL) Vertical (TVH) and Horizontal (THL)
0,2 1 1 1,5
012345678910
0x x x x x x x x x x x
0,5 x x x x x x x x x x x
1x 30.40 0.40 0.40 0.40 0.40 0.40 x x x x
1,5 x 30.40 30.40 0.40 0.40 0.40 0.40 0.40 x x x
20.40 30.40 30.40 30.40 0.40 0.40 0.40 0.40 0.40 x x
330.40 30.40 30.40 30.40 30.40 0.40 0.40 0.40 0.40 x x
450.40 30.40 30.40 30.40 30.40 30.40 0.40 0.40 0.40 x x
560.40 50.40 30.40 30.40 30.40 30.40 30.40 0.40 0.40 x x
670.40 60.40 50.40 30.40 30.40 30.40 30.40 30.40 0.40 x x
775.40 70.40 60.40 50.40 30.40 30.40 30.40 30.40 30.40 x x
875.40 75.40 70.40 60.40 50.40 30.40 30.40 30.40 30.40 x x
980.40 75.40 75.40 70.40 60.40 50.40 30.40 30.40 30.40 x x
10 80.40 80.40 75.40 75.40 70.40 60.40 50.40 30.40 30.40 x x
11 80.40 80.40 80.40 75.40 75.40 70.40 60.40 50.40 30.40 x x
12 80.40 80.40 80.40 80.40 75.40 75.40 70.40 60.40 50.40 x x
13 80.40 80.40 80.40 80.40 80.40 75.40 75.40 70.40 60.40 x x
14 80.40 80.40 80.40 80.40 80.40 80.40 75.40 75.40 70.40 x x
15 80.40 80.40 80.40 80.40 80.40 80.40 80.40 75.40 75.40 x x
16 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 75.40 x x
17 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 x x
18 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 x x
19 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 x x
20 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 x x
21 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 x x
22 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 x x
23 80.40 80.40 80.40 80.40 80.40 80.40 80.40 80.40 x x x
24 80.40 80.40 80.40 80.40 80.40 80.40 80.40 x x x x
25 80.40 80.40 80.40 80.40 80.40 80.40 x x x x x
26 80.40 80.40 80.40 80.40 80.40 x x x x x x
27 80.40 80.40 80.40 80.40 x x x x x x x
28 80.40 80.40 80.40 x x x x x x x x
29 80.40 80.40 x x x x x x x x x
30 80.40 x x x x x x x x x x
STL
THL
TVH

Installation manual MatriX 800/500 RD,ST
15 <<<<
12 Examples flue materials
TVH

Installation manual MatriX 800/500 RD,ST
16 <<<<
13 Calculation sheet
Value
0,2
0,5
1
1,5
2
0,1
0,2
1
0
……………………..
rounded value
……………. meter
Part number x value result
Total Length in
meters ……… x1……………..
90° Bend, vertical to
horizontal
……… x0,4 ……………..
45° Bend, vertical to
horizontal
……… x0,2 ……………..
90° Bend in
horizontal direction
……… x1,5 ……………..
45° Bend in
horizontal direction
……… x1……………..
flue pipes at an angle
in meters
……… x0,7 ……………..
……………+ ………………….. meter
Calculation
Total
rounded value
Total Vertical Height (TVH)
measured height
…………………………………………………… meter
Total Horizontal Length (THL)
Value
Starter length (STL)
First part on top of the appliance
Flue length from 0,1m till 0,45m
Flue length from 0,5m till 0,90m
Flue length from 1m till 1,4m
Flue length from 1,5m till 2m
Flue length 2m or more
Bend 90°
Bend 45°, 30° or 15°
Roof terminal
Wall terminal

Installation manual MatriX 800/500 RD,ST
17 <<<<
found value
………………………………
………………….. mm
mark
Install the air restrictor plate, see installation manual 0,1
Install adapter 100/150 direct on top of the fire 0,2
In case of wall terminal, install adapter 100/150 before the
last bend, incase of roof terminal just before the terminal.
0,3
In case of roof terminal (always size 100/150) install the
100/150 adapter just before the terminal.
Wall terminal 130/200
0,4
From the fire first an adjuster to 130/200 and 1 meter
130/200, after that reduce to 100/150 and everything
100/150.
0,5
Restrictor size = Value for the comma
Extra information = Value behind the comma
Search in the table at TVH and THL and enter the value that is found.
If the detected value is a number, check whether the completed STL is higher or equal to the value in
the table.
Is the STL value lower as specified in the table then the installation is not possible.
Solution: Start length to low, see for the minimum length in the top row of the table.
Is the found value X, then the installation is not possible.
Solution: Change the TVH or THL.
Results

Installation manual MatriX 800/500 RD,ST
18 <<<<
14 Technical data
Symbol Unit
Reference gas/inlet pressure G20-20 G31-37 mbar
Emissions in space heating NOx 120 114 mg/kWhinput (GVC)
Direct heating output
Nominal heat output Pnom 10,5 10,5 kW
Minimum heat output (indicative) Pmin 3,5 3,5 kW
Useful efficiency (NCV)
At nominal heat output ꞃth,nom 84,9 84,9 %
At minimum heat output (indicative) ꞃth,min 72,3 72,3 %
Appliance input data
Input Hi 12,4 12,4 kW
1,313 0,502 m³/h
0,96 kg/h
Burner pressure at full mark 10,5 28 mbar
Power requirement for permanent pilot light
Additional electricity consumption
At nominal heat output elmax 0,016 0,016 kW
At minimum heat output elmin 0,012 0,012 kW
In standby mode elSB 0,0037 0,0037 kW
Energy-efficiency
Energy-efficiency class B B
Energy-efficiency index EEI 84 84
Type heating output/control room temperature
no
no
no
no
no
yes
Glen Dimplex Benelux Saturnus 8 Heerenveen The Netherlands
With mechanical control of the room temperature by
thermostat
Control of room temperature, with open
window detection
yes
With electronic control of the room temperature
With electronic control of the room temperature plus day-
time switch
With optional remote control
yes
With electronic control of the room temperature plus week-
time switch
0
kW
Other control options
One step heat output, no control of room temperature
Control of room temperature, with
presence detection
no
Two or more manually adjustable stages, no control of room
temperature
0
Gas rate at full mark
Power requirement for permanent pilot light
(if applicable)
Ppilot
Gas connection
3/8"
Indirect heating functionality
no
Category
II2H3P
Diameter outlet/inlet
130/200
Technical data
Type indication(s)
MatriX 800/500 RD,ST
Type appliance
C11/C31/C91

Installation manual MatriX 800/500 RD,ST
19 <<<<

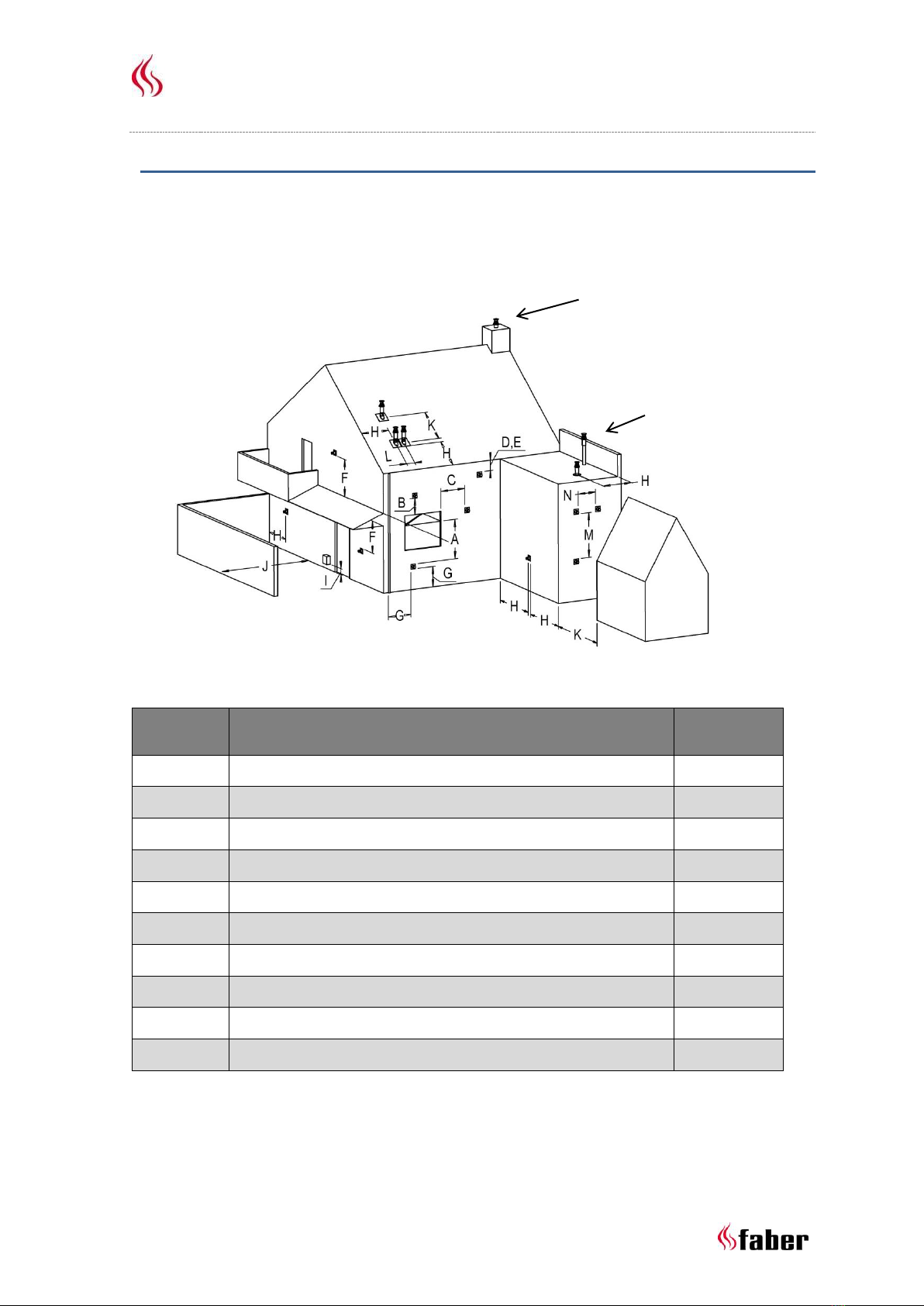

15 Outlet position
Please note!
These rules apply only for the proper functioning of the unit, for ventilation and environmental
protection you need to comply with the applicable rules as defined in the building regulations.
Location
Position outlet
Distance mm
D
Under a gutter
500
E
Under a roof edge
500
F
Under a carport or balcony
500
G
Vertical downpipe
300
H
Inside and outside corners
500
J
From wall surface to a wall outlet
1000
K
Two gable outlets against over each other
1000
L
Distance between two roof outlets
450
M
Two roof outlets above each other on a pitched roof
1000
N
Two gable outlets next to each other
1000
Short roof terminal.
Only for existing
Chimney connection
Extension pipe over roof
