SMARTROLL™ 32-1
INSTALLATION INSTRUCTIONS
Safe and Silent Solutions
for Roller Shades
Roller Shades
INSTALLATION INSTRUCTIONS ~ SMARTROLL™32-1
Thank you for purchasing your new Smartroll shades. They
have been custom-made from the highest quality materials
to the dimensions you specied. With the proper installation
and care, it will provide you with many years of beauty and
trouble-free use.
Please read all instructions before you start so you will be
familiar with the overall process.
Make sure you measure your window to ensure the shade
will t properly before beginning.
Getting Started
Remove the Smartroll shades from the packaging. Keep the
packaging until you have successfully installed the shades.
TOOLS REQUIRED
FASTENER NOTES
For outside mount, it is best to attach the bracket to wood
studs. If this is not possible, you will need to purchase special
fasteners (see illustration below for examples).
Here are some HELPFUL TIPS:
• If you are using a special fastener, make sure it is
designed to support the weight of the shades. Follow the
fastener manufacturer’s instructions carefully.
• When drilling into drywall or plaster, use a fastener
designed for hollow wall applications (see illustration).
• When drilling into concrete, stone, brick, or tile, use
appropriate plugs, anchors, or screws (not included).
• When drilling into metal, the included screws are sufcient.
Pre-drill ¹⁄₈” holes.
Molly Bolt Hollow Wall Anchor Anchor
• Pencil • Power Drill with the following bits:
• Awl - ¹⁄₁₆” Drill Bit
• Tape Measure - ¹⁄₄” Hex Driver
• Level - Standard Screwdriver
• Ladder or Stepstool - Masonry Drill Bit (if drilling into
concrete or brick)

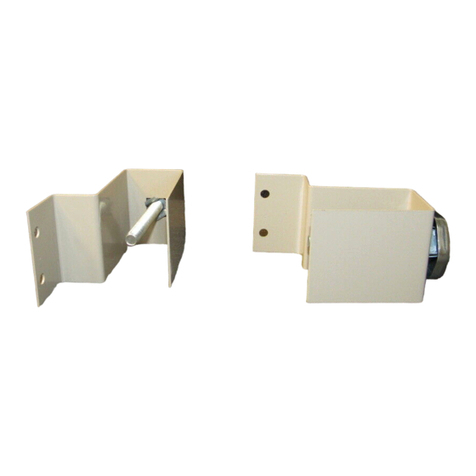

Left Bracket Right Bracket
Attaching right bracket to wall
Left end of spring drive wheel
Illustrations, clockwise from top left:
End brackets (right and left sides), end caps,
stop pin and installation screws.
PACKAGE CONTENTS
BEFORE YOU BEGIN, VERIFY THAT YOU HAVE ALL THE NECESSARY
PARTS AND PIECES:
• SHADES - NOTE THE SHADE SIZE. THIS IS VERY IMPORTANT.
For shade sizes less than 36⁷⁄₈” tip to tip wide, refer to the
installation instructions for Smartroll™ 24-1.
For shade sizes greater than 36⁷⁄₈” tip to tip wide, refer to
the installation instructions for Smartroll™ 32-1.
• PACKAGE - Contains 2 brackets (a left bracket and a right
bracket), 2 bracket covers, 4 mounting screws and a
stop pin.
If this Smartroll technology is new to you, or you have
never installed a Smartroll shade before, please go to the
video at: www.smartroll.com
Scroll down to the “Technological Innovation” section and
you will see the video for the “Smartroll 32-1 Installation Tour”
on the right side.
Pay particular attention to Steps 2/7 through 7/7 in this video.
Step 1/7 has already been completed at the factory.
NOTE:
The following directions are based on a standard roll
shade. For a reverse roll shade, simply turn the shade
around.
The spring drive wheel for a standard shade installation
will be on the right side and the brake wheel will be on
the left side.
If the shade is turned around, the spring drive wheel will
be on the left side and the brake wheel will be on the
right side.
Mounting the Shades
STEP 1 - BRACKET INSTALLATION.
Attach the brackets to the wall. Use a pencil to mark the
drilling points and a level to keep a proper horizontal
position.
Attach them to the wall with the 4 screws provided.
See photos below.
STEP 2 - ROLLER SHADE INSTALLATION.
Attach the roller shade to the brackets by slipping the pins
into the notches.

Rotating the spring drive wheel counterclockwise
Right end of spring drive wheel with pin in notch
Turn counter-clockwise
to increase speed
Right side, spring drive wheel
Flat surface on wheel
(to help in counting the revolutions)
The upper limit stop
STEP 2 - ROLLER SHADE INSTALLATION (continued).
STEP 3 - ADJUST THE SHADE SPEED.
Adjust the speed at which the shade will rise. The shade
speed is set at the factory. However, the selected speed
may be too slow or the tension may have loosened during
shipping.
To make an adjustment, locate the spring drive wheel on
the right side of the shade. Hold shade with the left hand
and turn the spring drive wheel counter-clockwise. This will
tighten the tension on the shade to help it roll faster.
IMPORTANT!
DO NOT TURN the
wheel more than
21 FULL REVOLUTIONS.
STEP 4 - SETTING THE UPPER LIMIT STOP.
This is the location where the shade will stop when raised.
Simply raise the shade to the desired stopping location
by turning the brake wheel on the left side of the shade.
Nothing more is required.
STEP 3 - ADJUST THE SHADE SPEED (continued).
Note: There is a at surface on the wheel to help in counting
of the revolutions. If the tension is too tight, lift the right pin
only out of the bracket, and the tension will release.
Desired stopping
location of
shade
Flat surface

¹⁄₄” tug downwards
(to raise the shade)
Inserting the stop pin
Inserting the right side bracket cover
SSS1509SR32II© 2015 Fabritec, LLC. All rights reserved.
STEP 6 - INSERT THE STOP PIN.
Secure the shade by inserting the stop pin into one of the
aligned holes and push into place. The stop pin will prevent
the shade from loosing its set position.
STEP 7 - INSTALL THE BRACKET COVERS.
The bracket covers are universal, and can be used on either
side.
Simply snap onto the brackets for a clean, professional,
nished look! You are done!
STEP 5 - ALIGN THE HOLES.
There are 5 holes at the end of the brake wheel. Rotate the
shade until the holes line up with the holes on the bracket.
Operating your Smartroll Shades
Unlike the typical spring shade, a Smartroll shade requires a
minimal ¹⁄₄” tug. No need to pull hard or long. A gentle tug
will do the trick!
It will rise and stop to the exact location set in STEP 4. No
more y-away shade that will bang against the window!
No cords or hazardous chains. Trouble-free and secure use.
Caring for your Smartroll Shades
Your Smartroll shades will provide you with years of beauty
and pleasure with minimal care and cleaning.
• Vacuum using a brush or dust head attachment.
• Dust lightly using a soft, clean cloth.
• Never immerse the shades in water or liquids of any type.
Call us at 800.828.2500 if you have any questions.
