OXYGEN CONCENTRATOR USER MANUAL
#!
PREFACE
Dear user!
The UPOC Oxygen Concentrator is for prescription use by
patients requiring high concentrations of oxygen on a supplemental
basis. It is a MIT(Made in Taiwan) product that the developing the
product, designing the appearnace, and manufacturing are entirely
completed by FACIOX INC. in Taiwan.
This user manual contains the product's precautions, operating
procedures, basic functions, specifications, troubleshooting
information, repairment instructions, etc.. In order for you to operate
this machine effectively, please read and understand the instructions
in this manual carefully before using it.
Please note that some illustrations in this manual may not apply
exactly the same for the machine you have.
The accessories for this device included humidifier bottles and
oxygen tubes should be provided by FACIOX INC. or should meet
the basic criteria for this specific product and with approval of the
local country’s healthy sector.
If you have any question or other concerns about this Oxygen
Concentrator, please contact the supplier or manufacturer for
service.
!
!
!

OXYGEN CONCENTRATOR USER MANUAL
$!
WARNINGS AND CAUTIONS
DANGER (If the following items are violated, it may cause
serious injury or death)
% Measures to reduce the risk of burns, electric shock, fire, or injury.
Avoid using Oxygen Concentrator while taking a bath. If it is necessary,
please follow the doctor's or home care’s instructions, and the Oxygen
Concentrator must be place in another room away from the bathroom.
The recommended length of the oxygen tube should be less than 11
meters and the nasal cannula should not be bent. DO NOT place or store
the Oxygen Concentrator where water or other liquid can spill into the
enclosure. Oxygen supports combustion. Do not use this device while
smoking or near an open flame.
" Improper use of the cord and plug may cause fire or other electric
shocks and burns. Please DO NOT use the machine with damaged AC
power cord.
" Before cleaning the dust of the Oxygen Concentrator’s shell, please
unplug the power plug to prevent electric shock.
% When the machine is working, please do not open the machine shell and
internal box to avoid damage from touching the operating parts.
WARNING#The following items must be strictly implemented,
otherwise may result in serious consequences$
% In order to prevent the Oxygen Concentrator from malfunctioning or
encountering AC power source failure, users who need the Oxygen
Concentrator at all time need to be equipped with other alternative oxygen
supply devices (such as oxygen cylinders, etc.). When undergo malfunction or
power failure, please remove the nasal cannula immediately.
% This product is not intended for life support. The patients in need for

OXYGEN CONCENTRATOR USER MANUAL
&!
respiratory therapy are suggested to follow the doctor's guidance when
selecting the oxygen flow and time on the device.
% If any discomfort or abnormal reactions arise, please immediately stop
using this product, and contact the manufacturer or doctor.
% The severe patients would need additional indications to operate the
products or additional associated medicaine. Please consult a doctor
before use. If you have any adverse reactions, please inform your
doctor immediately.
% If the device is used where the altitude is over 1828 meters, the oxygen
purity will be less than 90% even when the device was set to its
maximum flow capacity.
% Do not share the same set of nasal cannula to avoid cross infection
caused by viruses or bacteria between users.
% Please use the provided humidifier bottle. Do not replace it before
consulting the supplier or doctor, otherwise it may cause discomfort or
difficulties with inhaling oxygen.
% The nasal cannula should not be placed under the coverlet or cushion and
should not be sit. This can help you to use your device successfully and
efficiently.
% When no one is using, it is recommended to turn off the power, and
unplug the device to avoid catching fire.
% Be aware whether the AC power cord is too long that might affect others
while using the oxygen concentrator. We suggest patients to operate the
device near a power socket.
% For safety, the use of Oxygen Concentrator is prohibited during take-off,
landing and through the whole flight.
% Do not perform maintenance or repairments while the machine is
running.
% The machine is not allowed to be modified by the user.
CAUTIONS#Notice to the following content to avoid damaging

OXYGEN CONCENTRATOR USER MANUAL
'!
the machine$
% Do not open the machine's casing and remove the mainboard for
maintenance. If the user found any issue or abnormality in the device
such as emergency alarms, please do not disassemble and repair them
without permission from supplier or manufacture. Contact the supplier or
manufacture immediately for maintenance.
% It should be placed in a clean, no dust, noncorrosive and nonpoisonous
environment. Do not use this product under the condition of strong
magnetic field environment.
% The air entrance of the machine should be located in a well ventilated
spot and should be in place where the least amount of pollutants are
present(pollutants including / refers to: burning gas, exhaust system, air
vents and other anesthesia vacuum exhaust port etc.).
% Please connect the separate (wall mounted) AC power outlet in order to
use this product, do not connect the device’s AC power cord with an
extension cord. Do not use other electrical appliances simultaneously on
the same plug when you are operating the oxygen concentrator.
% This machine is strictly prohibited in any contact with oil or grease, if they
are needed for the connection between pipelines, valves, and connectors,
the connection parts should be cleaned and patients should ensure the
device is well cleaned and no oil (grease) was left on the device before
installation. During the connection process, be careful to keep all parts
clean, the connection of the whole machine is strictly prohibited to touch
any combustible oily liquid.
% Ensure the bottom of the device is able to exhaust flow efficiently while
using the machine. The back of the device should not lean on the wall, it
should be placed at least 30 cm from the wall, or else it can cause
damage to the machine due to overheating.
% This device should not be operated if the room temperature is above
35°C (95°F). Since the oxygen output of this device might be higher than
the room temperature for at most 6°C (11°F). In this case, the released

OXYGEN CONCENTRATOR USER MANUAL
(!
oxygen and caused the oxygen coming out to raise above 41°C (106°F). As
a result, respiratory tract can be hurt.
% This machine is not designed to switch on and off frequently, the time
interval in between and on and off switch should not be less than 5
minutes, so to reduce the risk in shortening the compressor’s life. The
manufacturers recommend to space each operation for over 30 minutes.
% The machine can be only used as a medical oxygen supply, when the
output of the gas in set at the rated flow, the purity can go up to 90%.
% Rotary flow control knob cannot be twisted too hard, or you might
damage the spool. When the flow control knob is turned to the highest,
and the flow indicator is zero, please turn off the power immediately and
check the fault.
% When receive the products, cut off the tie on the bottom of the machine
to operate and test, or else it can cause damage to the machine.
!
NOTICE#You must pay special attention to the information.$
% The purity will be up to 90% after the device is turned on for 10min.
% The nasal cannula used by patients need to be cleand and sterilized
before each operation.
% The humidifier bottle need to be cleaned every 2 to 3 days. The air filter
foam need to be cleaned every 100 hours. The Air filter is recommended
to be replaced after 1000 hours of use. If the device is use and place in an
environment with excessive dust or soot, the above parts should be
replace in a shorter time interval. To ensure the efficiency of the device, it
is recommended to replace the parts within the suggested time interval.
% The humidifier bottle must be filled with only distilled water or cold water,
please do not fill it with unfiltered tap water. The humidifier bottle should
be cleaned every 2 ~ 3 days and recommended daily rinse during the
summer. If the device was idled for more than one day, please remove
water from the humidifier bottle and dry it for future use.

OXYGEN CONCENTRATOR USER MANUAL
)!
% DO NOT use cleaning products that contain bleach, chlorine, alcohol, or
any kind of fragrance. DO NOT use moisturizing soap, antibacterial soap,
or essential oil to clean the oxygen concentrator or nasal cannula. The
aforementioned products might cause hardening in the parts of oxygen
concentrator and can shorten its service life.
% Do not throw away the humidification bottle and nasal cannula at any
place. The nearby waste disposal mechanism is the best choice.
% Please select the suitable humidifier bottle for your device*and fix it on
the machine as required. Do not operate under a revolving situation.
+Refer to the humidifier bottle connection indicator diagram,.
% When using the humidifier bottle*take note at the highest and lowest
water level while filling up the bottle as required.
% When this machine is scrapped, please contact your local supplier or
manufacturer.
- Please refer to “SYMBOL KEY” for UPOC symbol printed on the device,
package, and in manual.!
- Please refer to “DEVICE AND ACCESSORIES DESCRIPTION” to test the
equipped components when received the device and before use and
then operate it as “PRODUCT OPERATING PROCEDURE”.!
!

OXYGEN CONCENTRATOR USER MANUAL
.!

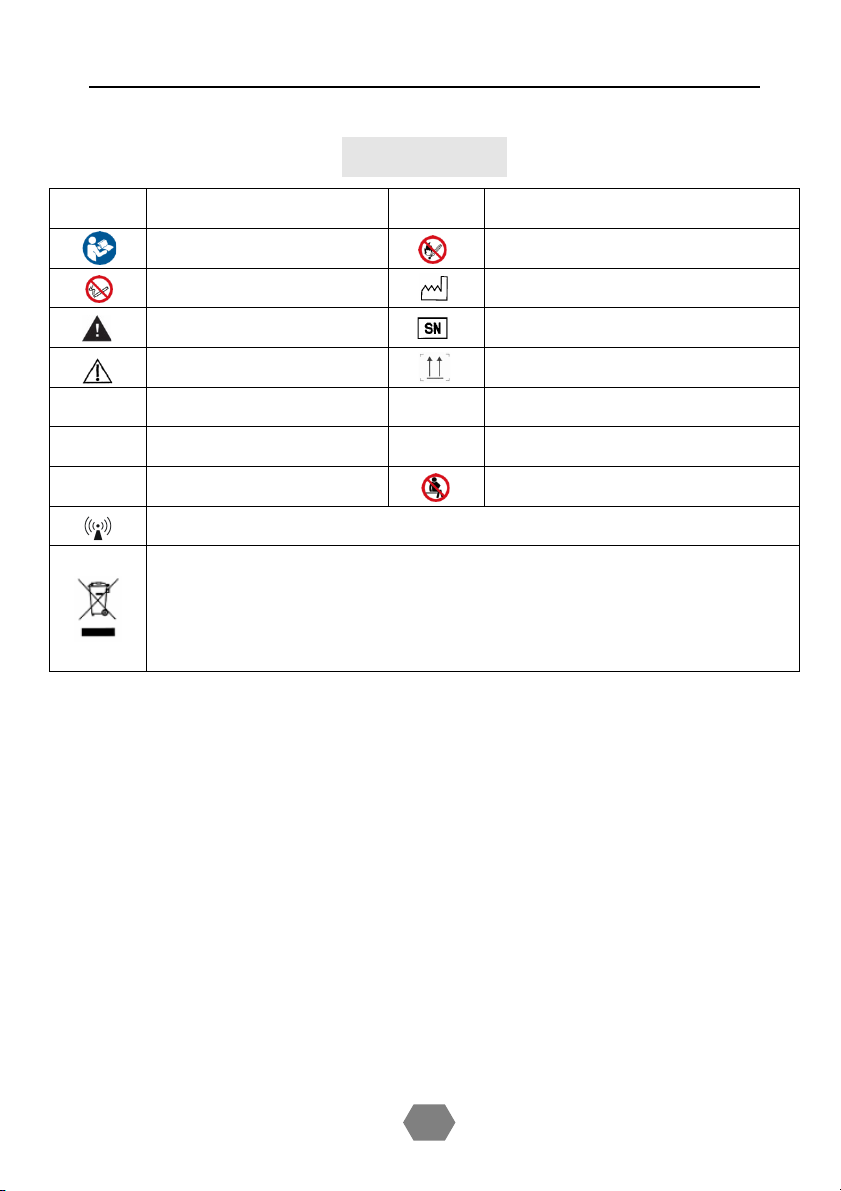

SYMBOL KEY
O
Off+Total power supply,
I
On+Total power supply,
Follow the instructions
No open flame
No Smoking
Date of manufacture
Warnings
Serial Number
Cautions
Up Put
Double insulated
Avoid the rain Keep dry
Type BF applied part
Fragile handle with care.
220V/
AC 220V
Forbidden to sit
Non-ionizing electromagnetic radiation
Waste Electrical and Electronic Equipment Directive 2002/96/EC
+WEEE Directive, after over the valid term within 3 years, the machine
should be treated on local law or regulation requirement. To avoid hurt
users and pollute environment.

OXYGEN CONCENTRATOR USER MANUAL
01!
DEVICE AND ACCESSORIES DESCRIPTION
When you received the product, please open and check the package
carefully. This product is equipped with upper and lower foam protection
cover. If the protective cover is damaged, please check whether the
product is damaged or not immediately. Then, check if there are any
missing parts or accessories according to the packing list below.
Packing List
Number
Product /Component Name
Quantity
Unit
1
Oxygen Concentrator
1
Unit
2
Humidifier Bottle
1
Piece
3
Nasal Cannula
1
Piece
4
Air filter foam
1
Piece
5
Nebulizer and Tube
1
Piece
6
User Manual
1
Piece

OXYGEN CONCENTRATOR USER MANUAL
00!
OPERATING INSTRUCTIONS
12 The tie on the bottom of the machine needs to be cut off before
turning on the device. The back of this machine should be far fro
m the wall for least 30 cm, must be the bottom of the bubble bo
ard and other things to get open, to ensure that the bottom of th
e stack, in order to maintain the bottom of the air flow and ensur
e the normal heat.
22 Connect the humidifier bottle and operate it as following
instruction3
a. Fill the humidifier bottle with distilled water as instructed, DO N
OT fill more or less than the marked water level on the bottle.
Put the cap back on the humidifier bottle+Figure 1,4
!
!
!
!
!
!
Highest Water Level!
Lowest Water Level
!
Fix the humidifier on the
front shell with elastic
+Figure1,
+Figure 2,
Safety Valve!Inside"
Intake Air Connector
Oxygen Exit
Bottle Body
Connect tube for the
Humidifier bottle
Connect tube for the
nebulizer connect outlet

OXYGEN CONCENTRATOR USER MANUAL
0"!
!
!
b. Fix the humidifier bottle on the front shell with strap and connect to the
air intake connector through humidifier bottle tubes with the oxygen
output spot.+Figure2,.
Notice!The most recommended place to install humidifier
bottle are shown in figure 2
32 Remove the AC power cord from the retaining strap, confirm if the
switch is in the off position. Plug in the oxygen concentrator.
42 After turning on the power of the machine, the power indicator on the
display will stay on and that means the machine is working perfectly.
52 Adjust the output flow of oxygen according to the needs of patients. Turn
the flow adjustment knob counterclockwise to increase the flow, and turn
it clockwise to decrease the flow5

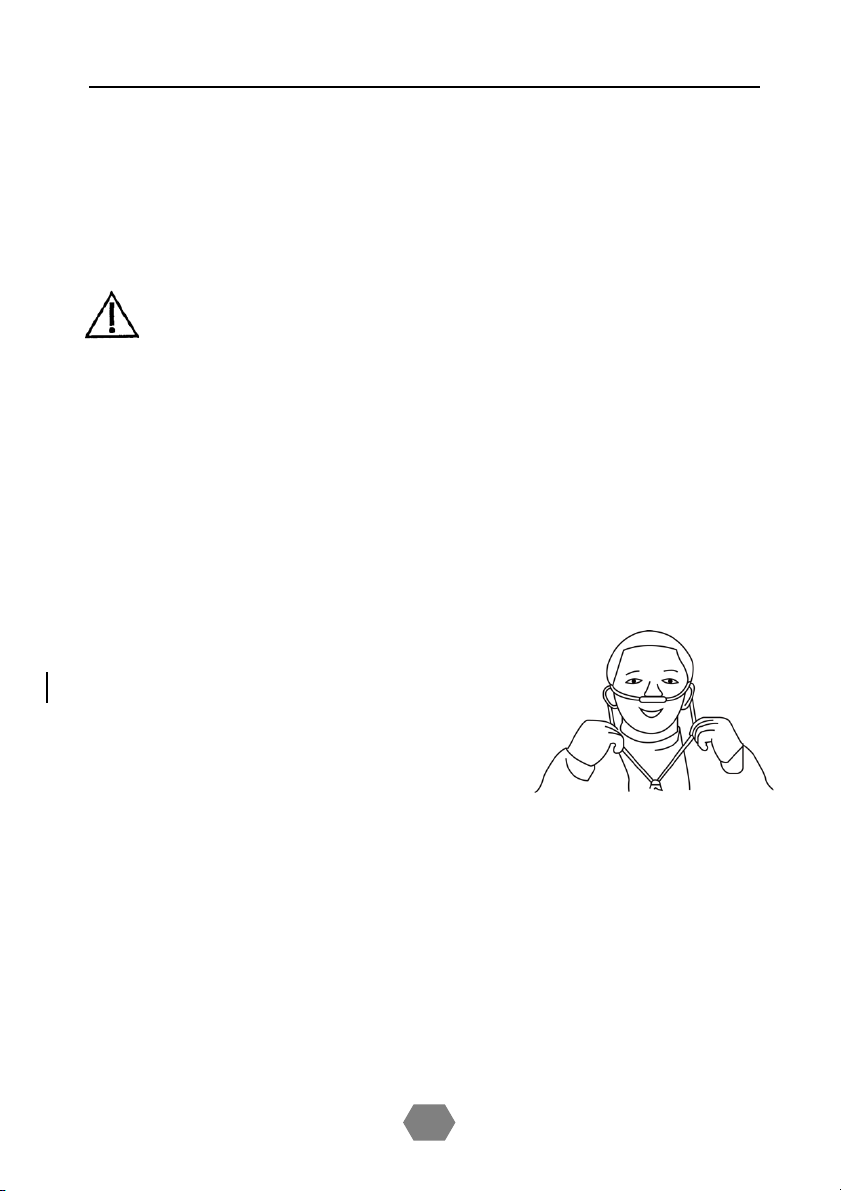

'、 Insert the nasal cannula in the output sp
ot of the humidifier bottle, and hang the
nasal cannula on the user’ ears, then in
sert the nasal plug in the nostrils and br
eathe. See Figure 3.!
72 When the machine is running, if the alarm goes off, please check i
f the plug is loose, or whether the external power supply has bee
n interrupted.
82 When done using the device, please turn off the power. Clean the nasal
cannula according to the instructions. If it is not used at a regular base,
please unplug the device, strap the AC power cord, and put the machine
in place.
+Figure 3,

OXYGEN CONCENTRATOR USER MANUAL
0#!
INTRODUCTION
!
Oxygen concentrator provides low flow oxygen therapy to patients at
home. Our oxygen generator product produces concentrated oxygen from
room air for delivery to a patient requiring low flow oxygen therapy. The
oxygen from the air is concentrated using a molecular sieve and a pressure
swing adsorption process. When the device is operating under room
temperature, the oxygen in the air can be separated and transform into highly
concentrated oxygen to meet the medical standard.
STRUCTURE
This product contains the body of oxygen concentrator, flowmeter,
humidifier bottle, and nasal cannula.
SCOPE OF APPLICATION
!
The equipment is mainly suitable for medical use with oxygen.
CONTRAINDICATION
None
ENVIRONMENT REQUIREMENTS
1. Environmental Temperature35℃/35℃4
2. Relative Humidity3≤ 80%4

OXYGEN CONCENTRATOR USER MANUAL
0$!
3. Atmospheric Pressure386 kPa/106 kPa 4
No corrosive gas and strong magnetic field in the surrounding
environment.
TRANSPORTATION AND STORAGE CONDITIONS
1. Storage and Transport Temperature3- 20℃ / +55℃4
2. Storage and Transport Humidity3≤ 93%4without no condensation
phenomenon4
3. Storage and Transport Atmospheric Pressure350 kPa/106 kPa.
Notice: When the storage temperature is under 5
℃ %
the machine should be placed under the normal
temperature environment for over four hours before use.
ADDITIONAL REMARKS
Classification of protection against electric shock3Class II
Classification according to the degree of protection against electric
shock3Class BF
Classification according to the degree of protection of the liquid into the
machine3IPX0 Device4!
!
According to the degree of safety classification used in flammable
anaesthetic mixture with air or oxygen or Nitrous Oxide anaesthetic mixture
case: when do not use of flammable gas and air mixed with oxygen or Nitrous
Oxide or anaesthetic mixture under the condition of the equipment4!
!
classification according to the operation mode3Continuous operation4

OXYGEN CONCENTRATOR USER MANUAL
0&!
No signal output and signal input part4!!
Usage Voltage3 220V/260Hz4
Working3Continuous working4
With the application of oxygen free discharge part of the protective
effect of defibrillation4
Oxygen Concentrator is for non-permanent installation equipment.
# Altitude: 0 meter to 1828 meter*oxygen purity 690%*
1829 meter to 4000 meter, ≤90%

OXYGEN CONCENTRATOR USER MANUAL
0'!
SPECIFICATIONS
Model
OC503
Working Voltage
110V or 220V! ± 10% / 50 or 60 Hz ± 3Hz
Rated Power "VA#
320
Output Pressure=0/7kPa,
the flow range"L/min#
0.5!5
Output Pressure=0,the
purity value"within 10min$
up to the standard#
Oxygen flow=0.5!5 L/min$purity%90%
Highest Flow
5 L/min
Highest Flow with 7kPa
pressure$change of flow
&0.5 L/min
Highest Flow, purity"within
10min$up to the standard#
%90%
Range of adjusting flow
0!5L/min adjusted continuously
Net Weight"Kg#
14.3
Noise dB(A)
&47
Dimension"mm#
L380 × W249 × H593
Oxygen output pressure
50kPa ± 5kPa
Yellow low oxygen indicator
light(Refer to 15.c)
When the purity of the oxygen < 82%$the yellow
indicator will shin, contact the supplier, Make sure have
the spare oxygen nearby when use it continuously.
Red alarm indicator light
When the red alarm indicator lights up with a
continuous warning sound, please turn off immediately,
use spare oxygen, and contact the supplier immediately.
Compressor safety valve release pressure3250kPa730kPa
Oxygen output temperature38$'9!

OXYGEN CONCENTRATOR USER MANUAL
0(!
SYSTEM OVERVIEW
!
!
!
!
!
!
!
!
!
!
!
!
!
* The following Component description refers to figure 5, figure6 *
1. Oxygen outlet3Connect to the humidifier bottle or nasal cannula by
connecting tube
2. nebulizer connect outlet
#5
position to place humidifier bottle!
4. Product label: product performance, product serial number
5. Air filter cover: contains air filtering device and air filter foam.
6. Air filter foam
3
To prevent dirt, dust, fibers into the machine.
7. Heat vent3Located on the bottom of the machine to release heat from
the device, the vent cannot be blocked at work.
8. Straight out of the AC power cord (with plug).
9. AC power core bracket.
10. Castor (x4): flexible mobile machine
+Figure5,
+Figure 6,
1
8
9
3
6
4
10
7
2
9
5

OXYGEN CONCENTRATOR USER MANUAL
0)!
11. Power switch
!
O: Off / I:On
12. Reset: Reset AC power while overloaded.
13. Oxygen flow meter
a. The ball inside the flow meter shows the oxygen flow that higher
position is faster flow and lower position is slower flow ( L/min).
b. Flow meter knob: Adjust the flow by turning right (slower flow) or
left (faster flow) to control the flow to go faster or slower.
!:;<=>!?@A!@<<=B<C;B!<;!<D=!E;FC<C;B!;G!<D=!H@II!;B!<D=!GI;J!K=<=L!
@BM!F=<!<D=!;NAO=B!GI;J!@PP;LMCBO!<;!<D=!M;P<;LQF!CBF<LRP<C;BF5!STD=!
UV&1#!F=LC=F!FREE;L<!<D=!GI;J!RE!<;!&WXKCB5YU!:UT!F=<!<D=!GI;J!;Z=L!
&WXKCB5[!
14. Timer button: When turned on the timer, its light will be on, and there
will be 30 to 480 (30/60/90/120/180/240/300/360/420/480 minutes on
ten steps) minutes with the timer sign light up on LED display. Every click
on the button will increase the operating time by a specific ratio
mentioned.
13a
11
13b
12
14
15
(Figure 8)

OXYGEN CONCENTRATOR USER MANUAL
0.!
15. LED Display(Reference figure 15
,
a. Green Power Indicator – Start
b. Green Timer Indicator - Timer set and start
c. Yellow Low Purity Indicator - Low Purity of Oxygen
d. Red Alarm indicator - Contact the manufacturer
e. Digital display slot3
l Oxygen purity
l Cumulative timing of each operation: time count in minutes and
hours, it will show hours after 600 minutes.
l Cumulative timing3Digital show for 6 digits.
n Total operating hours after the machine leaves the factory.
n When the machine is turned on or the timer function is
cancelled, the total running hours of the machine will be
displayed briefly, as shown in Figure 15.
l Fault code description3
n Lo-o2 - cycle fault alarm or purity < 82% 7!3%
n Lo-P - low pressure alarm
n Lo- Po2 - cycle fault and low pressure alarm
n Hi-P - High pressure alarm
n Hi-Po2 - cycle fault and high pressure alarm
n E07 - High temperature alarm
n E08 - Oxygen port clogging alarm
+Figure 15,
15e
15a
15b
15c
15d

OXYGEN CONCENTRATOR USER MANUAL
"1!
When the oxygen concentrator is working, it will automatically monitor
the machine status.
If the oxygen purity is below 82% then the machine will light up the
Yellow Low Purity Indicator, issue an alarm and display the “Lo-o2” on LED
display. Please turn off the power and contact your local service or the
manufacture.
If a low pressure occurs, the machine will light up the Red Alarm
Indicator, issue an alarm and display "Lo-P" on the LED display. The Oxygen
Concentrator will stop working within one minute. Please turn off the power
and contact your local service or the manufacturer.
If both cycle error and low pressure occur at same time, the machine will
light up the Red Alarm Indicator, issue an alarm and display "Lo-Po2" on the
LED display. The Oxygen Concentrator will stop working within one minute.
Please turn off the power and contact your local service or manufacturer.
If a high pressure occurs, the machine will light up the Red Alarm
Indicator, issue an alarm and display "Hi-P" on the LED display. The Oxygen
Concentrator will stop working within one minute. Please turn off the power
and contact your local service or the manufacturer.
If both cycle error and high pressure occur at same time then the
machine will light up the Red Alarm Indicator, issue an alarm and display
"Hi-Po2" on the LED display. The Oxygen Concentrator will stop working
within one minute. Please turn off the power and contact your local service or
manufacturer.
