fadini FIBO 300 LB-1,5 HP User manual

EN 13241
EN 12453
EN 12445
FIBO 300 LB - 1,5 HP
FIBO 400 LB - 3,0 HP
FIBO 300 LB - 1,5 HP FIBO 400 LB - 3,0 HP
Electro-mechanical geared motor for heavy industrial sliding gates
• Worm-crown gear inner coupling in an oil bath
entirely supported by ball bearings
• Chain drive
• Three-phase power supply
Instructions manual pages 1 - 8
the gate opener
GB

Fibo 300 LB
Fibo 400 LB
2
electro-mechanical geared motor
with chain-drive system for heavy industrial sliding gates
GENERAL WARNINGS FOR PEOPLE SAFETY
THANK YOU
Thank you for purchasing a Fadini product.
Please read these instructions carefully before using this
appliance. The instructions contain important information
which will help you get the best out of the appliance and
ensure safe and proper installation, use and maintenance. Keep
this manual in a convenient place so that you can always refer
to it for the safe and proper use of the appliance.
INTRODUCTION
This operator is designed for a specic scope of applications as
indicated in this manual, including safety, control and signaling
accessories as minimum required with Fadini equipment. □ Any
applications not explicitly included in this manual may cause
operation problems or damages to properties and people. □
Meccanica Fadini snc is not liable for damages caused by the
incorrect use of the equipment, or for applications not included
in this manual or for malfunctioning resulting from the use of
materials or accessories not recommended by the
manufacturer. □ The manufacturer reserves the right to make
changes to its products without prior notice. □ All that is not
explicitly indicated in this manual is to be considered not
allowed.
BEFORE INSTALLATION
Before commencing operator installation assess the suitability
of the access, its general condition and the structure. □ Make
sure that there is no risk of impact, crushing, shearing,
conveying, cutting, entangling and lifting situations, which
may prejudice people safety. □ Do not install near any source of
heat and avoid contacts with ammable substances. □ Keep all
the accessories able to turn on the operator (transmitters,
proximity readers, key-switches, etc) out of the reach of the
children. □ Transit through the access only with stationary
operator. □ Do not allow children and/or people to stand in the
proximity of a working operator. □ To ensure safety in the
whole movement area of a gate it is advisable to install
photocells, sensitive edges, magnetic loops and detectors. □
Use yellow-black strips or proper signals to identify dangerous
spots. □ Before cleaning and maintenance operations,
disconnect the appliance from the mains by switching off the
master switch. □ If removing the actuator, do not cut the
electric wires, but disconnect them from the terminal box by
loosening the screws inside the junction box.
INSTALLATION
All installation operations must be performed by a qualied
technician, in observance of the Machinery Directive
2006/42/CE and safety regulations EN 12453 - EN 12445. □
Verify the presence of a thermal-magnetic circuit breaker 0,03
A - 230 V - 50/60 Hz upstream the installation. □ Use
appropriate objects to test the correct functionality of the
safety accessories, such as photocells, sensitive edges, etc. □
Carry out a risk analysis by means of appropriate instruments
measuring the crushing and impact force of the main opening
and closing edge in compliance with EN 12445. □ Identify the
appropriate solution necessary to eliminate and reduce such
risks.
Meccanica Fadini s.n.c.
Director in charge
CE DECLARATION OF CONFORMITY of the manufacturer:
Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: Fibo 300 LB -
Fibo 400 LB comply with the 2006/42/CE Machinery Directive, and also that they are sold to be installed in an “automatic
system”, along with original accessories and components as indicated by the manufacturing company. An automatic gate
operator is, by law, a “machinery” and therefore the installer must t the equipment with all of the applicable safety norms.
The installer is also required to issue the installer’s Declaration of Conformity. The manufacturer is not liable for possible
incorrect use of the product. The product complies with the following specic norms: analysis of the risks and subsequent
action to cure them as per EN 12445 and EN 12453, Low Voltage Directive 2014/35/UE, Electromagnetic Compatibility
2014/30/UE. In order to certify the product, the manufacturer declares under own responsibility the compliance with the
EN 13241-1 PRODUCT NORMS.
□ In case where the gate to automate is equipped with a
pedestrian entrance, it is appropriate to prepare the system in
such a way to prohibit the operation of the engine when the
pedestrian entrance is used. □ Apply safety nameplates with
CE marking on the gate warning about the presence of an
automated installation. □ The installer must inform and
instruct the end user about the proper use of the system by
releasing him a technical dossier, including: layout and
components of the installation, risk analysis, verication of
safety accessories, verication of impact forces and reporting
of residual risks.
INFORMATION FOR END-USERS
The end-user is required to read carefully and to receive
information concerning only the operation of the installation
so that he becomes himself responsible for the correct use of it.
□ The end-user shall establish a written maintenance contract
with the installer/maintenance technician (on -call). □ Any
maintenance operation must be done by qualied technicians.
□ Keep these instructions carefully.
WARNINGS FOR THE CORRECT OPERATION OF THE
INSTALLATION
For optimum performance of system over time according to
safety regulations, it is necessary to perform proper
maintenance and monitoring of the entire installation: the
automation, the electronic equipment and the cables
connected to these. □ The entire installation must be carried
out by qualied technical personnel, lling in the Maintenance
Manual indicated in the Safety Regulation Book (to be
requested or downloaded from the site
www.fadini.net/supporto/downloads). □ Operator:
maintenance inspection at least every 6 months, while for the
electronic equipment and safety systems an inspection at least
once every month is required. □ The manufacturer, Meccanica
Fadini snc, is not responsible for non-observance of good
installation practice and incorrect maintenance of the
installation.
DISPOSAL OF MATERIALS
Dispose properly of the packaging materials such as
cardboard, nylon, polystyrene etc. through specializing
companies (after verication of the regulations in force at the
place of installation in the eld of waste disposal). Disposal of
electrical and electronic materials: to remove and dispose
through specializing companies, as per Directive 2012/19/UE.
Disposal of substances hazardous for the environment is
prohibited.

3
INSTALLING WITH THE CHAIN STRETCHER
Firmly screw the geared motor on a bracket or a proper support to be tted to the installation. Fixing holes are provided in the unit
to this purpose as in Pic. 1: the position of the geared motor is to take into account the xing of the shaft ball bearing support.
The chain stretcher is to be positioned on the side opposite that where the geared motor is installed, considering a sufficient
distance for the chain to be properly kept stretched and slacking prevented.
Chain stretcher: existing chain stretchers
pre-tted on the gate can be used, depending
on the type of chain and gate; the picture here
represented is merely indicative.
Fibo 300 LB
Fibo 400 LB
* depending on the version of the FIBO 300 LB or FIBO 400 LB this measurement can change
** interaxis hole size FIBO 300 LB
*** interaxis hole size FIBO 400 LB
Ball bearing
support
82 **
115 ***
mm * Ø11 105 **
183 ***
Ø11
INSTRUCTIONS FOR THE INSTALLATION OF THE GEARED MOTORS FIBO 300 LB - FIBO 400 LB ON SLIDING GATES.
FOR A PERFECT APPLICATION AND IN ORDER TO ACHIEVE A RELIABLE PERFORMANCE OF FIBO 300 LB - FIBO 400 LB IT IS
RECOMMENDED THAT THE FOLLOWING STEPS BE CARRIED OUT AND DRAWINGS BE KEPT TO.
FIBO 300 LB - FIBO 400 LB are a geared motors for heavy sliding gates driven by a chain; it is available in 1,1 kW (1,5 HP three-phase)
and 2,2 kW (3,0 HP three-phase) versions.
FIBO 300 LB - FIBO 400 LB are a versatile motor-powered units and can suit the most various applications on industrial sliding
gates mounted on a track and made up of a single panel or of hinged multiple panels driven together to one side by a metal
chain (not supplied with the equipment, it must be suitable to the power required to electrically operate the gate).
They are a strong and reliable automatic systems, tted with a manually adjustable clutch system, and a worm-gear coupling
made of bronze and steel, supported by ball bearings. A manual override device allows for the gate to be operated by hand in
case of a power failure or disconnection.
GATE INSPECTION
Make sure that the gate sliding track be rmly set into the ground foundation to prevent it from moving or setting at a later stage,
which might eventually lead into the gate going off the rail during its opening/closing travels.
NOTE WELL:
• make sure that proper gate stops be xed to ground in open and closed gate positions, to prevent the gate
from overrunning the upper track;
• make sure the gate be tted with a safety system to prevent it from falling over;
• prevent the gate from crashing into the gate posts or gate stops.
!
Pic. 1
electro-mechanical geared motor
with chain-drive system for heavy industrial sliding gates

4
!10-15 cm
Fibo 300 LB
Fibo 400 LB
FIXING THE GATE TO THE CHAIN
To properly x the gate to the chain, consider a clearance of 10-15 cm between the xing point and the center lines of the geared
motor and chain stretcher respectively, once the gate has reached the ends of the permitted travel (Pic. 2).
Pic. 2
electro-mechanical geared motor
with chain-drive system for heavy industrial sliding gates
Chain stretcher: existing chain stretchers pre-tted
on the gate can be used, depending on the type of
chain and gate; the picture here represented is
merely indicative.
Release lever
Pinion:
depending on the type
of pinion and chain, the
number of teeth and
pitch can change
OVERRIDE FOR MANUAL OPERATION
In order to disconnect the gate from the FIBO 300 LB - FIBO 400 LB geared motors, in situations where power failure is occurring
or during the installation phases, it is required that the override handle be operated. This can be carried out even at a distance
from the motor by means of a metal rope operated by a release lever (Pic. 3).
Pic. 4
Limit switch
striking plate
Drive chain
Limit switch
block of terminals
in the Elpro
controller
NC contact
limit switches
INSTALLING THE LIMIT SWITCHES
The limit switches are to be installed in such a way that the striking plate (also tted to the chain) can activate the switches
without problems. The electrical connections must comply with the instructions of the Elpro electronic controller (Pic. 4).

5
!
1
2
9
8
3 4 5 6
7 87 10
Fibo 300 LB
Fibo 400 LB
General layout for guidance: it is the installer’s responsibility to lay the conduits for the electrical connections in a proper and correct
way.
electro-mechanical geared motor
with chain-drive system for heavy industrial sliding gates

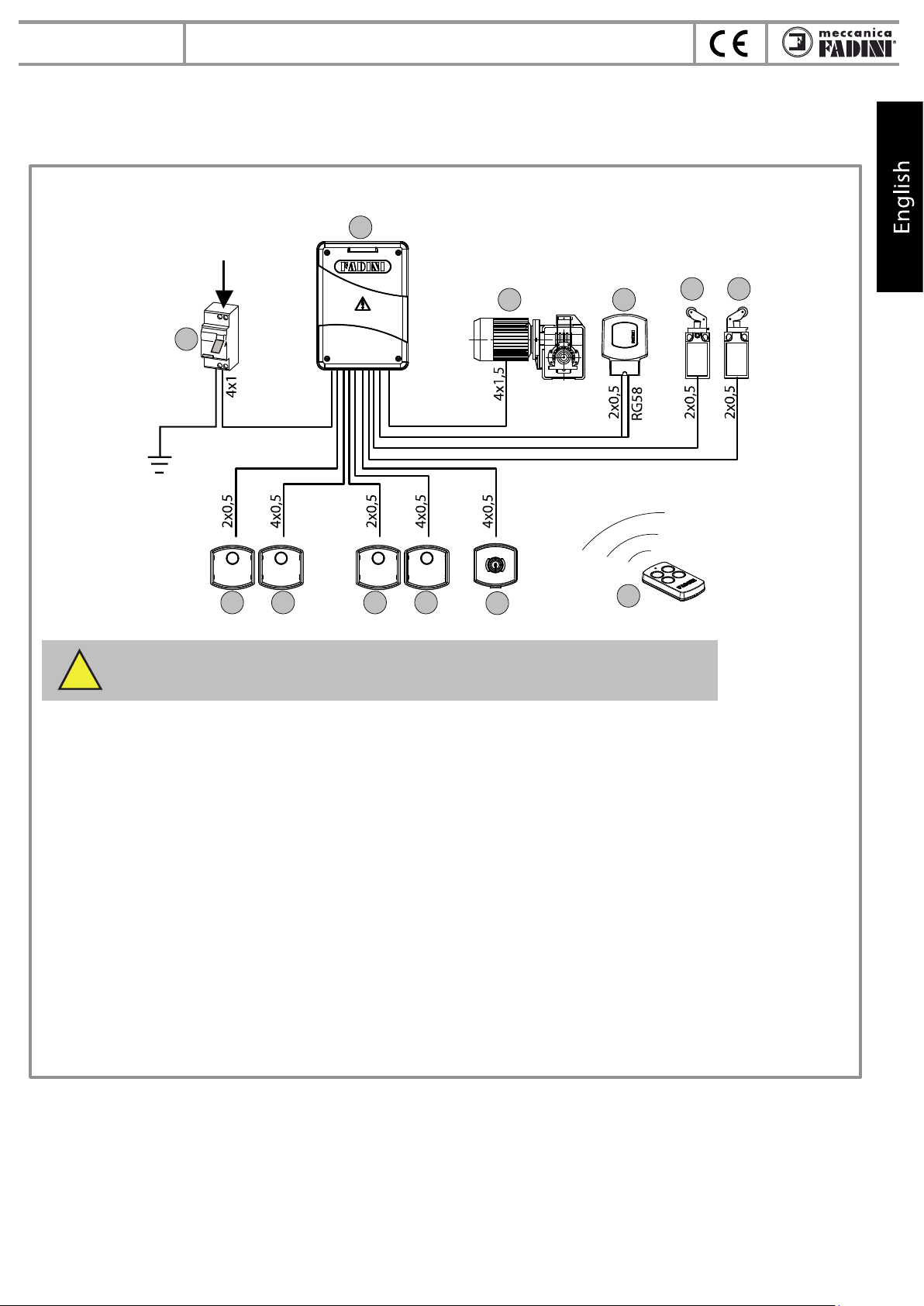

GENERAL LAYOUT OF THE INSTALLATION
For installations where large gates are involved, pre-existing accessories can be found, specically dedicated to the type of gate
to be operated. Therefore the installation diagram of the components as represented below is to be considered only indicative,
and cannot be limited to the accessories here included.
Supply voltage
230 V - 50/60 Hz
NOTE WELL: the entire electrical equipment is to be properly connected to ground.
1 - 230 V - 50/60 Hz, 0,03 A, magneto-thermal differential circuit breaker (not included)
2 - Control board with power contactors and plug-in radio receiver card
3 - Three-phase FIBO 300 LB or FIBO 400 LB geared motor
4 - Flasher
5 - Opening external limit switch
6 - Closing external limit switch
7 - Photocell transmitter
8 - Photocell receiver
9 - Key-switch
10 - Transmitter
Pic. 5
Types of cables to be used:
For power supply to motors, safety and command accessories: FROR CEI 20-20 CEI EN 50267-2-1
For the aerial: RG58 (included, 3 m)
NOTE: for distances beyond 50 m increase the cable square section to suit the real absorption requirements of the
devices as indicated in the CEI EN 60204-1 norms.

6
Fibo 300 LB
Fibo 400 LB

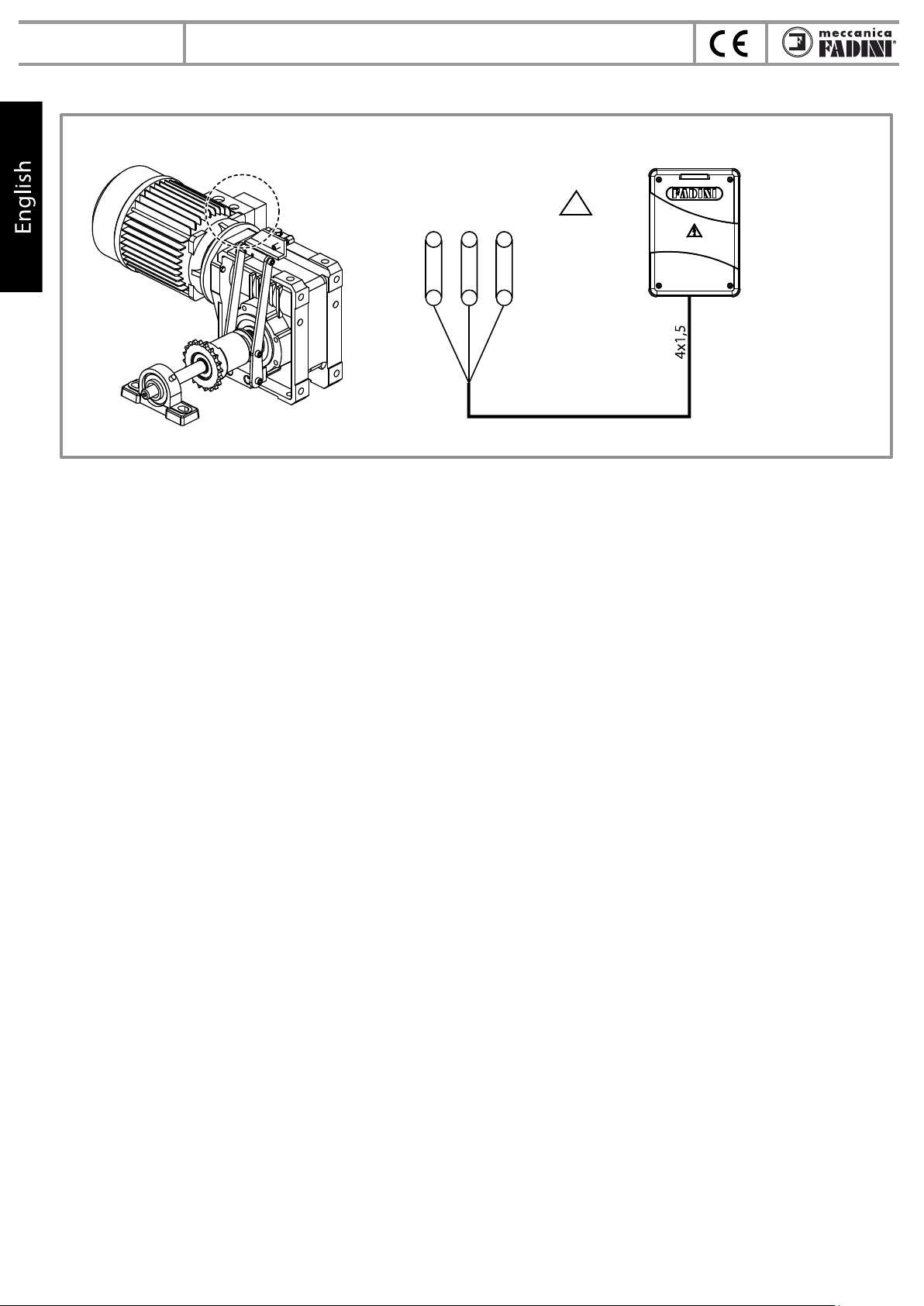

MOTOR CONNECTIONS
Pic. 6
Motor terminal
board Elpro 37 HP with power contactors
400 V Three-phase connections
electro-mechanical geared motor
with chain-drive system for heavy industrial sliding gates

7
Fibo 300 LB
FIBO 300 LB TECHNICAL DATA
ELECTRIC MOTORS
Power output 1,1 kW (1,5 HP)
Absorbed power 1.500 W
Three-phase supply voltage 230/400 Vac
Frequency 50/60 Hz
Absorbed current 5,1/3 A
Motor rotation speed 1.400 rpm (50 Hz) - 1.700 rpm (60 Hz)
Intermittent service S3 - 75%
Cooling by fan
ELECTRO-MECHANICAL GEARED OPERATOR
Ratio 1:40
Output revolutions 35 rpm (50 Hz) - 42,5 rpm (60 Hz)
Drive gear Z 20 - 1/2”
Nominal torque 300 Nm (50 Hz) - 247 Nm (60 Hz)
Transfer speed (1.400 rpm - 50 Hz) 9 m/1'
Transfer speed (1.700 rpm - 60 Hz) 11 m/1'
Hydraulic oil type Oil Fadini - art. 706L
Working temperature -25 °C +80 °C
Fibo 300 LB weight 28 kg
Protection standard IP 55
PERFORMANCE
Service cycle 25 s opening - 30 s dwell - 25 s closing - 30 s dwell
Complete cycle time 110 s
Complete opening - dwell - closing - dwell cycles No. 33/hour
Annual cycles (with 8 hours of use per day) No. 96.000
Gear box
Flange with holes for
vertical or horizontal
mounting options
435 *
40
440 mm
255
105 175130 *
88
Shaft support
with ball bearing
Electric motor 1,5 HP
Manual override handle
Pinion Z20 - 1/2”
* depending on the version of the FIBO 300 LB this measurement can change
electro-mechanical geared motor
with chain-drive system for heavy industrial sliding gates

FIBO 400 LB TECHNICAL DATA
ELECTRIC MOTORS
Power output 2,2 kW (3,0 HP)
Absorbed power 2.800 W
Three-phase supply voltage 230/400 Vac
Frequency 50/60 Hz
Absorbed current 9,4/5,4 A
Motor rotation speed 1.400 rpm (50 Hz) - 1.700 rpm (60 Hz)
Intermittent service S3 - 40%
Cooling by fan
ELECTRO-MECHANICAL GEARED OPERATOR
Ratio 1:56
Output revolutions 25 rpm (50 Hz) - 30,3 rpm (60 Hz)
Drive gear Z 18 - 3/4”
Nominal torque 840 Nm (50 Hz) - 700 Nm (60 Hz)
Transfer speed (1.400 rpm - 50 Hz) 9 m/1'
Transfer speed (1.700 rpm - 60 Hz) 11 m/1'
Hydraulic oil type Oil Fadini - art. 706L
Working temperature -25 °C +80 °C
Fibo 400 LB weight 52 kg
Protection standard IP 55
PERFORMANCE
Service cycle 25 s opening - 30 s dwell - 25 s closing - 30 s dwell
Complete cycle time 110 s
Complete opening - dwell - closing - dwell cycles No. 33/hour
Annual cycles (with 8 hours of use per day) No. 96.000
40
Shaft support
with ball bearing
Pinion Z18 - 3/4”
Electric motor 3,0 HP
595 mm 525 *
145 185 *
125
252
350
Gear box
Flange with holes for
vertical or horizontal
mounting options
Manual override handle
* depending on the version of the FIBO 400 LB this measurement can change
Fibo 400 LB electro-mechanical geared motor
with chain-drive system for heavy industrial sliding gates
Via Mantova, 177/A - 37053 Cerea (VR) Italy
Ph. [phone] Fax [phone]
[e-mail] - www.fadini.net
GB 2012/19/UE Directive
Re. disposal of electric
and electronic waste
DISPOSE PROPERLY OF MATERIALS
ARMFUL TO THE ENVIRONMENT
20211118
