MEC 200 LB
Chain-drive electromechanical operator
for sectional, folding and industrial doors
1 - 12GB instructions manual pages
the gate opener

2
Chain-drive electromechanical operator
for sectional, folding and industrial doors
English
MEC 200 LB
GENERAL WARNINGS FOR PEOPLE SAFETY
INTRODUCTION
This operator is designed for a specic scope of applications as
indicated in this manual, including safety, control and signaling
accessories as minimum required with FADINI equipment. □
Any applications not explicitly included in this manual may
cause operation problems or damages to properties and
people. □Meccanica Fadini snc is not liable for damages
caused by the incorrect use of the equipment, or for
applications not included in this manual or for malfunctioning
resulting from the use of materials or accessories not
recommended by the manufacturer. □The manufacturer
reserves the right to make changes to its products without
prior notice. □All that is not explicitly indicated in this manual
is to be considered not allowed.
BEFORE INSTALLATION
Before commencing operator installation assess the suitability
of the access, its general condition and the structure. □Make
sure that there is no risk of impact, crushing, shearing,
conveying, cutting, entangling and lifting situations, which
may prejudice people safety. □Do not install near any source of
heat and avoid contacts with ammable substances. □Keep all
the accessories able to turn on the operator (transmitters,
proximity readers, key-switches, etc) out of the reach of the
children. □Transit through the access only with stationary
operator. □Do not allow children and/or people to stand in the
proximity of a working operator. □To ensure safety in the
whole movement area of a gate it is advisable to install
photocells, sensitive edges, magnetic loops and detectors. □
Use yellow-black strips or proper signals to identify dangerous
spots. □Before cleaning and maintenance operations,
disconnect the appliance from the mains by switching o the
master switch. □If removing the actuator, do not cut the
electric wires, but disconnect them from the terminal box by
loosening the screws inside the junction box.
INSTALLATION
All installation operations must be performed by a qualied
technician, in observance of the Machinery Directive
2006/42/CE and safety regulations EN 12453 - EN 12445. □
Verify the presence of a thermal-magnetic circuit breaker
0,03 A - 230 V - 50 Hz upstream the installation. □Use
appropriate objects to test the correct functionality of the
safety accessories, such as photocells, sensitive edges, etc. □
Carry out a risk analysis by means of appropriate instruments
measuring the crushing and impact force of the main opening
and closing edge in compliance with EN 12445. □Identify the
appropriate solution necessary to eliminate and reduce such
risks. □In case where the gate to automate is equipped with a
pedestrian entrance, it is appropriate to prepare the system in
such a way to prohibit the operation of the engine when the
pedestrian entrance is used. □Apply safety nameplates with CE
marking on the gate warning about the presence of an
automated installation. □The installer must inform and instruct
the end user about the proper use of the system by releasing
him a technical dossier, including: layout and components of
the installation, risk analysis, verication of safety accessories,
verication of impact forces and reporting of residual risks.
INFORMATION FOR END-USERS
The end-user is required to read carefully and to receive
information concerning only the operation of the installation
so that he becomes himself responsible for the correct use of it.
□The end-user shall establish a written maintenance contract
with the installer/maintenance technician (on -call). □Any
maintenance operation must be done by qualied technicians.
□Keep these instructions carefully.
WARNINGS FOR THE CORRECT OPERATION OF THE
INSTALLATION
For optimum performance of system over time according to
safety regulations, it is necessary to perform proper
maintenance and monitoring of the entire installation: the
automation, the electronic equipment and the cables
connected to these. □The entire installation must be carried
out by qualied technical personnel, lling in the Maintenance
Manual indicated in the Safety Regulation Book (to be
requested or downloaded from the site
www.fadini.net/supporto/downloads).
□Operator: maintenance inspection at least every 6 months,
while for the electronic equipment and safety systems an
inspection at least once every month is required. □The
manufacturer, Meccanica Fadini snc, is not responsible for
non-observance of good installation practice and incorrect
maintenance of the installation.
DISPOSAL OF MATERIALS
Dispose properly of the packaging materials such as
cardboard, nylon, polystyrene etc. through specializing
companies (after verication of the regulations in force at the
place of installation in the eld of waste disposal). Disposal of
electrical and electronic materials: to remove and dispose
through specializing companies, as per Directive 2012/19/UE.
Disposal of substances hazardous for the environment is
prohibited.
Meccanica Fadini s.n.c.
Director in charge
CE DECLARATION OF CONFORMITY of the manufacturer:
Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that:
MEC 200 LB complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic
system”, along with original accessories and components as indicated by the manufacturing company. An automatic gate
operator is, by law, a “machinery”and therefore the installer must t the equipment with all of the applicable safety norms.
The installer is also required to issue the installer’s Declaration of Conformity. The manufacturer is not liable for possible
incorrect use of the product. The product complies with the following specic norms: analysis of the risks and subsequent
action to cure them as per EN 12445 and EN 12453, Low Voltage Directive 2014/35/UE, Electromagnetic Compatibility
2014/30/UE. In order to certify the product, the manufacturer declares under own responsibility the compliance with the
EN 13241-1 PRODUCT NORMS.

1 - MEC 200 LB xing plate
2 - Chain tensioner and pinion
3 - 1/2” plain chain x 5 m length per pack
4 - Cable release manual lever (optional on demand)
5 - Metallic cable for release lever (optional on demand)
PRODUCT GENERAL DESCRIPTION
MEC 200 LB can provide a versatile automatic system for any chain-driven sliding door, such as folding doors (made up of panels
hinged together and folding on one side on opening), or industrial doors mounted on a guide system.
A range of options are available as follows:
• 0,37 kW (0,5 HP single- and three-phase) for doors whose surface is 25 m²;
• 0,73 kW (1,0 HP single- and three-phase) for doors whose surface is 50 m²;
• 1,1 kW (1,5 HP three-phase) for doors whose surface is 50 m².
It is strong and reliable. The torque control is by mechanical clutch system, adjustable by hand. Worm and gear coupling made of
steel and bronze mounted on bearings, all parts in an oil bath.
The manual release system is available in two options with any operator version (Pic. 1): release by handle or by cable and coded
key; both options can come with incorporated limit switches (provided the door width is 8 meters max.), as an alternative external
limit switches can be used.

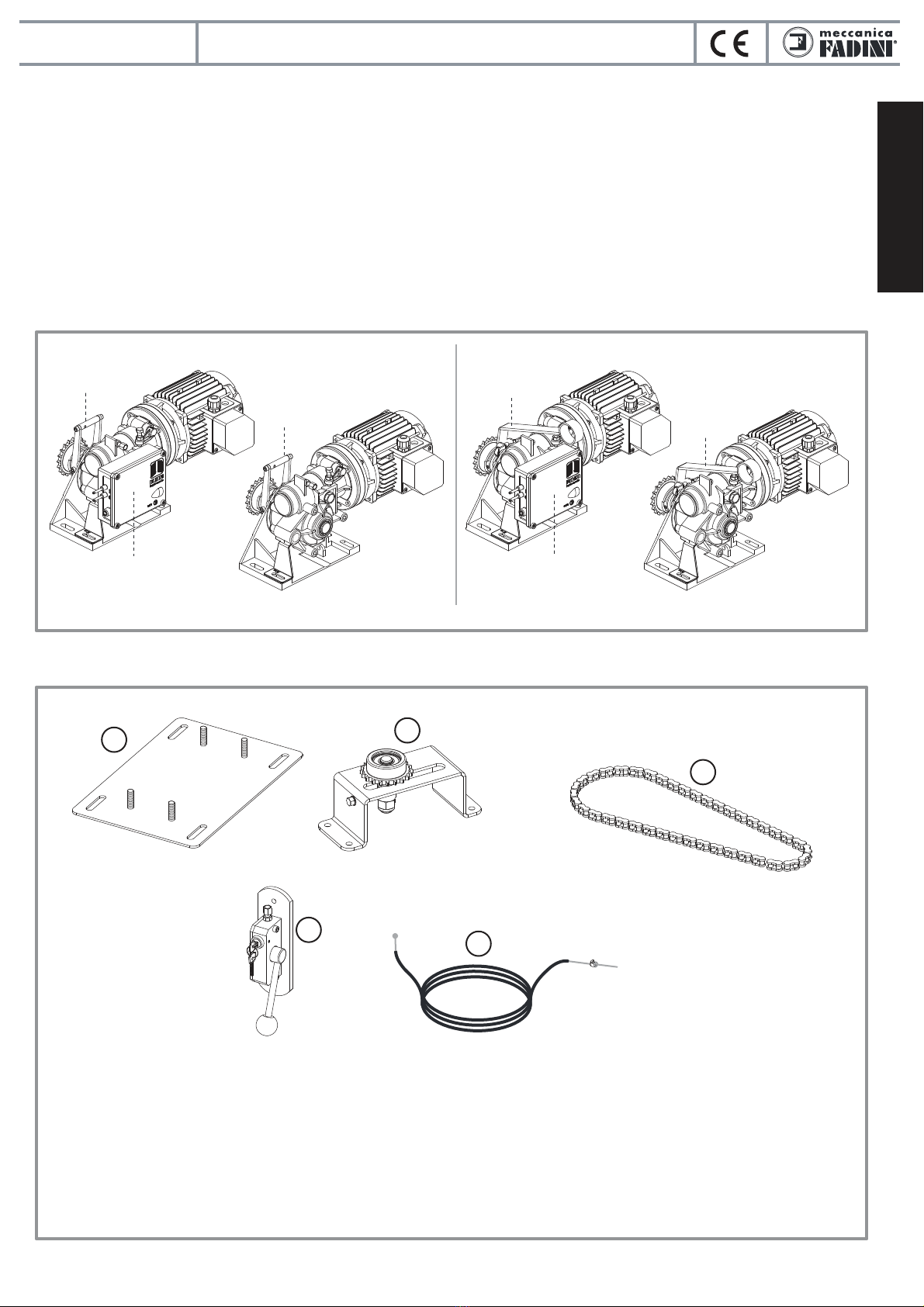

COMPONENTS
MEC 200 LB release by cable
Incorporated
limit switches for
doors of max 8 m
width
Incorporated
limit switches for
doors of max 8 m
width
Without limit switches Without limit switches
MEC 200 LB release by direct lever
Pic. 1
Pic. 2
English
3
4
12
3
5
Release
by handle
Release
by handle
Release
by cable
Release
by cable
MEC 200 LB Chain-drive electromechanical operator
for sectional, folding and industrial doors

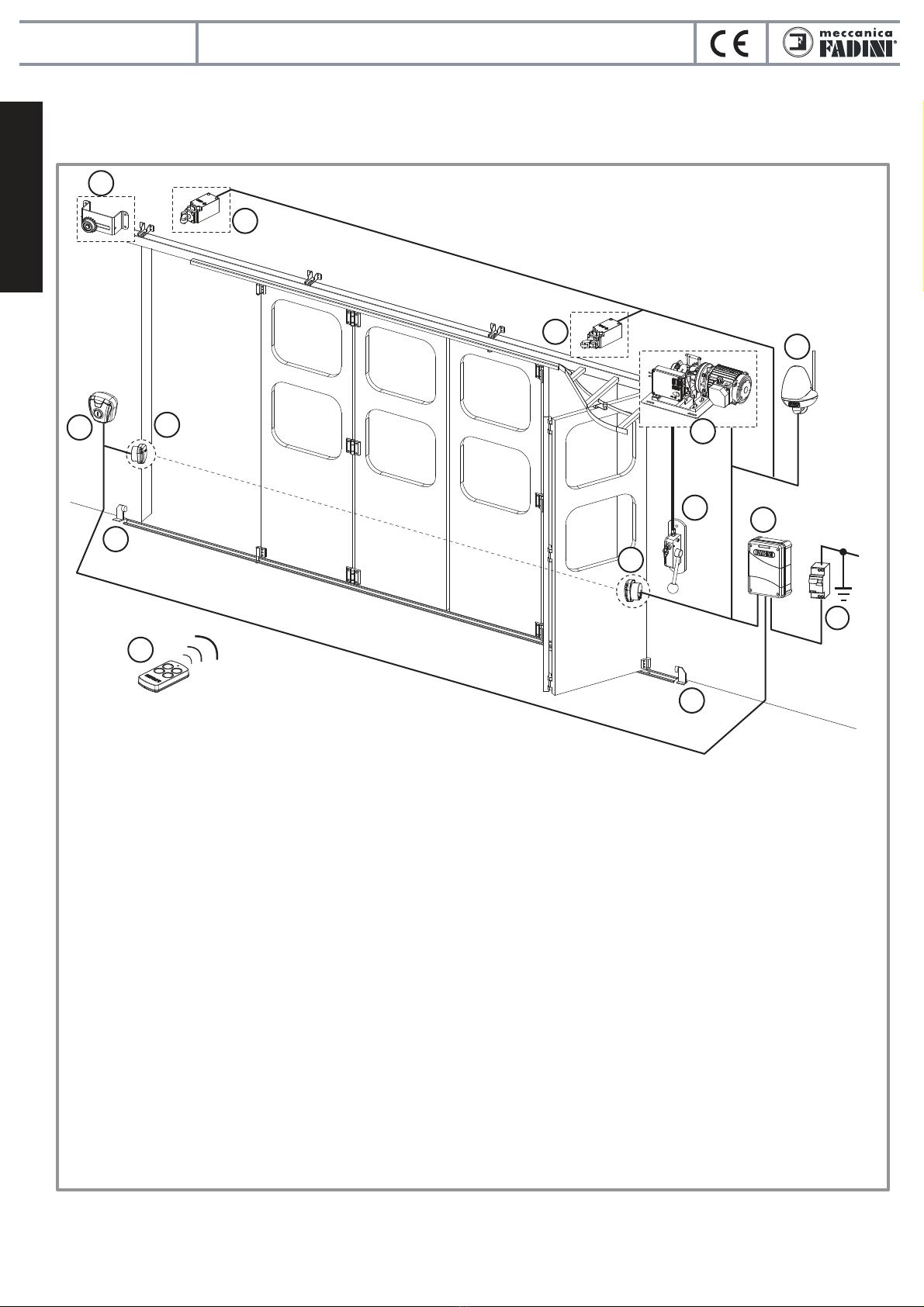

WIRING DIAGRAM AND LAYOUT OF THE ACCESSORIES
Before installing MEC 200 LB it is advisable that the preparatory works be made for all of the accessories required at least to
ensure safety and proper control of the system.
1 - Chain tensioner
2 - External limit switch for MEC 200 LB version without incorporated limit switches (optional not included)
3 - Chis 37 keyswitch
4 - Fit 55 photocell transmitter
5 - Ground door stop
6 - VIX 53 radio transmitter
7 - Fit 55 photocell receiver
8 - Cable release lever (optional)
9 - MEC 200 LB
10 - Miri 4 asher with incorporated aerial
11 - Elpro 37 electronic control box and VIX 53/2 R plug-in radio receiver card
12 - 230 V - 50 Hz - 0,03 A magneto-thermal circuit breaker (recommended cable section 2,5 mm² beyond 100 m )
230 V - 50 Hz
±10%
Pic. 3
General indicative layout: it is the installer’s care and responsibility to properly lay the tubes required for the electrical connections.
English
2
2
34
1
811
10
4
12
4x1 mm²
4x1 mm²
2x1 mm²
2x1 mm²
2x1 mm²
3x1 mm²
5
5
6
2x1 mm²
RG58
7
9
MEC 200 LB Chain-drive electromechanical operator
for sectional, folding and industrial doors

Support
bracket
Door fully open
Door fully closed
M18 locking
nut
Hexagonal
head x E13
Z20 x 1/2”
pinion
Chain tensioner
Z20 x 1/2”
VIEW FROM WALL SIDE
CHAIN TENSIONER
The chain tensioner is to be xed to the wall, or a bracket, by suitable bolts depending on the nature of the wall itself, and the
position is to be the most appropriate to allow installation and the subsequent adjustment of chain tension (the hexagonal head
to be on the side opposite the one facing MEC 200 LB).
• Loosen M18 nut to unlock the tensioner pinion.
• Adjust the position of the pinion as required by screwing or unscrewing the hexagonal head positioned on the side.
• Once satised the pinion is in the correct position for the chain to stay stretched, the M18 nut is to be locked back.
MOUNTING AND FASTENING MEC 200 LB
MEC 200 LB is to be mounted by positioning and fastening the motor base plate on to the previously xed support bracket.
With the door in fully open position there must be a clearance of 10-15 cm as indicated in the picture, with reference to the
pinion.
Pic. 5
Pic. 4
English
5
!
!
10 - 15 cm
10 - 15 cm
MEC 200 LB Chain-drive electromechanical operator
for sectional, folding and industrial doors
GREASE
GREASE

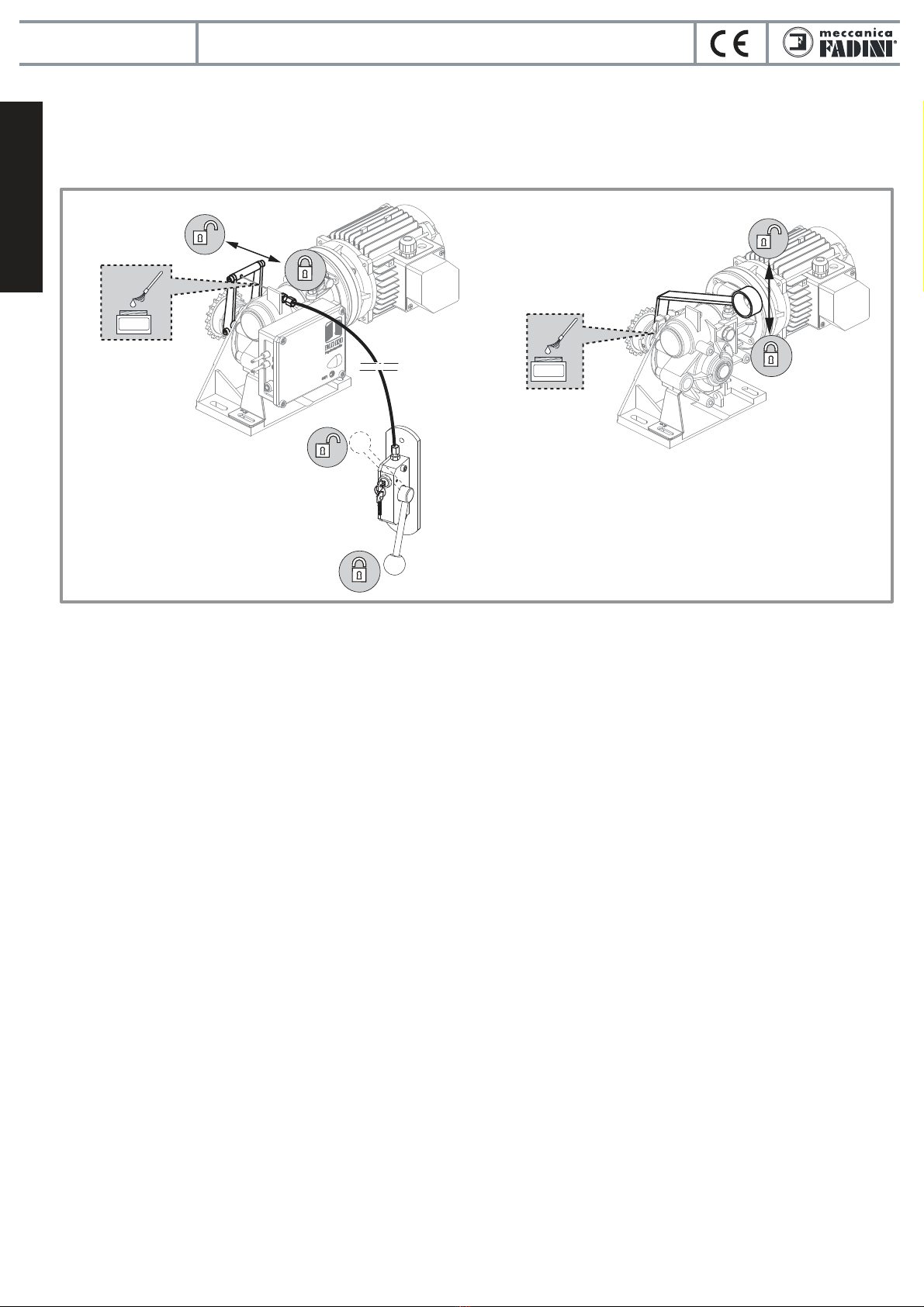

RELEASING AND OPENING BY HAND
MEC 200 LB, all versions, can be released for manual operations by means of a lever system disengaging the pinion by the action
of a collar.
To override the motor, two options are possible: by metallic cable whose device can be positioned within easy reach on the wall
(optional on request), or by a lever with a ring at the end to be pulled by a hook (not included in the equipment).
English
6
Pic. 6
Release lever
(optional on request):
see the instructions
enclosed in the box
with this accessory
MEC 200 LB Chain-drive electromechanical operator
for sectional, folding and industrial doors
GREASE
GREASE

==
max 8 m

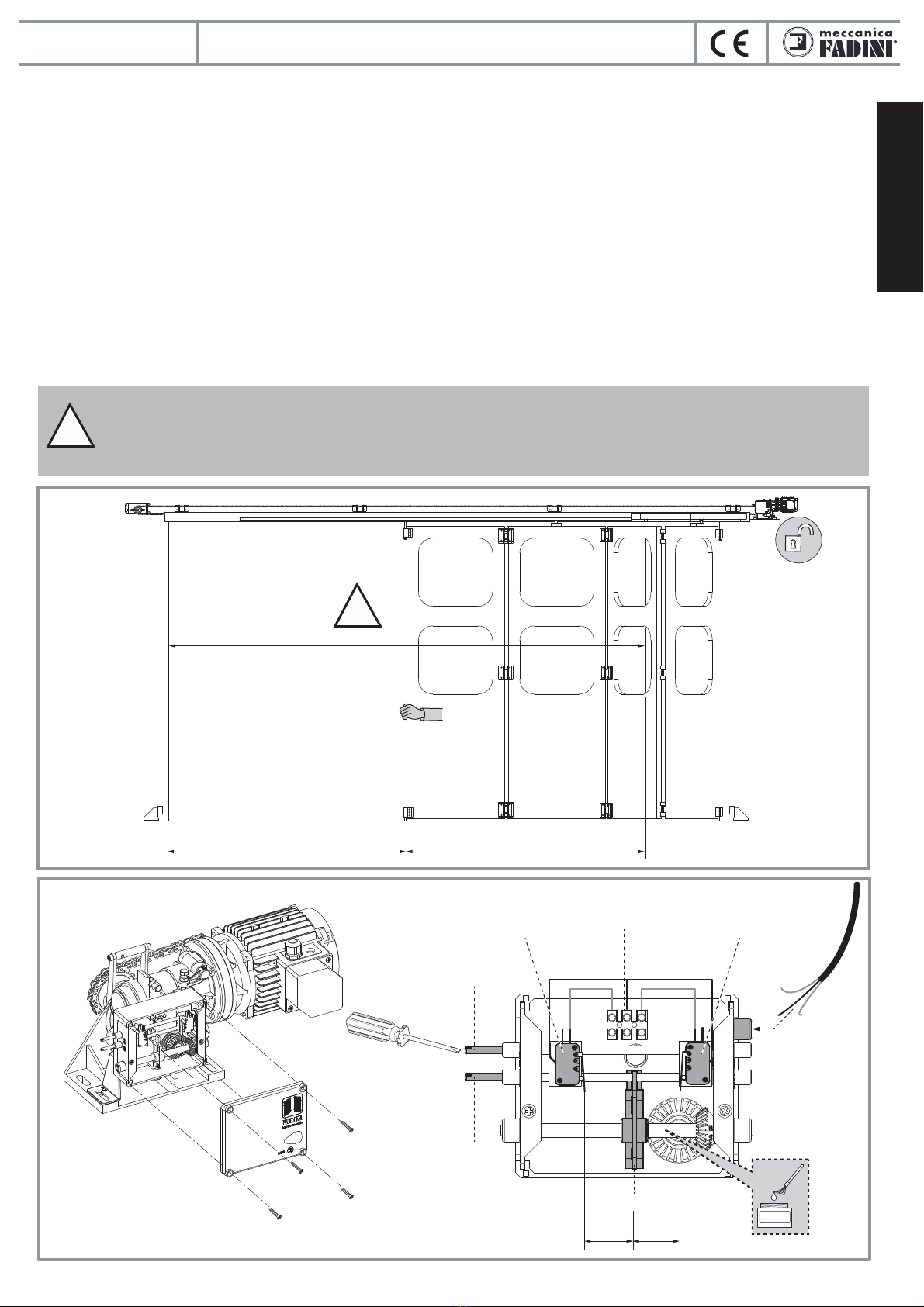

ADJUSTING THE INCORPORATED LIMIT SWITCHES
This operation applies only to MEC 200 LB with incorporated limit switches, for doors whose width is 8 meters maximum.
First operation. Make sure the chain is well stretched by adjusting the tensioner in order to ensure the entire system will work all
right (it is obvious that the door is to be fastened to the chain).
Make also sure that proper ground door stops be provided in open and closed door positions.
The microswitches inside the limit switch box are factory pre-connected to the dedicated terminals; these are to be further connected
to the respectively dedicated terminals in the main control box, following the diagram included in it.
Operations to carry on next:
• by the position adjusting screws, move the two microswitches close to the box inner walls;
• with MEC 200 LB overridden (see operations for manual release) move the door by hand up to the middle of the travel;
• with MEC 200 LB overridden (see operations for manual release) move the contact shaft halfway the travel;
• manually move the door to the closed position on to the door stop or very close to it;
• by a screwdriver onto the dedicated adjusting screw, drive the closing microswitch to touch the contact shaft;
• do the same with the door in the open position on to the open stop or very close to it;
• re-engage MEC 200 LB after having moved the door to the middle of the travel distance (see manual releasing section).
Pic. 8
Pic. 7
English
7
IMPORTANT: after having overridden the motor and manually operated the door to open and close, the position
of the limit switch contact shaft does no longer correspend to the actual position of the door.
Therefore, it is important that, after the door has been disengaged from the motor , RE-ENGAGING of the door
to MEC 200 LB is made in the very same position on which disengaging occurred.
!
!
Terminal block for the
electrical connections
to the control box
Limit switch
electric cable
inlet
= =
Contact shaft
Microswitch 1
adjuster
Microswitch 2
adjuster
Microswitch1
NC contact
Microswitch 2
NC contact
MEC 200 LB Chain-drive electromechanical operator
for sectional, folding and industrial doors
GREASE

M8
locknut
M8 adjusting
screw
ADJUSTING THE MECHANICAL CLUTCH
With all MEC 200 LB motors, torque ie. the force the motor can develop is controlled by a mechanical clutch.
To increase the torque, unlock M8 nut, tighten the dedicated screw and lock M8 back.
Pic. 9
Pic. 10
English
External limit switch
xed to the wall
External limit switch
xed to the wall
Limit switch striking
plate (to get locally
made) xed to the
upper section of the
chain
EXTERNAL LIMIT SWITCHES
MEC 200 LB with external limit switches (recommended for doors wider than 8 meters) does not require any adjustment: the open
and close limit switches are to be positioned in a way they correspond to the actual open and closed positions of the door.
The contact striking bracket in this case is to be tted on to the upper chain section.
IMPORTANT: with this solution, it is no longer required that the door be brought back to the original position in
which it was disengaged from the motor; the action of the external limit switches always occurs in coincidence
of the opening and closing positions of the door.
!
MEC 200 LB
8
Chain-drive electromechanical operator
for sectional, folding and industrial doors

Pic. 11
English
!Leave a gap, the door is NOT
to touch the ground
!Avoid sharp
bending
Parts legend:
1 - Elastic springs support shaft
2 - Z40 special pinion item code No. 2036L
3 - 1/2”chain item code No. 2054L
4 - Fixing plate item code No. 2046L
5 - MEC 200 LB item code No. 2051L
6 - Cable release item code No. 2044L
7 - Lateral running tracks
8 - Sectional door
APPLICATION OF MEC 200 LB ON TO SECTIONAL DOORS
1
2
3
4
5
6
7
8
Elastic spring
MEC 200 LB
9
Chain-drive electromechanical operator
for sectional, folding and industrial doors

Pic. 12
English
MEC 200 LB
Reversible
Chain Chain tensioner
Door
stop in open
position
Door
stop in open
position
Driving pin
Upper
chain
Lower
chain
Chain and
fastening system
cover
Fastening
of the left
door Fastening
of the right
door
Electric lock
mounted on post
Door to move this
way to close
Electric lock
mounted on a post
Lock catcher xed
on to the door
VIEW FROM INSIDE
Door fastened
to the chain
APPLICATION OF MEC 200 LB REVERSIBLE
MEC 200 LB
10
Chain-drive electromechanical operator
for sectional, folding and industrial doors

English
MEC 200 LB
11
Chain-drive electromechanical operator
for sectional, folding and industrial doors
hand over to the end user of the installation
MAINTENANCE RECORD
hand over to the end user of the installation
Installation address:
Installation type:
Sliding gate
Over-head door
N°
1
2
3
4
5
6
Service date
Stamp and signature
installation technician/maintainer
Signed for acceptance
end user
buyer
Technical maintainer End user/sService description
Lateral folding
door
Swinging gate
Folding door
Bollard
.............................
Road barrier
Operator model:
Dimensions per gate leaf:
Weight per gate leaf: Installation date:
Quantity of models
installed:
Maintainer: Date:
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance,
repairs and replacements to be made only by using Fadini original spare parts.
This document, for the data included in it, must be made available to authorized inspectors/ocers, and a copy of it must
be handed over the end user/s.
The installer/maintainer are liable for the functionalities and safety features of the installation only if maintenance is
carried on by qualied technical people appointed by themselves and agreed upon with the end user/s.
the gate opener
X

2018/04
Via Mantova, 177/A - 37053 Cerea (VR) Italy
Ph. [phone] Fax [phone]
[e-mail] - www.fadini.net
English

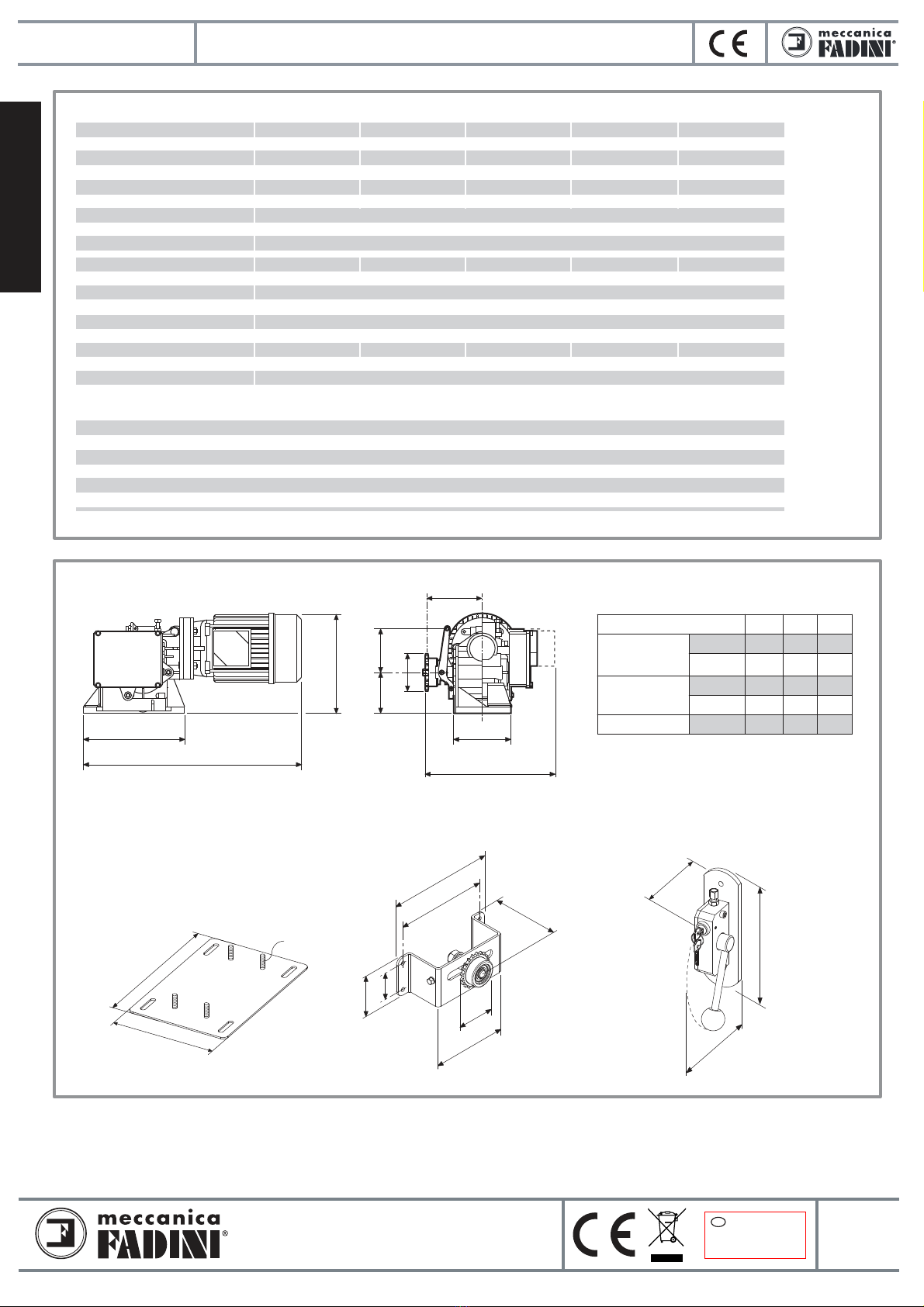

A (mm)
230 mm
B
10093
ø85 Z20
132
127
C
200
260
230
63
170
190
ø 86
135
100
70
300
200
M8
Single-ph.
A
405 230 225
390 220 225
470 225 290
460 225 255
460 225 255
B C
Three-ph.
Single-ph.
Three-ph.
Three-ph.
1,0 CV (0,73 kW)
1,5 CV (1,1 kW)
0,5 CV (0,37 kW)
MEC 200 LB Chain-drive electromechanical operator
for sectional, folding and industrial doors
ELECTRIC MOTORS
GB 2012/19/UE Directive
Re. disposal of electric
and electronic waste
DISPOSE PROPERLY OF MATERIALS
ARMFUL TO THE ENVIRONMENT
TECHNICAL SPECIFICATIONS
ELECTRIC MOTORS
Power output
Supply voltage
Frequency
Absorbed power
Absorbed current
Motor rotation speed
Capacitor
Intermittent service
Single-phase
0,37 kW (0,5 HP)
230 Vac
510 W
2,4 A
20 µF
Three-phase
0,37 kW (0,5 CV)
230/400 Vac
575 W
2,1/1,2 A
Single-phase
0,73 kW (1,0 CV)
230 Vac
50 Hz
1.130 W
5,7 A
1.380 rpm
30 µF
S3
Three-phase
0,73 kW (1,0 CV)
230/400 Vac
1.030 W
3,7/2,2 A
Three-phase
1,1 kW (1,5 CV)
230/400 Vac
1.500 W
5,1/3 A
OPERATOR
Rated torque
Gear rating
Travel speed
Working temperature
Oil type
Door surface
Mec 200 LB weight
Protection standard
Limit switch
PERFORMANCE
Frequency of use very intensive
Service cycle 25 s opening - 30 s dwell - 25 s closing - 30 s dwell
Complete cycle time 110 s
Complete opening - dwell - closing - dwell cycles No. 33/hour
Annual cycles (with 8 hours of use per day) No. 96.000
Single-phase
40 Nm
25 m²
19 kg
Three-phase
40 Nm
25 m²
18 kg
Single-phase
80 Nm
1/32
9,6 m/1' - Z20 1/2"
-20 °C +80 °C
Oil Fadini - Item 706L
50 m²
23 kg
IP 55
mechanical
Three-phase
80 Nm
50 m²
21 kg
Three-phase
110 Nm
50 m²
25 kg
