Fagor 10iE User manual

Fagor Automation S. Coop.
10iE / 20iE
10iE-B / 20iE-B
Installation/Operation Manual
Manual code: 14460141
Manual version: 1104
Software version: 1.xx

(2/35) - Installation/Operation - 10iE-20iE - (Soft: 01.xx)
INDEX
1 DRO description .........................................................................................3
1.1 Front panel........................................................................................................................ 3
1.2 Turning the unit on and off.............................................................................................. 4
2 DRO operation ............................................................................................5
2.1 Display modes.................................................................................................................. 5
2.2 Incremental, absolute and with respect to Machine Reference Zero .......................... 6
2.3 Machine Reference selection and search ...................................................................... 7
2.3.1 Home search sequence ......................................................................................................7
2.4 Operating with tools......................................................................................................... 8
2.4.1 Entering tool length ............................................................................................................. 8
2.4.2 Absolute and incremental mode ......................................................................................... 8
2.4.2.1 Absolute mode .................................................................................................................... 9
2.4.2.2 Incremental mode ............................................................................................................... 9
2.5 Special operations.......................................................................................................... 10
2.5.1 Scaling factor .................................................................................................................... 10
2.5.2 Part centering ................................................................................................................... 10
2.5.3 EDM mode ........................................................................................................................ 11
2.5.3.1 Programming the levels .................................................................................................... 12
3 DRO installation ........................................................................................13
3.1 Installation of the built-in model................................................................................... 13
3.2 Rear panel....................................................................................................................... 14
3.3 General technical characteristics................................................................................. 15
3.4 Connections.................................................................................................................... 16
3.4.1 Connection of the feedback systems ................................................................................ 16
3.4.2 Input/output connection. Connector X4 ............................................................................ 17
3.5 Easy setup....................................................................................................................... 19
3.5.1 Accessing the "Easy Setup" mode ................................................................................... 19
3.5.2 Operating mode. ............................................................................................................... 20
3.5.3 Power and machine connection ....................................................................................... 20
3.6 Installation parameters .................................................................................................. 20
3.7 Parameters to configure axis position reading and display. ..................................... 22
4 Appendix ...................................................................................................30
4.1 UL seal............................................................................................................................. 30
4.2 CE seal............................................................................................................................. 30
4.2.1 Declaration of conformity .................................................................................................. 30
4.2.2 Safety conditions .............................................................................................................. 31
4.2.3 Warranty terms ................................................................................................................. 33
4.2.4 Material returning terms .................................................................................................... 33
4.3 Error codes ..................................................................................................................... 34
4.4 Maintenance.................................................................................................................... 35

(Soft: 01.xx) - 10iE-20iE - Installation/Operation - DRO description - (3/35)
1 DRO description
1.1 Front panel Each axis display has eight 14.1mm high LEDs and another one for the minus
sign (-).
Description of LED's and keys:
ABS It stays on when operating in ab solute mode and off when in incremental
mode. To access it or quit it, press this key.
ΦIt stays on when operating in diameter mode. In this mode, the DRO displays
twice the actual axis movement. To access it or quit it, use this key if allowed
by installation parameter PAR04.
INCH It stays on whe n working in in ches and off when doing it in millimeters. To
access it or quit it, press this key.
This key togg les the display fo rmat for the rota ry axis between d ecimal
degrees and Degrees.Minutes.Seconds.
To get into and out of home search mode.
To access the special function (HOLD)
To select the axis or preset it with a certain value.
To zero the axis when the "quick zeroing" mode has been activated (see
PAR11 in the installation manual).
To turn the display off while keeping track of the axes position at all times.
To cancel or abort an operation already initiated.
To validate a preset value or another operation.
Beginning of preset when the "quick zeroing" mode has been activated (see
PAR11 in the installation manual).
Model 10iE. Editing the tool length
To change the sign of the ent ered value or chang e from fine to coarse
resolution and vice versa.
Model 10iE. It toggles between the display modes: Max, Min, Difference and
Normal.

(4/35) - DRO description - Installation/Operation - 10iE-20iE - (Soft: 01.xx)
1.2 Turning the unit on and off
It turns on automatically when applying vo ltage or afte r pressing the on /off
key.
It shows Fagor dro or the corresponding error code. See the error table and
PAR11 for more options.
Turns the DRO on or off.
Precautions
Before disconnecting this un it from mains, press this key so it sa ves the
current position.
If the unit is turned off or there is a power outage, the DRO will try to save the
current position. If it does not have enough time to safe all the data, it will
display ERROR 2 when turned back on.

(Soft: 01.xx) - 10iE-20iE - Installation/Operation - DRO operation - (5/35)
2 DRO operation
2.1 Display modes
MM / INCH conversion
To display the position of the axes either in millimeters or inches by pressing
this key depending on whether the INCH led is off or on respectively.
Fine / coarse resolution
To turn off the last decimal digit (coarse resolution) for cases in which fine
resolution is excessive, simply by pressing this key.
Number of decimals
This keystroke seq uence accesses pa rameter PAR53. The first digit
corresponds to the number of decimals to be displayed in mm and the second
digit in inches.
Decimal degrees / Degrees.Minutes.Seconds
This key toggles the display format for the rotary axis [PAR00(4)=1] between
decimal degrees and Degrees.Minutes.Seconds.
Radius / Diameter
When these mode ls are used for measurin g radii or dia meters, one can
display twice the real displacement of the axis (diameter) by pressing this key.
The Φled will t urn on or off to indicate the double or actual reading
respectively.
Notes: - This works in th is way if bit 2 of installation para meter PAR04
(radius/diameter) of the axis has been preset as “1” (commutated).
Hysteresis or minimum position value
When carrying out certain operations such as drilling hard material, EDM, etc.
the position display may fluctuate annoyingly.
In these cases, the operato r can eliminate this oscillation by selecting the
"hysteresis" mode or the "minimum coo rdinate" mode just by p ressing this
keystroke sequence to toggle from one mode to the other.
Note: To have this option available, installation parameters PAR2 0 and PAR25
must be set accordingly.
Minimum, Maximum, Difference (10iE only)
To toggle between the following display modes: Min, Max, Dif and Normal.
Min. It displays the minimum position reached by the axis.
Max. It displays the maximum position reached by the axis.
Dif. It displays the difference between the maximum and the minimum position.
Normal. It displays the current position of the axis.

(6/35) - DRO operation - Installation/Operation - 10iE-20iE - (Soft: 01.xx)
2.2 Incremental, absolute and with respect to Machine Reference Zero
A coordinate DRO displays the present coordinate of one (10iE)
or two axes (20iE).
Coordinate means the distance from one point or position with respect with
another chosen as reference.
These DROs can display the position of the axes in incremental or absolute
mode or referring to home.
The next figure shows the different position display modes:
•In Home mode, it displays the distance from the current position of the axis
to the home point chosen in the feedback system (linear or encoder).
Press this sequence to access the Home Search mode.
(ABS) •In Absolute (ABS), when th e ABS led is on , it displays the distance from
the present position of the axis to part zero (D).
(I) •In Incremental, when the ABS and "home" LEDs are off the distance from
the present position of the axis to the previous position is displayed.
Toggles between the ABS and incremental modes.
On the 20iE model, it could occur that the installation parameter PAR11(1)
has been set to “0” for this key to independently affect each axis so that one
axis can display its position in incremental mode while the other does this in
absolute. In this case, to change the display mode for a particular axis, press
one of these two sequences.

(Soft: 01.xx) - 10iE-20iE - Installation/Operation - DRO operation - (7/35)
2.3 Machine Reference selection and search
Although it is not absolutely necessary, it is recommende d to use the
reference marks (Io) of the feedback system in ord er to set a machine zero
point.
This allows th e user to refe rence the mach ine axes and re store the work
coordinates after having turned the dro off, moved the machine while the dro
was off, for safety or for any other reason.
Fagor linear encoders have reference marks every 50 mm all along its length.
In order to use these marks properly, choose an area on the axis, for example
in the middle of the measuring length or at one end. Approach this area and
carry out the home sea rch. Once the reference mark has be en found, mark
this area with a marker or sticker in order to carry out the home search in the
same area in la ter occasions and make sure that you are using the same
machine zero point (home).
Fagor also offers encoders with distance-coded reference marks every 20, 40
or 100 mm. When using these distance-coded reference marks, there is no
need to move to the 0 position to find the references, simply move a distance
equal to the gap between marks (20, 40 or 100 mm depe nding on the linear
encoder)
When using an absolute encoder, there is no need to search for the reference
marks (home).
The dro stores in its internal memory work coordinates such as machine zero,
absolute and incremental.
2.3.1 Home search sequence
For encoders with regular reference marks, move the axis to the home area.
Access or exit the home search mode.
The axis displays blink showing " r " if the axis has not been homed or
" r on" if it has found the references (home).
Select the axis to be referenced (homed)
The selected axis blinks until a reference mark is de tected. The reference
signal presets the axis display au tomatically with the value of PAR10, 0.000
mm by default.
If the encoder does not have a reference mark, move the axis to the desired
position and press this key.

(8/35) - DRO operation - Installation/Operation - 10iE-20iE - (Soft: 01.xx)
2.4 Operating with tools
It is possible to define a tool and later compensate for its length while
machining.
2.4.1 Entering tool length
The Y axis blinks waiting for the tool value to be entered.
It requests the tool length.
Enter this value pressing this keystroke sequence.
Note: Since only the length of a tool may be stored, when changing a tool, its length
must be entered again.
2.4.2 Absolute and incremental mode
We will drill the holes of the following part as moving examples in incremental
and absolute modes.
[Value]
B
C
A
D

(Soft: 01.xx) - 10iE-20iE - Installation/Operation - DRO operation - (9/35)
2.4.2.1 Absolute mode
Set the dro in absolute mode
Move the axis until the display reads [14.000] (B position) and drill the hole.
Move the axis until the display reads [37,000] (C position) and drill the hole.
Move the axis until the display reads [62,000] (D position) and drill the hole.
The displayed positio n value is always referred to the preset part zero
(datum).
2.4.2.2 Incremental mode
Set the dro in incremental mode. ABS LED off
First method: Presetting incremental zero after each drill.
Starting at point A.
Move the axis until the display reads [14.000] (B position) and drill the hole.
Set the X axis to zero. See note.
Move the axis until the display reads [23.000] (C position) and drill the hole.
Sets the X axis to zero. See note.
Move the axis until the display reads [25.000] (D position) and drill the hole.
Note: If installation parameter PAR11=1, just press the axis key, ([X]) in this case, to
zero the axis.
Second method: Presetting the relative distance with respect to the next hole.
Starting at point A
Preset the relative distance to the next hole. See note.
Move the axis until the display reads [0.000] (B position) and drill the hole.
Preset the relative distance to the next hole. See note.
Move the axis until the display reads [0.000] (C position) and drill the hole.
Preset the relative distance to the next hole. See note.
Move the axis until the display reads [0.000] (D position) and drill the hole.
ABS
(B) [14.000]
(C) [37.000]
(D) [62.000]
“ABS” off
(B) [14.000]
(C) [23.000]
(D) [25.000]
-14
(B) [0.000]
-23
(C) 0.000
-25
(D) [0.000]

(10/35) - DRO operation - Installation/Operation - 10iE-20iE - (Soft: 01.xx)
Notes: If installation parameter PAR11=1, the presetting sequence is: [ENTER] [axis]
[value] [ENTER].
Switching over to [ABS] mode, displays the distance to part zero (datum).
2.5 Special operations
2.5.1 Scaling factor
It is possible to apply a scaling fact or within ±9.999 for mold making
applications:
The DRO will th en show the axis position resulting from multiplying its real
position by the 'value' of the scaling factor.
2.5.2 Part centering
Note: This feature is available when none of the axes have installation
parameter PAR04(2)=1 (radius/diameter commutable).
Part centering can be done as follows:
- Set the dro in absolute mode.
- Touch one side of the part with the tool.
- Set the readin g to zero pressing for an axis [ CLEAR] [X] for one axis or
[CLEAR] [Y/Z] for the other one (20iE).
- Take the tool to the other side of the part and touch this with it.
- Press the sequence [1/2] [X] for one axis or [1/2] [Y/Z] for the other (20iE).
The DRO will display half of the distance covered by the tool.
- Retract the axes until the displays read 0.000 0, the tool can be placed
exactly at the center of the part.
[factor]

(Soft: 01.xx) - 10iE-20iE - Installation/Operation - DRO operation - (11/35)
2.5.3 EDM mode
The dro a ctivates the ou tputs when the axis reaches the programmed
position. See next subsection ”2.5.3.1 Programming the levels”.
The are two ways to o perate in th is mode depending on the value of
installation parameter PAR20 bit 4.
PAR20 bit 4 = 0 (the outputs are activated or deactivated when crossing the
selected level)
Home
P2
P3
P4
P5
End
O1
O2
O3
O4
O5
O6

(12/35) - DRO operation - Installation/Operation - 10iE-20iE - (Soft: 01.xx)
PAR20 bit 4 = 1 (the outputs are deactivated when reaching the home
position)
2.5.3.1 Programming the levels
The levels are se t by installation parameters PAR40 (for o utput O1) through
PAR45 (for output O6); to access them directly:

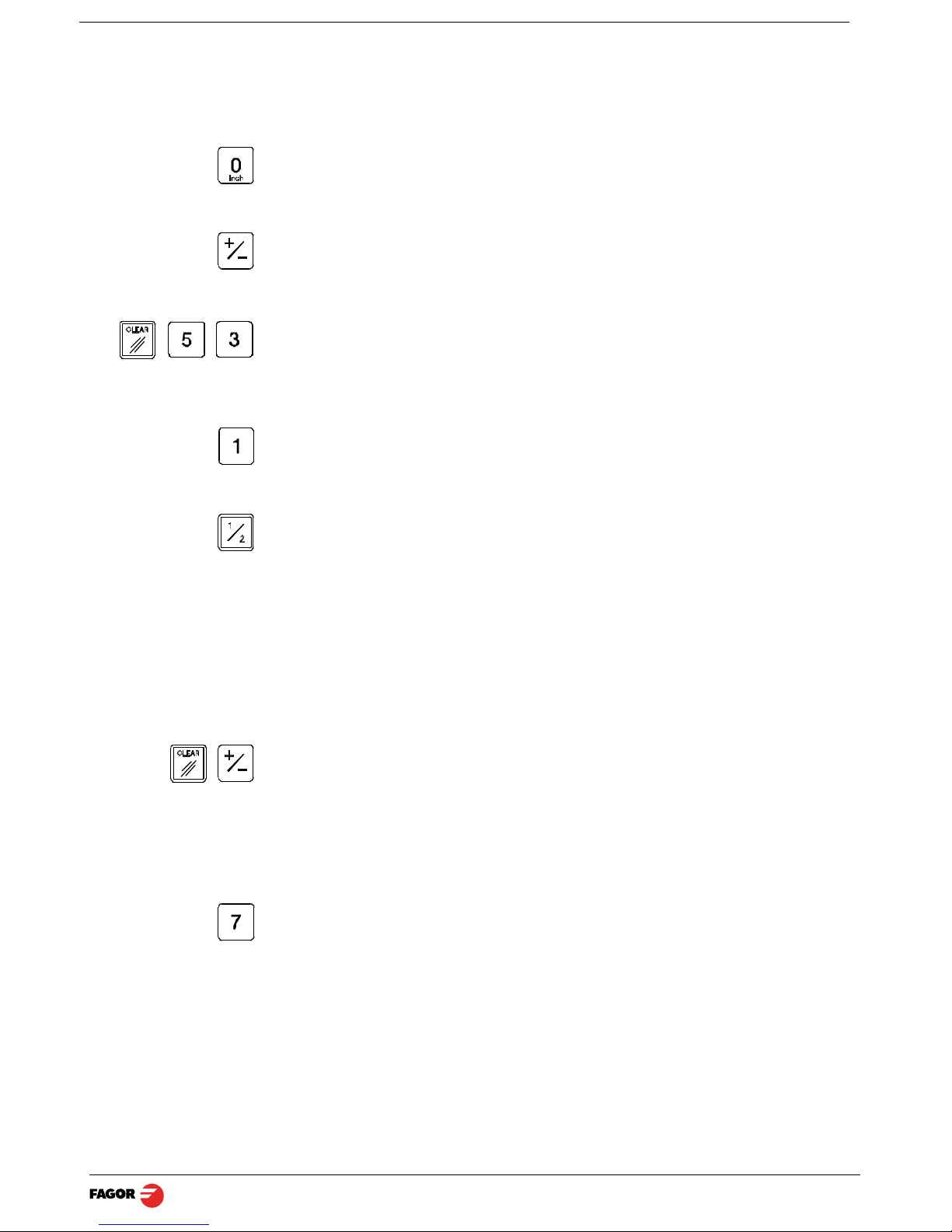

The dro displays must be on, reading mode and press the following keys:
The X axis display shows the word " COdE ". 060496
The displays of the DRO show PAR00.
Once in regular display mode, parameters PAR40 through PAR45
(output levels) may also be recalled by pressing this keystroke sequence, so
the work mode may be changed without having to go through all the previous
steps.
P1 (Home)
P2
P3
P4
P5
P6 (End)
O1
O2
O3
O4
O5
O6
CODE: 060496

(Soft: 01.xx) - 10iE-20iE - Installation/Operation - DRO installation - (13/35)
3 DRO installation
3.1 Installation of the built-in model

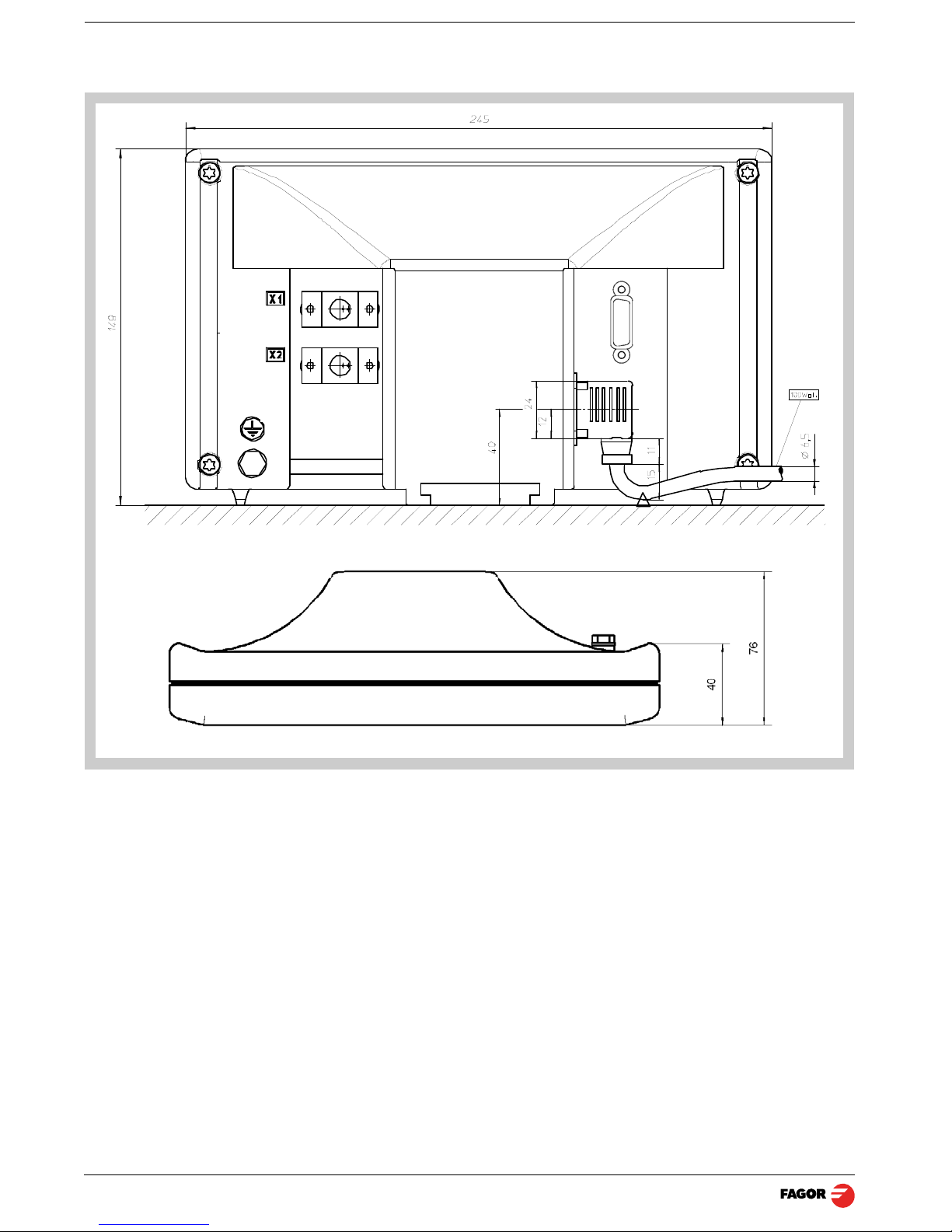

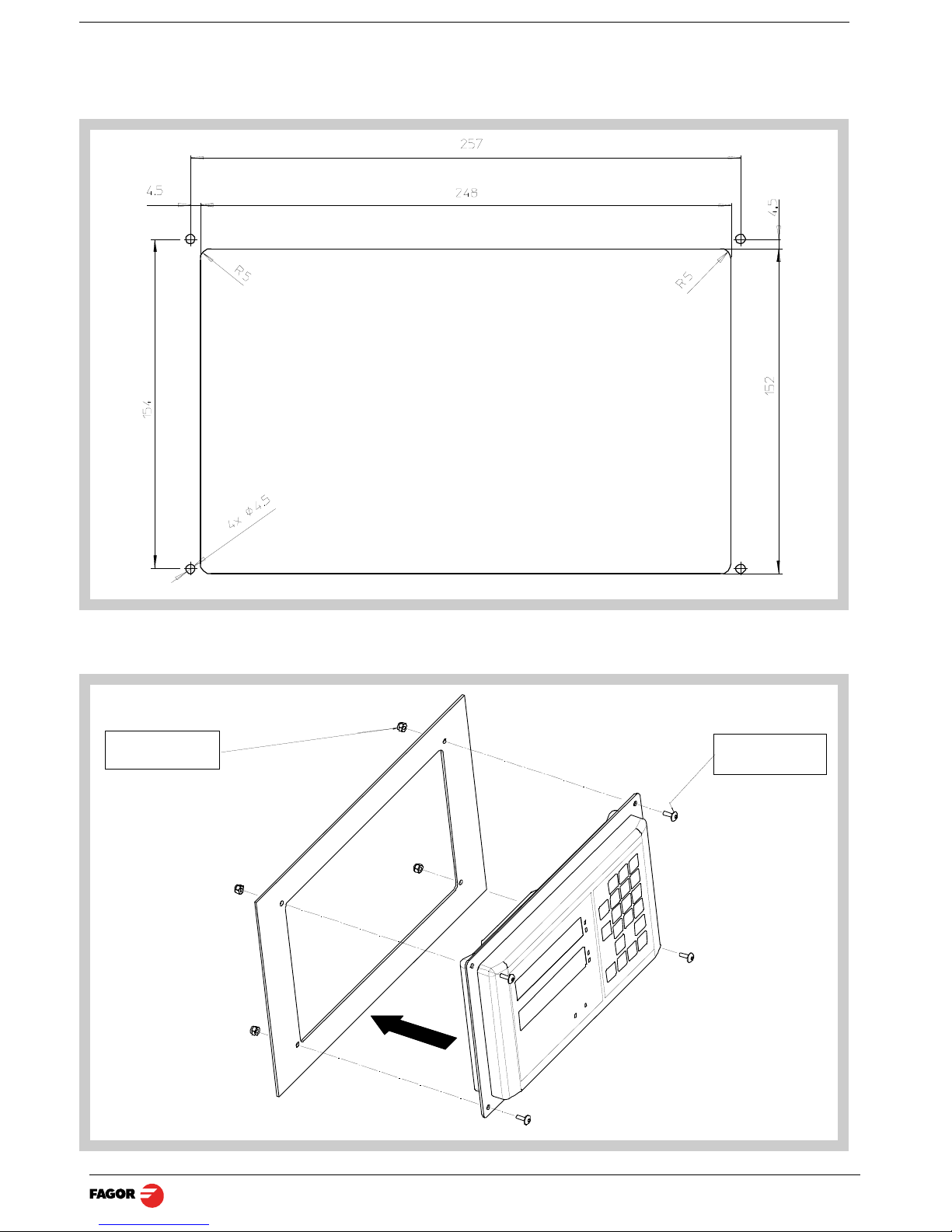

Dimensions of the enclosure hole for inserting the DRO
Built-in DRO insertion
Bolt ISO 7380
M4 x 10 Inox
Nut DIN 985
M4 Inox

(14/35) - DRO installation - Installation/Operation - 10iE-20iE - (Soft: 01.xx)
3.2 Rear panel
On the back of the unit the following items may be found:
1. Three-prong power connector for AC and ground connection.
2. M6 mm terminal for general machine ground connection.
3. Mounting bracket
Some of the following connectors might not be available depending on specific
models:
X1.- SUB-D HD type 15-pin female connector for 1st axis feedback device.
X2.- (20iE). SUB-D HD type 15-pin female connector for 2nd axis feedback
device (scale or encoder).
X4.- SUB-D HD type 15-pin female connector for inputs and outputs.
X4

(Soft: 01.xx) - 10iE-20iE - Installation/Operation - DRO installation - (15/35)
UL seal
In order to comply with UL standards, this unit must be connected in the final
application using a listed detachable co rd set (BLEZ) with a molde d three-
prong plug and a suitable fitting to be connected to the equipment, rated
minimum 300 V AC. The cord type shall be SO, SJO or STO. Suitable Strain
Relief means must be provided in the cord set to assure the connection of the
plug and the fitting.
CE seal (see "CE seal" on page 30)
WARNING
Before handling the connectors (mains, feedback, etc.) make sure that the
unit is not under power.
It is NOT enough to turn the display off by using the [on/off] key at the
keyboard
3.3 General technical characteristics
• Universal Power Supply between 100V AC and 240V AC ±1 0% at Mains
frequency between 45 Hz and 400 Hz. Between 120Vdc and 300 Vdc
• It withstands power outages of up to 20 milliseconds.
• 10-year memory backup of installation parameters when the unit is off.
• The operating temperature inside the DRO enclosure must be between 5º C
and 45º C (41ºF and 113ºF).
• The storage temperature inside the DRO enclosure must be -25º C and
+70º C (-13º F and 158º F).
• Maximum relative humidity: 95% non condensing at 45ºC (113ºF).
• Front Panel Sealing: IP54 (DIN 40050), Rear panel: IP4X (DIN40050 )
except for built-in models in which case is: IP20.

(16/35) - DRO installation - Installation/Operation - 10iE-20iE - (Soft: 01.xx)
3.4 Connections
3.4.1 Connection of the feedback systems
The feedback systems (linear or rota ry encoders) are connected via SUB-D
HD type 15-pin female connectors: X1 and X2. The latter (for the 2nd axis) is
not available at the 10iE model.
Characteristics of feedback inputs: X1 and X2:
- Power consumption: 250 mA at the +5V input.
- Admits square-wave signal (TTL). (A, B, Io)
- Maximum frequency: 250 KHz, minimum gap between flanks: 950 nsec.
- Phase shift: 90º ±20º, hysteresis: 0.25 V, Vmax: 7V,
maximum input current: 3mA
- High threshold (logic state 1) 2.4V < VIH < 5V
- Low threshold (logic state 0) 0.0V < VIL < 0.55V
Feedback connection. Connectors X1 and X2
Pin Signal Function
1A
Input for feedback signals
2/A
3B
4/B
5I0
6 /I0
7Alarm
8/Alarm*
9 +5V Power supply to feedback devices
10 Not connected
11 0V Power supply to feedback devices
12, 13, 14 Not connected
15 Chassis Shield
1

(Soft: 01.xx) - 10iE-20iE - Installation/Operation - DRO installation - (17/35)
3.4.2 Input/output connection. Connector X4
X4 is a SUB-D type 15-pin female connector to connect up four optocoupled
digital inputs and 6 optocoupled digital outputs with solid state relays with
normally open contact that may be used to activate relays, beacons, etc.
Characteristics of the inputs
Rated voltage: +24 V DC
Maximum voltage: +30 V DC
Minimum voltage: +18V DC
High threshold voltage (logic state 1): >+18V.
Low threshold voltage (logic state 0): < +5V
Typical consumption of each input: 5mA
Maximum consumption of each input: 7mA
Characteristics of the outputs
Rated voltage: 24 V AC or DC.
Maximum voltage: 47 V AC or DC. Over-voltage protection.
Maximum load current: 100mA. Over-current protection
Activation time: < 3ms
Deactivation time: < 3ms

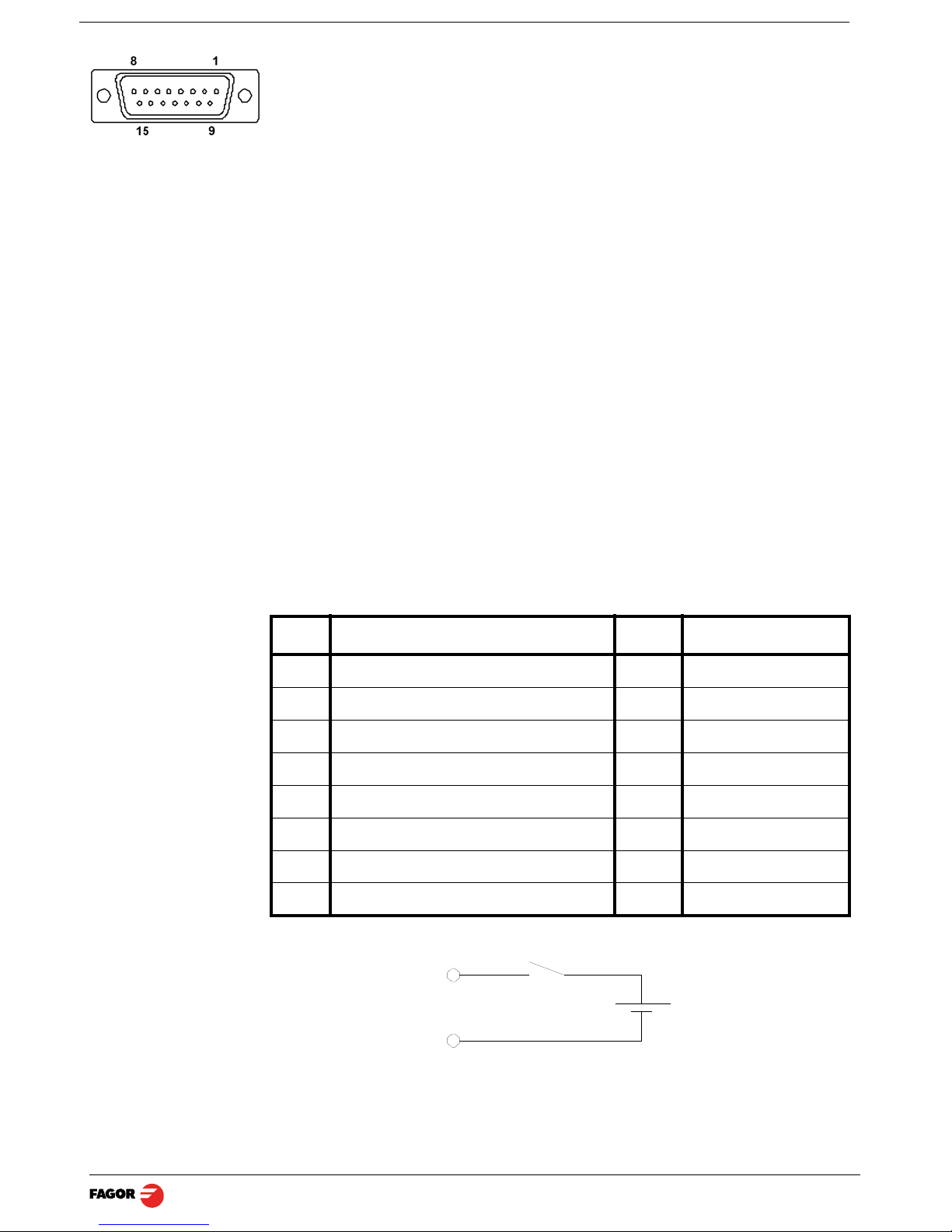

Inputs:
Input/output connection. Connector X4
PIN Signal PIN Signal
1 Input 1 9 Input 2
2 Input 3 10 Input 4
3 GND for 24V inputs 11 -----
4 ----- 12 -----
5 Output 5 13 Output 6
6 Output 3 14 Output 4
7 Output 1 15 Output 2
8 Output common
IN n
IN GND
+24V

(18/35) - DRO installation - Installation/Operation - 10iE-20iE - (Soft: 01.xx)
Outputs: The outputs that will be connected to an inductive load must have a 1N4000
diode or similar in anti-parallel.

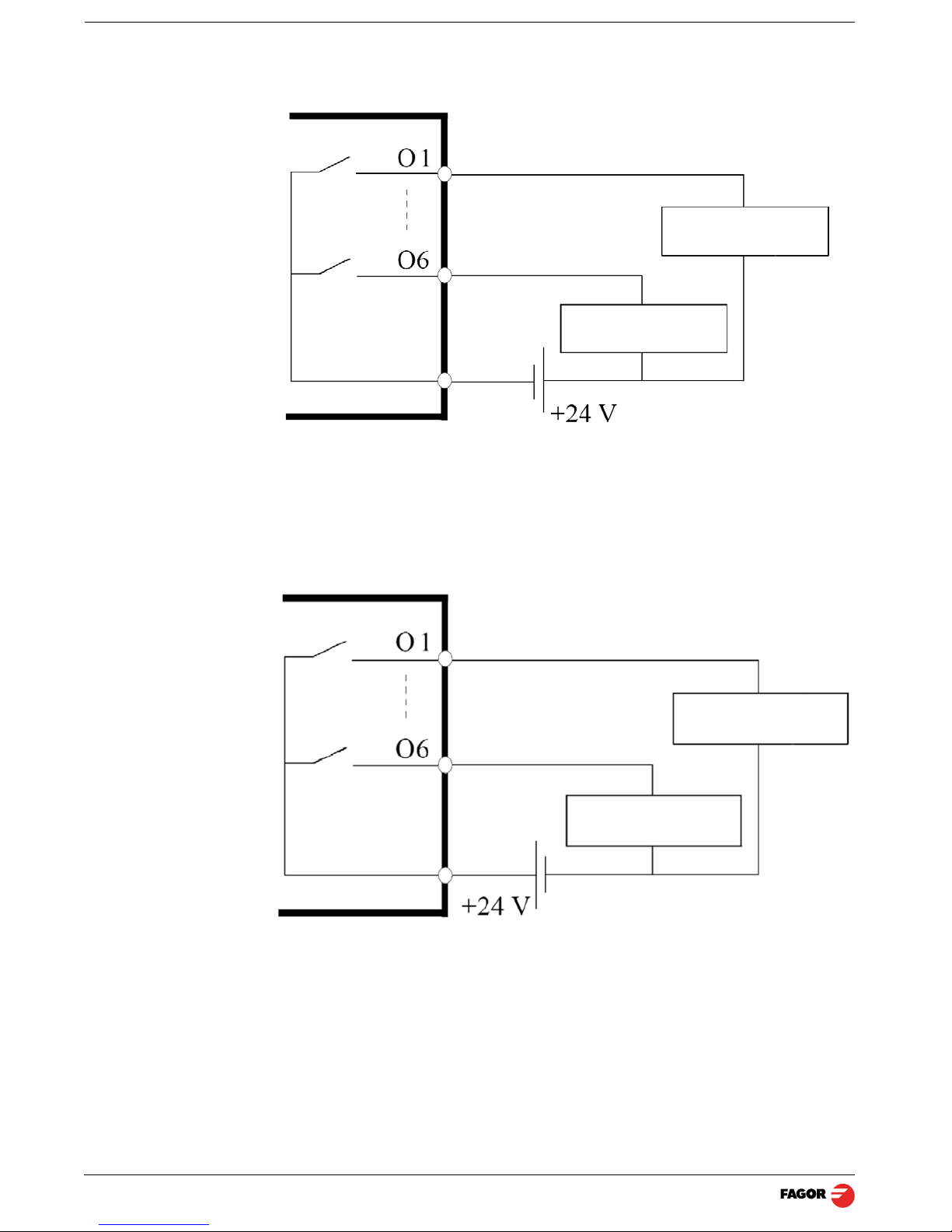

Open-collector outputs:
Open-emitter outputs:
LOAD
Common
LOAD
LOAD
LOAD
Common

(Soft: 01.xx) - 10iE-20iE - Installation/Operation - DRO installation - (19/35)
Relay connection example:
3.5 Easy setup
The "Easy Setup" may be used to set up the feedback of the DRO and to
verify that the installation is correct and no feedback pulses are missed.
It sets up the encoder resolu tion and the kind of reference marks being used
as well as the positive counting (reading) direction.
3.5.1 Accessing the "Easy Setup" mode
Press [CLEAR] [OFF]
And, instead of entering the parameters accessing code, key in: 555
The axes displays will show “Setup” meaning that the feedback is not set up
yet.
CODE: 555

(20/35) - DRO installation - Installation/Operation - 10iE-20iE - (Soft: 01.xx)
3.5.2 Operating mode.
• Move the axis to the origin or zero point and press the axis key.
The display shows “START”.
• Move the axis in the positive direction all the way to the end of the travel so
the DRO can read as many reference marks as possible.
•Press [ENTER] to finish. The moving direction used will be assumed as the
positive direction.
The axis status will then switch to one of the following:
Ready Correct feedback setup
Repeat Wrong feedback setup, the process should be repeated.
Error Error in the feedback system.
Note: If the feedback device is a steel tape t ype linear encoder, press [F] before
pressing [ENTER] so it is properly detected.
3.5.3 Power and machine connection
Always mount it vertically so its keyboard is within operator's reach and its
digits are easily visible (at operator's eye level).
Do not connect or disconnect the DRO connectors while it is under power.
Connect all metallic parts to a common point on the machine tool and it to the
general ground point. Use cables of enough gage (no thinner than 8 mm 2 )
for this connection.
3.6 Installation parameters
These DROs have a number of insta llation parameters to configure it for a
particular application.
The way th ese parameters are displayed depends on whether they are
general or particular for each axis.
• If it affects the axes, the parameter number (PAR??) appears on each axis
display and the corresponding axis key must be pressed to modify it.
• If it is a general parameter and there are more than one axis (20iE, 20iE-B) ,
the X display will show the parameter number and the Y its current value; if
there is only one axis, its numb er will appea r on the X displa y and, after
pressing this key, its value.
There are several kinds of parameters depending on how to set them:
• With binary values, it only takes values of 0 or 1 for each digit. The value is
changed by pressing the key with the relevant digit between [1] and [8].
Where [1] corresponds to the rightmost digit o f the display a nd [8] to the
leftmost digit.
• Numeric values, usually with the corresponding axis reso lution, they are
entered as regular coordinate preset.
to
