warnings
This washing machine comes with a
manual that includes operating, maintenance
and installation instructions. Please read all
the instructions before using the washing
machine.
Do not wash items that have previously
been cleaned, washed, soaked or treated
with petrol, solvents for dry cleaning, other
inflammable substances or explosives, as
they produce fumes that could catch fire or
explode.
Do not add petrol, solvents for dry cleaning
or other inflammable or explosive substances
to the wash water as they produce fumes
that could catch fire or explode.
Do not repair or replace any part of the
washing machine or try to carry out any type
of servicing unless it is recommended in the
maintenance instructions in the manual.
Do not climb onto the machine or stand
on the open hatch door.
Do not use an extension lead or adaptor
to connect your washing machine to the
mains supply.
The machine should only be used for the
purpose it is designed for.
Follow the washing instructions
recommended by the manufacturer of the
garment to be washed.
Do not turn your washing machine on until
you are sure that:
• It has been installed in accordance with
the installation instructions.
• All the water, drainage, mains electricity
and earth connections meet the local
regulations and/or other applicable
regulations.
To avoid the risk of fire, electric shocks, injury or damage when using your washing
machine, please take the following precautions:

71
washing machine

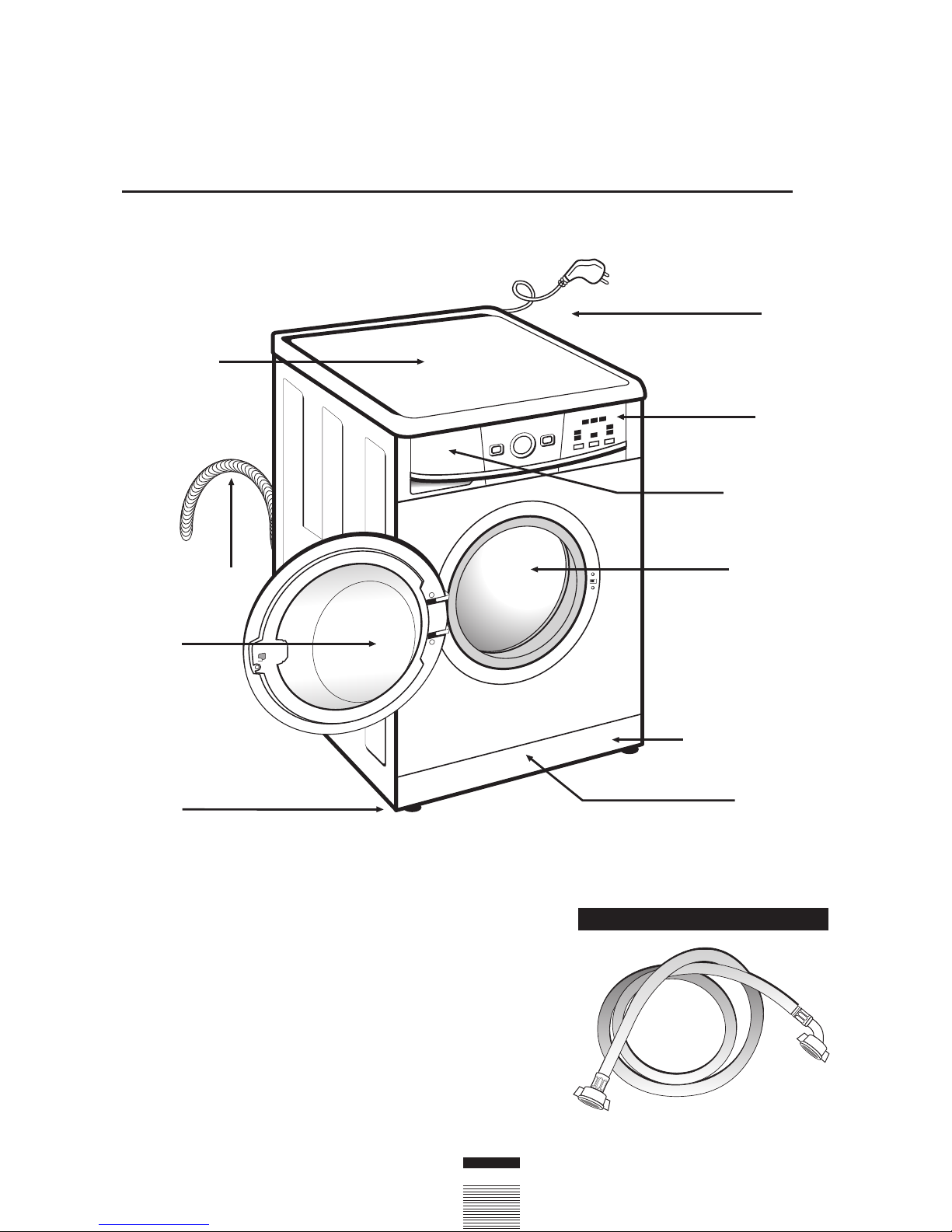

Water inlet hose.
specifications
Power
cord
Control
panel
Detergent
dispenser
Stainless
steel drum
Accesible filter
(behind kickplate)
Kickplate
Drain hose
Hatch
Adjustable
feet
Work top
ACCESSORIES

72
washing machine

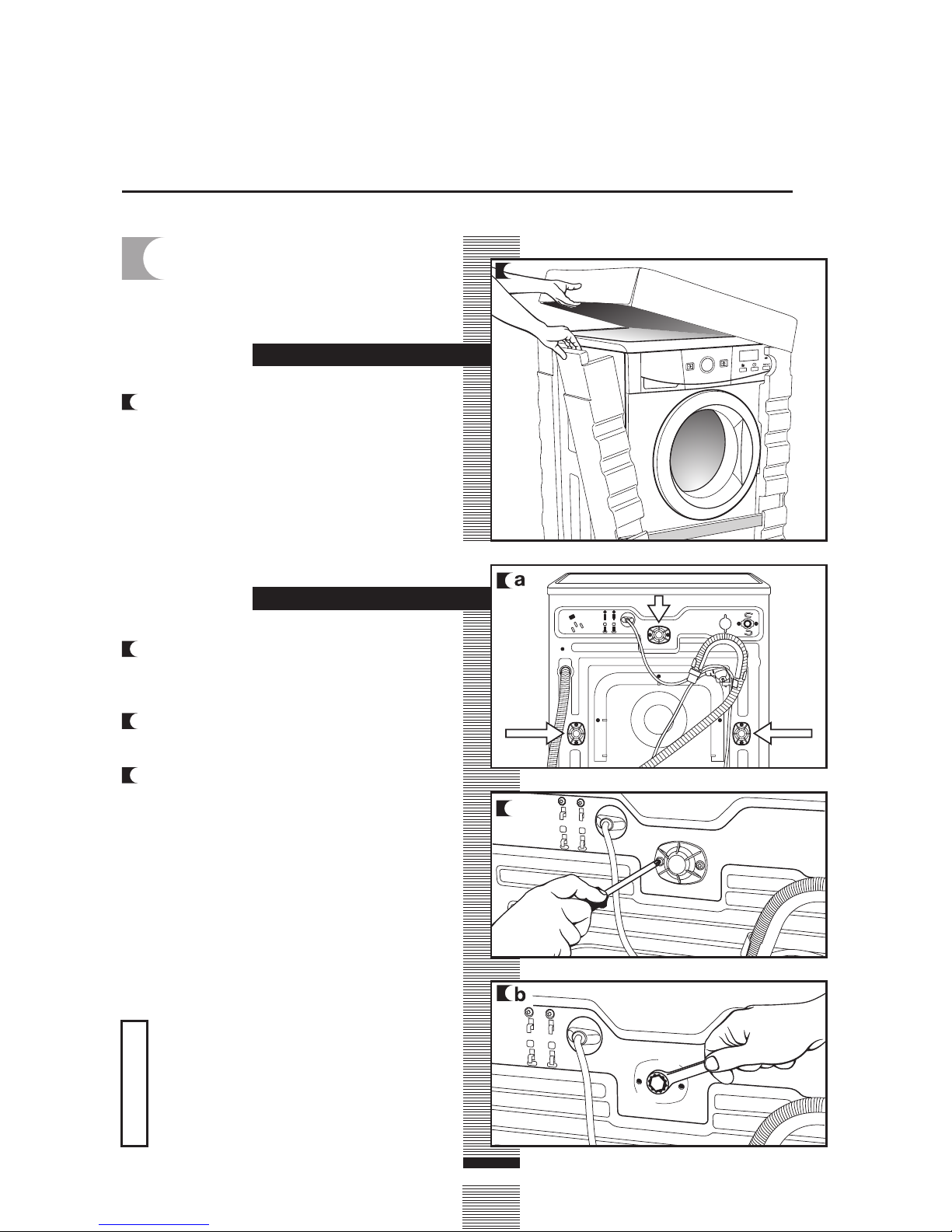

aRemove the screws holding the plastic
covers to the back of the washing
machine.
bLoosen and remove the 3 blocking
screws.
cCover the holes with the plastic covers
you have just removed.
installation and assembly
Do not throw the blocking screws
away. You may need to move the
washing machine at a later date.
Important
a/c
aRemove the base, corner protectors and
top cover.
1UNPACKING AND
UNBLOCKING THE
WASHING MACHINE
UNBLOCKING
UNPACKING
a

DRAINAGE
CONNECTION
73
CONNECTION TO THE MAINS WATER SUPPLY AND
DRAINAGE
The water supply hose is inside the drum:
aConnect the bent end of the hose to the
threaded inlet of the electrovalve located
at the rear of the washing machine.
bConnect the other end of the hose to
the water intake. Then securely tighten
the connection nut.
installation and assembly
It is important that the drain hose
bend is correctly fastened to the
outlet, to prevent any risk of it
becoming detached and causing
flooding.
If your washing machine has a hot
water intake, connect the hose with
the red threaded end to the hot water
tap, and to the electrovalve with the
red filter.
The washing machine must be
connected to the mains water supply,
using the new supply hoses supplied
with the appliance. Do not use water
supply hoses that have been used
before. For your washing machine to
work properly, the mains water
pressure must be between 0.05 and
1MPa (0.05 and 10 Kgr/cm2).
a
aIt is recommended that you have a fixed
drainage outlet 50 to 70 cm from the
floor.
Avoid the drain hose being too tight,
kinked or restricted.
2
Important
CONNECTION TO THE
MAINS WATER SUPPLY

Important
Use the adjustable feet to level the
washing machine. This will reduce
the noise level and prevent it from
moving during use.
Do not bring the feet too far out, you
will achieve better stability.
You need to use a spanner for the
models that have a nut.
Important
74
LEVELLING THE WASHING MACHINE AND CONNECTING
IT TO THE MAINS ELECTRICITY SUPPLY
installation and assembly
3
Consult the specifications plate located on the
hatch door of the washing machine before
making the electrical connections. Ensure that
the voltage reaching the plug is the same as
that on the plate.
Do not remove the specifications plate.
The information on it is important.
ELECTRICAL CONNECTION
LEVELLING
It is very important to correctly earth the
washing machine. The electrical
installation, plug, socket, fuses or
automatic switch and counter must be
correctly dimensioned for the maximum
power indicated on the specifications
plate.
Do not plug the washing machine plug
into the socket with wet or damp hands.
To remove the power cord, pull on the
body of the plug.
If the power cord is damaged, it must be
replaced by a cord or special unit provided
by either the manufacturer or your after-
sales service.
With built-in washing machines, the plug
must be accessible after installation.

When your washing machine has been
correctly installed, we recommend that you
pre-clean the machine.
This is to check that the installation, the
connections and the drainage are all correct,
and to thoroughly clean the inside of the
washing machine before any wash
programmes are run (see the operating
instructions on the following pages).
aPress ON/OFF button.
bSelect the normal programme at 60ºC.
cPress the start/pause button.
75
INSTALLING THE WASHING MACHINE UNDER A KITCHEN
WORKTOP AND PRE-CLEANING
INSTALLATION UNDER
A WORKTOP
4
PRE-CLEANING
c
a
Your washing machine may be fitted
underneath a kitchen worktop.
If you need to remove the washing machine’s
worktop, for safety reasons you need to fit a
protection plate which you can obtain from
your Dealer or Technical Assistance Service.
Follow these steps to fit the plate:
aRemove the washing machine work top
by taking out the side screws and moving
it gently back.
bTake out the screws and remove the
parts holding the worktop in place.
cPut the protection plate into place and
screw it to the washing machine so it
can then be inserted in the place you
wish, fitting spongy adhesive all around
the perimeter first to prevent noise.
c
b
b
a

PREPARATION
76
washing machine
aSort the clothes according to fabric
and how they are made:
We recommend using the delicate
programmes for sensitive fabrics. There
is a special wool programme for
woollens.
bSort clothes according to how soiled
they are.
•Wash lightly soiled garments using a
short programme.
•Use a programme without prewash
for medium-soiled garments.
•Wash heavily soiled garments using a
long programme with prewash.
aSort your clothes according to colour.
Wash whites and coloured separately.
using the appliance and practical tips
Important
Make sure
beforehand
that your
woollens can
be machine-
washed.
Before placing the clothes in the
drum, make sure all the pockets are
empty.
Any small objects may block the drain
pump.
Prewash
Wash
Wash
1PREPARING
GARMENTS FOR
WASHING
30
60
90
40
Cold
Important
We recommend loading the washing
machine to its full capacity. This
means savings on water and energy.
Whenever possible, we recommend
that you wash garments of different
sizes within the same wash
programme. This improves the
washing action and also aids the
correct distribution of the garments
in the drum when spin-drying, and
the washing machine will therefore
be quieter.
It is a good idea to put small garments
in a wash bag.
SORTING THE CLOTHES
Important

DETERGENT AND
ADDITIVES
77
aYour washing machine’s detergent
dispenser has three compartments.
bPut the detergent or additive into the
detergent dispenser before starting the
wash programme.
cLiquid detergents may also be used in
this washing machine. An optional
detergent dispenser is to be used for
this, which can be obtained from the
Technical Service Network.
Place this optional dispenser inside the
wash compartment.
The level of liquid must never be
higher than the MAX mark printed on
the dispenser wall.
Remember that the amount of detergent to
be used will always depend on:
The amount of clothes to be washed.
How heavily the clothes are soiled.
The hardness of the water (Information on
water hardness in your area can be obtained
from the competent local authorities).
We recommend the use of a
decalcifying product if the water
hardness is high in your area.
2USING DETERGENT AND ADDITIVES
eco-note
using the appliance and practical tips
Remember that concentrated detergents
exist which are more environment- and
nature-friendly.
The use of more detergent than
necessary will not improve you
washing results, and apart from costing
you money it will have a negative effect
on the preservation of the
environment.
We therefore recommend you follow
the detergent manufacturer’s
instructions.
Wash Fabric softener
Prewash
a
ImportantImportant
b
c

3SELECTING THE WASH
PROGRAMME using the appliance and practical tips
To select a wash programme, proceed as
follows:
aSwitch the washing machine on by
pressing ON / OFF.
bActivate the programme selector by
pressing it to release it (depending on
the model).
cSelect the wash programme by turning
the programme selector (see programme
table).
78
programme
selector
ON/
OFF
button
start/
pause
button
additional
function
button
time
delay
button
spin and
anti-crease
button

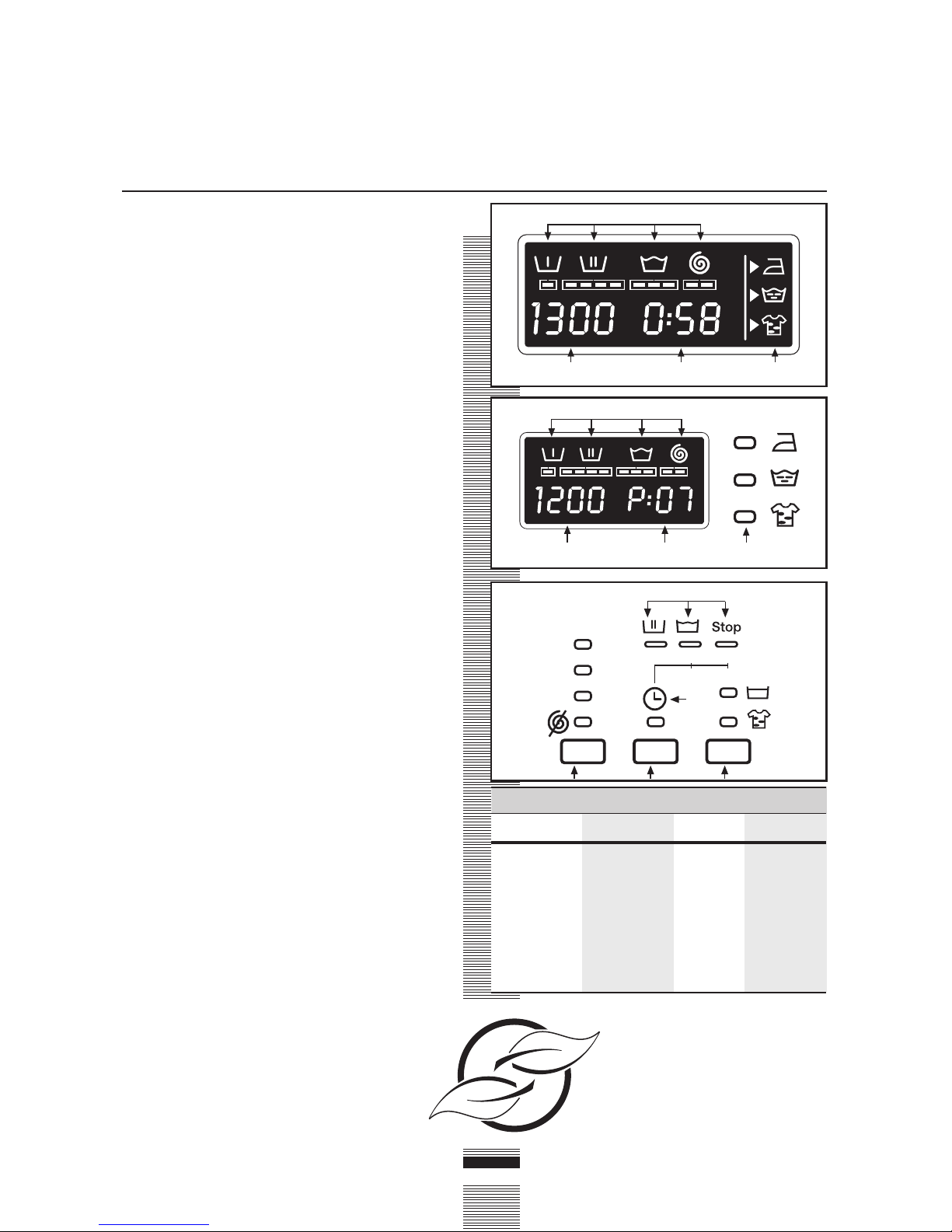

screen
detergent dispenser
1100
700
400
3h 6h 9h
display models
non-display models
ab
detergent dispenser ON/
OFF
button
programme
selector start/ pause
button
additional
function
button
time
delay
button
spin
button
c

79
using the appliance and practical tips
When you select the programme, the following
information will be displayed:
1 Wash programme phases
- display models
Prewash
Wash
Rinse
Spin-drying
- non-display models
Wash
Rinse
Stop
2 No. of revolutions
3 Programme No. (for a few seconds)
and then its duration on display
models.
4 Additional functions
- display models
Easy iron
Extra rinse
Intensive wash
- non-display models
Extra rinse
Intensive wash
There are four types of programme:
Normal programmes
Delicate programmes
Wool programmes
Auxiliary programmes
1100
700
400
3h 6h 9h
1
234
1
234
23
4
1
We recommend you choose a wash
programme without prewash whenever
possible. This will save you money and
help protect the environment.
eco-note
Normal Delicate Wool Auxiliary
PROGRAMMES
Normal cold
Quick 30ºC
Normal 30ºC
Normal 40ºC
Normal 60ºC
Normal 90ºC
Prewash 60ºC
Delicate cold
Delicate 30ºC
Delicate 40ºC
Delicate 60ºC
Wool cold
Wool 35ºC
Rinses
Spin-drying
Drain/End
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

(*) Programme for wash and energy consumption assessment
in accordance with standard EN60456, press intensive wash
button.
80
Was
produ
compart
Cotton/Linen
Cold delicate colours YES 5/6
very light soil
Cotton/Linen
whites/colours YES NO YES 1.5
very light soil
Cotton/Linen
delicate colours YES 5/6
light soil
Cotton/Linen
fast colours YES 5/6
light soil
Cotton/Linen
fast colours YES 5/6
medium soil
Cotton/Linen
whites YES 5/6
heavy soil
Cotton/Linen
whites/fast colours YES 5/6
heavy soil
Synthetic/mix cotton
Cold delicate colours YES 3
very light soil
Synthetic/mix cotton
delicate colours YES 3
light soil
Synthetic/mix cotton
delicate colours YES 3
medium soil
Synthetic/mix cotton
whites/fast colours YES 3
medium soil
Wool/wool mix
WOOL cold whites/colours
YES NO YES 1
very light soil
Wool/wool mix
WOOL 35 whites/colours
YES NO YES 1
light soil
Cotton/cotton mix
—Synthetic/Delicate
YES NO YES 5/6
Wool/wool mix
Cotton/cotton mix
—Synthetic/Delicate NO YES NO 5/6 —
Wool/wool mix
Cotton/cotton mix
—Synthetic/Delicate NO 5/6 —
Wool/wool mix
Programme
Recommended
temperature
Fabric type
Max load
of clothes
(Kg)
Possible option buttons
Extra rinse Intensive wash
Easy-iron
Spin speed selection
No spin
Anti-crease
1
2
3
4
5 (*)
6
7
8
9
10
11
12
13
14
15
16
Normal cold
Quick 30ºC
Normal 30ºC
Normal 40ºC
Normal 60ºC
Normal 90ºC
Prewash 60ºC
Delicate cold
Delicate 30ºC
Delicate 40ºC
Delicate 60ºC
Wool cold
Wool 35ºC
Rinses
Spin-drying
Drain/End
Normal prog.Delicate prog.Wool prog.Auxiliary prog.
30
30
40
60
90
60
40
60
40
3030

NOTE: the KWh and litre consumptions and programme durations may vary depending
on the type and amount of clothes, mains water pressure, etc.
81
6 Kg
Wash
product
compartment
Programme
description
TURBO TIME TURBO TIME PLUS
Approx.
duration
(minutes)
Total consumption KWh/Litres
5 Kg 6 Kg
Total
consumption
KWh/Litres
Approx.
duration
(minutes)
Normal wash, rinses,
5/6 automatic additive absorption if 0,15/46 0,15/49 60 0,10/49 50
desired and long final spin
SHORT wash, rinses,
1.5 automatic additive absorption if 0,20/25 0,20/30 30 0,20/30 30
desired and long final spin
5/6 0,35/46 0,40/49 82 0,20/49 52
5/6 Normal wash, rinses, 0,60/46 0,65/49 87 0,50/49 57
automatic additive absorption
if desired and
long final spin
5/6 A: 0,95/46 1,02/49 91 1,02/49 70
A+: 0,85/46
5/6 1,60/51 1,90/55 120 1,90/53 110
Prewash, normal wash, rinses,
5/6 automatic additive absorption if 1,40/55 1,45/60 105 1,40/53 100
desired and long final spin
3 0,15/50 0,15/55 50 0,10/49 50
3 Delicate wash, rinses, 0,35/50 0,35/55 50 0,20/49 50
automatic additive absorption
if desired and
gentle final spin
3 0,55/50 0,60/55 55 0,40/49 55
3 0,95/50 1,00/55 70 0,90/49 70
1 WOOL wash, rinses, 0,05/60 0,05/60 30 0,05/52 30
automatic additive absorption
if desired and
gentle final spin
1 0,45/60 0,50/60 40 0,40/52 40
Rinses, automatic additive
5/6 absorption if desired and 0,05/25 0,05/30 23 0,05/30 23
long final spin
5/6 —Drain and final long spin 0,05/0 0,05/0 10 0,05/0 10
Drain and end of programme.
5/6 —Takes programme to 0,00/0 0,00/0 2 0,00/0 2
final position
Max load
of clothes
(Kg)
Check on your control panel if your washing machine is Turbo Time Plus or Turbo Time

82
4SPIN SPEED SELECTION
using the appliance and practical tips
SPIN-DRYING
The wash options must always be selected
after choosing the wash programme. Any
programme change during selection cancels
the previously selected options.
a Spin speed selection and anti-crease
button
A specific spin speed is associated with
the selected programme, and this
appears on the display for display
models. On non-display models, the
corresponding LED will light up.
b You can change it by repeatedly pressing
the spin button. The spin speed will
gradually be reduced at 100 r.p.m.
intervals to 400 r.p.m. for display models.
On non-display models the LED will
light up.
c No spin
Press the spin button again to get to the
no spin option. A programme without a
final spin. It is used to prevent creasing
when washing special fabrics.
d Anti-crease option
The wash programme stops on the last
rinse, with the clothes left in water. When
the function is deactivated, the washing
machine continues the programme,
draining and spin-drying.
It is used, for example, when you are
not at home and want to delay the spin-
drying until you get home, to prevent
the clothes creasing after spin-drying
and being left in the drum to be removed.
a
1100
700
400
3h 6
h
b
1100
700
400
3h
6
c
1100
700
400
3h
6
Select
d

83

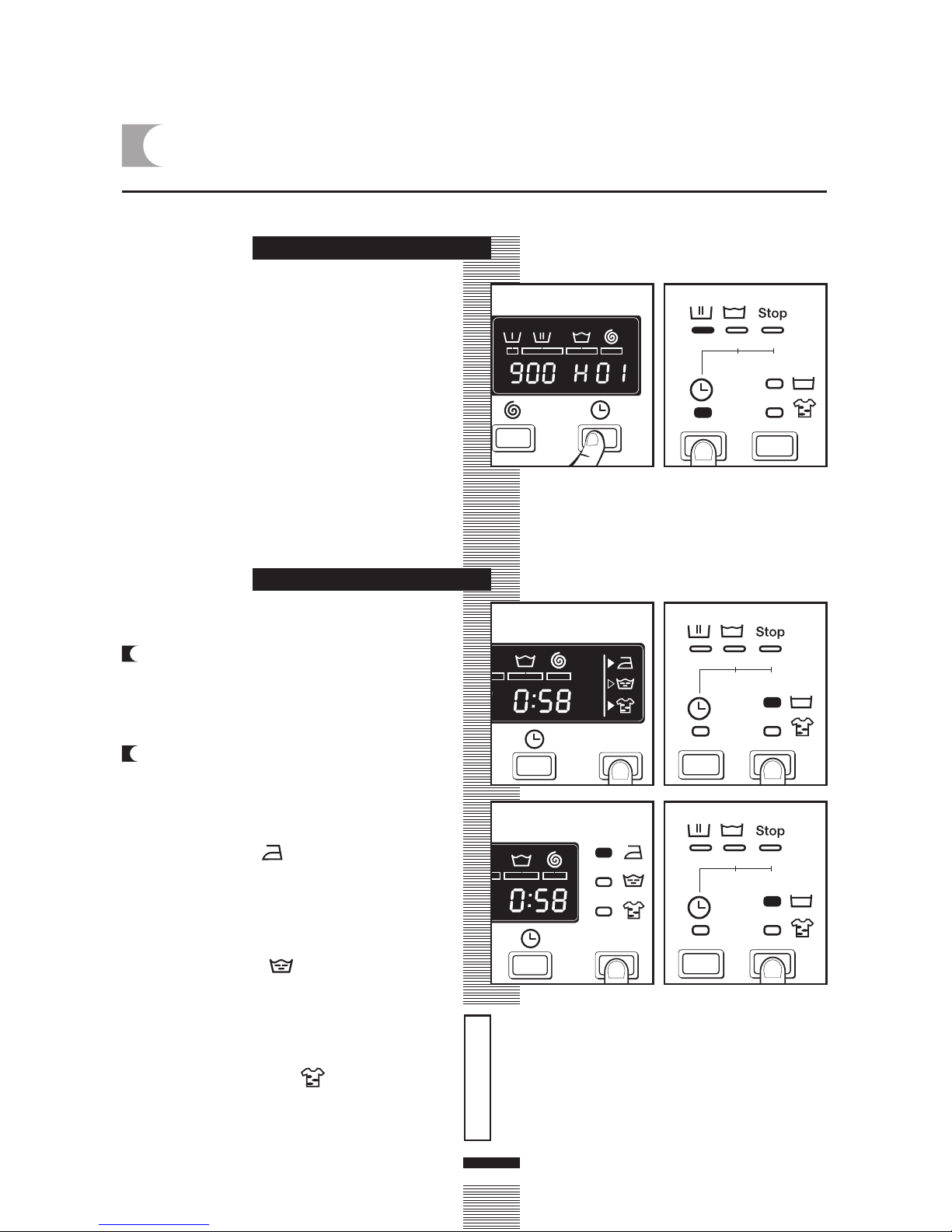

Time delay selection button
A delay of up to 24 hours can be selected.
The delay must be selected after choosing the
wash programme.
To select the hours of delay, press the clock
button. On display models, the delay will be
increased by an hour each time the button is
pressed. On non-display models, you can
choose a delay of either 3, 6 or 9 hours.
Cancelling the delay
To cancel the delay you have to press the clock
button successively. The delay will be cancelled
when 24 hours have been reached and the
button is pressed once more. If the programme
is changed the delay is also cancelled.
5TIME DELAY SELECTION AND
ADDITIONAL FUNCTIONS using the appliance
Additional function selection button
depending on programmes.
aThere are either 3 options or 2 options,
depending on the model: easy-iron, extra
rinse and intensive wash.
Press the button and the desired option
will be displayed.
bBy pressing the button several times you
can choose between several
combinations of one, two and up to three
additional functions at the same time
depending on the programme selected.
Button: Easy-iron ( )
This option prevents garments from
creasing by means of carrying out a
special programme with special turns to
fluff out the garments after spin-drying
and make them easier to iron.
Button: Extra rinse ( )
Increases the level of the final rinse
obtained in the clothes; suitable for large
loads and garments belonging to people
with sensitive skin. Increases water
consumption!
Button: Intensive wash ( )
This option, specially recommended for
heavily soiled, stained clothes, achieves
better results by extending the normal
wash cycle.
TIME DELAY
ADDITIONAL FUNCTIONS
Select
3h 6h 9h
Select
3h 6h 9h
3h 6h 9h
If during the additional function selection, the
programme is changed or the ON/OFF button
is pressed, all the functions selected until
then are cancelled.
Important

84
Start/pause button
aTo start up the washing machine you
have to press the start/pause button.
On display models the minutes remaining
until the end of the wash are displayed
throughout.
6STARTING UP AND
BLOCK FUNCTION SELECTION using the appliance
STARTING UP
Block function selection
Available on display models.
The various buttons can be blocked to prevent
them from being pressed and affecting the
selected wash programme and options. This
can be used to stop children playing with the
buttons, etc.
The block function should be activated after
the wash programme has been selected
together with all its options.
Activating the block function
aThe block function is activated by
pressing the start/pause button and
holding it down for at least 3 seconds.
The display will show if it is activated.
Deactivating the block function
bThe block function is cancelled when
the wash programme comes to an end.
If you want to deactivate the block
function before the end of the
programme, you have to hold the start
button down again for at least 3 seconds.
After 3 seconds, the block function
indicator will disappear from the display,
and it will go into pause status.
The ON/OFF button does not cancel
the block function.
BLOCK FUNCTION
a
b
a

85
On display models, when the programme is
running, the phase the programme is at will
appear on the display together with the time
remaining before the programme ends. On
non-display models the phase the programme
is at is shown by the LEDs.
The active phases will appear successively at
the top of the display as the programme
progresses. The time remaining until the end
of the programme will also appear on the
display. It updates at regular intervals, but not
minute by minute.
Any option button can be selected provided
the wash phase in which it takes effect has
not been passed and when the programme
accepts the option.
Pressing the delay button during the wash has
no effect on the washing machine.
Pressing the start/pause button during the
wash activates the PAUSE function.
7WASH PROGRAMME PHASES
AND POWER CUTS using the appliance
1100
700
400
3h 6h 9h
If there is a power cut, when the electricity
comes back on the washing machine will
continue to run from where it left off (it has
several hours of memory). The same will
happen if the ON/OFF button is pressed.
POWER CUTS
PROGRAMME
PHASES
If you change the wash programme
during the wash using the selector,
the PAUSE function is activated and
the programme is cancelled.
If you need to add or remove a
garment, press the start/pause button
and make sure that the water level is
not above the door overflow level and
that the temperature inside is not high.
Press the start/pause button again to
restart the wash from the same cycle
phase it had stopped at.
Important
warnings
Level the washing machine by adjusting the
feet to reduce the noise caused by spin-drying.
Try and wash clothes of different sizes in
the same wash programme to favour the
distribution of the clothes inside the drum
during spin-drying.
All the models have a safety system for
spin-drying that prevents spin-drying from
being carried out if the distribution of the
clothes inside the drum is too concentrated.
This prevents the appliance from vibrating too
much.
If you find that the clothes are not properly
wrung out, try spin-drying them again after
having distributed the clothes more evenly in
the drum.

86
washing machine
maintenance and cleaning
a
b
After each wash, leave the door open
for a while to allow the air to circulate
freely inside the machine.
From time to time, depending on the
hardness of your water, it is
recommendable to run a full wash cycle
using a decalcifying product. This will
extend the life of your washing
machine.
MAINTENANCE
The washing machine should be
disconnected from the mains
electricity supply before any
cleaning or maintenance is carried
out.
Clean the detergent dispenser whenever
there is any washing product residue left
inside.
aPull outwards on the detergent
dispenser to remove it completely.
bUse warm water and a brush to
clean the compartments.
cAlso clean the additive
compartment siphons, having
removed them first. Once they
have been cleaned, put them back
making sure that they fit right in to
the back.
Put the dispenser back into the
washing machine.
A dirty or incorrectly fitted siphon
will prevent the additives from
being taken in and leave water
inside the compartment at the
end of the wash.
Important Important
1CLEANING THE DETERGENT DISPENSER
c
