FagronLab UVGI-80 User manual

FagronLab™ UVGI-80
User Manual
www.fagronlab.com

Table of contents
1. Performance and Main Features ......................................................................................................................................................... 4
2. Application Area .................................................................................................................................................................................................... 4
3. Bactericidal Factors and Strength ...................................................................................................................................................... 4
4. Microbial Category ............................................................................................................................................................................................. 4
5. Technical Parameter ......................................................................................................................................................................................... 4
6. Functions and Use .................................................................................................................................................................................................5
7. Installation ................................................................................................................................................................................................................... 5
8. Operation ....................................................................................................................................................................................................................... 5
9. Attention ........................................................................................................................................................................................................................ 5
10. Trouble Shooting .................................................................................................................................................................................................. 6
11. Maintenance ............................................................................................................................................................................................................. 6
12. Warranty ........................................................................................................................................................................................................................ 6
13. Service ............................................................................................................................................................................................................................... 7
14. Transportation and Storage ...................................................................................................................................................................... 7
15. Circuit diagram...........................................................................................................................................................................................................7

FagronLab™ UVGI-80 – User Manual | 4
1. Performance and Main Features
2. Application Area
3. Bactericidal Factors and Strength
4. Microbial Category
5. Technical Parameter
FagronLab™ UVGI-80 device is using high-intensity ultraviolet germicidal lamp, a disinfection method which can be used for
air disinfection in work places where health professionals are exposed to contagious risks factors.
It is suitable for dynamic indoor air disinfection in pharmacies, medical examination cabinets, waiting rooms, hospital
rooms, food, beverage and pharmaceutical factories.
The main bactericidal factor used ultraviolet irradiation (UV-C) through short-wavelength ultraviolet. UV lamps meet the
technical requirements achieving 254nm of strength.
Germicidal lamp is a special type of lamp which produces ultraviolet (UVC) light. This short-wave ultraviolet light disrupts
DNA base pairing causing formation of pyrimidine dimers and leads to the inactivation of bacteria, viruses, and protozoa.
Model UV Air Sterilizer
Power Supply AC220V±10%; 50/60Hz
Temperature -10°C ~ 40°C
Humidity ≤ 80%
Air Pressure 600hpa≈1060hpa
Applicable room ≤80m³
Circulating Air Volume ≥800m³/h
UV Leakage ≤5µw/cm² (30cm from the sterilizer)
Noise ≤55dB
Consuption ≤260W
According to the electric shock protection classification, product classifies as: Class II, Type B, general equipment.
FagronLab™ UVGI-80

FagronLab™ UVGI-80 – User Manual | 5
7. Installation
FagronLab™ UVGI-80
No need of any extra installation.
8. Operation
9. Attention
•Make sure that all windows and doors are closed during disinfection
•Plug in the power cord. Press the power Switch. The device is working
•Please read the instruction manual carefully before using the device
•The usage must be carried out in accordance with the rules stipulated in the manual
•It is forbidden to use in flammable and explosive places
•Doors & windows of the room should be closed during disinfection
•Power must be turned o during installation and maintenance
•It is strictly forbidden to cover or block the air inlet and air outlet of the device
•Do not insert anything into the device. It may cause fire or electric shock.
•Do not spill any liquid on the sterilizer
•The power should be turned o before cleaning the device
•During maintenance or cleaning, turn o the power to avoid UV rays from puncturing the skin and eyes
•The power supply used by this unit must be a single-phase three-core power supply with good grounding
•In order to reduce the risk of electric shock, do not disassemble the unit
6. Functions and use
Polluted Air
Sterilized Air

FagronLab™ UVGI-80 – User Manual | 6
Error Troubleshooting
Work indicator is not lit
Check the connection of power
Check the fuse condition
UV light is not working
Check Ballast working condition 2A (Ф5×20)
UVC lamp is damaged
Fan is not working
Check the fan motor
Check the fan power connection
10. Trouble Shooting
11. Maintenance
12. Warranty
•UV life-time is 5000hours. Please replace the UV lamp in time according to your personal disinfection plan
•To store the device, unplug from power and cover with a clean cloth
This device is under warranty and free from defects in materials and workmanship, under normal use and service, for a
period of 12 months from the date of invoice (excluding consumable accessories). The warranty is extended only to the
original purchaser. Warranty is not valid on device which has been damaged on account of improper installation, improper
connections, misuse, accident or abnormal conditions of operation. If the warranty has been expired, Fagron would still
responsible for repair with relative charges.
For claims under the warranty please contact your local supplier.
FagronLab™ UVGI-80
•Please unplug the device from the power and contact your local supplier, when the following occurs:
A When the power cord or plug is damaged or worn
BIf liquid is spilled into the unit
CIf the sterilizer is being exposed to rain or water
DIf the sterilizer is broken or the frame is damaged
EIf the sterilizer changes significantly in performance
•The service life of the whole device is five years. If used for more than five years, the aging of components and power
cords may cause personal safety accidents. A complete Service must be done after this period.
•Ultraviolet germicidal lamps should be used to detect the irradiance according to the time of use, and the irradiance of
the radiation is <70uW/cm2 (power ≥30W). The UV germicidal lamp should be replaced regularly (lifetime more than
5000 hours)

FagronLab™ UVGI-80 – User Manual | 7
13. Service
14. Transportation and Storage
In case of any problem, you can always contact the Service Department for technical support. Please provide the customer
care representative with the following information:
•Description of problem
•Serial Number of the device
•Methods and procedures adopted to resolve the problems
•Your contact information
The transportation should avoid rain, mechanical collision and mixing with corrosive gas substances. The machine should be
stored in a dry, well-ventilated, non-corrosive gas warehouse.

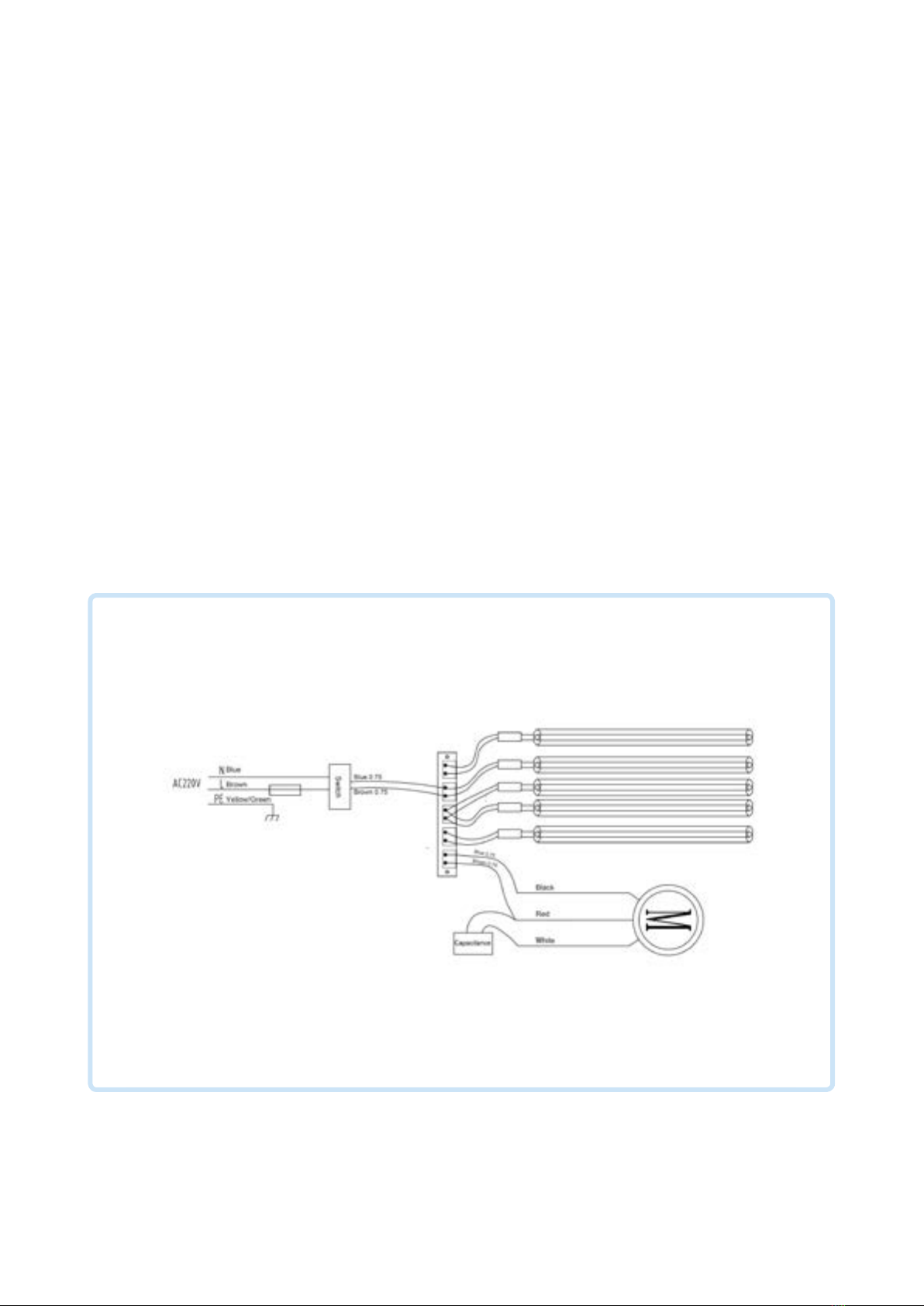

15. Circuit diagram

Together
we create the future
of personalized medicine.
Fagron Hellas
12 km N.R. Trikala - Larisa
P.C. 42100, P.O. Box 32
Trikala, Greece
T [phone]5
F [phone]
www.fagron.gr
UVASUM01
