Falcon Kitchener Instruction Manual

USER GUIDE &
INSTALLATION INSTRUCTIONS
Kitchener & Professional +
90 Dual Fuel
Australia
U110138-07A

METHOD
1. For the soué, press the raspberries through a ne sieve to
produce 180g of purée. Put this into a heavy-bottomed pan,
add the lemon juice and reduce down to a thick jam, stirring
from time to time and being careful not to let it catch and burn.
2. Put 45g of the sugar in a separate pan. Melt it and then boil
until it becomes a thick syrup (121°C on a sugar thermometer).
To test without a thermometer, dip a teaspoon into the syrup
and then dip quickly into cold water. You should be able to roll
the cooling syrup into a ball between your ngers. Be careful as
the syrup is extremely hot. When it has reached the right point,
stir the hot syrup into the raspberry jam.
3. Mix the framboise and cornour together and stir into the
jam over the heat. Turn the jam into a small bowl, sprinkle the
surface with icing sugar and cover with cling lm.
4. Preheat the oven (not grill) to 180°C shelf level 2 (conventional
oven), 160°C (fan oven) or gas mark 4 centre shelf.
5. Whisk the egg whites with the cream of tartar until you can
form soft peaks, then fold in the remaining caster sugar. Lightly
fold the whites into the jam, leaving thin traces of white visible
in the mixture.
6. Spoon into four large buttered and sugared ramekins, place
these on a baking tray and bake for 10 minutes.
7. Dust with icing sugar.
INGREDIENTS
• 400g raspberries
• 1 tbsp lemon juice
• 100g caster sugar
• 2 tsp créme de framboise
• 1 tsp cornour
• 180g egg whites (about 6)
• Pinch of cream of tartar or a squeeze of lemon juice
• Icing sugar for dusting
RASPBERRY SOUFFLÉ
SLOW BAKED LEG OF LAMB
METHOD
1. Preheat the oven to 220°C (for a conventional oven),200°C (for a
fan oven) orgas mark 7.
2. Pull the small sprigs o the rosemary branches and set aside with
the garlic.
3. Using the tip of a paring knife, make up to 20 well-spaced cuts into
the esh of the lamb, about 2.5cm inch deep. Divide the rosemary
sprigs, garlic and anchovies and push down into the cuts. Place
the leg on a large roasting tin and pour over the oil, massaging it
all over the joint. Season well with salt and pepper and pour the
wine and 250ml water into the tin.
4. Put into the oven and sear for 15 minutes, then turn the
temperature right down to 130°C (conventional oven), 110°C
(fan oven) or gas mark 1 and roast for 4-5 hours, basting every
30minutes or so. Basting frequently helps to keep the meat moist
and encourages the build up of a good glaze on the outside. Add
more liquid (wine or water) if the tin looks dry Ð there should
always be liquid in the tin throughout this cooking process.
5. The meat is ready when it starts to fall o the bone, at which point
it should have a core temperature of 90°C. Remove from the oven,
transfer to a warmed carving dish, cover loosely with foil and leave
to rest in a warm place for 30-45 minutes before carving.
6. Pour the juices from the tin into a tall hi-ball glass and allow to
settle. Spoon the fat from the top of the glass. There should be
enough sticky, reduced juices for an intense gravy hit if not, pour
the juices you have back into the roasting tin and put it over the
heat, pour in a splash of water or wine and deglaze the tin scraping
up all the sticky bits from the base. Boil fast until syrupy, taste and
correct the seasoning.
INGREDIENTS
• 2-3 large sprigs of rosemary
• 4 large garlic cloves cut in half lengthways
• 1.8kg leg of lamb
• 8 good quality anchovy llets, halved
• 100ml olive oil
• 250ml dry red wine
• Maldon salt and freshly ground black pepper

iii
Kitchener and Professional+ 90 Dual Fuel
Contents
1. Before You Start... 1
Installation and Maintenance 1
Peculiar Smells 1
If You Smell Gas 1
Ventilation 1
Personal Safety 1
Cleaning 2
2. Cooker Overview 3
Hotplate Burners 3
The Wok Cradle (optional) 5
The Griddle (optional) 5
The Grill / Glide-out Grill 6
The Ovens 7
Accessories 8
Main Oven Light 8
3 The Clock 9
4 Cooking Tips 14
Tips on Cooking with the Timer 14
General Oven Tips 14
5. Cooking Table 15
5. Cleaning Your Cooker 16
Essential Information 16
Hotplate Burners 16
Grills 17
Control Panel and Doors 17
Ovens 18
The Tall Oven 18
Cleaning Table 19
6. Troubleshooting 20
7. Installation 22
Service and Spares 22
Safety Requirements and Regulations 23
Provision of Ventilation 23
Location of Cooker 23
Conversion 23
Positioning the Cooker 25
Moving the Cooker 25
Completing the Move 26
Levelling the Cooker 26
Fitting the Stability Bracket and Chain 26
Gas Connection 27
Pressure Testing 27
Electrical Connection 28
Final Checks 29
Final Fitting 29
Customer Care 29
8. Conversion to Propane Gas 30
Conversion from Natural Gas (1.0kPa) to
LPG X Propane (2.54 kPa) 30
Injectors 30
Tap Adjustment 30
Set the Governor 31
Pressure Testing 31
Ax Label 31
9. Servicing 32
10. Circuit Diagram 38
11. Technical Data 39

iv

1
Your cooker should give you many years of trouble-free
cooking if installed and operated correctly. It is important
that you read this section before you start.
Personal Safety
This appliance is for cooking purposes only. It must not be
used for other purposes, for example heating a room. Using
it for any other purpose could invalidate any warranty or
liability claim. Besides invalidating claims this wastes fuel and
may overheat the control knobs.
This cooker must be installed in accordance with the relevant
instructions in this booklet and with the national and local
regulations as well as the local gas and electricity supply
companies’requirements.
• This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
• Children less than 8 years of age should be kept away
unless continuously supervised. Children shall not play
with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• This appliance is designed for domestic cooking only.
Use for any other purpose could invalidate any warranty
or liability claim.
• The appliance and its accessible parts become hot
during use and will retain heat even after you have
stopped cooking. Care should be taken to avoid
touching heating elements.
• A long term cooking process has to be supervised from
time to time. A short term cooking process has to be
supervised continuously.
• At the risk of fire DO NOT store items on the cooking
surfaces.
• DO NOT place articles on or against this appliance.
• DO NOT install an aftermarket lid or cover over this
appliance.
• DO NOT install combustible bench top lids or covers
within 200mm of the nearest burner.
• To avoid overheating, DO NOT install the cooker behind
a decorative door.
• Accessible parts will become hot during use and will
retain heat even after you have stopped cooking. Keep
babies and children away from the cooker and never
wear loose-fitting or hanging clothes when using the
appliance.
• DO NOT use a steam cleaner on your cooker.
• Always keep combustible materials, e.g. curtains, and
flammable liquids a safe distance away from the cooker.
• DO NOT spray aerosols in the vicinity of the cooker
while it is on.
Gas Connection Safety
• This cooker is a Class 2 Subclass 1 appliance.
• This appliance can be converted for use on another gas.
• Before installation, make sure that the cooker is suitable
for your gas type and supply voltage. See the data
badge.
• DO NOT use reconditioned or unauthorised gas
controls.
• Disconnect from the electricity and gas supply before
servicing.
• When servicing or replacing gas-carrying components
disconnect from the gas supply before starting
operation. Check the appliance is gas sound after
completion.
• Make sure that the gas supply is turned on and that the
cooker is wired in and switched on.
• In your own interest and that of safety, it is law that all
gas appliances be installed by a qualified person(s).
• An appliance for use on LPG must not be installed in
a room or internal space below ground level, e.g. in a
basement.
If You Smell Gas
• DO NOT turn electric switches on or off
• DO NOT smoke
• DO NOT use naked flames
• Turn off the gas at the meter or cylinder
• Open doors and windows to get rid of the gas
• Keep people away from the area affected
• Call your gas supplier
1. Before You Start...

2
Peculiar Smells
When you rst use your cooker it may give o an odour. This
should stop after use.
Before using for the rst time, make sure that all packing
materials have been removed and then, to dispel
manufacturing odours, turn the ovens to 200°C and run for at
least an hour.
Before using the grill for the rst time you should also turn on
the grill and run for 30 minutes with the grill pan in position,
pushed fully back and the grill door open.
Make sure the room is well ventilated to the outside air
(see‘Ventilation’below). People with respiratory or allergy
problems should vacate the area for this brief period.
Ventilation
The use of a cooking appliance results in the production
of heat and moisture in the room in which it is installed.
Therefore, make sure that the kitchen is well ventilated:
keep natural ventilation holes open or install a powered
cookerhood that vents outside. If you have several hotplates/
burners on, or use the cooker for a long time, open a window
or turn on an extractor fan
Maintenance
• Only a qualified service engineer should service the
appliance and only approved spare parts should be
used. It is recommended that this appliance is serviced
annually.
• DO NOT use cooking vessels on the hotplate that
overlap the edges.
• Unless specified otherwise in this guide, always allow
the appliance to cool and then switch it off at the mains
before cleaning or carrying out any maintenance work.
• DO NOT use the control knobs to manoeuvre the cooker.
• NEVER operate the cooker with wet hands.
• DO NOT use a towel or other bulky cloth in place of a
glove – it might catch fire if brought into contact with a
hot surface.
• DO NOT use hotplate protectors, foil or hotplate covers
of any description. These may affect the safe use of
your hotplate burners and are potentially hazardous to
health.
• NEVER heat unopened food containers. Pressure build
up may make the containers burst and cause injury.
• DO NOT use unstable saucepans. Always make sure that
you position the handles away from the edge of the
hotplate.
• NEVER leave the hotplate unattended at high heat
settings. Pans boiling over can cause smoking,
and greasy spills may catch on fire. Use a deep fat
thermometer whenever possible to prevent fat
overheating beyond the smoking point.
• Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.
• NEVER leave a chip pan unattended. Always heat fat
slowly, and watch as it heats. Deep fry pans should be
only one third full of fat.
• NEVER try to move a pan of hot fat, especially a deep fat
fryer. Wait until the fat is cool. Filling the pan too full of
fat can cause spill over when food is added. If you use a
combination of oils or fats in frying, stir them together
before heating, or as the fats melt.
• Foods for frying should be as dry as possible. Frost on
frozen foods or moisture on fresh foods can cause hot
fat to bubble up and over the sides of the pan. Carefully
watch for spills or overheating of foods when frying at
high or medium high temperatures.
• DO NOT use the top of the flue (the slot along the back
of the cooker) for warming plates, dishes, drying tea
towels or softening butter.
• DO NOT use water on grease fires and never pick up
a flaming pan. Turn the controls off and then smother

3
a flaming pan on a surface unit by covering the pan
completely with a well fitting lid or baking tray. If
available, use a multi-purpose dry chemical or foam-
type fire extinguisher.
• DO NOT modify this appliance. This appliance is not
intended to be operated by means of external timer or
separated remote-control system.
• If flammable materials are stored in the drawer, oven(s)
or grill(s) it may explode and result in fire or property
damage.
Oven Care
• When the oven is not in use and before attempting
to clean the cooker always be certain that the control
knobs are in the OFF position.
• Use oven gloves to protect your hand from potential
burns.
• Cooking high moisture content foods can create a
‘steam burst’ when the oven door is opened (Fig. 1.1).
When opening the oven, stand well back and allow any
steam to disperse.
• The inside door face is constructed with toughened
safety glass. Take care NOT to scratch the surface when
cleaning the glass panel.
• Accidental damage may cause the door glass panel to
fracture.
• Keep oven vent ducts unobstructed.
• DO NOT use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
• Make sure the shelves are pushed firmly to the back
of the oven. DO NOT close the door against the oven
shelves.
• DO NOT use aluminium foil to cover shelves, linings or
the oven roof.
• When the oven is on, DO NOT leave the oven door open
for longer than necessary, otherwise the control knobs
may become very hot.
• DO NOT use the timed oven if the adjoining oven is
already warm.
• DO NOT place warm food in the oven to be timed.
• DO NOT use a timed oven that is already warm.
• Use dry oven gloves when applicable – using damp
gloves might result in steam burns when you touch a
hot surface.
ArtNo.324-0001 Steam burst
Fig. 1.1

4
Cleaning
• Isolate the electricity supply before carrying out any
thorough cleaning. Allow the cooker to cool.
• In the interests of hygiene and safety, the cooker should
be kept clean at all times as a build up in fats and other
food stuff could result in a fire.
• Clean only the parts listed in this guide.
• Clean with caution. If a wet sponge or cloth is used to
wipe spills on a hot surface, be careful to avoid steam
burns. Some cleaners can produce noxious fumes if
applied to a hot surface.
• NEVER use paint solvents, washing soda, caustic
cleaners, biological powders, bleach, chlorine based
bleach cleaners, coarse abrasives or salt.
• DO NOT mix different cleaning products – they may
react together with hazardous results.
• All parts of the cooker can be cleaned with hot soapy
water.
• Take care that no water seeps into the appliance.
• Before you remove any of the grill parts for cleaning,
make sure that they are cool or use oven gloves.
• DO NOT use any abrasive substances on the grill and
grill parts.
• DO NOT put the side runners in a dishwasher.
• DO NOT put the burner heads in a dishwasher.
• NEVER use caustic or abrasive cleaners as these will
damage the surface.
• DO NOT use steel wool, oven cleaning pads or any other
materials that will scratch the surface.
• NEVER store flammable materials in the drawer.
This includes paper, plastic and cloth items, such
as cookbooks, plastic ware and towels, as well as
flammable liquids.
• DO NOT store explosives, such as aerosol cans, on or
near the appliance.
• DO NOT use steel wool, oven cleaning pads, or any
other materials that will scratch the surface.
• DO NOT attempt to disassemble or clean around any
burner while another burner is on, otherwise an electric
shock could result.
Grill/Glide-out Grill™ Care
• When using the grill, make sure that the grill pan is
in position and pushed fully in, otherwise the control
knobs may become very hot.
• DO NOT leave the grill on for more than a few moments
without the grill pan underneath it, otherwise the knobs
may become hot.
• NEVER close the grill door when the grill is on.
• Accessible parts may be hot when the grill is in use.
Young children should be kept away.
Cooling Fan
This appliance may have a cooling fan. When the grill or oven
is in operation the fan will run to cool the fascia and control
knobs.
Cooker Care
As steam can condense to water droplets on the cool outer
trim of the oven, it may be necessary during cooking to wipe
away any moisture with a soft cloth. This will also help to
prevent soiling and discolouration of the oven exterior by
cooking vapours.

5
ArtNo.270-0001
Proplus control to high
2. Cooker Overview
The 90 dual fuel cooker (Fig. 2.1) has the following features:
A. 5 hotplate burners including a wok burner
B. A control panel
C. A glide-out grill
D. Programmable main fan oven
E. Tall fan oven
Hotplate Burners
The drawing by each of the central knobs indicates which
burner that knob controls.
Each burner has a Flame Supervision Device (FSD) that
prevents the ow of gas if the ame goes out.
When the igniter button is pressed in, sparks will be
made at every burner – this is normal. Do not attempt to
disassemble or clean around any burner while another
burner is on, otherwise an electric shock could result.
To light a burner, press the igniter button, and push in and
turn the associated control knob to the high position as
indicated by the large ame symbol (), (Fig. 2.2).
The igniter should spark and light the gas. Keep holding the
knob pressed in to let the gas through to the burner for about
ten seconds.
A
B
D
C
E
Fig. 2.1
Fig. 2.2
DocNo.020-0006 - Overview - 90DF - Prof+

6
ArtNo.311-0005 Wok burner & pan support
ArtNo.311-0004 Tipping wok
ArtNo.311-0001 Right pans gas
ArtNo.270-0003
Proplus control to low
ArtNo.311-0002 Pan with rim
If, when you let go of the control knob, the burner goes out,
then the FSD has not been bypassed. Turn the control knob
to the OFF position and wait for one minute before you try
again, this time making sure to hold in the control knob for
slightly longer.
Adjust the ame height to suit by turning the knob counter-
clockwise (Fig. 2.3). On this cooker the low position is
beyond high, NOT between high and o.
If a burner ame goes out, turn o the control knob and
leave it for one minute before relighting it.
Make sure that the ames are under the pans. Using a lid will
help the contents boil more quickly (Fig. 2.4).
Large pans should be spaced well apart.
Pans and kettles with concave bases or down-turned base
rims should not be used (Fig. 2.5).
Simmering aids, such as asbestos or mesh mats, are
NOT recommended (Fig. 2.6). They will reduce burner
performance and could damage the pan supports.
You should also avoid using unstable and misshapen pans
that may tilt easily, and pans with a very small base diameter,
e.g. milk pans, single egg poachers (Fig. 2.7).
The minimum recommended pan diameter is 120mm. The
maximum allowable pan base diameter is 260mm.
DO NOT use cooking vessels on the hotplate that overlap the
edges.
Wok Burner
The wok burner is designed to provide even heat over a large
area. It is ideal for large pans and stir-frying (Fig. 2.8).
For heating smaller pans, the aforementioned hotplate
burners may be more ecient.
You should wipe the enamel top surface of the cooker around
the hotplate burners as soon as possible after spills occur. Try
to wipe them o while the enamel is still warm.
Note: The use of aluminium pans may cause metallic marking
of the pan supports. This does not aect the durability of the
enamel and may be cleaned o with an appropriate metal
cleaner.
Fig. 2.4
Fig. 2.3
Art No. 311-0003 Simmer aids
Fig. 2.5
Fig. 2.6
Fig. 2.7
Fig. 2.8

7
ArtNo.090-0002 90 Griddle position
ArtNo.090-0004 Incorrect griddle position
ArtNo.311-0006 Correct wok sizes
The Wok Cradle (optional)
The wok cradle is designed to t a 35cm wok. If you use a
dierent wok, make sure that it ts the cradle. Woks vary very
widely in size and shape. It is important that the wok sits
down on the pan support – however, if the wok is too small,
the cradle will not support it properly (Fig. 2.9).
The cradle should be used on the wok burner only. When you
t the cradle, check that it is properly located on the front and
rear ngers and that the wok is supported properly on a pan
support (Fig. 2.10).
The cradle will get very hot in use – allow plenty of time for it
to cool before you pick it up.
The Griddle (optional)
The griddle ts the left-hand pan support, front to back (Fig.
2.11). It is designed for cooking food on directly. DO NOT use
pans of any kind on it. The griddle surface is non-stick and
metal cooking utensils (e.g. spatulas) will damage the surface.
Use heat resistant plastic or wooden utensils.
 DO NOT put it crossways – it will not t properly and
will be unstable (Fig. 2.12).
 DO NOT put it on any other burner – it is not
designed to t in any of the other pan supports.
Position the griddle over the hotplate burners resting on the
pan support. Check that it is securely located.
The griddle can be lightly brushed with cooking oil before
use (Fig. 2.13). Light the hotplate burners. Adjust the ame
heights to suit.
Preheat the griddle for a maximum of 5 minutes before
adding food. Leaving it longer may cause damage. Turn the
control knobs towards the low position, marked with the
small ame symbol, to reduce the burner ames.
 Always leave space around the griddle for the gases
to escape.
 NEVER t two griddles side by side (Fig. 2.14).
After cooking, allow the griddle to cool before cleaning.
Fig. 2.11
Fig. 2.12
Fig. 2.9
ArtNo.311-0007 Wok stand close-up
Fig. 2.10
ArtNo.311-0009 Oil on griddle Fig. 2.13
ArtNo.311-0008 Griddle positioning
Fig. 2.14

8
ArtNo.330-0003 - Grill pan w handle pulled forwards
ArtNo.331-0001Grill pan pulled forwards
The Grill / Glide-out Grill
 CAUTION: This appliance is for cooking purposes
only. It must not be used for other purposes, for
example room heating.
 CAUTION: Accessible parts may be hot when the grill
is in use. Young children should be kept away.
Open the door and pull the grill pan (Fig. 2.15) or carriage
(Fig. 2.16) forward using the handle.
The grill has two elements that allow either the whole area of
the pan to be heated or just the right-hand half.
Adjust the heat to suit by turning the knob. To heat the whole
grill, turn the knob clockwise (Fig. 2.17).
To heat the right-hand half, turn the knob counter-clockwise.
The neon indicator light by the grill control will come on.
For best results, leave the grill pan in the grill chamber and
preheat the appropriate part(s) of the grill for two minutes.
The grill trivet can be removed and the food placed on it
while you are waiting for the grill to preheat.
 DO NOT leave the grill on for more than a few
moments, without the grill pan underneath it,
otherwise the knobs may become hot.
Once the grill has preheated, take the grill pan out again and
put the trivet back in place with the food on it. Slide the grill
pan or carriage back into the grill chamber. Make sure that it
is pushed right in.

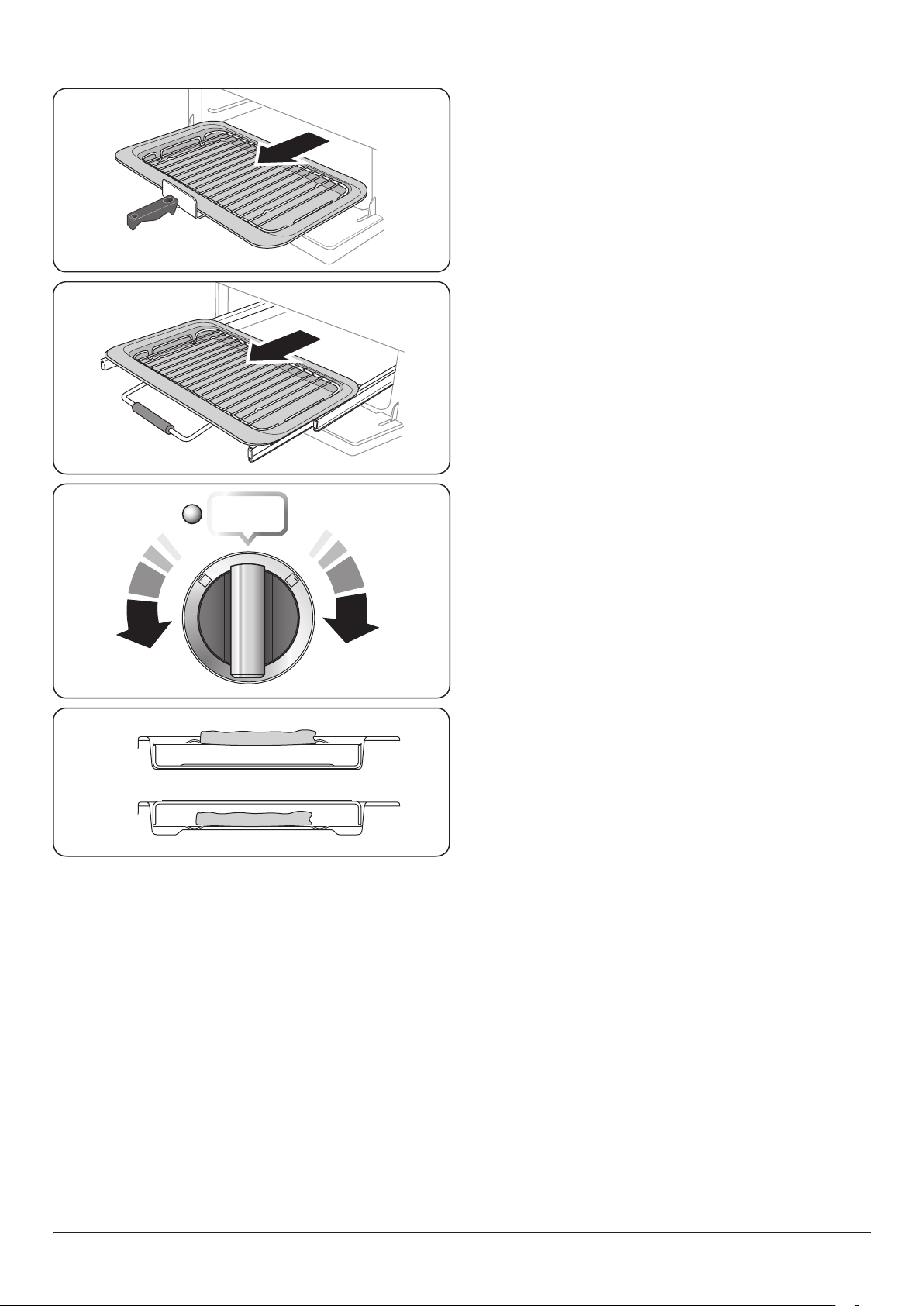

The grill pan trivet can be turned over to give two grilling
positions (Fig. 2.18).
 Never close the grill door when the grill is on.
ArtNo.331-0002 Grill pan high/low position
Fig. 2.18
ArtNo.270-0004
Proplus grill control
1
1
2
2
3
3
0
Fig. 2.15
Fig. 2.17
Fig. 2.16

9
The Ovens
The clock must be set to the time of day before the left-
hand oven will work. See the following section on ‘The
Clock’ for instructions on setting the time of day.
References to‘left-hand’and‘right-hand’ovens apply as
viewed from the front of the appliance.
Both ovens are fan ovens that circulate hot air continuously,
which means faster, more even cooking.
The recommended cooking temperatures for a fan oven are
generally lower than a conventional oven.
Note: Please remember that all cookers vary so temperatures
in your new ovens may dier to those in your previous
cooker.
Operating the Ovens
Turn the oven knob to the desired temperature (Fig. 2.19).
The oven indicator light will glow until the oven has reached
the temperature selected (Fig. 2.20). It will then cycle on and
o during cooking.
ArtNo.270-0005 Proplus
electric oven control
140
100
180
220
0
Fig. 2.19
ArtNo.270-0006 Proplus
oven control light
140
100
180
220
0
Fig. 2.20

10
Accessories

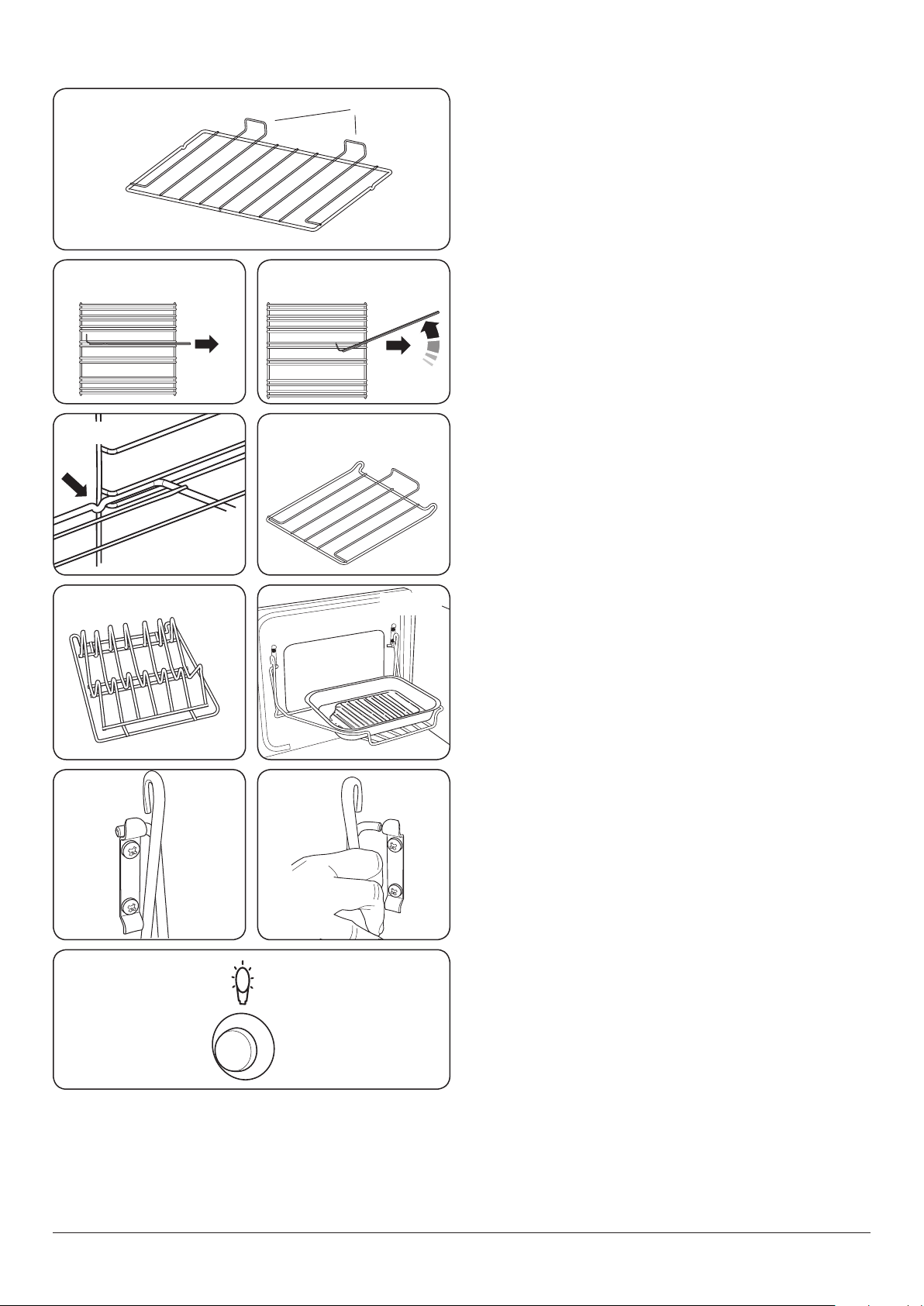

Oven Shelves – Left-hand (Main) Oven
The oven shelves (Fig. 2.21) are retained when pulled
forward but can be easily removed and retted.
Pull the shelf forward until the back of the shelf is stopped by
the shelf stop bumps in the oven sides (Fig. 2.22).
Lift up the front of the shelf so the back of the shelf will pass
under the shelf stop and then pull the shelf forward
(Fig. 2.23).
To ret the shelf, line up the shelf with a groove in the oven
side and push the shelf back until the ends hit the shelf stop.
Lift up the front so the shelf ends clear the shelf stops, and
then lower the front so that the shelf is level and push it fully
back (Fig. 2.24).
Oven Shelves – Right-hand (Tall) Oven
The tall oven is supplied with four at cooking shelves
(Fig. 2.25), and a plate-warming shelf (Fig. 2.26).
When using the tall oven, you can cook on all four shelves at
the same time, but make sure that they are well spaced out to
allow the hot air to circulate.
The Handyrack (Main Oven)
The Handyrack (Fig. 2.27) ts to the left-hand oven door
only. Food cooking on it is easy to attend to, because it is
accessible when the door is open.
The maximum weight that can be held by the Handyrack
is 5.5kg (12lb). It should only be used with the supplied
roasting tin, which is designed to t the Handyrack. Any other
vessel could be unstable.
It can be tted at two dierent heights. One of the oven
shelves must be removed and the other positioned to suit.
When the Handyrack is used in its highest position, other
dishes can be cooked on the bottom shelf position or base of
the oven.
When the Handyrack is used in its lowest position, other
dishes can be cooked on the second shelf position or base of
the oven.
To t the Handyrack, locate one side of it on the door bracket
(Fig. 2.28).
Then spring the other side out to clip it onto the other
bracket (Fig. 2.29).
Main Oven Light
Press the button to turn the light on (Fig. 2.30).
If the oven light fails, turn o the power supply before
changing the bulb. See the ‘Troubleshooting’ section for
details on how to change the bulb.
ArtNo.324-0010 Plate warming shelf
ArtNo.324-0002 Oven shelf
ArtNo.320-0016
Fitting the handyrack 2
ArtNo.320-0013 Removing the shelf 3
ArtNo.320-0014 Handyrack on LH door
ArtNo.320-0015
Fitting the Handyack 1
ArtNo.320-0017
Main oven light
Fig. 2.29
Fig. 2.30
ArtNo.320-0011 Removing the shelf 1
ArtNo.320-0012 Removing the shelf 2
Fig. 2.22 Fig. 2.23
Fig. 2.24 Fig. 2.25
Fig. 2.26
Shelf guard
Front
Fig. 2.21
Fig. 2.27
Fig. 2.28

11
ArtNo.300-0005 2BC
minute minder setting
E
A B
ArtNo.300-0005 2BC
minute minder setting
A B
C D
The clock must be set to the time of day before the oven
will work.
The 2-button clock
Setting the Clock
1. Once the cooker is connected and switched on, the
display will start to ash.
2. To set the time, turn the Timer (A) knob to the Clock
(C) setting and back to the Manual (D) position. The
centre dot will ash indicating the time can be set. Turn
the Adjusting (B)knob either clockwise or counter-
clockwise (Fig. 3.1) to set the time.
3. Once you have set the time, allow the centre dot to stop
ashing, the time is now set.
Setting the minute minder
A Minute Minder (E) is a feature that can be set for a number
of minutes and sounds an alarm once the specied amount
of time has elapsed.
1. Turn the Timer (A) knob to the Minute Minder (E)
setting – it should click into position (Fig. 3.2).
2. Turn the Adjusting (B) knob to set the amount of time
required. Minimum time 1 minute (Fig. 3.3).
3. Turn the Timer (A) knob back to the Manual (D) setting
to see the current time and the‘Bell’symbol on the
display.
Cancel the timer alarm
Once the specied time has elapsed it will emit an alarm.
There are two ways to cancel the alarm:
1. Turn the Adjusting (B) knob counter-clockwise or
clockwise (Fig. 3.4).
2. Turn the Timer (A) knob to the Clock (C) or the Minute
Minder (E) setting, and back to the Manual (D) mode,
to return to normal cooking (Fig. 3.4).
NOTE
If the alarm is not manually switched o it will stop after
approximately 2 minutes.
When the Minute Minder is active the clock will not dim
between the hours of 10 pm and 6 am
ArtNo.301-0007 2BC
Stopping the oven 1
D
A B
E
C
E
A B
Fig. 3.1
A – Timer knob, B – Adjusting knob
Fig. 3.2
Fig. 3.3
Fig. 3.4
3. The clock

12
D
A B
A B
ArtNo.311-0004 RShaw
2BC stoppingOven 1
H
A B
To stop the oven at a specific time of day
You have set the required temperature and function mode
and you would like the oven to automatically stop.
TOP TIP
Make a note of the current time so you do not forget.
1. Turn the Timer (A) knob to the Stop Time (G) setting.
‘AUTO’will show in the display (Fig. 3.5).
2. Turn the Adjusting (B) knob to the amount of cooking
time required. The display will show the current time
plus the additional cooking time you have set (Fig. 3.6).
3. Turn the Timer (A) knob to the Auto (H) setting. The
display will show the current time, the cooking symbol
and the word‘AUTO’ (Fig. 3.7).
4. Once the specied time has elapsed it will emit an alarm
and the oven will stop working. The cook pot symbol on
the display will disappear and the word‘AUTO’will ash
(Fig. 3.8).
5. When you return, turn the Timer (A) knob to the
Manual (D) setting to return to manual cooking (Fig.
3.8).
TOP TIP
You can check how much time you have left, to the
programmed stop time, by turning Timer (A) from Auto (H)
to Stop Time (G) and back to Auto (H).
G
A B
Fig. 3.5
Fig. 3.6
Fig. 3.7
Fig. 3.8

13
C
A B
C
A B
To start and stop the oven automatically
The timer allows you to automatically start and stop by a
combination of the length of the cooking time and the stop
time. Giving you the exibility to cook casseroles etc while
you are out. You cannot set the actual start time.
1. Turn the Timer (A) knob to the Cook Time (F) setting.
Turn the Adjusting (B) knob clockwise to set the length
of the cooking time required (Fig. 3.9).
2. Turn the Timer (A) knob to the Stop Time (G) setting
(Fig. 3.10). The display will show the current time of day
plus the‘cook time’you just set.
3. Turn the Adjusting (B) knob to set the time of day you
want the oven to stop cooking (Fig. 3.11).
4. Set the oven to the required cooking temperature and
function mode.
5. Turn the Timer (A) knob to the Auto (H) setting
(Fig. 3.12). If the display shows the current time and the
word ‘AUTO’the oven is set to turn on and o.
6. When the program starts the oven, the cooking symbol
will appear on the display. Once the specied time has
elapsed it will emit an alarm and the Multifunction Oven
will stop working. The ‘Cooking’symbol on the display
will disappear and the word‘AUTO’will ash (Fig. 3.13).
7. Once the specied time has elapsed it will emit an
alarm. There are two ways to cancel the alarm, refer to
“Cancel the timer alarm” on page 11
• The‘cook period’, which is the length of time you want
the oven to cook for.
• The‘stop time’, which is the time of day you want the
oven to stop cooking.
Reset to manual cooking
To cancel any automatic settings turn the Timer (A) knob to
the Manual (D) setting and release (Fig. 3.14).
NOTE: Whilst this operation cancels all automatic program
settings, it does not cancel the minute minder.
Beeper tone adjustment
The beeper tone can be adjusted to three dierent levels.
Turn the Timer (A) knob to the Clock (C) setting. Turn the
Adjusting (B) knob counter clockwise until the tone bars are
displayed (Fig. 3.15).
To adjust the tone of the alarm, release the Adjusting (B)
knob and then turn counter clockwise again (Fig. 3.16). The
tone of the alarm will change. Repeat these steps until the
desired alarm tone is set.
A B
D
A B
A B
G
A B
F
A B
Fig. 3.9
Fig. 3.10
Fig. 3.11
H
A B
Fig. 3.12
Fig. 3.13
Fig. 3.14
Fig. 3.15 Fig. 3.16

14
The 6-button clock
You can use the timer (Fig. 3.17) to turn the oven(s) on
and o. The clock must be set to the time of day before the
oven(s) will work.
Table 3.1 describes the symbols shown on the digital display.
Setting the time of day
When the cooker is rst connected to the mains, or if there
has been a prolonged power interruption, the clock display
ashes [ 0.00 ] and [AUTO].
During the time setting process the centre dot will ash.
When the process is complete the dot will stop ashing and
the [] symbol will be displayed.
The time of day can be set in two ways:
• Press and hold the [] button. Now press the [+] or [-]
buttons to increase or decrease the time (Fig. 3.18).
Holding the [+] or [-] buttons for more than 2 seconds
will advance / decrease the set time quickly. Release the
buttons to set the time of day.
• Press and hold both the [] and [] buttons down
(Fig. 3.19). Now press the [+] button (or [–] button) until
the correct time shows.
DO NOT forget that it is a 24-hour clock.
If you need to reset the clock/cooker, turn o the power and
wait several minutes, then start again.
Automatic dimming
Providing there are no automatic programs set, and the
minute minder is not active, your clock will automatically dim
during the hours between 22:00 and 06:00.
Minute minder
Press and hold the [] button (Fig. 3.20), and then press the
[+] button (or [–] button) until the length of time you want to
cook for is shown (Fig. 3.21).
You can check the time remaining by pressing []. When the
beeper sounds cancel it by pressing any button.
To reset the minute minder time; simultaneously press the [+]
and [-] buttons.
NOTE: This will clear all automatic programs.
• The‘cook period’, which is the length of time you want
the oven to cook for.
• The‘stop time’, which is the time of day you want the
oven to stop cooking.
Setting a cook duration
Press and hold the [] button and set the required‘cook
period’ by pressing the [+] button (or [–] button) (Fig. 3.22).
The clock will now control the cook period of your oven(s).
The [] symbol and [AUTO] will be displayed.
Once the‘cook period’is reached, the beeper sounds and the
[AUTO] symbol ashes. Turn the oven control knob to 0 and
ArtNo.302-0002 - 6BC annotated
ArtNo.302-0002 - 6BC annotated
ArtNo.302-0002 - 6BC annotated
ArtNo.302-0002 - 6BC annotated
ArtNo.302-0002 - 6BC annotated
ArtNo.302-0002 - 6BC annotated
A B C D E F
A – Minute minder, B –‘Cook’ time, C –‘Stop’time, D – Manual,
E & F – Time setting buttons
Fig. 3.17
Fig. 3.18 Fig. 3.19
Fig. 3.20 Fig. 3.21
Fig. 3.22
Symbol Function Notes
[]Minute Minder is active
[]Oven(s) can be operated
If the ‘cook’ [] symbol is not
displayed the program has either:
ended and the oven(s) are non-
operational
the oven(s) are being controlled
by an automatic program that has
not started
[AUTO]
Oven(s) are being
controlled in semi-
automatic or automatic
mode
[P]Self clean (pyrolytic)
mode has been enabled
Your cooker may not have this
pyrolytic function
[dot]Flashes during setting
the time of day
Table 3.1

15
ArtNo.302-0002 - 6BC annotated
ArtNo.302-0002 - 6BC annotated
ArtNo.302-0002 - 6BC annotated
ArtNo.302-0002 - 6BC annotated
ArtNo.302-0002 - 6BC annotated
ArtNo.302-0002 - 6BC annotated
ArtNo.302-0002 - 6BC annotated
then press any button to stop the beep. Press [] to return to
manual cooking.
Setting a cook end time
Press and hold the ‘stop time’ [] button (Fig. 3.23) and then
press the [+] button (or [–] button) until the required‘stop
time’shows (Fig. 3.24). The [] symbol and [AUTO] will show
in the display.
Once the ‘stop time’ is reached, the beeper sounds and the
[AUTO] symbol ashes. Turn the oven control knob to 0 and
then press any button to stop the beep. Press [] to return to
manual cooking.
To start and stop the ovens automatically
Before you set the clock for automatic operation you must
have two numbers clearly in mind – the‘cook period’and the
‘stop time’.
NOTE: You cannot set a start time directly – this is set
automatically by setting the‘cook period’ and the ‘stop time’.
Press and hold the [] button (Fig. 3.25) and then press
the [+] button (or [–] button) until the required‘cook period’
shows (Fig. 3.26).
Now press and hold the [] button (Fig. 3.27) and then
press the [+] button (or [–] button) until the required‘stop
time’shows (Fig. 3.28). Release the buttons.
[AUTO] will now show in the display (Fig. 3.29).
Set the oven(s) to the required temperature. When cooking
is nished [AUTO] will ash and the beeper will sound. Turn
the oven knob(s) to the OFF position rst, and then press any
button once to stop the beep; press the [] button to return
to manual cooking.
If you are out, do not worry about the beeper going o, it
stops after a while. When you return, turn the oven knob(s) to
0 rst, and then press [] to return to manual cooking.
AUTO is showing, you want to reset to manual cooking
To return to manual cooking mode from an Automatic
setting, simultaneously press the [+] and [-] key, this will clear
the automatic program and return to manual mode.
Please note that this action will also clear the [Minute Minder]
setting.
Beeper tone adjustment.
The beeper tone can be adjusted to three dierent levels.
Whilst in the time of day mode, press and hold the [-] button
for a period until the display shows the Tone Bars (Fig. 3.30).
Release the [-] button and immediately press again, this will
adjust the tone down by a bar. Continue the process until a
comfortable, tone is reached.
Please note, during a power reset the clock will remember the
last tone set.
For an overview of the functions refer to Table 3.1.
Fig. 3.23 Fig. 3.24
Fig. 3.25 Fig. 3.26
Fig. 3.27 Fig. 3.28
Fig. 3.29
Symbol Function Notes
[]Sets the Minute Minder Used with the [+] and [-] buttons
[]Sets the duration / cook
period Used with the [+] and [-] buttons
[]Sets the end / stop cook
time Used with the [+] and [-] buttons
[]
or
[] &[]
Allows the time of day to
be set when‘AUTO’is not
active
Used with the [+] and [-] buttons
[ ]Resets the cooking control
to manual
[-]Decreases time interval Holding this button down
allows a quick set
[+]Increases time interval Holding this button down
allows a quick set
[+] &[ -]Clears all ‘AUTO’ and
minute minder programs
Table 3.1
ArtNo.302-0002 - 6BC annotated
Fig. 3.30

15
Tips on cooking with the timer
If you want to cook more than one dish, choose dishes that
require approximately the same cooking time. However,
dishes can be‘slowed down’ slightly by using small containers
and covering them with aluminium foil, or‘speeded up’
slightly by cooking smaller quantities or placing them in
larger containers.
Very perishable foods such as pork or sh should be avoided
if a long delay period is planned, especially in hot weather.
 DO NOT place warm food in the oven to be timed.
 DO NOT use a timed oven that is already warm.
 DO NOT use the timed oven if the adjoining oven is
already warm.
Whole poultry must be thoroughly defrosted before being
placed in the oven. Check that meat and poultry are fully
cooked before serving.
General oven tips
The wire shelves should always be pushed rmly to the back
of the oven.
Baking trays with food cooking on them should be placed
level with the front edge of the oven’s wire shelves. Other
containers should be placed centrally. Keep all trays and
containers away from the back of the oven, as overbrowning
of the food may occur.
For even browning, the maximum recommended size of a
baking tray are:
• depth: 340mm (13 ⁄”) by width: 340mm (13 ⁄”) in the
main oven
• depth: 321mm (12⁄”) by width: 232 mm (9 ⁄”) in the
tall oven.
When the oven is on, DO NOT leave the door open for longer
than necessary, otherwise the knobs may get very hot.
• Always leave a“finger’s width”between dishes on
the same shelf. This allows the heat to circulate freely
around them.
• To reduce fat splashing when you add vegetables to hot
fat around a roast, dry them thoroughly or brush lightly
with cooking oil.
• Where dishes may boil and spill over during cooking,
place them on a baking tray.
• The‘Cook & Clean’oven liners (see‘Cleaning Your
Cooker’) work better when fat splashes are avoided.
Cover meat when cooking with foil or use a roasting
bag.
• Sufficient heat rises out of the oven while cooking to
warm plates in the grill compartment.
• If you want to brown the base of a pastry dish, preheat
the baking tray for 15 minutes before placing the dish in
the centre of the tray.
4. Cooking tips
