SPECIFICATION SHEET
Product Specifications subject to change
BLADE SELECTION SERIES FANS

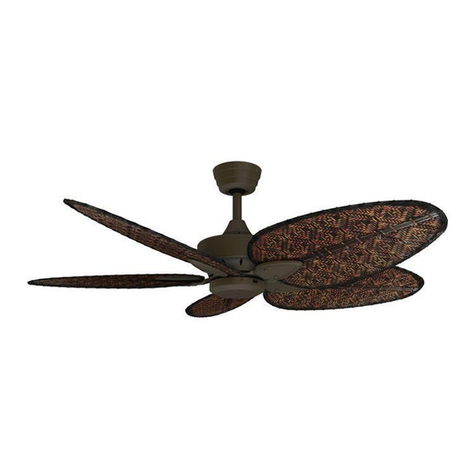

The Windpointe®
MA7300 / MA7400 / MA7500
Select Finishes

10983 Bennett Parkway
Zionsville, IN 46077
Toll Free [phone]
FAX [phone]
Outside U.S. call [phone]
Visit Our Website www.fanimation.comCopyright 2008 Fanimation, Inc. 2008/06
MA7300 Series
Fan Motor Assembly (188 x 25) Available Finishes
MA7300AB – Antique Brass
MA7300MW – Matte White (Damp)
MA7300OB – Oil-Rubbed Bronze
MA7300PW – Pewter
MA7300RS – Rust (Damp)
MA7400 Series
Fan Motor Assembly (188 x 25) Available Finishes
MA7400AB – Antique Brass
MA7400MW – Matte White (Damp)
MA7400OB – Oil-Rubbed Bronze
MA7400PW – Pewter
MA7400RS – Rust (Damp)
MA7500 Series
Fan Motor Assembly (188 x 25) Available Finishes
MA7500AB – Antique Brass
MA7500MW – Matte White (Damp)
MA7500OB – Oil-Rubbed Bronze
MA7500PW – Pewter
MA7500RS – Rust (Damp)
INSTALLATION REQUIREMENTS:
Ceiling fan attaches to electrical junction box securely anchored and capable of withstanding a load of at least 50 lbs.
ELECTRICAL REQUIREMENTS:
Ceiling fan requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit.
FAN SPEEDS / BLADES:
Pull-chain, 3 fan speeds with reversing switch (on switch cup housing). Speeds will vary depending on blade size and
type. All blade sets are sold separately. See catalog or visit our website, www.fanimation.com for more blade options.
CONTROL OPTIONS:
Optional remote and wall controls are available. See catalog or visit our website, www.fanimation.com for more control
options.
LIGHTING OPTIONS:
Optional lighting fitters and light kits are available, including a single bowl fixture with a maximum of 180 watts and a
variety of four-light fixtures with a maximum of 240 watts. See catalog or visit our web site, www.fanimation.com for more
lighting options.
DOWNROD OPTIONS:
The fan comes with a 1˝Dia. x 6˝(DR1-6) downrod. Optional downrods are available in 12˝, 18˝, 24˝, 36˝, 48˝, 60˝, and
72˝. The fan can be mounted on a sloped ceiling up to 30°. Most sloped ceiling installations require a downrod longer
than the standard 6˝downrod. Optional sloped ceiling ball kits (SCB1-52) are available for up to 52°. Call tech support
for more information.
