Fantec NVMePCIe TR-1 Tray User manual

1
Manual NVMePCIe TR-1 Tray
Manufacturer Article No.: 2517
EAN: 4250273425178
Introduction
Thank you for purchasing the FANTEC NVMePCIe TR-1 removable rack system. This
additional slide-in tray will add another carrier to your FANTEC NVMePCIe TR-1 system.
The NVMe is mounted on the slide-in tray and inserted into the removable frame of the
card at the back of your PC via the slot bracket. This way you can add another NVMe qui-
ckly, comfortably and without tools in your PC - without opening the PC.
Please read this manual carefully. For the installation you need a fine cross screwdriver.
You are handling very small screws. For this, use a secure base on which the screws
cannot roll away if they slip.
Prepare the NVMe SSD
Place the NVMe into the connector on the slide-in frame. Gently push the NVMe into the
horizontal position and check that the black screw bolt of the slide-in frame is positioned
so that it is under the mounting notch at the end of the NVMe. Usually, the position is
prepared for a 2280 NVMe.
If you are using a shorter NVMe, remove the NVMe from the tray again and carefully
place the screw bolt in the correct position. It can be removed from the prepared position
by sliding it on the slotted hole, and then slide it back into the notch at the correct
position. The bolt is loosely inserted. It is not screwed. Be careful not to lose it.

2
Manual NVMePCIe TR-1 Tray
Manufacturer Article No.: 2517
EAN: 4250273425178
Inserting the NVMe SSD
Insert the NVMe into the connector. Locate the screw with the wide head. Carefully push
the NVMe into the horizontal position and screw the screw into screw bolt.
Attaching the thermal pad
Do not remove the plastic sheets from the thermal pad yet. Adjust the length of the
thermal pad to your NVMe by orienting yourself to the position of the „chips“. If the chips
of the NVMe are taped with a label, orientate yourself by this label. All memory chips
should be covered with the pad. Cut the pad with scissors at the appropriate position.
You do not need to correct anything on the width of the pad. Remove the foil from one of
the two sides of the pad. Stick the pad onto the memory chips and the label.
*)
*)

3
Manual NVMePCIe TR-1 Tray
Manufacturer Article No.: 2517
EAN: 4250273425178
Preparing the heat sink
Place the aluminum heat sink next to the slide-in carrier. The side with the two prongs is
facing the front of the slide-in unit. The two prongs should engage under the
anti-vibration springs. Locate the positions of the two light colored mounting bolts in the
area where the NVMe will be inserted. The two matching holes in the heat sink are the
middle two. If these two bolt positions match the holes in the heat sink, you have the
correct orientation.
Attaching the heat sink
Remove the second protective foil from the thermal pad, slide the two prongs of the heat
sink under the anti-vibration springs and gently press the heat sink against the thermal
pad. Screw the two long screws into the two mounting holes.
*)

4
Manual NVMePCIe TR-1 Tray
Manufacturer Article No.: 2517
EAN: 4250273425178
General information
• All rights served. No part of this user manual may be reproduces, stored in a
retrieval system or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise without the data storage
system or distributed in any electronic, mechanical, photocopying, recording, or
other form without the written permission of the copyright owner.
• All information in this manual was complete and correct at the time of publication.
However, as the product evolves, discrepancies may occur.

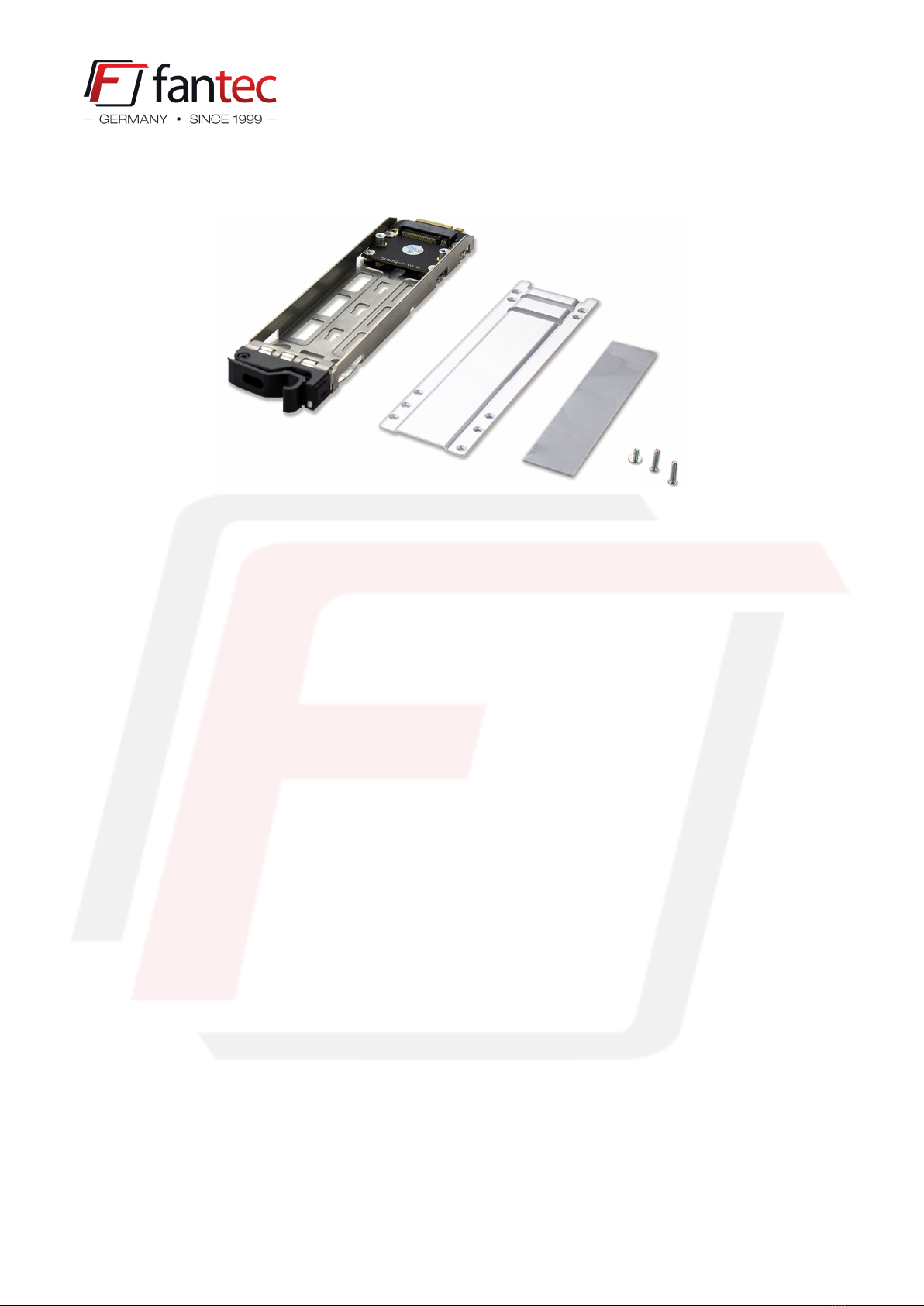

Scope of delivery
• NVMePCIe TR-1 tray
• Manufacturer Article No.: 2517 EAN: 4250273425178
• Aluminum heat sink (heat sink), incl. thermal pad (heat conduction pad)
• Screws
*the NVMe shown in this instruction manual is not included in the scope of delivery
