Farenheit TH-59BK User manual
ELECTRIC INFRARED
TOWER HEATER
OWNER’S MANUAL
MODEL: TH-59BK
SAVE THIS INSTRUCTIONS MANUAL
TABLE OF CONTENTS
Introduction 1
Safety & Awareness 2
Specifications 4
Parts 4
Instructions 5
Operations 6
Grounding Instructions 7
1 Year Limited Warranty 8
Contact 9
1
INTRODUCTION
IMPORTANT SAFETY INSTRUCTIONS PLEASE READ
THIS MANUAL BEFORE OPERATING THIS APPLIANCE.
Thank you and congratulations on purchasing
the Electric Infrared Tower Heater!
This manual contains important safety information concerning the
maintenance, use and operation of this product. Failure to follow the
instructions contained in this manual may result in serious injury. Do
not operate this product unless you have read and understand the
content of this manual.
WARNING
DO NOT store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other heating appliance.
Any required service other than maintenance should only be per-
formed by an authorized service representative. Any other repairs at-
tempted by anyone other than an authorized service representative
will void the warranty.
REMOVE ALL FOAM PROTECTOR INSERTS FROM THE HEAT-
ING ELEMENT BEFORE TURNING ON THE HEATER. FAILURE
TO DO SO WILL RESULT IN A BURNING SMELL AND POSSI-
BLE FIRE.
2
SAFETY & AWARENESS
IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using electrical appliances, basic precaution should
always be followed to reduce the risk of fire, electric shock, and injury
to persons, including the following:
• Read all instructions before using this
heater.
• This heater is hot when in use. To avoid
burns, do not let bare skin touch hot
surfaces. Keep combustible materials,
such as furniture, pillows, bedding,
papers, clothes, and curtains at least 3
feet (0.9 m) from the front of the heater
and keep them away from the sides
and rear.
• To avoid possible electric shocks, do
not place the cable, plug or appliance
in water or in any other liquid. Do not
insert screwdrivers or metallic items
inside the appliance.
• If the power cable is damaged, it must
be replaced by the manufacturer, its
service technician or by someone else
authorized by the manufacturer. In
the event of handing of appliances by
non-authorized people, the warranty
will immediately cease to be valid.
• DO NOT operate any heater with a
damaged cord or plug or after the heat-
er malfunctions, has been dropped or
damaged in any manner. Discard heat-
er, or return to authorized service facili-
ty for examination and/or repair.
• To disconnect electrical appliances,
wait until the heater stops and then un-
plug the cable from the electric socket.
• Extreme caution is necessary when any
heater is used by or near children or
vulnerable people and whenever the
heater is left operating.
• DO NOT leave appliances working
unattended. Ensure that the heater has
come to a complete stop before dis-
mantling appliances. Unplug appliance
after each use. Always unplug heater
when not in use.
• Do not allow children to use electrical
appliance. Do not leave appliance unat-
tended when in use close to children.
• Children of less than 3 years should be
kept away unless continuously super-
vised.
• Children aged from 3 years and less
than 8 years shall only switch on/o
the appliance provided that it has been
placed or installed in its intended nor-
mal operating position and they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children aged from 3 years
and less than 8 years shall not plug in,
regulate and clean the appliance or
perform user maintenance.
• DO NOT dispose of this product as un-
classified municipal rubbish. Due to the
use of electrical and electric parts, this
product must be collected separately.
• CAUTION — Some parts of this product
can become very hot and cause burns.
Particular attention has to be given
where children and vulnerable people
are present.
• WARNING: The appliance shall, under
no circumstances, be covered with in-
sulating material or similar material.
3
SAFETY & AWARENESS
• The heater must not be located imme-
diately below a socket-outlet.
• This heater is not intended for use in
bathrooms, laundry areas and similar
indoor locations. Never locate heater
where it may fall into a bathtub or other
water container.
• DO NOT run cord under carpeting.
DO NOT cover cord with throw rugs,
runners, or similar coverings. DO NOT
route cord under furniture or applianc-
es. Arrange cord away from trac area
and where it will not be tripped over.
• To disconnect heater, turn controls to
o, then remove plug from outlet.
• Connect to properly grounded outlets
only.
• DO NOT insert or allow foreign objects
to enter any ventilation or exhaust
opening as this may cause an electric
shock or fire, or damage the heater.
• To prevent a possible fire, DO NOT
block air intakes or exhaust in any man-
ner. DO NOT use on soft surfaces, like
a bed, where openings may become
blocked.
• A heater has hot and arcing or sparking
parts inside. DO NOT use it in areas
where gasoline, paint, or flammable liq-
uids are used or stored.
• Use this heater only as described in
this manual. Any other use not rec-
ommended by the manufacturer may
cause fire, electric shock, or injury to
persons.
• Always plug heaters directly into a wall
outlet/receptacle. Never use with an
extension cord or relocatable power
tap (outlet/power strip).
NOTICE
• The power supplied to this unit must
comply with electrical requirement on
its label. Damage of fire may result if
the incorrect power used.
• Do not use the heater in any area that
contains flammable objects, gas, or
dust.
• In order to avoid scalding, do not allow
anyone to touch.
• Turn o all switches and unplug the
heater immediately if an emergency
situation occurs.
• Cleaning and user maintenance shall
not be made by children without super-
vision.
• Please contact seller if heater does not
work properly. Do not try to repair the
heater by yourself. Any other repairs
attempted by anyone other than an au-
thorized service representative will void
the warranty.
• Please contact the seller if you find oth-
er problems not covered in this opera-
tion manual.
SAVE THESE INSTRUCTIONS
4
SPECIFICATIONS
Model TH-59BK
Setting 0/750/1500W
Voltage 120V~60Hz
Power 1500W(Max)
Weight 15.43 lbs.
Size 14.5(L) x 14.5(W) x 59(H) in.
PARTS
Hex Screw x 3
Base Part x 2
Heater x 1
Base Part x 2
Hex Screw x 3
Hex Wrench x 1
Hex Wrench x 1
NOTE: Pictures are for reference only.
5
Step 1
• Place two base parts together
• Align the holes in the base to the holes on
the bottom of the heater.
Step 2
Step 3
• Ax the base to the heater by insert-
ing the 3 hex screws by using the hex
wrench.
INSTRUCTIONS
6
OPERATIONS
OFF Turn o
Low Run with 750W (Medium)
High Run with 1500W (High)
• Always turn o and unplug the heater before cleaning.
• To clean the heater, use a damp cloth and make sure to dry excess water once
cleaned.
• ATTENTION: Do not put the heater directly into any container with water in it.
• Pack the heater in a plastic bag and store it in a cool, dry place. Ensure heater is
completely cooled o prior to placing in plastic bag.
• WARNING: Any additional servicing should be performed by an authorized ser-
vice representative.
WARNING:
• To operate the unit, ensure that the unit is plugged in to the correct power sup-
ply.
• Before plugging in heater, turn switch to o position.
• Firmly plug power cord into a socket.
PRECAUTION:
• The energy supply must be connected through a properly grounded socket.
• The heater should not be facing the ceiling or inflammable substances.
• Do not use the heater directly near a bathtub, a shower, or a swimming pool.
• Ensure that there is no possibility of inflammable material coming into contact
with the heater, or lying near the heater.
TROUBLE SHOOTING
1) If the heater does not emit heat after turning on, please check
the power cord whether plugged into electric socket properly.
2) During first couple of uses, it is normal if the heater emits a small
amount of smoke and/or an odor. This is due to protective-oil evap-
oration.
Cleaning & Maintenance
7
GROUNDING INSTRUCTIONS

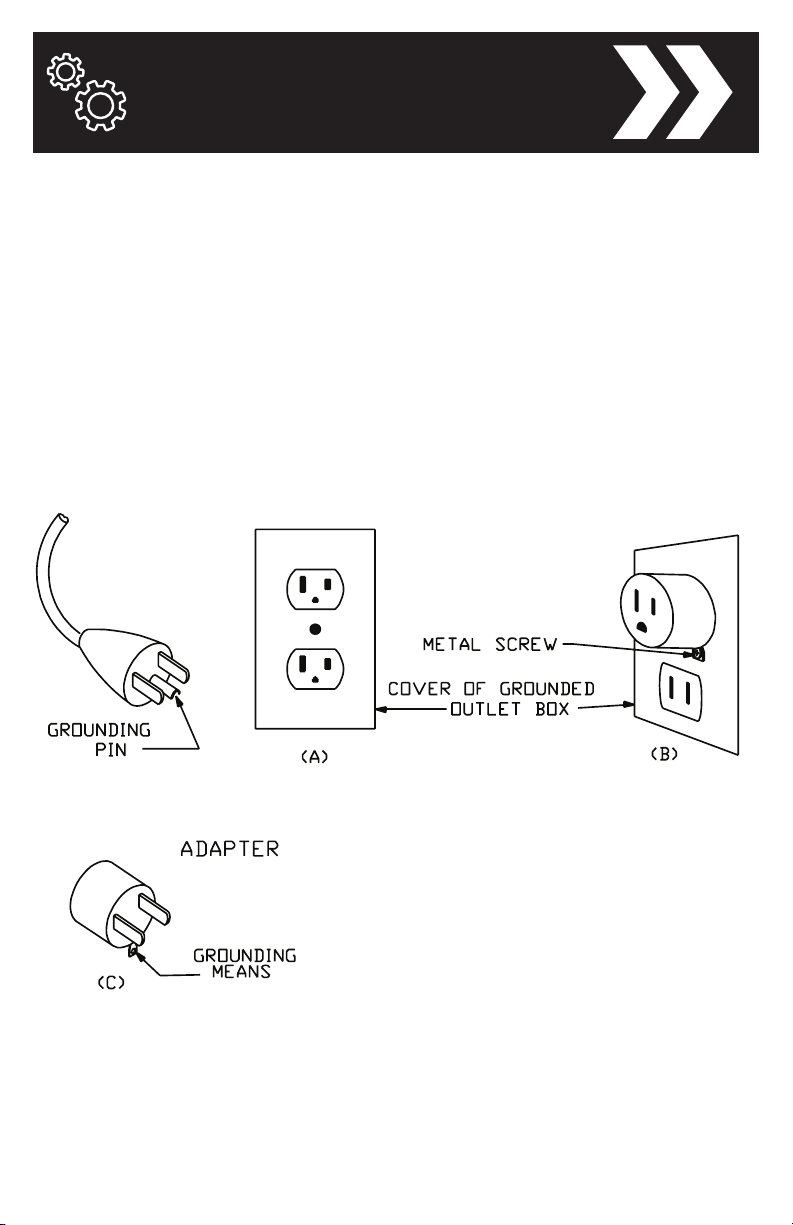

This heater is for use on 120 volts. The cord has a plug as shown
at A in Figure 1. An adapter as shown at C is available for connect-
ing three-blade grounding-type plugs to two-slot receptacles. The
green grounding lug extending from the adapter must be connected
to a permanent ground such as a properly grounded outlet box. The
adapter should not be used if a three-slot grounded receptacle is
available.
Figure 1
Grounding methods
8
1 YEAR LIMITED WARRANTY
Farenheit promises to the original purchaser, to repair or replace this product with
a new or refurbished unit (at Farenheit’s sole and absolute discretion) should it
prove to be defective in workmanship or material under normal use, for a period of
one-year from the date of purchase from the Farenheit authorized retailer. During
this one-year period, there will be no charge for product repair or replacement,
PROVIDED the unit is returned to Farenheit, return shipping prepaid, along with
the required bill of sale or other dated proof of purchase, and the consumer’s con-
tact information.
The manufacturer warrants this product to be free from manufacturing and material
defects for a period of one year from the date of purchase, subject to the following
conditions and limitations.
• Install and operate this electric heater in accordance with the installation and
operating instructions furnished with the product at all times. Any unauthorized
repair, alteration, willful abuse, accident, or misuse of the products shall nullify this
warranty.
• This warranty is non-transferable and it’s made to the original owner, provided
that the purchase was made through an authorized supplier of the product.
• The warranty is limited to the repair or replacement of part(s) found to be defec-
tive in material or workmanship, provided that such part(s) have been subjected
to normal conditions of use and service after said defect is confirmed by the man-
ufactures inspection.
• The manufacturer may, at its discretion, fully discharge all obligations with respect
to this warranty by refunding the wholesale price of the defective part(s).
• Any insulation, labor, construction, transportation, or other related costs/expenses
arising from defective part(s), repair, replacement, or otherwise of same, will not
be covered by this warranty, nor shall the manufacturer assume responsibility for
same.
• The owner/user assumes all other risks, if any, including the risk of any direct,
indirect or consequential loss or damage arising out of the use, or inability to use
the product, except as provided by law.
• All other warranties - expressed or implied - with respect to the product, its com-
ponents, and accessories, or any obligations/liabilities on the part of the manufac-
turer are hereby expressly excluded.
• The manufacturer neither assumes nor authorizes any third-party to assume on its
behalf, any other liabilities with respect to the sale of the product.
• The warranties as outlined in this document do not apply to non-accessories
used in conjunction with the installation of this product.
• This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state. This warranty is void if: (A)The heater is subjected
to prolonged periods of dampness or condensation. (B) Any unauthorized alter-
ation, willful abuse, accident, or misuse of the product. (C) You do not have the
original receipt of purchase.
9
CONTACT
If you have any questions
or comment, you can
reach us by
1-(800)-832-4647
epsilonelectronicsinc.com
1-800-832-4647 info@farenheitusa.com
Or visit us at:
epsilonelectronicsinc.com
For more information
Scan here for more
product information
Table of contents
Other Farenheit Heater manuals
