Fast Chiller TT3X Maintenance manual

USER'S GUIDE
CARE AND MAINTENANCE
MODEL
TT3X - FS3X
w w w. i t a l c i l . i t
i n f o @ i t a l c i l . i t
Via Cavour, 28
15040 Pomaro Monferrato (AL)
Tel. [phone]

Pull out one barrier-bags, pour the
cooling liquid (included) into the basin
sfilare

INDEX
Set up pag. 3
Use pag. 4
Time working
Important recommendations pag. 6
Maintenance:
repairs / cleaning pag. 7
Maintenance:
Remedies for some defects pag. 8
Maintenance:
Edited by Fast Chiller Service pag. 10
Technical data pag. 11
Electrical connection pag. 12
pag. 5

INSTALLATION
1. Remove possible packing and verify that equipment is in the correct
vertical position
2. E
2 a: Connect the machine to a 230-240 V and 50 Hz.
The machine has not to be exposed to the rain.
2 b:
3. W
quipment ignition
~
raise the switch placed on equipment back panel
ait for 3-4 hours before start using the equipment in order to achieve
the correct temperature of liquid working.
The machine must not be placed outside or exposed to rain or liquid
sprinkles.
The machine must be positioned away from heat and in rooms with a
minimal temperature of +10 C° and a maximal temperature of +30° C.
Beware: the machine increases the room temperature during its
functioning.
BE SURE THAT FAST CHILLER IS ALWAYS CONNECTED TO
AN ELECTRIC INSTALLATION EQUIPPED WITH SAFETY
DEVICE AND EARTH CONNECTION.
IT'S IMPORTANT THAT THE MACHINE IS PLACED IN A WAY
THAT AIR LEAKS THROUGH SIDE GRILLE, FREELY.
DO NOT DRAW IT NEAR THE WALL NO LESS THAT 20 CM OF
DISTANCE.
SET UP AND INSTALLATION 3
YES NO
ON
OFF ON
OFF

FAST CHILLER USE 4
USE:
1. Insert , gently, bottle which has to be cooled, in chosen cooling well on Fast Chiller.
2. Do not wheel bottle once inserted in the crate.
3. Diel timers electronic button (one for each well) up to achieve requested cooling time.
Timer is only a guide in order to know how long you want that bottle is inner the machine
and an acoustic alarm in order to advice that the selected time is expired.
If the bottle remains in too much time it can chilled as in a common freezer.
4. When the buzzer rings, take out the bottle, slowly.
5. Now the bottle is well chilled and it can be served to the client.
6. FOR ANY REASON DO NOT LEAVE A BOTTLE INNER FAST CHILLER FOR MORE THAN
4 MINUTES OVER THE REQUESTED TIME TO CHILL IT, OTHERWISE THE CONTENT
WILL START ICING.
TIMER DOES NOT INTERFERE ON FAST CHILLER WORKING.
FAST CHILLER WORKS ALWAYS AND THE BOTTLE COOLS EVEN
IF TIMERS CONTROL IS NOT ACTIVATED.

FAST CHILLER USE

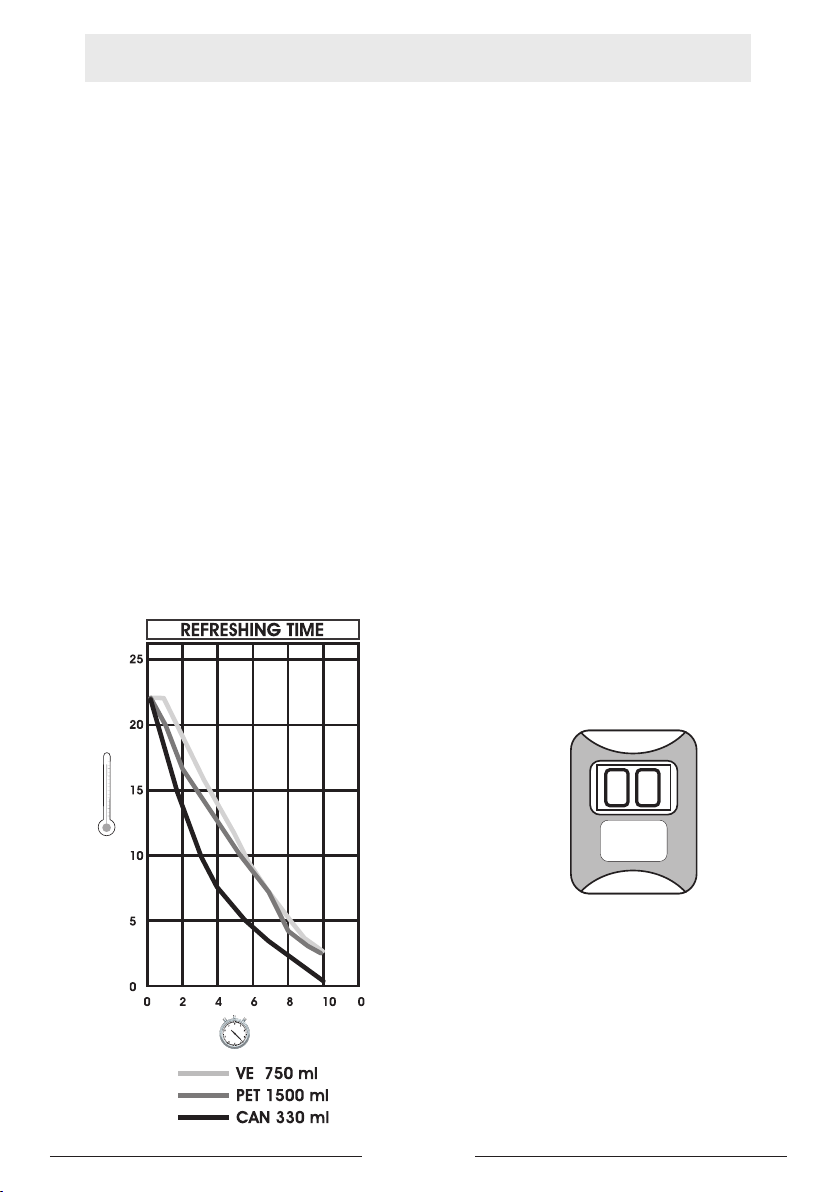

TIME WORKING:
- On display are two zeros when it is just switched on.
- Push the button once in order to plan the count (1 minute a time).
- Hold the button pushed in order to increase the count more quickly.
- When the button is slacked more than one second, the counts starts.
- During countdown: if remained time is more than 1 minute, minutes digit flashes on
display, if it is less than 1 minute seconds digit flashes on display. Hold the button pushed
for two seconds to stop the count( it gives out a beep).
- When countdown stopped digits 00 flash on display, acoustic signal starts (10 beeps1at
a second), digits 00 flash for 44 seconds yet, display goes off.
- Push once the button to start the countdown again with the regulated time.
- If the numbers do not appear, replace the clock battery: unplug the power supply of the
machine, remove the timer from the upper covering, replace the battery on the back
side, place again the timer and reconnect the machine to the power.
Timer
5
°C
min.

1) Let liquid inner Fast Chiller cools for 3-4 hours before using it.
2) Use the machine following specifications.
3) Pay attention to insert and remove bottles from the well: if there is a
resistance do not force it, verify that in the cooling well are not blockings.
4) Pay attention to the produced pressure inner the fizzy soft drinks bottles as Coca
Cola etc, take out the cap gradually and with attention, in order to prevent
content leakage.
5) Do not leave the bottles inner the well after the buzzer ringing: they could ice
and break , in case of long permanence.
6) The cooling valve inner machine must suck air any time. Do not cover Fast
Chiller and not embed it in a room corner because its sides have to be free
and removed from any impediments, 20 cm at least.
7) Keep cleaned the suction and exhaust grilles. Clean them every now and
then, using a brush or a vacuum cleaner.
8) Do not remove protection panels. Only an authorized expert can do it. Every
breaking will be without warranty.
9) Do not use the machine for other aims. This machine has been
manufactured to be used as fast cooler of bottles liquids in order to obtain
the requested temperature especially for quality table wines, and it has to be
used only for this aim.
10) How to use it correctly and safety. Machine lifting can be uncomfortable and
difficult for its weight and shape; pay attention to remove the machine with its
small wheels (mod TT3 excepted).
11) Check liquid's level held into the basin through the transparency of the
barrier-bags: during the idle state (no bottles inside) the liquid has to exceed
last evaporator's coil of 1 cm
ATTENTION:
don't forget children must not use it without grown-up control.
IMPORTANT RECOMMENDATIONS 6

MAINTENANCE 7
REPAIRS:
The user must not operate in case of malfunctioning of the machine, but s/he
has to contact specialized personnel (refrigerator technicians) or the warranty
will be invalidated.
The user is responsible for cleaning and check such as:
a) every week control the main conductive and plug conditions, visually.
b) Control that machine has not liquid losses.
c) Control that the suction and exhaust grilles are not obstructed or blocked.
d) Clean the machine as following instructions advice.
NO COMPONENTS CAN BE REPLACED DIRECTLY BY THE USER
EXCEPT THE BARRIER-BAGS (*) AND POSSIBLY THE COOLING
LIQUID (FILLING UP AND REPLACEMENT)(*) IF DAMAGED
CLEANING:
Daily instructions for user
Visible surface have to be cleaned using a cleaned cloth and dampened with a
diluted mixture of lukewarm water and neutral detergent.
DO NOT USE WATER OR STEAM TO CLEAN THE MACHINE BEFORE
DISCONNECTING IT FROM ELECTRIC CURRENT, REMOVING
ELECTRIC CABLE FROM PLUG.
DO NOT SPRAY WATER OR ANY LIQUID DETERGENT ON THE MACHINE
IT'S IMPORTANT THAT GRILLES ARE WELL CLEANED
FOR AN OPTIMAL COOLING AIR PASSAGE.
WITH A HAND REMOVE FROM THE WELL THE FROST INNER THEM. DO
NOT USE RIGID AND ANGULAR BODIES WHICH COULD CAUSE THE
BREAKING OF BARRIER SACK.

REMEDIES AND SOME INCONVENIENCIES:
1. Machine doesn't work .
Verify plug is well inserted and that there is electric current.

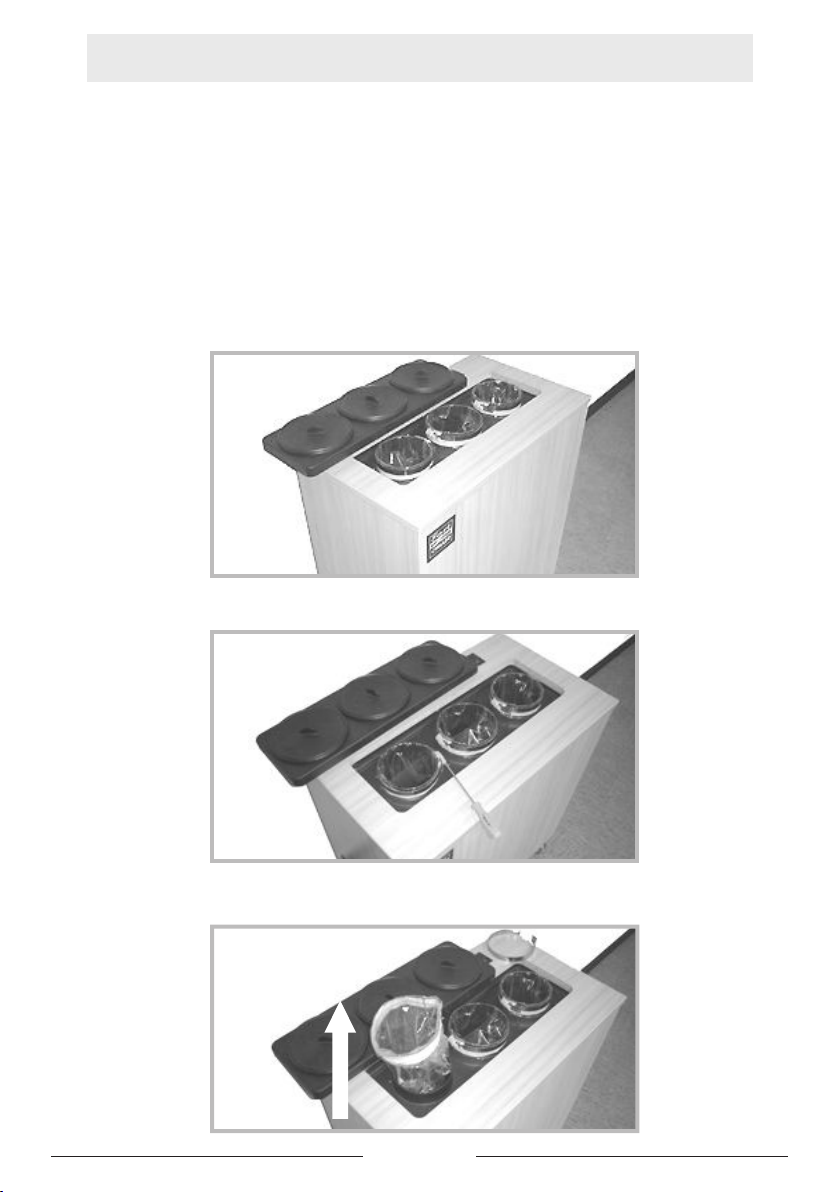

2. A crate for bottles breaks and liquid enters.
Replace it with a new one.
A. Remove the cap and lift it to gain access to the crates.
B. Unscrew the small band.
C. Take out damaged crate.
8
MAINTENANCE

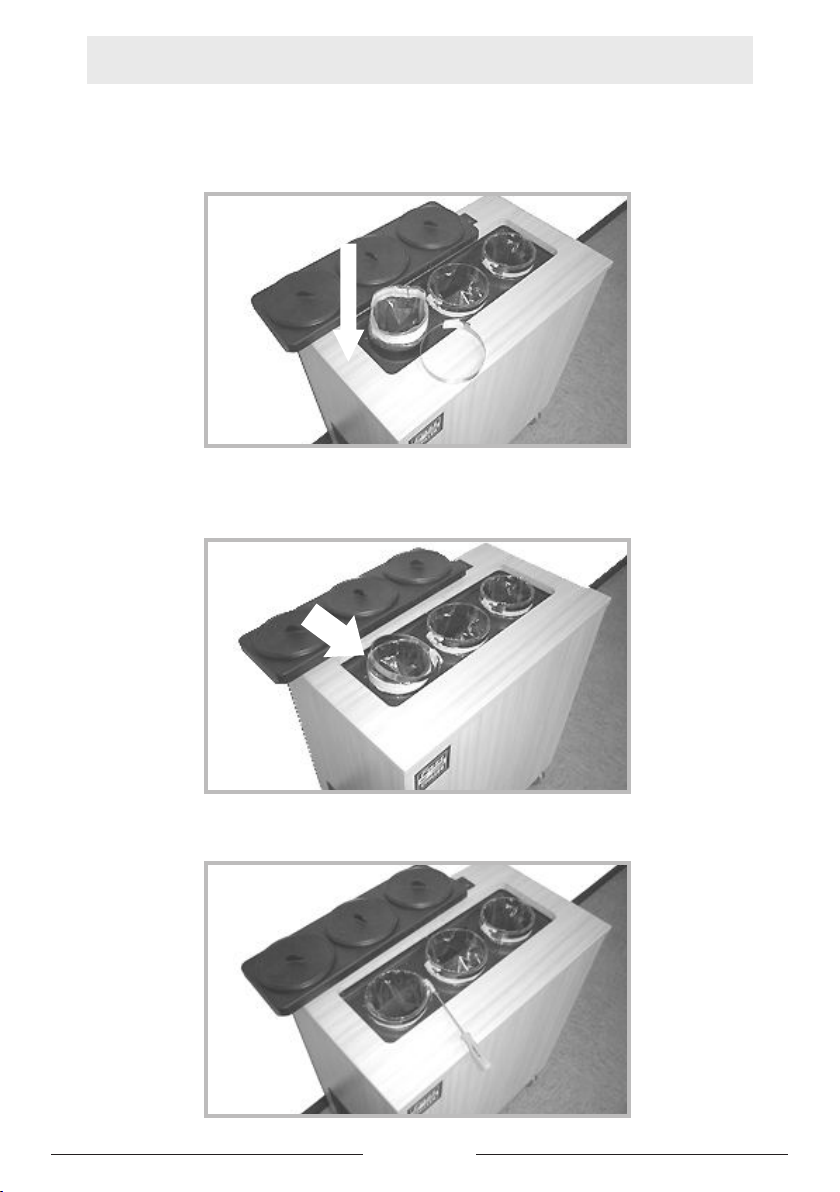

D. Insert the new crate, before inserting the small iron which supports bottles.
F. Fix the screw of metallic band, cover the machine with its cap.
E. Bend the end of the crate around plastic opening again and hang up the
bottles support iron.
9
MAINTENANCE

MAINTENANCE 10
FAST CHILLER SERVICE
Machine doesn't cool enough
Consult Ital Chili in order to obtain the authorization to change thermostat
position.
Cooling liquid ices
Replace FAST CHILLER TRANSFERT FLUID.
Phone to Ital Chili which will deliver you it.
Advised Year's Maintenance
a) Disconnect machine from electric current and let it switched off for 24 hours.
b) Liquid tank has to be empty.
c) Remove every extraneous body from machine and from its tank using a
cleaner or a brush, possibly.
d) Control there are not damages to the electric part of the machine.
e) Replace FAST CHILLER TRANSFER LIQUID with an original liquid , where it
needs.
f) Replace the bottles support crates, if it needs.

11
Model:
Power voltage:
F
Consumption:
Cooling gas:
Gas quantity:
Class:
Type:
Noisiness:
Dimensions (mm):
Weight:
Basin volume
Use range:
Approvals:
Used Symbols:
requency:
Power:
TECHNICAL DATA
Fast Chiller TT3X - FS3 X
230 V ~
50Hz
320 watt
2,5 kw/24h
R404a
TT3X 150g - FS3X 150g
4
Climatic classe N
<75dB
TT3X - w 550 x d 503 x h 429
FS3X - w 630 x d 370 x h 720
TT3X - 45 Kg (incluso liquido)
FS3X - 70 Kg (incluso liquido)
15 lt.
da +10° a +30° C
Vedi manuale istruzioni
Conforme alle norme direttive
Europee

12

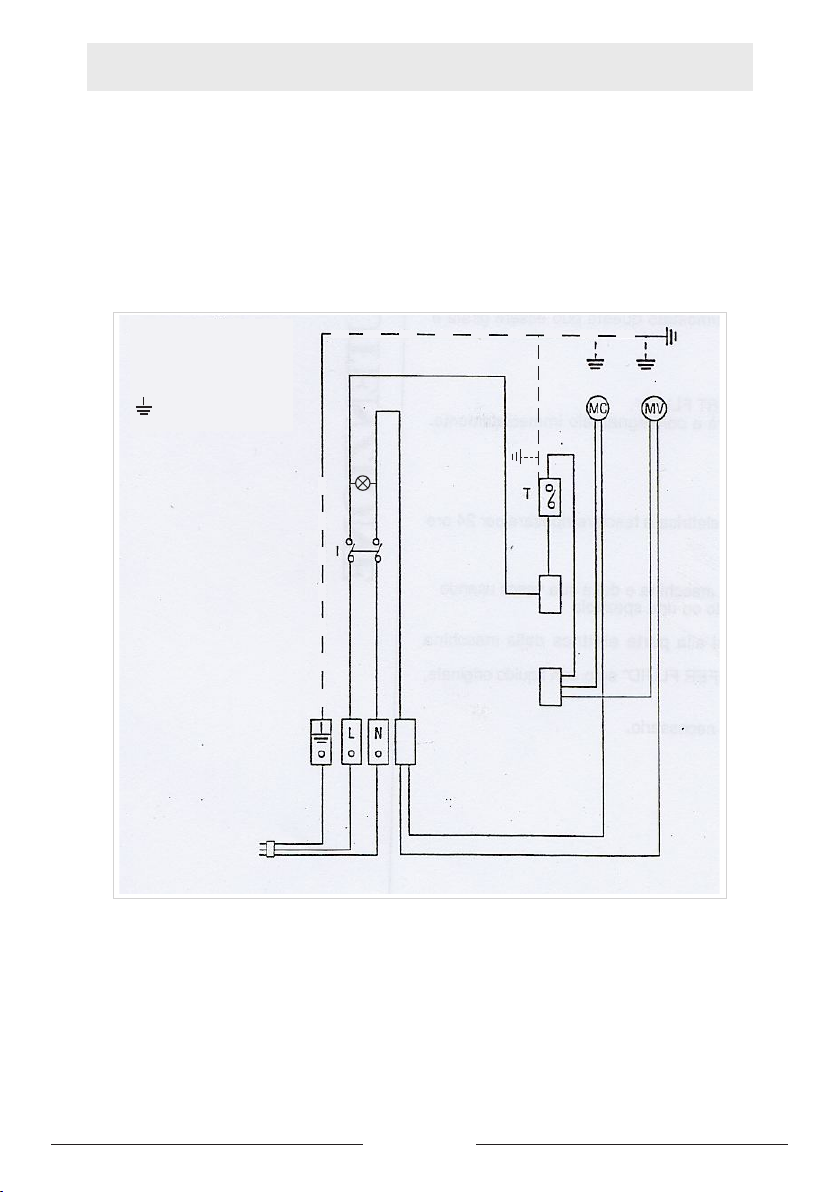

ELECTRICAL CONNECTIONS
ATTENTION:
MACHINE HAS TO BE CONNECTED TO A PLUG EQUIPPED WITH AN
EARTH CONNECTION.
Eruption
Engine-compressor
Engine-fan
Thermostat
Earth
T
MV
MC
I:
:
:
:
:
ELECTRICAL CONNECTIONS

NOTES
