Fat Tire Xtreme Bikes E-Bike User manual

Thank you for your purchase of your Xtreme Fat Tire Bike.
INITIAL INSPECTION:
Please inspect your packaging upon arrival for any damage that may have occurred in shipping.
If you see any damage take photographs, and call us immediately so we can file a claim if
necessary. Please do not remove the bike until we file a claim with FedEx.
RETURNS:
Please note: As per our policy on the website, returns must be made within 3 days of delivery
and are subject to a 20% restocking fee. You must call us at 757-635-5160 if you intend to return
the bike so we can issue a RMA (Return Material Authorization) number. Returns will not be
accepted any other way. After the 3-day period, all sales are final. Return shipping costs are the
responsibility of the buyer, unless the bike is damaged in shipping.
CHARGE-BACKS:
We will do everything in our power to honor the 1-year warranty on parts and ensure your
satisfaction with our products. If you have a defective part, you must return it to us before we can
send you a replacement part. A chargeback to your credit card company is not a method of
correcting a warranty issue as you already have your electric bike. We consider charge-backs as
a form of theft when you already have your merchandise and will prosecute them to the full
extent of the law and you will be responsible for all attorneys’fees.
LEGAL ACTION:
Fatty AT E-Bikes is a limited liability corporation located in Deerfield Beach, FL. Any legal
action taken against the company, or its employees or owners must be in the jurisdiction of
Broward County, Florida.

ASSEMBLY:
When properly assembled and maintained your new bike will give you many years of riding
pleasure.
We highly recommend that all bikes are either assembled or checked by a trained
professional bicycle mechanic prior to riding. Bikes assembled improperly void the
warranty. If you are not confident in your ability to assemble the bike, please hire a
professional bicycle mechanic.
Xtreme Fat Tire Bikes, its owners, employees and affiliates are not liable in any way for any
accident, injury or death that may occur from an improperly assembled bicycle or improper use
of the bike.
In addition, riders should be fully aware of the unique capabilities of the Xtreme Fat Tire Bike
that allows them to ride in all types of terrain and in various conditions, and can pose additional
risks to the rider. Riders should use extreme caution to always ride within their skills and
refrain from riding in extreme conditions unless you are experienced with the particular riding
style and terrain which you are riding on. Just because your bike can handle a certain situation
doesn't mean the rider can. Always use good judgment, wear a properly fitted helmet and
protective riding gear, and always be alert to your surroundings. The instructions in this manual
are designed to provide a general guideline for the assembly of all models of Xtreme Fat Tire E-
Bikes. Please register your Xtreme Fat Tire Bike online using the Serial Number to ensure
warranty via our website: www.XtremeFatTireBikes.com.
By registering your electric bike you automatically activate your warranty. The only pieces of
information needed to complete the registration are the serial number (located directly under the
crank shaft), the model name, frame and wattage size. EXAMPLE: E-Grizzly 19" 1000 Watt
Your bike will be received with all of the necessary components needed for complete assembly.
Note, if for any reason your box arrives with damages to the exterior of the box, please take
photographs and document this possible shipping damage. If upon further inspection any
damage to the actual e-bike is found, please keep the box and contact us immediately at 757-635-
5160.
Your Signature:
Undersigned agrees to Xtreme Fat Tire Bikes Terms and Agreement:
Dated:
______________________________________________________________________________

TOOLS NEEDED FOR ASSEMBLY:
*Snips or scissors to cut zip-tie straps
*Allen wrenches: 5mm, 4mm and 3mm

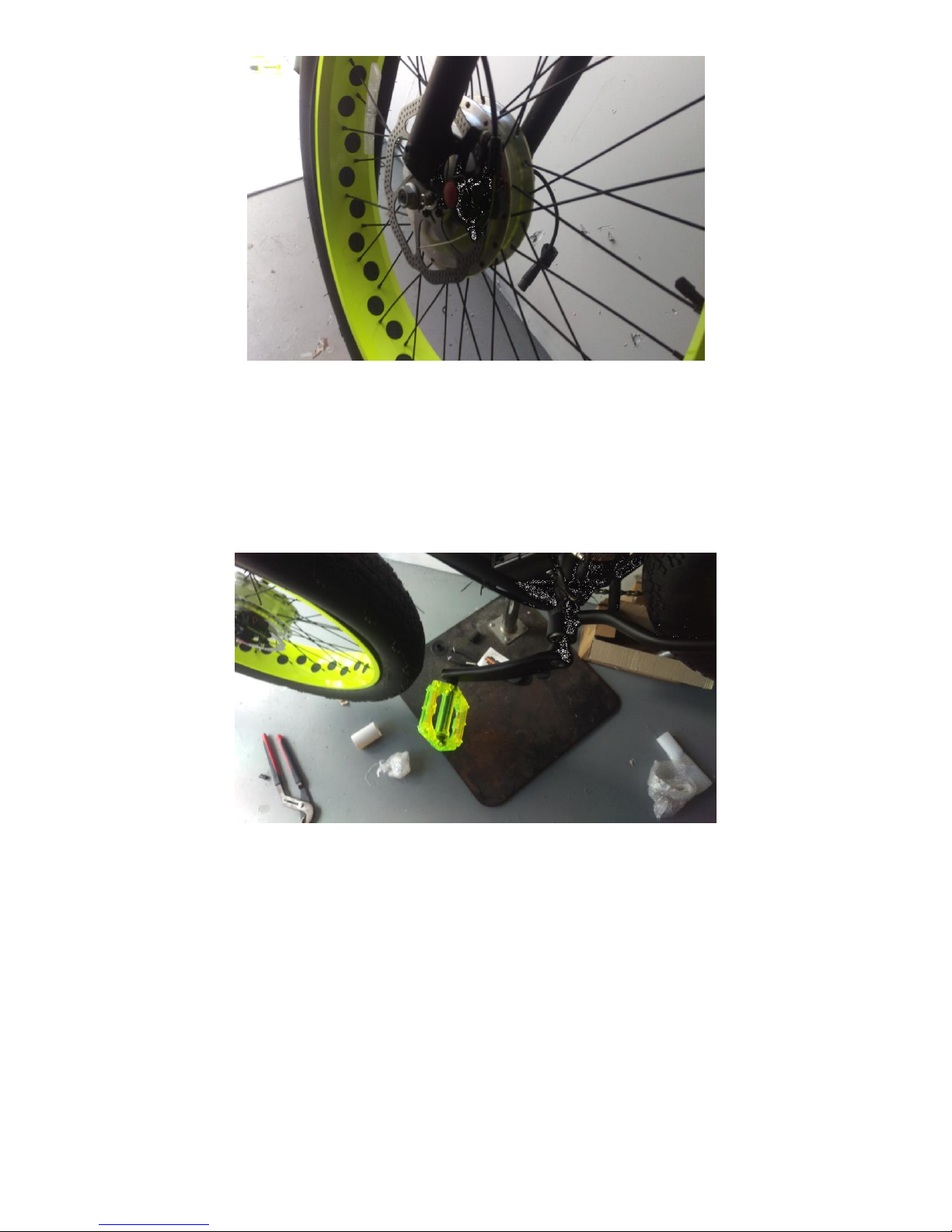

*18mm wrench for front axle nuts
*Adjustable wrench to install the pedals (or pedal wrench)
REMOVAL FROM BIKE BOX AND SET-UP:
We are going to begin removing your e-bike from the box. Upon opening your box, you will
find the frame with the back wheel already assembled, the front wheel and front fork strapped to
the frame, a component box, a battery box, and your battery charger all inside of the box.
For the time being, you can leave the three boxes inside and set up a flat, clean area where you're
going to install your e-bike. The easiest way to remove the bike from the box is to grab the bike
by the rear wheel rim and the frame, lifting it straight up until it clears the box itself. Lay the
bike on the area you had prepared making sure that the front wheel (which is strapped to the side
of the frame) is facing UP. Carefully cut the zip ties with snips or scissors and remove the front
wheel and set it to the side. We suggest avoid using a knife or razor knife due to possible
damage of frame. Once the front wheel has been removed, turn the bike over to free the
handlebars and front fork, setting the front fork aside as well.
You can remove the battery box, the component box, and the battery charger box at this time and
set the box your bike arrived in to the side.

1) After everything has been removed from the original package, we are now going to begin the
installation of your new e-bike. Start out by opening your component box, which should be the
second largest box that you received in your package. This is what you will find inside:
•Two Pedals marked Left and Right (top left)
•Stem (Directly to the right of your pedals)
•Seat Post (Right of your Stem)
•One Seat (Directly underneath pedals

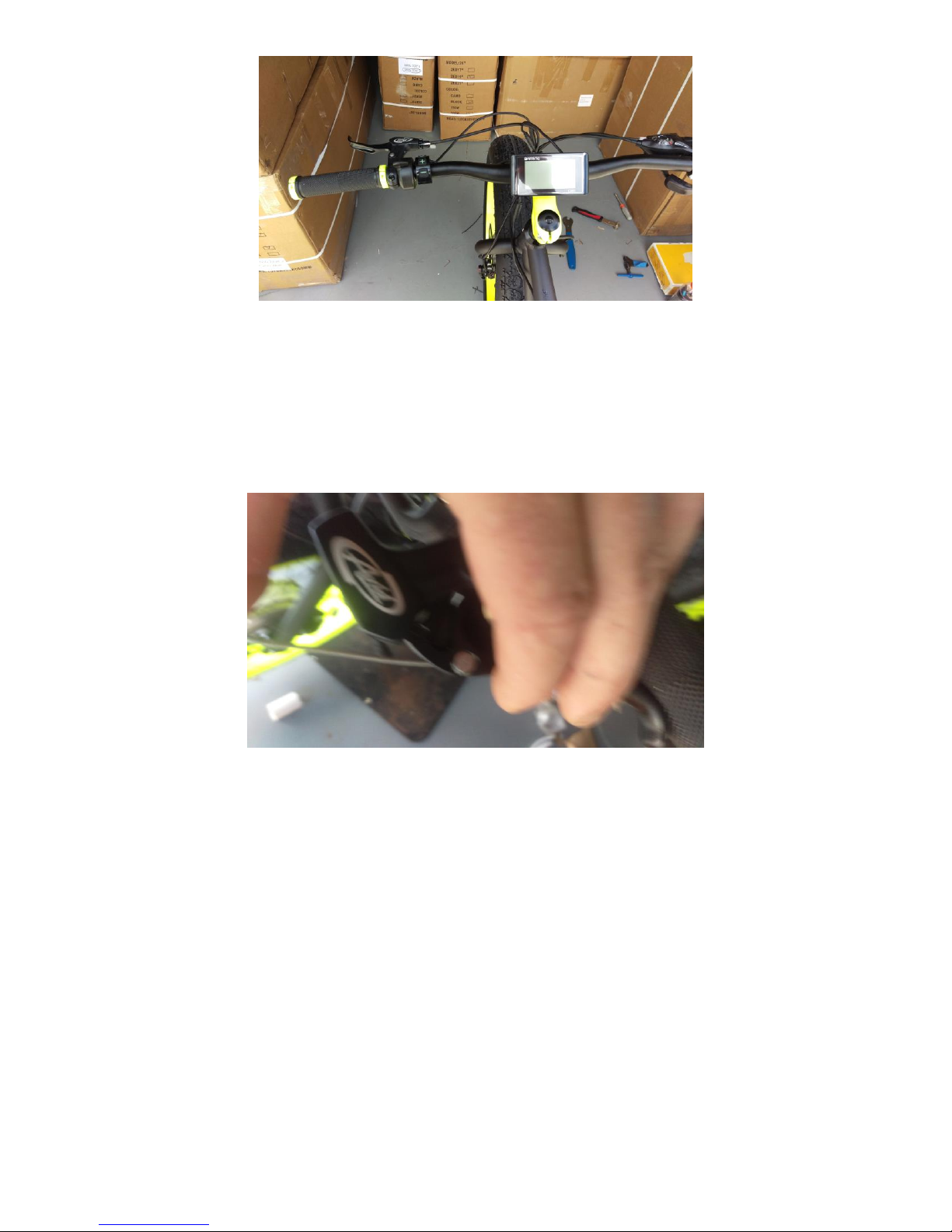

•Handle Bar Controller Pad and Display (Right of Seat)
•Four Steer Spacers, black bottom bearing seat, chrome top bearing seat, steer dust cap,
top cap, allen screw, small cap + washer (for top of dust cap), and two bearings

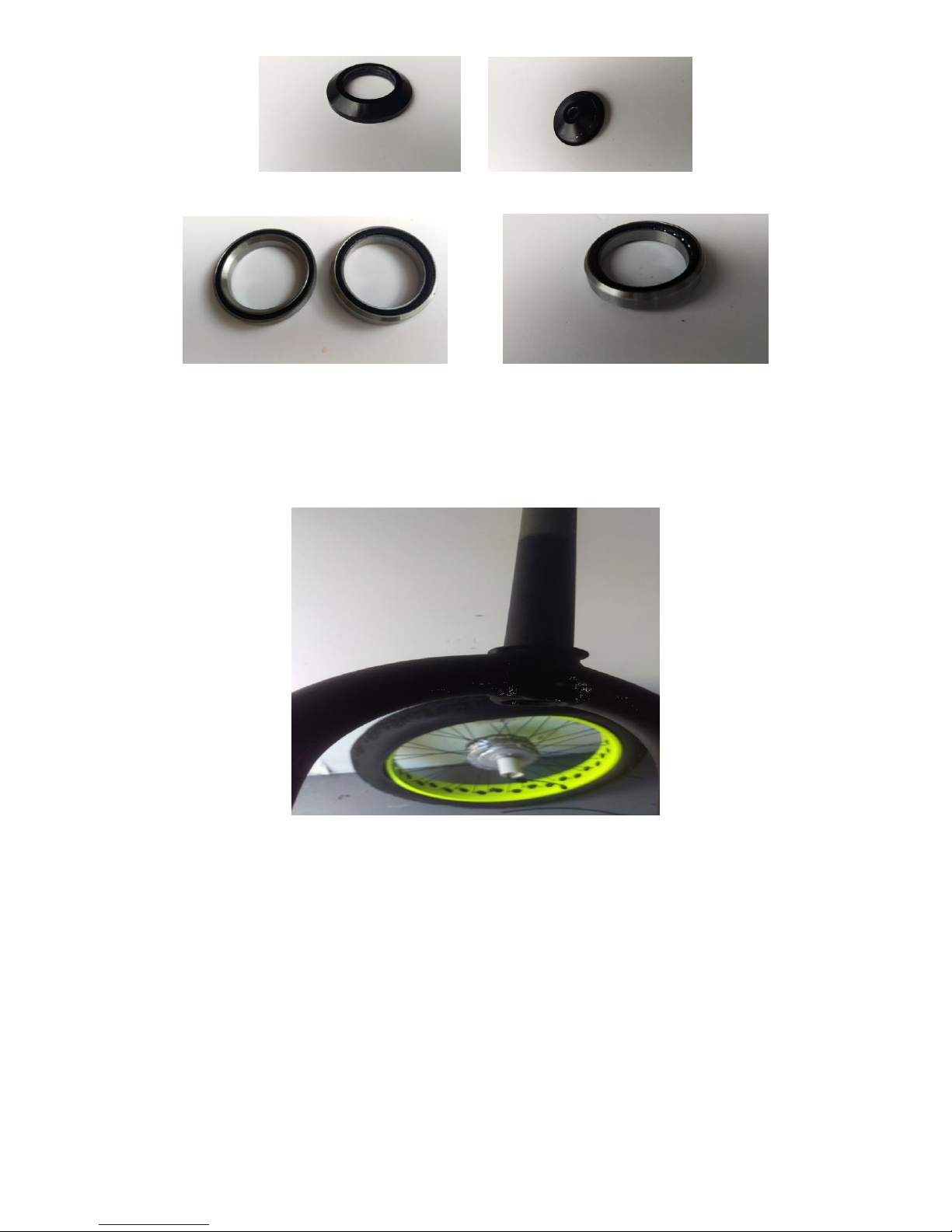

Steer Spacers Bottom Bearing Seat Top Bearing Seat

Steer Dust Cap Top Cap
The two bearings in your component box Notice the 45 degree angle facing up
2) The first thing that we're going to install is your front fork and steering system. Locate the
black bottom bearing seat and slide onto the fork steering stem, all the way to the bottom of the
steering tube. This piece has a slit in it, making it easy to locate. Make sure that the beveled side
is facing UP as shown in the picture below.
3) Next, locate the two sealed bearings. They are identical, meaning either one can go on the
top or bottom. Notice the 45 degree angle on one side of each flat sealed bearing. When
installing the bearings into the steer and headset cup, make sure the angled side faces down on
the top, and faces up on the bottom. They slide in rather easy, and the flat side should face up on
the top of the headset cup and the bottom should rest flush against the bottom bearing seat which
you just placed on the bottom of your fork.
