One-Way to Two-Way Kit for DCFCB
Upgrade DCFCB from a One-Way to a Two-Way Controller
Upgrade Manual

Limited Warranty
This product is subject to and covered by a limited warranty,
a copy of which may be found at www.fedsig.com/SSG-Warranty.
A copy of this limited warranty may also be obtained by written
request to Federal Signal Corporation, 2645 Federal Signal Drive,
University Park, IL 60484; by email to [email protected], or
by calling [phone].
This limited warranty is in lieu of all other warranties, express or
implied, contractual or statutory, including, but not limited to the
warranty of merchantability, warranty of tness for a particular
purpose and any warranty against failure of its essential purpose.
2645 Federal Signal Drive
University Park, Illinois 60484
www.fedsig.com
Customer Support 800-548-7229 • [phone]
Technical Support 800-524-3021 • [phone]
All product names or trademarks are properties of their respective owners.

3
Upgrade Manual
Federal Signal www.fedsig.com
Contents
Safety Messages......................................................................................................................................................6
General Description ................................................................................................................................................7
Introduction..............................................................................................................................................................7
Qualications ......................................................................................................................................................7
Required Equipment ...........................................................................................................................................7
Recommended Cables .......................................................................................................................................8
Removing One-Way Radio Parts..........................................................................................................................13
Installing the Kit.....................................................................................................................................................15
Getting Service ......................................................................................................................................................38
Figures
Figure 1 Battery Power Switch.............................................................................................................................13
Figure 2 Wire Ties..................................................................................................................................................13
Figure 3 Inside Antenna Cable .............................................................................................................................14
Figure 4 Remove Screws......................................................................................................................................14
Figure 5 Inside antenna cable connector............................................................................................................14
Figure 6 Antenna lightning protection ................................................................................................................15
Figure 7 Lock washer............................................................................................................................................15
Figure 8 Install nut.................................................................................................................................................16
Figure 9 Antenna connections .............................................................................................................................16
Figure 10 DIN rail terminals..................................................................................................................................17
Figure 11 Self tapping screws ..............................................................................................................................17
Figure 12 Rotation sensor board .........................................................................................................................18
Figure 13 Rotation current sensor.......................................................................................................................18
Figure 14 Remove nut 7/16 inch...........................................................................................................................18
Figure 15 Orange wire...........................................................................................................................................19
Figure 16 Orange wire...........................................................................................................................................19

4
One-Way to Two-Way Kit for DBFCB
Federal Signal www.fedsig.com
Figure 17 Remove the orange wire......................................................................................................................20
Figure 18 Reapply and tighten nut.......................................................................................................................20
Figure 19 Connect rotation sensor wire assembly ............................................................................................21
Figure 20 DIN rail terminals..................................................................................................................................21
Figure 21 Blue rotation sensor wire ....................................................................................................................22
Figure 22 Loosen nut 7/16 inch............................................................................................................................22
Figure 23 Loosen nut 1/2 inch..............................................................................................................................23
Figure 24 Copper buss-bar removed...................................................................................................................23
Figure 25 Chopper current sensor.......................................................................................................................24
Figure 26 Chopper Wire Assembly ......................................................................................................................24
Figure 27 DIN rail terminals..................................................................................................................................25
Figure 28 White chopper sensor wire..................................................................................................................25
Figure 29 Chopper buss-bar.................................................................................................................................26
Figure 30 DC converter plate................................................................................................................................26
Figure 31 DC converter wire assembly ...............................................................................................................27
Figure 32 DC converter wires...............................................................................................................................27
Figure 33 Jumper wire ..........................................................................................................................................28
Figure 34 Sense wire.............................................................................................................................................28
Figure 35 Sense wire (item 38) at din rail terminal............................................................................................. 29
Figure 36 Intrusion switch bracket ......................................................................................................................29
Figure 37 Intrusion switch....................................................................................................................................29
Figure 38 Intrusion wire........................................................................................................................................30
Figure 39 Other end of intrusion wire..................................................................................................................30
Figure 40 Pre-existing intrusion wire that goes between the cabinets............................................................ 31
Figure 41 Intrusion wire........................................................................................................................................31
Figure 42 Intrusion switch....................................................................................................................................32
Figure 43 Pre-existing intrusion wire ..................................................................................................................32

5
Upgrade Manual
Federal Signal www.fedsig.com
Figure 44 Intrusion wires......................................................................................................................................33
Figure 45 Intrusion bracket ..................................................................................................................................33
Figure 46 Radio bracket........................................................................................................................................34
Figure 47 Antenna wire .........................................................................................................................................34
Figure 48 Antenna cable .......................................................................................................................................35
Figure 49 Radio power cables..............................................................................................................................35
Figure 50 Radio interface cable ...........................................................................................................................36
Figure 51 Battery power switch ...........................................................................................................................36

6
Safety Messages
One-Way to Two-Way Kit for DBFCB
Federal Signal www.fedsig.com
Safety Messages
Read and understand these procedures before installation. All work should be performed
by a properly trained Technician or Electrician that is qualified to do electrical work. You
must follow electrical and ESD precautions. If any of the electronics are handled without
static protection, the electronics may be damaged.
Listed below are important safety instructions and precautions you should follow:
Important Notice
Federal Signal reserves the right to make changes to devices and specifications
detailed in the manual at any time in order to improve reliability, function or design. The
information in this manual has been carefully checked and is believed to be accurate;
however, no responsibility is assumed for any inaccuracies.
Installation and Service
• Electrocution or severe personal injury can occur when performing various installation
and service functions such as making electrical connections, drilling holes, or lifting
equipment. Therefore, only experienced electricians should install this product in
accordance with national, state and any other electrical codes having jurisdiction.
Perform all work under the direction of the installation or service crew safety foreman.
• The sound output of sirens is capable of causing permanent hearing damage. To
prevent excessive exposure, carefully plan siren placement, post warnings and restrict
access to areas near the sirens. Sirens may be operated from remote control points.
Whenever possible, disconnect all siren power including batteries before working
near the siren.
• After installation or service, test the siren system to confirm that it is operating
properly. Test the system regularly to confirm that it will be operational in an
emergency.
• If future service personnel do not have these warnings and all other instructions
shipped with the equipment to refer to, the siren system may not provide the intended
audible warning and service personnel may be exposed to death, permanent hearing
loss, or other bodily injury. File these instructions in a safe place and refer to them
periodically. Give a copy of these instructions to new recruits and trainees. Also, give
a copy to anyone who is going to service or repair the sirens.
Operation
Failure to understand the capabilities and limitations of your siren system could result in
permanent hearing loss, other serious injuries or death to persons too close to the sirens
when you activate them or to those you need to warn. Carefully read and thoroughly
understand all safety notices in this manual and all operations-related-items in all
instruction manuals shipped with equipment. Thoroughly discuss all contingency plans
with those responsible for warning people in your community, company, or jurisdiction.
Read and understand the information contained in this manual before attempting
to install or service the siren.
Pay careful attention to notices located on the equipment.

7
General Description
Upgrade Manual
Federal Signal www.fedsig.com
General Description
Introduction
This manual describes how to upgrade your DCFCB from a one-way siren controller to a
two-way siren controller.
DCFCBs are one-way controllers for mechanical sirens or similar devices. The DCFCBs
receive commands through a radio or other communications, but do not provide any
status back toward the activation point. DCFCTBs are two-way control and status
monitoring controllers. These units interface to two-way radio systems, which provide
two-way control and monitoring capabilities. Federal Signal has a pre configured kit for
upgrading DCFCB cabinets to DCFCTB cabinets. For VHF upgrades order Q-DCFC1-2H;
and for UHF upgrades, order Q-DCFC1-2U.
NOTE: Antenna is not included. You must order antenna separately.
Qualications
You must be a properly trained Technician or Electrician in order to install this product.
You must be an Engineer or Technician with radio equipment capable of deviation
adjustment and VSWR test. Typically, a radio shop has this capability.
Required Equipment
You need the following:
• Standard Technician’s Tool Kit.
• Bucket Truck and Ladder may be needed to access the site. Access for antenna
installation is required.
• The One-Way to Two-Way Kit for DCFCB.
• VHF part number: Q-DCFC1-2H
• UHF part number: Q-DCFC1-2U
NOTE: For pricing and availability, call Customer Care at 800-548-7229.
• Some installer parts are required.
NOTE: These are not part of the One-Way to Two-Way Kit for DCFCB.
For installation instructions on the Yagi and Omni Antennas go to the Federal Signal’s
website. Typically, additional antenna mounting parts are needed. The required parts are
listed in the manual and may change according to local code.
The following are some of the typical parts required. Typically, these are supplied by the
electrician.
• Two AWG ground wire for or grounding antenna to ground rod.
NOTE: Treat ground wire connections with anti-oxidant compound.
• Ground rod and tools required to install the ground rod.
• Four 3/8-inch by 4-inch lag bolts
• Four 3/8-inch washers

8
Introduction
One-Way to Two-Way Kit for DBFCB
Federal Signal www.fedsig.com
• Four 3/8-inch lock washers to mount antenna bracket to pole.
• Compression C-tap #2AWG
• Twenty-five clips, coax nail for nailing down the antenna cable
• Ten UV-resistant tie wraps for tie wrapping the cable to the bracket
• Tape, mocap, silicone insulated for sealing the antenna connectors.
NOTE: Seal all connections.
• Disposal bag or box to put the old parts into that will be removed.
• Radio service monitor and VSWR tester required for the radio system. Typically, radio
shop supplied.
Recommended Cables
When equipped with radio from the NX-5000 Series in your two-way RTUs, Federal Signal
recommends purchasing the following cables for computer programming:
• RIB FIF-12A USB interface cable
• CT-104A interface cable
Use the RIB FIF-12A USB cable to connect to your computer. Use the CT-104A cable to
connect from the RIB FIF-12A USB cable to the radio.

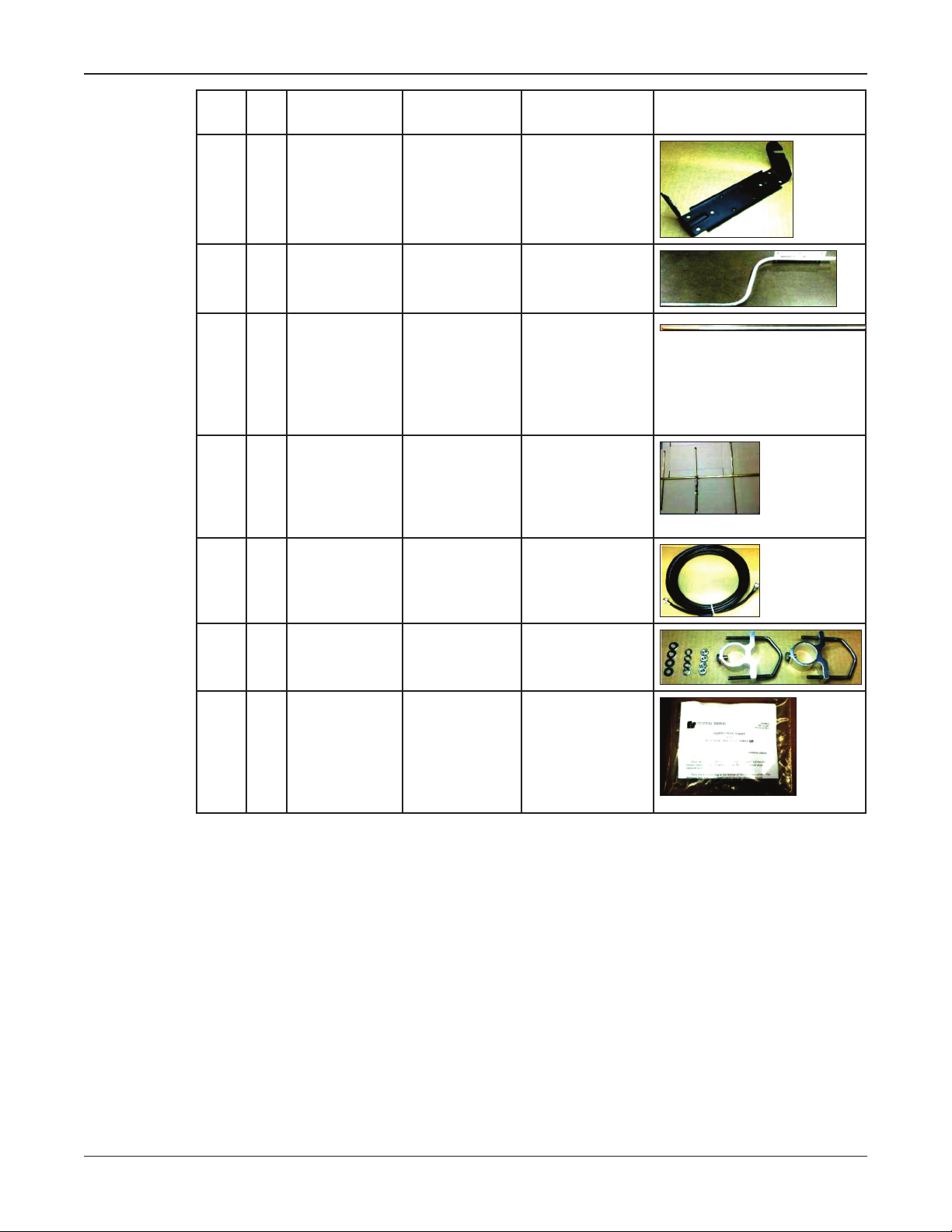

Table 1 Kit Contents
Item
No.
Qty Part Number Description Notes Picture
1 1 2562640 One-Way
to Two-Way
Manual for
DCFCB
Installation
Manual
2 1 1751587B-01 Cable, radio,
to FCT
Cable between
the radio and
controller board.
3 1 17500880 Cord, pwr.
Supply, radio
Radio power
cable
4 1 175902A-24 Cable, ant,
UHF/N,
12 inches
Antenna cable,
internal
5 1 169182A-01 Plate
assembly, DC
to DC convert
DC converter
plate
6 1 2005173E PCBA, DC to
DC converter
DC converter
board

9
Introduction
Upgrade Manual
Federal Signal www.fedsig.com
Item
No.
Qty Part Number Description Notes Picture
7 6 7000A427-04 Screw, mach,
pan Phillips
6-32
Screw, Phillips
6-32,1/4-inch
long to mount
DC converter to
plate
8 4 7011A041-06 Screw, thd
frm, pan, phil,
type
Self-tapping
screw to mount
DC converter
plate to
backplane
9 1 1461327A Wire lead
assembly,
5-pos
DC converter
wire assembly
10 2 122378A Switch,
momentary
Intrusion switch
11 2 8600118B Bracket, intr.
Swtch cntl.
box al
Intrusion switch
bracket
12 1 7002A009-16 Bolt, hex HD
SS 3/8-16
Bolt, 3/8-16
for the lower
intrusion bracket
13 1 7074A046 Lkwash, split
SS 3/8 scr
Lock washer,
3/8 for the lower
intrusion bracket
14 1 7059A063 Nut hex 3/8-
16
Nut, 3/8-16
for the lower
intrusion
bracket.
15 1 T300218-05-
065
Wire lead,
44 inches
(1/4nt:1/4nt)
Intrusion sensor
wire
16 1 288B229A-06 Snap track.
4 inches
Snap track is
for mounting
the current and
rotator sensors.
17 2 7011A069-08 Screw thd frm
pan hd phil #8
#8-1/2-inch
Phillips, self-
tapping to
mount the snap
track to the
backplane
18 1 2005221B Current
sensor pcba
Rotator current
sensor

10
Introduction
One-Way to Two-Way Kit for DBFCB
Federal Signal www.fedsig.com
Item
No.
Qty Part Number Description Notes Picture
19 1 2001062B Pcba, curr.
sens, adj.
Chopper current
sensor
20 1 1461319A Wire lead
assembly,
chopper
sensor, 4-pos
Chopper sensor
wire assembly
21 1 1461320A Wire lead
assembly,
rotator sensor,
4-pos
Rotator sensor
wire assembly
22 1 288691A-03 RF, lhtg
pro,125-1000
MHz
Antenna
lightning
protection
23 1 1461404A Wire lead
assembly,
current sensor
Rotator sensor
wire assembly
24 5 7058A047 Nut, mach
scr hex Keps
10/32 SS
Keps nut, 10/32
Two for Antenna
lightning
protection.
Two for the
upper intrusion
bracket.
Two for the
radio bracket.
25 2 229288A Block, term,
ground, 3-pos,
branch
Ground block
26 3 229282A Term.block, 3
pos, branch
Terminal block
27 2 229283A Cap, end,
term blk,1 p.
Terminal block
cap
28 2 229218A Bracket, t
block, end, din
mt.
End stop

11
Introduction
Upgrade Manual
Federal Signal www.fedsig.com
Item
No.
Qty Part Number Description Notes Picture
29 3 8568044A Marker,
terminal, block
1-10
Number marker
for terminal strip
30 1 288782A Jumper, term.
Block
2 position
jumper for
terminal strip
TB3
31 2 7000444A-05 Screw, mach,
phil, pan hd,
4-40 SS
Screw, 4-40 to
mount radio
interface cable
to controller
board.
32 2 7075A072 Lkwash, int
tooth, ss, #10
Lock washer,
#10 for radio to
radio mounting
plate.
33 1 7000A070-06 Screw, mach,
round, phil,10-
32
Screw, 10-32,
3/8-inch-long,
Phillips for
radio to radio
mounting plate.
One comes with
the radio
34 2 7075080A Lkwasher, int.
tooth #4 ss
Lock washer, #4
to mount radio
interface cable
to controller
board.
35 10 150A109 Clamp, cable
tie wrap
Wire tie
36 2 150A130A Tie, cable,
mount
Wire tie sticky
37 1 C300218-02-
146
Wire, 18 AWG
red, 27"
12 V sense wire
38 1 C300218-10-
041
Jumper wire,
Blk, 3 inches
FCM+ board
jumper JP5: 3 &
5 (GND jumper)
39 1 1992163A-01
(VHF)
1990263A-03
(UHF)
Radio,
NX-5000
Series
Radio is
dependent
upon frequency
required.

12
Introduction
One-Way to Two-Way Kit for DBFCB
Federal Signal www.fedsig.com
Item
No.
Qty Part Number Description Notes Picture
40 1 Radio bracket Radio
mounting
bracket
Radio mounting
bracket comes
with the radio
41 1 288941A-01 Antenna
mounting
bracket
Used to mount
the antenna
42 1* OMNI-XX
Ordered
Separately
Antenna-Omni
type
Requires
either Omni or
Yagi Antenna
Antenna type
is dependent
upon frequency
and distance
required.
43 1* YAGI-XX
Ordered
Separately
Antenna-Yagi
type
Antenna type
is dependent
upon frequency
and distance
required.
44 1* LMR400
cable
Antenna cable Antenna cable
comes with the
antenna. 35 ft
length, N type.
45 1* FM2 mount FM2 mount FM2 mount
comes with the
antenna
46 1 8549A178A Accessory kit,
desiccant
Moisture and
rust inhibitor.
NOTE:
Instruction is in
the bag.
* Antenna is not included. You must order the antenna separately.

13
Removing One-Way Radio Parts
Upgrade Manual
Federal Signal www.fedsig.com
Removing One-Way Radio Parts
To remove the one-way radio parts:
1. Turn o the AC power to the siren at the AC disconnect switch. There is typically an
external AC disconnect box.
2. Open the battery cabinet.
3. Turn o the battery power at the battery power switch.
Figure 1 Battery Power Switch
4. Close the battery cabinet.
5. Cut the wire ties as needed so that wires can be removed.
Figure 2 Wire Ties

14
Removing One-Way Radio Parts
One-Way to Two-Way Kit for DBFCB
Federal Signal www.fedsig.com
6. Remove the inside antenna cable connector from the radio.
Figure 3 Inside Antenna Cable
7. After removing the two screws, remove the radio by pulling the radio away from the
board.
Figure 4 Remove Screws
8. Remove the inside antenna cable connector from bulkhead adapter.
Figure 5 Inside antenna cable connector
9. Remove the inside antenna cable.

15
Installing the Kit
Upgrade Manual
Federal Signal www.fedsig.com
10. Remove the outside antenna connector from the bulkhead adapter.
11. Remove the bulkhead adapter.
12. Remove the outside antenna cable and old antenna.
NOTE: You may need a bucket truck and ladder to access the site. For installation
instructions on the Yagi and Omni Antennas, go to the Federal Signal’s website.
Installing the Kit
To install the one-way to two-way kit:
1. Install the antenna by using the installation instructions on the Yagi and Omni
Antennas found on the Federal Signal’s website. (items 41-45).
2. Install antenna lightning protection (item 22).
Figure 6 Antenna lightning protection
The Rubber ring gasket goes on the inside of the cabinet. The marked text “Antenna”
points down and “Equipment” points up.
3. Secure lock washer and nut to the outside.
Figure 7 Lock washer

16
Installing the Kit
One-Way to Two-Way Kit for DBFCB
Federal Signal www.fedsig.com
4. Install nut 3/8 inch on the screw stud (item 24).
Figure 8 Install nut
5. Connect the external antenna cable to the antenna lightning protection. The antenna
was installed earlier.
Figure 9 Antenna connections
6. Ensure that all the antenna connections are sealed. If this is not sealed properly,
moisture and weather may cause damage.
For installation instructions on the Yagi and Omni Antennas, go to the Federal Signal
website.
7. Ensure that the antenna cable is properly secured. A loose antenna cable flapping in
the wind may cause damage.
Refer to the Yagi and Omni Antennas Installation Manual and ensure that the antenna
and antenna cable are correctly installed.
8. Install DIN rail terminals according to the manual (items 25-30).
• Refer to the schematic section of the DCB, DCFCB and DCFCTB Models Manual.
Use the schematic for the DCFCTB.
• Pay particular attention to the yellow jumper that is inserted at TB3 (item 30).
• Ensure that the screws in the end stops are tight. If there is any confusion, refer to
schematic DCB, DCFCB and DCFCTB Models Manual.

17
Installing the Kit
Upgrade Manual
Federal Signal www.fedsig.com
Figure 10 DIN rail terminals
9. Install the snap track (item 16) using self-tapping screws (item 17).
Figure 11 Self tapping screws

18
Installing the Kit
One-Way to Two-Way Kit for DBFCB
Federal Signal www.fedsig.com
10. Install rotation sensor board (item 18).
NOTE: Use a flathead screwdriver to make this task easier.
Figure 12 Rotation sensor board
11. Plug the wire assembly (item 23) into the rotation current sensor.
Figure 13 Rotation current sensor
12. Remove the nut 7/16 inch.
Figure 14 Remove nut 7/16 inch

19
Installing the Kit
Upgrade Manual
Federal Signal www.fedsig.com
13. Remove the orange wire.
Figure 15 Orange wire
14. Connect the orange wire from the rotation current sensor. Make sure it is the one
with the fuse. Reapply and tighten the nut.
Figure 16 Orange wire

20
Installing the Kit
One-Way to Two-Way Kit for DBFCB
Federal Signal www.fedsig.com
15. Remove the nut 7/16 inch. Remove and discard the orange wire.
Figure 17 Remove the orange wire
16. Connect the orange wire from the rotation current sensor. Make sure it is the wire
without the fuse. Reapply and tighten the nut.
Figure 18 Reapply and tighten nut
