Felisatti JS100 User guide

CORDLESS JIG SAW
(Li-ion Battery)
EN ORIGINAL INSTRUCTION MANUAL
JS100/18L
WARNING: To reduce the
risk of injury, the user must
read and understand the
instruction manual before
using this product.

2
It is essential that instruction
manual is read before the power
tool is operated for the first time.
Always keeps this instruction manual
together with the power tool.
Ensure that the instruction manual
is with the power tool when it is
given to other persons.
Table of Contents
1.General Power Tool Safety Warnings·······················································3
2. Specific Safety Warnings·······················································································6
3. Check before Use ······················································································7
4. Noise and Vibration Emissions·······························································11
5. Specifications and List of Contents·························································12
6. Description of Functions··········································································13
7. Operating Instructions··············································································14
8. Maintenance······························································································19
[Note]
As our engineers are striving for the constant research
and development to develop the quality of products,
shape or structure of our model can be changed
without previous notice.
WARNING! Read all safety warning and all instructions.
Failure to follow the warning instructions may result in electric shock/. fire and/or serious
injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains -operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed(gorunded) power tools.
Unmodified plugs and matching outlets will reduce risk of eteclric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet codltions.
Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
General Power Tool Safety Warnings

3
It is essential that instruction
manual is read before the power
tool is operated for the first time.
Always keeps this instruction manual
together with the power tool.
Ensure that the instruction manual
is with the power tool when it is
given to other persons.
Table of Contents
1.General Power Tool Safety Warnings·······················································3
2. Specific Safety Warnings·······················································································6
3. Check before Use ······················································································7
4. Noise and Vibration Emissions·······························································11
5. Specifications and List of Contents·························································12
6. Description of Functions··········································································13
7. Operating Instructions··············································································14
8. Maintenance······························································································19
[Note]
As our engineers are striving for the constant research
and development to develop the quality of products,
shape or structure of our model can be changed
without previous notice.
WARNING! Read all safety warning and all instructions.
Failure to follow the warning instructions may result in electric shock/. fire and/or serious
injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains -operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed(gorunded) power tools.
Unmodified plugs and matching outlets will reduce risk of eteclric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet codltions.
Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
General Power Tool Safety Warnings

4
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under the
influence of drugs, alcohol or medication.
Amoment of inattention while operationg power tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection.
Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before
connecting to power source and/or battery pack, picking up or carrying the
tool.
Carrying power tools with your finger on the switch or energising power tools
that have the switch on invites accidents.
d)
Remove any adjusting key or wrench before turning the power tool on.
A wrench or key left attached to a rotating part of the power tool may result in personal
injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/or the battery pack
from the power tool before making any adjustments, changing
accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power
tool accidentally.

5
d) Store idle power tools out the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are
easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed.
Use of the power tool for operations different from those intended could result in a
hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may create a risk of fire when
used with another battery pack.
b) Use power tools only with specifically designated battery pack.
Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like
paper clips, coins, keys, nails, screws, or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery teminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts.
This will ensure that the safety of the power tool is maintained.

6
Specific Safety Warnings
■Hold power tool by insulated gripping surfaces, when performing an
operation where the cutting accessory may contact hidden wiring.
Cutting accessory contacting a "live" wire may make exposed metal parts of the
power tool "live" and could give the operator an electric shock
■Do not use the charger under the rain or when it is wet.
Failure to observe this can cause serious injury or death due to electric shock.
■Do not insert metal wire or any conductive object through the ventilating
opening of the charger.
Failure to observe this can cause serious injury or death due to electric shock.
■Do not attempt to disassemble the charger and keep the charger out of the
reach of children.
■If the cord of the charger has been damaged, replace or repair it immediately.
Using the charger with damaged cord may cause electric shock.
Electric shock may cause injury.
■Do not throw the battery into the live fire.
In the fire, the battery may explode due to high temperature and cause serious injury.
■Do not short the terminals of the battery.
If the terminals of the battery is short circuited, excessive current will flow and fire or
explosion may occur causing serious injury. When the battery is not used, store it after
mounting the protective cap firmly in place.
■Avoid strong impact on the battery and do not pierce the battery case with a
sharp object.
Fire or explosion may occur causing serious injury.
■Store the battery indoors at 0º ~ 40º and avoid direct light and closed hot
and humid places.
Fire or explosion may occur causing serious injury.
■Do not make your fingers and hands touch with the drill bit during operation.
When your fingers and hands are touched with the drill bit or caught in it, you may
be injured seriously.
■Do not leave the running tool.
Other operators stayed close to you may be injured.
■Set the forward/reverse lever in the neutral position while you are
changing or operating the tool.
Careless operating of the switch may cause a serious injury by the rotating part of
the tool.
■Make sure the battery is attached in the body of the tool tightly before
you start operation.
When the battery is not attached tightly, it may be fallen during the operation and
cause an injury in the top of your foot.

7
■Charge only Felisatti appoved rechargeable batteries. Other types of
batteries may burst causing personal injury and damage.
■Do not disassemble battery.
Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
■Accessories may be hot after prolonged use.
When removing the bit from the tool avoid contact with skin and use proper
protective gloves when grasping the bit or accessory.
■Keep the battery from being overheated.
If overheated battery is inserted, high temperature standby is indicated and charging
can only start after the battery has been cooled down.
■Leaving the battery for a prolonged time without using it will shorten the life
of the battery.
If the battery is to be stored for a prolonged time, charge it completely before storing it.
To use the battery for a long period of time, charge it completely every 3 months.
■ Observe correct main voltage. The voltage of power source must agree with the
voltage specified in the name plate (FELISATTI LITHIUM-ION battery 18V).
■Please check if the rated voltage of the product is same as the rated voltage of
the battery.
Using the battery with higher rated voltage can result in burning and damaging of
the motor.
Please check the polarity of the battery is same as the product.
1. Power Source
Check before Use
Make sure the battery is attached correctly before you use the tool.
2. Attachment of the battery
Make sure the battery is attached in the body of the tool tightly before you start operation.
When the battery is not attached tightly, it may be fallen during the operation and cause an
injury in the top of your foot.
3. Polarity of the battery
3
When the polarity of the battery is not correct, it may cause the trouble of the
switch.

8
█SWITCH LOCK
1. To lock the trigger switch, push the switch lock button to right side.
2. To turn the saw ON, push the switch lock button to left side then depress trigger
switch. To turn it OFF, release the trigger switch.
NOTE: The switch lock button can be activated when the trigger is released.
█VARIABLE SPEED
The variable speed trigger switch delivers higher speed with increased trigger
pressure and lower speed with decreased trigger pressure.
LOCKED
Switch Lock
Button
UNLOCKED
Trigger
Switch
6. Switch lock-off
7. Trial run
Before starting the work, wear protections (goggles, protective gloves) and run the tool in
the direction avoiding other persons to see if the tool is operated normally.

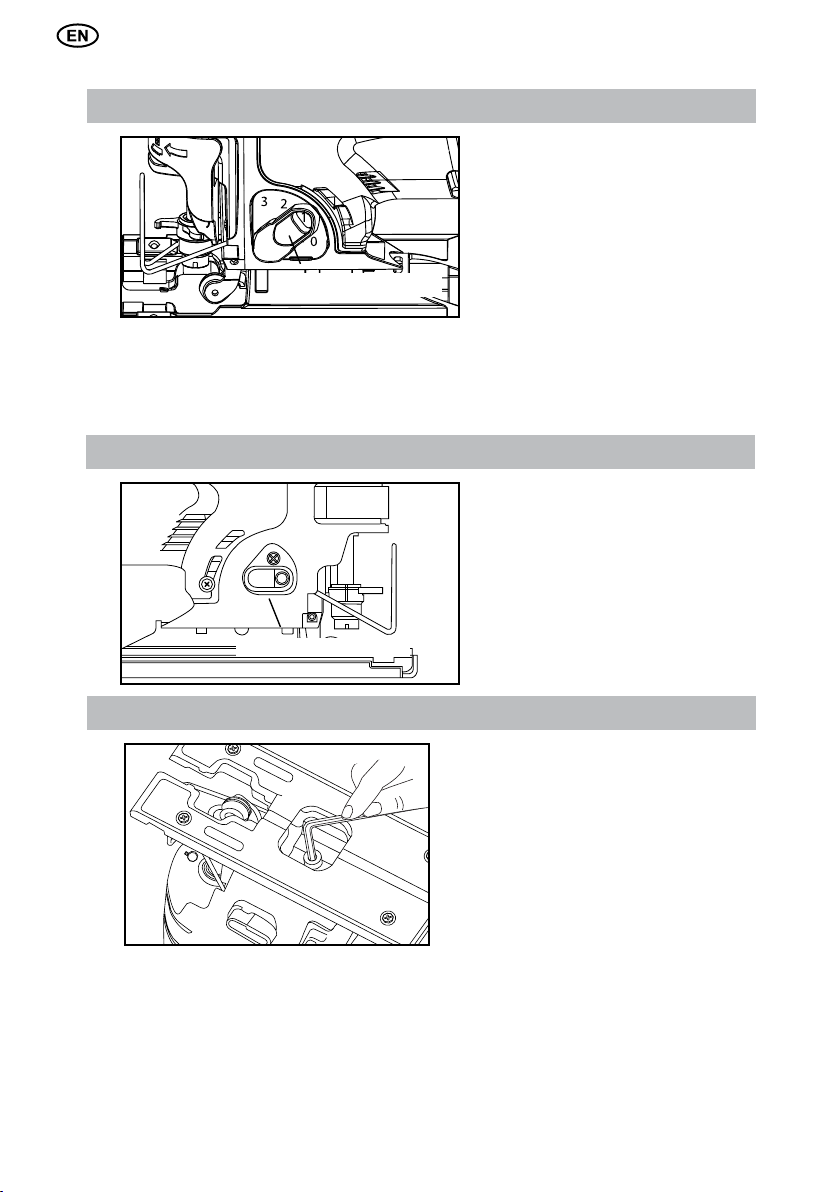

█Securely tighten the base pivot
screw, Return hex wrench to the
storage structure.
█
REMOVING SAW BLADE
1. Remove battery pack.
2. Turn the blade change lever
clockwise and the saw blade will be
released automatically.
█INSTALLING SAW BLADE
1. Remove the battery pack.
2. Turn the blade change lever clockwise.
3. Insert the blade into the slot of tool-less blade clamp.
4. Release the blade change lever to lock the blade.
5. Replace battery pack.
█BLADE SELECTION
You will get the best performance to select the correct blade.
It is important to obtain faster cut and prolong blade life.
You must use a T-shank blade.
Always remove battery pack before installing and removing saw blade.
To reduce the risk of serious personal injury, Securely tighten the base pivot screw.
Blade
Change lever
Tool-less
Blade
Clamp
Base
4. Tighten the base pivot screw
5. Removing / Installing saw blade

9
█SWITCH LOCK
1. To lock the trigger switch, push the switch lock button to right side.
2. To turn the saw ON, push the switch lock button to left side then depress trigger
switch. To turn it OFF, release the trigger switch.
NOTE: The switch lock button can be activated when the trigger is released.
█VARIABLE SPEED
The variable speed trigger switch delivers higher speed with increased trigger
pressure and lower speed with decreased trigger pressure.
LOCKED
Switch Lock
Button
UNLOCKED
Trigger
Switch
6. Switch lock-off
7. Trial run
Before starting the work, wear protections (goggles, protective gloves) and run the tool in
the direction avoiding other persons to see if the tool is operated normally.
█Securely tighten the base pivot
screw, Return hex wrench to the
storage structure.
█
REMOVING SAW BLADE
1. Remove battery pack.
2. Turn the blade change lever
clockwise and the saw blade will be
released automatically.
█INSTALLING SAW BLADE
1. Remove the battery pack.
2. Turn the blade change lever clockwise.
3. Insert the blade into the slot of tool-less blade clamp.
4. Release the blade change lever to lock the blade.
5. Replace battery pack.
█BLADE SELECTION
You will get the best performance to select the correct blade.
It is important to obtain faster cut and prolong blade life.
You must use a T-shank blade.
Always remove battery pack before installing and removing saw blade.
To reduce the risk of serious personal injury, Securely tighten the base pivot screw.
Blade
Change lever
Tool-less
Blade
Clamp
Base
4. Tighten the base pivot screw
5. Removing / Installing saw blade

10
Noise and Vibration Emissions
4
1. Noise emission
2. The operator to wear hearing protection
3. Vibration emission
4. The following information
5. A warning
The A-weighted sound power level (L WA )
The A-weighted emission level (L PA )
Uncertainty (K)
97 dB(A)
86 dB(A)
3 dB
1) Noise emission
Measured values are according to EN 60745-2-11
■The declared vibration total value has been measured in accordance with a standard
test method given in EN60745-2-11 and may be used for comparing one tool with another.
■The declared vibration total value may also be used in a preliminary assessment of exposure.
■The vibration emission during actual use of the power tool can differ from the
declared total value depending on the ways in which the tool is used.
■Identify additional safety measures to protect the operator that are based on an estimation of
exposure in the actual conditions of use (taking account of all parts of the operating cycle such
as the times when the tool is switched off and when it is running idle in addition to the trigger time).
Vibration total values(triaxial vector sum) determined according to EN 60745-2-11
Vibration emission value(ah, cw)
Uncertainty (K)
Vibration emission value(ah, cm)
Uncertainty (K)
Cutting wood
Cutting sheet metal
14,5 ㎨
1,5 ㎨
3,0 ㎨
1,5 ㎨
Return waste material The battery
temperatures over 50ºC
cause damage
Do not incinerate the
battery pack
Do not dispose of
batteries with general
refuse.
V - Volts
V- Direct Current
- Class II construction
V- No load speed
/min - Revolutions or reciprocations
per minute
~ - Alternating current
no
Wear goggles Wear safety helmet Wear ear plugs Wear protective gloves
8. An explanation of any symbols or pictograms on the
tool relevant to safe use.
Max. 50ºC
EC Declaration of conformity
We declares that these products meet the standards
EN 60745-1, EN 60745-2-11, EN 60335-1, EN 60335-2-29, EN 55014-1, EN 55014-2,
EN 61000-3-2 and EN 61000-3-3 (CategoryII)
in compliance with directives 2006/95/EC, 2006/42/EC, 2004/108/EC.
Santiago Lopes
Jordi Carbonell

11
Noise and Vibration Emissions
4
1. Noise emission
2. The operator to wear hearing protection
3. Vibration emission
4. The following information
5. A warning
The A-weighted sound power level (L WA )
The A-weighted emission level (L PA )
Uncertainty (K)
97 dB(A)
86 dB(A)
3 dB
1) Noise emission
Measured values are according to EN 60745-2-11
■The declared vibration total value has been measured in accordance with a standard
test method given in EN60745-2-11 and may be used for comparing one tool with another.
■The declared vibration total value may also be used in a preliminary assessment of exposure.
■The vibration emission during actual use of the power tool can differ from the
declared total value depending on the ways in which the tool is used.
■Identify additional safety measures to protect the operator that are based on an estimation of
exposure in the actual conditions of use (taking account of all parts of the operating cycle such
as the times when the tool is switched off and when it is running idle in addition to the trigger time).
Vibration total values(triaxial vector sum) determined according to EN 60745-2-11
Vibration emission value(ah, cw)
Uncertainty (K)
Vibration emission value(ah, cm)
Uncertainty (K)
Cutting wood
Cutting sheet metal
14,5 ㎨
1,5 ㎨
3,0 ㎨
1,5 ㎨

12
Rated voltage [V DC]
No load Speed [/min]
Length of Stroke [mm]
Model
JS100/18L
18
0-2600
25
Rated voltage [V DC]
Capacity [Ah]
Weight [kg]
FL18026
18
2.6
0.6
Battery
(Li-ion)
1. Specifications
Specifications and List of Contents
5
2. List of Contents
Hex wrench
Base plastic cover
Splinter guide
Guide
1
1
Optional
Optional
Dust hood
Battery
Battery Charger
Instruction manual
1EA
Plastic case 1EA
2EA
1EA
1EA
18
0.5
0.6
Input voltage [V AC ]
Input frequency [Hz]
Output voltage [V DC ]
Charging current [A]
Charging time [h]
Weight [kg]
Safety class
6.5
Battery
(Li-ion)
220-240
50 / 60
F180
Bevel angle
Orbital Motion
Battery Type
Weight, according to
EPTA procedure 01/2003 [kg]
0˚- 45˚left and right
4 positions
Lithium-Ion
3.2
Cutting
depth,
max.
[mm]
Wood 100
6
20
Steel
AL

13
•JS100/18L (Tool) •
• F180 (Battery Charger)•
•FL18026 (Rechargeable Battery)•
Switch Lock Button
Tool-less Blade Clamp
Power Cord
Blade Change lever
Battery button
Trigger Switch
Hex wrench
Button

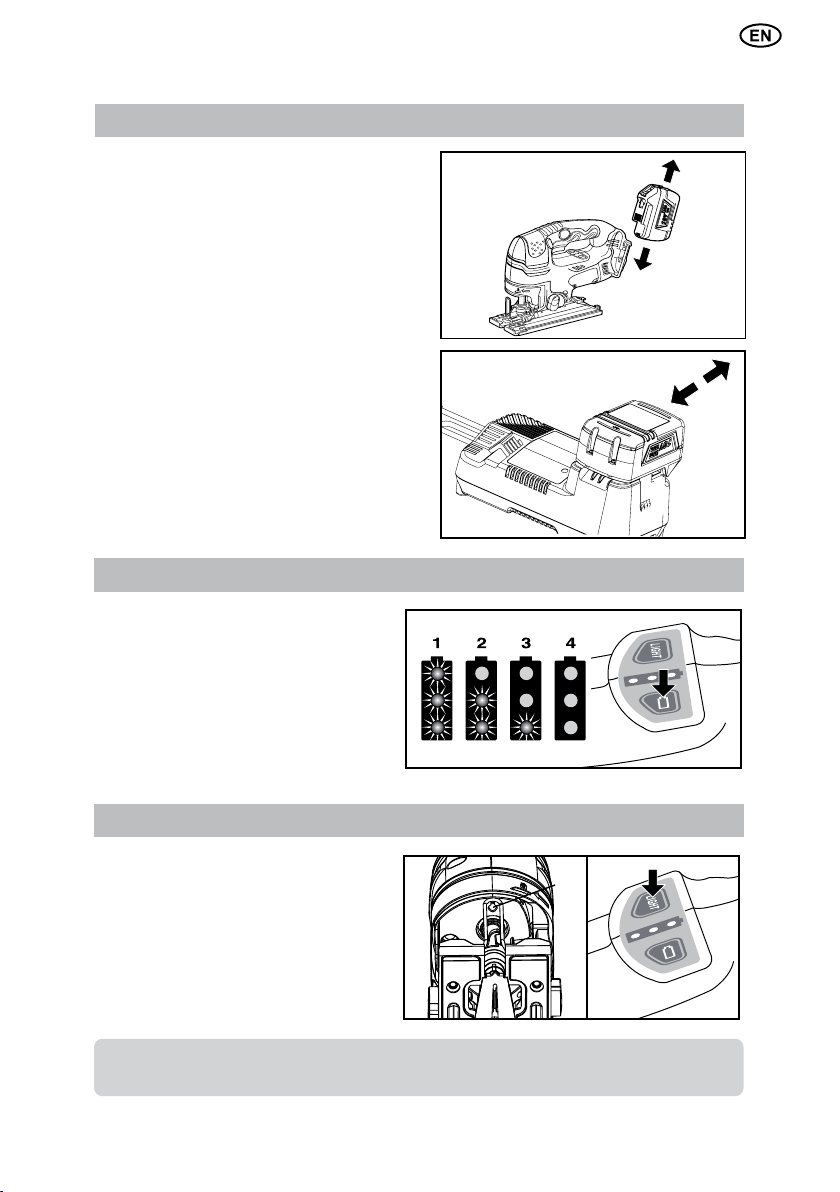

-Check charge state of battery
-Work light ON/OFF
Dust Adapter
Orbital Control Lever
Base
Base plastic cover
Battery Slot
Terminal
Charge State LED
2 6
1. Description of Functions
Description of Functions
6

14
Operating Instructions
7
(1) Insert the plug of the charger in the socket, and the charging indicating lamp will be
flickered in green,red and yellow in turn within one second. And then, the battery
charger will be in the standby position.
(2) Insert the battery in the battery charger considering the polarity, and the charging will
be started immediately.
(3) When the battery working time is remarkably short despite full charging, the life of the
battery may be over. Replace the battery immediately.

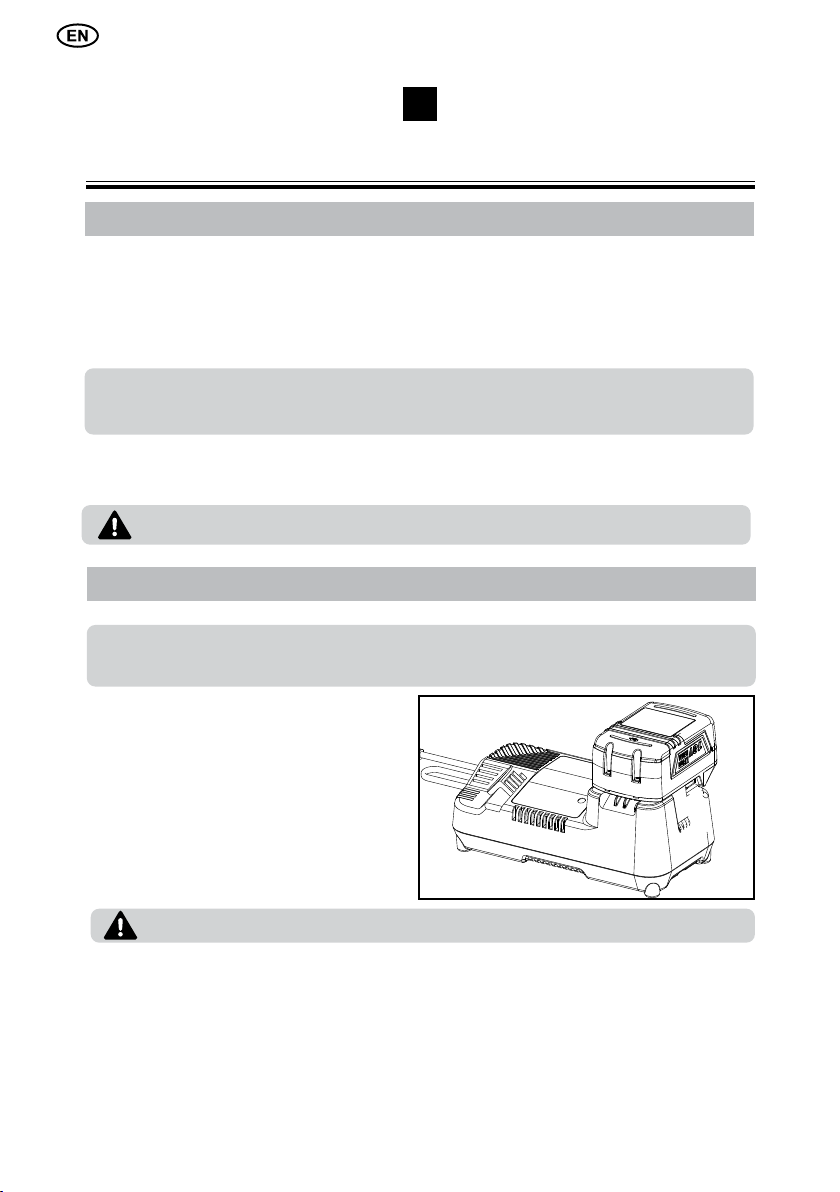

1. How to charge the battery
Take care not to short-circuit the terminal of the battery. The short-circuit of the
terminal may cause a fire or explosion doing a serious personal injury.
A new battery will work properly after five times of charging and discharging.
Charge and discharge the battery, which is not used for a long time, for two to
three times to function well.
1) Charging indication
Green Blinks : Before charging
Red Lights : While charging
Green Lights : Charging completed
Red Blinks : Overheat standby
(Battery overheated)
Yellow Blinks : Charging impossible
2) If charging of the heated battery is attempted immediately after it has been used or
charged, indicator blinks in red (overheat standby). Also, cooling fan in the charger
automatically starts running to cool the hot battery down to normal temperature and,
after the cooling, indication changes to red glowing and charging begins.
3) This charger detects charge status and transfers to fine charging mode when the
battery has been almost fully charged and keeps the battery in full charge state.
2. Charging process
Use only the specified battery and battery charger. Otherwise battery and charger can
be damaged by fire, explosion, charging error or overheat.
Be sure to unplug the charger after finishing the charging.

15
LED
1) Removing battery on power tool
■To remove the battery, press the battery
button and pull the battery out of the
power tool toward the rear.
2) Removing battery on charger
■To remove the battery, press the battery
button and pull the battery out of the
charger toward the rear.
■Do not exert any force.
3. Removing battery
4. Charge state of the battery
■The charge state can be checked on
the LED by pressing the charge state
indicator button.
1 = Battery 70 - 100% charged
2 = Battery 30 - 69% charged
3 = Battery less than 30% charged
4 = Battery flat of defective
5. Work light
1) It is convenient if you use lighting
function when working in a dark place.
2) Press the light button with arrow mark
to turn the light on and press the
work light button again to turn it off.
Work light will be automatically turned off 10 minutes after it has been turned on.
Operating Instructions
7
(1) Insert the plug of the charger in the socket, and the charging indicating lamp will be
flickered in green,red and yellow in turn within one second. And then, the battery
charger will be in the standby position.
(2) Insert the battery in the battery charger considering the polarity, and the charging will
be started immediately.
(3) When the battery working time is remarkably short despite full charging, the life of the
battery may be over. Replace the battery immediately.
1. How to charge the battery
Take care not to short-circuit the terminal of the battery. The short-circuit of the
terminal may cause a fire or explosion doing a serious personal injury.
A new battery will work properly after five times of charging and discharging.
Charge and discharge the battery, which is not used for a long time, for two to
three times to function well.
1) Charging indication
Green Blinks : Before charging
Red Lights : While charging
Green Lights : Charging completed
Red Blinks : Overheat standby
(Battery overheated)
Yellow Blinks : Charging impossible
2) If charging of the heated battery is attempted immediately after it has been used or
charged, indicator blinks in red (overheat standby). Also, cooling fan in the charger
automatically starts running to cool the hot battery down to normal temperature and,
after the cooling, indication changes to red glowing and charging begins.
3) This charger detects charge status and transfers to fine charging mode when the
battery has been almost fully charged and keeps the battery in full charge state.
2. Charging process
Use only the specified battery and battery charger. Otherwise battery and charger can
be damaged by fire, explosion, charging error or overheat.
Be sure to unplug the charger after finishing the charging.

16
█ Splinter guard should be used when trying to minimize tear-out and making
fine, finish cuts(with the right blade), especially when cutting finished Surfaces
(such as paint) or Veneer. Splinter guard should be installed into the base
(aluminum) or the base plastic cover.
Splinter guard
9. Anti-splinter insert
█HEX WRENCH STORAGE
1. Secure the supplied hex wrench at the bottom of the housing as shown. Push it into place.
2. Remove the hex wrench by pulling it free.
█ Align the adapter hook on the dust adapter with the hole on the rear of the base(aluminum),
then attach the dust adapter to the base(aluminum) as shown.
Attach to the dust adapter and vacuum cleaner hose, when cutting in dust-sensitive areas,
such as computer rooms and medical facilities, or elsewhere to keep the work area clean.
Adapter hook
Dust adapter
10. Dust extraction
11. Hex wrench storage
The blade of the saw cuts in an orbital motion. This feature is adjustable and provides faster,
more efficient cutting. The blade cuts through your work on the upstroke, but does not drag
across your work on the down stroke. The higher settings should be used when fast cutting
in soft material is desired. The lower settings should with more resistance.
The saw has a blower feature.
Turn the blower lever to the "O"
position to blow away dust and
clips from the immediate work
space to help keep the cutting
area clear.
Bevel-cutting angles may be adjusted
from 0° to 45° right or left. Angles for cuts
from 0° to 45° in 15° increments are
marked on a scale on both the left and
the right sides of the base. Notches on
the rear of the base provide positive
stops at each of the marked 15°
increments. Use of a pro-tractor is
recommended when accurate cuts are
required.
1. Using the hex key provid-ed, loosen the base pivot screw until the base can be moved.
2. Slide the base forward until the base pivot screw can move freely in the slots in base.
3. Align the mark corresponding to the desired angle on the base with the edge of the
motor housing.
4. Securely tighten the base pivot screw.
Orbital Control Lever
Blower Lever
6. Orbital motion
8. Bevel cutting
7. Sawdust removal
5. Return hex key to the storage structure.

17
█ Splinter guard should be used when trying to minimize tear-out and making
fine, finish cuts(with the right blade), especially when cutting finished Surfaces
(such as paint) or Veneer. Splinter guard should be installed into the base
(aluminum) or the base plastic cover.
Splinter guard
9. Anti-splinter insert
█HEX WRENCH STORAGE
1. Secure the supplied hex wrench at the bottom of the housing as shown. Push it into place.
2. Remove the hex wrench by pulling it free.
█ Align the adapter hook on the dust adapter with the hole on the rear of the base(aluminum),
then attach the dust adapter to the base(aluminum) as shown.
Attach to the dust adapter and vacuum cleaner hose, when cutting in dust-sensitive areas,
such as computer rooms and medical facilities, or elsewhere to keep the work area clean.
Adapter hook
Dust adapter
10. Dust extraction
11. Hex wrench storage
The blade of the saw cuts in an orbital motion. This feature is adjustable and provides faster,
more efficient cutting. The blade cuts through your work on the upstroke, but does not drag
across your work on the down stroke. The higher settings should be used when fast cutting
in soft material is desired. The lower settings should with more resistance.
The saw has a blower feature.
Turn the blower lever to the "O"
position to blow away dust and
clips from the immediate work
space to help keep the cutting
area clear.
Bevel-cutting angles may be adjusted
from 0° to 45° right or left. Angles for cuts
from 0° to 45° in 15° increments are
marked on a scale on both the left and
the right sides of the base. Notches on
the rear of the base provide positive
stops at each of the marked 15°
increments. Use of a pro-tractor is
recommended when accurate cuts are
required.
1. Using the hex key provid-ed, loosen the base pivot screw until the base can be moved.
2. Slide the base forward until the base pivot screw can move freely in the slots in base.
3. Align the mark corresponding to the desired angle on the base with the edge of the
motor housing.
4. Securely tighten the base pivot screw.
Orbital Control Lever
Blower Lever
6. Orbital motion
8. Bevel cutting
7. Sawdust removal
5. Return hex key to the storage structure.

18
Use of worn cutter blade may cause damage to motor and decrease work efficiency.
Compensate or replace with new cutter blade immediately.
1. Check cutter blade
Maintenance
8
Disconnect the plug from the power supply before making maintenance.
Use of extremely dull cutter blade may cause personal injury due to the
kickback during cutting operation. Replace the cutter blade that its cutting
performance is decreased with new one.
It is very dangerous for customers to troubleshoot or repair the tool for themselves.
Contact the nearest A/S center (sales agency) and request for a service.
3. What to do when the tool does not work normally
The tool and its accessories contain much raw materials and plastics that can be recycled
after their life. Therefore, plastic parts are indicated are indicated with their material types
so that they can be classified and recycled for each material type.
2. Environmental Protection
The repair shall be requested to the qualified electric specialist.
4. Y attachment cord
If the replacement of the supply cord is necessary. this has to be done by the
manufacturer or his agent in order to avoid a safety hazard.
1. STRAIGHT CUTTING
A straight cut can be made by clamping a piece of wood or a straightedge to the work
piece and guiding the edge of the tool against it. Make the cut from one direction only.
NEVER cut halfway and then complete the cut from the opposite end.
2. CUTTING CURVES
Curved cuts can be made with the saw by guiding the direction of the cut with
applied pressure on the handle.
3. PLUNGE CUTTING
1. Use only a blade with 7 teeth per inch to make a plunge cut.
2. Clearly mark the line of cut on the work piece.
3. Set the cutting angle to 0° and the orbital adjustment knob to 0.
4. Tilt the saw forward so that it rests on the front edge of the base and the blade will not
come in contact with the work piece when the saw is turned on.
5. Make sure that, when the blade is lowered onto the work piece, it will be inside
the area to be cut.
6. Using high speed, start the saw and slowly lower blade into the work piece until
the blade cuts through the wood.
7. Do not move the base forward until the blade has cut entirely through the work
piece and the base is in complete contact with the work piece.
8. Move the saw forward to complete the cut.
12. Cutting
To avoid loss of control, broken blades, or damage to the material
being cut, always use extreme caution.
We do not recommend making plunge cuts in materials other than wood.
■
To stop the saw, release the trigger switch and allow the tool to come to a complete stop.
The electric brake quickly stops the saw blade. This feature engages automatically when you
release the trigger switch.
13. Trigger switch

19
Use of worn cutter blade may cause damage to motor and decrease work efficiency.
Compensate or replace with new cutter blade immediately.
1. Check cutter blade
Maintenance
8
Disconnect the plug from the power supply before making maintenance.
Use of extremely dull cutter blade may cause personal injury due to the
kickback during cutting operation. Replace the cutter blade that its cutting
performance is decreased with new one.
It is very dangerous for customers to troubleshoot or repair the tool for themselves.
Contact the nearest A/S center (sales agency) and request for a service.
3. What to do when the tool does not work normally
The tool and its accessories contain much raw materials and plastics that can be recycled
after their life. Therefore, plastic parts are indicated are indicated with their material types
so that they can be classified and recycled for each material type.
2. Environmental Protection
The repair shall be requested to the qualified electric specialist.
4. Y attachment cord
If the replacement of the supply cord is necessary. this has to be done by the
manufacturer or his agent in order to avoid a safety hazard.

20
Disposal of Old Electrical & Electronic Equipment (Applicable in the European
Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be
treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be
caused by inappropriate waste handling of this product. The recycling of materials
will help to conserve natural resources. For more detailed information about recycling
of this product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.
