Fell Marine MOB Plus User manual

USER
GUIDE
MOB+ MULTIFOB
FELL Marine
2018
Designs, prices and features
subject to change.
To read the full user manual,
see video tutorials and other
useful information - visit:
WWW.FELLMARINE.COM

PEACE OF MIND
Freedom of movement
SAFE BOATING MADE SIMPLE
AWARD WINNING DESIGN
WORLD LEADING MOB DEVICE
MOB+ is the most recognized wireless MOB
system in the world. The system consists of an
easy to install HUB mounted in your boat and up
to four wearable FOBs. The FOBs communicate
wirelessly with the HUB. Four FOB’s can be
connected to the HUB at the same time, with
one unit acting as the captain’s stop unit, and
the additional three as alarm or stop units for
passengers.
WIRELESS MAN
OVERBOARD
DETECTION
AUTOMATIC ENGINE
EMERGENCY STOP
SECURE UP TO 4
PEOPLE ONBOARD
BE PROTECTED IN ALL
CONDITIONS
INNOVATING BOATING SAFETY
xFOB
xHUB
YOUR PERSONAL LIFEGUARD
-1972
Corded Lanyard
Falling overboard is one of the most
likely cause of death while boating
Traditional lanyard type cut-o switches are not
always used by boaters, resulting in a rising trend
in both injuries and fatal accidents. According to
USCG statistics almost 60% of all boat related
deaths in 2016 was caused by fall overboard.
WIRELESS BOATING
MOB+ sets a new standard
for wireless man overboard
devices and safety onboard.
MOB+ is developed to
provide 100% stability and
save you in just one second
should you fall over board.
A WIRELESS
REVOLUTION
Freedom of movement
Easy to use
Convenience
Good-looking and pioneering
-2018

PASSENGER PASSENGER
PILOT
PASSENGER
x
HUB
STOP FOB
- ALARM 1 - ALARM 2
ALARM 3
THREE ALARM FOBs: In addition to having the STOP FOB,
three additional xFOBs can be connected as ALARM FOBs
for family, children, dogs or other crew members onboard.
ALARM FUNCTION: If any of the ALARM FOBs falls
overboard the xHUB will sound the MOB Alarm, flashing on
the xFOB indication bar and flashing red on the light circle.
ALARM FOB
CONNECTION: The first connected xFOB on each boat trip
will be assigned as the ”Master” and become the STOP FOB.
MOB EVENT: The STOP FOB will automatically shut down
the engine if the pilot falls overboard.
MOB EVENT RESTART: After 6 seconds any remaining
passengers onboard can restart the engine without
interfering with the system.
STOP FOB
secure pilot and passengers
First Come, First Served: First connected xFOB becomes the STOP FOB. Successive
connections automatically becomes ALARM FOBs.
Universal FOBs: Use any universal xFOB with the same xHUB system, just pair and connect.
FOB Status Indication: The xHUB has four light bars indicating connected xFOBs.
Battery indication: Each xFOB has more than 300 hours battery life.
FIRST CONNECTION
STOP FOB
1
Connection
SEQUENCE
SECOND CONNECTION
ALARM FOB
2
THIRD CONNECTION
ALARM FOB
3
FOURTH CONNECTION
ALARM FOB
4
Out of range
If you get out of the wireless
range of MOB+, whether by falling
overboard in the water or walking
away from your boat on the docks,
the engine will stop.
In the water
Should you fall overboard the
MOB+ will stop the engine because
the wireless connection is lost
when submerged in over 4 inches
of water, even if you are still within
50 feet of your boat.
In the zone
As long as you stay within wireless
range you are free to drive your
boat and move about as you feel
like. Just relax as MOB+ cares for
you if a MOB event should occur.
STOP FOB
KILL SWITCH
ALARM 1
ALARM 2
ALARM 3

CONNECT AS PILOT DISCONNECT AS PILOT
ON OFF
To start each boating trip, connect with a simple click on your FOB to
connect as a Pilot. This will allow your engine(s) to start and you will
remain safe while being able to move about the boat.
www.fellmarine.com/mobintro
Disconnect with a simple click on your FOB. We recommend that you
disconnect the Pilot FOB before leaving the boat. Disconnecting while the
engine(s) are running will turn off the engine(s).
The normal FOB to HUB connection
will automatically time-out after 20h
and shut down your engine(s). This is to
prevent unnecessary battery drainage
of the xFOB battery. Click FOB again to
reconnect.
The Pilot FOB acts as a stop button to
shut down the engine(s) at any time.
While the Pilot FOB is connected, click
the button on the FOB to activate stop.
The same stop function can be activated
by clicking on the dash mounted HUB.
Before attempting to connect your
FOB(s), make sure the MOB+ HUB has
power. Typically the MOB+ is powered
from the main house battery. Turn the
boats Master Switch to ON
20h Time-Out Use FOB to stop engine Turn ON boat battery
Click & Release to
disconnect
STOP FOB
Disconnected
Automatic engine
stop
Shut down
ignition
Click & Release to
connect
STOP FOB
Connected
You can now start
your engine(s)
Safe to start
driving
Disconnecting the Pilot FOB (STOP FOB)
will disconnect all FOBs regardless of
their connected state and shut down the
engine(s).
Disconnect Stop FOB
ON
See an
introduction
video!

NEW FOB SETUP & sync
Pairing is only necessary the first time you use the system and not
necessary before each boating trip. Pairing is the first-time-use
procedure of synchronizing your FOBs unique IDs with your HUB to
allow the two to connect wirelessly.
3sec3sec
Press and hold
the button on
your HUB.
The HUB starts
flashing blue and
gives a sound
signal indicating
Pairing Mode.
Press and hold
the button on
your FOB
The HUB will give a
sound signal and a
green light to indicate
a successful pairing.
The HUB can store the ID of up to 20
unique FOBs at any given time. If pairing
more than 20 FOBs the system will start
overwriting the first stored FOB IDs. The
HUB will continue to remember the FOB
IDs even though the unit lose power.
Smart FOB memory
To use a particular FOB on multiple boats,
you need to repair the FOB for each time
the FOB is transferred to the new vessel.
The FOB only remember its last paired
HUB, this is to prevent it from connecting
to more than one HUB at the time.
One FOB, multiple boats
FOB MISSING - OVERRIDE
If you have lost your FOB or if it’s out of battery, you can always
override the system. Remember that when you override the
system you will NOT be protected in a man overboard situation.
In the unlikely event that the MOB+ Sys-
tem stops functioning. Unplug the xHUB
and plug the emergency cap into the
cable to be able to drive your boat. The
emergency cap is located on the cable
supplied with the MOB+ xHUB.
Emergency Cap
Override Mode automatically times out
after 8h and shuts down your engine(s)
to prevent engine start if the boat is
left unobserved. After time-out the
Override Mode can be reactivated as
shown above.
8h Time-Out
10sec
No FOB available Press and hold
the button on
your HUB for 10
seconds
Success! You can now start
your engine(s)

Connect AS passenger disConnect AS passenger
After the Pilot has connected his or hers FOB as a STOP FOB, connect
additional 3 FOBs as Alarm FOBs with a simple click on the passenger
FOBs.
Disconnect a passenger with a simple click on the appropriate passenger
FOB. The passenger can reconnect at any time as described on the
previous page.
Make sure to keep an overview of who
onboard you have connected with Alarm
FOBs. If you have selected to connect any
of the passenger FOBs as STOP FOBs,
make sure to disconnect them while the
engine is idle to avoid abrupt stops.
Connected passengers
Connect anyone
Disconnecting any Alarm FOB will not
shut down the engine(s). Connect or
disconnect an Alarm FOB at any time
while the Pilot FOB is connected.
Disconnect Alarm FOBs
Pilot
PASSENGER
PASSENGER
Click & Release to
connect
ALARM FOB
Connected
Success!
Pilot
PASSENGER PASSENGER
Success!
Click & Release to
disconnect
STOP FOB
Disconnected
The connected Pilot can configure a
passenger FOB to become an additional
Pilot FOB, allowing up to all 4 FOBs to
act as STOP FOBs. Press 3 sec on the
HUB before connecting an Alarm FOB.
See www.fellmarine.com/support
Multiple Pilot FOBs
Did you know that you can connect
just about anyone with a passenger
FOB. Connect your kids, wife or the
family dog while boating to keep them
safe from falling overboard.

PILOT OVERBOARD PASSENGER OVERBOARD
In a Man OverBoard event with the pilot FOB, the MOB+ will
automatically shut down the engine(s) and sound an alarm.
Man OverBoard Automatic engine
stop
dStart activated Restart engine(s)
without interacting
with the system
6sec
Passenger
OverBoard
Light and sound
ALARM
Acknowledge
ALARM
Rescue missing
person in the water
If a connected passenger FOB goes
overboard or out of range the HUB will
sound an alarm. To disconnect the alarm,
simply click the button on the HUB. The
passenger can at any time reconnect the
passenger FOB.
Disengage Alarm
MOB Mode automatically times out
after 2h shuts down your engine(s). This
is to prevent engine start if the boat is
left unobserved after leaving the boat
without disconnecting the xFOB.
2h Time-Out
6 seconds after an MOB event with a
STOP FOB, the MOB+ automatically
activates dStart to allow any remaining
passengers in the boat to restart the
engine(s) directly. The mode flashes
yellow and times out after 2 hours.
dStart
In a Man OverBoard event with a passenger FOB, the MOB+ will
automatically sound an alarm to notify the pilot driving.
The HUB has four blue bars on top
indicating the status for each connected
FOB. If a FOB goes overboard the light
circle will flash red simultaneously as the
respective FOB light bar flashes.
FOB indication

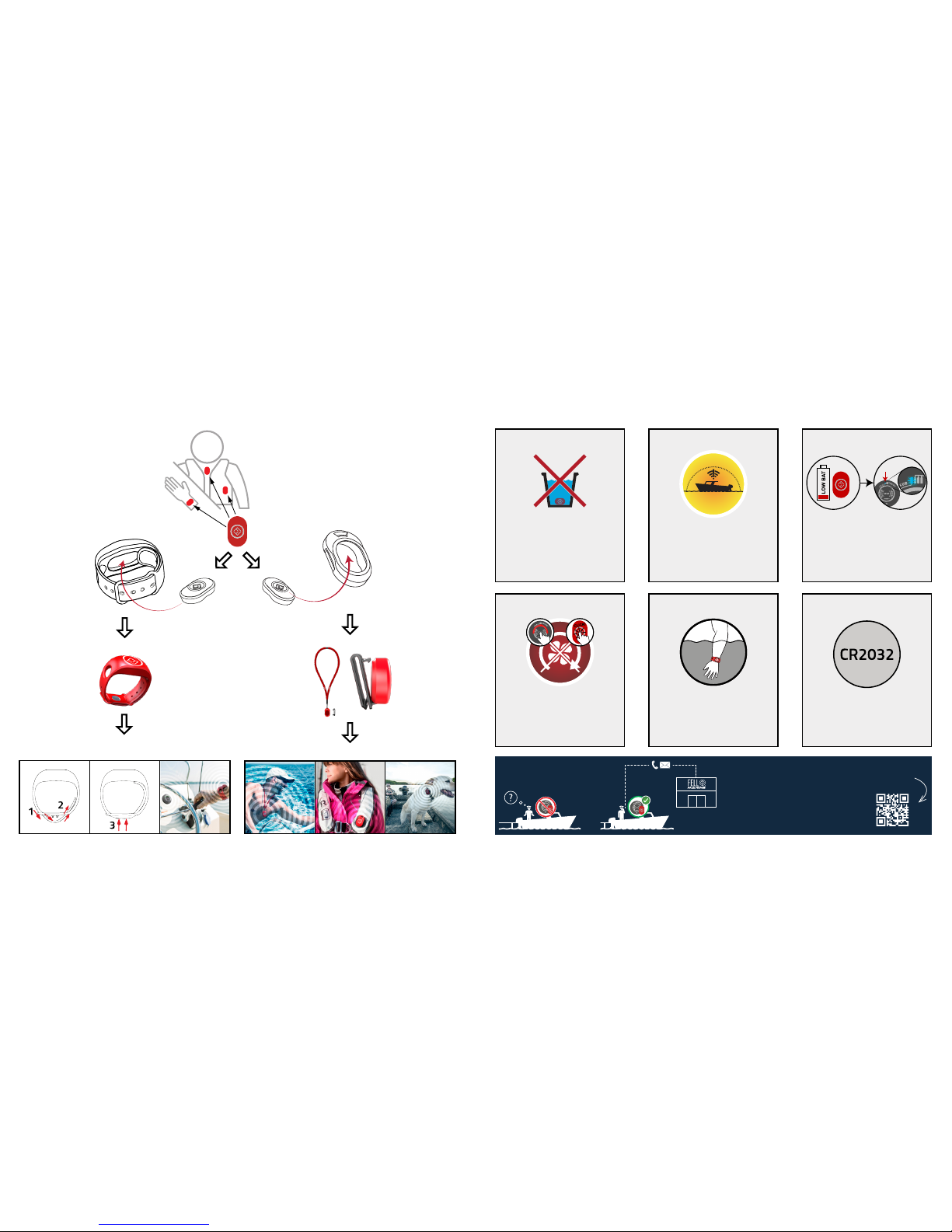

USEFUL INFORMATIONhow to wear
A bucket of water is not
sufficient to test the
functionality of MOB+.
Test the system in the sea
or ocean/lake.
MOB+ has a range of 50 ft
/ 15 m. The range my vary
as wireless signals may
be reflected from other
objects in vicinity.
The HUB will indicate
low battery on the FOB
by blinking the light
bar respective to the
connected FOB.
xBAND xtag
Testing submersion FOB range battery indication
emergency stop waterproof battery type
You can at any given time
(when connected) use the
button on the HUB or FOB as
an emergency engine stop.
The FOB is waterproof
down to 15ft/3m.
The HUB is waterproof
down to 5ft/1m.
FOB battery type: CR2032
*Available at most convenience stores
FOB battery life: 300h
Web: fellmarine.com/support
Email: [email protected]
Phone US: +1 855-683-FELL
Phone EU: [phone]
We are here to help
Please feel free to contact us with
any inquiry.
Need help?
Scan this!

External Antenna
Self-locking Nut
xFOB Connection Indicator
Pairing, Override
and Stop Button
Light and Sound Alarm
Internal Antenna
XFOBXHUB
xHUB will indicate low battery on the xFOB by blinking
the light bar respective to the connected xFOB.
xFOB Battery
Measurements and performance
Weight 164g / 5.8oz.
Housing material ASA / TPU / PBT / POM – RoHS
Temperature range From -15°C / 5°F to 55°C / 131°F
Voltage Source 10-32Vdc
Energy consumption
Active mode
2.5W max. at 13.8Vdc, Standby: <30mA, <0.4W max.
at 13.8V
Fuse 1A-3A
Alarm decibel level >85db
Kill Switch max electricity 8A continuously, 10A puls
Wireless performance
Frequency area EU: 868 MHz US: 915 MHz
RF signal (in) 10 dBm max.
RF signal (out) 10 dBm max.
4D Antenna diversity
Measurements and performance
Weight 10g / 0.35oz.
Housing material ASA / TPU / POM
Temperature range From -15°C / 5°F to 55°C / 131°F
Voltage Source Coin Cell Battery - 3V nominal
Power consumption 0.3 µA in sleep (0.00033 W) 30 mA in active mode (0.098W)
Battery life 300 hours continous usage
Wireless performance
Frequency area EU: 868 MHz US: 915 MHz
RF signal (in) 10 dBm max.
RF signal (out) 10 dBm max.
4D Antenna diversity
Battery xFOB
Battery type CR2032
Battery voltage 3V lithium battery
The MOB+ is tested and certified to meet all the
current standards – for your safety. ABYC A33 &
E-11 Compliant (US Emergency engine/propulsion
kill devices standard)
CERTIFICATIONS
Wireless US: FCC Part 15C EU: R&TTE - ETSI EN 300 220
EMC US: CISPR16 EU: EN 301 489
IP Grade xFOB™: IP68, xHUB™: IP67 EN60945
Materials RoHS (2002/95/EC)
Flammability IEC 60950 1&22
Web: fellmarine.com/support
Email: [email protected]
Phone US: +1 855-683-FELL
Phone EU: [phone]
We are here to help
Please feel free to contact us with
any inquiry.
On www.fellmarine.com/videos
you will find installation and user
guide videos.
WATCH VIDEOS!
