Fell Marine MOB Plus User manual

MAN OVER BOARD SEQUENCE
MAN OVER BOARD
WIRELESS MOB DETECTION
AUTO ENGINE STOP
If this is the first time you use the MOB+, visit
www.fellmarine.com/explore
To see install videos, demos, FAQs, online user manual and other
support material, visit:
www.fellmarine.com/support
Thank you for choosing MOB+!
Disconnect battery cables at battery before attemting to install this
product
Read all instructions carefully before use of this product.
FELL Marine equipment and accessories are designed to the best industry
standards for use in the recreational marine environment. Their design and
manufacture conforms to the appropriate Electromagnetic Compatibility
(EMC) regulations, but correct installation is required to ensure that
performance is not compromised. Please see section EMC Installation
Guidelines in the User Manual for optimum EMC conditions.
Within the wireless range MOB+ will not shut down the engine automatical-
ly e.g. if you fall in your boat within the wireless range the engine will not
stop automatically. In this event, you can shut down the engine by pressing
the button on your MOB+ xFOB or on the MOB+ xHUB. Always check your
wireless range before use.

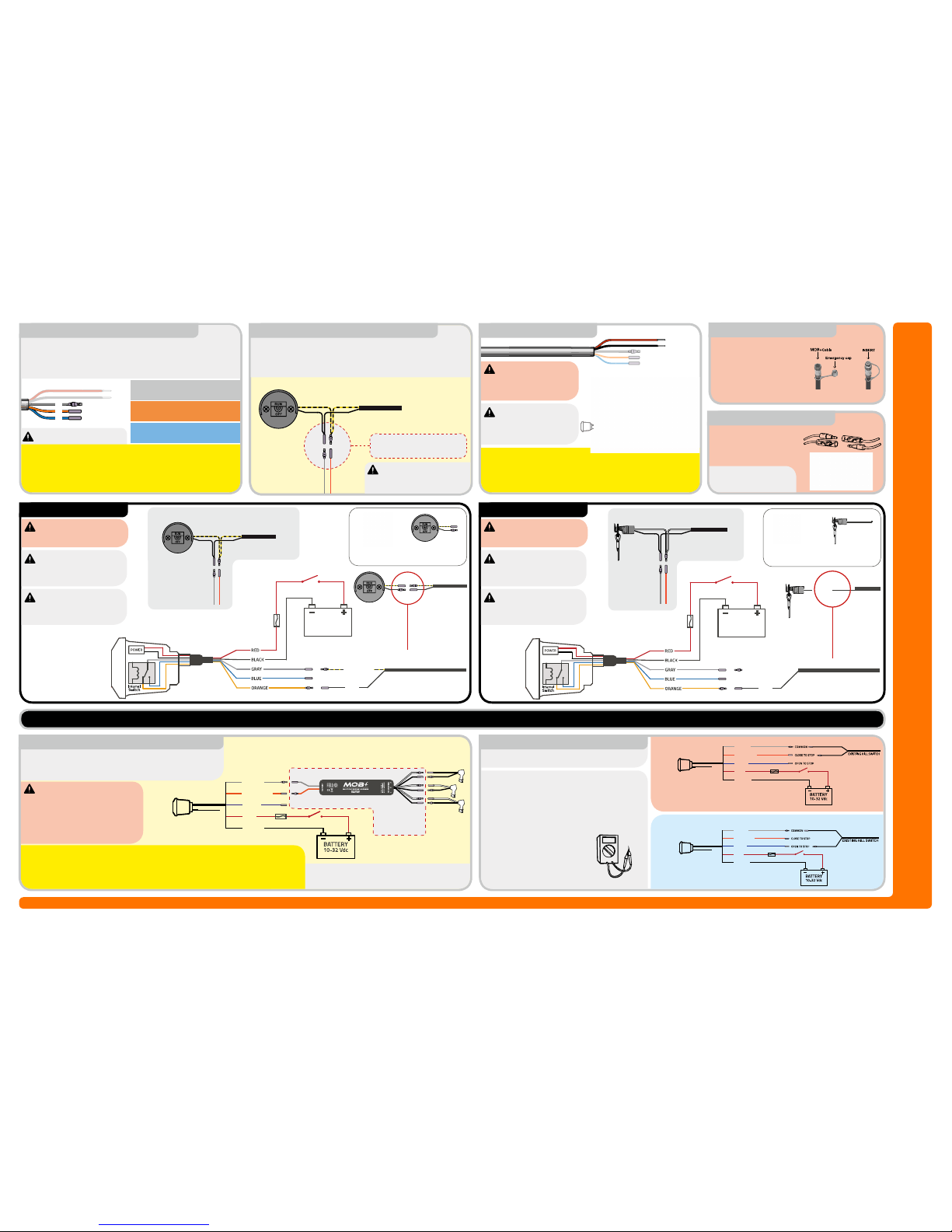

Installation
WARNING
The xFOB™ is waterproof down to 10 ft/3m and can be reused after
MOB event. After an MOB-event, the engine can easily be restarted by;
• dStart™ - 6 seconds after a MOB Event the system lets
passenger restart the engine to pick up the missing person in
the water. The engine can be started without reconnecting the
xFOB. No interaction with xHUB necessary.
• Reconnect with the xFOB by clicking once on the xFOB to
deactivate dStart™ and once more to connect.
IMPORTANT INFORMATION
11,5 mm
(0.45 inch)
44 mm
(1.7 inches)
28 mm
(1.1 inches)
Measurements and performance
Weight 10g / 0.35oz.
Housing material ASA / TPU / POM
Temperature range From -15°C / 5°F to 55°C / 131°F
Voltage Source Coin Cell Battery - 3V nominal
Power consumption 0.3 µA in sleep (0.00033 W) 30 mA in active mode (0.098W)
Battery life 300 hours continous usage
Wireless performance
Frequency area EU: 868 MHz US: 915 MHz
RF signal (in) 10 dBm max.
RF signal (out) 10 dBm max.
4D Antenna diversity
Battery xFOB
Battery type CR2032
Battery voltage 3V lithium battery
Certifications and compliance
Radio - xFOB EU: R&TTE, EN 300 328,
Maritime/CE
US: FCC Part 15C
EMC - xFOB EU: EN 301 489-01
(V1.9.2), Class A
US: CISPR 16-1
Flammability - xFOB IEC 60950 1&22, CE-UL94
Immersion xFOB IEC 60945, IP68, Maritime/CE - 3m / 10ft. water resistant
RoHS (2002/95/EC) compliant materials
ABYC A-33 compliant
Measurements and performance
Weight 164g / 5.8oz.
Housing material ASA / TPU / PBT / POM – RoHS
Temperature range From -15°C / 5°F to 55°C / 131°F
Voltage Source 10-32Vdc
Power consumption Active Mode: 180mA (2.5W max. at 13.8Vdc), Standby: <30mA,
<0.4W max. at 13.8V
Fuse 1A-3A
Alarm decibel level >85db
Kill Switch Relay Max Current Tolerance 5A continuously
Wireless performance
Frequency area EU: 868 MHz US: 915 MHz
RF signal (in) 10 dBm max.
RF signal (out) 10 dBm max.
4D Antenna diversity
Certifications and compliance
Radio - xHUB EU: R&TTE, EN 300 328,
Maritime/CE
US: FCC Part 15C
EMC - xHUB EU: EN 301 489-01
(V1.9.2), Class A
US: CISPR 16-1
Flammability - xFOB IEC 60950 1&22, CE-UL94
Immersion xFOB IEC 60945, IP68, Maritime/CE - 3m / 10ft. water resistant
RoHS (2002/95/EC) compliant materials
ABYC A-33 compliant
228 mm
(9 inches)
166 mm
(6.5 inches)
49 mm
1.9 inches)
66 mm
(2.6 inches)
62 mm
(2.45 inches)
52 mm
(2 inches)
17 mm
(0.7 inch)
• I already have an existing kill switch. Can I install MOB+™?
-Yes. MOB+ is installed using wires from your existing kill switch. Please see
installation guide for instructions
• I have a boat made from metal. Can I install MOB+?
-Actual signal reduction, if any, will vary from boat to boat. Should the signal
be noticeably worse, we recommend using an external antenna to put on the
top side of the helm, supplied from FELL Marine.
• Can passengers start the boat if I were to fall over board?
-Yes, this is one of the main features of MOB+. 6 seconds after a MOB
Event the system lets passenger restart the engine to pick up the missing
person in the water.
Click the button on your xFOB to connect.
CONNECT
Click the button on your xFOB™ to disconnect.
DISCONNECT
In the event that you forget your xFOB™ or if it´s
out of battery - don´t worry. You can easily override
MOB+™ by holding the button on the xHUB™ for 10
seconds. The xHUB will give a sound and a yellow
light signal to indicate Override Mode is activated so
you can start boating.
OVERRIDE MODE
dStart™
dStart™ is the direct restart feature in the MOB+™
system. 6 seconds after a MOB-Event the MOB+
lets any remaining passengers in the boat restart
the engine to pick you up in the water should a MOB
event occur. When you get back on board you can
reconnect by one click on the xFOB™.
The xHUB™ will give a sound signal and a red
light to indicate Disconnect.
The xHUB™ will give a sound signal and a green
light to indicate a successful connection.
It’s obvious, there’s no comparison with traditional corded lanyards. The
MOB+ is safer and easier to use. Just wear the xFOB™ as you want, and
click once when entering your boat for the next boating trip to connect.
That’s it!
MOB MODE
MOB Mode (Man Overboard Mode) is the safety mode of the system.
MOB+™ will automatically activate shut down of the engine when the
xFOB™ is submersed in 4 inches (10 cm) of water or travels out of range
from the xHUB™. After 6 seconds, the system automatically activates
Override Mode. In Override Mode any passenger or crew onboard can
restart he engine without the need to interact with the MOB+ system.
This allows for a quick recovery of the missing person in the water and
enhances safety.
FELL AS
Designs, manuals and features subject to change.
For more information visit our website:
www.fellmarine.com
Direct Restart
Drive
MOB
Makes it possible for
passengers to start
the engine 6 seconds
after a MOB incident
to quickly rescue the
person in the water
FREEDOM ONBOARD
Range up to 50 feet.
4D antenna diversity
ensures a robust
connection. Enjoy higher
seas and stronger
winds
Should you fall over
board the engine
will stop as you hit
the water
LEARN MORE AT: WWW.FELLMARINE.COM
TIME-OUT FUNCTIONS FAQs
ONE CLICK USER INTERFACE
TECHNICAL SPECIFICATIONS - xFOB™
TECHNICAL SPECIFICATIONS -xHUB™
CAUTION
Connected: 20h Time-Out: The normal xFOB to xHUB connection will
automatically time-out after 20h. This is to prevent unnecessary battery
drainage of the xFOB battery. Click xFOB again to reconnect.
Override Mode: 8h Time-Out: Override Mode automatically times out
after 8h to prevent engine start if the boat is left unobserved.
MOB Mode: 2h Time-Out: MOB Mode automatically times out after 2h.
This is to prevent engine start if the boat is left unobserved after leaving
the boat without disconnecting the xFOB.
MOBP17001
MOBP17002
MOBP17003
MOBP17004
MOBP17005
MOBP17006
MOBP17007
MOBP17008
MOBP17009

Disclaimer
Always boat responsibly. Before starting, know your boat and waterway rules. Always follow your
boat manufacturer’s procedures of operation. Never overload the boat and be sure to wear your
life jacket at all times. Check your boat for all required safety equipment and never operate a
boat under the inuence of alcohol. Check your local weather forecast before
leaving the dock and always provide a oat plan to your marina, member of your family or friend.
In no event shall FELL AS and its subsidiaries and/or its suppliers, agents or a󰀩liates be
liable for any direct, indirect, punitive, incidental, special consequential damages, to property or
life, whatsoever arising out of or connected with the improper installation, misuse,
improper maintenance, self-repair, or tampering of our products.
EMC Installation Guidelines
FELL equipment and accessories are designed to the best industry standards for use in the
recreational marine environment. Their design and manufacture conforms to the appropriate
Electromagnetic Compatibility (EMC) regulations, but correct installation is required to ensure
that performance is not compromised.
The guidelines given here describe the conditions for optimum EMC performance, but it is recog-
nized that it may not be possible to meet all of these conditions in all situations. To ensure the
best possible conditions for EMC performance within the constraints imposed by any location,
always ensure the maximum separation possible between di󰀨erent items of electrical equipment.
For optimum EMC performance, it is recommended that wherever possible:
• FELL equipment and the cables connected to it are:
• At least 3 ft (1 m) from any equipment transmitting or cables carrying radio signals e.g. VHF
radios, cables and antennas. In the case of SSB radios, the distance should be increased to
7 ft (2 m).
• More than 7 ft (2 m) from the path of a radar beam. A radar beam can normally be assumed to
spread 20 degrees above and below the radiating element.
• If possible the product is supplied from a separate battery from that used for engine start.
Power supply voltages below the minimum specied for a product, and starter motor transients,
can cause the product to reset. This will not damage the product, but may cause the loss of
some information and may change the operating mode.
• FELL specied cables are used. Cutting and rejoining these cables can compromise EMC
performance and must be avoided unless doing so is detailed in the installation manual.
Important information and caution
Read all instructions carefully before use of this product.
FELL Marine equipment and accessories are designed to the best industry standards for use in
the recreational marine environment. Their design and manufacture conforms to the appropriate
Electromagnetic Compatibility (EMC) regulations, but correct installation is required to ensure
that performance is not compromised. Please see section EMC Installation Guidelines in the
User Manual for optimum EMC conditions.
Within the wireless range MOB+ will not shut down the engine automatically e.g. if you fall in
your boat within the wireless range the engine will not stop automatically. In this event, you
can shut down the engine by pressing the button on your MOB+ xFOB or on the MOB+ xHUB.
Always check your wireless range before use.
Make sure that the system is working properly before leaving the dock. Refer to the section
Using WiMEA in the User Manual for instructions on how to use the system and information
about normal system operations.
Always make sure to check the battery level sign on the xHUB before driving the boat. Confer
with section Battery Indication in the User Manual to check how many hours there are left of
battery life on the xFOB.
Never attempt fast speed or dangerous maneuvers of the boat, especially if battery level is low
on the xFOB. Battery depletion of xFOB can cause sudden engine stop and result in loss of
control or maneuverability of the boat.
Never attempt any service of inside components in either the xHUB or the xFOB.
Warranty, Important Product- and Safety Information
Failure to avoid the following potentially hazardous situations could result in an accident or
collision resulting in death or serious injury.
Disclaimer
By using this device you agree upon all the following guidelines and information provided in
this document. Read all instructions carefully before using this device. Always boat responsibly.
Before starting, know your boat and waterway rules. Always follow your boat manufacturer’s
procedures of operation. Never overload the boat and be sure to wear your life jacket at all
times. Check your boat for all required safety equipment and never operate a boat under the
inuence of alcohol. Check your local weather forecast before leaving the dock and always
provide a oat plan to your marina, member of your family or friend. In no event shall FELL and
its subsidiaries and/or its suppliers, agents or a󰀩liates be liable for any direct, indirect, punitive,
incidental, special consequential damages, to property or life, whatsoever arising out of or
connected with the improper installation, use, misuse, improper maintenance, self-repair, or
tampering of our products.
Marine Operation Warnings
• You are responsible for the safe and prudent operation of your vessel. This device is
a tool to enable you to enhance your safety while operating your vessel. It does not
relieve you from the responsibility of safely operating your vessel. Avoid navigational
hazards and never leave the helm unattended.
• Always drive the boat carefully and in accordance with local laws.
• Use this device only as a safety aid. This device does not replace the cord based kill
switch, and should be used at your own discretion and responsibility, knowing that
in the event that you fall in your vessel the system may not automatically shut down
your engine.
• This device will shut down your engine and give an alarm signal when you are out of
wireless range or falls into the water within 2 seconds. Within the wireless range this
device will not shut down the engine automatically e.g. if you fall in your boat within the
wireless range the engine will not stop automatically. In this event, you can shut down
the engine by pressing the button on your MOB+ xFOB or on the MOB+ xHUB. Always
check your wireless range before use. The wireless range may vary from 5 – 20 meters
depending on the wireless environment surrounding your vessel.
• Make sure that the system is working properly before leaving the dock. Refer to the
section Using MOB+ in the User Manual for instructions on how to use the system and
information about normal system operations.
• Always make sure to check the battery level sign on the xHUB before operating your
vessel. Confer with section Battery Indication in the User Manual to check how many
hours there are left of battery life on the xFOB.
• Never attempt fast speed or dangerous maneuvers of the boat, especially if battery
level is low on the xFOB. Battery depletion of xFOB can cause sudden engine stop and
result in loss of control or maneuverability of the boat.
• Do not leave your xFOB in the boat unobserved, this to prevent easy theft of the boat
if the ignition key is also situated in the vessel. Please refer to the engine manufacturer
for information regarding ignition and starting procedure of the engine.
Other safety Considerations
Small parts contained in your device and its accessories may present a choking hazard to small
children. Personal medical devices, such as pacemakers, may be sensitive to magnetic and
electromagnetic elds. Since this device contain magnets and emit electromagnetic elds, they
should be kept at least 30 cm from any personal medical device. If any interference is observed,
consult with your physician before resuming use. Items with magnetically-stored data, such as
credit cards and hard drives, may also be sensitive to magnetic or electromagnetic elds, and
should not be placed near this device.
CE Declaration of Conformity
FELL equipment and accessories are designed to the best industry standards for use in the
recreational marine environment. Their design and manufacture conforms to the appropriate
Electromagnetic Compatibility (EMC) regulations, but correct installation is required to ensure
that performance is not compromised. Please see section EMC Installation Guidelines in the
User Manual for optimum EMC conditions. Products sold in the EU/EEA is in compliance with the
essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC.
CE SAR Compliance
This device meets the EU requirements (1999/519/EC) on the limitation of exposure of the
general public to electromagnetic elds by way of health protection. The limits are part of
extensive recommendations for the protection of the general public. These recommendations
have been developed and checked by independent scientic organizations through regular and
thorough evaluations of scientic studies. The unit of measurement for the European Council’s
recommended limit for mobile devices is the ”Specic Absorption Rate” (SAR), and the SAR
limit is 2.0 W/ kg averaged over 10 gram of tissue. It meets the requirements of the International
Commission on Non-Ionizing Radiation Protection (ICNIRP).
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Note:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
o󰀨 and on, the user is encouraged to try to correct the interference by one or more of the
following measures: Reorient or relocate the receiving antenna, Increase the separation between
the equipment and receiver, Connect the equipment into an outlet on a circuit di󰀨erent from that
to which the receiver is connected, Consult the dealer or an experienced radio/TV technician for
help. MOB+ xHUB: This device complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. The antenna used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter. MOB+ xFOB: This device is exempted from
FCC SAR testing since the RF Output Power is below the exemption limit.
Wireless Safety and Compliance
Turn your wireless connection o󰀨 in areas where wireless use is forbidden or when it may cause
interference or danger. Some specic situations are described below. In general, you should not
use your FELL devices with your wireless connection turned on any place you are not allowed
to use a cellular device. To prevent possible interference with aircraft systems, aviation agencies
require you to have permission from a crewmember to use your device’s wireless service. We do
not recommend to use FELL devices when ying.
Battery Information
Standard battery used in this device from manufacturing is:
Panasonic – BCG BATTERY LITHIUM COIN 3V 20MM CR2032. Lead free / RoHS compliant
by exemption.
Manufacturer Part Number: CR2032L/BE.
Panasonic CR2032L/BE Specication Datasheet for battery can be found here: https://s3-eu-
west-1.amazonaws.com/generalweb/productinfo/panasonic_cr2032_datasheet.pdf
Panasonic CR2032L/BE MSDS Safety Datasheet can be found here: https://s3-eu-west-1.
amazonaws.com/generalweb/productinfo/panasonic_cr2032_productsafety.pdf
FELL recommend using the above battery when changing battery in MOB+ xFOB device, to
ensure wireless connection quality and battery life performance.
Recycling
In some areas, the disposal of certain electronic devices is regulated. Make sure you dispose of
or recycle all FELL devices in accordance with your local laws and regulations.
Other Electronic Devices
FELL devices generates, uses, and radiate radio frequency (RF) energy and, if not used in
accordance with its instructions, may cause interference to radio communications and electronic
equipment, i.e. if hardware or software is being tampered with or the device has become broken.
FELL devices are designed and manufactured to only communicate with FELL devices. External
RF signals may a󰀨ect improperly installed or inadequately shielded electronic operating systems,
entertainment systems, and personal medical devices. While most modern electronic equipment
is shielded from external RF signals, if in doubt, check with the manufacturer or contact FELL
for support. For personal medical devices (such as pacemakers and hearing aids), consult with
your physician or the manufacturer to determine if they are adequately shielded from external
RF signals, showing this user guide to the respective physician or manufacturer. In the unlikely
event that you experience interference with other electronic devices, please contact customer
support on: www.fellmarine.com/support or contact the manufacturer of the respective electronic
device. There are some places where RF signals could constitute a hazard, such as health care
facilities, and construction sites. If you are not sure, look around for signs indicating that two-
way radios or cell phones should be turned o󰀨.
Patent notice
The FELL devices and/or methods used in association with the FELL devices may be covered by
one or more patents or pending patent applications.
Limited Warranty
This FELL product is warranted to be free from defects in materials or workmanship for two years
from the date of purchase. Within this period, FELL will, at its sole option, repair or replace any
components that fail in normal use. Such repairs or replacements will be made at no charge to the
customer for parts or labor, provided that the customer shall be responsible for any transportation
cost. This warranty does not apply to: (i) cosmetic change, such as scratches, nicks and dents;
(ii) consumable parts, such as batteries, unless product damage has occured due to the defect in
materials or workmanship; (iii) damage caused by accident, abuse, misuse, water, ood, re, or
other acts of nature or external causes; (iv) damage caused by service performed by anyone who
is not an authorized service provider of FELL, or (v) damage to a product that has been modied or
altered without the written permission of FELL, or (vi) damage to a product that has been connected
to power and/or data cables that are not supplied by FELL. In addition, FELL reserves the right to
refuse warranty claims against products or services that are obtained and/or used in contravention
of the laws of any country. Repairs have 180 day warranty. If the unit sent in is still under its
original warranty, then the new warranty is 180 days or to the end of the original two year warranty,
depending on which is longer. For specic instructions about how to obtain warranty service for your
device, please contact FELL support. THE WARRANTIES AND REMEDIES CONTAINED HEREIN
ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS, IMPLIED, OR STATU-
TORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE/COUNTRY TO STATE/
COUNTRY. IN NO EVENT SHALL FELL, ITS SHAREHOLDERS, BOARD OF DIRECTORS, OR
EXECUTIVE LEADERS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSE-
QUENTIAL DAMAGES, WHETER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE
THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. SOME STATES/COUNTRIES DO NOT
ALLOW THE EXCLUSION OF INCIDENTIAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU. SOME JURISDICTIONS DO NOT ALLOW LIMITATIONS
ON HOW LONG A STATUTORY OR IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION
MAY NOT APPLY TO YOU. This limited warranty gives you specic rights. You may have additional
rights under applicable law, and this limited warranty does not a󰀨ect such rights. FELL retains
the exclusive right to repair or replace (with a new or newly-overhauled replacement product) the
device or software or o󰀨er a full refund of the purchase price at its sole discretion. SUCH REMEDY
SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY. To
obtain warranty service, contact your local FELL authorized dealer or call FELL Support for shipping
instructions and an Return Ticket Number. Securely pack the device and a copy of the original sales
receipt, which is required as the proof of purchase for warranty repairs. Write the tracking number
clearly on the outside of the package. Send the device, freight charges prepaid, to your nearest
FELL address. See www.fellmarine.com to nd your nearest address for return or contact your local
FELL dealer.
ONLINE AUCTION PURCHASES: Products purchased through online auctions are not eligible for
rebates or other special o󰀨ers from FELL warranty coverage. Online auction conrmations are not
accepted for warranty verication. To obtain warranty service, an original or copy of the sales receipt
from the original retailer is required. FELL will not replace missing components from any package
purchased through an online auction.
FOR INTERNATIONAL PURCHASES: A separate warranty may be provided by international
distributors for devices purchased outside Norway or the United States depending on country. If
applicable, this warranty is provided by the local in-country distributor and this distributor provides
local service for your device. Distributor warranties are only valid in the area of intended distribution.
FOR AUSTRALIAN CONSUMERS: Our goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure. Goods presented for repair may be replaced by refurbished goods of
the same type rather than being repaired. Refurbished parts may be used to repair the goods.
Warranty provider
FELL AS Nedre Storgate 46, N-3015 Drammen,Norway
Org.No: 912 282 554 - Website: www.fellmarine.com - Tel: [phone]
Support: [email protected]
Additional information
www.fellmarine.com
www.fellmarine.com/support
© FELL AS, Nedre Storgate 46, N-3015, Drammen, Norway. FELL®, WiMEA®, WiMEA Protocol,
MOB+, xHUB, xFOB, xTAG and its logos are trademarks of FELLAS, its subsidiaries and
a󰀩liates. The shape and design of this product are a trademark of FELL AS, subsidiaries and
a󰀩liates. NMEA®, NMEA 2000®, and the NMEA 2000 logo are registered trademarks of the
National Marine Electronics Association. All other trademarks or registered trademarks are the
property of their respective owners. Designed in Norway. Made in China and Taiwan. All rights
reserved. Product features, appearances and specications may be subject to change without
notice. Read all instructions carefully before use. Visit www.fellmarine.com/support for complete
Owner’s Manual. Pleaseretain this information for future reference.
Changes or modications to the equipment not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o󰀨 and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
MOB+ xHUB: This device complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. The antenna used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
MOB+ xFOB: This device is exempted from FCC SAR testing since the RF Output Power is
below the exemption limit.
California ONLY: Perchlorate Material - special handling may apply,
See: http://www.dtsc.ca.gov/hazardouswaste/perchlorate
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20
cm de distance entre la source de rayonnement et votre corps.
Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environ-
ment. This equipment should be installed and operated with minimum distance 20 cm between
the radiator & your body.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation
of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes
: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
WARNING: CHOKING HAZARD
Small parts. Not for children under 3 years
Norway
FELL AS
Nedre Storgate 46
N-3015, Drammen
www.fellmarine.com
[email protected]
MOB+ xFOB Model: GU90115 FCC ID: 2AFOZGU90115 IC: 20622-GU90115
MOB+ xHUB Model: BU90115 FCC ID: 2AFOZBU90115 IC: 20622-BU90115
Product contains CR2032 Lithium-ion Coin Cell Battery
Product category: Marine electronics
Designed in Norway, Printed in China
Tested to comply with FCC standards.
Package contents: MOB+ xHUB, MOB+ xFOB, External Antenna, Connection Cable, Butt
splices, Battery and User Guide.
Voir www.fellmarine.com/support pour des informations
importantes, consignes d’installation CEM, la garantie et exclusions
en français.
Ver www.fellmarine.com/support para obtener información importante,
pautas para la instalación de EMC la garantía y limitaciones de
responsabilidad en Español.
Siehe www.fellmarine.com/support für wichtige Informationen,
EMV-Installationsrichtlinien Gewährleistung und Haftungsausschlüsse
in deutscher Sprache.

To ensure that the connection is correct, we recommend testing
the system before it is put into service. There are three simple
steps as described below:
After proper installation, pair the xFOB and the xHUB as
described below. The xHUB remembers the 20 last paired
xFOBs. Pairing saves the ID of xFOBs in the memory of the
xHUB. Pairing is only done the rst time you use an xFOB with
an xHUB. Remember, only one xFOB can be connected to an
xHUB at the time acting as a kill switch.
Pairing is only necessary the rst time you use
your MOB+™. Press and hold the button on your
xHUB™.
HOLD 3 SEC
Click the button on your xFOB to connect.
CONNECT
Start your engine.
START ENGINE
Now you can try and stop your engine in two
separate ways.
Both described methods are equal in terms of
testing stop functionality.
TEST THE MOB+
Immediately after releasing the button on the
xHUB™, press and hold the button on your
xFOB™.
HOLD 3 SEC
Click the button on your xFOB to connect.
CONNECT
2 3
Click the xFOB to stop the engine
-The system will now shut down the engine and disconnect the wireless system.
DISCONNECT
Submerge the xFOB in the sea or the ocean more than 4 inches.
-The system will now go into ManOverBoard mode and shut down the engine.
After 6 seconds the xHUB will go into override mode. Press the xHUB or xFOB
to disconnect the wireless system.
SUBMERSION
1
2A bucket of water
is not su󰀩cient to
test the functionality
of MOB+. Test the
system in the sea or
ocean/lake.
Release the button when the xHUB™ starts
ashing blue and gives a sound signal indicating
Pairing Mode.
BLUE LIGHT
The xHUB™ will give a sound signal and a green
light to indicate a successfull pairing.
GREEN LIGHT
The xHUB™ will give a sound signal and a green
light to indicate a successful connection.
CONNECTED
PAIRING VERIFY INSTALLATION EMC GUIDELINES
DRILLING THE HOLE
SUPPORT
IMPORTANT
We recommend that the installation of the
MOB+ in your boat is performed by skilled
personnel familiar with electric wiring, or by
a professional mechanic or electrician. This
is to prevent any malfunction of the device
related to installation.
!
INSTALLING MOB+ IN A METAL BOAT
xFOB BATTERY
If your helm is made out of conducting materials the wireless signals from
MOB+ may be degraded. The amount of signal degradation experienced
may vary from across boats and must be tested for each case. If the signal
is very poor you can install a separate external antenna outside of your
helm to increase the signal strength. Please contact FELL support at www.
fellmarine.com/support for more information.
xHUB battery symbol displays the battery status
of the connected xFOB. Each bar respectively
indicates 10 %, 40 %, 70 % and 100 % of battery
life. xFOB battery life: 300h active use. Change the
battery within 15 hours when the last bar blinks on
the battery indicator.
FELL recommends using Panasonic or Sony
CR2032 coin cell batteries.
The installation is simple and below you will nd a
quick guide. See next page for wiring instructions.
For more information, visit our website
www.fellmarine.com/support
YOUR ENGINE
Visit:
www.fellmarine.com/support
to nd wire diagram for your
engine.
Connect the signal wires to the
existing kill switch wires and the
power wires to power.
YOUR ENGINE
Drill a 2-1/16” / 52mm hole in a
suitable place adjacent to the
drivers position.
2-1/16” / 52MM HOLE
Insert the xHUB™ to the pre-
drilled hole and tighten the nut.
MOUNT xHUB
Connect the cables and the
antenna to the xHUB™.
CABLE & ANTENNA
!
Place the xHUB with the
antenna at least
~ 10” / 30cm from other
electronics equipment
transmitting EMI. The
antenna should be in as free
space as possible, but where
necesssary it can be bent up
to 45 degrees.
1
INSTALLATION
IF YOU HAVE MULTIPLE ENGINES: SEE BELOW
RECONNECT AND RESTART THE ENGINE BEFORE TESTING SUBMERSION
The guidelines given here describe the conditions for optimum EMC
performance, but it is recognized that it may not be possible to meet all of
these conditions in all situations. To ensure the best possible conditions
for EMC performance within the constraints imposed by any location,
always ensure the maximum separation possible between di󰀨erent items
of electrical equipment.
For optimum EMC performance, it is recommended that wherever
possible:
FELL equipment and the cables connected to it are:
• At least 3 ft (1 m) from any equipment transmitting or cables
carrying radio signals e.g. VHF radios, cables and antennas.
In the case of SSB radios, the distance should be increased
to 7 ft (2 m).
• More than 7 ft (2 m) from the path of a radar beam. A radar
beam can normally be assumed to spread 20 degrees above
and below the radiating element.
• If possible the product is supplied from a separate battery
from that used for engine start. Power supply voltages
below the minimum specied 7V power source, and starter
motor transients, can cause the product to reset. This will
not damage the product, but may cause inability to start the
engine.
• FELL specied cables are used. Cutting and rejoining these
cables can compromise EMC performance and must be
avoided unless doing so is detailed in the installation manual.
GENERAL USE AND INSTALLATION SECTION
The xHUB measures
Ø=51,5mm / 2.03 in
Drill a 52mm / 2-1/16” hole
Be sure not to drill through any existing
cables or equipment mounted or situated
on the backside of your intended xHUB
position!
On www.fellmarine.com/videos you will nd
installation and user guide videos.
WATCH VIDEOS!
Please feel free to contact us with any inquiry.
WE ARE HERE TO HELP YOU
Customer care:
Business hours:
Email:
Web support:
Social Media:
Web:
www.fellmarine.com/customer-care
Monday-Friday 08:00am – 04:00 pm
[email protected]
https://www.fellmarine.com/support/
facebook.com/fellmarine
https://www.fellmarine.com
10% 40% 70% 100%
Battery Life:
300h Active Use
The xHUB™ will give a sound signal and
a GREEN light to indicate a successful
connection.
MOBP17010 MOBP17011 MOBP17012
MOBP17013
MOBP17014
MOBP17015

MOB+ MULTIPLE ENGINE HARNESS (MOB+ MEH) CLOSE TO STOP / OPEN TO STOP
YAMAHA
EMERGENCY CAP
MERCURY
*The wire connections are the same for the external kill
switch and kill switch mounted in the throttle casing.
Battery
Close to Stop
Main Power Switch
Fuse
1-3 A 10 - 32 VDC
From existing Kill Switch
Black/Yellow
Black
Switch position in inactive
mode e.g. engine not
running.
5-pin IP67
Connector
Max Internal Switch load: <5A
Min. Power Voltage: 7V
-Below this voltage the unit will turn o.
Main Power Switch
R E D
BLA C K
G R A Y
B L U E
O R ANG E
Fuse 1A
Main Power Switch
R E D
BLA C K
G R A Y
B L U E
O R ANG E
Fuse 1A
R E D
BLA C K
G R A Y
B L U E
O R ANG E
Fuse 1A Main Power Switch
COLOR ID:
White = Signal
Black = Ground
FOR OTHER ENGINE BRANDS SEE WWW.FELLMARINE.COM/SUPPORT
WATERPROOF CONNECTIONS
Make sure that all wire
connections are waterproof by
using marine grade butt splices
or similar when connecting
wires.
20-16 AWG / 0.5 - 1.5 mm2
In the unlikely event that the
MOB+ System stops functi-
oning. Unplug the xHUB and
plug the emergency cap into
the cable to be able to drive
your boat. The emergency cap
is located on the cable supplied
with the MOB+ xHUB.
KEEP EXISTING OR MULTIPLE KILL SWITCH(ES)
Install the MOB+ inline with your existing kill switch or inline with multiple
kill switches by connecting it in parallel (e.g. multiple helm positions with
separate kill switches). The below picture shows an example with Close to
Stop connection as on Mercury engines.
To xHUB
To engine harness
To engine harness
To xHUB
Paralell
Connection
CONNECTING KILL SWITCH SIGNAL WIRES
The engine signal wires on MOB+ xHUB consists of three wires. Only two
of the three wires should be used when installing MOB+. Connect the two
signal wires to the existing kill switch wires in your boat. The most common
connection is Grey and Orange (CS).
See wiring diagram below.
Before connecting the xHUB Signal wires, you must verify which kill
switch principle is used by your engine manufacturer.
After installation, verify functionality as in step 3 ”Verify
Installation” above.
!
!
CONNECTING POWER (+/-)
Make sure that all wire connections are
waterproof by using marine grade butt
splices or similar when connecting wires. Min. Voltage: 7V - Below this voltage the unit will turn o󰀨
and you will not be able to start your engine.
Max. Voltage: 32V Do not exceed this voltage because this can
damage the MOB+ xHUB and void the warranty.
!
To MOB+ xHUB
Boat ground
1-3 A fuse
To 10 - 32 Vdc
boat supply
Common (CMN) – Grey – Always used
when connecting MOB+, independent if the
system is Open to Stop or Close to Stop.
Close to stop (CS) – Orange –
Used when your existing system is a
Close to stop kill switch system.
Open to stop (OS) – Blue – Used
when your existing system is an Open
to stop kill switch system.
Kill Switch Relay Max Current Tolerance:
5A continuously
1
2
3
CMN (Common)
OS (Close to Stop)
CS (Open to Stop)
1
2
3
POWER WIRES (+/-)
POWER (+)
GROUND (-)
FROM xHUB
*Multiple Engine Harness kit includes User Manual, please
read this carefully before installing this product.
Part name: MOB+ Multiple Engine Harness
P/N: (F-A/N): 72.380.401
Availability: FELL Marine dealers and buy.fellmarine.com
For multiple outboard installations, the black (-) battery cable of each engines starter motor
ground circuit, MUST BE connected to each other by a common circuit (cable) capable of
carrying the starting current of each engines starter motor. (i.e. A locally obtained battery cable
connected between the negative (-) terminal of each outboards cranking battery.)
CAUTION
WIRING SECTION
All inline kill switches must be in ON
position and the MOB+ must be con-
nected to allow the engine(s) to run.
NOTICE
Wire the xHUB to a circuit with a power
switch to avoid battery drainage. The xHUB
has a power draw of 30mA in idle mode
while connected to a power source.
RECOMMENDED
Poor power connection may cause
voltage drop below 7V e.g. when engine
is cranked. This may cause xHUB to reset
and inhibit engine start.
IMPORTANT
Splice Wire Dimension:
Inline with existing kill switch:
To engine harness
To xHUB
Paralell
Connection
Inline with existing kill switch:
*The wire connections are the same for the external kill
switch and kill switch mounted in the throttle casing.
Battery
Close to Stop
Main Power Switch
Fuse
1-3 A 10 - 32 VDC
From existing Kill Switch
Black/Yellow
Black
Switch position in inactive
mode e.g. engine not
running.
Max Internal Switch load: <5A
Min. Power Voltage: 7V
-Below this voltage the unit will turn o.
5-pin IP67
Connector
RECOMMENDED
Keep original kill switch in place. Connect
MOB+ inline in parallel with original kill
switch wiring using marine grade splices.
RECOMMENDED
Make sure that all wire connections are
waterproof by using marine grade butt
splices or similar when connecting wires.
Avoid cutting or modifying original kill switch
wiring
IMPORTANT
This product is designed to be used in conjunction with the MOB+
xHUB to stop multiple engines simultaniously for multiple outboard
installations. The MOB+ xHUB should be installed prior to installation
of this Multiple Engine Harness.
General wiring diagrams showing wiring connections
for Close to Stop and Open to Stop kill switch principle.
IMPORTANT
Testing your kill switch principle
CLOSE TO STOP
OPEN TO STOP
- WHITE wire on MOB+ MEH is signal wire; each
engines signal wire must be connected to the
WHITE wire on the MOB+ MEH.
- BLACK wire on the MOB+ MEH is GND wire; each
engines GND wire must be connected to the BLACK
wire on the MOB+ MEH.
- Connect WHITE and BLACK wires in pairs as
bundled on the MEH kit.
RECOMMENDED
Keep original kill switch in place. Connect
MOB+ inline in parallel with original kill
switch wiring using marine grade splices.
RECOMMENDED
Make sure that all wire connections are
waterproof by using marine grade butt
splices or similar when connecting wires.
Avoid cutting or modifying original kill switch
wiring
IMPORTANT
Test the kill switch principle by connecting a multimeter
to both cables from the existing mechanical kill switch.
Make sure the multimeter is set to measure resistance
and that the cord is not attached to the mechanical kill
switch, meaning the kill switch is in the position which
the engine will not run.
Innite resistance measured:
Open to stop (OS)
Close to 0 (zero) resistance:
Close to stop (CS)
MOB+ xHUB MOB+ xHUB
MOBP17016
MOBP17017
MOBP17018 MOBP17019
MOBP17020
MOBP17021 MOBP17022
MOBP17023 MOBP17024
MOBP17025
