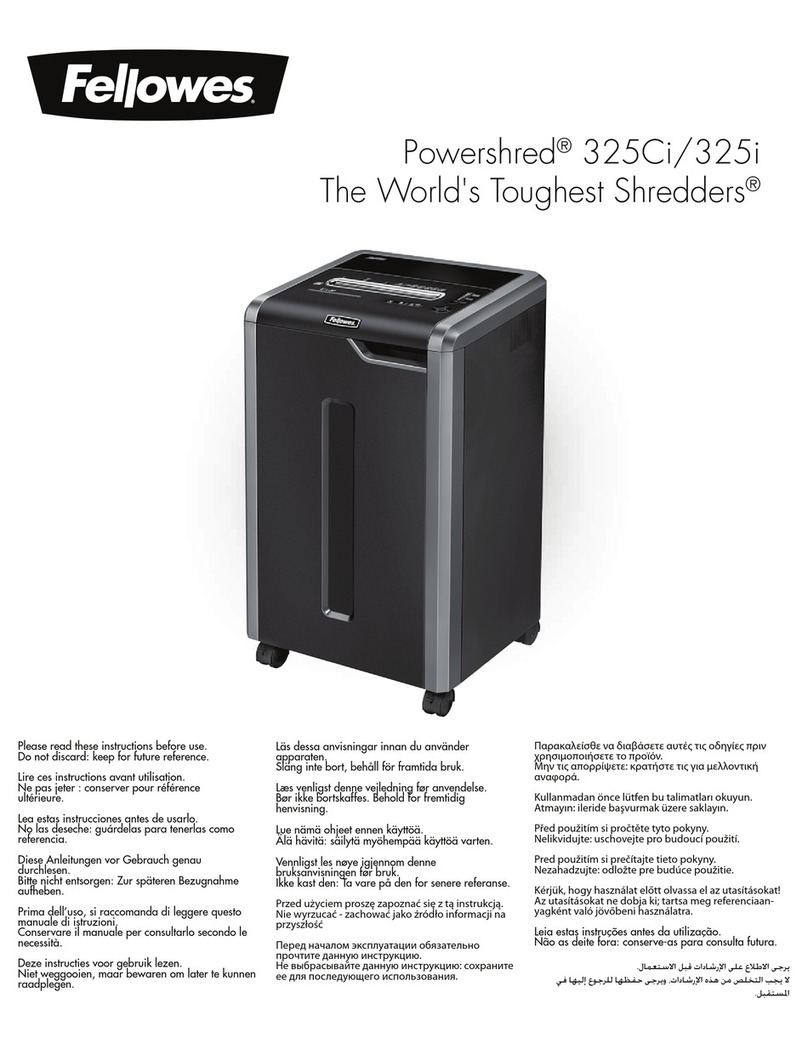

POWERSHRED® 325Ci/325i
Quality Office Products Since 1917
POWERSHRED® 325Ci/325i
Please read these instructions before use.
Do not discard: keep for future reference.
Canada [phone]
Mexico +001-800-514-9057
United States [phone]
Questions or Concerns?
www.fellowes.com
Troubleshooting
Registration
Manuals
Customer Service & Support
Troubleshooting
Replacement parts
General questions
Factory Service

2
Will shred: Paper, credit cards, CD/DVD, staples, small paper clips and junk mail
Will not shred: Adhesive labels, continuous form paper, transparencies, newspaper,
cardboard, large paper clips, folders, X-rays or plastic other than noted above
Paper shred size:
Cross-Cut (325Ci).............................................5/32 in. x 1-1/2 in. (4mm x 38mm)
Strip Cut (325i)..............................................................................7/32 in. (5.8mm)
Maximum:
Sheets per pass (Cross-Cut) ..................................................................................22*
Sheets per pass (Strip-Cut)...................................................................................24*
CDs/Cards per pass................................................................................................1*
Paper entry width ........................................................................9 1/2 in. (240mm)
* 8.5”x11”, 20lb., (75g) paper at 120V, 60 Hz, 8Amps; heavier paper, humidity or
other than rated voltage may reduce capacity. Maximum recommended daily usage
rates: 8,000 sheets; 300 cards; 30 CDs.
Fellowes SafeSense®shredders are designed to be operated in office environments ranging
between 50 – 80 degrees Fahrenheit (10 – 26 degrees Celsius) and 40 – 80% relative humidity.
CAPABILITIES
IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!
15
15
15
15
• Operation,maintenance,andservicerequirementsarecoveredin
the instruction manual. Read the entire instruction manual before
operating shredders.
• Keepawayfromchildrenandpets.Keephandsawayfrompaper
entry. Always set to off or unplug when not in use.
• Keepforeignobjects–gloves,jewelry,clothing,hair,etc.–away
from shredder openings. If object enters top opening, switch to
Reverse ( ) to back out object.
• Neveruseaerosolproducts,petroleumbasedlubricantsorother
flammable products on or near shredder. Do not use canned air
on shredder.
• Donotuseifdamagedordefective.Donotdisassembleshredder.
Do not place near or over heat source or water.
• ThisshredderhasaDisconnectPowerSwitch(F)thatmustbeintheON(I)
positiontooperateshredder.Incaseofemergency,moveswitchtoOFF(O)
position.Thisactionwillstopshredderimmediately.
• Avoidtouchingexposedcuttingbladesundershredderhead.
• UseonlydesignatedentryforCDs/cards.KeepfingersawayfromCDentry.
• Donotputforeignobjectsinpaperentry.
• Shreddermustbepluggedintoaproperlygroundedwalloutletorsocketof
thevoltageandamperagedesignatedonthelabel.Thegroundedoutletor
socketmustbeinstalledneartheequipmentandeasilyaccessible.Energy
converters, transformers, or extension cords should not be used with
this product.
• FIREHAZARD–DoNOTshredgreetingcardswithsoundchipsorbatteries.
• Forindooruseonly.
• Unplugshredderbeforecleaningorservicing.
ENGLISH
Models 325Ci/325i
KEY
H. ControlPanelandLEDs
1. Reverse
  2.ON/OFF
3. Forward
4. Bin full
5. Door open
A. SafeSense
®
Technology
B. Paper entry
C. CD entry
D. Door
E. Casters
F. Disconnect power switch
1.OFF
 2.ON
G. See safety instructions
6. Remove paper
7. SafeSense
®
indicator (yellow)
8. Auto button
9. Straight feed
A.
B.
C.
G.
H.
F.
E.
D.
THIS PAGE LEFT BLANK INTENTIONALLY

3
*100% Jam Proof when used in accordance with user manual
BASIC SHREDDING OPERATION
Eliminatespaperjamsandpowersthroughtoughjobs.
JAM PROOF SYSTEM OPERATION*
AdvancedJamPrevention-Electronically
measures paper thickness to prevent paper jams:
Remove several sheets until
indicator is below red. Continue 100% Jam
Proof Shredding
If a misfeed
occurs:
If illuminates after paper has been
reversed, press reverse and remove paper.
Otherwise,regularshreddingwillresume.
1 2 3
UptoRED:Toomany
sheets have been inserted.
UptoGREEN:Moresheets
can be added.
UptoYELLOW:Productivity
is optimized.
All indicators light up and
shredder pauses for 3-6 seconds
Waitforflashingtostopafterautomaticcorrection
is complete. Regular shredding will resume.
ADVANCED PRODUCT FEATURES
Jam Proof System
Eliminatespaperjamsandpowers
through tough jobs
Patented SafeSense®Technology
Stops shredding immediately when hands
touch the paper entry
SAFESENSE®TECHNOLOGY OPERATION
Stops shredding immediately when hands touch the paper opening.
WHEN IN SLEEP MODE
In sleep mode Togetoutofsleepmode
touch control panel
insert paper
or
SET-UP AND TESTING
TurntheshredderON
( ) to activate SafeSense
®
Touchtestareaand
look for the SafeSense
®
indicator to illuminate
SafeSense
®
is active and
working properly
If hand is held on SafeSense
®
area more than 3 seconds
shredder will shut off
Do nothing and
shredder will go
automatically to sleep
mode after 2 minutes
of inactivity
Press()ONtoactivate Feed paper/card straight
into paper entry and
release
Plug in and put disconnect
powerswitchinON
(I) position
Whenfinished
shredding set to
OFF( )
or or
Hold CD/card at edge,
and feed into center of
entry and release
12 5 6
24
4
3
13
2
4
12
Energy Savings System
Optimalenergyefficiency100%of
the time – in use and out of use.
ENERGY SAVINGS SYSTEM
• Savesenergyinfourways:energy-efficientelectronics,jamprevention,
standby mode and sleep mode.
• SleepModeshutsdownshredderafter2minutesofinactivity.
Optimal energy efficiency 100% of
the time – in use and out of use.
For more information about all of Fellowes Advanced Product Features go to www.fellowes.com
3
THIS PAGE LEFT BLANK INTENTIONALLY

CLEANING AUTO-START INFRARED SENSORS
PRODUCT MAINTENANCE
Paper detection sensors are designed for maintenance free operation. However, on rare occasions, the sensors may become blocked by paper dust causing the motor to run
even if there is no paper present.
(Note:twopaperdetectionsensorsarelocatedinthecenterofthepaperentry).
TO CLEAN THE SENSORS
Turnoffandunplug
shredder
Locate Auto-start
infrared sensor
Usingcottonswab,wipe
away any contamination
from the paper sensors
Dip cotton swab in
rubbing alcohol
ENGLISH
Models 325Ci/325i
Allcross-cutshreddersrequireoilforpeakperformance.Ifnotoiled,amachinemayexperiencediminishedsheetcapacity,intrusive
noisewhenshreddingandcouldultimatelystoprunning.Toavoidtheseproblems,werecommendyouoilyourshreddereachtimeyou
empty your waste bin.
OILING SHREDDER
15
15
*Only use a non-aerosol vegetable oil in long nozzle container such as Fellowes 35250
FOLLOW OILING PROCEDURE BELOW AND REPEAT TWICE
*Apply oil across entry
PREVENTIVE MAINTENANCE & ACCESSORIES
TROUBLESHOOTING
4
Press and hold forward
( ) 2-3 seconds
2
3
12 4
1
Go to Support Section at www.fellowes.com or see back page of manual for useful telephone numbers.
StraightFeedIndicator:Whenilluminated,removepaperandfeedstraightintopaperentry.
BinFullIndicator:Whenilluminated,theshredderwastebinisfullandneedstobeemptied.UseFelloweswastebag36056.
DoorOpenIndicator:Theshredderwillnotrunifthecabinetdoorisopen.Whenilluminated,closethedoortoresumeshredding.
RemovePaperIndicator:Whenilluminated,pressreverse( )andremovepaper.Reducepaperquantitytoanacceptableamountandrefeedintopaperentry.
SafeSense®Indicator: If hands are too close to the paper entry, the SafeSense®indicator will illuminate and the shredder will stop shredding. If SafeSense®
is active for 3 seconds, the shredder will automatically turn off and the user must press the power button on the control panel to resume shredding.
LIMITED PRODUCT WARRANTY
LimitedWarranty:Fellowes,Inc.(“Fellowes”)warrantsthepartsofthemachinetobefreeof
defects in material and workmanship and provides service and support for 1 year from the date
of purchase by the original consumer. Fellowes warrants the cutting blades of the machine to
be free from defects in material and workmanship for 1 year from the date of purchase by the
original consumer. If any part is found to be defective during the warranty period, your sole and
exclusive remedy will be repair or replacement, at Fellowes’ option and expense, of the defective
part.Thiswarrantydoesnotapplyincasesofabuse,mishandling,failuretocomplywithproduct
usage standards, shredder operation using an improper power supply (other than listed on the
label), or unauthorized repair. Fellowes reserves the right to charge the consumers for any
additional costs incurred by Fellowes to provide parts or services outside of the country where the
shredderisinitiallysoldbyanauthorizedreseller.ANYIMPLIEDWARRANTY,INCLUDINGTHATOF
MERCHANTABILITYORFITNESSFORAPARTICULARPURPOSE,ISHEREBYLIMITEDINDURATION
TOTHEAPPROPRIATEWARRANTYPERIODSETFORTHABOVE.InnoeventshallFellowesbeliable
foranyconsequentialorincidentaldamagesattributabletothisproduct.Thiswarrantygivesyou
specificlegalrights.Theduration,terms,andconditionsofthiswarrantyarevalidworldwide,
exceptwheredifferentlimitations,restrictions,orconditionsmayberequiredbylocallaw.For
more details or to obtain service under this warranty, please contact us or your dealer.
