Ryobi RSH2545B User manual

ORIGINAL INSTRUCTIONS
Electric Impact
Shredder
RSH2545B

Important!
It is essential that you read the instructions in this manual before assembling,
operating and maintaining the product.
Subject to technical modification.

1
Safety, performance, and dependability have
been given top priority in the design of your
electric impact shredder.
INTENDED USE
The electric impact shredder is designed to
reduce organic garden waste materials, such
as branches, twigs and foliage into small
pieces.
The product is intended for outdoor use in a
stationary position, on rm level ground, by
an operator standing at the same level as the
base of the product.
The product is not intended for use by children
or persons with reduced physical, mental or
sensory capabilities.
The product is not intended for non-organic
material, metal or any material which exceeds
its maximum cutting capacity of 45 mm
diameter.
The product must be mounted on the stand
provided and must be used with the collection
box provided. It is not intended to be mounted
in any other way than described or shown in
this manual.
GENERAL SAFETY RULES
WARNING
When using the product, basic safety
precautions should be followed to reduce
the risk of re, electric shock and personal
injury. Read all of these safety instructions
carefully before operating the product.
Make sure you are familiar with the controls
and the proper and safe use of the product.
Please keep these instructions safe for later
use.
TRAINING
■Read the instructions carefully. Be familiar
with the controls and the correct use of the
product.
■Never allow children or people unfamiliar
with these instructions to use the product.
Local regulations may restrict the age of
the operator.
■Keep in mind, that the operator or user
is responsible for accidents or hazards
occurring to other people or their property.
PREPARATION
■Wear ear protection and safety glasses at
all times while operating the product.
■While operating the product, always wear
substantial footwear and long trousers.
Do not operate the product when barefoot
or when wearing open sandals. Avoid
wearing clothing that is loose fitting or that
has hanging cords or ties.
■Operate the product in the recommended
position and only on a firm, level surface.
■Do not operate the product on a paved
or gravel surface where ejected material
could cause injury.
■Before use, always inspect and ensure
that the shredding means, bolts and other
fasteners are secure, and that the housing,
guards, and screens are undamaged
and in place. Replace worn or damaged
components in sets to preserve balance.
Replace damaged or unreadable labels.
■Before use, check the supply and extension
cord for signs of damage or aging. If the cord
becomes damaged during use, disconnect
the cord from the supply immediately. Do
not touch the cord before disconnecting the
supply. Do not use the product if the cord is
damaged or worn.
■Never operate the product while people,
especially children, or pets are nearby.
ELECTRICAL SAFETY
■Read and understand all safety instructions
before connecting the product to the mains
supply.
■Power plugs must match the outlet. Never
modify the plug in any way. Do not use
any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and
matching outlets will reduce risk of electric
shock.
■Before connecting to the mains supply,
make sure that the voltage is the same
as that indicated on the rating plate of the
product or in this manual. Connecting the
product to any other power supply may
cause injury or damage.
■The manufacturer recommends you
connect to a power socket protected by an
RCD with a trip of 30 mA or less.
■Keep the ventilation openings clear of
debris and other accumulations to prevent

2
damage to the motor or possible fire.
■Keep the power cord away from heat, oil
and sharp edges.
■If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
■If you need to use an extension cord
ensure it is suitable for outdoor use and
has a current capacity rating sufficient to
supply your product. The extension cord
cable should be marked with either “H05
RN-F” or “H05 VVF”. Check it before every
use for damage; always uncoil it during
use because coiled cords can overheat.
Damaged extension cords should not be
repaired; they should be replaced with an
equivalent type.
■Make sure the power cord is positioned so
that it cannot be damaged by the cutting
means and will not be stepped on, tripped
over or otherwise subjected to damage or
stress.
■A power spike during motor start-up
causes voltage fluctuations which may
affect other electrical products in the same
power circuit. Connect the product to a
power supply with an impedance equal to
or less than 0.404 Ω to minimise voltage
fluctuations. Contact your electric power
supplier for further clarification.
ELECTRIC IMPACT SHREDDER SAFETY
RULES
OPERATION
■Do not use the product in bad weather
conditions especially when there is a risk
of lightning.
■Before starting the product, make certain
that the feeding chamber is empty.
■The product will not operate if the collection
box is not properly fitted or the shredder
housing is not properly closed and the
shredder housing knob is not fully screwed
in. The collection box and shredder housing
are protected by safety interlocks that help
to prevent accidental contact with moving
parts that will result in serious injury.
■Keep your face and body away from the
feed intake opening.
■Do not allow hands, any other part of
the body, or clothing inside the feeding
chamber, discharge chute, or near any
moving part.
■Do not overreach. Keep proper balance
and footing at all times. Never stand at a
higher level than the base of the product
when feeding material into it.
■Always stand clear of the discharge zone
when operating the product.
■When feeding material into the product
be extremely careful that pieces of metal,
rocks, bottles, cans, or other foreign objects
are not included.
■If the cutting mechanism strikes any foreign
object or if the product starts making any
unusual noise or vibration, immediately
shut off the motor by pressing the off
switch. Allow the product to stop and
disconnect the product from the supply.
Take the following steps before restarting
and operating the product:
●inspect for damage
●replace or repair any damaged parts
●check for and tighten any loose parts
■Do not allow processed material to build
up in the discharge zone; this may prevent
proper discharge and can result in kickback
of material through the feed intake opening.
■If the product becomes clogged, stop the
motor by pressing the OFF switch and
disconnect the product from the mains
supply. Ensure that all moving parts have
stopped before opening the shredder
housing or attempting to clear the blockage.
■Never operate the product with defective
guards or shields or without safety devices,
such as debris collector, in place.
■Keep the ventilation openings clear of
debris and other accumulations to prevent
damage to the motor or possible fire.
■Do not transport the product while the
motor is running.
■Stop the product, disconnect from the
power supply and ensure that all moving
parts have come to a complete stop:
●before emptying the collection box
●before leaving the product unattended
●before clearing blockages or unclogging
chute
●before checking, cleaning or working on
the product
■Do not tilt the product while the motor is

3
running.
■Keep clear of the feed intake after inserting
material. The action of drawing the material
into the product may cause sudden
movement or twisting of the exposed
material. Always wear eye protection when
operating the product.
■If dust is created by the shredding process,
wear a suitable dust mask to help prevent
respiratory injury.
■Switch off the product and allow all moving
parts to stop before removing the collection
box.
■Do not modify product in any way or use
parts and accessories which are not
recommended by the manufacturer.
■Keep the power source clear of debris and
other accumulations to prevent damage to
the power source or possible fire.

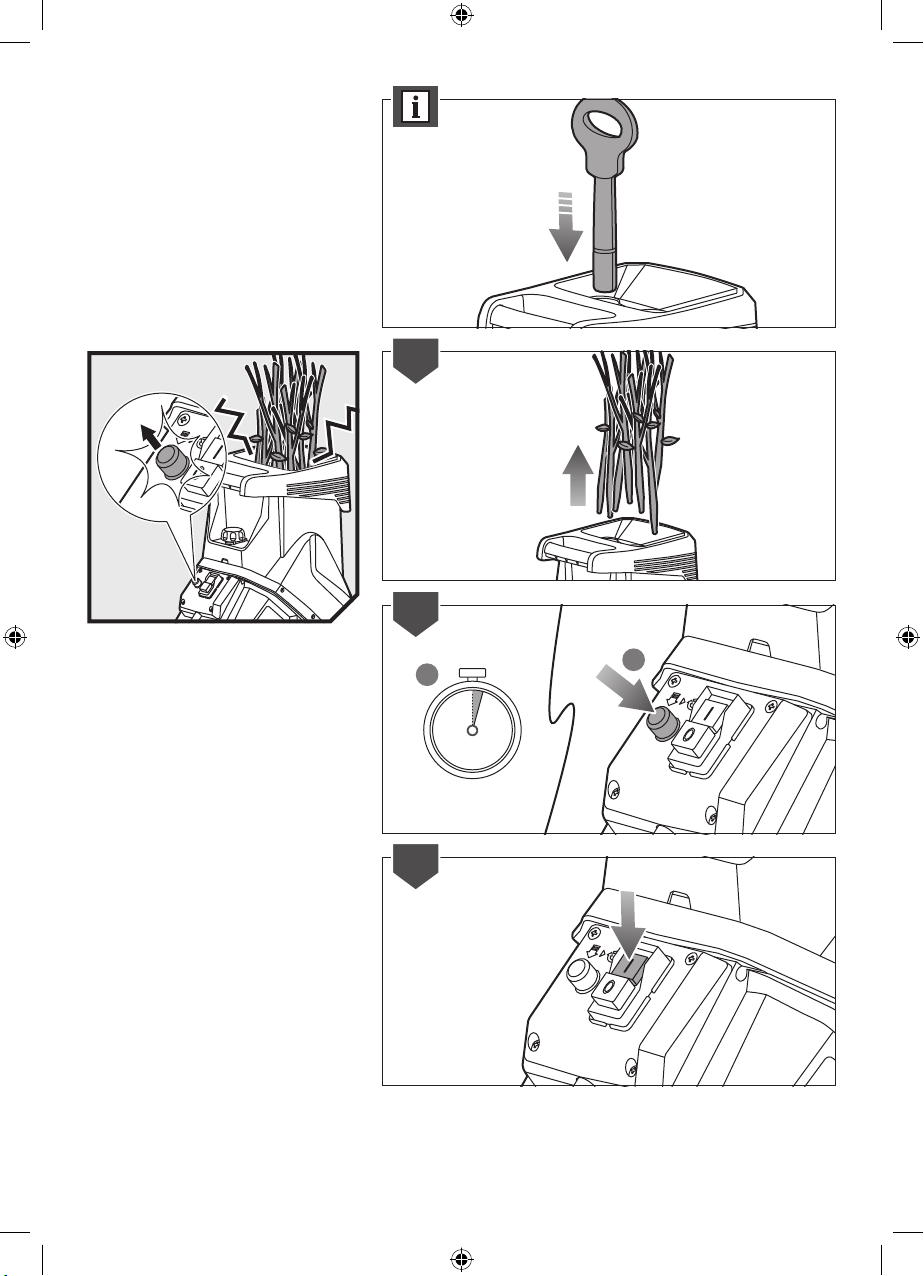

OVERLOAD PROTECTION DEVICE
The product has an overload protection device.
When overloading is detected, the machine
will automatically switch off. The overload
protection button is located next to the ON/
OFF switch. The button will pop up when
overload protection is activated. Disconnect
the product from the power supply and follow
the instructions for clearing a blockage. Let
the motor cool down for 3 to 5 minutes. After
checking if there is no blockage, connect the
power cord to the power supply and depress
the overload protection reset button. Press
the on switch to turn on the motor.
If the overload protection is activated and
there is no blockage, the overload may
have occurred when materials are fed into
the product too quickly for too long, causing
the motor to overheat. Allow the motor to
cool down. Empty the collection box before
restarting the product.
CLEARING A BLOCKAGE
WARNING
The blades are sharp and are likely to be hot.
Always wear heavy-duty protective gloves
when checking and clearing a blockage.
■If the product becomes clogged or blocked,
or if the overload protection device is
activated, follow these instructions:
●Turn off the product and disconnect it
from the power supply.
●Make sure that all moving parts have
stopped.
●Remove and empty the collection box.
●Remove any exposed material in the
feeding chute.
●Unscrew the shredder housing knob
and open the upper housing on its hinge
to expose the cutting mechanism.
●Remove any debris blocking the feeding
chamber by pulling it out from the inside.
WARNING
The blades may still move even though
the power is turned off. Exercise extreme
caution around the area of the blades.
●Carefully remove debris around the
blades with a suitable hand tool. Using
the hand tool, move the metal plates
holding the blades to check if blockage
has been removed. Do not insert the
hand tool into the sharp edges of the
blades; doing so will damage the blades.
●If you cannot see the collection box
when the cutting means rotate, you
need to clear debris in that area. Use a
tool to carefully clear the area.
●Once the blockage is cleared, close
the upper housing and screw in the
shredder housing knob to engage the
safety interlock.
■If you are unable to successfully clear a
blockage or if you find damage, bring the
product to an authorised service centre for
repair.
TRANSPORTATION AND STORAGE
■Make sure that the product has been
thoroughly cleaned before storing it in a
clean, dry place, which is secure and out of
the reach of children.
■Allow the product to adequately cool down
before storing or transporting.
■When transporting the product, make sure
it is secured against falling or movement
within the vehicle.
MAINTENANCE
■Before cleaning, inspecting or servicing the
product, switch it off and allow the cutters
to completely stop. Disconnect the product

4
from the power supply.
■After some time of shredding, the cutting
mechanism will become hot. Allow the
cutting mechanism to adequately cool
down before cleaning, inspecting, or
turning the blades.
WARNING
The cutter blades are extremely sharp. To
avoid injury, exercise extreme caution and
care when cleaning or working near the
blades, inside the opened enclosure or
when the collection box is removed. Always
wear heavy-duty protective gloves.
WARNING
The blades may still move even though
the power is turned off. Exercise extreme
caution around the area of the blades.
■To ensure the best performance, the
product must be kept clean at all times.
■Always clean the product immediately after
use. Wherever possible, use a stiff brush
inside the feed and discharge chutes and
a dry cloth on the outside of the product.
■For optimal shredding performance, do not
allow any material to dry and harden on
any of the product’s surfaces, particularly
on the blades.
■Make sure that the feeding chute and the
ejection chute are kept clean and clear of
all waste materials.
■The cutting blades fitted in the product
have two cutting edges. The blades may
be turned around by 180° if one edge
is blunt. See page 14-15. Replace with
original RYOBI parts if your blades are
blunt, chipped, or cracked.
■Make sure that all nuts, bolts, and screws
are tightened and secure, especially the
blade screws.
■Always have any damaged or worn parts
repaired or replaced by qualified personnel
at an authorised service centre.
■Never attempt to bypass the safety
interlock switches on the upper shredder
housing; this could lead to serious personal
injury, including amputation.
WARNING
Do not at any time let brake uids, gasoline,
petroleum-based products and penetrating
oils come in contact with plastic parts. Never
use brake uids, gasoline, petroleum-based
products, or any solvents to clean tool. Most
plastics are susceptible to damage from
various types of commercial solvents and
may be damaged by their use.
■You may perform maintenance tasks
described in this manual. For other repairs
or advice, seek the assistance of an
authorised service centre.
RESIDUAL RISK
Even when the product is used as prescribed,
it is still impossible to completely eliminate
certain residual risk factors. The following
hazards may arise when using the product
and the operator should pay special attention
to avoid the following:
■Injury caused by noise
●Wear ear protection and limit exposure.
■Injury caused by inhalation of dust and
particles
●Wear appropriate dust mask.
■Injury caused by contact with cutting means
●Keep unprotected body parts away from
the cutting means at all times.
■Injury caused by thrown debris
●Wear eye protection at all times and
keep body parts away from the area
around the feeding chute.
KNOW YOUR PRODUCT
See page 8
1. Shredder housing
2. Feeding chute
3. Handle
4. Shredder housing knob
5. Overload protection reset button
6. On/off switch
7. Safety switch key
8. Cutting blade
9. Power cord
10. Metal frame
11. Collection container
12. Wheel
13. Plunger

5
SHREDDING GUIDE
For best results when shredding, follow the
guidelines shown in the table below.
MATERIAL SHREDDING METHOD
Twigs and up to
6 mm diameter.
Feed into the feeding
chute at a rate which
the product will accept
without overloading. Use
the plunger provided to
push the material into
the chute if required.
Branches and
up to 45 mm in
diameter.
Clip off all side growth
with secateurs before
feeding into the feeding
chute. Use the plunger
provided to push the
material into the chute if
required.
Bedding plants,
weeds and
shrubby growth.
Knock soil and stones
off the roots to avoid
damage to the blades.
Freshly cut
foliage, hedge,
and kitchen
waste.(I.e.
cabbage
leaves,
vegetable
peelings etc.)
With any material having
a high moisture content
it is advised to feed
in some drier sticks
at regular intervals to
help push the material
through the cutting
assembly and prevent it
from clogging.
Dry sticks and
twigs
By inserting these at the
end of your shredding
task, this will help to
clean the moisture and
plant sap from the inside
of the product and the
cutting assembly.
■Do not allow garden waste to accumulate
before shredding as it will begin to compost,
become too damp and clog the cutting
assembly. Dry material will help most
material to clear the ejection chute. Save
some dry sticks until last to help clean the
blade area.
■Frequently monitor the build up/collection
of shredded material.
■The exit of the discharge chute must be
clear at all times to prevent blockages.
■When the collection box is full, turn the
product Off before emptying.
WARNING
Do not put your hands up inside the
shredder’s discharge chute to clear away
shredded material while the product is
switched on or connected to the mains
supply. The blades are sharp. Wear heavy-
duty gloves and exercise extreme caution
when cleaning and clearing blockages.
WARNING
When feeding long woody branches/stems
into the product be careful of whip and
vibrations as the materials get caught by
the cutter. The operator must wear eye
protection whenever using the product.
WARNING
The cutting device has a tendency to pull
branches/stems into the product. Do not
try to impede entry of the material being
cut once feeding has started. Always wear
gloves to prevent skin lacerations when
feeding material into the product.
NOTE: In normal use, do not switch off the
product until all of the shredded material has
cleared the cutter assembly. If the product is
switched off too quickly, remaining pieces of
material may clog the blade assembly and
stall the motor when the product is switched
back on.

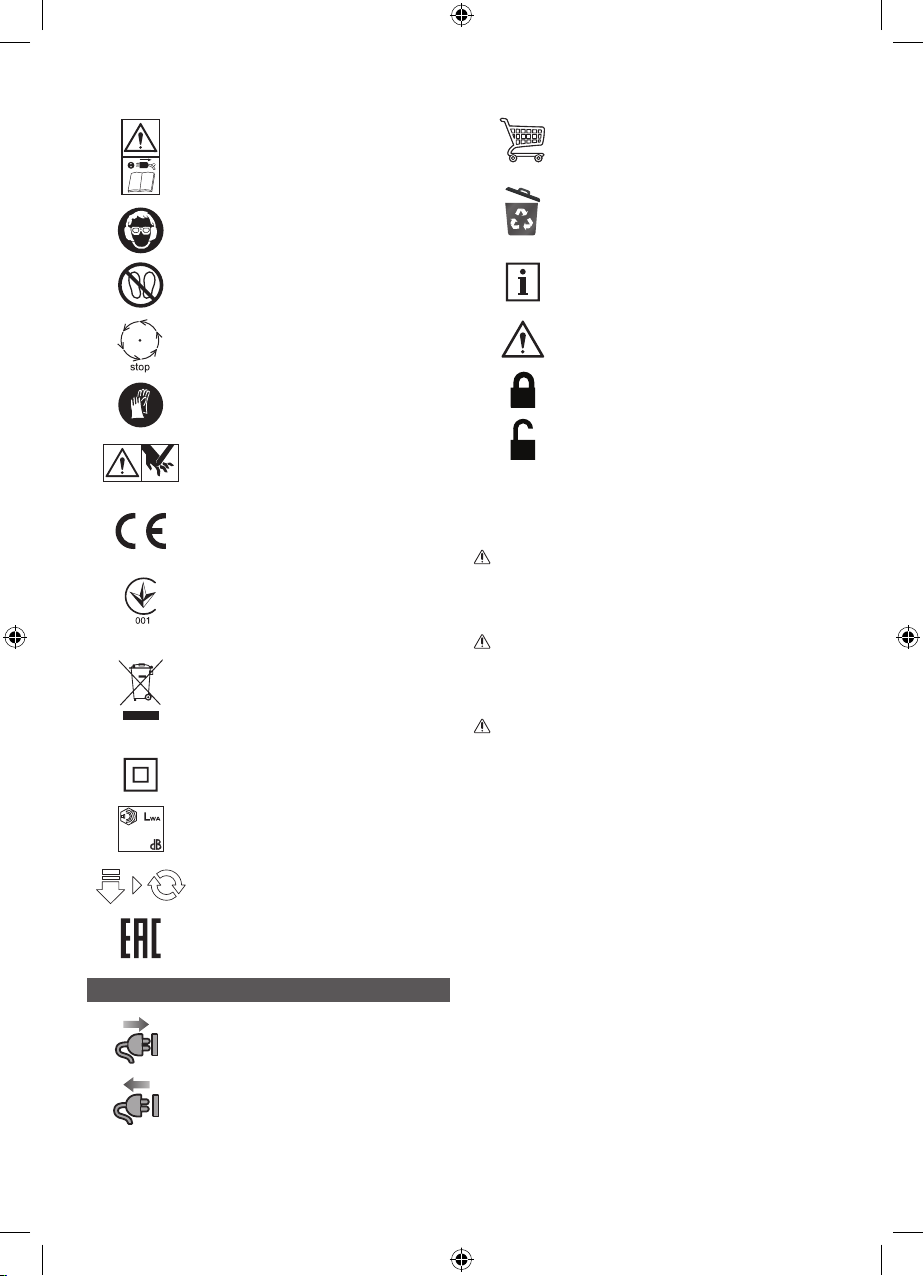

SYMBOLS ON THE PRODUCT
Read and understand
all instructions before
operating the product, follow
all warnings and safety
instructions.
Beware of thrown or ying
objects. Keep all bystanders,
especially children and pets,
at least 15 m away from the
operating area
Danger - Rotating blades.
Keep hands and feet out of
openings while the product is
running.

6
Switch off and remove
plug from mains before
maintenance or if cord is
damaged.
Wear eye and ear protection.
Do not use as a step.
Wait until all machine
components have completely
stopped before touching them.
Wear non-slip, heavy duty
gloves.
Keep hands away from blades
Conforms to all regulatory
standards in the country in
the EU where the product is
purchased.
Ukrainian mark of conformity.
Waste electrical products
should not be disposed of
with household waste. Please
recycle where facilities exist.
Check with your local authority
or retailer for recycling advice.
Class II tool, double insulation
107
The guaranteed sound power
level is 107 dB
Press to reset
EurAsian Conformity Mark
SYMBOLS IN THIS MANUAL
Connect to power outlet.
Disconnect from power outlet.
Parts or accessories sold
separately
Waste electrical products
should not be disposed of
with household waste. Please
recycle where facilities exist.
Note
Warning
Lock
Unlock
The following signal words and meanings
are intended to explain the levels of risk
associated with this product.
DANGER
Indicates an imminently hazardous
situation, which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation,
which, if not avoided, could result in death
or serious injury.
CAUTION
Indicates a potentially hazardous situation,
which, if not avoided, may result in minor or
moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in
property damage.

7

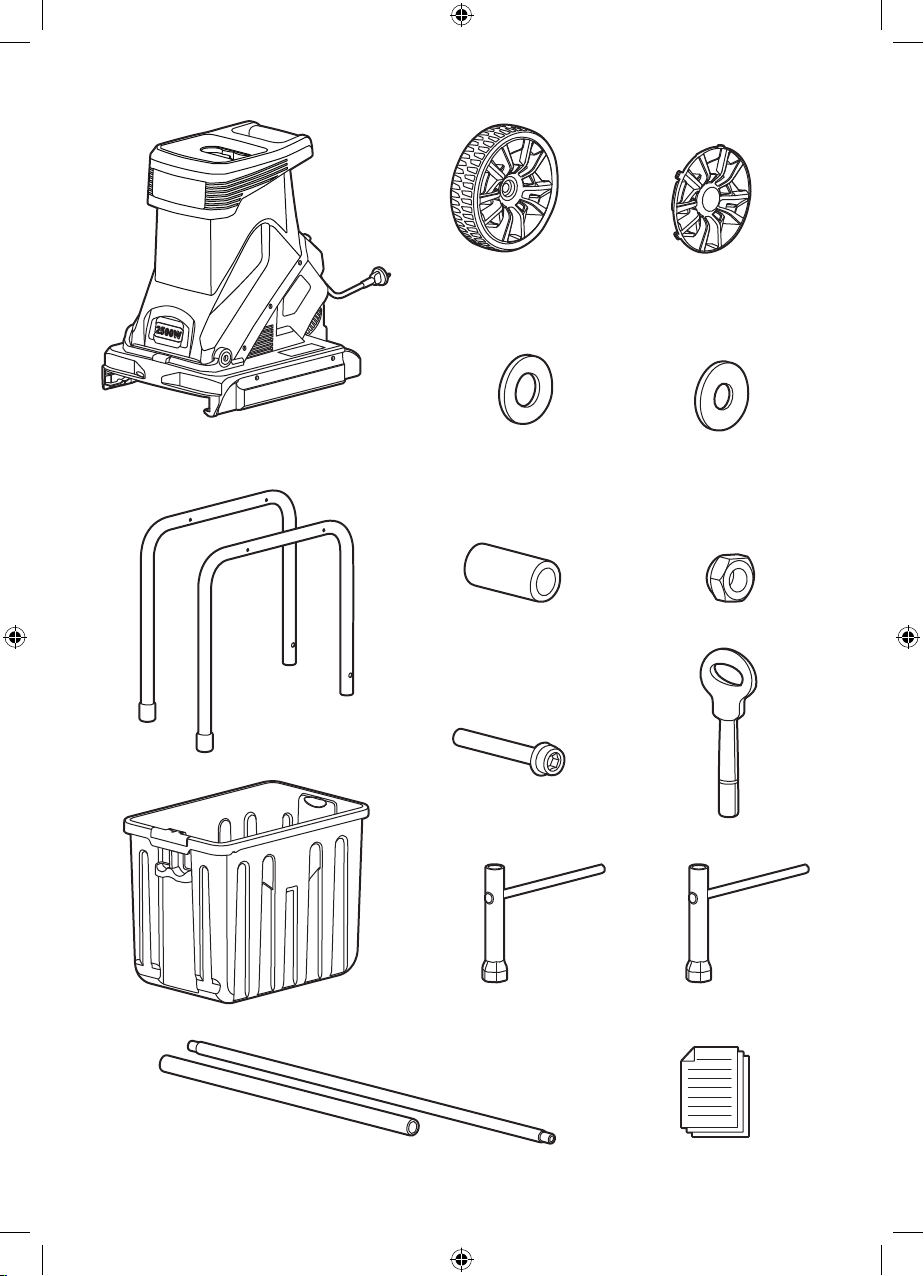

x 2x 2
x 1
x 1 x 2x 4
x 2 x 2
x 4
x 1
x 1
x 1
x 1x 1
x 1 6 mm 5 mm

8
12 1310 11
21 3
9
5 6
4
7
88

9

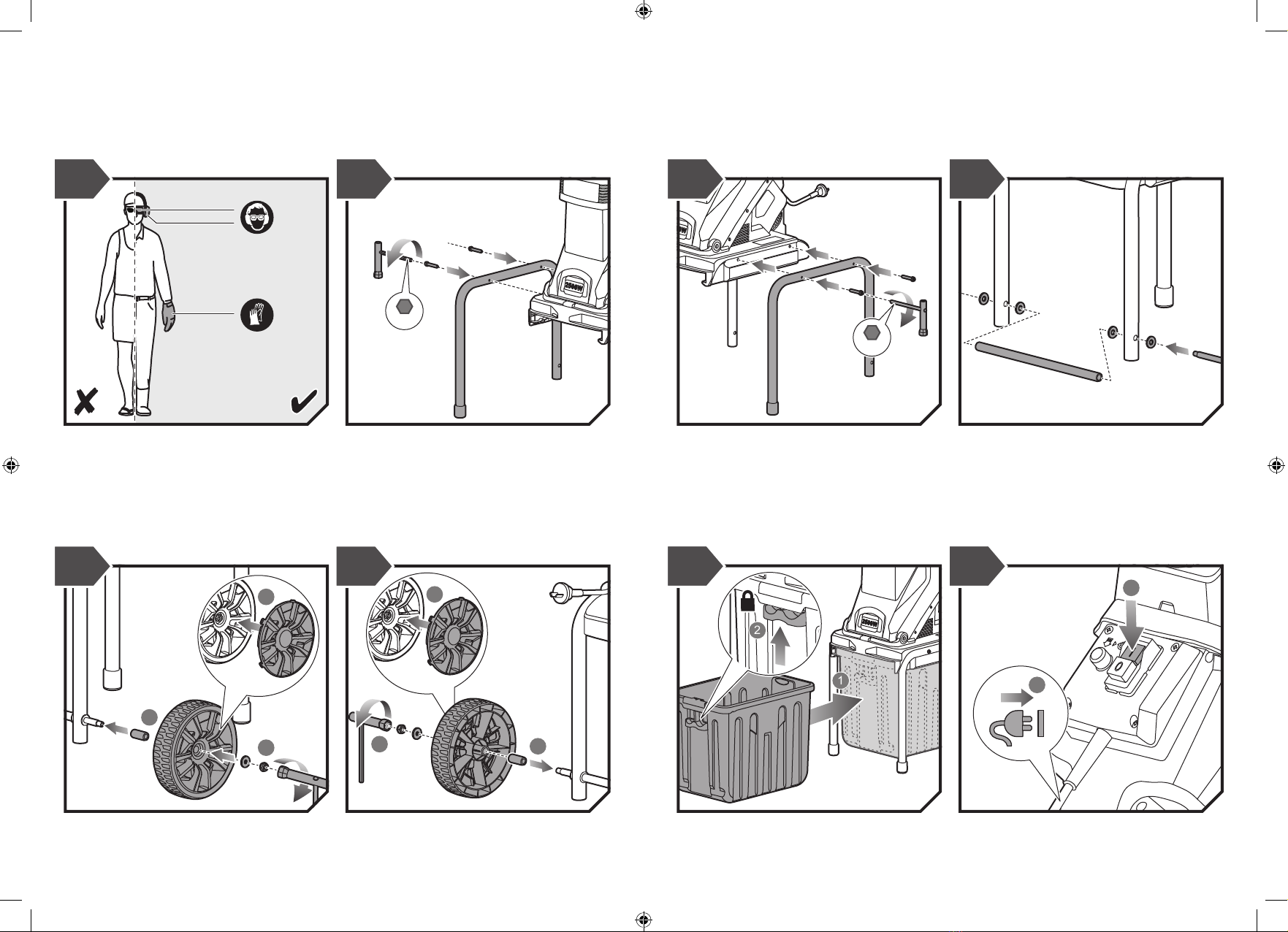

5mm
1 2
1
2
3
3
1
2
5 6
1
2
1
2
7 8
5mm
3 4

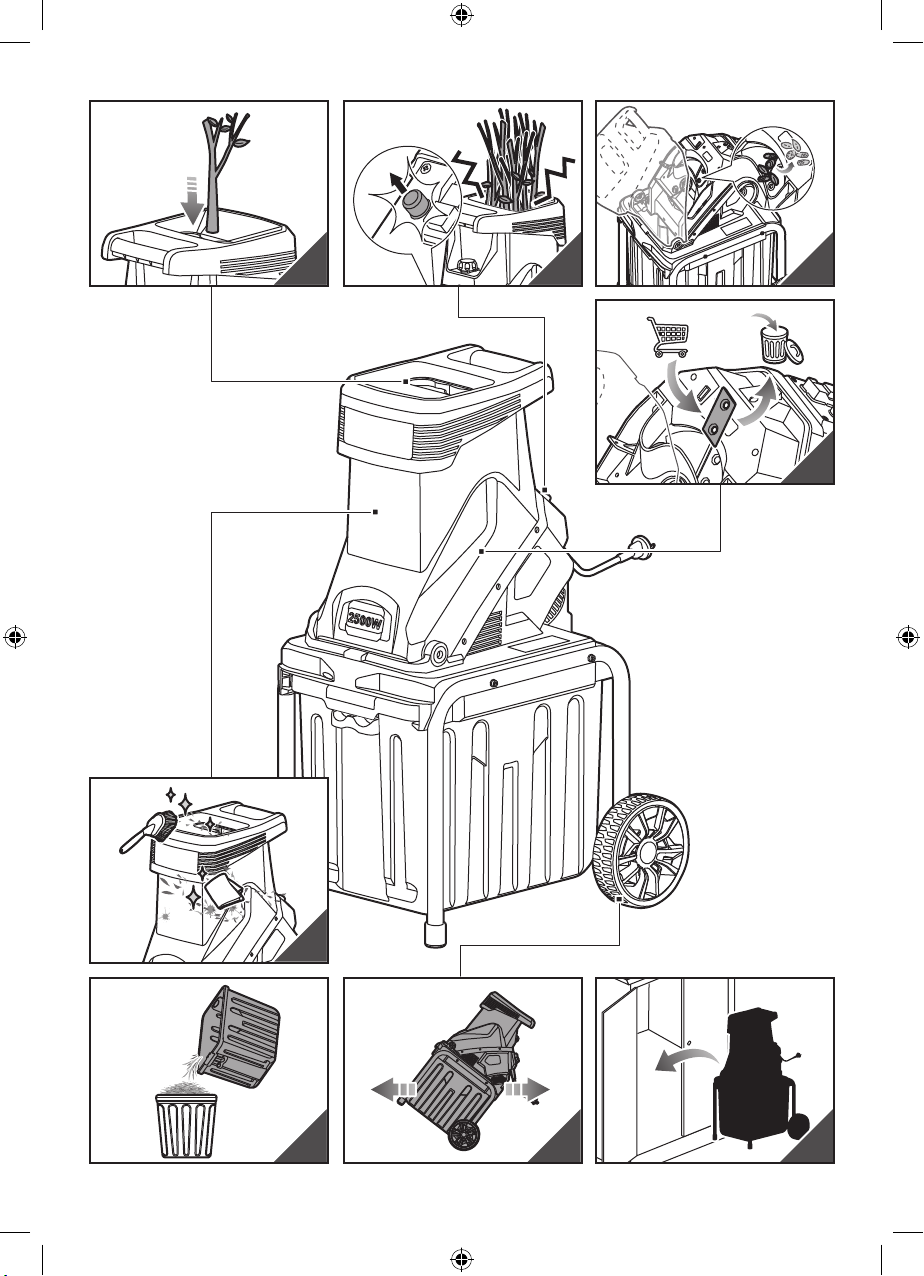

10

11
p.12
p.18
p.17
p.19
p.13
p.20
p.14
p.15

12
1
2
1
2

13
1
3 mins
2
1
2
3

14
2
1
2
1
1
2
3
1
2
4

15

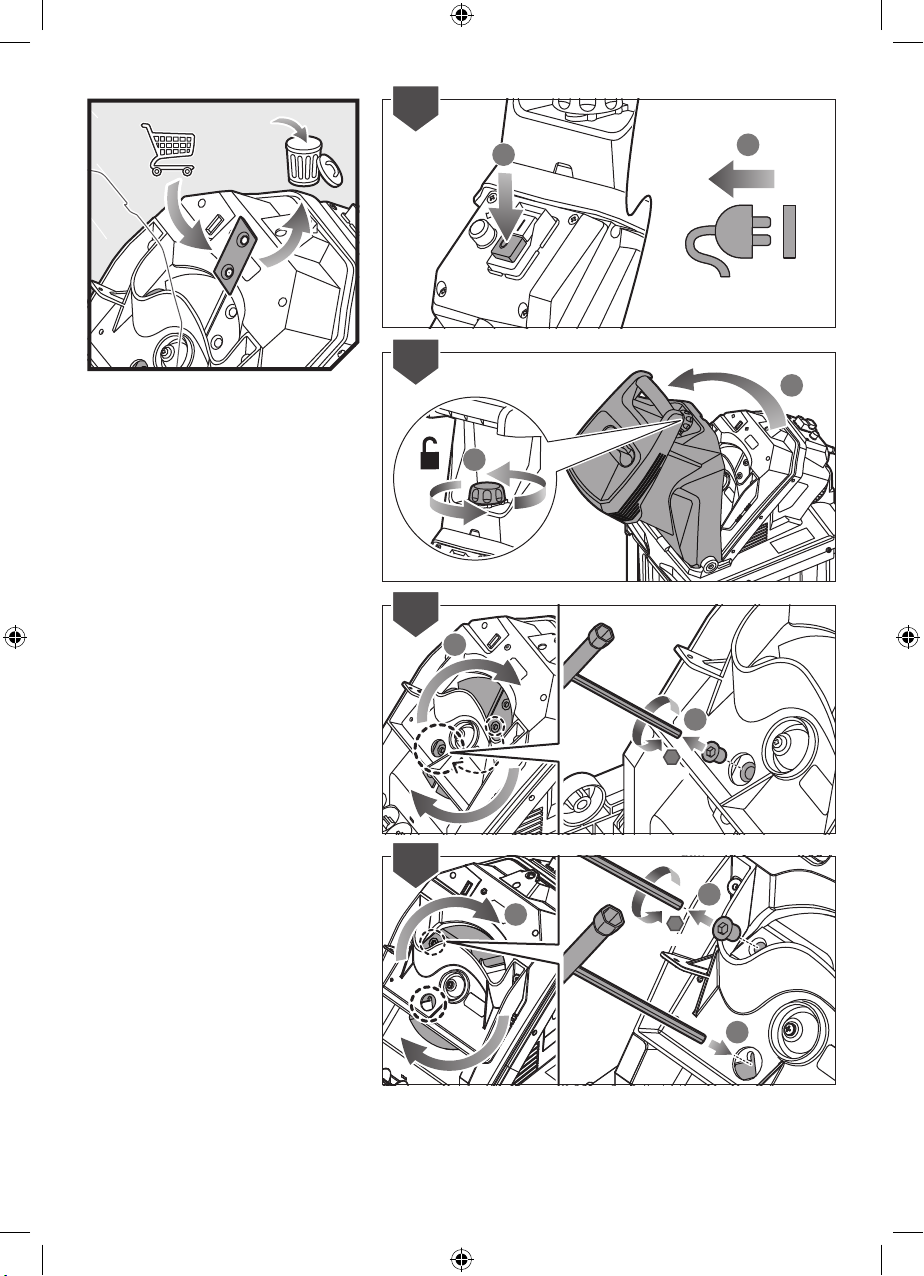

2
1
2
1
1
2
6mm6mm
1
2
3
6mm6mm
1
3
4
2

16

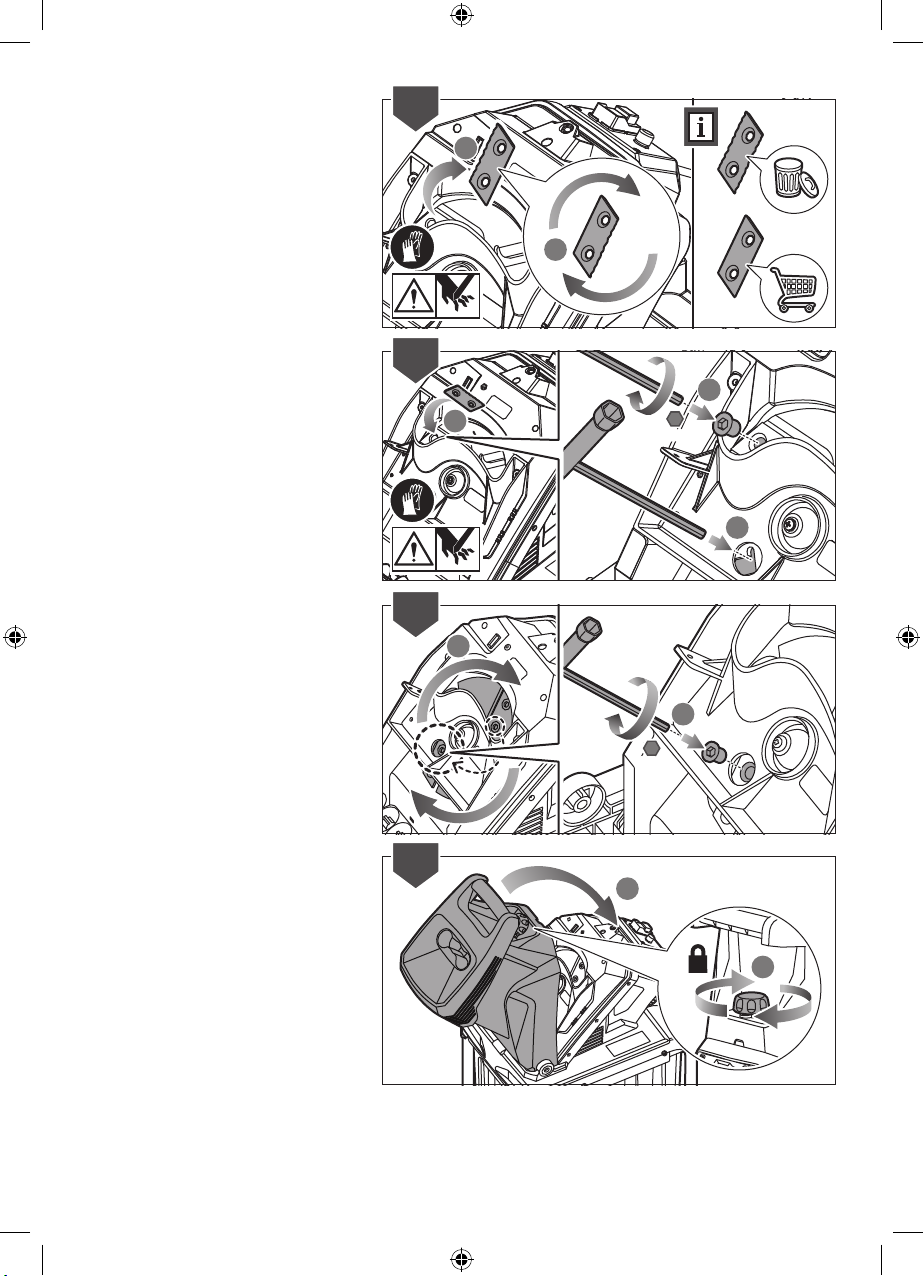

1
2
3
6mm6mm
1
180º
2
1
2
6mm6mm
1
2
5
7
8
6

17

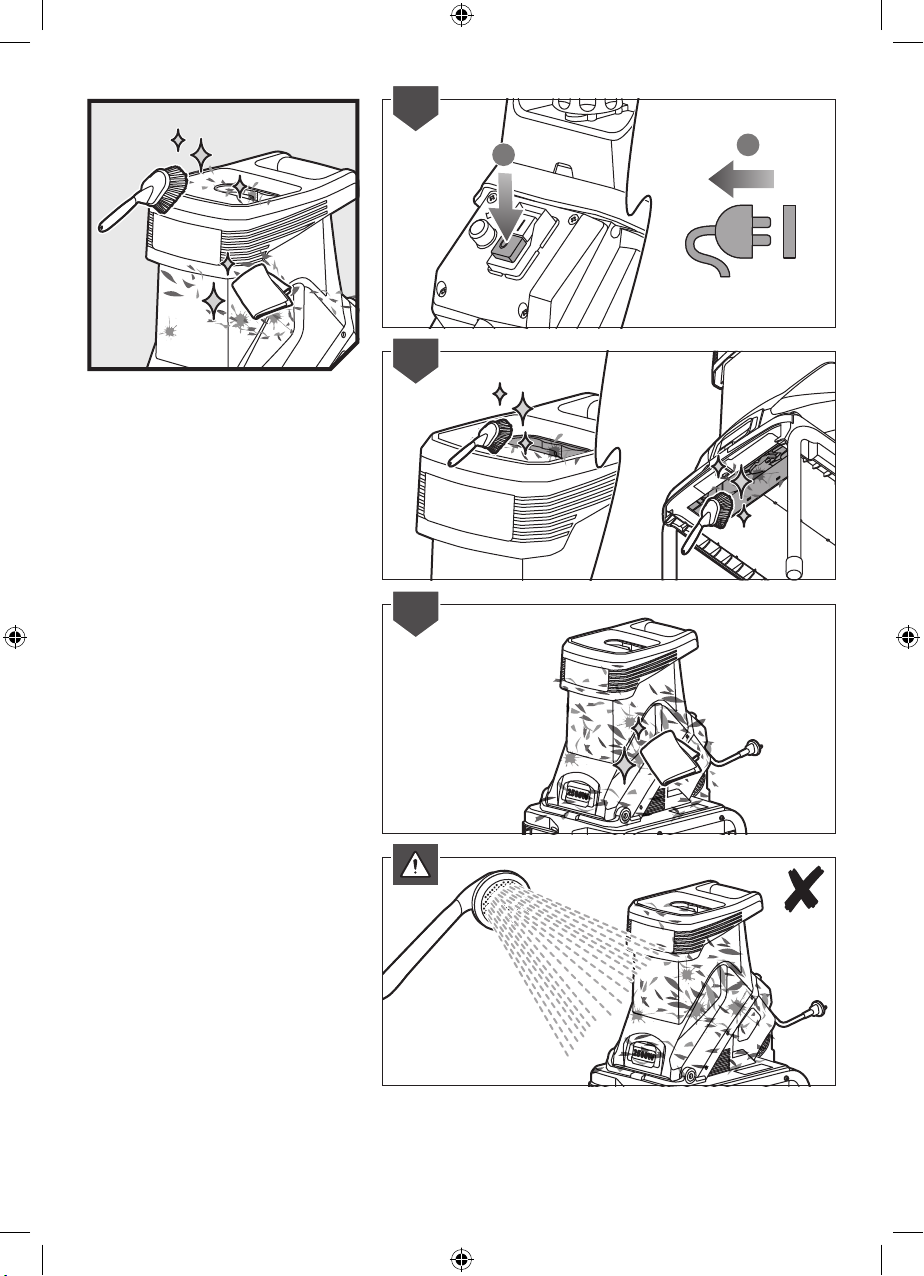

2
1
2
1
3

18

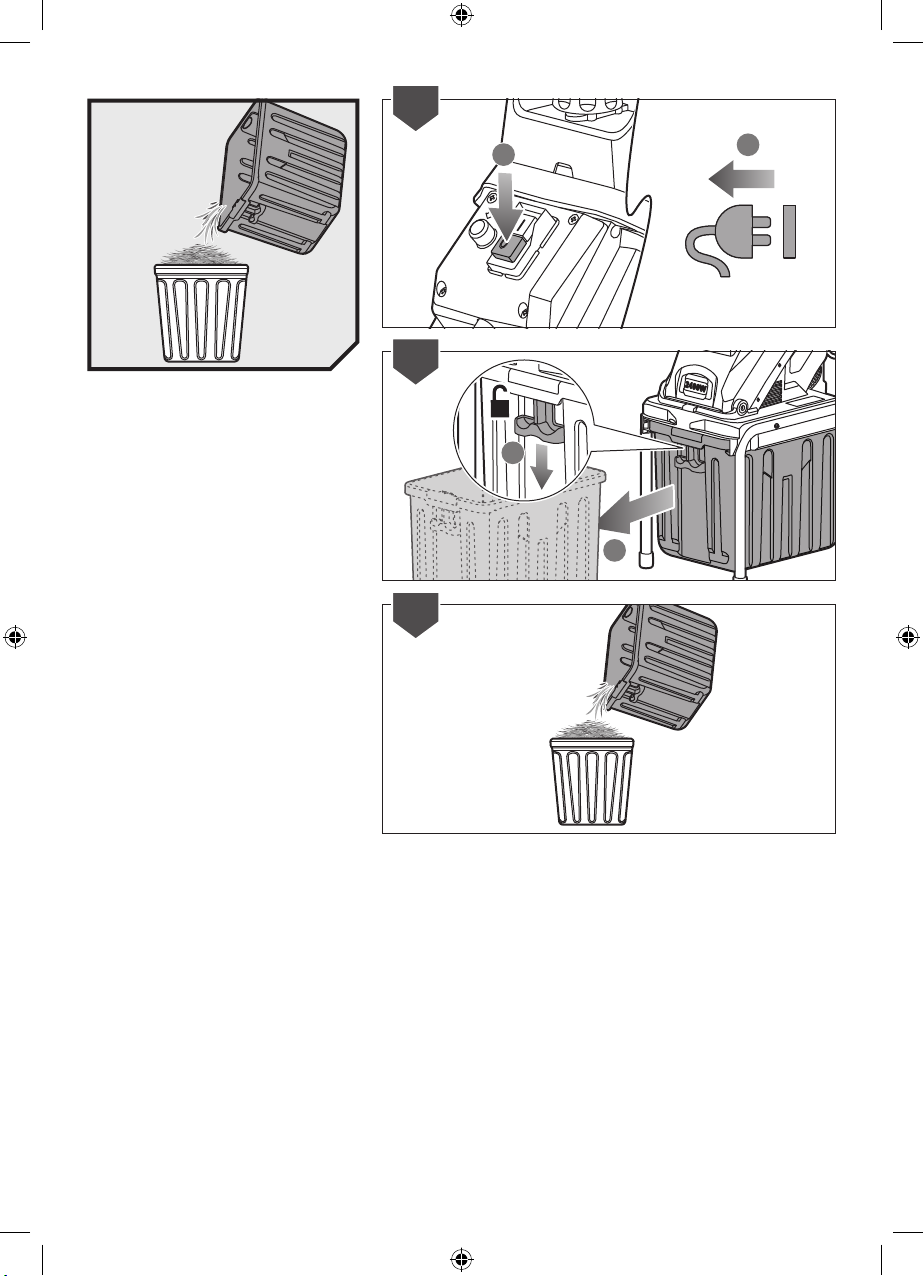

2
1
1
2
1
2
3
