Option SMW for wall mounting instruments from BDF series of large displays.
Very strong housing and electrically protected units, designed for all type of
industrial applications..

User’s Manual BDF SMW
FEMA ELECTRÓNICA - Page 2
FEMA ELECTRÓNICA - Page 3
Series BDF - Option SMW
Option SMW - Instructions for wall mount

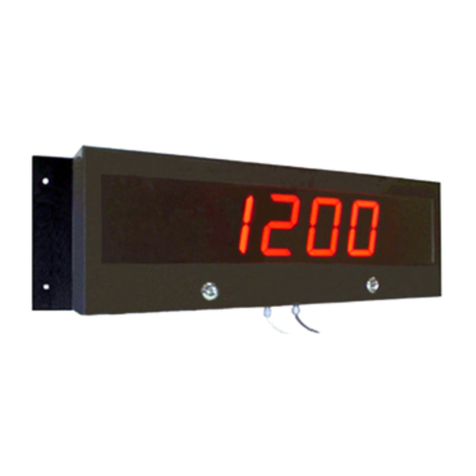

This documentation contains information relating the «SMW
option» for BDF instruments. As a standard, all BDF are
served for panel mount. The «SMW option» provides adapt-
ers for mounting the BDF instruments against a wall.
Option SMW allows the inclination of the display in 3 pre-
dened positions, for adjusting of the viewing angle of the
instrument.
The SMW options are not included in the standard BDF
instruments, and must be ordered separately.
The SMW option can be mounted to an instrument already
manufactured.
Installation
Remove the lateral screws from the upper cover. Place again
the screws, including in the installation the wall supports in
the desired angle-

FEMA ELECTRÓNICA - Page 2
User’s Manual BDF SMW
FEMA ELECTRÓNICA - Page 3
Position with viewing downwards Position with viewing upwards
Wall
10º
20º
0º
10º
20º
0º
Wall
