Fender 1110X User manual

X SERIES
From Fender Pro Audio
Owner's Manual for
1110X / 1201X / 1205X
LOUDSPEAKER SYSTEMS
P/N 052048

Fender Musical Instruments
7975 North Hayden Road, Scottsdale, Arizona 85258 U.S.A.
A Message from the Chairman
At Fender, we know the importance of sound reinforcement. From the simple
box-top powered mixer to today’s touring concert systems, the need to
communicate to make the connection between the performer and the
audience is foremost in our mind.
Perhaps no other piece of gear can make or break your message or your band’s
sound than your sound reinforcement gear. Your sound system is far more than
just a combination of dials, wires and speakers. It is an integral part of the audio
chain and should be treated with special care and attention to detail.
Fender knows what building quality musical instruments and sound
reinforcement equipment is all about. In fact, many of the world’s best
sounding electric musical instruments and sound reinforcement equipment
proudly wear the Fender name.
Whether you need a small powered mixer for your Saturday afternoon “jam” or
a professional full-size concert system, Fender has the sound reinforcement
gear to meet your needs. Likewise, your decision to purchase quality Fender
Professional Audio Equipment is one you will appreciate with each
performance for years to come.
Wishing you years of enjoyment and a heartfelt thank you,
Bill Schultz
Chairman of the Board
Fender Musical Instruments Corporation
Bill Schultz

3
High Current 1/4” Phone Jacks
Dual Piezoelectric Horn
Rugged Metal Grille
Metal Corners and Rubber Feet
Tough Tolex®Covering
ThankyouforpurchasinganXSeries1110X/1201X
/ 1205X Loudspeaker System from Fender®Pro
Audio. We are sure you will find it both a unique and
effective sound reinforcement product, providing
years of trouble-free service day in and day out.
X Series Loudspeaker Systems are professional, full-
range, two-way, compact loudspeakers designed for
the most demanding permanent or portable sound
reinforcementrequirements. Moreover,thesespeakers
are ideal for use as a two-way system or as the mid /
high pack in a three-way set-up incorporating a Fender
115sA / 118sA subwoofer loudspeaker system.
X Series Loudspeaker Systems are designed to form
the basis of everything from a small public address
systemtothenightlyrigorsofa“workingband’s”sound
system. After moisture sealing, X Series cabinets are
covered in tough black Tolex®covering. Likewise, X
Series cabinets also feature metal corners and rubber
feet for a longer life and lasting looks.
Pleasereadthroughthisowner’sguideinordertomore
fully understand the operational characteristics of your
X Series Loudspeaker enclosure.
CAUTION: Almost all speakers produce strong
magnetic fields which may interfere with the
normal operation of nearby electronic devices,
includingtelevisionsandcomputervideomonitors.
To reduce or eliminate interference, increase the
distance between this product and other nearby
electronic devices.
INTRODUCTION
1110X / 1201X / 1205X
PROFESSIONAL LOUDSPEAKER
SYSTEMS

Parallelorseriesarethetwobasicwayswhichmultiple
speakerscanbeconnectedtoasinglepoweramplifier.
When speakers are connected in parallel, their
combinedimpedance decreases. Forspeakers wired
in series the opposite is true, their combined
impedanceincreases. Thus,whenspeakersarewired
inseries,higherimpedancespeakersintheseriesdraw
morepower from theamplifier thando speakersin the
series with lower impedances. When speakers are
wired in parallel, the opposite is true. Higher
impedance speakers will draw less power from the
amplifier than lower impedance speakers will draw.
At Fender®, we recommend connecting multiple
speakers in parallel for several reasons. First, if one
speakerfails,theotherswillcontinuetooperate. Second,
because in a series connection one speaker affects the
output of the other speakers, unpredictable frequency
response is a concern. Third, most speaker cabinets
arealreadywiredforparallelconnectionsmakingparallel
connections the most common wiring method.
Below are two charts demonstrating how to calculate
both parallel and series impedance.
Keep in mind, power and audio signal cables are the
most common sources of sound system failure. Well
made and carefully maintained cables are essential to
thereliabilityoftheentiresoundsystem. Iflongspeaker
cablesarerequired,itisimportanttoensurethecable‘s
gauge is sufficient to transfer all of the available
amplifier power to the speakers rather than absorbing
the power itself. As a rule of thumb, larger wires are
better as they conduct more power to the speakers
(larger wire has smaller gauge numbers).
Below are two charts listing speaker wire gauges and
recommendations for best results.
*Example - If the speaker wire length
required is between 25-50 feet (7.60-
15.25 meters) and the speaker
impedance is 8Ω, the minimum
recommended speaker wire gauge is 16.
100'-UP
(30.5 m-UP)
50'-100'
(15.25-30.5 m)
*25'-50'
(7.60-15.25 m)
10'-25'
(3.05-7.60 m)
0'-10'
(0.00-3.05 m)
SPEAKER WIRE GAUGE
SPEAKER IMPEDANCE [z]
SPEAKER WIRE LENGTH
AWG Resistance in Ωper foot
(30.5 cm) @ 77º F (25º C)
18
16
14
12
10
.00651
.00409
.00258
.00162
.00102
8.00064
0.83
1.32
2.10
3.32
5.27
8.38
10 12 14
12 14 16
14 *16 18
16 18 18
18 18 18
4Ω*8Ω16Ω
Cross-
Section
[mm ]
2
Cabinet A
Impedance
Cabinet B
Impedance
16Ω*
8Ω
8Ω*16Ω
PARALLEL IMPEDANCE
*Example- Cabinet A is 8 ohms. Cabinet B is
16 ohms . The total impedance when connected
in parallel is:
+
-
+
-
+ -
AB
2n1
ZZZ ...
+
Zs=
2n1
18 20* 24 32
10 12 16 24
6 8 12 20
4 6 10 18
Cabinet A
Impedance
Cabinet B
Impedance
16Ω*
8Ω
4Ω
2Ω
2Ω4Ω*8Ω16Ω
+
-
+
-
+ -
B
A
SERIES IMPEDANCE
5.3* 8
4 5.3
...
1
1
Z1
Z
1
Z+
Zp=
1
81 16
+
1= 5.3 ohms.
Zp=
SPEAKER WIRING AND CONNECTIONS
4

5
The X Series Loudspeaker Systems’ 1/4" jacks are
wired in parallel allowing any one of the connectors to
be used as an input and any other as an output. This
allows "daisy chaining" of multiple loudspeakers,
eliminatingtheneedforseverallong,cumbersomeruns
of speaker cable (see diagram on page 6). Their
connections are as follows:
Polarity Phone Jack
Positive (+) Tip
Negative (-) Sleeve
IfXenclosuresareusedasthemid/highpackinalarger
three-way loudspeaker array, an external crossover
may be used with the speaker and two channels of
power amplification will be required: one for the low
frequencies and another for the high frequencies (see
diagram on page 7).
The placement of any speaker can dramatically affect
its sound. Thus, there are several considerations to
review when placing loudspeakers.
First, the range of the horizontal coverage should be
determined. Thespeakermaybeusedasasingleunit,
aspart ofa pair,or aspartof agroup ofwidely spaced
enclosures,inanycase,maximumhorizontalcoverage
will be desired. Examples of these types of setups
are shown. The horn in this configuration has a
horizontal coverage angle of 70º and a vertical
coverage of 35º.
NOTE: When setting up your X Series enclosures, be
suretoplacethe cabinetsinsuch away astominimize
overlapping radiating patterns.
A second consideration is for feedback and bass
performance. Ifthespeaker isplaced neara large,flat
wall, the bass output will increase by approximately 6
dB. Placing the speaker near a wall can cause
feedback. If this occurs, the speaker must be moved.
A third consideration is to what degree the speaker
should be "heard and not seen", especially in
permanent installations. Remember, where the
speaker cabinets are placed will effect both their tone
and radiating patterns.
X Series cabinets are covered in a
tough, black Tolex covering for long life
and lasting good looks. To clean the
Tolexcovering,useaspongeandalight
soapy water solution to wipe away any
smudges or dirt. For stubborn stains,
a slightly more concentrated soapy solution may be
used. Avoid spilling liquids on the input panel, grille
and speakers.
X SERIES SPEAKER CONNECTIONS

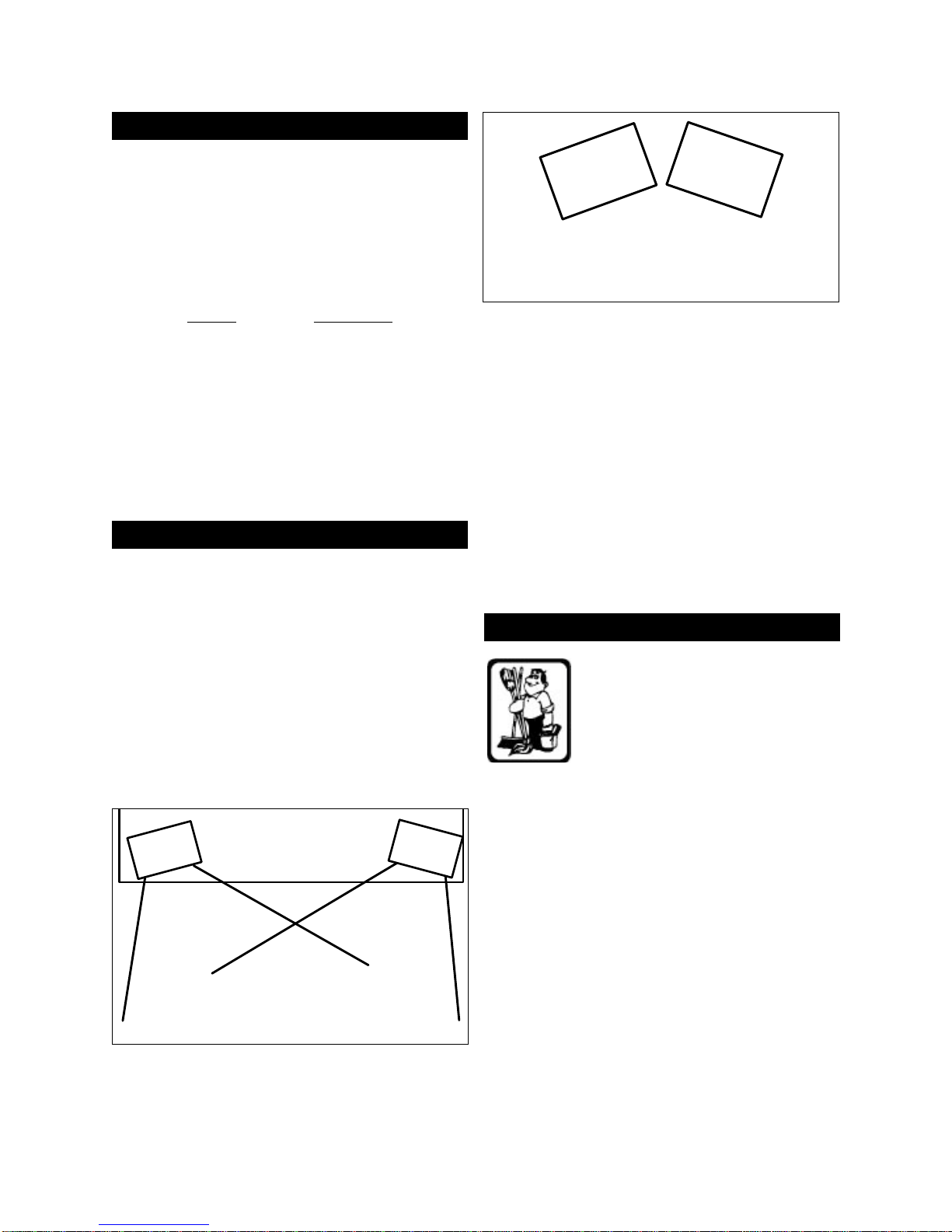

SETUP SUGGESTIONS
Two speakers arranged as a mono or stereo
pair requiring maximum horizontal coverage
Audience
Stage
X
Cabinet
X
Cabinet
Two speakers in a "loose pack" array
requiring maximum horizontal
coverage
30º
X
Cabinet
X
Cabinet
CARPET COVERING CARE

6
“DAISY CHAINING” X SERIES ENCLOSURES

7
INPUT
LOW
OUT
HIGH
OUT
PCN-2 ELECTRONIC CROSSOVER
- ∞ - ∞ - ∞
- ∞ - ∞
- ∞
INPUT
USING AN ELECTRONIC CROSSOVER WITH X SERIES ENCLOSURES

MODEL 1110X 1201X 1205X
PART NUMBER 071-1100-200 071-1201-200 071-1205-200
MAXIMUM dB SPL
OUTPUT LONG TERM 120 dB 121 dB 121 dB
CABINET 3/4" (1.9 cm) 3/4" (1.9 cm) 3/4" (1.9 cm)
Birch Plywood Birch Plywood Birch Plywood
CONNECTIONS (2) 1/4" Phone Jacks (2) 1/4" Phone Jacks (2) 1/4" Phone Jacks
DRIVER Low: 10" (25.4 cm) woofer 12" (30.5 cm) woofer 15" (38.1 cm) woofer
2" (5 cm) voice coil 2" (5 cm) voice coil 2.5" (6.35 cm) voice coil
High: 1" (2.5 cm) Exit Throat 1" (2.5 cm) Exit Throat 1" (2.5 cm) Exit Throat
Polymer Diaphragm Polymer Diaphragm Polymer Diaphragm
Dual Piezoelectric Driver Dual Piezoelectric Driver Dual Piezoelectric Driver
FREQUENCY Axial
RESPONSE +/- 3 dB: 65 Hz to 20kHz 60 Hz to 20kHz 60 Hz to 20kHz
AXIAL SPL @
SENSITIVITY 1W/1m: 94 dB 95 dB 95 dB
POWER RATING 100W 100W 150W
NOMINAL IMPEDANCE 8Ω8Ω8Ω
DIMENSIONS Height 19.5" (49.3 cm) 21" (53 cm) 25.25" (64 cm)
Width 16" (40.5 cm) 17" (43.2 cm) 19.25" (48.7 cm)
Depth 11" (28 cm) 12.6" (32 cm) 13" (33 cm)
WEIGHT 35 lbs. (15.9kg) 47 lbs. (21.5 kg) 55 lbs. (25 kg)
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORP.
CORONA, CA 91720 USA
SPECIFICATIONS
