Ferno Neomate Infant Restraint System User manual

Users’ Manual
Neomate Infant Restraint System
October 2011 GLO
Pub. No. 234-2045-03
Read this Manual
and Retain for
Future Reference

Model Neomate
USERS’ MANUAL
To request additional free users’ manuals,
contact Ferno Customer Relations, your
Ferno distributor, or visit www.ferno.com.
Disclaimer
This manual contains general instructions for the use, operation
and care of this product. The instructions are not all-inclusive. Safe
and proper use of this product is solely at the discretion of the
user. Safety information is included as a service to the user. All
other safety measures taken by the user should be within and under
consideration of applicable regulations. It is recommended that
training on the proper use of this product be provided before using
this product in an actual situation.
Retain this manual for future reference. Include it with the product
in the event of transfer to new users. Additional free copies are
available upon request from Customer Relations.
Proprietary Notice
The information disclosed in this manual is the property of Ferno-
Washington, Inc., Wilmington, Ohio, USA. Ferno-Washington, Inc.
reserves all patent rights, proprietary design rights, manufacturing
rights, reproduction use rights, and sales use rights thereto, and
to any article disclosed therein except to the extent those rights
are expressly granted to others or where not applicable to vendor
proprietary parts.
Limited Warranty Statement
The products sold by Ferno are covered by a limited warranty,
which is printed on all Ferno invoices. The complete terms and
conditions of the limited warranty, and the limitations of liability
and disclaimers, are also available upon request by calling Ferno at
1.800.733.3766 or 1.937.382.1451.
Ferno Technical Support
Customer service and product support are important aspects of each
Ferno product. Please have the product serial number available
when calling, and include it in all written communications. For
technical support questions:
Telephone (Toll-free) 1.800.733.3766 ext. 1010
Telephone [phone] ext. 1010
Email quality[email protected]
Ferno Customer Relations
For ordering assistance or general information:
CANADA AND THE U.S.A.
Telephone (Toll-free) 1.877.733.0911
Telephone [phone]
Fax (Toll-free) 1.888.388.1349
Fax [phone]
Internet www.ferno.com
ALL OTHER LOCATIONS
For assistance or information, please contact your Ferno distributor.
If you do not have a Ferno distributor, please contact Ferno
Customer Relations:
Ferno-Washington, Inc.
70 Weil Way
Wilmington, Ohio 45177-9371, U.S.A.
Telephone [phone]
Fax [phone]
Internet www.ferno.com
EUROPEAN REPRESENTATIVE
Ferno (UK) Limited
Stubs Beck Lane, Cleckheaton
West Yorkshire BD19 4TZ, United Kingdom
Telephone [phone]
Fax [phone]
Internet www.ferno.co.uk
General Information
This product is to be used by trained medical staff only. The
Neomate is designed for the emergency transport of infants
weighing between 3.2 kg and 6.4 kg or 7 to 14 lbs who are deemed
by the medical professional, too small to be transported by using
the Pedimate. All care should be taken by the medical professional
in determining if this product is correct for the safe securement
of the infant during transport, and whether or not an alternative
conveyance device (such as a commercially tested infant car seat)
should be used instead.
The Neomate has been dynamically tested on a Ferno cot/trolley to
meet CEN standards for crash retention. It should be rmly secured
to the cot/trolley before the infant is secured within it. The top grey
restraint should be looped around the cot/trolley backrest with the
buckles correctly engaged and the slack webbing tightened by
using the restraint adjuster. The two lower grey restraints should
be looped around each main frame rails near the siderails. Both
restraints should then be tightened by using the adjusters.
The Neomate should be positioned on the cot/trolley so that when
the backrest is raised slightly, the infant is sitting in a semi-upright
position and not laying supine.
Once the device is properly positioned and secured, the infant can
be placed in the Neomate using the familiar ve point harness
system that comes over the child’s shoulders and under the crotch
region.
Additional horizontal restraints (with plastic buckles) are provided
to “hug” the infant and provide lateral support and containment for
the child. The EMT/Paramedic should determine if these horizontal
restraints may cause issues (in instances of labored breathing or
upper body injuries) and decide on their use.

Model Neomate
SAFETY INFORMATION
Warning
Warning notices indicate a potentially hazardous situation
which, if not avoided, could result in injury or death.
WARNING
Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the Neomate.
Improper use of the Neomate can cause injury. Use the
Neomate only for the purpose described in this manual.
Improper application can cause injury. Apply the
Neomate only as described in this manual.
An unattended patient can be injured. Stay with the
patient at all times.
Secure and snug all straps. Unsecured or loose straps
may allow movement and result in injury or death of the
patient.
Improper maintenance can cause injury. Maintain
the Neomate only as described in this manual.
Important
Important notices emphasize important usage or maintenance
information.
Important
Bloodborne Disease Notice
To reduce the risk of exposure to bloodborne diseases such
as HIV-1 and hepatitis when using the Neomate, follow
the disinfecting and cleaning instructions in this manual.
Safety Information
Symbol Glossary
ThesymbolsdenedbelowareusedontheNeomate and/
or in this users’ manual. Ferno uses symbols recognized by
the International Standards Organization (ISO), American
National Standards Institute (ANSI) and the emergency
medical services industry.
General Warning of
Potential Injury
Operation Requires
One Trained Operator
Read the Users’
Manual
Load Limit
7-14 lb
3.2-6.4 kg
1

Model NeomateOperator Skills
OPERATOR SKILLS ANDTRAINING
Skills
Operators using the Neomate need:
● a working knowledge of emergency patient-handling
procedures.
● the ability to assist the patient.
WARNING
Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the
Neomate.
Training
Operator need to:
● read and understand this manual.
● be trained on the use of the Neomate.
● practice with the Neomate before using it with a
patient.
● record their training information. A sample training
record sheet is provided on page 13.

Model Neomate
ABOUT THE NEOMATE
Description
The Neomate is designed to secure infants and toddlers
from 7 to 14 lbs (3.2 to 6.4 kg) on a Ferno cot.
USE
The Neomate is designed for use only in an emergency
setting and only by suitably trained personnel. Where child
restraint is needed outside of this setting, the transport
vehicleshouldbetted withrestraints inaccordance with
applicable local standards and regulations, including but not
limited to, the United States Federal Motor Vehicle Safety
Standards and Regulations.
The Neomate is for professional use by one or more
trained operators.
The Neomate is not designed as an immobilization device
and should not be used to immobilize the patient, or as part
of an immobilization system.
FEATURES
The Neomate blanket is soft, lightweight vinyl. One-piece
webbing straps with quick-release buckles attach it to Ferno
cot frames at three points.
Theve-point patientharnessconsistsoftwo continuous-
loop shoulder/torso straps and a crotch strap. All secure in a
central, fast-release buckle and all are fully adjustable.
COMPATIBLE COTS
The Neomate is designed for use with the following Ferno
cot models:
WARNING
Improper use of the Neomate can cause injury.
Use the Neomate only for the purpose described
in this manual.
About the Neomate
Note:The Neomate is not compatible with Models
28 or 2033 chair cots. 7
7-14 lb
3.2-6.4 kg
LOAD LIMIT
If the load limit has been
exceeded (see Inspecting the
Neomate, page 12).
26 Series
28-Z PROFlexx®
29-M
30-SC
35-A Series
35-A+Series
35-P PROFlexx®Series
35-X PROFlexx®Series
93-ES Series
93-EX Series
93-P PROFlexx®Series
93-H PROFlexx®Series
POWERFlexx®
Mondial® RS2 Stretcher
Mondial® RS3 Stretcher
Mondial® RS4 Stretcher
EFX 1 Stretcher Chair
EFX 2 Stretcher
EFX 3 Stretcher
EFX MonoBloc
4140 Series Stretchers
Falcon Range
Hawk Range
Pegasus Range
CCT Range
Megasus

Model Neomate About the Neomate
General Specications
Open, Flat
Width 10.5 in
Length 21 in
Folded
Length 13 in
Width 10.5 in
Height 3.5 in
Weight
2.6lb
Load Limit
Minimum 7 lb (3.2 kg)
Maximum 14 lb (6.4 kg)
Webbing Rating 3500 lb (1.6 mt)
Mostgeneralspecicationsareroundedtothenearestwhole
number. Metric conversions are calculated before rounding
the Imperial measurements.
For more information about the Neomate contact Ferno
Customer Relations (page 2) or your Ferno distributor.
Ferno reserves the right to change specications without
notice.
Components
Not Shown
Hook-and-loop storage straps on reverse surface of Neomate are not visible in this view.
Shoulder
Straps
Strap
Adjustment
Tab
Buckle and
Strap for Cot
Main Frame
Central Buckle
Crotch Strap
Crotch Strap
Tab
Buckle and
Strap for Cot
Main Frame
Strap
Adjustment
Tab
Chest
Clip
Base
Straps
for Cot
Backrest
Straps
for Cot
Backrest
Base Shoulder
Strap Chest
Clip
Straps
for Cot
Backrest
“Halo”
Pad
Strap
Adjustment
Tab
Buckle
and strap
for cot
Main
Frame
Central
Buckle
Crotch
Strap
Crotch
Strap
Tab
Buckle
and strap
for cot
Main
Frame
Strap
Adjustment
Tab
Straps
for Cot
Backrest
Additional
pads to
stabilize
child

Model Neomate
USING THE NEOMATE
Before Placing the Neomate in
Service
● Personnel who will work with the Neomate need to
read this manual and practice using the Neomate.
● ConrmthattheNeomate operates properly. Follow
instructions in Inspecting the Neomate, page 12.
General Guidelines for Use
● Medical advice is beyond the parameters of this
manual.
● It is the Neomate users’ responsibility to ensure safe
practices for the patient and themselves.
● It is the responsibility of the qualied Emergency
Medical Service personnel to assess the patient’s
condition and determine the proper equipment and
procedures to use.
● Follow standard emergency patient-handling
pro-cedures when using the Neomate.
● Stay with the patient at all times.
● Always use the patient harness.
● Use the Neomate only when all elements are in good
working order.
● Use the Neomate only with the approved cot models
listed on page 6.
● Never use the Neomate in a captain’s chair or front
seat of an ambulance.
● Never use the Neomate as an immobilization device
or as part of an immobilization system.
● If the Neomate is in use at the time of a vehicular
accident, remove the Neomate from service and
replace it.
Using the Neomate
WARNING
Improper application can cause injury. Apply the
Neomate only as described in this manual.
WARNING
An unattended patient can be injured. Stay with the
patient at all times.
WARNING
Secure and snug all straps. Unsecured or loose
straps may allow movement and result in injury or
death of the patient.

9
© Ferno-Washington, Inc 234-2045-03 October 2011
Model 678 Pedi-Mate®
4.3 Positioning the Pedi-Mate®
1. Remove any restraints attached to the cot.
2. Raise the cot backrest and lock in place at an angle
between 15 and 45 degrees. This will keep the
patient’s shoulders higher than the pelvis and maintain
the proper center of gravity.
3. Unroll the Pedi-Mate® and spread it at on the cot
mattress with all straps extended.
4. Center the blanket left to right on the mattress.
5. Position the blanket with the black backrest strap at
the point where you expect the patient’s shoulders to
rest (Figure 1).
4.4 Securing the Pedi-Mate®
1. Place the patient on the Pedi-Mate®. If the black
backrest strap is not at the patient’s shoulder level,
adjust the blanket position.
2. With the blanket properly positioned, tighten the
backreststrapbypullingveryrmlyonthefreeendof
the strap until the mattress is compressed.
3. Fasten a main frame strap by threading the free
end downward between the cot main frame and the
mattress next to the head-end sidearm casting.
4. Wrap the strap up around the cot main frame and
fasten the buckle (Figure 3). Leave a little slack in the
strapfornaladjustment.
5. Repeat with the other main-frame strap.
6. Tighten each main frame strap by holding onto the
buckle with one hand and pulling rmly on the free
end of the strap.
Note:To loosen a main-frame strap, unfasten it, then grasp
the buckle tang, and pull outward. Refasten the buckle.
Using the Pedi-Mate®
Figure 1 - Pedi-Mate® Positioned on a Cot
FERNO
FERNO
Figure 2 - Attach the Pedi-Mate® Backrest Strap
Figure 3 - Attach a Strap to the Cot Main Frame
Head-end
Sidearm
Casting
Main Frame
6. Run the ends of the backrest strap around the cot
backrest until they meet in the back, then fasten the
buckle (Figure 2). Leave some slack in the strap for
naladjustment.
Model Neomate
USING THE NEOMATE
Before Placing the Neomate in
Service
● Personnel who will work with the Neomate need to
read this manual and practice using the Neomate.
● ConrmthattheNeomate operates properly. Follow
instructions in Inspecting the Neomate, page 12.
General Guidelines for Use
● Medical advice is beyond the parameters of this
manual.
● It is the Neomate users’ responsibility to ensure safe
practices for the patient and themselves.
● It is the responsibility of the qualied Emergency
Medical Service personnel to assess the patient’s
condition and determine the proper equipment and
procedures to use.
● Follow standard emergency patient-handling
pro-cedures when using the Neomate.
● Stay with the patient at all times.
● Always use the patient harness.
● Use the Neomate only when all elements are in good
working order.
● Use the Neomate only with the approved cot models
listed on page 6.
● Never use the Neomate in a captain’s chair or front
seat of an ambulance.
● Never use the Neomate as an immobilization device
or as part of an immobilization system.
● If the Neomate is in use at the time of a vehicular
accident, remove the Neomate from service and
replace it.
Using the Neomate
WARNING
Improper application can cause injury. Apply the
Neomate only as described in this manual.
WARNING
An unattended patient can be injured. Stay with the
patient at all times.
WARNING
Secure and snug all straps. Unsecured or loose
straps may allow movement and result in injury or
death of the patient.
Model Neomate
USING THE NEOMATE
Before Placing the Neomate in
Service
● Personnel who will work with the Neomate need to
read this manual and practice using the Neomate.
● ConrmthattheNeomate operates properly. Follow
instructions in Inspecting the Neomate, page 12.
General Guidelines for Use
● Medical advice is beyond the parameters of this
manual.
● It is the Neomate users’ responsibility to ensure safe
practices for the patient and themselves.
● It is the responsibility of the qualied Emergency
Medical Service personnel to assess the patient’s
condition and determine the proper equipment and
procedures to use.
● Follow standard emergency patient-handling
pro-cedures when using the Neomate.
● Stay with the patient at all times.
● Always use the patient harness.
● Use the Neomate only when all elements are in good
working order.
● Use the Neomate only with the approved cot models
listed on page 6.
● Never use the Neomate in a captain’s chair or front
seat of an ambulance.
● Never use the Neomate as an immobilization device
or as part of an immobilization system.
● If the Neomate is in use at the time of a vehicular
accident, remove the Neomate from service and
replace it.
Using the Neomate
WARNING
Improper application can cause injury. Apply the
Neomate only as described in this manual.
WARNING
An unattended patient can be injured. Stay with the
patient at all times.
WARNING
Secure and snug all straps. Unsecured or loose
straps may allow movement and result in injury or
death of the patient.
Model Neomate
USING THE NEOMATE
Before Placing the Neomate in
Service
● Personnel who will work with the Neomate need to
read this manual and practice using the Neomate.
● ConrmthattheNeomate operates properly. Follow
instructions in Inspecting the Neomate, page 12.
General Guidelines for Use
● Medical advice is beyond the parameters of this
manual.
● It is the Neomate users’ responsibility to ensure safe
practices for the patient and themselves.
● It is the responsibility of the qualied Emergency
Medical Service personnel to assess the patient’s
condition and determine the proper equipment and
procedures to use.
● Follow standard emergency patient-handling
pro-cedures when using the Neomate.
● Stay with the patient at all times.
● Always use the patient harness.
● Use the Neomate only when all elements are in good
working order.
● Use the Neomate only with the approved cot models
listed on page 6.
● Never use the Neomate in a captain’s chair or front
seat of an ambulance.
● Never use the Neomate as an immobilization device
or as part of an immobilization system.
● If the Neomate is in use at the time of a vehicular
accident, remove the Neomate from service and
replace it.
Using the Neomate
WARNING
Improper application can cause injury. Apply the
Neomate only as described in this manual.
WARNING
An unattended patient can be injured. Stay with the
patient at all times.
WARNING
Secure and snug all straps. Unsecured or loose
straps may allow movement and result in injury or
death of the patient.
Model Neomate
USING THE NEOMATE
Before Placing the Neomate in
Service
● Personnel who will work with the Neomate need to
read this manual and practice using the Neomate.
● ConrmthattheNeomate operates properly. Follow
instructions in Inspecting the Neomate, page 12.
General Guidelines for Use
● Medical advice is beyond the parameters of this
manual.
● It is the Neomate users’ responsibility to ensure safe
practices for the patient and themselves.
● It is the responsibility of the qualied Emergency
Medical Service personnel to assess the patient’s
condition and determine the proper equipment and
procedures to use.
● Follow standard emergency patient-handling
pro-cedures when using the Neomate.
● Stay with the patient at all times.
● Always use the patient harness.
● Use the Neomate only when all elements are in good
working order.
● Use the Neomate only with the approved cot models
listed on page 6.
● Never use the Neomate in a captain’s chair or front
seat of an ambulance.
● Never use the Neomate as an immobilization device
or as part of an immobilization system.
● If the Neomate is in use at the time of a vehicular
accident, remove the Neomate from service and
replace it.
Using the Neomate
WARNING
Improper application can cause injury. Apply the
Neomate only as described in this manual.
WARNING
An unattended patient can be injured. Stay with the
patient at all times.
WARNING
Secure and snug all straps. Unsecured or loose
straps may allow movement and result in injury or
death of the patient.
Neomate
Positioning the NeoMate
Securing the Neomate
3. Unroll the Neomate and spread it at on the cot
mattress with all straps extended.
Figure 1 - Neomate Positioned on a Cot
Figure 2 - Attach the Neomate Backrest Strap
1. Place the patient on the Neomate. If the grey backrest
strap is not at the patient’s shoulder level, adjust the
blanket position.
5. Position the blanket with the grey backrest strap at
the point where you expect the patient’s shoulders to
rest (Figure 1).

Model Neomate
Securing the Patient
Using the Neomate
WARNING
Secure and snug all straps. Unsecured or loose
straps may allow movement and result in injury or
death of the patient.
1. Pull the crotch strap buckle up between the patient's
legs and lay the strap on the patient's abdomen.
2. Lift a shoulder strap over one shoulder of the patient.
Place patient's arm through the strap, then lock the
buckle half into the central buckle (Figure 4).
3. Repeat with the other shoulder strap.
Figure 4 - Fastening a Shoulder Strap
Figure 5 - Fastening a Shoulder Strap
Figure 6 - Fastening a Shoulder Strap
B
C
A
4. Thread the shoulder strap on the patient's left side
through the chest clip (Figure 5) and slide the chest
clip to armpit level.

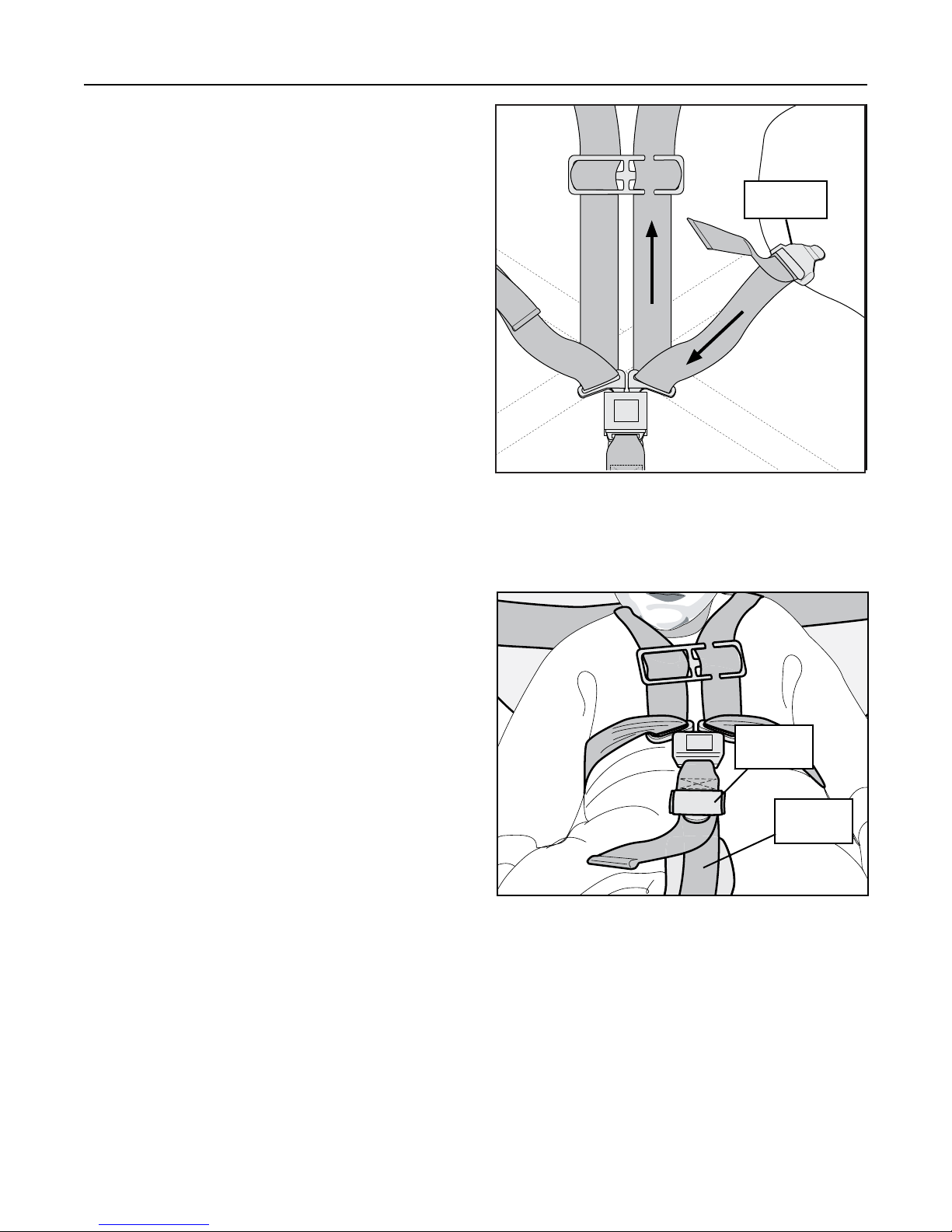

5. To snug the shoulder/torso straps, refer to Figure 6 and
use the following procedure:
○Snug the shoulder strap (A) against the shoulder
and chest by pulling section B of the strap with
one hand while steadying the central buckle with
the other hand.
○Repeat with the other shoulder strap.
○Snug the torso strap (B) by pulling on section C
with one hand while steadying the central buckle
with the other hand.
○Repeat with the other torso strap.
6. Snug the crotch strap by pulling on the free end.
Chest Clip
Shoulder
Strap
6. Ensure the crotch strap is fastened, crotch strap is
of xed length not adjustable
Figure 6 - Fastening a Shoulder Strap

Model Neomate
LOOSENING THE HARNESS STRAPS
To loosen the straps, refer to Figures 7 and 8 and use the
following procedures:
1. Grasp the adjustment tab (Figure 7) with one hand and
pull the torso strap (B) back through the tab with your
other hand.
2. Steady the central buckle with one hand and loosen
the shoulder strap (A) by pulling it upward with the
other hand.
3. Repeat with the other shoulder/torso strap.
4. Loosen the crotch strap by grasping the adjustment tab
with one hand and pulling downward on the portion of
the strap that rests against the body (Figure 8).
Figure 7 - Loosening the Strap
A
B
Adjustment
Tab
Releasing the Patient from the
Neomate Harness
1. Loosen the crotch strap.
2. Slide the chest clip down toward the central buckle
and unthread the shoulder strap on the patient's left
side from the clip.
3. Press the red release button in the central buckle
and pull the buckle slightly downward to release the
shoulder straps from the buckle.
4. Loosen the shoulder straps and slide them away from
the patient's body.
5. Lift the patient from the Neomate according to local
protocols.
Storing the Neomate
1. Detach the Neomatefromthecotandspreaditat
on the cot mattress.
2. Attach the shoulder straps to the central buckle and
adjust all straps to lay smoothly against the blanket.
3. Fold the backrest straps across the blanket.
4. Fold the crotch panel up toward the center of the
blanket.
5. Fold the cot main-frame straps and the lower blanket
panels across the center of the Neomate.
6. Beginning at the crotch panel, fold the Neomate
upward. Secure the roll with the hook-and-loop straps.
Figure 8 - Loosening the Crotch Strap
Fixed Crotch
Buckle
Crotch
Strap
Using the Neomate
Figure 7 - Loosening the Strap

Model Neomate
5  MAINTENANCE
Maintenance Schedule
The Neomate requires regular maintenance. Set up and
follow a maintenance schedule (see maintenance record
sheet on page 14). The table at right represents minimum
intervals for maintenance.
When using maintenance products, follow the manufacturers'
directions and read the manufacturers' material safety data
sheets.
Disinfecting the Neomate
Wipe or spray disinfectant on all Neomate and surfaces
and straps. Follow the disinfectant manufacturer's directions
for application and contact time.
Cleaning the Neomate
Hand wash the Neomate blanket and straps with warm,
soapy water and a clean cloth or soft brush. Rinse with clear
water. Dry the blanket with a towel and allow the straps to
air dry.
Do not immerse the buckles in water.
Inspecting the Neomate
Have your services equipment maintenance personnel
inspect the Neomate regularly. Follow the inspection
checklist.
If the inspection shows damage or excessive wear, remove
the Neomate from service. Ferno recommends that in
addition to scheduled maintenance, operators perform
a visual inspection each time the Neomate is used. If
damage is noted, remove the Neomate from service
immediately and replace it.
INSPECTION CHECKLIST
● Are all components present?
● Is the Neomate free of excessive wear?
● Is all stitching secure?
● Do the central buckle and adjustment tabs operate
properly and smoothly?
● Are there cuts or tears in the blanket or straps?
WARNING
Improper maintenance can cause injury. Maintain
the Neomate only as described in this manual.
Important
Disinfectants and cleaners containing bleach,
phenolics, or iodines can damage the Neomate. Do
not use products containing these chemicals.
Important
If the Neomate is in use at the time of a vehicular
accident, remove the Neomate from service and
replace it.
Maintenance
U.S.A. NOTICE
The cot is for use with ambulances that meet the requirements
of the “Star of Life” certication via FederalAmbulance
SpecicationKKK-A-1822.Forinformation,contact:
FederalSupplyServices,SpecicationsSection
Suite 8100
470 E. L’Enfant Plaza, SW
Washington, DC 204
Minimum
Maintenance Intervals
Each Use As Needed Each Month
Disinfecting (this page) •
Cleaning (this page) •
Inspecting (this page) ••

Model Neomate
TRAINING RECORD
Date Name Training Method
Training Record

Model Neomate
MAINTENANCE RECORD
Date Maintenance Performed By
