ASSEMBLY MANUAL
DOG KENNEL
COCKER Model
Dear Customer,
Thank you for purchasing a FERRANTI product.
OBLIGATION
Please consult this assembly manual carefully
before proceeding with any operation on the
product.
INTRODUCTION
This assembly manual reects the technique at the time of pur-
chase and the specications in force at the current date of edi-
tion; it contains the information necessary for correct installation,
cleaning and disposal of the product at the end of its life.
FERRANTI S.R.L. reserves the right to make modications,
changes or improvements to the manual or to the product at any
time and without notice.
Use only the original mounting components provided.
ATTENTION
The manufacturer is not liable for damage to
property, persons and animals caused by ac-
cidents due to failure to comply with the in-
structions in this assembly manual.
The images are purely indicative and do not constitute a
commitment for the manufacturer and/or the Distributor.
Any proposal by the Customer regarding improvements to be
made to the product will be welcomed by FERRANTI S.R.L.,
which will evaluate their implementation.
INTENDED USE (PERMITTED USE).
The product in question has been designed for the housing and
keeping of animals.
The inner dog house is suitable for 20-45 kg / 50-70 cm large
dog breeds, (such as: female Shepherd, female Dobermann,
English Setter) and for 18-40 kg / 50-63 cm medium dog
breeds, (such as: Golden retriever, Boxer, Collie, Labrador, Bor-
der Collie).
IMPROPER USE (NOT PERMITTED).
Any use other than the permitted one is to be considered “im-
proper use”; the Manufacturer therefore declines all responsibil-
ity for any damage caused to property, animals and/or persons.
GENERAL DESCRIPTION
The dog kennel, mod. Cocker consists of:
- structure in hot galvanized steel mesh, mesh 5x3 cm, wire 0.29
mm, bu󰀨ered with panels in marine plywood treated with im-
pregnating agent, 1.5 cm thick; gates dimensions 53(L)x105(H)
cm;
- Inner wooden dog house (from 120x65- 82x59, with “anti-bite”
entrance from 30x50, that can be inspected by lifting the roof
and complete with bench raised from the ground, removable
and washable;
- front in hot-dip galvanized mesh, complete with gate with hook
ASSEMBLY MANUAL
DOG KENNEL - COCKER MODEL
Rel. 08-2022 - Rev. 0
EN - Translation from the original language (Italian)

Ferranti s.r.l. Unipersonale
Via Vicinato n. 43 - Frazione Fratta - 06036 Montefalco (PG) - Italy
Tel. [phone]
[email protected] - www.ferrantinet.com
and loop;
- sleeping area cover in insulated panel, 3.5 cm thick, framed
with sheet metal proles; living area with openable mesh roof
for easy entry and cleaning;
The cover has a protrusion of about 6 cm in the sides, while it
protrudes of about 10-11 cm in the back.
- Also suitable for cats.
OVERALL DIMENSIONS
125 x 240
External (WxDxH) 125 x 240 x 125 cm
Interior (WxDxH) 120 x 235 x 120 cm
W = Width / D = Depth / H = Height
UNPACKING
► Place the structure near the nal installation site and on a
stable and horizontal area of the ground.
►Remove the packaging materials taking care not to damage
the components.
ATTENTION
DANGER! Keep out of the reach of chil-
dren and animals.
Packaging materials (plastic bags, straps, etc.)
can be a source of danger to health (e.g. su󰀨o-
cation).
►Divide the packaging materials according to their type and
dispose of them in accordance with the provisions in force
regarding the disposal of waste.
RECYCLING
All the packaging materials are recyclable and
must be disposed of in accordance with the lo-
cal legislation.
STANDARD EQUIPMENT
12 4 5
3
6
1No. 8 screws M8x30
2No. 6 screws M8x50
3No. 6 screws 4.8x16
4
No. 2 self-tapping screws
4.8x16
5No. 16 M8 nuts
6No. 2 springs
INSTALLATION
2x The assembly operations must be performed
by at least two persons.
For the assembly of the products, the use of
Personal Protective Equipment is always re-
commended: work gloves to protect the hands
from the danger of being cut.
RECOMMENDED TOOLS
Slotted Screwdriver - Cross Head Screwdriver - Wrench - Cutter.
Note: Tighten the screws completely only at the end and after
checking the square of the structure.

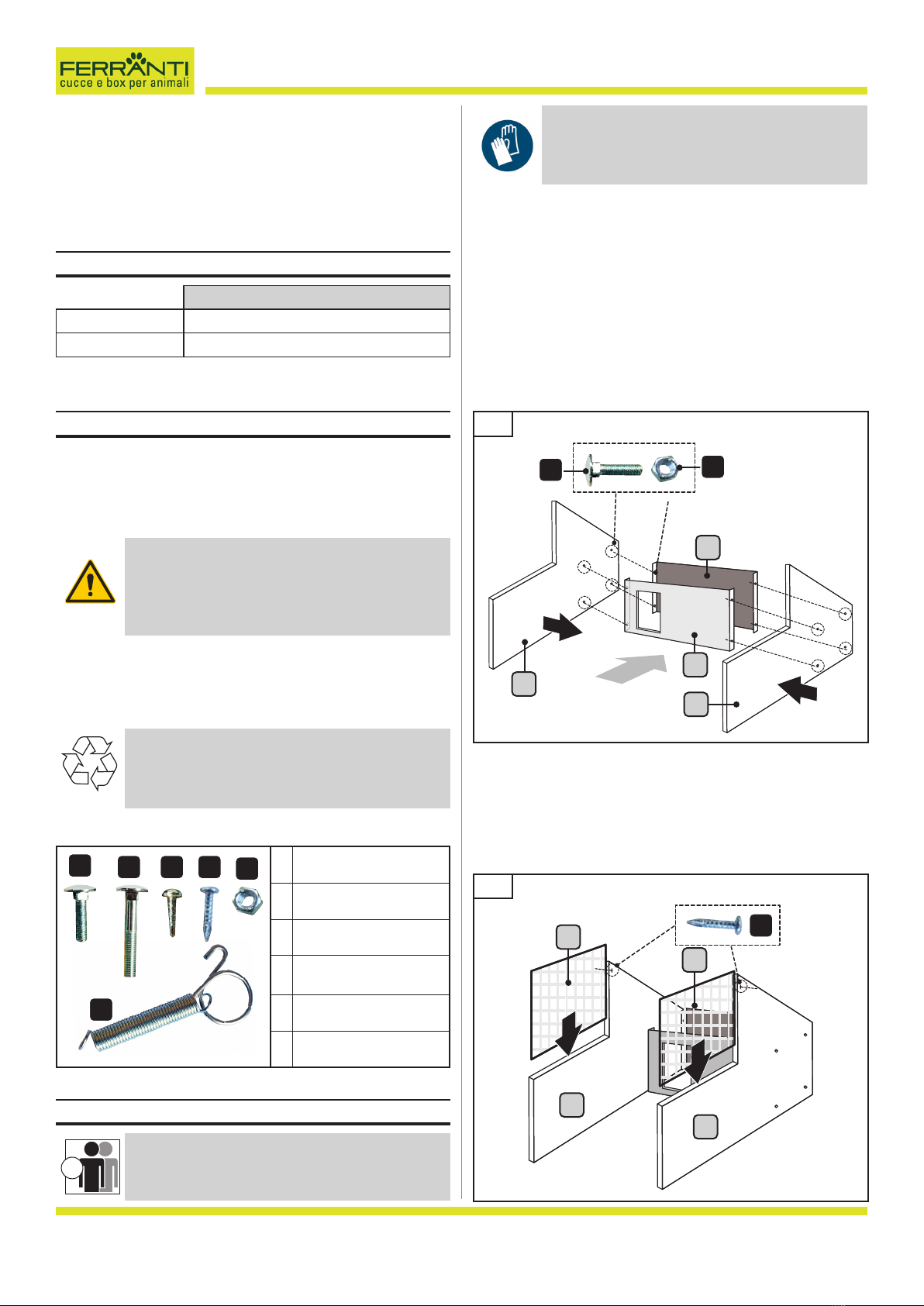

1) Assembling the sides (A1 and A2)
►Remove the screws (1) and nuts (5) from the kit supplied.
●Connect the side wall (A1) to the rear wall (B) and the front
wall (C) using the screws and nuts.
●Proceed in the same way for the side (A2).
1
A1
C
B
A2
15
2) Assembling the mesh panels (D1 and D2)
►Remove the screws (4) from the kit supplied.
●Recess the mesh panel (D1) on the side (A1) and x it with
the screw in the point shown in the gure.
●Do the same for the mesh panel (D2).
2
D1
D2
A2
A1
4
ASSEMBLY MANUAL
DOG KENNEL - COCKER MODEL
Rel. 08-2022 - Rev. 0
EN - Translation from the original language (Italian)

Ferranti s.r.l. Unipersonale
Via Vicinato n. 43 - Frazione Fratta - 06036 Montefalco (PG) - Italy
Tel. [phone]
[email protected] - www.ferrantinet.com
3) Assembling the gate (E)
►Remove the screws (2) and nuts (5) from the kit supplied.
●Secure the gate to the structure using the holes provided.
3
2
5
4) Assembling the dog house roof (F1)
►Remove the screws (3) from the kit supplied.
●Fix the roof (F1) to the side panels at the indicated points.
4
F1 3
5) Assembling the mesh roof (F2)
►Remove the screws (2) and nuts (5) from the kit supplied.
●Assemble the mesh roof (F2), inserting the screws so as to
allow it to open.
5
52
F2
F2
6) Assembling the springs
►Remove the springs (6) from the kit supplied.
●Insert the hook of the springs (6) to the connection provided
on the roof (F2).
●Hook the other end of the spring to the gate net.
6
6
F2
ASSEMBLY MANUAL
DOG KENNEL - COCKER MODEL
Rel. 08-2022 - Rev. 0
EN - Translation from the original language (Italian)

Ferranti s.r.l. Unipersonale
Via Vicinato n. 43 - Frazione Fratta - 06036 Montefalco (PG) - Italy
Tel. [phone]
[email protected] - www.ferrantinet.com

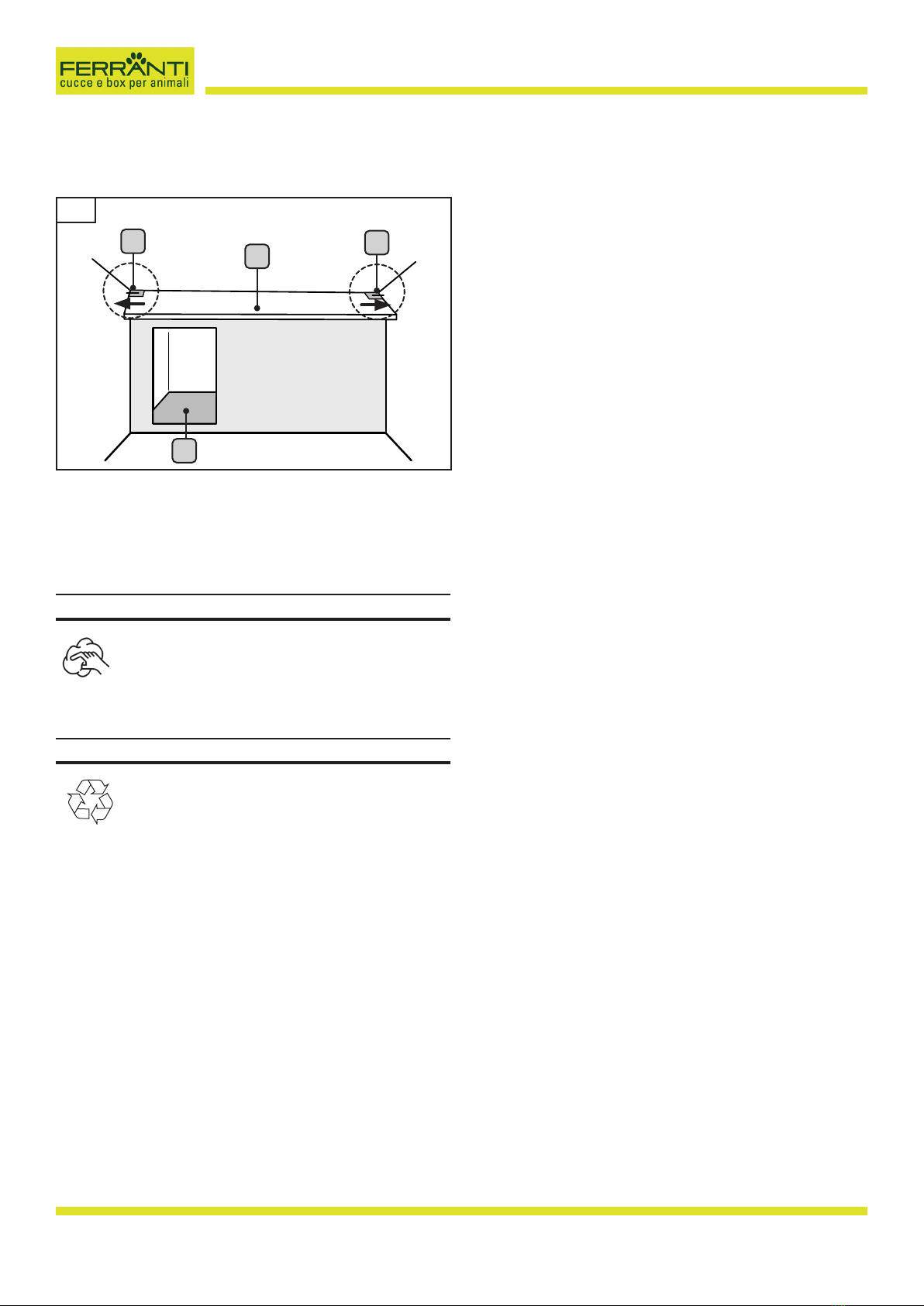

7) Assembling the inner roof (F3) and the bench
●Enter the inside of the box and install the internal roof (F3)
by securing it to the structure with the appropriate hooks (G).
●Insert the wooden bench (H).
7
F3
GG
H
8) Finishes
●Remove the transparent protective plastic from the insulated
panels (use a cutter).
●It is advisable to apply silicone to the roof joints.
CLEANING
CLEANING
Clean the structure periodically (or in the presen-
ce of obvious dirt). Sanitise, disinfect and clean the
inside of the kennel with suitable products that are not
harmful to the health of the person and the animal.
SCRAPPING AND DISPOSAL
RECYCLING
The materials that compose the structure must be
disposed of according to the type and procedures
provided for by the legislation in force in the country
of installation.
For further detailed information on the disposal of this product,
contact the municipal o󰀩ce, the local waste disposal service or
the store where it was purchased.
ASSEMBLY MANUAL
DOG KENNEL - COCKER MODEL
Rel. 08-2022 - Rev. 0
EN - Translation from the original language (Italian)
