FERRANTI ECO User manual

Ferranti s.r.l. Unipersonale
Via Vicinato n. 43 - Frazione Fratta - 06036 Montefalco (PG) - Italy
Tel. [phone]
[email protected] - www.ferrantinet.com
ASSEMBLY MANUAL
DOG KENNEL - ECO MODEL
Rel. 08-2022 - Rev. 0
EN - Translation from the original language (Italian)
COLLIE doghouse
DOBERMANN doghouse
ASSEMBLY MANUAL
DOG KENNEL
ECO Model
Dear Customer,
Thank you for purchasing a FERRANTI product.
OBLIGATION
Please consult this assembly manual carefully
before proceeding with any operation on the
product.
INTRODUCTION
This assembly manual reects the technique at the time of pur-
chase and the specications in force at the current date of edi-
tion; it contains the information necessary for correct installation,
cleaning and disposal of the product at the end of its life.
FERRANTI S.R.L. reserves the right to make modications,
changes or improvements to the manual or to the product at any
time and without notice.
Use only the original mounting components provided.
ATTENTION
The manufacturer is not liable for damage to
property, persons and animals caused by ac-
cidents due to failure to comply with the in-
structions in this assembly manual.
The images are purely indicative and do not constitute a
commitment for the manufacturer and/or the Distributor.
Any proposal by the Customer regarding improvements to be
made to the product will be welcomed by FERRANTI S.R.L.,
which will evaluate their implementation.
INTENDED USE (PERMITTED USE).
The product in question has been designed for the housing and
keeping of animals.
IMPROPER USE (NOT PERMITTED).
Any use other than the permitted one is to be considered “im-
proper use”; the Manufacturer therefore declines all responsibil-
ity for any damage caused to property, animals and/or persons.
GENERAL DESCRIPTION
The Eco dog kennel model, is available in two versions, the
Collie model and the Dobermann model.
►Collie dog house Mod. (sleeping area).
Suitable for medium sized dogs (18-40 kg, 50-63 cm):
Golden retriever, Boxer, Collie, Labrador, Border collie.
Made of marine plywood treated with impregnating agent, 1.5 cm
thick, easily disinfectable and washable; complete with insulated
opening roof and wooden platform raised above the ground by 7
cm, removable and washable.

Ferranti s.r.l. Unipersonale
Via Vicinato n. 43 - Frazione Fratta - 06036 Montefalco (PG) - Italy
Tel. [phone]
[email protected] - www.ferrantinet.com
ASSEMBLY MANUAL
DOG KENNEL - ECO MODEL
Rel. 08-2022 - Rev. 0
EN - Translation from the original language (Italian)
►Dobermann doghouse Model (sleeping area)
Suitable for large size dogs (20-45 kg, 50-70 cm):
German Shepherd, Dalmatian, Female Dobermann, English
Setter, Akita Inu, Argentine Dogo, Czechoslovak Wolf.
Made with insulating panels, 3.5 cm thick, framed with sheet
metal proles, easily disinfectable and washable; the bed in-
cludes an openable roof and wooden platform raised above the
ground by 7 cm, removable and washable.
►Living area enclosure (open area)
Made with mesh panels, mesh 5x5 cm wire 0.39 cmhot-dip gal-
vanised; including gate with lock holder bolt (can be expanded
by adding additional panels).
Coverage of living area with insulating panel (on request).
On request: side panels in the living area closed at the bottom in
insulated, to prevent the dogs from seeing each other.
OVERALL DIMENSIONS
MOD. DOBERMANN
Total overall dimensions (WxDxH) cm 125 x 290 x 170
Bed (WxDxH) cm 119 x 101 x 98
Enclosure (WxDxH) cm 125 x 200 x 170
MOD. COLLIE
Total overall dimensions (WxDxH) cm 125 x 270 x 170
Bed (WxDxH) cm 119 x 86 x 97
Enclosure (WxDxH) cm 125 x 200 x 170
W = Width / D = Depth / H = Height
UNPACKING
► Place the structure near the nal installation site and on a
stable and horizontal area of the ground.
►Remove the packaging materials taking care not to damage
the components.
ATTENTION
DANGER! Keep out of the reach of chil-
dren and animals.
Packaging materials (plastic bags, straps, etc.)
can be a source of danger to health (e.g. su󰀨o-
cation).
►Divide the packaging materials according to their type and
dispose of them in accordance with the provisions in force
regarding the disposal of waste.
RECYCLING
All the packaging materials are recyclable and
must be disposed of in accordance with the lo-
cal legislation.

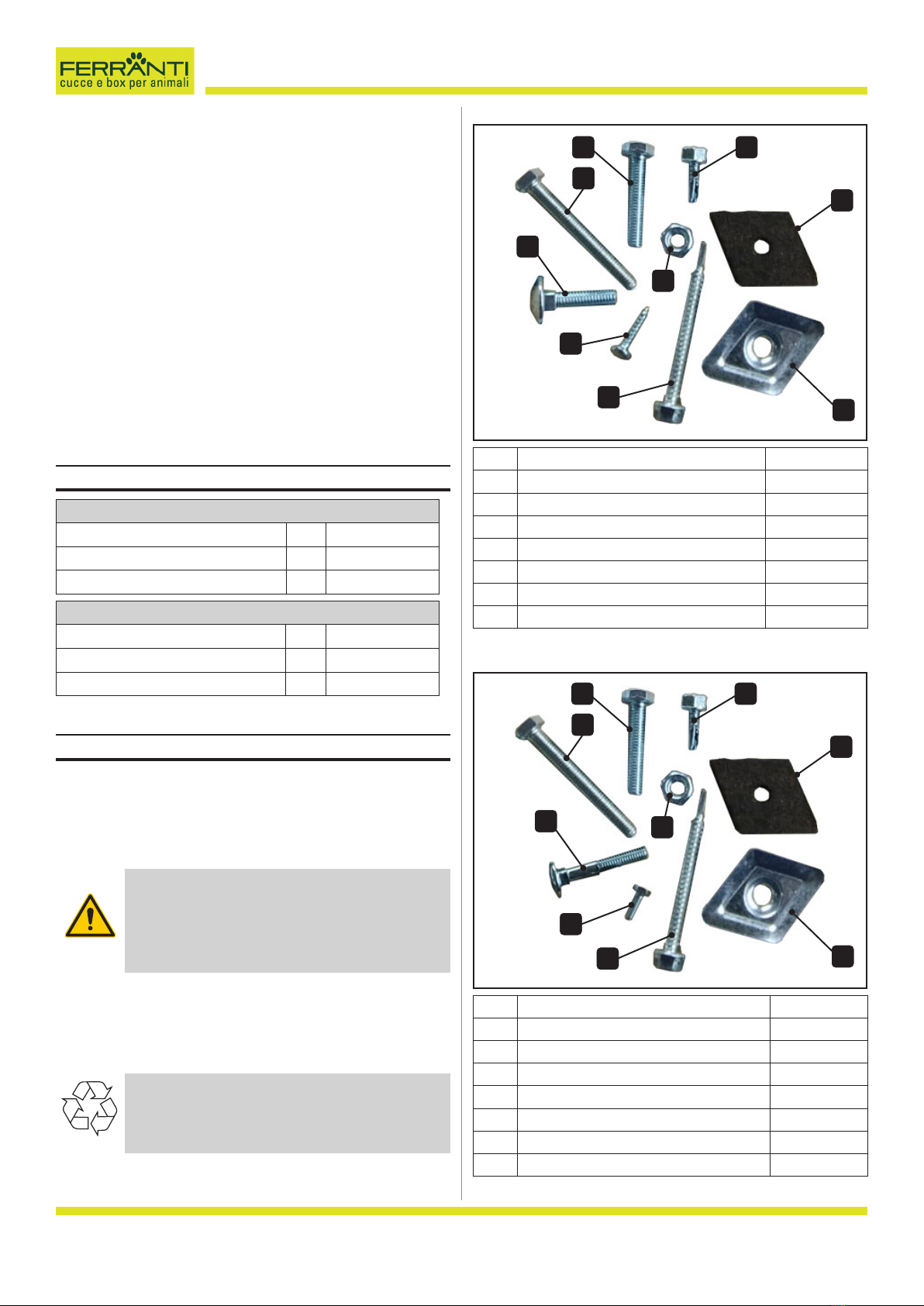

STANDARD EQUIPMENT -COLLIE MODEL
1Screws M8x40 No. 4
2Screws M8x60 No. 6
3Self-tapping screws No. 2
4Self-tapping screws with hexagonal head No. 4
5Expanded gaskets/rhomboid washers No. 4+4
6Screws M8x30 No. 8
74.8x16 screws No. 8
8Nuts M8 No. 18 approx.
STANDARD EQUIPMENT -DOBERMANN MODEL
1Screws M8x40 No. 6
2Screws M8x60 No. 4
3Self-tapping screws No. 2
4Self-tapping screws with hexagonal head No. 4
5Expanded gaskets/rhomboid washers No. 4+4
6Screws M8x45 No. 8
7Screws M5x15 No. 2
8Nuts M8 No. 18 approx.
1 3
8
2
4
5
5
6
7
1 3
8
2
4
5
5
6
7

Ferranti s.r.l. Unipersonale
Via Vicinato n. 43 - Frazione Fratta - 06036 Montefalco (PG) - Italy
Tel. [phone]
[email protected] - www.ferrantinet.com
ASSEMBLY MANUAL
DOG KENNEL - ECO MODEL
Rel. 08-2022 - Rev. 0
EN - Translation from the original language (Italian)
2DOBERMANN DOGHOUSE
1COLLIE DOGHOUSE
INSTALLATION
2x The assembly operations must be performed
by at least two persons.
For the assembly of the products, the use of
Personal Protective Equipment is always re-
commended: work gloves to protect the hands
from the danger of being cut.
RECOMMENDED TOOLS
Slotted Screwdriver - Cross Head Screwdriver - Wrench - Cutter.
Note: Tighten the screws completely only at the end and after
checking the square of the structure.

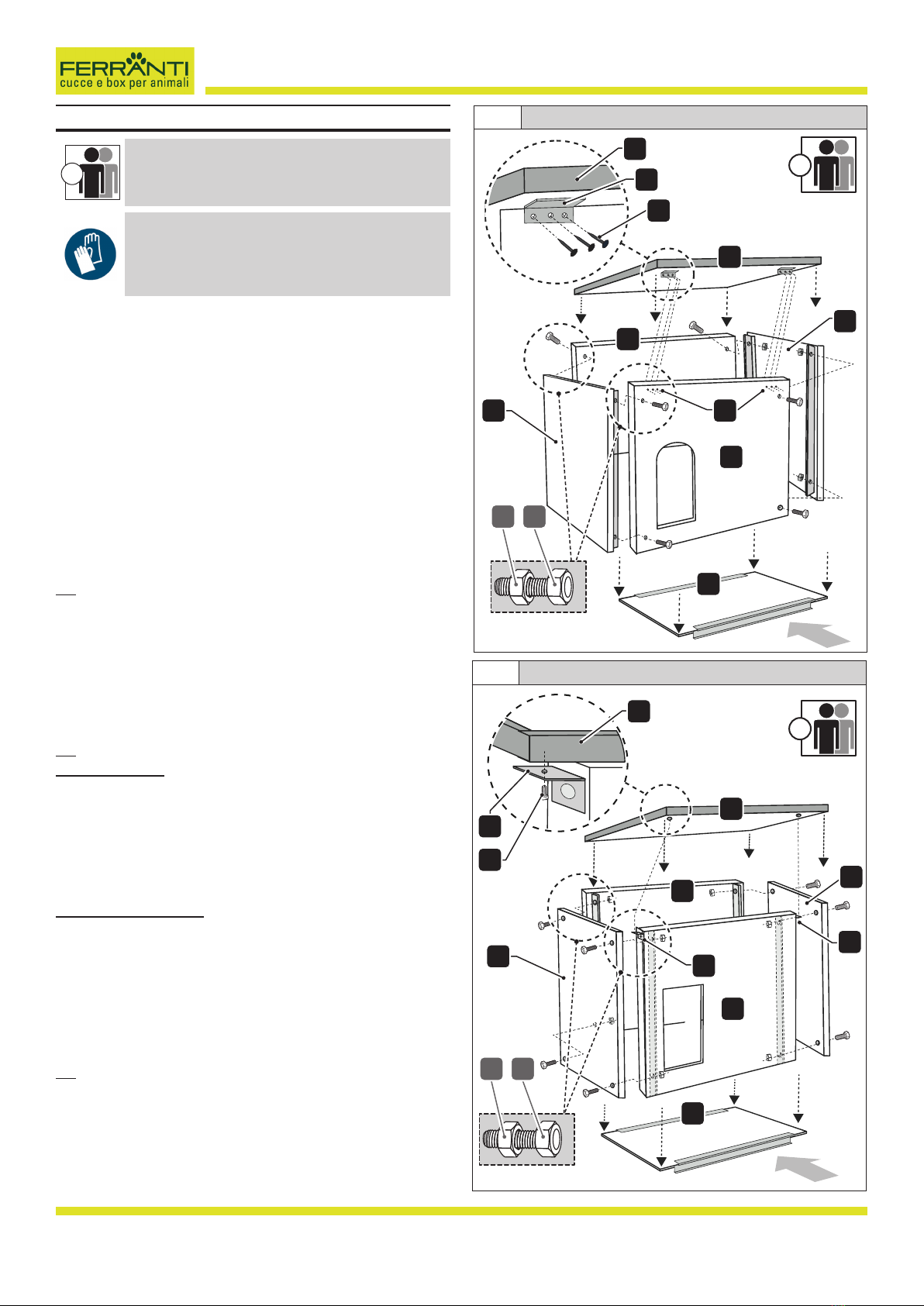

PHASE 1: BED ASSEMBLY
A Rear wall
B Side wall
C Front wall
D Roof
E Bracket
F Holes prepared for roof assembly
G Platform
1A Assembly of the rear wall to the side panels (Fig. 1 - 2
depending on the model)
►Take 8 screws (6) and 8 nuts (8) from the kit supplied.
►Secure the rear wall (A) to the side walls (B) using the
screws (6) and nuts (8) as shown in the diagram.
►Attach the front wall (C) to the side walls (B) in the same
way.
1B Assembly of the Roof to the doghouse
Collie doghouse (Fig. 1)
►Take the screws (7) from the kit supplied for the Collie dog-
house.
►Place the roof (D) over the doghouse and line up the holes
in the bracket (E) with the holes (F) on the front wall (C).
►Secure with the screws (7).
Dobermann doghouse (Fig. 2)
►Take the screws (7) from the kit supplied for the Dobermann
doghouse.
►Place the roof (D) over the doghouse and line up the holes
of the bracket (E) with the hole provided on the side of the
front wall (C).
►Secure with the screws (7).
1C Assembly of the platform to the doghouse
► Lift the dog house o󰀨 from the roof and insert the platform
(G).
Proceed with assembly of the enclosure (open area).
8 6
A
D
C
B
B
F
F
F
D
D
E
7
E
7
2x
2x
A
D
C
B
B
8 6
G
G

Ferranti s.r.l. Unipersonale
Via Vicinato n. 43 - Frazione Fratta - 06036 Montefalco (PG) - Italy
Tel. [phone]
[email protected] - www.ferrantinet.com
ASSEMBLY MANUAL
DOG KENNEL - ECO MODEL
Rel. 08-2022 - Rev. 0
EN - Translation from the original language (Italian)
3ENCLOSURE ASSEMBLY (OPEN AREA)

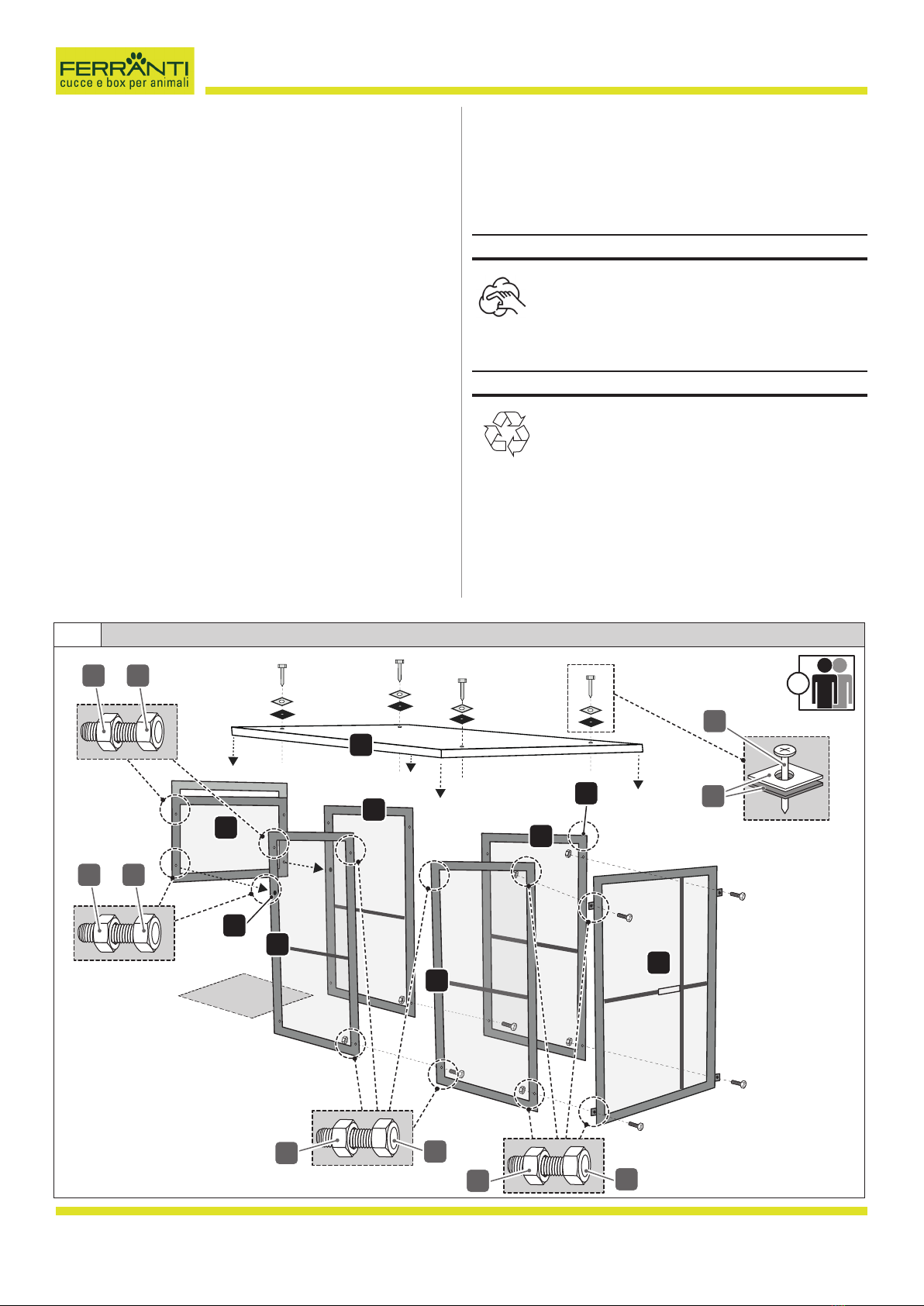

PHASE 2: ENCLOSURE ASSEMBLY (FIG. 3)
2A − Assembly of the side mesh panels
►Attach the mesh side walls (A1-A2) to each other using the
screws (2) and nuts (8) at the points shown in the gure.
►Proceed in the same way with the side panels (A3-A4).
2B − Gate assembly
►Secure the gate (B) to the mesh side walls (A2 and A4)
using the screws (1) and nuts (8) at the points shown in the
gure (lower and upper).
2C − Rear panel assembly
►Secure the top of the rear panel (C) to the mesh side walls
(A1-A3) by means of the screws (1) and nuts (8).
►On the side mesh walls (A1-A3) drill a hole (F) at the lower
hole of the rear wall.
►Secure the lower part by means of the screws (3) and nuts
(8).
2D − Roof assembly (if present)
►Place the roof (D) over the fence and secure it with the long
self-tapping screws (4) with expanded gasket and rhom-
boid washers (5).
2E − Composition of the structure and nishes
►Position the assembled bed, in the housing provided in the
enclosure, without attaching it.
►Insert the plastic caps (E) into the top of the tubular ele-
ments of the side mesh walls (A).
It is advisable to apply silicone to the roof joints.
CLEANING
CLEANING
Clean the structure periodically (or in the presen-
ce of obvious dirt). Sanitise, disinfect and clean the
inside of the kennel with suitable products that are not
harmful to the health of the person and the animal.
SCRAPPING AND DISPOSAL
RECYCLING
The materials that compose the structure must be
disposed of according to the type and procedures
provided for by the legislation in force in the country
of installation.
For further detailed information on the disposal of this product,
contact the municipal o󰀩ce, the local waste disposal service or
the store where it was purchased.
DOGHOUSE
A Mesh side walls
B Gate
C Rear panel
D Roof
E Plastic tubular trim caps
D
B
C
A1
A2
A3
A4
2x
8
8
8
8 3
2
1
1
F
E
4
5
