Kverneland CLG-II-CLC TINES User manual

CLG-II-CLC TINES
Operating manual
Original operating manual
Edition 2014
Date of print 11.2014
Language EN
Machine number
Model CLG-II-CLC TINES
Document number A133096040.EN

CLG-II-CLC TINES
Machine identification
In order for your dealer to assist you as efficiently as possible, you will need to provide some information about
your machine. Please enter the details here.
Designation
Machine ID
Address of
supplier
Address of
manufacturer Kverneland Group Operations Norway AS
Kverneland Klepp
NO-4355 Kverneland
Norway
Tel. [phone]
www.kvernelandgroup.com
Copyright by Kverneland Group Operations Norway AS. Reproduction, transfer to other media, translation or the use of extracts or parts of this
manual without the explicit permission of Kverneland, is not permitted. All rights reserved. The contents of this operating manual are subject to
change without notice. The right to technical revision is reserved.

Table of contents
3
Table o f contents
Preface..............................................................4
Target group of this operation manual 4
Symbols used 4
Safety................................................................5
Safety decals 5
General safety information 6
Getting to know the machine .......................11
Proper use 11
Features 11
.........................................................................12

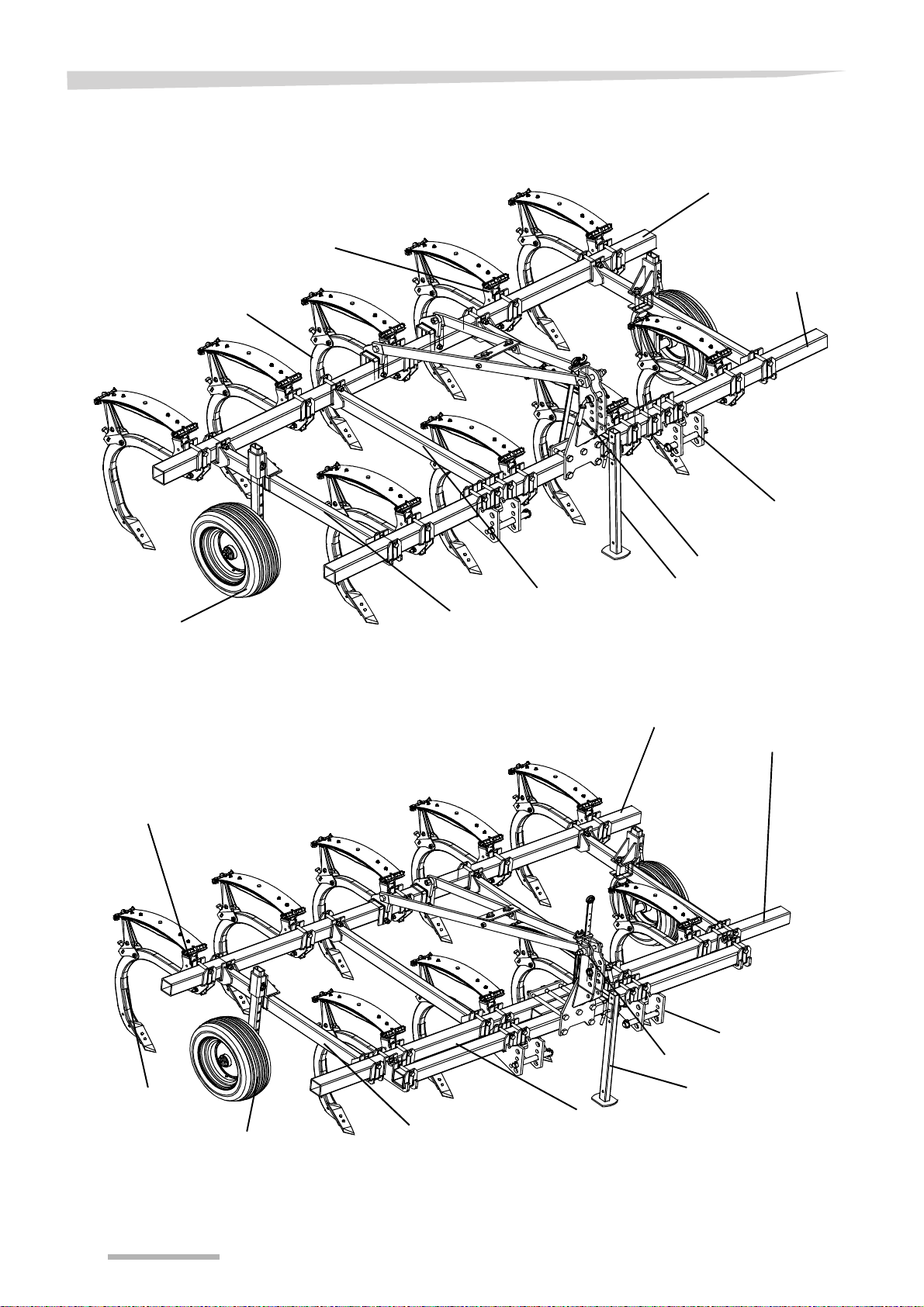

Components 13
Technical specifications 15

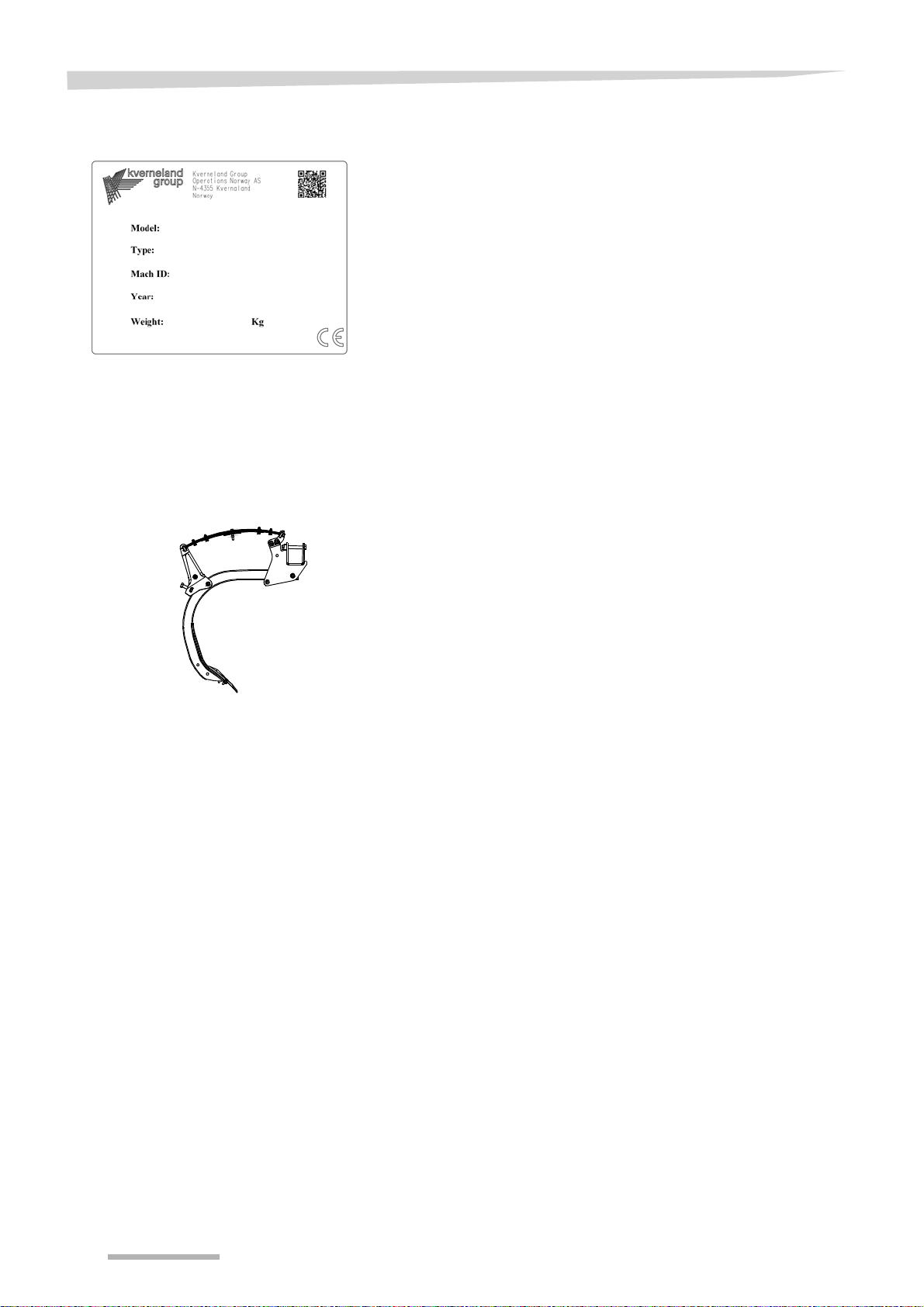

Type plate 16
Optional equipment 16
Making adjustments to the machine............18
Tine distance 18

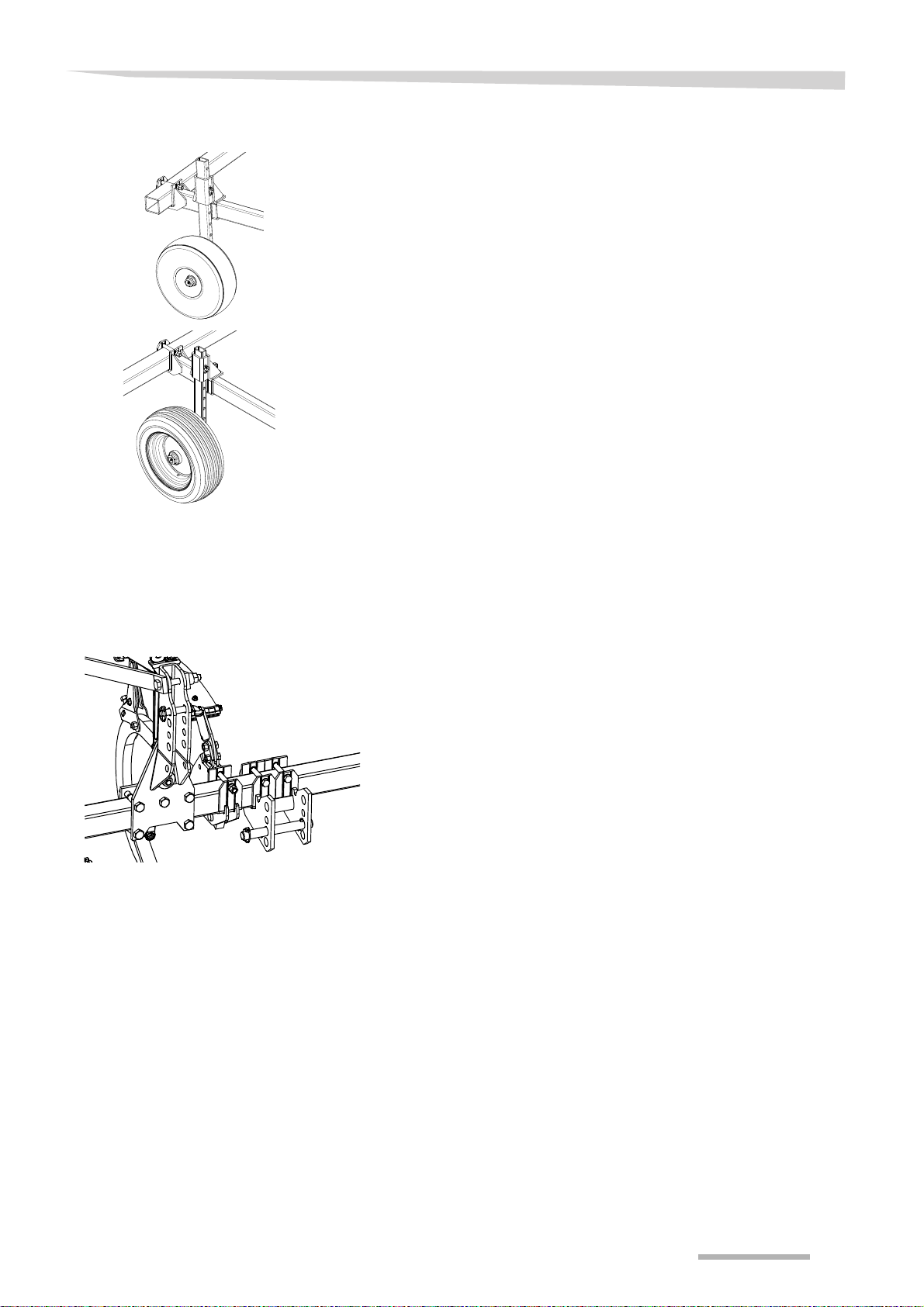

Wheel position 18
Auto-reset spring configuration 18
Working depth 20
Levelling 20
Working with the machine............................21
Coupling 21
Driving on the road 22
Cultivating 22
Parking and storage 23
Maintenance and care...................................24
Safety 24
Prior to maintenance 24
Maintenance chart 24
Cleaning 25
Lubrication 25
Replace wearing parts 26
Tighten bolts and nuts 26
Check Auto-reset springs 27
Tyre pressure 27
Disposal of the machine ...............................28
EC Declaration of conformity.......................29

4
Preface
Preface
Target group of
this operation
manual
This operation manual is meant for those concerned with the control,
use and maintenance of the machine. It contains all data required for
a safe handling, use and maintenance of the machine.
For your safety
Before starting to adjust and use your machine, familiarise yourself
with this operation manual. By doing so your safety and the best per-
formance are assured. It is very important to read this manual carefully
before using the machine and to keep it handy. In this way, you will
•avoid accidents
•respect the warranty conditions and
•always have a functional machine in perfect working order
For the employer
All personnel are to be trained in the use of the machine regularly (at
least once a year) in accordance with employers’ liability insurance as-
sociation guidelines. Untrained or unauthorised individuals are not
permitted to use the machinery.
You are responsible for the safe operation and maintenance of your
machine. You must ensure that you and anyone else who is going to
operate, maintain or work around the unit be familiar with the operating
and maintenance procedures and related safety information contained
in this manual.
S mbols used
In this operation manual the following symbols and terms are used:
•A bullet stands at enumerations
> A triangle stands at steps, which you must do
→An arrow shows cross-references at other text passages
Besides these symbols, pictograms are used, which will help you with
locating of text passages:
T IP The word “Tip“ shows tips and advices to the use.
The triangle refers to danger at assembling or (adjusting) work.

Safet
5
Safety
This chapter describes general safety information regarding this prod-
uct. Each part of this user manual will also contain its own specific
safety information.
Safet decals
For your safety, safety decals are placed on significant spots on the
machine. Please do not remove them. If they becom illegible or begin
to peel off, replace them with the appropriate spare stickers.
For placement of the safety decals, refer to the CLG-II-CLC tines as-
sembly manual.

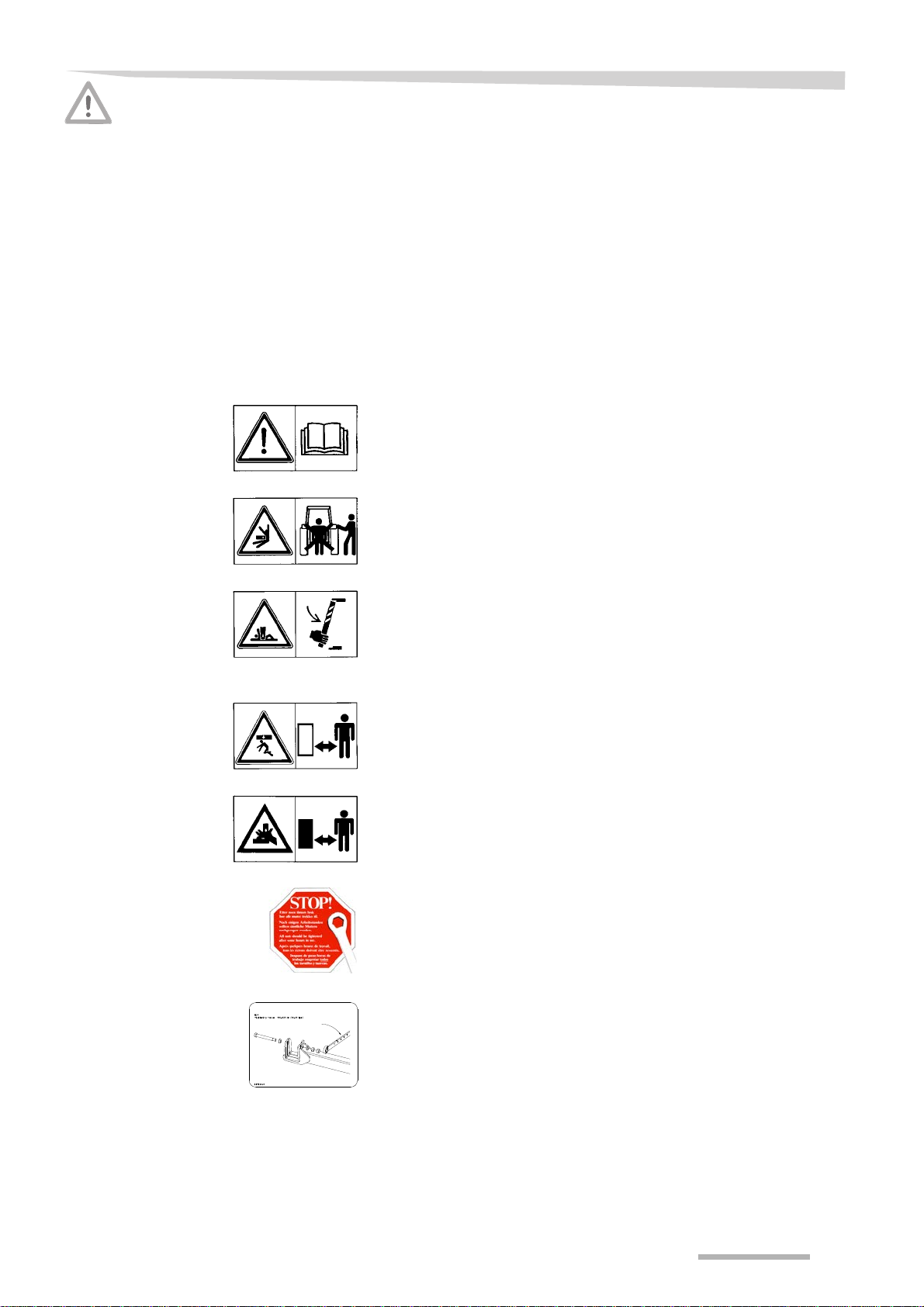

Meaning
The meaning of the safety decals is pointed out below.
Read the operation manual and follow the instructions.
Initial operation of the machine must not take place before the opera-
tion manual has been read and understood.
Do not stand between tractor and machine.
Standing between tractor and machine increases the risk of crushing.
This complies especially when coupling the machine to the tractor.
Machine stand.
Do not stand under or near the machine unless it is properly support-
ed. When uncoupling, use the machine stand. Tipping of the machine
may lead to damage or injury.
Crush danger
Machine parts move when the machine is being operated. Keep clear
of the danger area.
Crush danger
Operating of the machine may result in the shrinking of gaps. Beware
of crush danger. Keep clear of the danger area.
Retighten bolts and nuts
Regularly retighten all bolts and nuts on the machine. This is of special
importanceafterthefirsthoursofuse.Unnoticedlooseningofboltsand
nuts may lead to damage or injury.
Tightening torque bolted clamps
Bolted clamps must be tightened with 589 - 638 Nm (60 - 65 kpm).

6
Safet
General safet
information
Read and understand the following general safety information. Specif-
ic safety information is pointed out in the relevant chapters.
General
Read and follow the instructions
Before starting to operate the machine, read the operation manual and
follow the instructions. Not following instructions may lead to damage
or injury.
Only qualified users
Do not put the machine into use before the user has been properly
trained for operation and is familiar with the function and safe use of
the machine. False operation of the machine may lead to damage or
injury.
Check technical failure
Before starting to use the machine, check if the machine is in perfect
working condition. In case of defect components, contact your dealer
for replacement. Defect components may cause failure, leading to
damage or injury.
Keep distance
Do not stand on, under or close to the machine while it is in work or
while coupling it to the tractor.This may lead to injury.
Support the machine
Do not stand under or near the machine unless it is properly support-
ed. Tipping of the machine may lead to damage or injury.
Lower the machine
Always lower the machine when parking the tractor. Unintended low-
ering of the machine may otherwise lead to damage or injury.
Use front end weights
Fit the tractor with enough front end weights for stability and secure
steering.
Check the vicinity
Always check the immidiate vicinity before starting to move or operate
the machine. No persons are allowed to stand close to the machine
when it is being operated.
Use the machine stand
Use the machine stand when parking the machine. When the machine
is not properly supported, it may tip over, which may result in damage
or injury.

Safet
7
Coupling
Risk of injury when coupling
There is an increased risk of injury when coupling the machine to the
tractor. Therefore
•Secure the tractor to prevent it from rolling
•Do not stand between tractor and machine when coupling
•Lift and lower the machine slowly
Adjusting and
maintaining
Avoid skin contact with oils and lubricants
When handling oils or lubricants, avoid contact by using oil resistant
gloves. Oils and lubricants can do damage to the skin.
Maintain regularly
Maintain the machine regularly and as prescribed in »Maintenance
and care«. Also replace worn parts as prescribed. Machines that are
not well maintained can malfunction. This may result in damage or in-
jury.
Do not weld
Do never weld on any part of the machine. The machine is made of
hardened steel, and any welding will severely decrease the machine’s
strength. Welding may lead to breakage on the machine.
Retighten bolts and nuts
Regularly retighten all bolts and nuts on the machine. This is especial-
ly important after the first hours of use. Unnoticed loosening of bolts
and nuts may lead to damage or injury. Take especially good notice of
the tightening torque for the bolted clamps.
→»Tighten bolts and nuts«, page 26.
Use protective clothing
Use protective clothing, e.g. gloves, when working with sharp parts on
the machine. Especially soil engaging parts can be very sharp. Un-
careful handling may lead to injury.
Use OEM spare parts (Original Equipment Manufacterers)
Only use original Kverneland spare parts. Using other products may
lead to malfunction of the machine or a reduced safety. Warranty is not
valid when non-Kverneland parts are used.
Check tyre pressure
Regularly check if the tyre pressure is as required. Too high or low
pressures may lead to damage and excessive wear of the tyre.
→»Tyre pressure«, page 27.

8
Safet

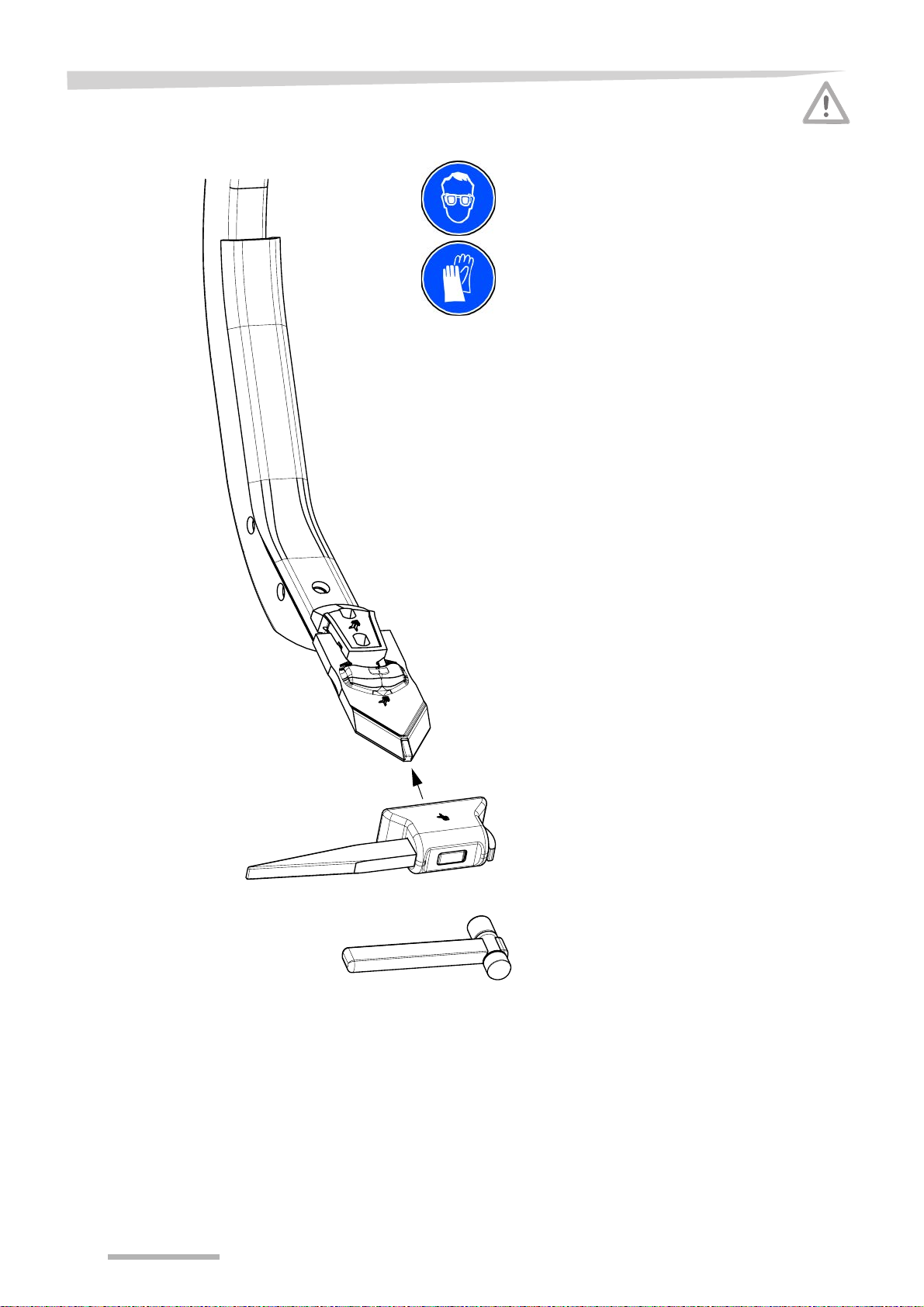

Mounting Knock-On
When fitting the point, give the point a hard
stroke with a hammer (see picture).
NB! When changing the point, use safety
glasses, gloves and protective clothes
including a long-sleeved jacket or sweat-
er, to avoid injuries from splinter.
NB! To avoid splinter, use the gore
betweenhammerandpoint. You canalso
use a soft tool, i.e. copper type hammer
or a hammer of unhardened material.

Safet
9
Dismounting Knock-On
Use the gore tool to dismount the point
from the holder. Put the gore on the
back side of the point and knock it out
(see picture).
Min. wearing limit for point is
approx. 270 gr.
New point - approx. 930 gr.

10
Safet
Driving on the road
Beware of the machine’s size
The machine is long, and swings out in turns. In tight turns, avoid
swinging the sides of the machine into obstacles.
Obey local rules
Obey the local rules when you intend to drive with the machine on
public roads. For example
•have all necessary lights and warning decals installed.
•do not exceed the maximum permitted weights, loads and dimen-
sions.
The user is responsible for ensuring the machine complies with the
law when driving on public roads.
Adapt speed; max 25 km/h
Under all circumstances, adapt your driving speed to the road condi-
tions, but do never drive in excess of 25 km/h. Excessively high
speeds cause excessive forces on tractor and machine. This may lead
to breakage or other damage.

Getting to know the machine
11
Gettin g to know the m achine
This chapter provides information about the machine. You can learn
about the proper use and the features of the machine as well as tech-
nical information.
Proper use
This machine is meant for soil cultivating operation. Any other use of
the machine, e.g. as for lifting or pulling operations, is improper use.
The manufacterer and dealer are not liable for damage caused by im-
proper use.
Features
Low wearing soil engaging parts
All soil engaging parts have undergone a process of heat treatment.
This makes them extremely wear resistant, yet flexible to withstand
shocks.
Easy adjustment of tine distance and working width
The bolted construction allows easy changes of working width and tine
distance.
Strong and flexible due to bolted clamps
The patented bolted clamps on the main frame make the CLG-II-CLC
tines extremely strong and long lasting.
Auto-Reset tines for obstacle protection
The leaf spring obstacle protection is simple, but strong and reliable.
When hitting an object in the ground, the springs allow the tine to trip
over the obstruction, and return in their original position automatically.
For different soil conditions several spring configurations are avail-
able.
Fits most tractor hitch standards.
The CLG-II-CLC tines fits most tractor hitch standard, including Euro-
pean and American quick coupling standards.

12
7-13 tines, reinforced
frame
>
Reinforcement frame
Parking stand
Connecting rod, type 2
Depth wheel
Tine
Tine support Main tube
Main tube
Adaptable
hitch coupling
Tower
Connecting rod, type 1

13
Components
3-7 tines
5 tines
Main tube Main tube
Hitch coupling
Tower
Parking stand
Depth wheel
Connecting rod, type 1
Tine supportTine
Main tube
Main tube
Hitch coupling
Tower
Parking stand
Depth wheel
Connecting rod, type 1
Tine support
Tine
Connecting rod, type 2

14

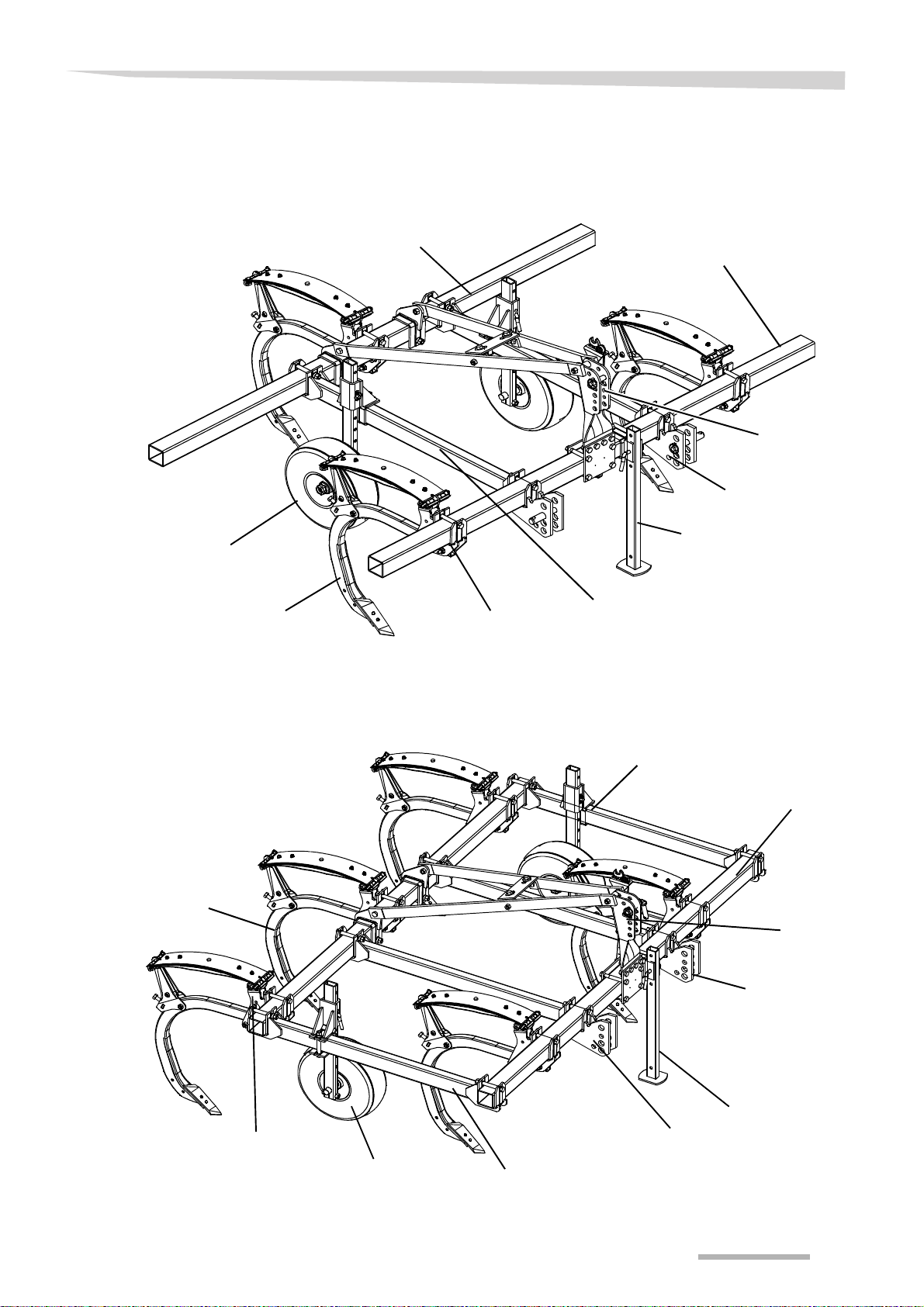

7 - 13 tines, no reinforced
frame
7 - 13 tines with rein-
forced frame
Main tube
Main tube
Hitch coupling
Tower
Depth wheel
Tine support
Tine
Connecting rod, type 2
Connecting rod, type 1 Parking stand
Main tube
Main tube
Adaptablehitch
coupling
Tower
Depth wheel
Tine support
Tine
Connecting rod, type 2 Reinforcement frame
Parking stand

15
Technical specifi-
cations
General
T re pressure
No.
tines Reinforced frame Maxworking width Transport width Weight1
# yes/no m m kg
3 no 2,2 2,9 356
5 no 2,2 2,9 512
7 no 3,0 2,9 612
9 no 4,0 3,8 877
yes 4,0 3,8 970
11 yes 4,2 4,7 1169
13 yes 5,2 5,6 1268
1 Average weight. Actual weight can vary depending
on the configuration of the machine
Equipment Qty. Weight (kg)
Parking stand cpl. 1 12
Wheel 200 x 14,5 cpl. w/ bracket and arm 2 76
Wheel 6.00 x 9 cpl. w/ bracket and arm 2 61
Steel wheel cpl. w/ bracket and arm 2 68
Tyre Recommended pressure
6.00 x 9 4,2 bar
200 x 14.5 5,0 bar

16
T pe plate
The type plate is located on the headstock. When ordering spare parts
or consulting services, state complete model code and machine iden-
tification, to avoid mistakes and misunderstandings.
Optional equip-
ment
This paragraph provides an overview of optional equipment on the
CLG-II-CLC TINES. Limitations apply. Please refer to your Kverneland
dealer for more information.
Tine
Type of tine.
CLC tine

17
Depth wheels
Depth wheels are available on all CLG-II-CLC tines models. It is highly
recommended to use depth wheels. Three types of depth wheels are
available for the CLG-II-CLC tines.
Steel wheel
A light steel wheel is available for 2 - 7 tine models.
Rubber wheel
•A light rubber wheel 6,00x9 is available for 2 - 7 tine models.
•A heavy duty rubber wheel 200x14,5 is available for 7 - 13 tine
models.
Adjustable hitch cou-
pling
For easy adapting of the CLG-II-CLC tines to the width of the tractor
hitch.
On CLG-II-CLC tines models with reinforced frame, adjustable hitch
couplings are standard, whereas on CLG-II-CLC tines models without
reinforced frame, they can be mounted optionally.

18
Making adjustments to the machine
Makin g adjustments t o the machi ne
This chapter explains how to adjust the machine.

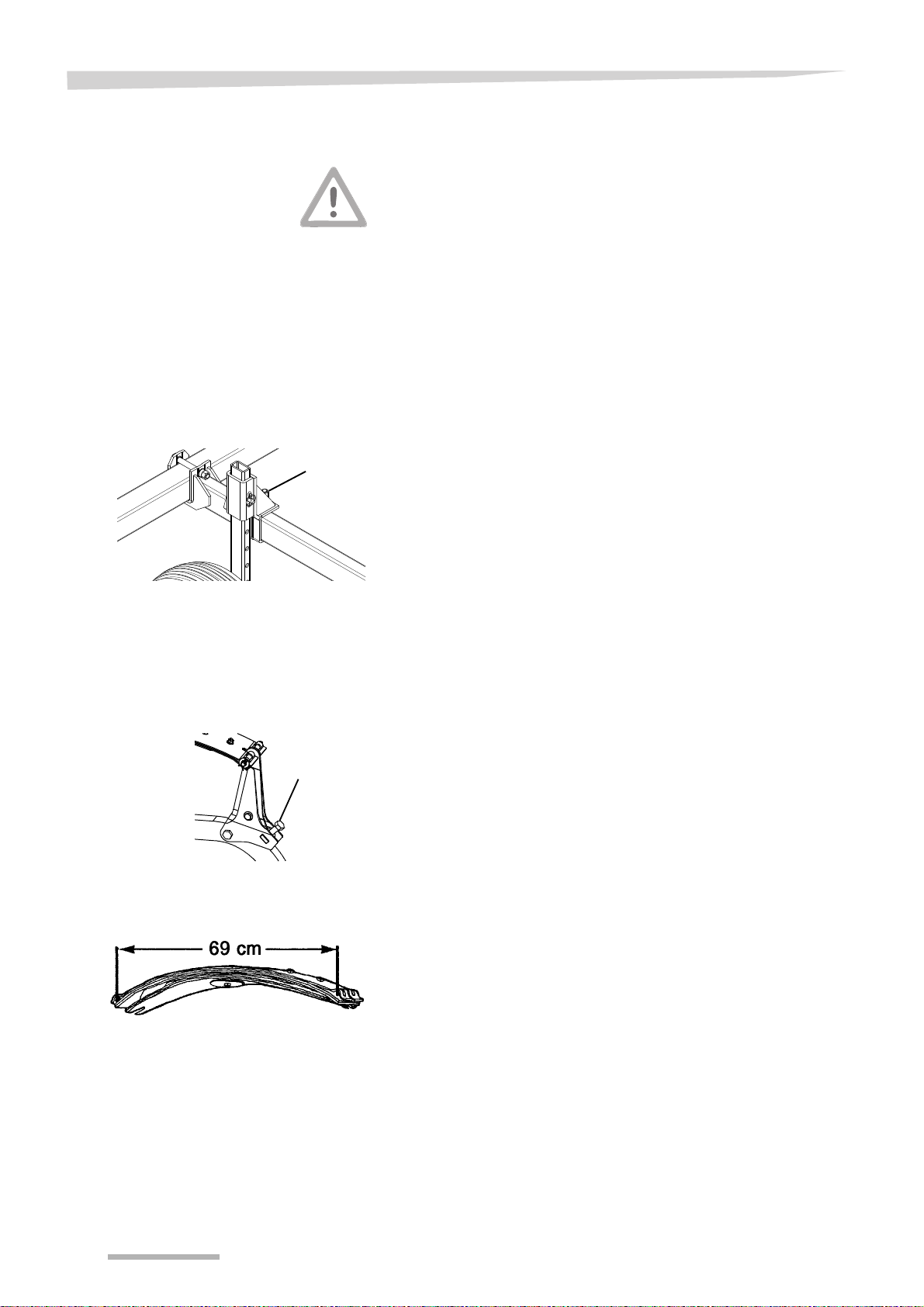

Tightening torque bolted clamps
It is very important to tighten the bolted clamps with 589 - 638 Nm (60
- 65 kpm) torque. Loosening of the bolts may otherwise lead to ex-
treme tension and breakage of the frame.
Tine distance
You can adjust the tine distance as desired. Refer to the CLG-II-CLC
tines assembly manual for instructions.
Wheel position
When the machine sinks at the rear during cultivating, position the
wheels backward.
To adjust
> Loosen the nut
> Adjust the position
> Retighten the nut with 589 - 638 Nm (60 - 65 kpm) torque
Auto-reset spring
configuration
•The Auto-Reset springs are well configured when the tines do not
release during cultivating, unless an object is hit.
•When soil type or conditions change, you may find the Auto-reset
spring configuration incorrect. You can change the configuration
accordingly.
To change the spring configuration
> Screw out the screw until the spring tension is fully released
> Change the Auto-reset spring configuration
> Add some grease to the screw for smooth screwing
> Screw in the screw until the spring length from pin to pin is 69 cm.
screw
screw

Making adjustments to the machine
19

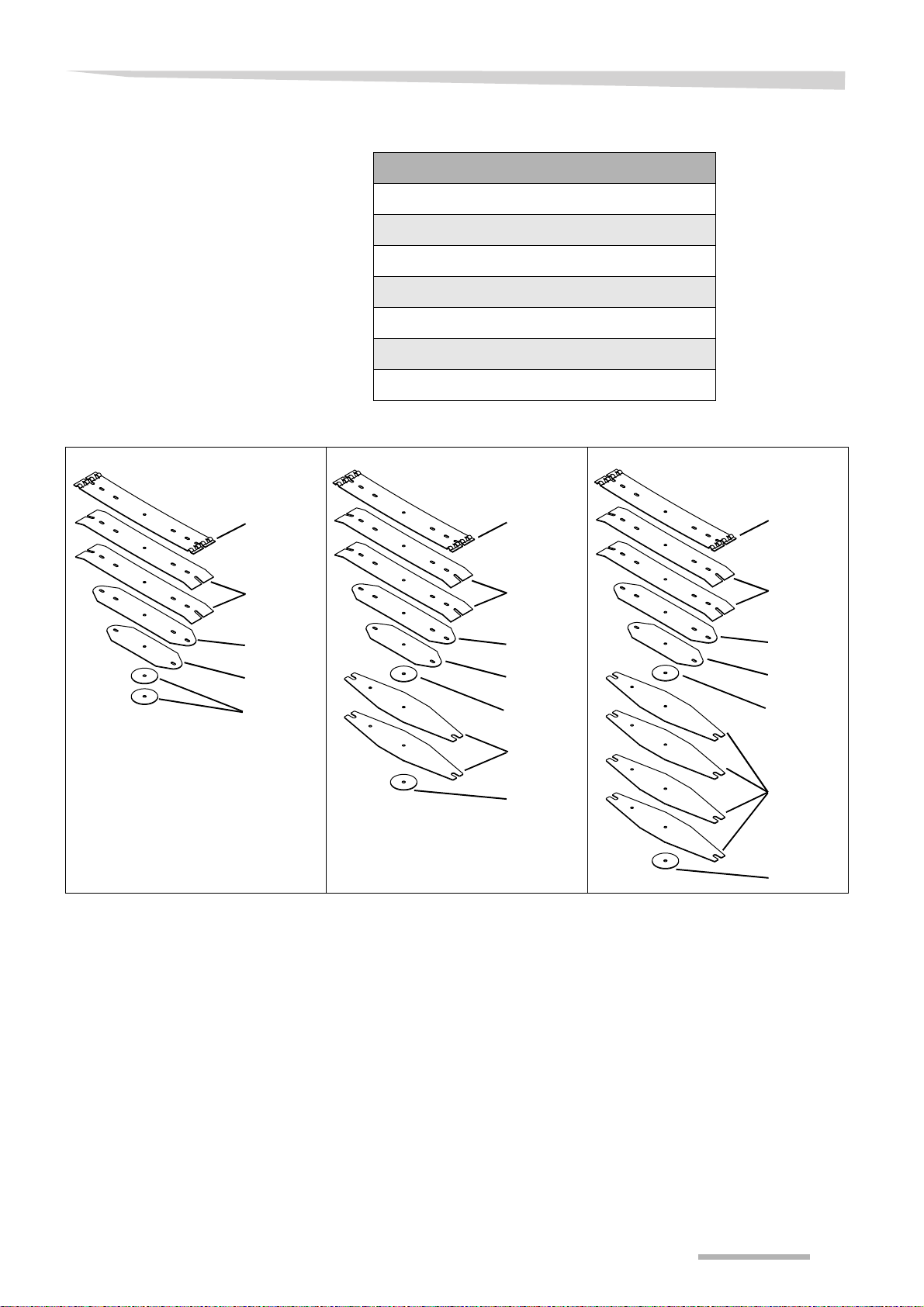

Possible spring configurations
Standard
Standard + 1 leaf no. 5
Standard + 2 leafs no. 5 (Heavy Duty)
Standard + 3 leafs no. 5
Standard + 4 leafs no. 5 (Extra Heavy Duty)
Standard + 5 leafs no. 5
Double ( 2 x Standard)
Standard Heavy Duty Extra Heavy Duty
Leaf F
No. 1
No. 2
No. 3
No. 4
Leaf F
No. 1
No. 2
No. 3
No. 4
No. 5
No. 4
Leaf F
No. 1
No. 2
No. 3
No. 4
No. 4
No. 5

20
Making adjustments to the machine
Working depth
To change the working depth
> adjust the depth wheel (see below)
> adjust the tractor hitch position
> level the machine

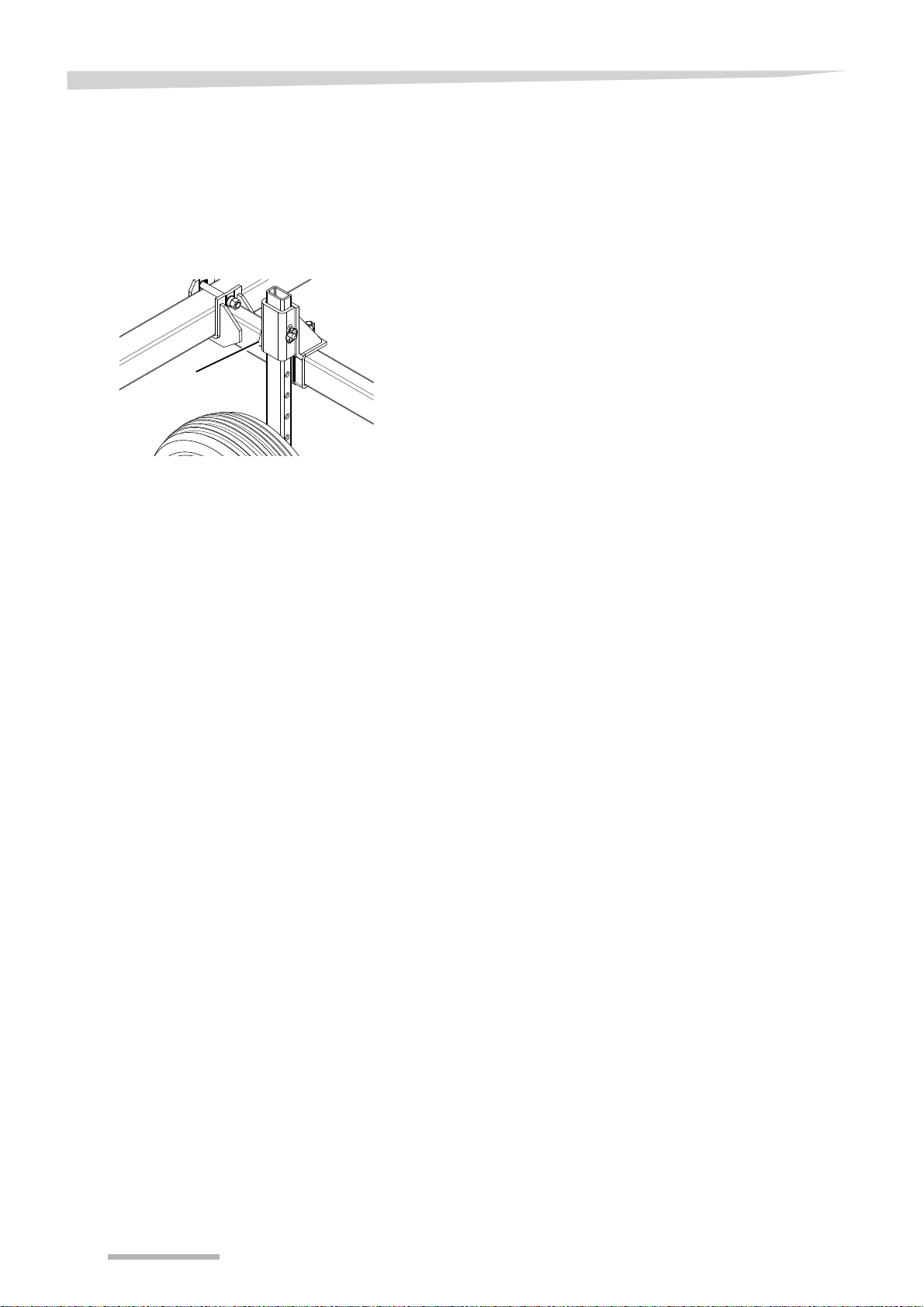

Depth wheel
To adjust the depth wheel
> lift the machine slightly
> pull out the pin
> adjust the wheel to the desired position
> place the pin and secure it with the ringpin
Levelling
Observed from the side, the machine should be level in working posi-
tion
To level the machine
> adjust the top link length
Pin
