AG SPRAY LA5000 Manual

LIQUID
APPLICATOR
LA5000
operation & maintenance manual
MANUFACTURING
QUALITY PRODUCTS
FOR 30 YEARS
SHOP ONLINE @
WWW.AGSPRAY.COM
COLUMBUS, NE
402.564.4544
NEWTON, KS
316.283.4444
BAKERSFIELD, CA
661.391.9081
TEMPE, AZ
480.705.8047
OTHELLO, WA
509.488.6631
HOPKINSVILLE, KY
270.886.0296
DOTHAN, AL
334.673.0580
GREENWOOD, MS
662.453.4524
FARGO, ND
701.280.2862
MANKATO, MN
507.388.6295
1050 GALLON tank w/ 27’, 30’, 35’ or 40’ toolbar

LA5000 LIQUID APPLICATOR OPERATION & MAINTENANCE MANUAL2
3INTRODUCTION
3PRE-OPERATION CHECKLIST
4PLACING IN STORAGE
4REMOVING FROM STORAGE
5LIMITED WARRANTY
6-9 OPERATING INSTRUCTIONS
10 BREAK-IN
10 SERVICE AND MAINTENANCE
11 GREASING

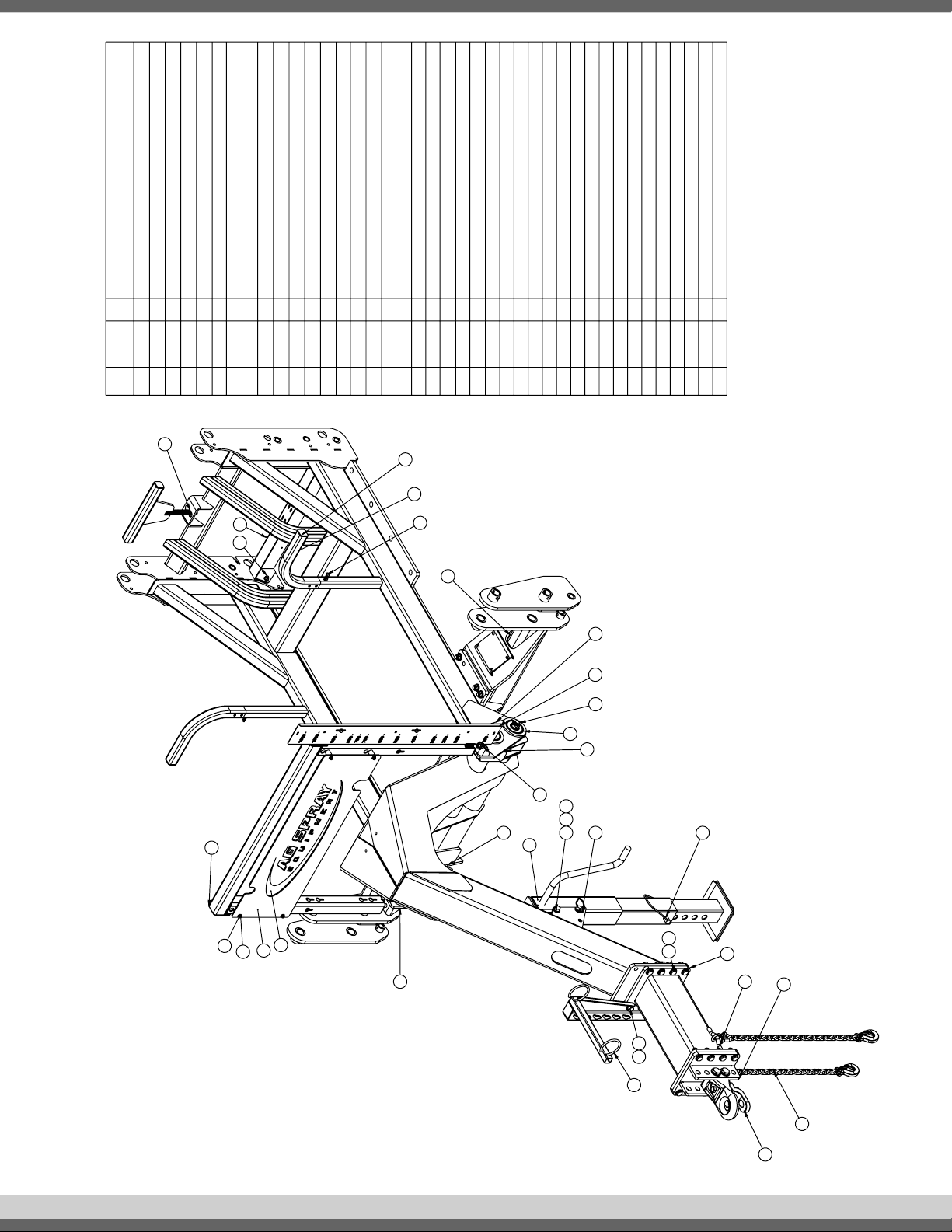

12-31 PART BREAKDOWNS
TABLE OF CONTENTS

SHOP ONLINE @ WWW.AGSPRAY.COM 3
INTRODUCTION
PRE-OPERATION CHECKLIST
1. Read and understand the Operators Manual and all
safety signs before using.
2. Place all controls in neutral, stop tractor engine, turn
monitor off, set park brake, remove ignition key, wait
for nozzles to stop spraying before servicing,
adjusting, or repairing.
3. Before using it in a field, be familiar with all potential
hazards: trees, rocks, ditches, gullies, etc. Plan the
spraying route to avoid hazards. Remember you are
driving a wide machine. USE CAUTION WHEN
CORNERING.
4. Keep hands, feet, hair and clothing away from all
moving and/or rotating parts.
5. Do not allow riders on the applicator or tractor during
operation or transporting.
6. Clear the area of all bystanders, especially children,
before starting or filling with water or chemical.
7. Stay away from wing pinch points when folding or
extending wings. Keep others away.
8. Stay away from power lines when extending or
folding wings. Electrocution can occur without
direct contact.
13. In case of poisoning, get immediate medical attention.
15. Do not eat in the field when side dressing.
16. Before applying pressure to the hydraulic system,
make sure all components are tight and that steel
lines, hoses and couplings are in good condition.
17. Before applying pressure to fertilizer system make
sure that all connections are tight and that all hoses
and fittings are in good condition.
18. Review safety instructions annually.
Before operating the Applicator and each time thereafter, the
following areas should be checked off:
1. Lubricate the machine per the schedule outlined in
the “Maintenance Section”.
2. Use only a tractor of adequate power and weight to
operate the Applicator.
3. Ensure that the machine is properly attached to the
tractor. Be sure that a mechanical retainer is installed
through the drawbar pin and the safety chain is
attached to the drawbar cage. Jack is in full up
position.
4. Check the hydraulic system. Ensure that the
hydraulic reservoir in the tractor is filled to the
required specifications.
5. Inspect all hydraulic lines, hoses, fittings and couplers
for tightness. Use a clean cloth to wipe any
accumulated dirt from the couplers before
connecting to the hydraulic system of the tractor.
6. Check the tires and ensure that they are inflated to
the specified pressure.
7. Calibrate the Applicator if it is the start of the season
or a new chemical is being used. Calibrate as
specified in rate control manual.
8. Check the condition and routing of all chemical hoses
and lines. Replace any that are damaged. Re-route
those that are rubbing pinched or crimped.
9. Check the spray pattern of each nozzle. Remove and
clean or replace any that have an unusual pattern.
10. Remove the steel mesh line filters and wash with
clean water. Reinstall.
11. Check that all connections in the electrical system are
connected and tight.
13. Before unfolding boom remove transport wing lock
pins (Figure 4) and tower cylinder Transport stop
(Figure 3) Reinstall lock pins and tower stop
before parking sprayer.

LA5000 LIQUID APPLICATOR OPERATION & MAINTENANCE MANUAL4
g. Remove nozzles from boom Disassemble and
wash nozzle, Spring, diaphragm and housing.
Store inside.
4. Lubricate all grease points. Make sure all grease
cavities have been filled with grease to remove
any water residue from the washing.
5. Inspect all the hydraulic hoses, couplers and fittings.
Tighten any loose fittings. Replace any hose that
is badly cut, nicked, abraded or is separating from
the crimped end of a fitting.
6. Inspect all the spray hoses and fittings. Tighten any
loose fittings. Replace any hose That is badly
cut, nicked, abraded or is separating from a fitting.
7. Touch up all paint nicks and scratches to prevent
rusting.
**STORAGE SAFETY**
1. Store unit in an area away from human activity.
2. Do not permit children to play on or around the
stored applicator.
3. Unhook and store in the transport configuration.
At the end of the spray season, the machine should be
thoroughly inspected and prepared for storage. Repair or
replace any worn or damaged components to prevent any
unnecessary down time at the beginning of the next season.
Follow this procedure:
1. Thoroughly wash the machine using a hose or a
pressure washer to remove all dirt, mud, debris or
residue.
2. Thoroughly wash the inside of the tank.
3. In climates that encounter freezing temperatures
during the storage period, the following
preparation should be done:
a. Add 10 gallons (40 liters) of a potable RV
antifreeze to the tank.
b. Run unit for 5 minutes in the spray cycle to
circulate solution to all parts of the circuit.
c. While circulating the fluid, open and close all the
valves in the system to flush all the water from
the system.
e. Flush the solution out the booms.
f. Open all disconnects and drain hoses, pumps,
filters, solenoids and tanks.
When removing from storage and preparing to use,
follow this procedure.
1. Clear the area of bystanders, especially small
children, and remove foreign objects from the
machine and the working area.
2. Check
a. Tank for cracks
b. Tank hold down hardware
c. All hardware. Tighten as required.
d. Tire pressure.
e. All sprayer and hydraulic lines, fittings and
connections. Tighten as required.
3. Lubricate all grease fittings.
4. Replace any defective parts.
5. Fill the tank with 20 gallons (75 liters) of clean water
and run for 5 minutes. Open and close all valves
several times. Flush water through the booms.
6. Repeat step 5.
7. Calibrate the pump, nozzles and sprayer before using.
8. Go through the pre-operation checklist before using.
PLACING IN STORAGE
REMOVING FROM STORAGE

SHOP ONLINE @ WWW.AGSPRAY.COM 5
Ag Spray Equipment warrants to the buyer that the new
machinery is free from defects in material and workmanship.
This warranty is only effective as to any new machinery which
has not been altered, changed, repaired or treated since its
delivery to the buyer, other than by Ag Spray Equipment or
its authorize dealers or employees, and does not apply to
accessories, attachments, tools or parts, sold or operated with
the new machinery, if they have not been manufactured by Ag
Spray Equipment.
Ag Spray Equipment shall only be liable for defects in the
materials or workmanship attributable to faulty material or bad
workmanship that can be proved by the buyer, and specifically
excludes liability for repairs arising as a result of normal wear and
tear of the new machinery or in any other manner whatsoever,
and without limiting the generality of the foregoing, excludes
application or installation of parts not completed in accordance
with Ag Spray Equipment operator’s manual, specifications or
printed instructions.
Written notice shall be given by registered mail, to Ag Spray
Equipment within seven (7) days after the defect shall have
become apparent or the repairs shall have become necessary,
addressed as follows: Ag Spray Equipment, 5834 East 23rd
Street, Columbus, NE 68601.
This warranty shall expire 2 years after the date of delivery of
the new machinery.
If these conditions are fulfilled, Ag Spray Equipment shall at
its own cost and at its own option either repair or replace any
defective parts provided that the buyer shall be responsible
for all expenses incurred as a result of repairs, labor, parts,
transportation or any other work, unless Ag Spray Equipment
has authorized such expenses in advance.
The warranty shall not extend to any repairs, changes, alterations,
or replacements made to the new equipment other than by Ag
Spray Equipment or its authorized dealers or employees.
This warranty extends only to the original owner of the new
equipment.
Rubber parts are not warranted. (including tires, hoses,
grommets)
This warranty is limited to the terms stated herein and is in lieu
of any other warranties whether express or implied, and without
limiting the generality of the foregoing, excluded all warranties,
express or implied or conditions whether statutory or otherwise
as to quality and fitness for any purpose of the new equipment.
Ag Spray Equipment disclaims all liability for incidental or
consequential damages.
This sprayer is subject to design changes and Ag Spray Equipment
shall not not be required to retro-fit or exchange items on
previously sold units except at its own option.
LIMITED WARRANTY
MANUFACTURING
QUALITY PRODUCTS
FOR 30 YEARS

LA5000 LIQUID APPLICATOR OPERATION & MAINTENANCE MANUAL6
1. Ensure applicator is connected securely to tractor draw bar
with clevis pin and safety chain (Figure 1).
2. Connect applicator hydraulic hoses to the tractor remote
couplers. The blue hoses are for the main bar height control.
The green hoses are for the outside wing fold. The yellow
hoses are for main wing fold on 35’ through 40’ bars. The red
hoses are for the hydraulic pump (Figure 2).
OPERATING INSTRUCTIONS
6. Remove locking collars as needed to maintain a depth
of 4 to 5 inches. Constant down pressure on main lift is
not recommended (weight of toolbar will keep unit in
the ground). Leave hydrualic selector in neutral for field
operation (Figure 3).
7. Remove safety pins on wing cylinders. Wing cylinders
remote will run in constant while down (Figure 4).
3. Connect wiring harness if using hydraulic pump with rate
control.
4. Grease Applicator (Refer to Mainentance).
5. Before road travel, install all locking collars on toolbar
cylinders and safety pins on wings.
FIG. 1
FIG. 2
FIG. 4
FIG. 3
The Applicator is equipped with adjustable down pressure relief
valve on wing cylinders. The valve is preset at 800 PSI. This may
be adjusted as needed. The relief valve is located on drivers side
of linkage arm mount, and requires an allen wrench to adjust
(clockwise to increase pressure and counterclockwise to decrease
pressure. Figure 5).
FIG. 5

SHOP ONLINE @ WWW.AGSPRAY.COM 7
c. Close and lock down the bypass adjusting screw in the
hydraulic motor (if applicable).
Switch rate controller to manual and press the “+” button on
TeeJet or “Increase” button on Raven, hold for 8 seconds. Then
press the “-” button on TeeJet or “Decrease” button on Raven
for 4 seconds.
Set the tractor hydraulic flow control valve for minimum
hydraulic oil flow to the remote outlet (Tortoise position).
Start the tractor and allow the hydraulic oil to circulate for
approximately 10 to 15 minutes or until adequately warmed.
Prime the centrifugal pump with all valves open.
Open the sprayer PWM (pulse width modulation) valve on rate
controller and the boom shut-off valves.
Slowly adjust the tractor hydraulic flow control valve until the
desired boom pressure is attained.
NOTE: See manufacture pump operators manual for further
setup and maintenance.
NOTE: See specific rate controller manual for further setup and
maintenance.
OPERATING INSTRUCTIONS
8. After unfolding main wing, engage hydraulic lever in
“constant pressure.” This is necessary to allow wings to
maintain constant depth and follow uneven terrain, as well
as the ability to “gullwing” (Lift both wings evenly when
turning).
9. Field Operation: When you come to the end of the field.
1. Lift main section
2. Pull back on main wing lever long enough to lift
both wings slightly (“gullwing”).
3. After turning, lower main section and wing section
and return wing hydraulics to constant pressure.
4. Main section must be lifted to maximum height to
hold gullwing.
10. Check and clean screens as needed.
11. Pump Settings
Optional Ground Drive Pump
11a - Remove tranport pin
11b - Use John Blue pump setting slide chart. Loaded radius is
9.75 and sprocket ratio is 32 drive and 18 driven.
11c - Set pump to recommended setting.
Optional Hydraulic Drive Pump
a. Hydraulic pump hoses supplied on the applicator
include (1) 1/2” line and (1) 3/4” line. The 1/2” hose
is the hydraulic supply (in/pressure) and the 3/4”
hose is the return (out/non-pressure).
NOTE: It is recommended for optimal pump performance that
the 3/4” return line connect directly to the tractor hydraulic
reservoir (not tractor SCV port). Doing so eliminates possible
back pressure restriction on the 3/4” return line. Excessive
back pressure restriction can cause hydraulic orbital motor
damage/failure.
b. Proper hydraulic pump disengagement. When shutting
off the pump, move the selector to the FLOAT position
to allow the centrifugal pump to come to a gradual stop.
Standard spool valves, which are found on all tractor
hydraulic systems, can cause potentially damaging high peak
pressures in the hydraulic system when closed, because of
abrupt shutoff of oil flow in both the supply and return lines.
12. Plumbing (See Figure 6)
a. Main Tank Fill Valve (2” Quick Fill)
b. Rinse Tank Fill Valve (Garden Hose Fitting)
c. PWM Control Pump (9306C-HM1C-BU-002)
d. Electrical Junction Box
e. Section Control Valves (450BEC-FB Series)
f. Flow Meter (RFM60P)
FIG. 6
a
b
c
d
e
f

LA5000 LIQUID APPLICATOR OPERATION & MAINTENANCE MANUAL8
440/450 Raven Controller With PWM Setup
1. Install Raven 440 or 450 control console and hook up to sprayer (see instructions inside controller
box).
2. Turn on control console.
When making selections/entering numbers, always be sure to press enter to save your settings.
3. Make the following selections when prompted:
- Units US (Enter)
- Speed sensor 2 “SP2” (Enter)
- Valve type C-P “Closed PWM” (Enter)
4. Select Boom Cal “Raven 440, 1-3”, “Raven 450, 1-5”
- Enter number of inches covered for each section (not full width of boom).
To find the number of inches covered, multiply the number of nozzles per section and the number
of inches between nozzles. (Ex. Section one; 12 nozzles x 20 inch between nozzles =240 inches)
5. Select Speed Cal
- Enter 783 (This is the cal number for a Garmin GPS Sensor).
6. Select Meter Cal-Enter the meter cal number which is printed on the tag for on your Flow Meter.
(ex. 720)
7. Select Valve Cal
- Enter 43 (This is only for use with the PWM controlled hydraulic pump).
8. Select Rate 1
- Enter the number of gallons/acre you want to spray in Rate 1. (ex. 10.0)
9. Select Rate 2-Enter the number of gallons/acre you want to spray in Rate 2. (ex. 20.0)
10. Select DATA MENU
- Scroll to PWM Frequency and enter 110.
11. Hold SELF TEST
- This will scroll through all settings to make sure everything is entered.
- If all cal numbers are entered, it will stop scrolling after a few seconds. (move to step 12.)
- If any cal numbers have not yet been entered, it will keep scrolling. (If so, you will need to go
back through your cal numbers and make sure they are all entered correctly.)
12. Turn the Flow Control to MAN for manual control, turn the Booms all to the off position and turn
the master on.
13. Hold INC to build pressure. This will allow you to check any leaks and use your inductor tank (if
applicable) while sitting. BE AWARE NOT TO OVER PRESSURIZE SYSTEM
14. TO SPRAY
- Turn the Flow Control to Rate 1 or Rate 2 (preference).
- The speed you need to travel is dependent on the rate at which you are spraying.

SHOP ONLINE @ WWW.AGSPRAY.COM 9
2630 JD Rate Controller With PWM Setup
1. After hooking up all wiring between tractor and sprayer, turn the system on.
2. Make sure all nozzles are open with desired tips installed.
3. From the Menu, select Rate Controller
4. Setup your Implement type
- Select Pull Behind Sprayer, enter a name and tank size.
5. Select the Setup Tab (right)
6. Select the Implement Tab (top)
- Enter your boom width
- Adjust the width of each section
- Be sure to enter any Fence Row(s) if applicable
7. Select the System Tab (top)
- Section Valve type – 3 wire
- Constant Flow – no
- Control Valve Type – PWM
8. Select PWM Setup
- Control Valve Calibration – 2743
- Coil Frequency – 110
- High Limit – 100
- Low Limit – 1
9. Select Calibrate PWM
- Turn Master ON and press Start
- Decrease if necessary to make sure Low limit is at or around 1 gal/min. Set Low Limit
- Increase if necessary to make sure High limit is at or just below max pump rotation or 80 psi.
Set High Limit and turn off Master.
- If you return to PWM Setup it may show new numbers in the High Limit and Low Limit.
10. Setup your Flowmeter
- Flowmeter Calibration – Enter the Flowmeter cal. number located on your flow meter.
- Flowmeter Units – 10 Gal.
11. Select the Rates Tab (top)
- Set your rates at gal/acre.
12. Select the Diagnostics Tab (right)
- From the dropdown menu under the Tests tab, select Nozzle Flow Check
- Enter your desired speed into the Test Speed
- Enter your desired Gal/Acre into the Rate
- Turn the Master on and press Start to test
(At this point you can see the system will adjust its self to run at the desired speed while you are
not driving.)

LA5000 LIQUID APPLICATOR OPERATION & MAINTENANCE MANUAL10
Although there are no operational restrictions on the applicator
when used for the first time, it is recommended that the
following mechanical items be checked:
A. After operating for 1/2 hour
1. Re-torque all the wheel bolts.
2. Re-torque all other fasteners and hardware.
3. Check that all electrical connections are tight.
4. Check that no fertilizer or hydraulic lines are
being pinched or crimped. Re-align as required.
5. Check that all nozzles are working properly.
Clean or replace as required.
6. Lubricate all grease fittings.
B. After 5 hours and 10 hours of operation
1. Retorque all wheel bolts, fasteners and hardware.
2. Check fertilizer and hydraulic line routing.
3. Check that all nozzles are working properly.
4. Then go to the normal servicing and maintenance
schedule as defined in the Maintenance Section.
5. Lift right hand side of machine and check main
wheel bearing for proper play (slight wobble when
pulling on top of wheel). Repeat for left hand side.
1 Review the Operator’s Manual and all safety items
before working with, maintaining or operating the
Applicator.
2. Place all controls in neutral, stop the tractor engine,
turn monitor off, set park brake, remove ignition key,
wait for nozzles to stop spraying before servicing,
adjusting, repairing or unplugging.
3. Follow good shop practices:
- Keep service area clean and dry
- Be sure electrical outlets and tools are properly
grounded
- Use adequate light for the job at hand.
4. Before applying pressure to a hydraulic system, make
sure all components are tight and that steel lines,
hoses and coupling are in good condition.
5. Before applying pressure to fertilized system, make
sure that all connection are tight and that all hoses
and fittings are in good condition.
6. Install wing lock pins and tower stops before relieving
pressure from hydraulic circuit to service Applicator.
7. Keep hands, feet, clothing and hair away from all
moving and/or rotating parts.
8. Clear the area of bystanders, especially children,
when carrying out any maintenance and repairs or
making any adjustments or filling.
9. Place stands or blocks under the frame before
working beneath the machine.
10. Wear safety goggles, neoprene gloves and protective
clothing when working on the Applicator filled with
active chemical.
11. Wash machine to remove all chemical residue before
working on unit. Wear appropriate protective gear at
all times.
12. Protect yourself from chemical contamination.
BREAK-IN
SERVICE AND MAINTENANCE

SHOP ONLINE @ WWW.AGSPRAY.COM 11
1. Wipe grease fitting with a clean cloth before greasing
to prevent injecting dirt and grit into joint.
2. Replace and repair broken fittings immediately.
3. If a fitting will not take grease, remove and clean
thoroughly. Also clean lubricant passageway.
Replace fitting if necessary.
*Note: Grease 20 points 8 hours or daily. Along
with 2 points per coulter. Hubs and spindles should
be greased biannually.
*Note: It is best to grease the machine at the end
of the day to ensure that fertilizer/chemicals do not
have time to start corroding parts.
L/R GREASE LOCATIONS
Apply adequate grease to the following:
1. L/R Main Wing Hinge (Fig. 20b)
2. L/R Flip Wing (35’) (Fig. 20c)
3. Coulter Pivots (Fig. 20d)
4. Parallel Hinge Bushings (Fig. 20a)
5. Piston Pump (Refer to pump operators manual)
1
2
23
3
GREASING
FIG. 7a
4
4
4
4
FIG. 7b
FIG. 7c FIG. 7d

LA5000 LIQUID APPLICATOR OPERATION & MAINTENANCE MANUAL12
30
33
39 34 32
27
26
20
21
15
19
22
16
24
17 13
23
28
31
4
7
35
38
14
40
18
29
6
10
1
1
12 1
10
25
9
Item
No
Part
Number
Qty.
Descripon
1 5006359 23
3/4-10nc Hex Flanged Toplock Nut Gr. 8
2 5006363 6
1"-8nc Hex Flanged Toplock Nut Gr. 8
3 5006365 4
1/2-13nc Hex Flanged Toplock Nut Gr. 8
4 5006366 8
3/8-16nc Hex Flanged Toplock Nut Gr. 8
5 5034482 2
3/8"-16nc x 1" lg Carriage Bolt
6 5034510 20
H.H.C.S., 3/4"-10 x 2 1/2"
7 5034544 4
3/8"-16nc x 2 1/2" lg (Full Thread) Carriage Bolt
8 5034547 2
H.H.C.S. 1"-8nc x 6 1/2" Long
9 5034692 4
H.H.C.S. Flanged 1/2"-13nc x 1 1/2" Long
10 5034755 4
Flng HH Bolt 3/4-10 X 3 1/2"
11 5034764 2
Flng HH Bolt 3/8-16 X 1"
12 5034801 1
3/4-10x7 Flng Frame Blt
13 5041094 2
Machinery Bushing, 3/4" ID x 1-1/4" OD
14 5046445 2
TUBE CAP, 2x2x3/16" WALL
15 5049042 2
Safety Chain, 3/8" x 37" w/.4375" Clevis Hook
16 5052019 2
1/2" Safety Anchor Shackle w/Screw Pin
17 5101327 1
Hitch Pin
18 5117104 2
1/2-13 x 1 1/2" Square Head Cup Point Set Screw
19 5274832 1
Cast Hitch
20 5275427 1
Jack
21 5277462 1
Tongue Extension Weldment
22 5277463 1
Bolt On Hitch Weldment
23 5277467 1
LA5000 Jack Swing Tube Weldment
24 5277636 1
Hose Guide Weldment LA5000
25 5278725 1
VALVE MOUNTING BRACKET
26 5279268 1
WLDMT, 1050 FIXED POSITION LIFTARM
27 5279273 1
WLDMT, SMALL FRAME
28 5279278 1
WLDMT, SMALL GOOSENECK MAIN FRAME
29 5279372 4
WLDMT, APPLICATOR GOOSENECK ATTACH PIN
30 5279378 1
WLDMT, 1050 TANK HOLD DOWN
31 5279383 1
WLDMT, 1050 TANK HOLDDWON ATTACH RH
32 5279384 1
WLDMT, 1050 TANK HOLDDWON ATTACH LH
33 5279386 1
WLDMT, SMALL FRAME REAR ADJUSTABLE TANK HOLD DOWN
34 5280023 1
1050 SIGHT GAGE ANGLE W/GRADUATIONS
35 5280501 1
PLATE, 1050 HAND RINSE TANK HOLD DOWN
36 5280573 4
TUBE, SPACER HAND RINSE TANK
37 5280584 2
BRACKET, SIGHT GAGE UPPER MOUNT
38 5280588 1
PLATE, 1050 HAND RINSE TANK HOLD DOWN BACKING
39 5280803 2
WLDMT, LARGE SPRAYER GOOSENECK ATTACH
40 5280885 2
WLDMT, TANK SUPPORT
5280827 - APPLICATOR FRAME FOR 1050 TANK

SHOP ONLINE @ WWW.AGSPRAY.COM 13
5280054 - WHEEL DRIVE PUMP
23
33
14
36 11 13
3452210
32 24 26 35 20 19
28
25 12 18 31 29
HAIRPIN FROM HYDRAULIC CYL.
17
9
5 3
1
1
1
1
1
37
27 6 1
Item
No
Part
Number
Qty.
Descripon
150060351
5/16"-18 Hex Locknut
250060921
3/8"-16 Hex Locknut
350062594
3/8"-16 Hex Whiz (Flange) Locknut
450063015
1/2"-20 Hex Cone Wheel Nut
5500636512
1/2-13nc Hex Flanged Toplock Nut Gr. 8
650063676
5/16-18nc Hex Flanged Toplock Nut Gr. 8
750120151
Grease Zerk, 1/4"-28 Thread
850160305
Flatwasher, 3/8"
950160318
Flatwasher, 1/2"
10 50161904
Flatwasher - 1"
11 50192652
Extension Spring
12 50311742
2-Bolt Flanged Ball Bearing (for 1.438" Sha)
13 50341112
1/2" x 6" Hook Bolt
14 50345405
Serrated Shoulder Bolt, 1/2"-20 N.F. x 1 1/8"
15 50346401
H.H.C.S. Flanged 5/16"-18nc x 2" Long
16 50346661
H.H.C.S. Flanged 3/8"-16nc x2 1/4 " Long
17 50346914
H.H.C.S. Flanged 1/2"-13nc x 1 1/4" Long
18 50346971
H.H.C.S. Flanged 1/2"-13nc x 2 3/4" Long
19 50347614
Flng HH Bolt 1/2-13 X 1 1/2"
20 50347634
Flng HH Bolt 3/8-16 X 1 1/2"
21 50411532
Bushing
22 50610351
Hydraulic Cylinder, 2" x 6", 1.125" Rod
23 50890542
3/8" Square Key x 1 3/4" Long
24 51012261
Hitch Pin, 5/8" Dia., 4 1/4" Useable w/Hairpin Co£er
25 51012301
Co£er Pin, 3/16" x 2"
26 51012821
Pump Pivot Pin
27 51173236
H.H.C.S. Flanged 5/16"-18nc x 3/4" Long
28 51181931
Pump Drive Sha
29 51300141
Sprocket (50B32) (1 7/16" Keyway)
30 51300151
15-Tooth Sprocket
31 52753251
#50 Spring Loaded Rotary Chain Tensioner
32 52754251
Li Arm Cylinder Pin Weldment
33 52754361
Wheel Hub Weldment
34 52800421
WLDMNT, PUMP PIVOT
35 52800431
WLDMNT, ROCKER ARM
36 52800441
WLDMNT, STEEL GROUND DRIVE WHEEL
37 52806281
PLATE, ROCKER ARM SPACER FLAT

LA5000 LIQUID APPLICATOR OPERATION & MAINTENANCE MANUAL14
A
B
C
38
19
18
18
40
40
36
31
28
26
3
22
12
1
30
5
13
24 20
29
39
DETAIL A
SCALE 1 : 20
34
35
25
10
6
16 37
2
36
1
14
11 1
DETAIL B
SCALE 1 : 12
18
4
27
8
7
DETAIL C
SCALE 1 : 20
17
36
15
2
33
32
9
21
27' SINGLE TUBE APPLICATOR - 5280890
EXPLODED STATE
NOTE: THIS TOOLBAR IS COMPATIBLE WITH TH
E
FOLLOWING APPLICATOR FRAMES
:
5280827
5280879

SHOP ONLINE @ WWW.AGSPRAY.COM 15
27' SINGLE TUBE APPLICATOR - 5280890
Item No Part Number Qty. Descripon
1 5006365 12 1/2-13nc Hex Flanged Toplock Nut Gr. 8
2 5006366 8 3/8-16nc Hex Flanged Toplock Nut Gr. 8
3 5006367 8
5/16-18nc Hex Flanged Toplock Nut Gr. 8
4 5006386 20
Flng Head Lock Nut 1/4-20
5 5012015 2 Grease Zerk, 1/4"-28 Thread
6 5012016 8 Grease Zerk, 1/8"-27 NPT Thread
7 5034473 10 Square U-Bolt, 1/4" x 1 9/16" x 2 1/8"
8 5034597 10 3/4" Self Tapping Screw Type 23
9 5034664 4
H.H.C.S. Flanged 3/8"-16nc x 1 3/4" Long
10 5034697 4
H.H.C.S. Flanged 1/2"-13nc x 2 3/4" Long
11 5034698 4 H.H.C.S. Flanged 1/2"-13nc x 3" Long
12 5034701 2 H.H.C.S. Flanged 1/2"-13nc x 3 3/4" Long
13 5034702 2 H.H.C.S. Flanged 1/2"-13nc x 4" Long
14 5034775 4 Flng HH Bolt 3/8-16 X 2 1/2"
15 5051148 2 An-Rotaon Clamp
16 5061037 2 Hyd. Cyl., 3" x 8", 1.25" Rod
17 5061049 2 Hydraulic Cylinder 5" Bore x 18.00/2.00 Stroke
18 5100705 2
Nozzle Tube (59 3/4")
19 5100706 2
Nozzle Tube (96")
20 5101065 2 #211 Hitch Pin Clip (Zinc Plated)
21 5101230 2 Coer Pin, 3/16" x 2"
22 5101315 2 Inner Wing Pivot Pin
23 5101318 1 Linkage Pivot Pin
24 5101322 2 Bent Pin 3/4 Dia. x 9 1/4 Usable Length
25 5101342 8 PIN, SMALL TOOLBAR LIFTARM
26 5117323 8 H.H.C.S. Flanged 5/16"-18nc x 3/4" Long
27 5133256 10 Hose Deflector Strap (Long)
28 5274831 2 Warning Light
29 5275468 1 Short Hose Guide Weldment (R.H.)
30 5275469 1 Short Hose Guide Weldment (L.H.)
31 5277391 2 Light Mount Weldment
32 5278161 2 WLDMNT, ANTI-ROTATION CYLINDER MOUNT
33 5278162 2 WLDMNT, ANTI-ROTATION PIN
34 5278738 2 WLDMT, SMALL UPPER LIFTARM
35 5278739 2 WLDMT, SMALL LOWER LIFTARM
36 5278780 1 WLDMT, SMALL TOOLBAR CENTER
37 5279882 2 PIN, SMALL FRAME LIFTARM CONNECT
38 5280886 1 ASSY, GUAGE WHEEL FOR 7x7 TUBE, RIGHT HAND
39 5280886 1 ASSY, GUAGE WHEEL FOR 7x7 TUBE, LEFT HAND
40 5280889 2 WLDMT, 27 FT TOOLBAR OUTER

LA5000 LIQUID APPLICATOR OPERATION & MAINTENANCE MANUAL16
1
3
2
6
5
3
4
17
82
30' SINGLE TUBE APPLICATOR - 5280891
EXPLODED STATE
NOTE: THIS TOOLBAR IS COMPATIBLE WITH THE FOLLOWING APPLICATOR FRAMES:
5280827
5280879
Item No Part Number Qty. Descripon
1 5280887 1
ASSY, 20.5 IN EXTENSION FOR 7x7 TOOLBAR
2 5280887 1
ASSY, 20.5 IN EXTENSION FOR 7x7 TOOLBAR
3 5280890 1 27' SINGLE BAR, SINGLE FOLD TOOLBAR
Item No Part Number Qty. Descripon
1 5006359 4 3/4-10nc Hex Flanged Toplock Nut Gr. 8
2 5006386 4 Flng Head Lock Nut 1/4-20
3 5034473 2 Square U-Bolt, 1/4" x 1 9/16" x 2 1/8"
4 5034589 2 Square U-Bolt, 3/4" Dia. x 7 1/8" x 8 1/2"
5 5034597 2 3/4"-16 X 3/4" SELF TAPPING SCREW
6 5133256 2 Hose Deflector Strap (Long)
7 5280181 1 WLDMT, EXTENSION OUTER TOOLBAR
8 5280613 1 Nozzle Tube (20")

SHOP ONLINE @ WWW.AGSPRAY.COM 17
3
1
2
4
7
13
8
6
5
2
40' SINGLE TUBE APPLICATOR - 5279129
EXPLODED STATE
NOTE: THIS TOOLBAR IS COMPATIBLE WITH THE FOLLOWING APPLICATOR FRAMES:
5280827
5280879
Item No Part Number Qty. Descripon
1 5280801 1 37' SINGLE BAR, DOUBLE FOLD TOOLBAR
2 5280887 1 ASSY, 20.5 IN EXTENSION FOR 7x7 TOOLBAR
3 5280887 1
ASSY, 20.5 IN EXTENSION FOR 7x7 TOOLBAR
Item No Part Number Qty. Descripon
1 5006359 4 3/4-10nc Hex Flanged Toplock Nut Gr. 8
2 5006386 4 Flng Head Lock Nut 1/4-20
3 5034473 2 Square U-Bolt, 1/4" x 1 9/16" x 2 1/8"
4 5034589 2 Square U-Bolt, 3/4" Dia. x 7 1/8" x 8 1/2"
5 5034597 2 3/4"-16 x 3/4" SELF TAPPING SCREW
6 5133256 2 Hose Deflector Strap (Long)
7 5280181 1 WLDMT, EXTENSION OUTER TOOLBAR
8 5280613 1 Nozzle Tube (20")

LA5000 LIQUID APPLICATOR OPERATION & MAINTENANCE MANUAL18
A
B
C
D
E
F
58
57
54
25
25
51
1
10
2
16 17
43
42
26
38
19
31
32
13
3
53
55
56
DETAIL A
SCALE 1 : 16
5
11
40
27
9
DETAIL B
SCALE 1 : 18
22
3
52
18
50
49
7
15
36
2
35
28
14
DETAIL C
SCALE 1 : 20
24
3
21
48
29
47
12
DETAIL D
SCALE 1 : 18
37 20
30
46
34
23
DETAIL E
SCALE 1 : 25
41
44
39
4
DETAIL F
SCALE 1 : 25
45
6
3
33
8
37' SINGLE TUBE APPLICATOR - 5280801
EXPLODED STATE
NOTE: THIS TOOLBAR IS COMPATIBLE WITH THE
FOLLOWING APPLICATOR FRAMES:
5280827
5280879

SHOP ONLINE @ WWW.AGSPRAY.COM 19
37' SINGLE TUBE APPLICATOR - 5280801
Item No Part Number Qty. Descripon
1 5006260 2 3/4"-10 Hex Jam Nut
2 5006365 12 1/2-13nc Hex Flanged Toplock Nut Gr. 8
3 5006366 14 3/8-16nc Hex Flanged Toplock Nut Gr. 8
4 5006367 12
5/16-18nc Hex Flanged Toplock Nut Gr. 8
5 5006386 28 Flng Head Lock Nut 1/4-20
6 5012015 6
Grease Zerk, 1/4"-28 Thread
7 5012016 8 Grease Zerk, 1/8"-27 NPT Thread
8 5034087 4 H.H.C.S., 3/8"-16 x 2"
9 5034473 14 Square U-Bolt, 1/4" x 1 9/16" x 2 1/8"
10 5034594 2 H.H.C.S 3/4"-10nc x 3.5" Long (Full Thread)
11 5034597 14 3/4" Self Tapping Screw Type 23
12 5034664 4 H.H.C.S. Flanged 3/8"-16nc x 1 3/4" Long
13 5034669 2 H.H.C.S. Flanged 3/8"-16nc x 3" Long
14 5034697 4
H.H.C.S. Flanged 1/2"-13nc x 2 3/4" Long
15 5034698 4 H.H.C.S. Flanged 1/2"-13nc x 3" Long
16 5034701 2
H.H.C.S. Flanged 1/2"-13nc x 3 3/4" Long
17 5034702 2 H.H.C.S. Flanged 1/2"-13nc x 4" Long
18 5034775 4 Flng HH Bolt 3/8-16 X 2 1/2"
19 5040015 4 Bumper
20 5041113 4
Machinery Bushing, 1 1/2" O.D. x 1" I.D. x 10 Ga.
21 5051148 2 An-Rotaon Clamp
22 5061037 2 Hyd. Cyl., 3" x 8", 1.25" Rod
23 5061048 2 Hyd. Cyl. - 3" x 20" x 1.5" Rod
24 5061049 2 Hydraulic Cylinder 5" Bore x 18.00/2.00 Stroke
25 5100705 2
Nozzle Tube (59 3/4")
26 5100706 2 Nozzle Tube (96")
27 5100707 2 Nozzle Tube (56")
28 5101065 4 #211 Hitch Pin Clip (Zinc Plated)
29 5101230 2 Co¢er Pin, 3/16" x 2"
30 5101256 2 Front Cylinder Pin
31 5101315 2 Inner Wing Pivot Pin
32 5101316 2 Outer Wing Pivot Pin
33 5101317 2 Linkage Pivot Pin
34 5101318 2 Linkage Pivot Pin
35 5101322 4 Bent Pin 3/4 Dia. x 9 1/4 Usable Length
36 5101342 8 PIN, SMALL TOOLBAR LIFTARM
37 5110316 4 External Snap Ring 1"
38 5117300 4 H.H.C.S. Flanged 5/16"-18nc x 1" Long
39 5117323 8 H.H.C.S. Flanged 5/16"-18nc x 3/4" Long
40 5133256 14 Hose Deflector Strap (Long)
41 5274831 2 Warning Light
42 5275468 1 Short Hose Guide Weldment (R.H.)
43 5275469 1 Short Hose Guide Weldment (L.H.)
44 5277391 2 Light Mount Weldment
45 5277392 2 Link Arm Double Weldment
46 5277393 2 Link Arm Weldment
47 5278161 2 WLDMNT, ANTI-ROTATION CYLINDER MOUNT
48 5278162 2 WLDMNT, ANTI-ROTATION PIN
49 5278738 2 WLDMT, SMALL UPPER LIFTARM
50 5278739 2 WLDMT, SMALL LOWER LIFTARM
51 5278780 1 WLDMT, SMALL TOOLBAR CENTER
52 5279882 2 PIN, SMALL FRAME LIFTARM CONNECT
53 5280182 1 WLDMT, OUTER TOOLBAR RH
54 5280185 1 WLDMT, OUTER TOOLBAR LH
55 5280188 1 WLDMT, MIDDLE TOOLBAR RH
56 5280189 1 WLDMT, MIDDLE TOOLBAR LH
57 5280886 1 ASSY, GUAGE WHEEL FOR 7x7 TUBE, RIGHT HAND
58 5280886 1 ASSY, GUAGE WHEEL FOR 7x7 TUBE, LEFT HAND

LA5000 LIQUID APPLICATOR OPERATION & MAINTENANCE MANUAL20
5279143 - Small frame wide single axle assembly
5279145 - Small frame narrow single axle assembly
Item
No
Part
Number
Qty. Descripon
150063594 3/4-10nc Hex Flanged Toplock Nut Gr. 8
250063634 1"-8nc Hex Flanged Toplock Nut Gr. 8
350347424 Flng HH Bolt 3/4-10 X 8"
450347504 Flng HH Bolt 1-8 X 3"
550850162 Hub Assembly (758) (8-Bolt)
652793681 WLDMT, SMALL AXLE CENTER SHORT
752793702 WLDMT, SMALL AXLE RH SHORT
TIRE SPACING OPTIONS
62"
76"
80"
88"
90"
2X 1.0°
3
1
4
2
7
6
5
3
90" SHIPPING
120"
132"
144"
152"
2X 1.0°
6
7
75
5
3
4
Item
No
Part Number
Qty. Descripon
150063594 3/4-10nc Hex Flanged Toplock Nut Gr. 8
250063634 1"-8nc Hex Flanged Toplock Nut Gr. 8
350347424 Flng HH Bolt 3/4-10 X 8"
450347504 Flng HH Bolt 1-8 X 3"
550850162 Hub Assembly (758) (8-Bolt)
652793551 WLDMT, SMALL AXLE CENTER
752793572 WLDMT, SMALL AXLE RH
