FERRI TR Series User guide

Machine
Serial number
Model
TR
TRM
02
01
13
22
18
UM0015-01-00EN ENGLISH Rev. 01.00
CUTTER BAR
MAINTENANCE AND USE MANUAL

Rev. 01.00
3
TR-TRM
Index
1 GENERAL INFORMATION 9
1.1 Introduction and purpose of the manual 9
1.1.1 Addressees.............................................................................................................................................................9
1.1.2 Conservation.........................................................................................................................................................10
1.1.3 Information on the machine...................................................................................................................................10
1.2 Machineidentication 10
1.3 Spare parts 11
1.4 Term ‘right’ and ‘left’ 11
2 TECHNICAL CHARACTERISTICS 13
2.1 General description of the machine 13
2.1.1 Intended uses........................................................................................................................................................13
2.1.2 Contraindications .................................................................................................................................................13
2.2 Description of the parts 14
2.3 Technicalspecications 14
2.4 Noise 15
3 SAFETY RULES 17
3.1 General safety rules 17
3.2 Safetyrulesconcerningroadtrafc 20
3.3 Safety rules during use 21
3.3.1 To the new operator or owner...................................................................................................................................22
3.4 Safety rules concerning the hydraulic system 22
3.5 Driver equipment and protections 23
3.5.1 Maintenance safety...............................................................................................................................................24
3.6 Operating hazard area 25
3.7 Danger 25
3.8 Safety signs 25
3.8.1 Replacing Safety signs..........................................................................................................................................25
3.8.2 Description and location of the safety decals........................................................................................................26
4 INSTRUCTIONS FOR INSTALLATION AND HANDLING 29
4.1 Lifting 29
4.2 Connecting the cutter bar 30
4.2.1 Open circuit...........................................................................................................................................................30
4.2.2 Closed circuit.........................................................................................................................................................31
4.3 Field operation 31
4.4 Parking or storage 32
4.4.1 Storage safety.......................................................................................................................................................33
4.5 Machine start up after a long parking period 33
5 ADJUSTMENTS 35
5.1 Change-over valve setting adjustment 35
5.2 Cutter bar blade stroke adjustment 36
5.3 Blade change-over speed adjustment 37
5.4 Working speed adjustment 37
6 USE AND OPERATING RULES 39
6.1 Controls 39
6.2 Starting 39
6.3 Working mode 40

Rev. 01.00
4TR-TRM
6.4 Stopping 41
6.5 Transport position 41
7 ORDINARY MAINTENANCE 43
7.1 Greasing 45
7.2 Trouble shooting chart 46
8 EXTRAORDINARY MAINTENANCE 47
8.1 Pipe replacement 47
8.2 Replacing the cutting blades 48
9 SCRAPPING AND ELIMINATION 49
10 GUARANTEE 50
10.1 Cancellation of the Guarantee 50

Rev. 01.00
5
TR-TRM
DECLARATION OF CONFORMITY - Type “B”
The Company:
FERRI s.r.l. - Via C.Govoni, 30 - 44030 Tamara (FE) - Italy
Tel. [phone] - Fax [phone]
http://www.ferrisrl.it
e-mail: [email protected]
Declares under its own responsibility that the machine:
CUTTER BAR
Series ________________
Serial no________________
Complies with following European Directives:
98/37/CE (Wich abrogates and includes the Directives 89/392/CEE, 91/368/CEE,
93/44/CEE and 93/68/CEE)
For the  tting of the machines, the following harmonized Directives have been adapted in as much as is possi-
ble:
UNI EN 1553 2001
and the technical speci cations:
ISO 11684 1995
The legal representative
Signed___________________
The machine cannot be used unless it is coupled to a machine that supports it and it must be declared to comply with
the Machines Directive and marked “CE” by the final assembler.
FAC - SIMILE
FAC - SIMILE
FAC - SIMILE
________________
FAC - SIMILE
________________
________________
FAC - SIMILE
________________
FAC - SIMILE
FAC - SIMILE
FAC - SIMILE
Complies with following European Directives:
FAC - SIMILE
Complies with following European Directives:
(Wich abrogates and includes the Directives 89/392/CEE, 91/368/CEE,
FAC - SIMILE
(Wich abrogates and includes the Directives 89/392/CEE, 91/368/CEE,
93/44/CEE and 93/68/CEE)
FAC - SIMILE
93/44/CEE and 93/68/CEE)
For the  tting of the machines, the following harmonized Directives have been adapted in as much as is possi-
FAC - SIMILE
For the  tting of the machines, the following harmonized Directives have been adapted in as much as is possi-
2001
FAC - SIMILE
2001
and the technical speci cations:
FAC - SIMILE
and the technical speci cations:
ISO 11684
FAC - SIMILE
ISO 11684
1995
FAC - SIMILE
1995

Rev. 01.00
7
TR-TRM
PRECAUTIONARY STATEMENTS
PERSONAL SAFETY
Throughout this manual and on machine decals, you will find precautionary statements (“CAUTION”, “WARNING”, and “DANGER”)
followed by specific instructions. These precautions are intended for the personal safety of you and those working with you. Please
take the time to read them.
THE WORD “CAUTION” IS USED WHERE A SAFE BEHAVIORAL PRACTICE ACCORDING TO
OPERATING AND MAINTENANCE INSTRUCTIONS AND OTHERS FROM ACCIDENT INVOL-
VEMENT.
CAUTION
THE WORD “WARNING” DENOTES A POTENTIAL OR HIDDEN HAZARD WHICH HAS A PO-
TENTIAL FOR SERIOUS INJURY OR POSSIBLE DEATH.
IT IS USED TO WARN OPERATORS AND OTHERS TO EXERCISE EVERY APPROPRIATE
MEANS TO AVOID A SURPRISE INVOLVEMENT WITH MACHINERY.
WARNING
THE WORD “DANGER” DENOTES A FORBIDDEN PRACTICE IN CONNECTION WITH A SE-
RIOUS HAZARD IMMINENT DEATH OR CRITICAL INJURY.
DANGER
FAILURE TO FOLLOW THE “CAUTION”, WARNING”, AND “DANGER” INSTRUCTIONS MAY RESULT IN
SERIOUS BODILY INJURY OR DEATH.

Rev. 01.00
8TR-TRM
PREFACE
To work in safety you must:
Apply the general precautions for the use of all mechanical means as set out in Chap. 3;
Always follow the instructions for use given in the USE and MAINTENANCE manual or, in the case of particularly complex equi-
pment, follow specific courses offered by manufacturers, dealers, technical assistants, etc.;
Do not remove, tamper with or modify any part of the machine if this is not contemplated in the use and maintenance ma-
nual;
Repair or replace the guards and any worn or broken parts following the indications given in the use and maintenance ma-
nual;
Ensure that the safety decals showing the warning signals are kept in good condition;
Carry out maintenance on the machine according to the instructions given in the use and maintenance manual;
Check that the safety regulations required by law are respected and, if they are not, apply to specialised technical personnel
(manufacturers, dealers, technical assistants, etc.).
Keep all the guards in perfect working order.
IMPORTANT WARNING:
All the technical precautions, as regards safety against thrown objects, adopted in the design
of machines (at the present state of the art they are the same for all manufacturers) do not
allow absolute safety to be achieved.
There unfortunately remains a residual risk that cannot be eliminated and which, besides
depending on the probabilistic nature of the trajectory of the cut material, is inherent to the
particular nature of operation of the machines.
So it may happen that, even during appropriate use of the machine, small stones, chips or
other material may escape the protective barriers and be thrown far away.
It is therefore absolutely obligatory that there be NO ONE IN THE RANGE OF ACTION OF
THE MACHINE (AT LEAST 50 YARDS) DURING ITS OPERATION.
In particular, it is recommended to take great care when working near roads and/or buil-
dings.
WARNING
CAUTION
Before assembling any machine with electric/electro-hydraulic controls and/or heat exchanger on the
tractor YOU MUST read the assembly instructions on the electrical connections.
Failure to observe the said instructions faithfully may result in considerable damage to the electrical sy-
stem, thereby invalidating the warranty of the same.
1)
2)
3)
4)
5)
6)
7)
8)

Rev. 01.00
9
TR-TRM
GENERAL INFORMATION
1 GENERAL INFORMATION
1.1 Introduction and purpose of the manual
This manual aims to explain the correct use of the machine and to supply the client with all the necessary information for using
the machine as independently and safely as possible. It includes details on technical aspects, machine function, maintenance,
spare parts and safety.
Before carrying out any operation on the machine, the operators and qualified technicians must have carefully read the instruc-
tions outlined in this manual.
In case of any doubt as to the correct interpretation of the instructions, please ask the machine Manufacturer for clarifications.
Please read this use and maintenance manual carefully and take careful note of the instructions provided before using or che-
cking the machine.
In case any of the texts or tables are difficult to understand or the diagrams/drawings are unclear, please contact FERRI Srl directly
for clarifications from use/maintenance experts or the authors of this manual.
FERRI srl is at the disposition of users, the sales department and any other interested party for improving the understanding of the
whole manual.
This manual contains the rules for operation, routine maintenance, special maintenance and troubleshooting for the machine
produced by FERRI srl.
FERRI srl is continually striving to improve its product. We reserve the right to make improvements or changes when it
becomes practical and possible to do so, without incurring any obbligation to make changes or additions to the equip-
ment sold previously.
This Manual has been drawn up according to the regulations in force at the time of prin-
ting.
It is an integral part of the machine and must accompany it together with the Declaration of
Conformity if it is sold.
CAUTION
This manual supplies all the information for the use and maintenance of the machine. Its good operation and duration will depend
on correct maintenance and care during use.
Some illustrations in this manual show details or accessories that may be different from those on your machine; some
components may have been removed to ensure that the illustrations are clear.
The topics dealt with in this manual are those expressly requested by “Directive 98/37/CE” which abrogates and includes Directives
89/392/EEC, 91/368/EEC, 93/44/EEC and 93/68/EEC.
It is recommended to use only genuine spare parts and accessories.
Besides invalidating the guarantee, spare parts that are not genuine could be dangerous,
reducing the working life and performance of the machine.
CAUTION
1.1.1 Addressees
The manual is for both operators and maintenance technicians of the machine.
Drivers must not carry out operations meant for maintenance technicians or qualified technicians.
The constructor is not responsible for any damage caused by non-observance of this regulation.
The information contained in this manual is addressed to professional users who must have specialized knowledge on how to
drive the tractor to which the machine is connected and who must have authorization and the correct qualifications to do so.
The technical information contained in this manual is property of FERRI srl and must be considered reserved information.

Rev. 01.00
10 TR-TRM
FIG. 1.1
GENERAL INFORMATION
1.1.2 Conservation
The use and maintenance manual must be kept close to the machine and away from liquids and any other substance which
could cause it to become illegible.
This manual, together with the declaration of conformity, must be considered an integral part of the machine supplied by FERRI
srl and it must accompany the machine until it is demolished. If it is not delivered with the machine or if it is lost, you must apply
to FERRI srl for a new copy, which will be sent to you in the shortest time possible. This manual contains regulations for use, ordinary
maintenance, extraordinary maintenance and troubleshooting for the machine produced by FERRI srl.
1.1.3 Information on the machine
The materials used by FERRI srl to construct the machine have been selected according to the specific use for which the ma-
chine has been designed and made (see par. 2.1.1): any substantially different uses may cause harm to persons and things
and may be detrimental to the good operation of the machine. The respect of and strict conformity with the conditions of use,
repair and maintenance, as specified below in this manual, are essential elements which form part of the intended use. The use
of the machine for activities not contemplated in the design stage and not listed in this manual relieves FERRI srl of all direct or
indirect responsibility. Any arbitrary modification made to this machine relieves FERRI srl of all responsibility for damage or injuries,
even of a serious nature, which may occur to the operators, to third parties and to things. Correct use of the machine, scrupulous
observation of the rules listed here and the strict application of all the precautions to prevent any situations of danger, will avoid
the risk of accident or injury, while allowing the machine to work better and longer and reducing breakdowns to a minimum.
FERRI srl declines all objective responsibility if the rules referred to in the machine are not
applied and respected.
CAUTION
If you have any question npt answered in this manual or require additional copies or the manual is damaged, please contact
your Dealer or
FERRI srl, Via C.Govoni, 30 - 44030 Tamara (Fe) - Italia.
Tel. +39 0532 - 866.866
Fax. +39 0532 - 866.851
e-mail: [email protected]
1.2 Machineidentication
On the frame of each machine there is an identity plate (Fig.1.1) showing the CE stamp, the dates of Manufacturer, the series num-
ber, the construction year, the machine weight, the transmission power and the maximum hydraulic pressure of the machine.
The data given on the identication plate are indispensable whenever asking for spare par-
ts.
CAUTION

Rev. 01.00
11
TR-TRM
FIG. 1.2 FIG. 1.3
GENERAL INFORMATION
1.3 Spare parts
It is strongly recommended to use genuine “FERRI” spare parts to avoid altering the technical features of the machine.
FERRI is not responsible for any damage or injuries to the machine, persons or things due to unauthorized modifications.

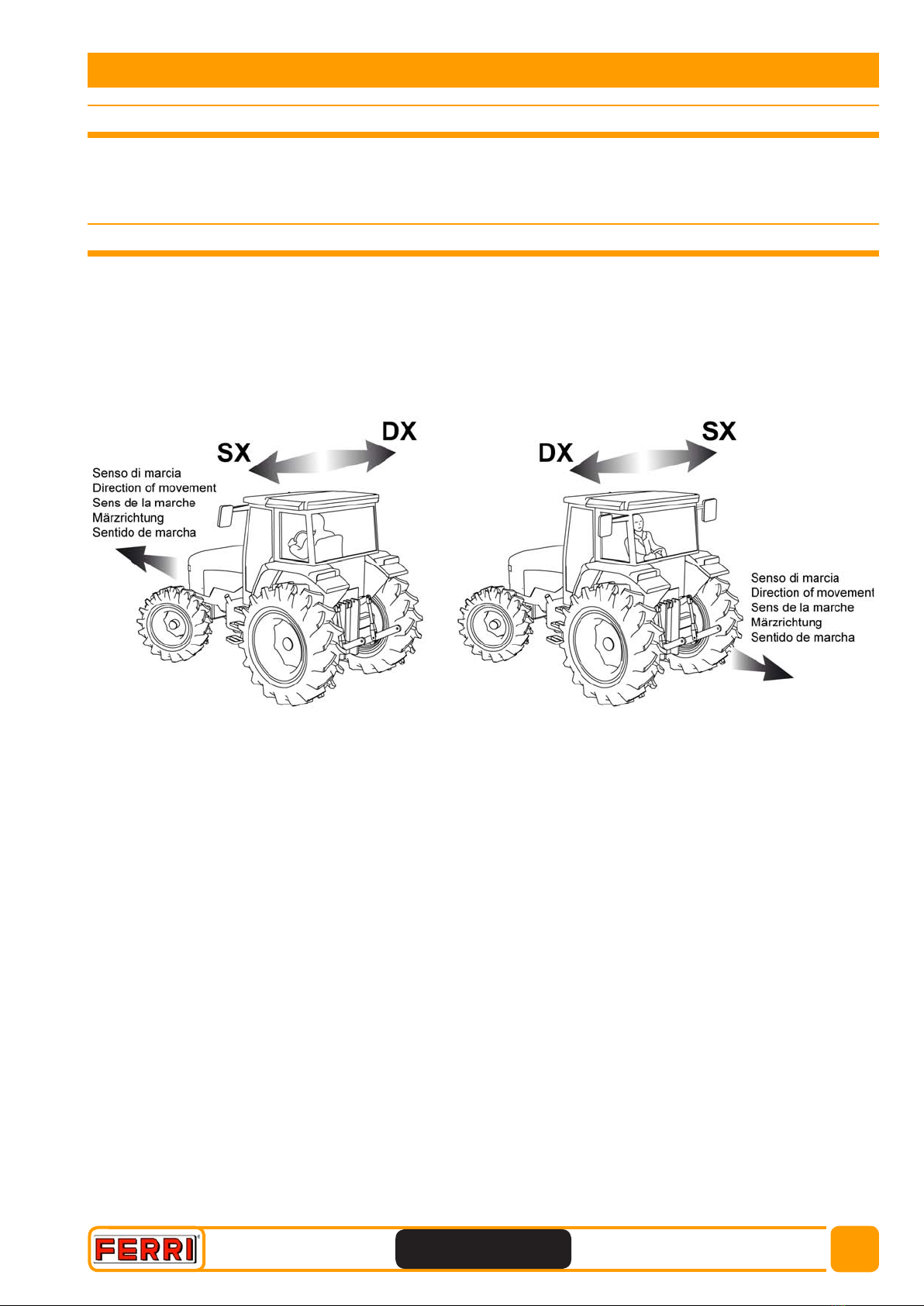

1.4 Term ‘right’ and ‘left’
With relation to the direction of movement while working, it is called “right machine” if the machine, while working, protrudes on
the right-hand side and “left machine” on the left-hand side. (See FIG. 1.2 also with the machine fitted on a tractor with reversible
drive FIG. 1.3).

Rev. 01.00
13
TR-TRM
TECHNICAL CHARACTERISTICS
2 TECHNICAL CHARACTERISTICS
2.1 General description of the machine
The CUTTER BAR, of TR and TRM series, has been designed, built and protected for use exclusively in the agricultural sector (for
contraindications of use see paragraph 2.1.2). In the design and construction, all the necessary measures were taken to give a
high-quality, reliable product, fully complying with the regulations in force and particular with accident prevention.
The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance
of accidents.
2.1.1 Intended uses
The machine was designed, constructed, and provided with protective devices to be used exclusively in the agricultural sector
for the cutting and pruning of hedges, bushes, and tree branches to a maximum diameter of 8 cm (TR series) or 5 cm (TRM
series).
The machine is applied to the end of a jointed arm (mounted on a tractor, triad, loading shovel, excavator, etc, referred to from
now on simply as “tractor”) by adjusting the field of work using a hydraulic ram positioned on the arm itself. These machines are
constructed from a structure in which the working element is formed by 2 appropriately shaped blades - one fixed stationary to
the frame and the other movable – that create shearing movement.
The machine is not indicated for use in sectors other than agriculture and road maintenance.
The machine must be used by only one operator
Any use other than that specied is considered improper
WARNING
FERRI srl declines all responsibility if the safety decals supplied with the machine are missing, illegible or shifted from their original
position.
If any decal is damaged or missing, you must ask to be sent a new one, quoting the machine identification data given on the
data plate.
This machine is usually used in daytime.
In conditions of reduced visibility, the tractor’s lighting system must be used.
If exceptional night-time use is required, an auxiliary lighting system must be provided in order to guarantee good visibility in the
whole work area without dangerous reflections for the operator, in addition to sufficient lighting in the cabin in order to guarantee
identification of the controls.
2.1.2 Contraindications
The principal contraindication for use of the CUTTER BAR are listed below:
make sure that the bushes are free from any and all metallic material such as bits of fencing, cable, pipe, chain, etc.;
make sure that there are no tree stubs or anything else of dimensions greater than ø 10 cm between the bushes;
carefully observe and apply the instructions for regulating the ground clearance of the machine, and always ensure that there
are no other people within 50 metres of the working radius of the machine;
■
■
■

Rev. 01.00
14 TR-TRM
FIG. 2.1
TECHNICAL CHARACTERISTICS
2.2 Description of the parts
1Cutting blades
2Frame
3Hydraulic ram
4Control reversal valve
5Flow valve
2.3 Technicalspecications
TAB 1
CUTTER BAR MOD. TR13 TR22 TRM18
Width of cut cm. 130 220 180
Absorbed power CV(Kw) 20 (15) 20 (15)
Rate of flow valve set to It (min) 45 ÷ 50
Hydraulic ram pressure (bottom side) Bar 135
Hydraulic ram pressure (rod side) Bar 170
Max. cycles per minute n. 60 80
Max. diameter of cut cm. 8 5
Hydraulic oil Type ISO-L-HM 68
Filtering micron 25 - 30
Weight Kg. 170 220 145
DIMENSIONS
CUTTER BAR MOD. TR13 TR22 TRM18
Width Amm. 1300 2200 1800
Width Bmm. 700
Height Cmm. 220
For stability reasons, the required weight of the tractor to
which the machine is fitted varies according to the arm
lenght, and will have to be as follows:
up to 3 m arm Kg. 1400
up to 4.5 m arm Kg. 2100
up to 6 m arm Kg. 3000
up to 8 m arm Kg. 4500

Rev. 01.00
15
TR-TRM
TECHNICAL CHARACTERISTICS
2.4 Noise
The noise level produced is checked on all the models of machines produced by FERRI srl.
The noise values indicated are emission levels and do not necessarily represent safe operational levels.
Despite the existence of a relationship between emission levels and exposure levels, it cannot be accurately used to establish
whether further precautions are required or not.
The factors which determine the exposure level which the work force is subject to, include the duration of exposure, the characte-
ristics of the work environment and other sources of noise (number of machines, nearby activities etc).
Furthermore, the permitted exposure levels can vary from one country to another.
However, the information on the level of noise produced by the machine will help the machine user to assess the dangers and
risks.
The noise level measured at the operator’s ear is between 75 dB and 78,5 dB with the cab
closed and between 82.9 and 84.4 dB with the rear glass of the cab open.
The acoustic power level is LWA 102,5. At a noise level perceived by the ear higher than 85
dB it is recommended to use personal protection equipment.
Noise over 85dB over an exended period of time will cause severe hearing loss.
Noise over 90dB adjacent to the Operator over an extended period of time will cause per-
manent or total hearing loss.
According to the data measured in the various positions examined, in the absence of a soun-
dproofed cab it is recommended to use personal hearing protection equipment.
CAUTION

17
Rev. 01.00
TR-TRM
SAFETY RULES
3 SAFETY RULES
This machine complies with the following European Directives:
98/37/CE (WichabrogatesandincludestheDirectives89/392/CEE,91/368/CEE,93/44/CEEand93/68/CEE)
For the tting of the machines, the following harmonized Directives have been adapted in as much as is
possible:
UNI EN 1553 2001
and the technical specications:
ISO 11684 1995
3.1 General safety rules
Safety of the operator and bystanders is one of the main concerns in designing and developing a machine. However, every
year many accidents occour which could have been avoided by a few seconds of thought and a more careful approach to
handling equipment. The operator can avoid many accidents by observing the precautions in this manual. To avoid personal
injury or death, study the following precautions in this manual.
FERRI’s machines have been built and designed exclusively for cutting grass, reeds, bushes and shrubs, any other use must be
explicitly authorised in writing by the Manufacturer; Any modifications to the tool not authorised beforehand (in writing) by the
Manufacturer relieve him of all responsibility.
All implements with moving parts are potentially hazardous. There is no substitute for a cautions, safe-minded operator who
recognizes the potenzial hazards and follow reasonable safety practises as detailed in this manual.
BEFORE YOU START
Read and comprehend safety message on the implement and shown in your manual.
Observe the rules of safety and common sense.
FERRI do not answer for any damage caused by machine use that is not contemplated or
unsuitable.
WARNING
Carefully check the machine before the start.
CAUTION
As well as the warnings given in this manual, observe all safety and accident-prevention rules of a general nature. Do not
operate the machine or perform maintenance until you have read and understood the instructions.
The warning labels applied on the machine provide a series of important indications: observing them keeps you safe.
Ensure that all the safety decals are legible. Clean them and replace them with new labels if necessary.
Before starting to use the machine you must know its devices, controls and functions, and read this manual carefully.
Before using the machine, ensure that all the safety devices are correctly in place and in good condition; if there are any
faults or damage to the guards, change them immediately. In particular check that all front guards are present, in perfect
condition and free to swing around the pin to which they are fixed.
Before getting off the tractor and before each maintenance operation, apply the parking brake, switch off the engine and
remove the ignition key from the dashboard.
The user is responsible for the maintenance of the machine. This maintenance also includes keeping all the safety decals and
protections in excellent condition. The owner must provide all the instructions to the operators or staff before allowing them to
operate the machine, according to the regulatory Directives in the relative country.
Anyone who has not read and understood all the operations and safety instructions is not qualified to operate the machine.
An un-trained operator puts himself and other people at serious risk of injury or death.
Before each start-up and during the use of the machine, check for the presence, or for arrive
of people, animals and/or vehicles, if there is anyone there, DO NOT operate.
DANGER
■
■
■
■
■
■
■
■
■
■

18
Rev. 01.00
TR-TRM
SAFETY RULES
Never operate the tractor or implement until you have read and completely understand this
Manual, the Tractor Operator’s Manual, and each of the Safety Messages found in the Manual
or on the tractor and implement.
DANGER
Start tractor only when properly seated in the Tractor seat. Starting a tractor in gear can result
in injury or death. Read the Tractor operator’s manual for proper starting instructions.
DANGER
The manual must always be readly accessible, so that you consult it and check the operating cycle. If it is lost or damaged,
you must apply to FERRI for a replacement copy.
In case the machine is used for verge maintenance on public roads, the unit has to be driven
only by experienced personnel that knows how to drive the machine safely and correctly.
DANGER
Ensure to disengage power take off to the machine before starting the engine.
The machine is designed to be used by only one operator.
Never work with this machine if you are tired, ill or under the influence of alcohol, drugs or medicines.
Check that the machine has not suffered any damage during transport; if you find any signs of damage, notify FERRI imme-
diately.
Keep the machine clean and free from foreign bodies (refuse, tools, various objects), which could damage its operation or
harm the operator.
Always wear seat belt. Serious injury or even death could result from falling off the tractor,
particularly during a turnover when operator could be pinned under the ROPS.
WARNING
Prolunged operation may cause operator boredom and fatigue affecting safe operation.
Never operate the machine and tractor in a fatigue or bored mental state.
It is absolutely forbidden to climb or to ride on the machine when it is moving.
DANGER
Ensure that the PTO shaft is correctly fitted after each operation of connecting the machine.
Disconnect the machine from the tractor only compact level ground, ensuring that it is still and stable (use the suitable sta-
bilising feet).
Check that the protections of the PTO transmission shaft are while and in good conditions.
When the machine non is not coupled to power takeoff, the hydraulic pipes must be placed
in the supports provided.
DANGER
In the event of breakage or deterioration of the PTO shaft protections, replace them immediately.
Do not use the controls or the flexible pipes as handholds: these components are mobile and do not offer steady support.
Never work, walk or stand under the lifted arm. Before you carry out any maintenance work under the arm when suspended,
make sure that the same is well and securely fastened or hooked to avoid accidental fall and damage.
Never use the arm to raise people or objects.
Do not, for any reason, get in between the tractor and the mower with the engine running and
the power take off switched on.
DANGER
■
■
■
■
■
■
■
■
■
■
■
■
■
■

19
Rev. 01.00
TR-TRM
SAFETY RULES
Avoid contact with hot surfaces including hydraulic oil tanks, pumps, motors, valves, gear-
box and hoses connections.
Use gloves and eye protection when servicing hot components. Contact with a hot surface
or uid can cause serious injury.
WARNING
Operate only in daylights or with adequate articial lighting.
It’s necessary that the operator can clearly see at least 100 m (100 yards) in front and to the
sides of the tractor and machine.
WARNING
To reduce the possibility that the blades could fail upon impact with heavy objects such
as metal guard rails or concrete structure never allow the cutting blades to contact such
obstacles.
DANGER
Replace the bent or broken blades with new blades.
Do not try to straighten the blades or to carry out weldings on the blades because their
strength would be altered to the detriment of the safety.
DANGER
Never cut an area that the operator has not inspected and removed debris or foreign mate-
rial, to prevent machine damage and/or bodily injury or even death.
Any objects that cannot be removed must be clearly marked and avoided by the operator.
Stop cutting immediately if blades strike a foreign objects.
WARNING
Never run the tractor engine in a closed building or without adequate ventilation. The
exhaust fumes can be hazardous to health.
DANGER
Never allow children to play on or around tractor or machine.
DANGER
MAKE SURE THAT THE BLADES ARE COMPLETELY STOPPED BEFORE APPROACHING
THE MACHINE.
DANGER
This machine is designed for use on a closed cab tractor only! If your tractor has an open cab,
then it must be equipped with operator protective equipment in the form of shielding from
thrown objects and Roll Over Protective Structure (ROPS) to operate this equipment safety.
DANGER
Before leaving the tractor seat and before each maintenance operation, always engage the
brake and/or seat the tractor trasmission in parking gear, disengage the PTO, stop the engine,
remove the key, and wait for all moving parts to stop.
DANGER
Never allow children or other persons to ride or operate on the tractor or implement. Falling
off can result in serious injury or death.
DANGER

20
Rev. 01.00
TR-TRM
SAFETY RULES
The user may carry out exclusively the maintenance operations described in this manual.
WARNING
Do not operate this machine on a tractor that is not properly maintened. Serious injury and
possible death could occur from not maintaining this machine and tractor in good operating
condition
WARNING
Do not modify the equipment in any way. Unautorized modification may impair the function and/or safety and could affect
the life of the equipment.
Do not tamper with, remove or make inefcient the protections and safety devices applied on
the machine for the safety of the operator and of other persons and/or things.
DANGER
Use exclusively genuine “FERRI” spare parts.
FERRI declines all responsibility in case of:
improper use of the machine or use by untrained personnel;
serious shortcomings in the required maintenance;
unauthorised modifications or interventions;
use of non genuine spare parts or parts not specifically intended for this model;
total or partial failure to observe the instructions;
failure to onbserve the common rules for safety at work;
exceptional events.
FERRI cannot foresee every possible circumstance which could involve a potential risk. The
warnings given in this document and on the product are therefore not exhaustive.
CAUTION
3.2 Safetyrulesconcerningroadtrafc
Make sure the tractor steering and brakes are in good condition and operate properly.
DANGER
When trasporting the machine, review and follow these instructions:
Disconnect the tractor power takeoff.
When driving on public roads, observe all road regulations.
Never transport the machine with the moving flail holder shaft, even for short distances.
Lock the machine with the safety device provided (see par. 6.5).
In case the machine is used for verge maintenance on public roads, the unit has to be driven only by experienced personnel
that knows how to drive the machine safely and correctly.
Do not allow anyone to ride on the machine or tractor during trasport.
Reduce speed on rough roads and surfaces.
Use retainers on the mounting pins before transporting.
Always use hazard flashers on the tractor when trasporting unless prohibited by law.
Make sure the SMV (Slow Moving Vehicle) emblem and all the lights and reflectors that are required by the local highway and
trasport autorities are in place, are clean and can be seen clearly by all overtaking and oncoming traffic.
Be sure all bystanders are clear of the machine.
Be sure the cutter bar drive is disengaged and has stopped turning.
Be sure that the machine is securely attached to the tractor and all retainer pins are installed.
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
