Ferroli AQUA1 PLUS User manual

AQUA1PLUS
Scaldacqua a pompa di calore
Water heaters heat pump
Les chauffe-eau pompe à chaleur
Calentadores de agua bomba de calor
0$18$/(87(17(
86(50$18$/
0$18(/'87,/,6$7,21
0$18$/'(868$5,2
,
(1
)5
(6

La ditta costruttrice declina ogni responsabilità per le inesattezze contenute nel presente, se dovute ad errori di
stampa o di trascrizioni.
The manufacturer declines all responsibility for any inaccuracies in this manual due to printing or typing errors.
The manufacturer reserves the right to modify the products contents in this catalogue without previous notice.
Le fabricant décline toute responsabilité pour les erreurs d’impression ou de transcription que pourrait présenter ce manuel.
Il se réserve la faculté de modifier et d’améliorer les produits présentés dans le catalogue à tout moment sans préavis.
El fabricante declina toda responsabilidad por cualquier imprecisión en este manual debido a errores de
impresión o de mecanografía.
(OIDEULFDQWHVHUHVHUYDHOGHUHFKRGHPRGL¿FDUORVSURGXFWRVLQFOXLGRVGHHVWHFDWiORJRVLQSUHYLRDYLVR
Gentile cliente,
La ringraziamo per aver preferito nell'acquisto un climatizzatore FERROLI. Esso è frutto di pluriennali esperienze e di
particolari studi di progettazione, ed è stato costruito con materiali di primissima scelta e con tecnologie
avanzatissime.La marcatura CE, inoltre, garantisce che gli apparecchi rispondano ai requisiti della Direttiva Macchi-
ne Europea in materia di sicurezza.Il livello qualitativo è sotto costante sorveglianza, ed i prodotti FERROLI sono
SHUWDQWRVLQRQLPRGL6LFXUH]]D4XDOLWjH$I¿GDELOLWj,OQRVWUR6HUYL]LRGL$VVLVWHQ]DSLYLFLQRVHQRQFRQRVFLXWR
può essere richiesto al Concessionario presso cui l'apparecchio è stato acquistato, o può essere reperito sulle Pagi-
ne Gialle sotto la voce "Condizionamento" o "Caldaie a gas" (valido solo per il mercato italiano). I dati possono subire
PRGL¿FKHULWHQXWHQHFHVVDULHSHULOPLJOLRUDPHQWRGHOSURGRWWR
Nuovamente grazie.
FERROLI S.p.A
Dear Customer,
Thank you for having purchased a FERROLI product. It is the result of many years of experiences and of particular
research studies and has been made with top quality materials and advanced technologies. The CE mark guarantees
that the products satisfy all the applicable European Directives.
The qualitative level is kept under constant control and FERROLI products therefore offer SAFETY, QUALITY and
5(/,$%,/,7<'XHWRWKHFRQWLQXRXVLPSURYHPHQWVLQWHFKQRORJLHVDQGPDWHULDOVWKHSURGXFWVSHFL¿FDWLRQDVZHOO
as performances are subject to variations without prior notice.
Thank you once again for your preference
FERROLI S.p.A
Cher client,
Nous vous remercions d’avoir choisi un produit FERROLI. Il représente le résultat d’une longue expérience et d’une
recherche attentive et a été réalisé à partir de matériaux de premier choix et selon des processus de pointe. Le label
CE garantit que les produits sont conformes à toutes les directives européennes applicables. Le niveau qualitatif
fait l’objet d’un contrôle constant de sorte que les produits FERROLI puissent toujours être synonyme de Sécurité,
Qualité et Fiabilité.
(QYXHG¶DPpOLRUHUVHVSURGXLWV)(552/,SHXWHQPRGL¿HUOHVFDUDFWpULVWLTXHVjWRXWPRPHQWVDQVSUpDYLV
Nous renouvelons nos remerciements.
FERROLIS.p.A
Estimado cliente,
Gracias por haber comprado un producto FERROLI. Este es el resultado de muchos años de experiencia y de
investigación privada y ha sido fabricado con materiales de primera calidad y tecnologías avanzadas. La marca
CE garantiza que los productos cumplen todas las Directivas Europeas aplicables.
El nivel de calidad se mantiene bajo un constante control y los productos FERROLI ofrecen por lo tanto
SEGURIDAD, CALIDAD y CONFIABILIDAD. Debido a las mejoras continuas en tecnologías y materiales, las
HVSHFL¿FDFLRQHVGHOSURGXFWRDVtFRPRODVSUHVWDFLRQHVHVWiQVXMHWDVDYDULDFLRQHVVLQSUHYLRDYLVR
*UDFLDVXQDYH]PiVSRUVX
preferencia
F
ERROLI S.p.A

pag. 2 /
15
SOMMARIO
1General specification.................................................................................................................................. 3
1.1 CONSIGNMENT OF THE MACHINE................................................................................................................................................3
1.2 FOREWORD..........................................................................................................................................................................................3
2IMPORTANT INFORMATION .......................................................................................................................... 3
2.1 CONFORMITY WITH EUROPEAN REGULATIONS........................................................................................................................3
2.2 DEGREES OF PROTECTION PROVIDED BY ENCLOSURES........................................................................................................3
2.3 LIMITATIONS OF USE ...........................................................................................................................................................................3
2.4 OPERATING LIMITS..............................................................................................................................................................................4
2.5 FUNDAMENTAL SAFETY RULES.........................................................................................................................................................4
3OPERATION AND USE.................................................................................................................................... 4
3.1 THE USER INTERFACE..........................................................................................................................................................................4
3.1.1 Interface keys and display................................................................................................................................4
3.1.2 Operating logic..................................................................................................................................................5
3.1.3 Basic management ...........................................................................................................................................6
4MAINTENANCE AND CLEANING ................................................................................................................ 10
4.1 RESETTING OF SAFETY EQUIPMENT ................................................................................................................................................10
4.2 CONTROL LE DISPOSITIF CONTRE LES SURPRESSIONS..............................................................................................................12
4.3 QUARTERLY INSPECTIONS................................................................................................................................................................12
4.4 ANNUAL INSPECTIONS......................................................................................................................................................................12
4.5 CLEANING OF THE VENTILATION FILTER.......................................................................................................................................12

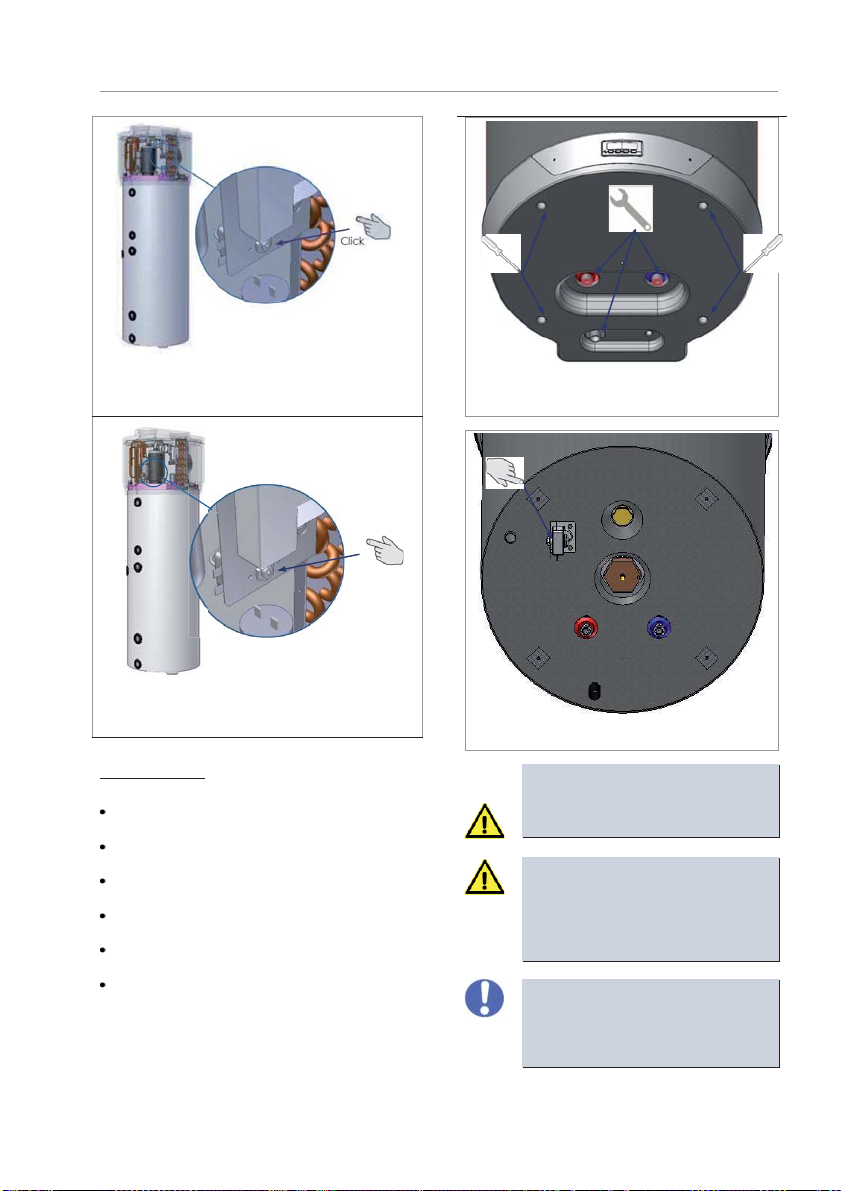

4.6 MAGNESIUM ANODES......................................................................................................................................................................13
4.7 EMPTYING THE BOILER.......................................................................................................................................................................14
5TROUBLESHOOTING .................................................................................................................................... 14
6DISPOSAL .................................................................................................................................................... 14
7Safety regulation........................................................................................................................................ 15
7.1 GENERAL CONSIDERATIONS ..........................................................................................................................................................15
7.1 INFORMATION ON COOLANT USED ............................................................................................................................................15

pag. 3 /
15
1 General specification
1.1 Consignment of the machine
As soon as the machine is consigned, it is essential for
the user to make sure that he has received all the items
indicated on the consignment note and that the
machine has not been damaged during transport. If
damage is discovered, allow the forwarding agent to
ascertain its entity and also inform our seller. Only in
this way will you be able to receive the missing items or
reimbursement of damages within the shortest possible
time.
1.2 Foreword
This air conditioner has been designed and
manufactured for air conditioning requirements only and
must therefore be used for this purpose alone. Even
the best of machines are capable of operating efficiently
and correctly only if they are used in the correct manner
and kept fully efficient. You are therefore kindly
requested to carefully read this instruction manual and
to consult it each time difficulties should arise when
using the machine or when in doubt. In any event, we
remind you that if necessary, our assistance service,
organized in collaboration with our dealer, is always at
your disposal for any advice or direct intervention
required.
The following symbols are used inside the manual
in order to rapidly find the most important
information:
Information on safety
Procedures to follow
Information/ Suggestions
2 IMPORTANT INFORMATION
2.1 Conformity with European regulations
The present heat pump is a device intended for
domestic use in conformity with the following
European directives:
2012/19/UE Directive on general product
safety;
2011/65/RoHS Directive on the restrictions of
use of certain hazardous substances in electric
and electronic equipment (RoHS);
Directive 2003/108/CE - Hazardous substances
in electric and electronic equipment (RAEE);
Directive 2014/30/UE - Electromagnetic
compatibility (EMC);
Directive 2014/35/UE –Low Voltage Directive
(LVD);
Directive 2009/125/CE Ecodesign
Requirements;
Regulation 2017/1369/UE of the framework for
energy labeling.
2.2 Degrees of protection provided by
enclosures
The degree of protection of the equipment is
equal to: IPX4.
2.3 Limitations of use
WARNING!: This device
has not been
designed, nor is it intended for use
with
in hazardous environments (due to
the presence of potentially
explosive
atmospheres –
according to ATEX
standards
or with a requested IP level
exceeding that of the equipment
) or in
applications that require (fault-
tolerant,
fail-safe) safety characteristics
such as
in circuit-
breaking systems and/or
technologies or i
n any other context in
which the malfunctioning of an
application could cause death or
injury to people or animals or serious
damage could be caused
to objects
or the environment.
N.B.: In the event of a product
breakdown or fault, this could cause
damage (to people, animals and
goods). It is necessary to arrange for a
separate functional monitoring system
with alarm functions in order to avoid
such damage being caused.
Moreover, it is necessary to arrange for
a back-up service in case of failure!

Manuale utente
pag. 4 /
15
2.4 Operating limits
The above mentioned device is intended to be
used exclusively for the heating of domestic hot
water within the foreseen limitations of use.
The equipment can only be installed and started
up for the intended use within closed heating
systems in conformity with the EN 12828 standard.
N.B.: The manufacturer
shall not be
held responsible under any
circumstances in the event that the
equipment is used for other purposes
than for which it has been designed
and as regards any installation errors or
equipment misuse.
WARNING!
It is forbidden to use the
device
for purposes other than those
intended. Any other use is to be
considered improper and therefore not
allowed.
N.B.: During the design and
construction stage of the systems,
current local rules and provisions are
complied with.
The working
temperature range it’s
described on the installation
manual.
2.5 Fundamental safety rules
The device must be used by adults;
Do not open or disassemble the device when
this is connected to the power supply;
Do not touch the device with wet or humid
body parts when barefoot;
Do not pour or spray the device with water;
Do not stand, sit and/or rest anything on the
device.
3OPERATIONANDUSE
The management of the device is assigned to a
user interface that enables the:
Setting of the operating mode;
Modification of the operating parameters;
Display and management of any emergency
situations;
Verification of the state of resources.
Below, the term “start” intends the
switching from the Stand
-
by to the ON
status; the term “switch off” intends the
switching from the ON to the Stand
-
by
status.
Below, the term “advanced procedure”
refers to particular procedures of the tool
described in the paragraphs relating to
“advanced management”.
The control acts by setting
parameters. The list of
editable
parameters and their default value
is shown in the installation manual.
3.1 The USER INTERFACE
The user interface (Fig. 1) allows the verification
and the adjustment of the equipment operation.
This is equipped with a display and the following
keys:
On/Stand-by key;
SET key;
DOWN key;
UP key.
3.1.1 Interface keys and display
3.1.1.1 The ON/Stand-by key
By means of this key it is possible:
To switch the device on (ON status);
To switch the device to the Stand-by status
(in
this status, the instrument can automatically
switch on in certain time slots and
independently enable the anti-Legionella
and
defrosting functions.
Fig. 1 –User interface
ON/Stand-by key
SET key DOWN
key UP key
Display

Manuale utente
pag. 5 /
15
When the
equipment
is switched on, it
shows the status it was in when it was
previously switched off.
3.1.1.2 The [SET]key
By means of this key it is possible to:
Confirm set choices or values.
3.1.1.3 The [UP]key
By means of this key it is possible to:
Scroll up the list of the various parameters;
Increase the value of a parameter.
3.1.1.4 The [DOWN]key
By means of this key it is possible to:
Scroll down the list of the various parameters;
Reduce the value of a parameter.
3.1.1.5 The Interface Display
The interface display (Fig. 2
) makes it possible to
visualise:
Regulation temperatures;
Alarm/Error codes;
Status messages;
Operating parameters.
Fig. 2 –User interface display
Compressor
LED
If this is lit: the compressor
is
active.
It this is flashing:
The compressor switching
on procedure is in
progress.
The modification of the
operating set points is in
progress;
Defrosting LED
If this is lit:
defrosting is in
progress
MF LED
If this is lit: the electric heating
element is on
Fan LED If this is lit: the fan is active
Maintenance
LED
If this is lit: maintenance of the
air filter is required (if present)
Alarm LED
If this is lit: check the list of
alarms and follow the
procedure indicated in this
manual
Degree
Celsius LED If this is lit:
the unit of
measurement for
temperatures is the degree
Celsius
Degree
Fahrenheit LED
If this is lit:
The unit of
measurement for
temperatures is the degree
Fahrenheit.
On/stand-by
LED If this is lit: the equipment
is in
the stand-by status.
If it is flashing, the
equipment
has been switched on/off
manually during a switching
on/off period in a certain
timeslot.
Not used
If the equipment is in the “ON” status, during
normal operation, the display will show the
established temperature by means of parameter
P5: If P5 = 0, the display will show the temperature
of the upper part of the boiler;
If P5 = 1, the display will show the active
working set point;
If P5 = 2, the display will show the temperature
of the lower part of the boiler;
If P5 = 3, the display will show the temperature
of the evaporator;
If the equipment is in the “stand-by” status,
the display will be switched off.
To change the P5 parameter, refer to the
installation manual.
3.1.1.6 Warnings
Loc
The keyboard is locked.
dEFr
The defrosting procedure is in progress and it is
not possible to enable other functions
Anti
The “Anti-Legionella” function is in progress.
ObSt
The “Overboost” function is in progress.
ECO
The “Economy” function is in progress.
Auto
The “Automatic” function is in progress.
3.1.2 Operating logic
3.1.2.1 Operating modes
The equipment foresees the following operating
modes:
AUTOMATIC operating mode
This mode mainly uses the renewable energy
of the heat pump as a support measure, the
electric heating elements can be enabled;
these latter heating sources are enabled if the
water temperature is below a certain level, or

Manuale utente
pag. 6 /
15
in the event that a temperature exceeding
56°C is required;
ECONOMY operating mode
This mode uses only the renewable energy of
the heat pump without ever enabling the
electric heating elements. It takes longer to
enable but it has considerable energy saving
characteristics;
OVERBOOST operating mode
This mode makes it possible to heat water
rapidly by using both the heat pump and the
electric heating elements. This function can be
manually enabled when the temperature of
the water inside the storage tank is below
40°C. At the end of the heating process, the
function is automatically disabled and the
equipment is automatically restored to the
Automatic or Economy mode depending on
which of these functions was previously set by
the user;
ANTI-LEGIONELLA operating mode
This function is used as an anti-bacterial
treatment by increasing the temperature of
the water to 70°C. This function is periodically
and, in any case, automatically enabled every
30days, regardless of the operating mode
enabled;
DEFROSTING mode
This function is necessary in order to eliminate
the frost deposits that form and which prevent
heat transmission. This function is automatically
enabled when the equipment is operated at
low environmental temperatures.
When the
equipment
is switched on for the
first time, it is pre
-
set by the manufacturer in
the ECO (Economy) mode
with a water set
point
of
55°C with the aim of guaranteeing
the best possible energy saving function
with the support of only renewable energy
sources. Please note that the use of such
function guarantee
s
the user an average
energy saving of approx. 70% when
compared to a normal electric boiler.
3.1.3 Basic management
3.1.3.1 Manual switching on /off of the
equipment
Keep the key pressed for 1 second: the
on/stand-by LED will switch off/on.
The equipment can be switched on/off also
in certain timeslots; the parameters HOn and
HOF if the temperature required is not more
than 56 °C (SP5 parameter).
Manual switching on/off always has the
priority over the timeslot operating mode.
If the keyboard has been locked or an
advanced procedure is in progress, it will
not be possible to carry out the normal
switching on/off of the equipment.
Every time the equipment is switched on,
a series of internal inspections are carried
out before the heat pump is enabled. Such
condition is reported by means of the
flashing of the compressor indicator light
. Once the verification period has
passed (approx. 5 minutes) the indicator
light remains lit and this indicates that the
unit is switched on.
3.1.3.2 Change of operating mode
(AUTOMATIC, ECONOMY and
OVERBOOST)
If you want to change the operating mode,
than the one set press for one second
The display will show the other available
modes.
Using the key or the key to select the
desired one.
Press and release the button to confirm
your choice.
To exit the procedure:
Press the key to exit this procedure without
changing the mode.
3.1.3.3 Keyboard locking/unlocking
To lock the keyboard, carry out the following
procedure:
Make sure that no other advanced procedure
is in progress;
Keep the and the keys pressed for 1
second: “Loc” will be shown on the display for
1 second.
If the keyboard is locked, it will not be possible to
carry out any kind of operation on the display
interface.
By pressing any key, “
Loc” will be shown
for
1 second on the display.
To unlock the keyboard:
Keep the and the keys pressed for 1
second: “UnL” will be shown for 1 second on
the display.

Manuale utente
pag. 7 /
15
3.1.3.4 Set point setting
By specific procedures described below the
set points SP1, SP2 and SP3 can be changed.
Code
Description
Default
value
SP1
Requested water
temperature inside the
tank in ECO mode
55.0
SP2
Requested water
temperature inside the
tank in AUTO mode
55.0
SP3
Lower value of water
temperature to swith on
the electrical booster in
Auto Mode
45.0
The default values can be changed within
the range of defined by parameters r1, r2, r3
and r4. This parameter can be modified by
the installer\ service procedure.
3.1.3.5 Temperature setting in the ECO
operating mode (SP1)
Make sure that the keyboard is not locked and
that no other advanced procedure is in
progress;
Press and release the key: “SP1” will be
shown on the display;
Press and release the key: the compressor
LED will flash;
Press either the or the key within 15
seconds;
Press and release the key or do not carry
out any other operations for 15 seconds: the
compressor LED will switch off;
Press and release the key.
To exit the procedure before its completion:
Do not carry out any operations for 15 seconds
(any changes will be saved).
3.1.3.6 Temperature setting in the Automatic
mode (SP2)
Make sure that the keyboard is not locked
and that no other advanced procedure is
in progress;
Press and release the key: “SP1” will
be shown on the display;
Press either the or the key until
“SP2” is shown on the display;
Press and release the key: the
compressor LED will flash;
Press either the or the key within
15 seconds;
Press and release the key or do not
carry out any other operations for 15
seconds: the compressor LED ( ) will
switch off;
Press and release the key.
To exit the procedure before its
completion:
Do not carry out any operations for 15
seconds (any changes will be saved).
3.1.3.7 Lower value of water temperature
setting in the automatic mode (SP3)
Make sure that the keyboard is not locked
(paragraph 3.1.3.3) and that no other
advanced procedure is in progress;
Press and release the key: “SP1” will
be shown on the display;
Press either the or the key until
“SP3” is shown on the display;
Press and release the key: the
compressor LED will flash;
Press either the or the key within
15 seconds to set value.
Press and release the key or do not
carry out any other operations for 15
seconds: the compressor LED ( ) will
switch off;
Press and release the key.
To exit the procedure before its completion:
Do not carry out any operations for 15
seconds (any changes will be saved).
3.1.3.8 Day and real time settings

Manuale utente
pag. 8 /
15
Make sure that the keyboard is not locked
and that no other advanced procedure is in
progress;
Press and release the key: the display will
show the first code available;
Press and release either the or the key
until “rtC” is shown;
The day is displayed as 1...7 (number 1
corresponding to Monday).
To change the day of the week:
Press and release the key: the display will
show “dd” followed by the two numbers
representing the day;
Press and release either the or the key
within 15 seconds.
To change the time:
Press and release the key while changing
the day of the month: the display will show
“hh” followed by the two numbers
representing the time (Time is shown in the 24
hr. format);
Press and release either the or the key
within 15 seconds.
To change the minutes:
Press and release the key while changing
the time: the display will show “nn” followed by
the two numbers representing the minutes;
Press and release either the or the key
within 15 seconds;
Press and release the key or do not carry
out any operations for 15 seconds;
To exit the procedure:
Press and release the key until the display
shows the temperature established by
parameter P5 or do not carry out any
operations for 60 seconds.
Alternatively:
Press and release the key.
To set operations within timeslots, it is
necessary to have carried out the settings
relating to the day and the real time
beforehand.
3.1.3.9 Timeslot settings for the switching
on/off of the equipment
N.B.:
before proceeding with the
timeslot settings, set day and real time
To start the procedure:
Make sure that the keyboard is not blocked
and that no other advanced procedure is in
progress;
Press and release the key: “SP1” will be
shown on the display.
To set the first timeslot:
Press and release either the or the key
within 15 seconds to select “HOn1” (first
switching on time) and/or “HOf1” (first
switching off time); select “HOn2” and “HOF2”
for the second switching on/off time;
Press and release the key;
Press and release either the or the key
and within 15 seconds;
Press and release the key or do not carry
out any other operations for 15 seconds.
To associate a time slot to a certain day of the
week:
After the previous procedure has been carried
out, press either the or the key and
then let it go within 15 seconds in order to
select “Hd1” (switch on time for day 1, or
rather Monday) and/or “Hd2...7” (switching on
time for days 2-7, or rather Tuesday-Sunday);
Press and release the key;
Press and release either the or the key
within 15 seconds in order to select “1” (the first
switch on/off time) or “2” (the second switch
on/off time);
Press and release the key or do not carry
out any other operations for 15 seconds.
To exit the procedure before its completion:
Do not carry out any operations for 15 seconds
(any changes will be saved) or press the
key and then let it go.
Carefully evaluate enabling of time
slot
operation in order to avoid malfunctions
caused by users.
3.1.3.10 Display of the operating status
Make sure that the keyboard is not locked and
that no other advanced procedure is in
progress;
Press and release the key:
Auto/ECO/Obst/Anti will be displayed for 3
seconds depending on the current active
operative status.
3.1.3.11 Silencing of the alarm sound

Manuale utente
pag. 9 /
15
To silence the alarm, carry out the following
procedure:
Make sure that no other advanced procedure
is in progress;
Press any key once.
ADVANCED MANAGEMENT
N.B.: The following instructions are
reserved for specialised
technical
assistance personnel.
3.1.3.12 Different operating mode start
conditions
Each operating mode must comply with precise
conditions in order to be enabled:
AUTOMATIC operating mode
The condition in order to enable the start of this
function is as follows: lower probe< SP2 –r0
(hysteresis);
ECO operating mode
The condition in order to enable the start of this
function is as follows: lower probe< SP1 –r0
(hysteresis);
OVERBOOST operating mode
The condition in order to enable the start of this
function is as follows: lower probe< SP3and
upper probe< SP3.Once a temperature
exceeding SP3 has been detected, the
Overboost operating mode terminates and
the previously set operative mode is restored.
3.1.3.13 Alarms
Note: in case of “UtL” alarm (fault of the
fan), in addition to the display visualization,
the equipment emits an acoustic signal
that can be switched off pressing any key
on the controller. The alarm it is never
canceled unless the equipment is switched
off or put in stand
-by.
The heat pump working mode is
automatically disabled and the one with
electric resistance is activated in order to
ensure the continuity of the warm water
supply.
PLEASE NOTE!: in case of “UtL” alarm it
is necessary to contact the technical
assistance.
AL
Minimum temperature alarm
Solution:
-Check the temperature associated with the
alarm;
-
Parameters displayed: A0, A1, A2 and A11.
Main consequences:
-The equipment will continue to work as
normal
AH
Maximum temperature alarm
Solutions:
-
Check the temperature associated
with the
alarm;
-
Parameters displayed: A3, A4, A5 and A11.
Main consequences:
-The equipment will continue to work as
normal.
id
Digital input alarm
Solutions:
-Check the causes that originated the input
activation (possible short circuit in signal
cables)
-
See parameters: i0; i1 and i2;
Main consequences:
-
Compressor will be switched off;
-Defrosting will not be activated.
iSd
Blocked equipment alarm
Solutions:
-Check the causes that originated the digital
input activation
-
See parameters: i0; i1; 18 and i9
-Switch the equipment off and then back on
again or disconnect the equipment from the
mains power supply.
Main consequences:
-
Compressor will be switched off;
-Defrosting will be never activated.
FiL
Ventilation filter check alarm
Solutions:
-Check how clean the filter is (to switch off the
alarm message, press any key on the display)
UtL
Probable fan fault
Solutions:
-
See parameters SP10 and C14
-
Check the fan conditions
Main consequences:
-
Compressor and fan are switched off;
-Water heating occurs using only the electric
resistance.
When the cause of the alarm has been
removed, the normal operation of the
equipment is restored.

Manuale utente
pag. 10 /
15
3.1.3.14 Error messages
Pr1
Error in probe in upper part of the boiler
Solutions:
-
Check that the type of probe
is in conformity
with parameter P0 settings;
-
Check the probe is intact;
-
Check the equipment-probe connection;
-Check the temperature of the upper part of
the boiler.
Main consequences:
-
The equipment stops working.
Pr2
Error in probe in lower part of the boiler
Solutions:
-The same as the previous situation but relating
to the probe in the lower part of the boiler.
Main consequences:
-
The equipment stops working.
Pr3
Error in evaporator probe
Solutions:
-The same as the previous situation but relating
to the evaporator probe.
-
The equipment stops working.
When the cause of the alarm has been
removed, the normal operation of the
equipment
is restored.
3.1.3.15 TOTAL OF THE COMPRESSOR
OPERATING HOURS
3.1.3.15.1 General information
The equipment is capable of memorising up to
9,999 compressor operating hours, if the number of
hours exceeds “9,999” it flashes.
Display of compressor operating hours
Make sure that the keyboard is not locked and
that no other advanced procedure is in
progress;
Press and release the key: the display will
show “Pb1”;
Press and release either the or the key
to select “CH”;
Press and release the key.
To exit the procedure:
Press and release the key or do not carry
out any other operation for 60 seconds.
Alternatively:
Press and release the key.
4 MAINTENANCE AND CLEANING
WARNING! Any equipment repair must
be performed
by qualified personnel.
Improper repairs can put
the user in
serious danger. If your equipment
needs to be repaired, please
contact
the technical assistance service.
WARNING! Before attempting any
maintenance operation, make sure
that the equipment is not and cannot
be accidentally
connected to the
power supply
. Therefore, disconnect
the equipment
from the mains power
supply before carrying out any
maintenance or cleaning activities.
4.1 Resetting of safety equipment
The device is equipped with a safety thermostat.
When manually reset, the equipment is tripped in
case of over-heating.
For the mod. 160-200-260
In order to reset the protection it is necessary to:
Disconnect the device from the mains power
supply;
Remove any air ducts ;
Remove the upper cover by undoing the
appropriate locking screws (Fig. );
Manually reset the tripped safety thermostat
from the top (Fig. ). In the event of the tripping,
the central pin of the thermostat sticks out by
approximately 4 mm;
Reassemble the upper cover that was
previously removed.
Fig. 3 –Removal of upper cover

Manuale utente
pag. 11 /
15
Mod.200-260 LT
Fig. 4a –Resetting of safety thermostat
Mod.160-200-260 HT
Fig. 4b –Resetting of safety thermostat
For the mod. 90
Disconnect the device
from the mains power
supply;
Remove the lower panel by undoing
the
appropriate locking screws (Fig. 5);
Remove the water inlet and outlet pipes and
the condensate drain pipe;
Manually reset the tripped safety thermostat
(Fig. 6);
Reassemble the metal panel
that was
previously removed.
Restore the water supply connections
replacing the gaskets.
Fig. 5 –Lower panel removal
Fig. 6 –reset of the safety thermostat
WARNING! T
he tripping of the safety
thermostat can be caused by a fault
linked to the control board or by the
absence of water inside the tank.
WARNING!
Carrying out repair
operations on parts that perform safety
functions jeopardises the safe
operation of the equipment. Substitute
the faulty elements only with original
spare parts.
N.B.: The intervention of the thermostat
excludes the operati
on of the electric
heating elements but not the heat
pump system within the permitted
operating limits.
Clic

Manuale utente
pag. 12 /
15
4.2 Control le dispositif contre les surpressions
Il faut faire fonctionner régulièrement le dispositif
contre les surpressions au moins tous les 30 jours
pour éliminer les dépôts de calcaire et pour vérifier
qu’il n’est pas bloqué (Fig 6A).
Fig 6A
NB: component supplied to the mod. 90
4.3 Quarterly inspections
Visual inspection of the general conditions of
the equipment systems as well as the absence
of leaks;
Inspection of the ventilation .
4.4 Annual inspections
Inspection of the tightness of bolts, nuts,
flanges and water supply connections that
may have been loosened by vibration;
Check the state of integrity of the magnesium
anodes .
4.5 Cleaning of the ventilation filter
For the mod. 160-200-260
In the upper part of the equipment there is a
ventilation filter. This must be periodically cleaned
in order to maintain the perfect efficiency of the
system.
After every 1000 hours of operation, the display of
the equipment shows the “FiL” alarm that indicates
the need to check the cleanliness of the filter.
To remove the filter, it is necessary to grab it with
the fingers from the dedicated side opening and
pull it outside (Fig. 7).
The filter can be cleaned with rinsing, water gush
or slamming. Since the filter is made of stainless
steel, it does not need to be periodically
substituted.
Fig. 7–Details of the ventilation filter
N.B.: The filter obstruction
reduces the
heat pump system performance
causing insufficient,
or, even total lack
of ventilation.
Ventilation
filter
Side
slot
Relevez le levier
périodiquement
pour faire
fonctionner le clapet
robinet de vidange
de la sécurité de la
conduite à
connecter à
l'évacuation des
condensats

Manuale utente
pag. 13 /
15
4.6 Magnesium anodes
The magnesium anode (Mg), also called
"sacrificial" anode, avoids any parasitic currents
that are generated inside the boiler that can
trigger corrosion processes on the device surface.
In fact, magnesium is a metal with a lower
electrochemical potential when compared to the
material that lines the inside of the boiler, therefore
it first attracts the negative charges that form with
the heating of the water and that cause it to
corrode. Therefore, the anode “sacrifices” itself by
corroding instead of the tank. The boiler has two
anodes, one that has been mounted in the lower
part and another in the upper part of the tank (the
area that is most subject to corrosion).
The integrity of the magnesium anodes must be
checked at least every two years (even better if
checked on an annual basis). The operation must
be carried out by qualified personnel.
Before performing the inspection, it is necessary to:
Close the cold water input supply;
Empty the water from the boiler (see
paragraph 8.5);
Unscrew the upper anode and check its state
of corrosion, if more than 30% of the anode
surface is corroded then it is necessary to
replace it;
Carry out the same operation for the lower
anode.
The anodes have appropriate sealing gaskets, in
order to avoid causing water leaks, it is
recommended to use anaerobic sealant for
threads compatible for use on sanitary and
heating systems. The gaskets must be substituted
both in case of inspection as well as the
replacement of anodes with new gaskets.
For the mod. 90
To carry out the verification of the replaceable
anode it is necessary to drain the water from inside
the boiler (see paragraph 4.6).
For the verification or substitution of the sacrificial
anode, remove the lower panel (Fig. 5)
After having removed the lower panel, disconnect
the four electrical connectors of the electronic
control unit. Once removed the panel, unscrew
counterclockwise the anode using an appropriate
instrument and remove the old sealing gasket (Fig.
8).
Verify the integrity level of the component. In case
there are evident, considerable corrosion marks
that could jeopardize its use (reduction of the
diameter, cavity, reduction of the length) carry out
the replacement of the anode taking care of
replacing the sealing gasket as well, both in case
of verification and replacement (Fig. 8).
At the end of the verification or the replacement
of the anode, it is recommended to reset the
water connection (previously removed to allow
the emptying of the boiler) filling and pressurizing
the boiler in order to verify that no water losses are
incurred in the area where the maintenance
intervention has been carried out.
At the end of the verifications, reassemble the
product following backwards the indications
reported in this paragraph.
The operation of periodical verification or
replacement of the magnesium anode is
an opportunity to carry on other little
maintenance operations in order to
ensure
the maximum efficiency of the
product.
In particular, once removed the aesthetic
components the evaporator can be
accurately cleaned, using a brush with
soft bristles
,
taking care not to deform the
aluminum fins. It is also possible to verify
that there are no dirt deposits in the
condensate drain
pipe.
These little precautions ensure the total
efficiency of the product with a
consequent energy saving.

Manuale utente
pag. 14 /
15
Fig. 8 –Removal of the anode
4.7 Emptying the boiler
It is advisable to drain the water from inside the
boiler if the boiler is idle for a certain period of time,
especially in low temperatures.
As for the equipment in question, it is sufficient to
disconnect the water supply input connection).
Alternatively, during the system installation stage, it
is advisable to install a drain tapwith a hose-
holding connection.
N.B.: It is important to empty the system
in case of low temperatures
in order to
avoid the water freezing.
5TROUBLESHOOTING
In case of problems of equipment performance,
without the occurrence of any of the alarms or
errors described in the relative paragraphs, it is
advisable to check to see if the problem can be
easily solved by checking the possible solutions
specified in the table below prior to seeking
technical assistance.
Problem
Possible causes
The heat pump
does
not work There is no electricity;
The plug is not correctly
inserted in the socket.
The compressor
and/or
the fan do not work
The set safety period of
time has not finished;
The
scheduled
temperature has been
reached.
The heat pump
continuously switches
itself on and off
Wrong programming of
the
parameters/setpoint
and/or
hysteresis
values.
The heat pump remains
continuously switched
on and does not switch
off
Wrong programming of
the parameters/set
point and/or
hysteresis
values.
The electric heating
element does not
switch on
Your intervention is not
required
WARNING! In the event that
the
operator does not
succeed in solving
the problem, switch off the
equipment
and seek technical assistance
specifying the device
model
purchased.
6DISPOSAL
At the end of their device lifecycle, the heat
pumps will be disposed of in conformity with the
applicable regulations.
WARNING!
This equipment contains
greenhouse
fluorinated gas included in
the Kyoto protocol. The maintenance
and disposal operations must only be
carried out by qualified personnel.
INFORMATION TO USERS
Pursuant to EU Directives 2002/95, 2002/96 and
2003/108, relating to the reduction of the use of
hazardous substances in electric and electronic
equipment as well as waste disposal “.
The symbol of the barred wheelie-
bin that can be seen either on the
equipment or its packaging
indicates that the device must be
collected separately from other
waste at the end of its lifecycle.
At the end of the device lifecycle,
the user must therefore take the
equipment to suitable separate
Mg Anode
Anode gasket
¾”
