Ferroli HSW User manual

HSW
WATER - WATER AND BRINE - WATER
HEAT PUMPS
FOR INDOOR INSTALLATION
INSTALLATION AND OPERATION MANUAL
i migliori gradi centigradi
R
E
F
R
I
G
E
R
A
N
T
G
A
S
E
C
O
-
F
R
I
E
N
D
L
Y

2
The manufacturer declines all the responsabilities regarding inaccuracies contained in this manual, if due to printing or typing mi-
stakes. The manufacturer reserves the right to apply changes and improvements to the products at any time without notice.
Dear Customer,
Thank you for having purchased a FERROLI product. It is the result of many years of experiences and of particular research studies
and has been made with top quality materials and advanced technologies. The CE mark guarantees that the products satisfy all the
applicable European Directives.
The qualitative level is kept under constant control and FERROLI products therefore offer SAFETY, QUALITY and RELIABILITY.
Due to the continuous improvements in technologies and materials, the product specication as well as performances are subject to
variations without prior notice.
Thank you once again for your preference
FERROLI S.p.A

3
TABLE OF CONTENTS
GENERAL FEATURES 4
General instructions ..............................................................................4
Declaration of conformity ..........................................................................4
Unit dataplate ...................................................................................4
Unit description..................................................................................5
Unit identification code ............................................................................5
Description of components.........................................................................6
Control system ..................................................................................7
Options........................................................................................8
Accessories ....................................................................................10
TECHNICAL DATA AND PERFORMANCES11
Technical data...................................................................................11
NOMINAL performances - Base setting up (AB) - Radiant plants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
NOMINAL performances - Base setting up (AB) - Standard plants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
HEATING performances...........................................................................14
COOLING performances ..........................................................................15
Plant side hydraulic performances ...................................................................16
Source side hydraulic performances .................................................................17
Domestic hot water side hydraulic performances........................................................18
Operating limits..................................................................................19
Electrical data...................................................................................20
Noise levels ....................................................................................20
Weights........................................................................................21
Overall dimensions...............................................................................22
Minimum operating area...........................................................................22
CONNECTIONS23
Hydraulic connections.............................................................................23
Electrical connections.............................................................................24
RECEIVING AND POSITIONING 25
Receiving ......................................................................................25
Positioning .....................................................................................25
START UP 26
Start up........................................................................................26
CONTROL SYSTEM 27
Control system configuration .......................................................................27
Heating and cooling circuits ........................................................................28
Control system devices installation...................................................................29
Wireless devices connection .......................................................................31
Control system use...............................................................................32
Control system programming .......................................................................35
Menu structure ..................................................................................35
Remote thermostat programming....................................................................37
Remote control (wired o wireless) programming ........................................................37
Functions available for the user .....................................................................37
Inputs and outputs ...............................................................................39
Alarms.........................................................................................40
Alarms table ....................................................................................40
Controller technical data...........................................................................41
Sensors features.................................................................................42
MAINTENANCE43
Maintenance....................................................................................43
SAFETY AND POLLUTION44
General considerations............................................................................44
Refrigerant safety card............................................................................44

4
GENERAL FEATURES
General instructions
Declaration of conformity
Unit dataplate

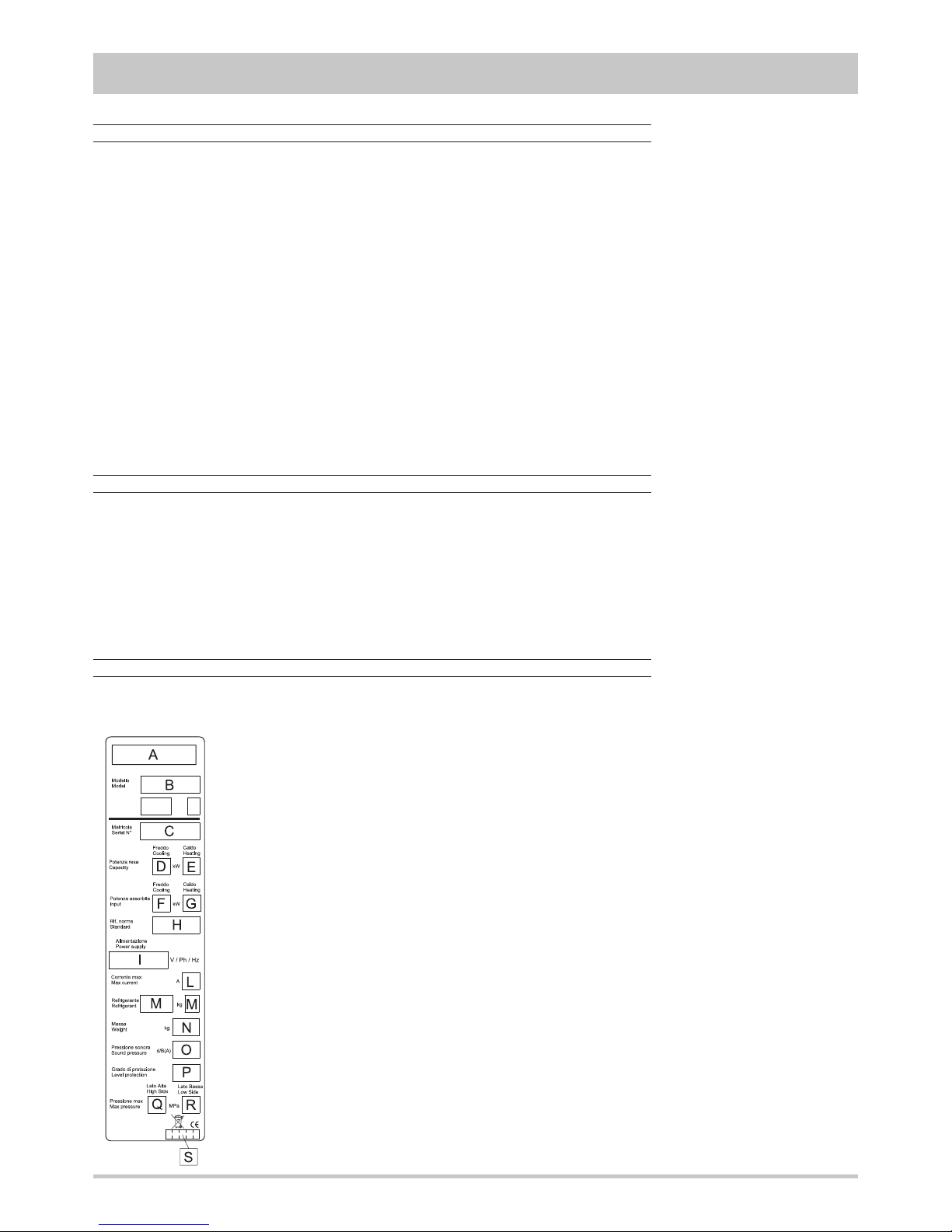

The figure shows the fields reported on the unit dataplate :
This manual and the wiring diagram supplied with the unit must be kept in a dry place for possible future consultation.
The manual provides information on installation and correct use and maintenance of the unit. Before carrying out installation,
please carefully read all the information contained in this manual, which describes the procedures necessary for correct
installation and use of the unit
Follow carefully the instructions contained in this manual and respect the safety regulations in force. The unit must be installed
in conformity with the laws in force in the country of use. Unauthorized tampering with the electrical and mechanical equipment
INVALIDATES THE WARRANTY.
Check the electrical specifications given on the dataplate before making the electrical connections. Read the instructions given in the
specific section on electrical connections.
Deactivate the equipment in case of fault or poor operation.
If the unit requires fixing, contact only specialized service centers recognized by the manufacturer and use original spare parts.
The unit must be installed indoor and connected to a hydronic cooling and/or heating system. Any use different from that permitted or
outside the operating limits indicated in this manual is prohibited (unless previously agreed with the firm).
The manufacturer declines any responsability for damage or injury due to non-compliance with the information given in this manual.

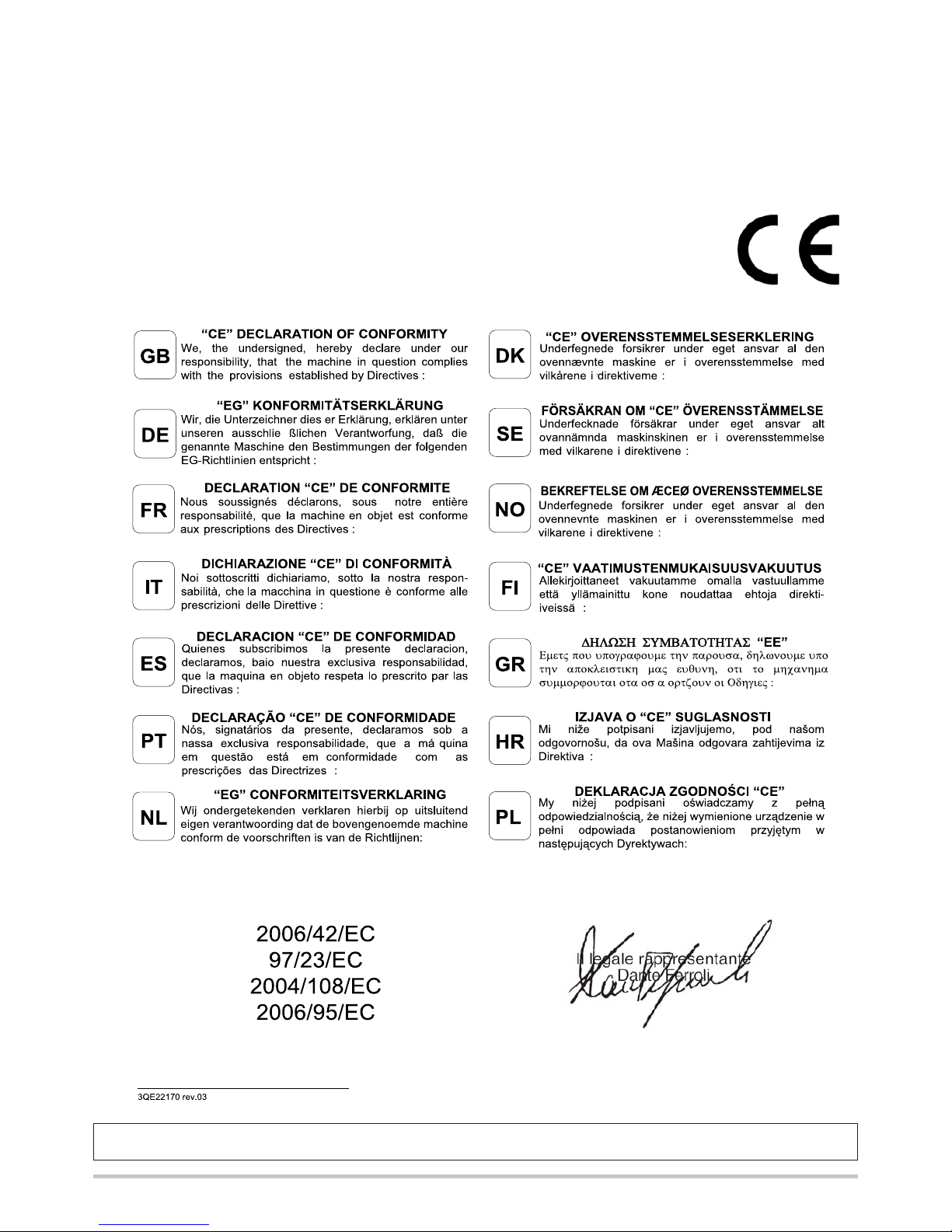

The firm declares that the present unit complies with the requirements of the following directives :
• Machinery directive (MD) 2006/42/EC
• Pressure equipment directive (PED) 97/23/EC
• Electromagnetic compatibility directive (EMC) 2004/108/EC
• Low voltage directive (LVD) 2006/95/EC
Codice
Code B1 Rev
Ferroli Spa
Via Ritonda 78/A
(VR) Italy
A - Trademark
B - Model
B1 - Code
C - Serial number
D - Capacity in cooling at the condition W30W18
E - Capacity in heating (heat pump) at the condition W10W35
F - Power input in cooling at the condition W30W18
G - Power input in heating (heat pump) at the condition W10W35
H - Reference standard
I - Power supply
L - Maximum absorbed current
M - Refrigerant type and charge weight
N - Unit weight
O - Sound pressure level at 1 metre
P - IP protection level
Q - Maximum pressure - high pressure side
R - Maximum pressure - low pressure side
S - PED certification body

5
IH 71 VB AB 0 M 1
GENERAL FEATURES
Unit description
This series of water-water heat pumps satises the heating,
cooling and domestic hot water production requirements of resi-
dential plants of small and medium size.
All the units are suitable for indoor installation and can be ap-
plied to fan coil plants, radiant oor plants and high efciency
radiators plants.
As source both water (from well, river, lake…) or brine solutions
(from geothermic probes) can be used.
The control system allows to manage not only the refrigerant
circuit but the whole plant with the possibility to choose different
solutions both for the heating and cooling plant and for the do-
mestic hot water management. The possibility of solar panels or
other heating sources integration is also available.
The heating function optimizes the ow water temperature ac-
cording both to the ambient temperature and to the outdoor tem-
perature through climatic curves adaptable to the building featu-
res. It’s possible to manage a storage tank and two independent
circuits (a direct one and a mixed one).
The domestic hot water management allows to control the th-
ree way valve, the storage tank and the anti-legionella cycles (if
necessary).
The cooling function can be realized through “passive cooling”
(free cooling), through “active cooling” (refrigerant circuit inver-
sion) or through both systems actuated in sequence. When the
unit is used in radiant oor plants, to avoid condensate genera-
tion, a room humidity sensor can be installed.
The internal programmer clock allows to dene different daily
switching programs for heating, cooling and domestic hot water
production.
The refrigerant circuit, contained in an extractable box to sim-
plify the maintenance operations, is equipped with rotary com-
pressor mounted on damper supports, brazed plate heat ex-
changers, thermostatic expansion valve and reverse cycle valve
(for reversible units). The circuit is protected by high and low
pressure switches and ow switches on both the exchangers.
The outdoor structure and the refrigerant circuit box are both
thermally and acoustically insulated in order to create a dou-
ble wall against sound propagation and to allow the installation
in domestic places.
To avoid vibration propagation towards the hydraulic circuit the
refrigerant circuit box is placed on damper supports and the con-
nection pipes are exible. Moreover all the hydraulic pipes are
thermally insulated to avoid condensate generation.
All the units are accurately built and individually tested in the
factory. Only electric and hydraulic connections are required for
installation.
Unit identification code
The codes that identify the units and the meaning of the letters used are described below.
Unit type
IH - Units suitable for hydronic plant in-
stallation operating as heat pumps
IP - Units suitable for hydronic plant
installation operating as reversible heat
pumps
Power supply
1 - 230V - 1 - 50 Hz
5 - 400V - 3N - 50 Hz
Operating range
M - Medium temperature.
The unit is suitable to produce
water at medium temperature
Refrigerant type
0 - R410A
Acoustic setting up
AB - Base setting up
Unit version
VB - Base version
N° compressors
Unit model
HSW

6
GENERAL FEATURES
Description of components
External structure Basement, lateral panels and frontal panel,
are completely thermally and acoustically insulated in order to
minimize thermal losses and noise emissions in the surroundings.
Accessibility to internal parts is possible removing the frontal
panel and the upper panel. For extraordinary manteinances also
the rear panel can be removed.
Refrigerant circuit It is contained inside an extractable box
to simplify the maintenance operations. The box is placed on
rubber vibration dampers and is connected to the hydraulic
circuit through flexible pipes in order to avoid the propagation
of the vibrations generated by the compressor outside the unit.
The hermetic rotary compressor (1) is mounted on damper
supports and is protected against overtemperatures and
overcurrents. The heat exchangers on the plant side (2) and
on the source side (3) are realized with brazed stainless steel
plates, properly insulated to avoid condensate generation and
to minimize thermal losses, and protected by a flow switch that
detects whatever water flow lack. The expansion device (4),
a thermostatic expansion valve with external equalizer, allows
the unit to adjust itself to the different operating conditions
keeping steady the set superheating. The refrigerant circuit of
each unit contains moreover solid core hermetic filter dryer (5)
to restrain impurity and moisture residuals that could be present
in the circuit, high and low pressure switches in order to
assure the compressor to operate inside the permitted limits, 4
way reverse cycle valve (6) to allow operating mode change
reversing the refrigerant flow (only for reversible heat pumps),
pressure connections SAE 5/16” - UNF 1/2” - 20 equipped
with pin, gasket and blind nut, as required for the use of R410A
refrigerant (they allow the complete check of the refrigerant
circuit : compressor inlet pressure, compressor outlet pressure,
thermostatic expansion valve upstream pressure and pressure
drops accross the filter). All the pipes of the refrigerant circuit
are properly insulated to avoid condensate generation and to
minimize thermal losses.
Hydraulic circuit Both the hydraulic circuit on the plant side
and on the source side are equipped with expansion vessel,
air vents and drain valves. All the pipes are thermally insulated
to avoid condensate generation and minimize thermal losses.
The circuit on the plant side is moreover equipped with pressure
safety valve, pressure gauge and three speed glandless pump
while the water flow rate on the source side can be adjusted by
means of a three speed glandless pump or by means of a two
way valve.
Electrical panel. It contains all the power, control and security
components necessary to guarantee the unit to work properly.
The unit is managed by a microprocessor controller to which
all the electrical loads and the control devices are connected.
The user interface, placed on the frontal panel of the unit, allows
to view and to modify, if necessary, all the parameters of the unit.
All the units are supplied with an outdoor temperature sensor,
to be installed outside, in order to realize the climatic control.

7
GENERAL FEATURES

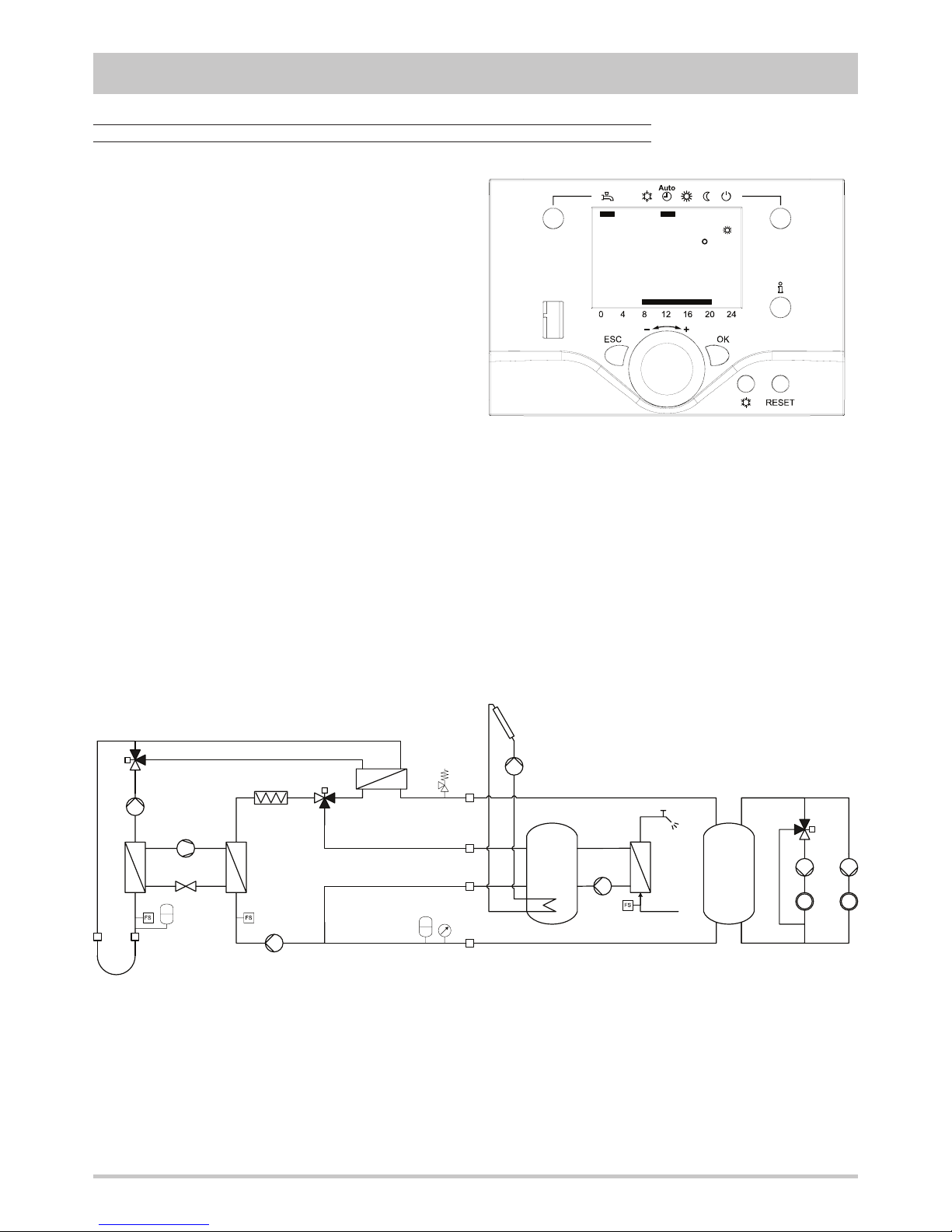

Control system
The microprocessor controller is able to manage not only the
unit itself but also all that components of the plant which allow to
realize a complete system.
The main functions of the control system are :
- room temperature control according to the outdoor
temperature (climatic control)
- domestic hot water production (management of 3 way valve,
storage tank, anti legionella cycles…)
- management of a heating and/or cooling mixed circuit (pump
and 3 way mixing valve)
- management of a heating direct circuit (only pump)
- management of a storage tank for heating and/or cooling
- management of electrical heaters for heating and domestic
hot water (3 steps logic)
- solar panels integration
- passive cooling
- room humidity control for cooling with radiant systems
- internal programmer clock (for heating, cooling and domestic
hot water)
- digital input for electrical energy low tariff
- alarm memory management and diagnostic
- compressor and pump operating hour counter
- possibility to manage more units in cascade (maximum 16)
Besides the standard user interface present on all the units,
wired or wireless remote thermostats are available which allow
to control all the operating parameters of the unit and to acquire
the temperature in the different zones in order to realize a more
precise and comfortable control.
The unit controller is able to manage a lot of different plant
solutions enabling automatically the necessary control
algorythms according to the components which have been
connected.
The management of such components is possible through ad-
ditional expansion modules which communicate with the unit by
means of an internal bus and provide all the inputs and outputs
required to full a complete system.
The controller is able to manage up to two zones in heating
(one by means of a mixed circuit and the other by means of a
direct circuit) and one zone in cooling (by means of a mixed
circuit).
It’s possible to realize more complex plants connecting to the
heat pump controller further expansion modules in order to
extend without limits the number of zones to be managed.
For each zone the following parameters can be set :
- set point
- daily or weekly operating time table
- climatic control curve
- room control sensor : it can be in common with the other
zones or independent (in that case it’s necessary to install
an additional room thermostat)
Room temperature
20.5 C
18:28

8
GENERAL FEATURES
Options
The controller flexibility and the big number of options available
allow to get, for each model, a lot of different configurations that
integrate inside the heat pump many components of the plant
and allow to realize compact and tested installations.
In order to select the right configuration it is necessary to define
the type of plant to which the heat pump will be connected, both
for what concerning the heating and cooling circuits, and for
what concerning the domestic hot water management.
Option “Source side flow rate management”
Not reversible heat pump (IH) without options
Pump
Reversible heat pump (IP) without options
2 way valve
Source side
ow rate
management
Pump Allows the circulation of the water on the source side.
2 way valve Modulates the water ow rate on the source side when the water circulation is
assured by an external pump.
Domestic hot water
production
3 way valve Allow to divert the hot water produced by the heat pump from the heating circuit
to the domestic hot water circuit.
3 way valve with
primary heat exchanger
The hot water is diverted by the three way valve on an internal heat exchanger.
An internal pump assures a correct domestic hot water ow through the other
side of the heat exchanger.
3 way valve with secondary heat
exchanger
(for integrated tank)
The hot water is diverted by the three way valve in a tank integrated in the unit
(accessory). The domestic hot water is generated istantaneously by means of an
internal heat exchanger and a modulating pump.
Plant buffer tank connections
The hot or cold water produced by the heat pump is used to heat or cool a buffer
tank integrated in the unit (accessory) assuring a higher thermal inertia for the
plant.
Passive cooling Allows to use the source to cool down the plant water without activating the
compressor.
Integrative electrical heaters Integrate or replace the heating power supplied by the heat pump and are
managed by the unit controller with a 3 step logic.
Soft starter Reduces the compressor start current.

9
GENERAL FEATURES
In this configuration the heat pump can
be coupled to a domestic hot water
tank equipped with a coil designed for
a maximum water temperature between
55°C and 60°C.
The anti legionella cycles have to be
performed by means of electrical heaters
placed on the heat pump outlet (see
option “Integrative electrical heaters”) or
directly inside the tank.
In this configuration the heat pump can
be coupled to a domestic hot water tank
without coil.
The anti legionella cycles have to be
performed by means of electrical heaters
placed on the heat pump outlet (see
option “Integrative electrical heaters”) or
directly inside the tank.
In this configuration the heat pump can
produce instantaneously the domestic
hot water using the hot water stored
in the tank integrated in the unit (see
accessory “Integrated tank”).
The temperature of the domestic hot
water at the unit outlet is adjusted
modulating the speed of the pump on
the primary side.
The anti legionella cycles are not
necessary.
Option “Domestic hot water production”
3 way valve
3 way valve with primary heat exchanger
3 way valve with secondary heat exchanger
Option “Plant buffer tank connections"
In this configuration the heat pump can
heat or cool a buffer tank that increases
the thermal inertia of the plant and
operates as hydraulic separator.
NB If the integrated tank is used as
buffer tank for the plant, it can not be
used as tank for the domestic hot water
production (see option "3 way valve and
secondary heat exchanger").

10
GENERAL FEATURES
Accessories
Remote thermostat Allows operating mode selection and set point adjustment. The on board temperature sensor can be used in order
to realize a climatic control.
Remote control
(wired or wireless)
Replicates all the control and visualization functionalities of the controller installed on the unit. The on board
temperature sensor can be used in order to realize a climatic control.
Wireless transmitter Connected to the unit controller, allows to communicate with wireless remote control and wireless outdoor
temperature sensor.
Wireless repeater Extends wireless operating range.
Wireless adaptor for
outdoor temperature sensor Allows to transform the wired outdoor temperature sensor, standard for all the units, in a wireless sensor.
Condensate sensor In cooling mode it allows the minimum ow temperature control when condensate generation occurs.
Room hygrostat In cooling mode it allows the minimum ow temperature control according to the room humidity.
Room humidity sensor
(with or without display)
In cooling mode it allows the minimum ow temperature control according to the room dew point, calculated from
the measured room humidity.
Rubber vibration dampers Allow to reduce the transmission to the unit support plane of the mechanical vibrations generated by the compressor
and by the pumps in their normal operating mode.
Transformer
230V / 24V - 3VA It assures the correct power supply for the condensate sensor and for the room humidity sensor.
Integrated tank
Integrated tank, to be installed under the unit. It can be used as storage tank for domestic hot water production
(coupled with units with option "Domestic hot water production" : "3 way valve and secondary heat exchanger") or
as buffer tank for the plant (coupled with units with option "Plant buffer tank connections".
Inside the tank a coil for solar panels integration is contained.
Pipes for solar panels
connection
Allow to move the connections of the solar integration coil, available on the tank (accessory), directly on the upper
side of the unit.
Refrigerant circuit box If a failure occurs inside the refrigerant circuit, it permits to restart the heat pump very quickly.

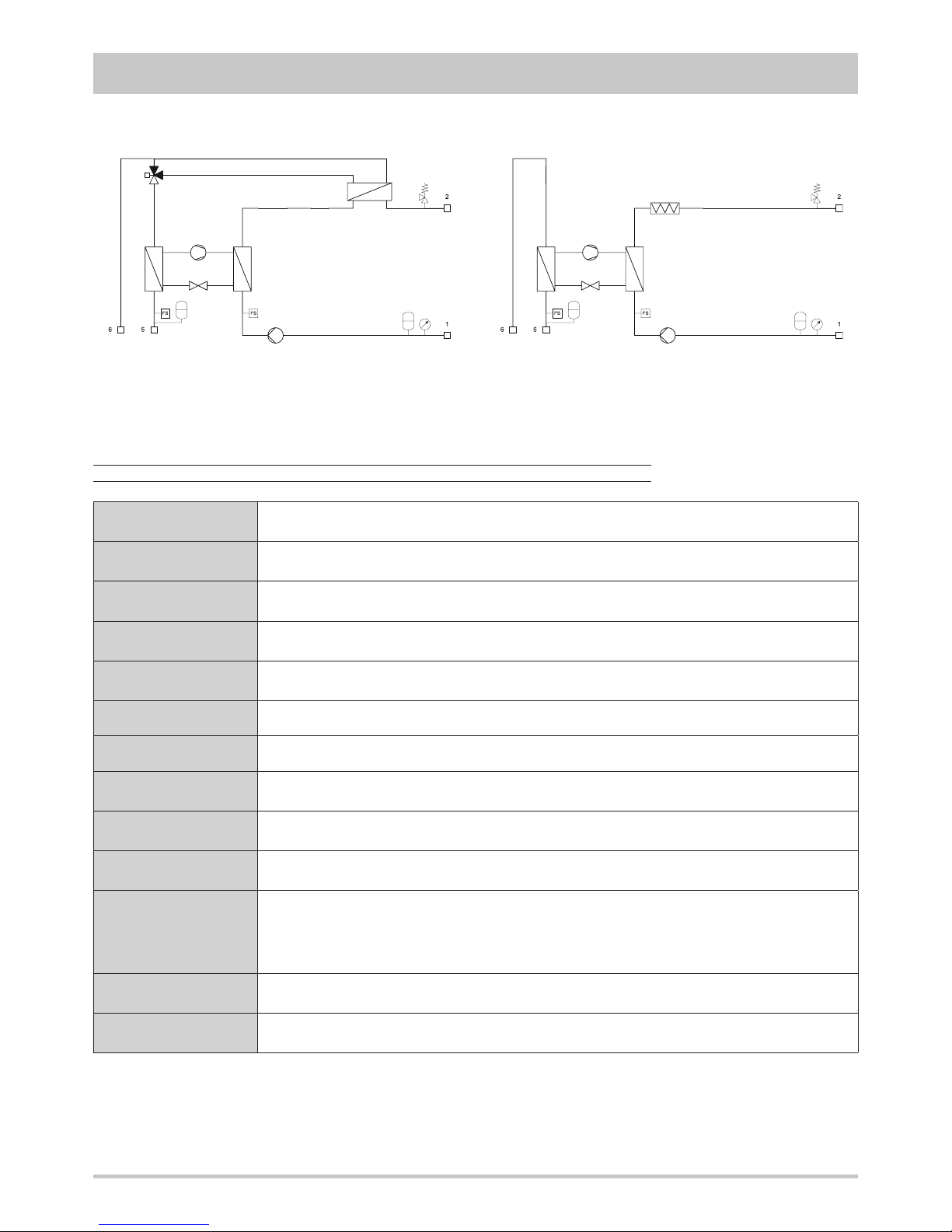

Option “Passive cooling” Option “Integrative electrical heaters”

11
TECHNICAL DATA AND PERFORMANCES
Frame 1
Model 31 51 71 91 111 U.M.
Power supply 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 V-ph-Hz
Technical data
Refrigerant
Type R410A R410A R410A R410A R410A -
Compressor
Type rotary rotary rotary rotary rotary -
Quantity 1 1 1 1 1 n°
Power steps 0 - 100 0 - 100 0 - 100 0 - 100 0 - 100 %
Oil charge 0,35 0,43 0,67 1,13 1,13 kg
Plant side heat exchanger
Type stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates -
Quantity 1 1 1 1 1 n°
Water volume 0,53 0,53 0,53 0,67 0,84 l
Source side heat exchanger
Type stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates -
Quantity 1 1 1 1 1 n°
Water volume 0,67 0,67 0,67 0,84 1,04 l
Plant side hydraulic circuit
Safety valve set point 3 3 3 3 3 bar
Expansion vessel volume 10 10 10 10 10 l
Source side hydraulic circuit
Expansion vessel volume 10 10 10 10 10 l
Plant side pump
Type 3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump -
Quantity 1 1 1 1 1 n°
Installed power 0,14 0,14 0,14 0,14 0,14 kW
Source side pump (option)
Type 3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump -
Quantity 1 1 1 1 1 n°
Installed power 0,15 0,15 0,15 0,15 0,15 kW
Integrated tank (accessory)
Volume 120 120 120 120 120 -
Solar coil surface 1,1 1,1 1,1 1,1 1,1 m2
Integrative electrical heaters (option)
Total installed power 9,0 9,0 9,0 9,0 9,0 kW
Power steps 0 - 33 - 66 - 100 0 - 33 - 66 - 100 0 - 33 - 66 - 100 0 - 33 - 66 - 100 0 - 33 - 66 - 100 %

12
TECHNICAL DATA AND PERFORMANCES
NOMINAL performances - Base setting up (AB) - Radiant plants
Frame 1
Model 31 51 71 91 111 U.M.
Power supply 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 V-ph-Hz
IH
Heating W10W35 ( source : water in 10°C out 7°C / plant : water in 30°C out 35°C )
Heating capacity 3,37 5,11 6,85 9,31 11,8 kW
Power input 0,59 0,89 1,24 1,69 2,18 kW
COP 5,71 5,74 5,52 5,51 5,41 -
Water flow rate plant side 584 883 1183 1607 2043 l/h
Available static head plant side 59 50 40 32 25 kPa
Water flow rate source side 798 1209 1612 2193 2782 l/h
Pressure drops source side 7 14 22 25 26 kPa
Heating B0W35 ( source : brine in 0°C out -3°C / plant : water in 30°C out 35°C )
Heating capacity 2,49 3,78 5,07 6,88 8,72 kW
Power input 0,58 0,89 1,23 1,66 2,14 kW
COP 4,29 4,25 4,12 4,14 4,07 -
Water flow rate plant side 431 655 876 1190 1507 l/h
Available static head plant side 63 57 50 46 41 kPa
Water flow rate source side 608 923 1228 1670 2103 l/h
Pressure drops source side 4 9 15 17 17 kPa
Data declared according to EN 14511. The values are referred to units without options or accessories. Brine = water with 30% ethylene glycol.
IP
Heating W10W35 ( source : water in 10°C out 7°C / plant : water in 30°C out 35°C )
Heating capacity 3,30 5,01 6,72 9,13 11,6 kW
Power input 0,58 0,89 1,23 1,67 2,15 kW
COP 5,69 5,63 5,46 5,47 5,40 -
Water flow rate plant side 571 866 1160 1576 2009 l/h
Available static head plant side 59 51 41 33 26 kPa
Water flow rate source side 780 1181 1578 2147 2730 l/h
Pressure drops source side 6 13 21 24 25 kPa
Heating B0W35 ( source : brine in 0°C out -3°C / plant : water in 30°C out 35°C )
Heating capacity 3,30 5,01 6,72 9,13 11,6 kW
Power input 0,58 0,89 1,23 1,67 2,15 kW
COP 5,69 5,63 5,46 5,47 5,40 -
Water flow rate plant side 571 866 1160 1576 2009 l/h
Available static head plant side 59 51 41 33 26 kPa
Water flow rate source side 780 1181 1578 2147 2730 l/h
Pressure drops source side 6 13 21 24 25 kPa
Cooling W30W18 ( source : water in 30°C out 35°C / plant : water in 23°C out 18°C )
Cooling capacity 3,59 5,43 7,27 9,87 12,6 kW
Power input 0,59 0,90 1,25 1,69 2,17 kW
EER 6,08 6,03 5,82 5,84 5,81 -
Water flow rate plant side 619 938 1257 1709 2173 l/h
Available static head plant side 58 49 37 28 21 kPa
Water flow rate source side 722 1094 1470 1995 2541 l/h
Pressure drops source side 6 12 19 21 22 kPa
Cooling B30W18 ( source : brine in 30°C out 35°C / plant : water in 23°C out 18°C )
Cooling capacity 3,51 5,30 7,11 9,63 12,3 kW
Power input 0,60 0,92 1,28 1,72 2,22 kW
EER 5,85 5,76 5,55 5,60 5,54 -
Water flow rate plant side 605 916 1229 1667 2121 l/h
Available static head plant side 59 49 38 30 23 kPa
Water flow rate source side 771 1166 1570 2127 2710 l/h
Pressure drops source side 7 13 22 25 26 kPa

13
NOMINAL performances - Base setting up (AB) - Standard plants
TECHNICAL DATA AND PERFORMANCES
Frame 1
Model 31 51 71 91 111 U.M.
Power supply 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 V-ph-Hz
IH
Heating W10W45 ( source : water in 10°C out 7°C / plant : water in 40°C out 45°C )
Heating capacity 3,10 4,70 6,31 8,58 10,8 kW
Power input 0,72 1,10 1,51 2,04 2,62 kW
COP 4,31 4,27 4,18 4,21 4,12 -
Water flow rate plant side 539 815 1093 1486 1877 l/h
Available static head plant side 60 52 43 36 30 kPa
Water flow rate source side 683 1032 1378 1878 2361 l/h
Pressure drops source side 5 10 17 19 20 kPa
Heating B0W45 ( source : brine in 0°C out -3°C / plant : water in 40°C out 45°C )
Heating capacity 2,32 3,51 4,72 6,40 8,11 kW
Power input 0,70 1,07 1,47 1,99 2,55 kW
COP 3,31 3,28 3,21 3,22 3,18 -
Water flow rate plant side 403 610 819 1111 1406 l/h
Available static head plant side 63 58 52 48 44 kPa
Water flow rate source side 515 779 1037 1409 1775 l/h
Pressure drops source side 3 7 11 13 13 kPa
Data declared according to EN 14511. The values are referred to units without options or accessories. Brine = water with 30% ethylene glycol.
IP
Heating W10W45 ( source : water in 10°C out 7°C / plant : water in 40°C out 45°C )
Heating capacity 3,03 4,61 6,19 8,40 10,6 kW
Power input 0,71 1,09 1,50 2,02 2,59 kW
COP 4,27 4,23 4,13 4,16 4,09 -
Water flow rate plant side 527 799 1072 1456 1842 l/h
Available static head plant side 60 53 44 37 31 kPa
Water flow rate source side 666 1009 1347 1835 2310 l/h
Pressure drops source side 5 10 16 19 19 kPa
Heating B0W45 ( source : brine in 0°C out -3°C / plant : water in 40°C out 45°C )
Heating capacity 2,27 3,44 4,62 6,27 7,96 kW
Power input 0,69 1,06 1,46 1,96 2,53 kW
COP 3,29 3,25 3,16 3,20 3,15 -
Water flow rate plant side 395 598 801 1088 1382 l/h
Available static head plant side 63 58 53 48 45 kPa
Water flow rate source side 503 760 1009 1378 1737 l/h
Pressure drops source side 3 6 11 12 13 kPa
Cooling W30W7 ( source : water in 30°C out 35°C / plant : water in 12°C out 7°C )
Cooling capacity 2,73 4,13 5,54 7,52 9,54 kW
Power input 0,59 0,91 1,26 1,69 2,16 kW
EER 4,63 4,54 4,40 4,45 4,42 -
Water flow rate plant side 469 710 952 1294 1641 l/h
Available static head plant side 62 56 48 43 38 kPa
Water flow rate source side 575 873 1174 1592 2021 l/h
Pressure drops source side 4 8 13 15 15 kPa
Cooling B30W7 ( source : brine in 30°C out 35°C / plant : water in 12°C out 7°C )
Cooling capacity 2,67 4,05 5,42 7,35 9,33 kW
Power input 0,60 0,92 1,28 1,72 2,21 kW
EER 4,45 4,40 4,23 4,27 4,22 -
Water flow rate plant side 458 695 932 1265 1605 l/h
Available static head plant side 62 56 49 44 39 kPa
Water flow rate source side 615 933 1256 1702 2162 l/h
Pressure drops source side 4 9 15 17 18 kPa

14
TECHNICAL DATA AND PERFORMANCES

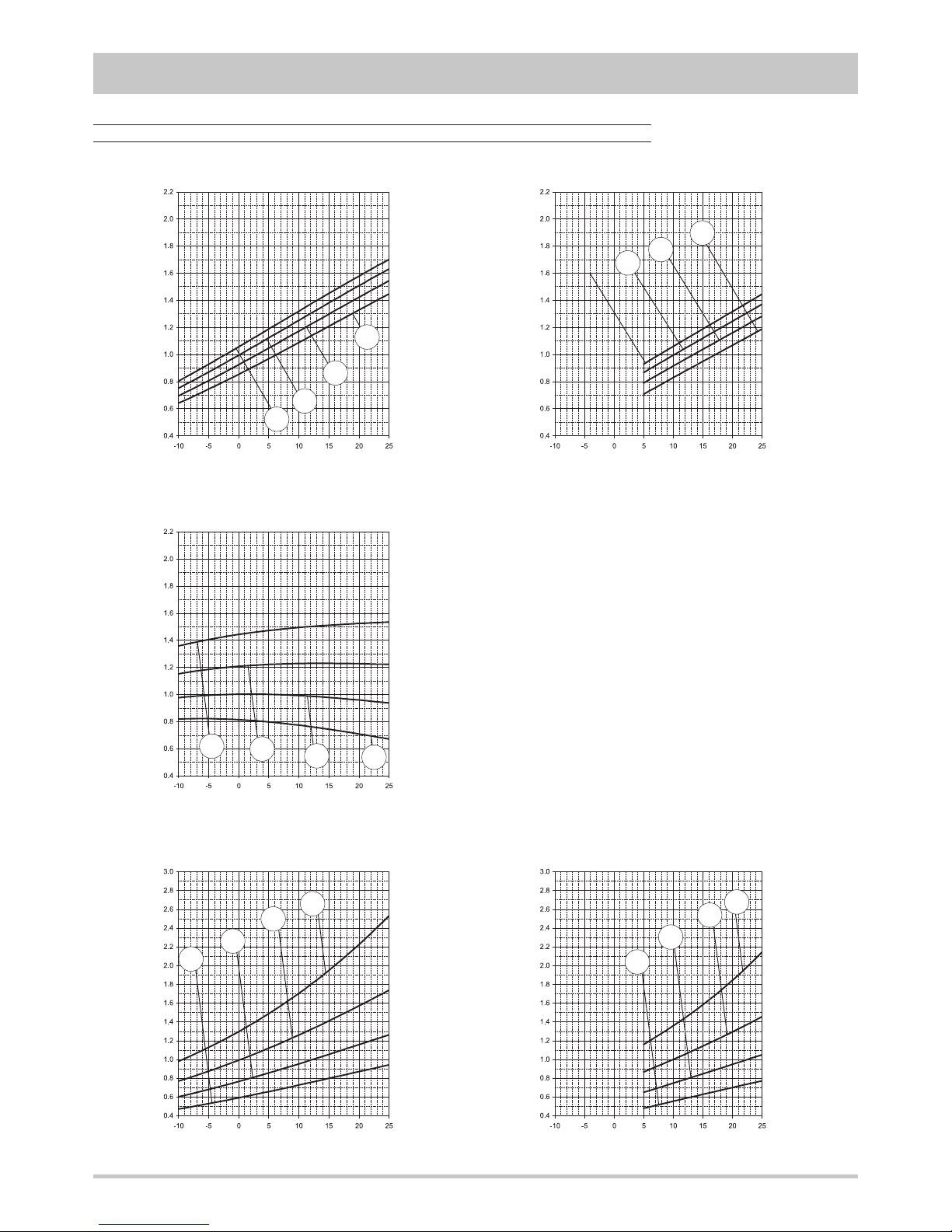

HEATING performances
Inlet temperature - source side [°C] Inlet temperature - source side [°C]
COP ( brine )
Inlet temperature - source side [°C] Inlet temperature - source side [°C]
COP ( water )
Power input ( brine and water )
Temperatura ingresso - lato sorgente [°C]
Heating capacity ( brine ) Heating capacity (water )
A
A
AA
A
B
B
BB
B
C
C
CC
C
D
D
DD
The graphs allow to get the corrective factors to be applied
to the nominal performances in order to obtain the real
performances in the selected operating conditions.
The reference nominal conditions are :
WATER-WATER units : W10W35
source : water in 10°C out 7°C
plant : water in 30°C out 35°C
BRINE-WATER units : B0W35
source : brine in 0°C out -3°C
plant : water in 30°C out 35°C
Outlet temperature
plant side :
A = 55°C
B = 45°C
C = 35°C
D = 25°C

15

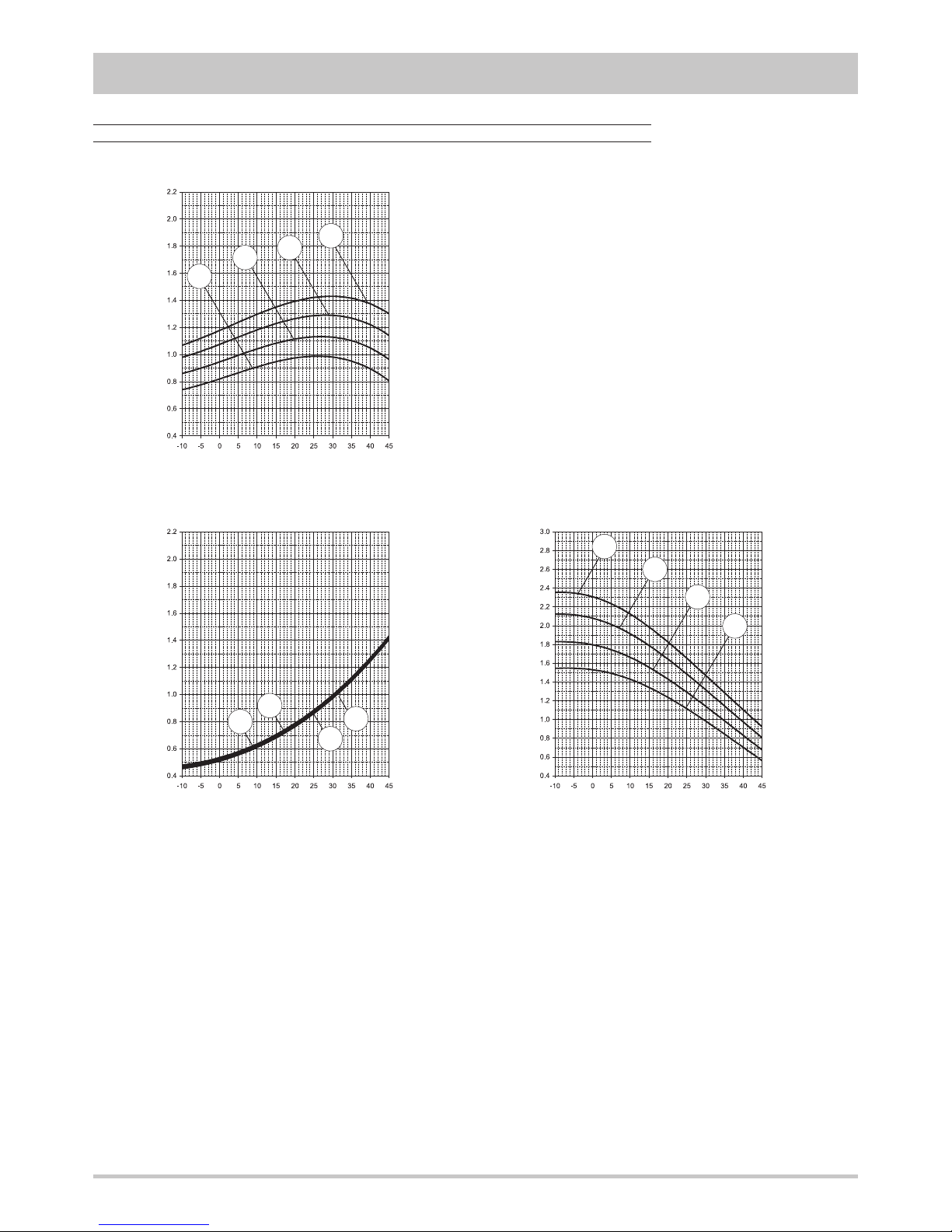

COOLING performances
TECHNICAL DATA AND PERFORMANCES
The performances of the units, when used as brine - water, are referred to applications in which the source side uid is a solution of
water and 30% ethylene glycol by volume.
Such a concentration guarantees a freezing temperature of about -15°C and allows the unit to work inside the declared operating
limits.
Cooling capacity ( brine and water )
Inlet temperature - source side [°C]
Inlet temperature - source side [°C] Inlet temperature - source side [°C]
Power input ( brine and water ) EER ( brine and water )
A
A
A
B
B
B
C
C
C
D
D
D
The graphs allow to get the corrective factors to be applied
to the nominal performances in order to obtain the real
performances in the selected operating conditions.
The reference nominal conditions are :
WATER-WATER units : W30W7
source : water in 30°C out 35°C
plant : water in 12°C out 7°C
BRINE-WATER units : B30W7
source : brine in 30°C out 35°C
plant : water in 12°C out 7°C
Outlet temperature
plant side :
A = 24°C
B = 18°C
C = 12°C
D = 7°C

16
TECHNICAL DATA AND PERFORMANCES

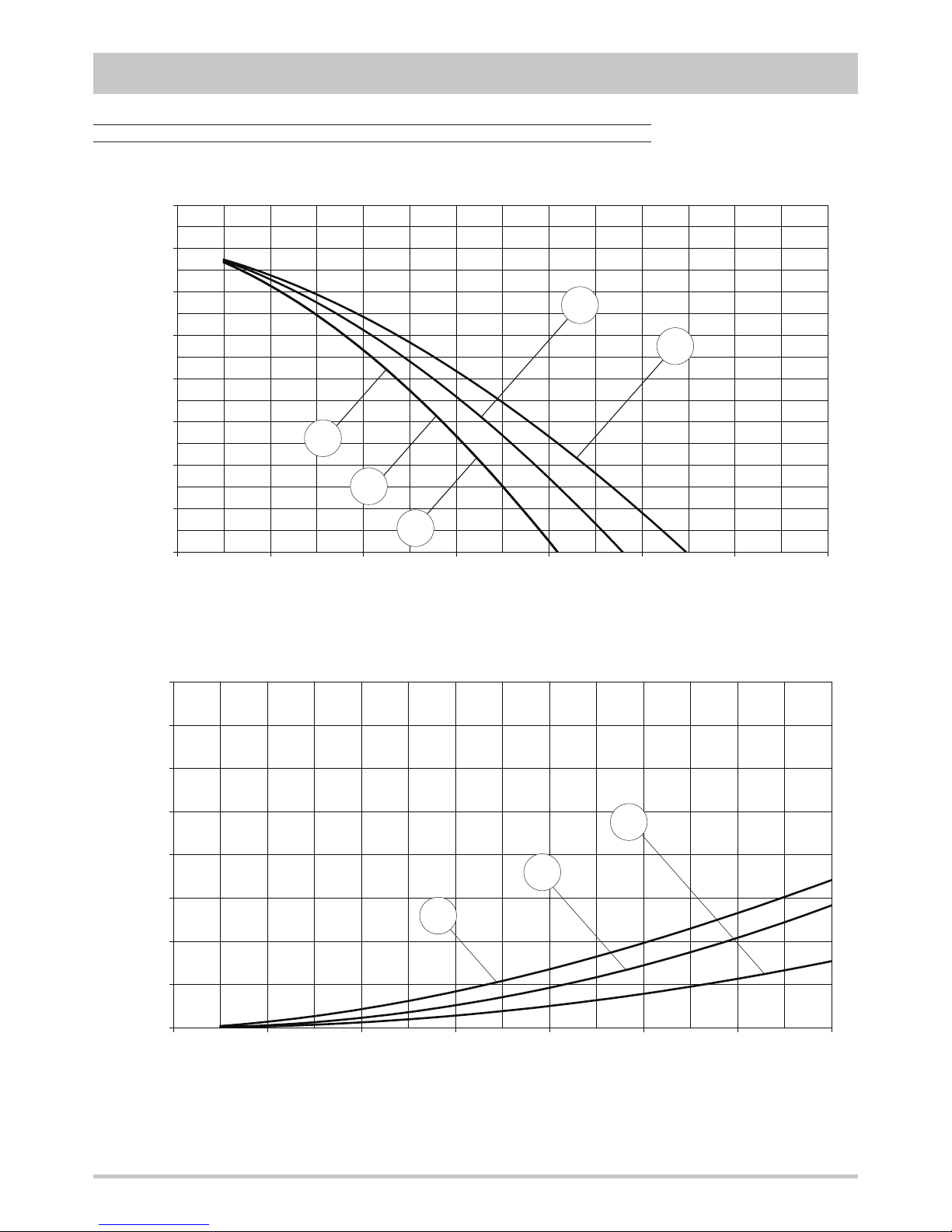

Plant side hydraulic performances
0
5
10
15
20
25
30
35
40
0 500 1000 1500 2000 2500 3000 3500
0
10
20
30
40
50
60
70
80
0 500 1000 1500 2000 2500 3000 3500
A = unit with option “Domestic hot water production” : “3 way valve”
B = unit with option “Integrative electrical heaters”
C = unit with option “Passive cooling”
B
C
A
Available static head - unit without options
9.1
3.1
5.1
7.1
11.1
The graphs are referred to units operating with water at the temperature of 10°C (density 1000 kg/m3).
Flow rate [ l/h ]
Flow rate [ l/h ]
Pressure drops to be added
Available static head [ kPa ]Pressure drops [ kPa ]

17
TECHNICAL DATA AND PERFORMANCES
Source side hydraulic performances
0
10
20
30
40
50
60
70
80
0 500 1000 1500 2000 2500 3000 3500
0
5
10
15
20
25
30
35
40
0 500 1000 1500 2000 2500 3000 3500
3.1
5.1
7.1
9.1
11.1
3.1
5.1
7.1
9.1
11.1
Pressure drops - unit without options
The graphs are referred to units operating with water at the temperature of 10°C (density 1000 kg/m3).
Flow rate [ l/h ]
Flow rate [ l/h ]
Available static head - unit with option “Source side flow rate management” : “Pump”
Pressure drops [ kPa ]Available static head [ kPa ]

18

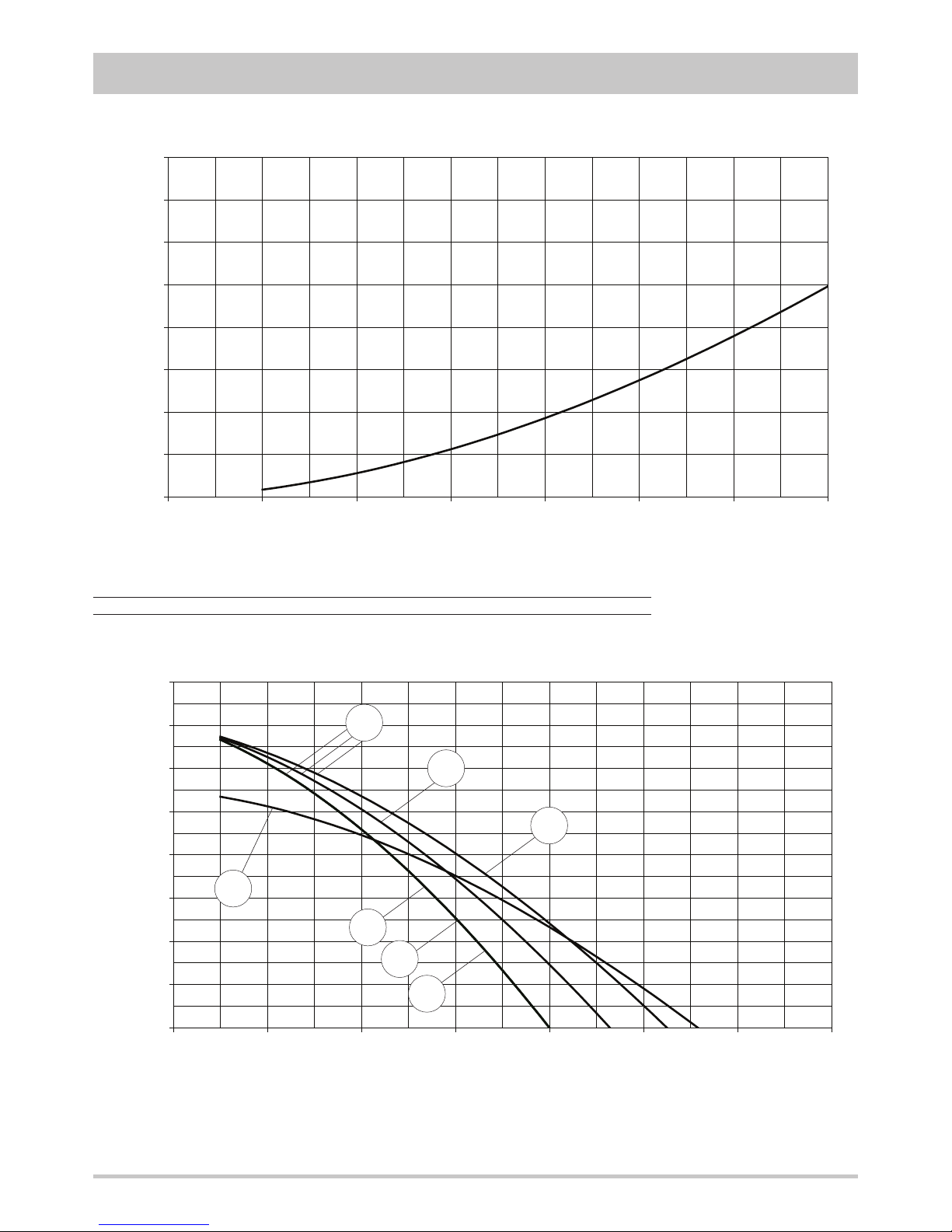

Domestic hot water side hydraulic performances
TECHNICAL DATA AND PERFORMANCES
0
10
20
30
40
50
60
70
80
0 500 1000 1500 2000 2500 3000 3500
A
9.1
11.1
5.1
3.1
7.1
B
0
5
10
15
20
25
30
35
40
0 500 1000 1500 2000 2500 3000 3500
A = unit with option “Domestic hot water production” : “3 way valve”
B = unit with option “Domestic hot water production” : “3 way valve with primary heat exchanger”
Pressure drops - unit with option “Passive cooling”
The graphs are referred to units operating with water at the temperature of 10°C (density 1000 kg/m3).
Flow rate [ l/h ]
Flow rate [ l/h ]
Available static head
Pressure drops [ kPa ]Available static head [ kPa ]

19
TECHNICAL DATA AND PERFORMANCES
Operating limits
Temperature difference between unit inlet and outlet Plant side Source side
DT max Maximum value 11 5 °C
DT min Minimum value 3 1 °C
Passive
cooling
HEATING
Inlet temperature - source side [°C]
The graphs reported below show the operating area inside which the correct working of the unit is guaranteed.
The dotted lines show the operating area when brine solutions in the source side hydraulic circuit are used.
COOLING
Inlet temperature - source side [°C]
Outlet temperature - plant side [°C]Outlet temperature - plant side [°C]

20
TECHNICAL DATA AND PERFORMANCES
Electrical data
Power supply 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 V-ph-Hz
F.L.A. Maximum total current input 5,9 7,7 10,1 13,3 17,0 A
F.L.I. Maximum total power input 1,3 1,7 2,2 2,9 3,7 kW
M.I.C.
Maximum total start current 36 45 52 82 112 A
Maximum total start current
with soft starter (option) 32 35 38 41 43 A
Unit
Power supply 230-1-50 230-1-50 230-1-50 230-1-50 230-1-50 V-ph-Hz
F.L.A. Maximum total current input 0,8 0,8 0,8 0,8 0,8 A
F.L.I. Maximum total power input 0,15 0,15 0,15 0,15 0,15 kW
Source side pump (option)
Power supply 230-1-50 230-1-50 230-1-50 230-1-50 230-1-50 V-ph-Hz
F.L.A. Maximum total current input 0,4 0,4 0,4 0,4 0,4 A
F.L.I. Maximum total power input 0,08 0,08 0,08 0,08 0,08 kW
Domestic hot water production pump (with option “3 way valve with primary heat exchanger”)
Power supply 230-1-50 230-1-50 230-1-50 230-1-50 230-1-50 V-ph-Hz
F.L.A. Maximum total current input 0,7 0,7 0,7 0,7 0,7 A
F.L.I. Maximum total power input 0,14 0,14 0,14 0,14 0,14 kW
Domestic hot water production pump (with option “3 way valve with secondary heat exchanger”)
Power supply 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 V-ph-Hz
400-3N-50 400-3N-50 400-3N-50 400-3N-50 400-3N-50
F.L.A.
Maximum total current input
( 230V - 1 - 50Hz ) 39,1 39,1 39,1 39,1 39,1 A
Maximum total current input
( 400V - 3N - 50Hz ) 13,0 13,0 13,0 13,0 13,0 A
F.L.I. Maximum total power input 9,0 9,0 9,0 9,0 9,0 kW
Integrative electrical heaters
Noise levels
Reference conditions
Performances referred to units operating in heating mode at nominal conditions W10W35.
Unit placed in free field on reflecting surface (directional factor equal to 2).
The sound power level is measured according to ISO 3744 standard.
The sound pressure level is calculated according to ISO 3744 and is referred to a distance of 1 meter from the external surface of the unit.
Frame 1
Model 31 51 71 91 111 U.M.
Model
Sound power levels [dB]
by octave bands [Hz]
Sound power
level
Sound pressure
at 1 meter at 5 meters at 10 meters
63 125 250 500 1000 2000 4000 8000 [dB] [dB(A)] [dB(A)] [dB(A)] [dB(A)]
31 73,2 63,3 48,3 31,7 31,0 22,6 20,9 21,9 74 51 36 25 19
51 74,2 64,3 49,3 32,7 32,0 23,6 21,9 22,9 75 52 37 26 20
71 74,2 64,3 49,3 32,7 32,0 23,6 21,9 22,9 75 52 37 26 20
91 75,2 65,3 50,3 33,7 33,0 24,6 22,9 23,9 76 53 38 27 21
111 75,2 65,3 50,3 33,7 33,0 24,6 22,9 23,9 76 53 38 27 21
