GENERAL FEATURES
General instructions
Declaration of conformity
Unit dataplate
The figure shows the fields reported on the unit dataplate :
This manual and the wiring diagram supplied with the unit must be kept in a dry place for possible future consultation.
The manual provides information on installation and correct use and maintenance of the unit. Before carrying out installation,
please carefully read all the information contained in this manual, which describes the procedures necessary for correct
installation and use of the unit
Follow carefully the instructions contained in this manual and respect the safety regulations in force. The unit must be installed
in conformity with the laws in force in the country of use. Unauthorized tampering with the electrical and mechanical equipment
INVALIDATES THE WARRANTY.
Check the electrical specifications given on the dataplate before making the electrical connections. Read the instructions given in the
specific section on electrical connections.
Deactivate the equipment in case of fault or poor operation.
If the unit requires fixing, contact only specialized service centers recognized by the manufacturer and use original spare parts.
The unit must be installed outdoor and connected to a hydronic cooling and/or heating system. Any use different from that permitted
or outside the operating limits indicated in this manual is prohibited (unless previously agreed with the firm).
The manufacturer declines any responsability for damage or injury due to non-compliance with the information given in this manual.
The firm declares that the present unit complies with the requirements of the following directives :
• Machinery directive (MD) 2006/42/EC
• Pressure equipment directive (PED) 97/23/EC
• Electromagnetic compatibility directive (EMC) 2004/108/EC
• Low voltage directive (LVD) 2006/95/EC
Codice
Code B1 Rev
Ferroli Spa
Via Ritonda 78/A
(VR) Italy
A - Trademark
B - Model
B1 - Code
C - Serial number
D - Capacity in cooling at the condition W30W18
E - Capacity in heating (heat pump) at the condition W10W35
F - Power input in cooling at the condition W30W18
G - Power input in heating (heat pump) at the condition W10W35
H - Reference standard
I - Power supply
L - Maximum absorbed current
M - Refrigerant type and charge weight
N - Unit weight
O - Sound pressure level at 1 metre
P - IP protection level
Q - Maximum pressure - high pressure side
R - Maximum pressure - low pressure side
S - PED certification body

5
IH 121 VB AB 0 M 1
GENERAL FEATURES
Unit description
This series of water-water heat pumps satises the heating,
cooling and domestic hot water production requirements of resi-
dential plants of small and medium size.
All the units are suitable for indoor installation and can be ap-
plied to fan coil plants, radiant oor plants and high efciency
radiators plants.
As source both water (from well, river, lake…) or brine solutions
(from geothermic probes) can be used.
The control system allows to manage not only the refrigerant
circuit but the whole plant with the possibility to choose different
solutions both for the heating and cooling plant and for the do-
mestic hot water management. The possibility of solar panels or
other heating sources integration is also available.
The heating function optimizes the ow water temperature ac-
cording both to the ambient temperature and to the outdoor tem-
perature through climatic curves adaptable to the building featu-
res. It’s possible to manage a storage tank and two independent
circuits (a direct one and a mixed one).
The domestic hot water management allows to control the th-
ree way valve, the storage tank and the anti-legionella cycles (if
necessary).
The cooling function can be realized through “passive cooling”
(free cooling), through “active cooling” (refrigerant circuit inver-
sion) or through both systems actuated in sequence. When the
unit is used in radiant oor plants, to avoid condensate genera-
tion, a room humidity sensor can be installed.
The internal programmer clock allows to dene different daily
switching programs for heating, cooling and domestic hot water
production.
The refrigerant circuit, contained in an extractable box to sim-
plify the maintenance operations, is equipped with scroll com-
pressor mounted on damper supports, brazed plate heat ex-
changers, thermostatic expansion valve and reverse cycle valve
(for reversible units). The circuit is protected by high and low
pressure switches and ow switches on both the exchangers.
The outdoor structure and the refrigerant circuit box are both
thermally and acoustically insulated in order to create a dou-
ble wall against sound propagation and to allow the installation
in domestic places.
To avoid vibration propagation towards the hydraulic circuit the
refrigerant circuit box is placed on damper supports and the con-
nection pipes are exible. Moreover all the hydraulic pipes are
thermally insulated to avoid condensate generation.
The three phase electrical power supply heat pumps are sup-
plied with phase sequence and voltage controller integrated in-
side the unit controller.
All the units are accurately built and individually tested in the
factory. Only electric and hydraulic connections are required for
installation.
Unit identification code
The codes that identify the units and the meaning of the letters used are described below.
Unit type
IH - Units suitable for hydronic plant in-
stallation operating as heat pumps
IP - Units suitable for hydronic plant
installation operating as reversible heat
pumps
Power supply
1 - 230V - 1 - 50 Hz
5 - 400V - 3N - 50 Hz
Operating range
M - Medium temperature.
The unit is suitable to produce
water at medium temperature
Refrigerant type
0 - R410A
Acoustic setting up
AB - Base setting up
Unit version
VB - Base version
N° compressors
Unit model
HXW

6
GENERAL FEATURES
Description of components
External structure Basement, lateral panels and frontal panel,
are completely thermally and acoustically insulated in order to
minimize thermal losses and noise emissions in the surroundings.
Accessibility to internal parts is possible removing the frontal
panel and the upper panel. For extraordinary manteinances also
the rear panel can be removed.

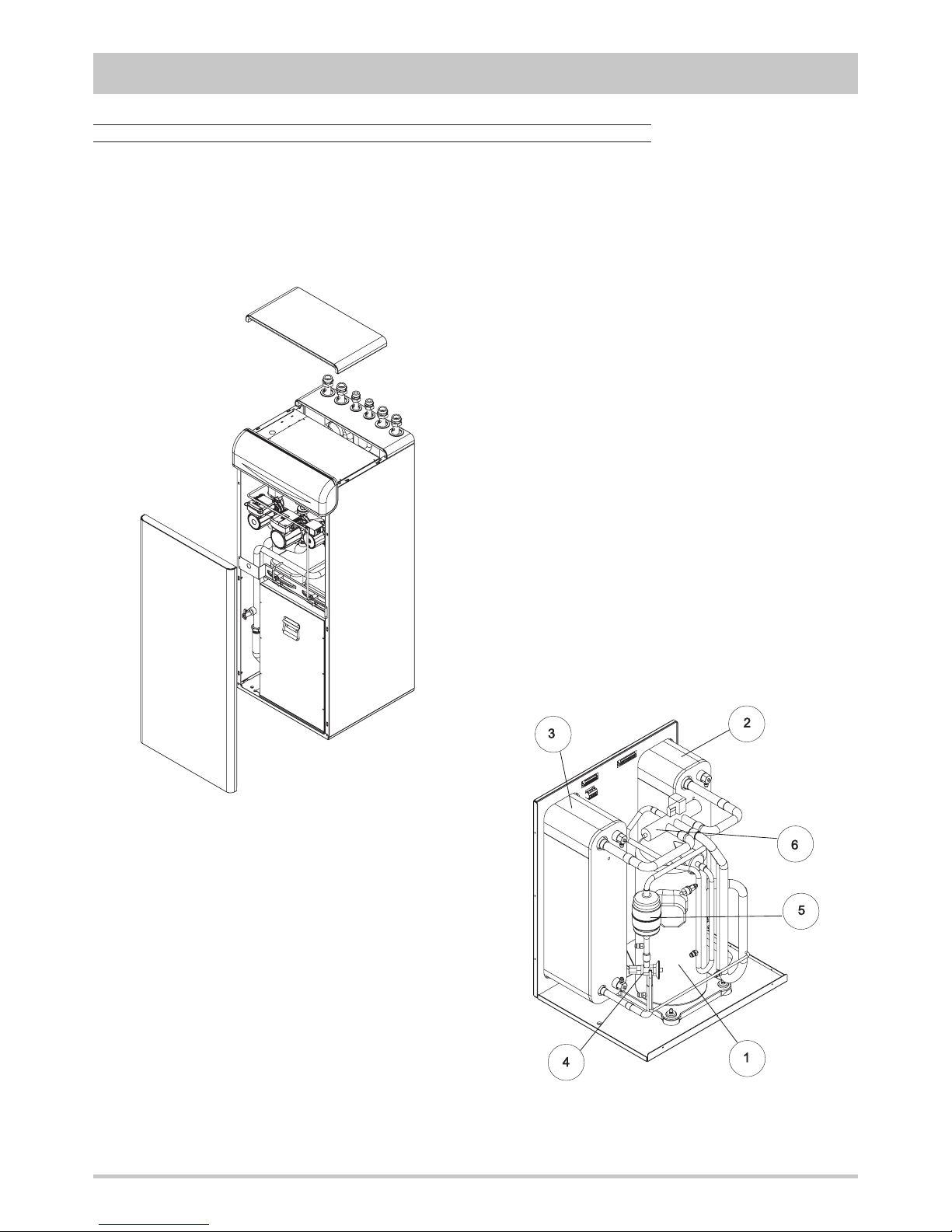

Refrigerant circuit It is contained inside an extractable box
to simplify the maintenance operations. The box is placed on
rubber vibration dampers and is connected to the hydraulic
circuit through flexible pipes in order to avoid the propagation
of the vibrations generated by the compressor outside the unit.
The hermetic scroll compressor (1) is mounted on damper
supports and is protected against overtemperatures and
overcurrents. The heat exchangers on the plant side (2) and
on the source side (3) are realized with brazed stainless steel
plates, properly insulated to avoid condensate generation and
to minimize thermal losses, and protected by a flow switch that
detects whatever water flow lack. The expansion device (4),
a thermostatic expansion valve with external equalizer, allows
the unit to adjust itself to the different operating conditions
keeping steady the set superheating. The refrigerant circuit of
each unit contains moreover solid core hermetic filter dryer (5)
to restrain impurity and moisture residuals that could be present
in the circuit, high and low pressure switches in order to
assure the compressor to operate inside the permitted limits, 4
way reverse cycle valve (6) to allow operating mode change
reversing the refrigerant flow (only for reversible heat pumps),
pressure connections SAE 5/16” - UNF 1/2” - 20 equipped
with pin, gasket and blind nut, as required for the use of R410A
refrigerant (they allow the complete check of the refrigerant
circuit : compressor inlet pressure, compressor outlet pressure,
thermostatic expansion valve upstream pressure and pressure
drops accross the filter). All the pipes of the refrigerant circuit
are properly insulated to avoid condensate generation and to
minimize thermal losses.
Hydraulic circuit Both the hydraulic circuit on the plant side
and on the source side are equipped with expansion vessel,
air vents and drain valves. All the pipes are thermally insulated
to avoid condensate generation and minimize thermal losses.
The circuit on the plant side is moreover equipped with pressure
safety valve, pressure gauge and three speed glandless pump
while the water flow rate on the source side can be adjusted by
means of a three speed glandless pump or by means of a two
way valve.
Electrical panel. It contains all the power, control and security
components necessary to guarantee the unit to work properly.
The unit is managed by a microprocessor controller to which
all the electrical loads and the control devices are connected.
The user interface, placed on the frontal panel of the unit, allows
to view and to modify, if necessary, all the parameters of the unit.
All the units are supplied with an outdoor temperature sensor,
to be installed outside, in order to realize the climatic control.

7
GENERAL FEATURES

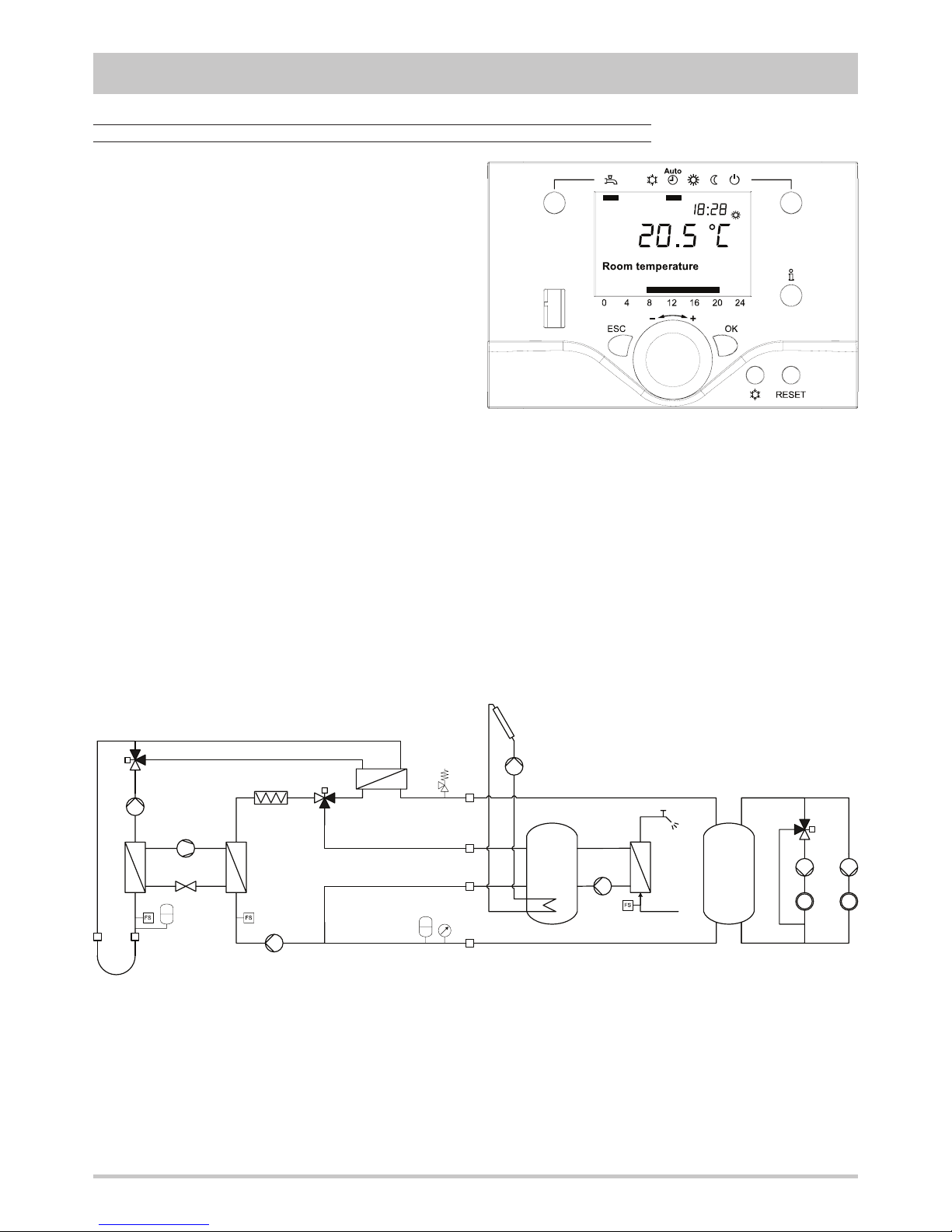

Control system
The microprocessor controller is able to manage not only the
unit itself but also all that components of the plant which allow to
realize a complete system.
The main functions of the control system are :
- room temperature control according to the outdoor
temperature (climatic control)
- domestic hot water production (management of 3 way valve,
storage tank, anti legionella cycles…)
- management of a heating and/or cooling mixed circuit (pump
and 3 way mixing valve)
- management of a heating direct circuit (only pump)
- management of a storage tank for heating and/or cooling
- management of electrical heaters for heating and domestic
hot water (3 steps logic)
- solar panels integration
- passive cooling
- room humidity control for cooling with radiant systems
- internal programmer clock (for heating, cooling and domestic
hot water)
- digital input for electrical energy low tariff
- alarm memory management and diagnostic
- compressor and pump operating hour counter
- possibility to manage more units in cascade (maximum 16)
Besides the standard user interface present on all the units,
wired or wireless remote thermostats are available which allow
to control all the operating parameters of the unit and to acquire
the temperature in the different zones in order to realize a more
precise and comfortable control.
The unit controller is able to manage a lot of different plant
solutions enabling automatically the necessary control
algorythms according to the components which have been
connected.
The management of such components is possible through ad-
ditional expansion modules which communicate with the unit by
means of an internal bus and provide all the inputs and outputs
required to full a complete system.
The controller is able to manage up to two zones in heating
(one by means of a mixed circuit and the other by means of a
direct circuit) and one zone in cooling (by means of a mixed
circuit).
It’s possible to realize more complex plants connecting to the
heat pump controller further expansion modules in order to
extend without limits the number of zones to be managed.
For each zone the following parameters can be set :
- set point
- daily or weekly operating time table
- climatic control curve
- room control sensor : it can be in common with the other
zones or independent (in that case it’s necessary to install
an additional room thermostat)

8
GENERAL FEATURES
Options
The controller flexibility and the big number of options available
allow to get, for each model, a lot of different configurations that
integrate inside the heat pump many components of the plant
and allow to realize compact and tested installations.
In order to select the right configuration it is necessary to define
the type of plant to which the heat pump will be connected, both
for what concerning the heating and cooling circuits, and for
what concerning the domestic hot water management.
Option “Source side flow rate management”
Not reversible heat pump (IH) without options
Pump
Reversible heat pump (IP) without options
2 way valve
Source side
ow rate
management
Pump Allows the circulation of the water on the source side.
2 way valve Modulates the water ow rate on the source side when the water circulation is
assured by an external pump.
Domestic hot water
production
3 way valve Allow to divert the hot water produced by the heat pump from the heating circuit
to the domestic hot water circuit.
3 way valve with
primary heat exchanger
The hot water is diverted by the three way valve on an internal heat exchanger.
An internal pump assures a correct domestic hot water ow through the other
side of the heat exchanger.
Passive cooling Allows to use the source to cool down the plant water without activating the
compressor.
Integrative electrical heaters Integrate or replace the heating power supplied by the heat pump and are
managed by the unit controller with a 3 step logic.
Soft starter Reduces the compressor start current.

9
GENERAL FEATURES
In this configuration the heat pump can
be coupled to a domestic hot water
tank equipped with a coil designed for
a maximum water temperature between
55°C and 60°C.
The anti legionella cycles have to be
performed by means of electrical heaters
placed on the heat pump outlet (see
option “Integrative electrical heaters”) or
directly inside the tank.
In this configuration the heat pump can
be coupled to a domestic hot water tank
without coil.
The anti legionella cycles have to be
performed by means of electrical heaters
placed on the heat pump outlet (see
option “Integrative electrical heaters”) or
directly inside the tank.

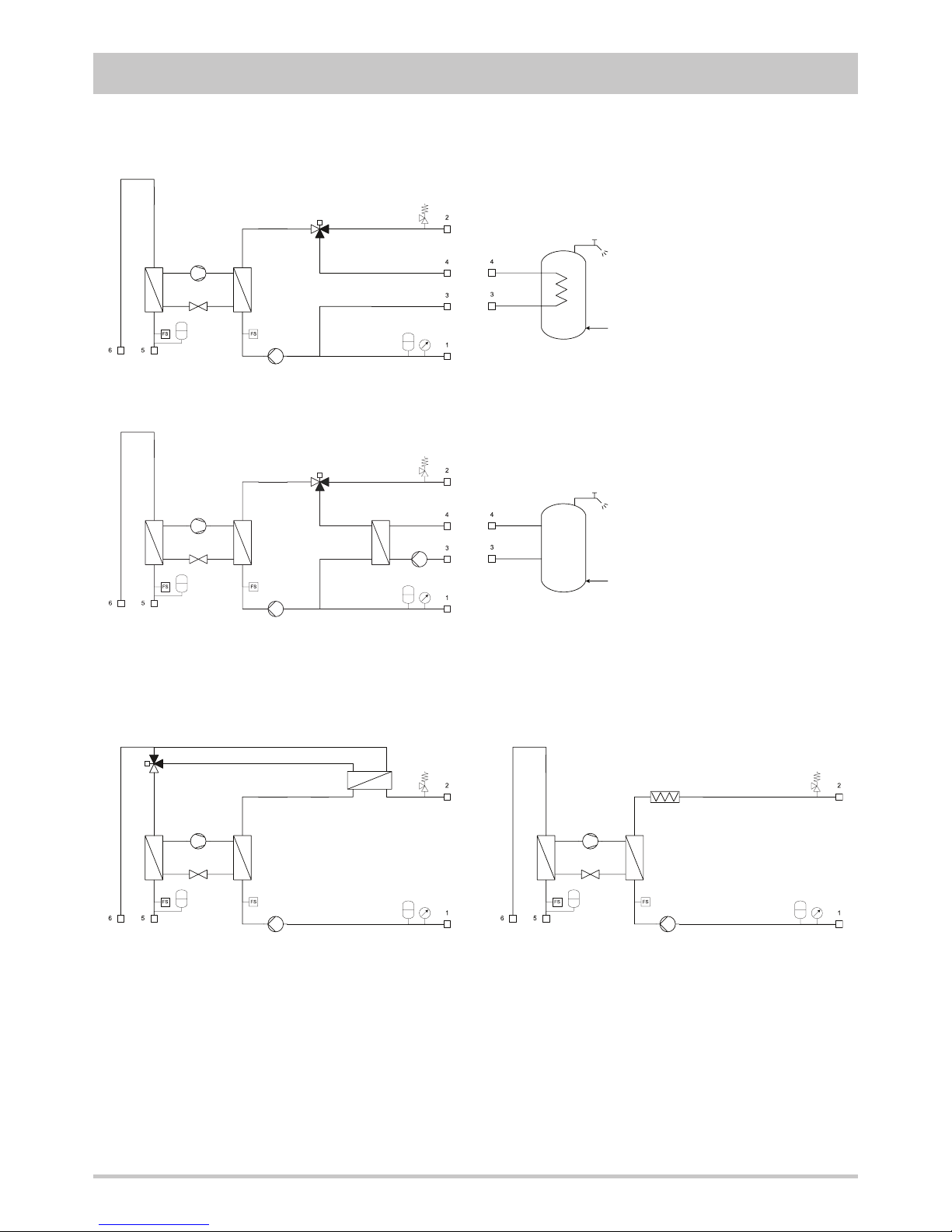

Option “Domestic hot water production”
3 way valve
3 way valve with primary heat exchanger
Option “Passive cooling” Option “Integrative electrical heaters”

10
GENERAL FEATURES
Accessories
Remote thermostat Allows operating mode selection and set point adjustment. The on board temperature sensor can be used in order
to realize a climatic control.
Remote control
(wired or wireless)
Replicates all the control and visualization functionalities of the controller installed on the unit. The on board
temperature sensor can be used in order to realize a climatic control.
Wireless transmitter Connected to the unit controller, allows to communicate with wireless remote control and wireless outdoor
temperature sensor.
Wireless repeater Extends wireless operating range.
Wireless adaptor for
outdoor temperature sensor Allows to transform the wired outdoor temperature sensor, standard for all the units, in a wireless sensor.
Condensate sensor In cooling mode it allows the minimum ow temperature control when condensate generation occurs.
Room hygrostat In cooling mode it allows the minimum ow temperature control according to the room humidity.
Room humidity sensor
(with or without display)
In cooling mode it allows the minimum ow temperature control according to the room dew point, calculated from
the measured room humidity.
Rubber vibration dampers Allow to reduce the transmission to the unit support plane of the mechanical vibrations generated by the compressor
and by the fans in their normal operating mode.
Transformer
230V / 24V - 3VA It assures the correct power supply for the condensate sensor and for the room humidity sensor.
Refrigerant circuit box If a failure occurs inside the refrigerant circuit, it permits to restart the heat pump very quickly.

11
TECHNICAL DATA AND PERFORMANCES
Technical data
Frame 1
Model 121 141 171 201 231 271 U.M.
Power supply 230 - 1 - 50
400 - 3N - 50
230 - 1 - 50
400 - 3N - 50
230 - 1 - 50
400 - 3N - 50 400 - 3N - 50 400 - 3N - 50 400 - 3N - 50 V-ph-Hz
Refrigerant
Type R410A R410A R410A R410A R410A R410A -
Compressor
Type scroll scroll scroll scroll scroll scroll -
Quantity 111111n°
Power steps 0 - 100 0 - 100 0 - 100 0 - 100 0 - 100 0 - 100 %
Oil charge 0,75 1,20 1,80 1,80 1,80 1,80 kg
Plant side heat exchanger
Type stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates -
Quantity 111111n°
Water volume 1,90 1,90 2,56 2,56 3,33 3,33 l
Source side heat exchanger
Type stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates
stainless steel
brazed plates -
Quantity 111111n°
Water volume 2,56 2.,56 3,33 3,33 4,18 4,18 l
Plant side hydraulic circuit
Safety valve set point 333333bar
Expansion vessel volume 10 10 10 10 10 10 l
Source side hydraulic circuit
Expansion vessel volume 10 10 10 10 10 10 l
Plant side pump
Type 3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump -
Quantity 111111n°
Installed power 0,21 0,21 0,21 0,21 0,21 0,21 kW
Source side pump (option)
Type 3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump
3 speed
glandless pump -
Quantity 111111n°
Installed power 0,41 0,41 0,41 0,41 0,41 0,41 kW
Integrative electrical heaters (option)
Total installed power 9,0 9,0 9,0 9,0 9,0 9,0 kW
Power steps 0 - 33 - 66 - 100 0 - 33 - 66 - 100 0 - 33 - 66 - 100 0 - 33 - 66 - 100 0 - 33 - 66 - 100 0 - 33 - 66 - 100 n°

12
TECHNICAL DATA AND PERFORMANCES
NOMINAL performances - Base setting up (AB) - Radiant plants
IH
Heating W10W35 ( source : water in 10°C out 7°C / plant : water in 30°C out 35°C )
Heating capacity 12,0 14,6 17,1 20,8 24,1 27,2 kW
Power input 2,24 2,72 3,18 3,87 4,48 5,12 kW
COP 5,36 5,37 5,38 5,37 5,38 5,31 -
Water flow rate plant side 2078 2511 2944 3584 4156 4693 l/h
Available static head plant side 56 44 46 31 30 17 kPa
Water flow rate source side 2813 3407 3988 4877 5643 6374 l/h
Pressure drops source side 18 25 21 30 26 33 kPa
Heating B0W35 ( source : brine in 0°C out -3°C / plant : water in 30°C out 35°C )
Heating capacity 8,89 10,7 12,6 15,3 17,8 20,2 kW
Power input 2,20 2,64 3,11 3,74 4,36 4,94 kW
COP 4,04 4,05 4,05 4,09 4,08 4,09 -
Water flow rate plant side 1538 1853 2182 2649 3082 3480 l/h
Available static head plant side 67 61 61 52 51 44 kPa
Water flow rate source side 2138 2584 3039 3710 4308 4868 l/h
Pressure drops source side 11 16 13 19 16 21 kPa
Data declared according to EN 14511. The values are referred to units without options or accessories. Brine = water with 30% ethylene glycol.
IP
Heating W10W35 ( source : water in 10°C out 7°C / plant : water in 30°C out 35°C )
Heating capacity 11,8 14,3 16,7 20,4 23,6 26,7 kW
Power input 2,22 2,68 3,14 3,82 4,43 5,05 kW
COP 5,32 5,34 5,32 5,34 5,33 5,29 -
Water flow rate plant side 2043 2459 2892 3515 4069 4606 l/h
Available static head plant side 56 46 47 33 32 19 kPa
Water flow rate source side 2761 3330 3910 4774 5511 6246 l/h
Pressure drops source side 17 24 20 29 25 32 kPa
Heating B0W35 ( source : brine in 0°C out -3°C / plant : water in 30°C out 35°C )
Heating capacity 8,74 10,5 12,4 15,0 17,4 19,7 kW
Power input 2,17 2,61 3,08 3,70 4,31 4,89 kW
COP 4,03 4,02 4,03 4,05 4,04 4,03 -
Water flow rate plant side 1512 1818 2147 2597 3013 3411 l/h
Available static head plant side 68 62 62 54 52 45 kPa
Water flow rate source side 2097 2530 2985 3627 4194 4757 l/h
Pressure drops source side 11 15 13 18 16 20 kPa
Cooling W30W18 ( source : water in 30°C out 35°C / plant : water in 23°C out 18°C )
Cooling capacity 12,7 15,2 18,0 21,7 25,3 28,6 kW
Power input 2,23 2,71 3,17 3,85 4,46 5,08 kW
EER 5,70 5,61 5,68 5,64 5,67 5,63 -
Water flow rate plant side 2190 2638 3121 3759 4380 4949 l/h
Available static head plant side 53 41 42 27 25 10 kPa
Water flow rate source side 2573 3096 3662 4405 5136 5799 l/h
Pressure drops source side 15 21 18 25 22 27 kPa
Cooling B30W18 ( source : brine in 30°C out 35°C / plant : water in 23°C out 18°C )
Cooling capacity 12,4 14,9 17,6 21,2 24,7 28,0 kW
Power input 2,28 2,77 3,24 3,94 4,57 5,21 kW
EER 5,44 5,38 5,43 5,38 5,40 5,37 -
Water flow rate plant side 2138 2586 3052 3673 4276 4845 l/h
Available static head plant side 54 42 44 29 27 13 kPa
Water flow rate source side 2746 3316 3914 4704 5482 6205 l/h
Pressure drops source side 17 25 21 30 26 32 kPa
Frame 1
Model 121 141 171 201 231 271 U.M.
Power supply 230 - 1 - 50
400 - 3N - 50
230 - 1 - 50
400 - 3N - 50
230 - 1 - 50
400 - 3N - 50 400 - 3N - 50 400 - 3N - 50 400 - 3N - 50 V-ph-Hz

13
NOMINAL performances - Base setting up (AB) - Standard plants
TECHNICAL DATA AND PERFORMANCES
IH
Heating W10W45 ( source : water in 10°C out 7°C / plant : water in 40°C out 45°C )
Heating capacity 11,0 13,3 15,6 19,1 22,2 25,0 kW
Power input 2,67 3,22 3,78 4,56 5,31 6,03 kW
COP 4,12 4,13 4,13 4,19 4,18 4,15 -
Water flow rate plant side 1912 2312 2712 3303 3842 4329 l/h
Available static head plant side 59 50 51 38 36 26 kPa
Water flow rate source side 2398 2910 3404 4173 4845 5457 l/h
Pressure drops source side 13 19 15 23 20 24 kPa
Heating B0W45 ( source : brine in 0°C out -3°C / plant : water in 40°C out 45°C )
Heating capacity 8,17 9,88 11,6 14,1 16,3 18,4 kW
Power input 2,63 3,16 3,73 4,47 5,22 5,90 kW
COP 3,11 3,13 3,11 3,15 3,12 3,12 -
Water flow rate plant side 1419 1714 2017 2451 2834 3199 l/h
Available static head plant side 69 63 64 56 55 49 kPa
Water flow rate source side 1766 2145 2517 3086 3548 4006 l/h
Pressure drops source side 8 11 9 13 11 14 kPa
Data declared according to EN 14511. The values are referred to units without options or accessories. Brine = water with 30% ethylene glycol.
IP
Heating W10W45 ( source : water in 10°C out 7°C / plant : water in 40°C out 45°C )
Heating capacity 10,9 13,1 15,4 18,8 21,7 24,6 kW
Power input 2,64 3,18 3,74 4,51 5,25 5,96 kW
COP 4,13 4,12 4,12 4,17 4,13 4,13 -
Water flow rate plant side 1895 2277 2677 3251 3755 4259 l/h
Available static head plant side 60 50 52 39 38 27 kPa
Water flow rate source side 2375 2861 3359 4099 4714 5360 l/h
Pressure drops source side 13 18 15 22 19 24 kPa
Heating B0W45 ( source : brine in 0°C out -3°C / plant : water in 40°C out 45°C )
Heating capacity 8,03 9,68 11,4 13,8 16,0 18,1 kW
Power input 2,61 3,13 3,69 4,42 5,17 5,84 kW
COP 3,08 3,09 3,09 3,12 3,09 3,10 -
Water flow rate plant side 1394 1679 1982 2399 2782 3147 l/h
Available static head plant side 70 64 64 57 56 50 kPa
Water flow rate source side 1728 2090 2466 3004 3465 3930 l/h
Pressure drops source side 7 11 9 13 11 14 kPa
Cooling W30W7 ( source : water in 30°C out 35°C / plant : water in 12°C out 7°C )
Cooling capacity 9,77 11,8 13,9 16,8 19,5 22,0 kW
Power input 2,24 2,69 3,17 3,81 4,45 5,03 kW
EER 4,36 4,39 4,38 4,41 4,38 4,37 -
Water flow rate plant side 1680 2025 2385 2883 3346 3792 l/h
Available static head plant side 65 57 58 48 47 38 kPa
Water flow rate source side 2076 2499 2945 3551 4130 4673 l/h
Pressure drops source side 10 14 12 17 14 18 kPa
Cooling B30W7 ( source : brine in 30°C out 35°C / plant : water in 12°C out 7°C )
Cooling capacity 9,57 11,6 13,6 16,5 19,1 21,6 kW
Power input 2,28 2,75 3,24 3,90 4,55 5,15 kW
EER 4,20 4,22 4,20 4,23 4,20 4,19 -
Water flow rate plant side 1646 1990 2334 2831 3277 3724 l/h
Available static head plant side 65 58 59 49 48 39 kPa
Water flow rate source side 2225 2686 3154 3814 4427 5020 l/h
Pressure drops source side 12 17 14 20 17 22 kPa
Frame 1
Model 121 141 171 201 231 271 U.M.
Power supply 230 - 1 - 50
400 - 3N - 50
230 - 1 - 50
400 - 3N - 50
230 - 1 - 50
400 - 3N - 50 400 - 3N - 50 400 - 3N - 50 400 - 3N - 50 V-ph-Hz

14

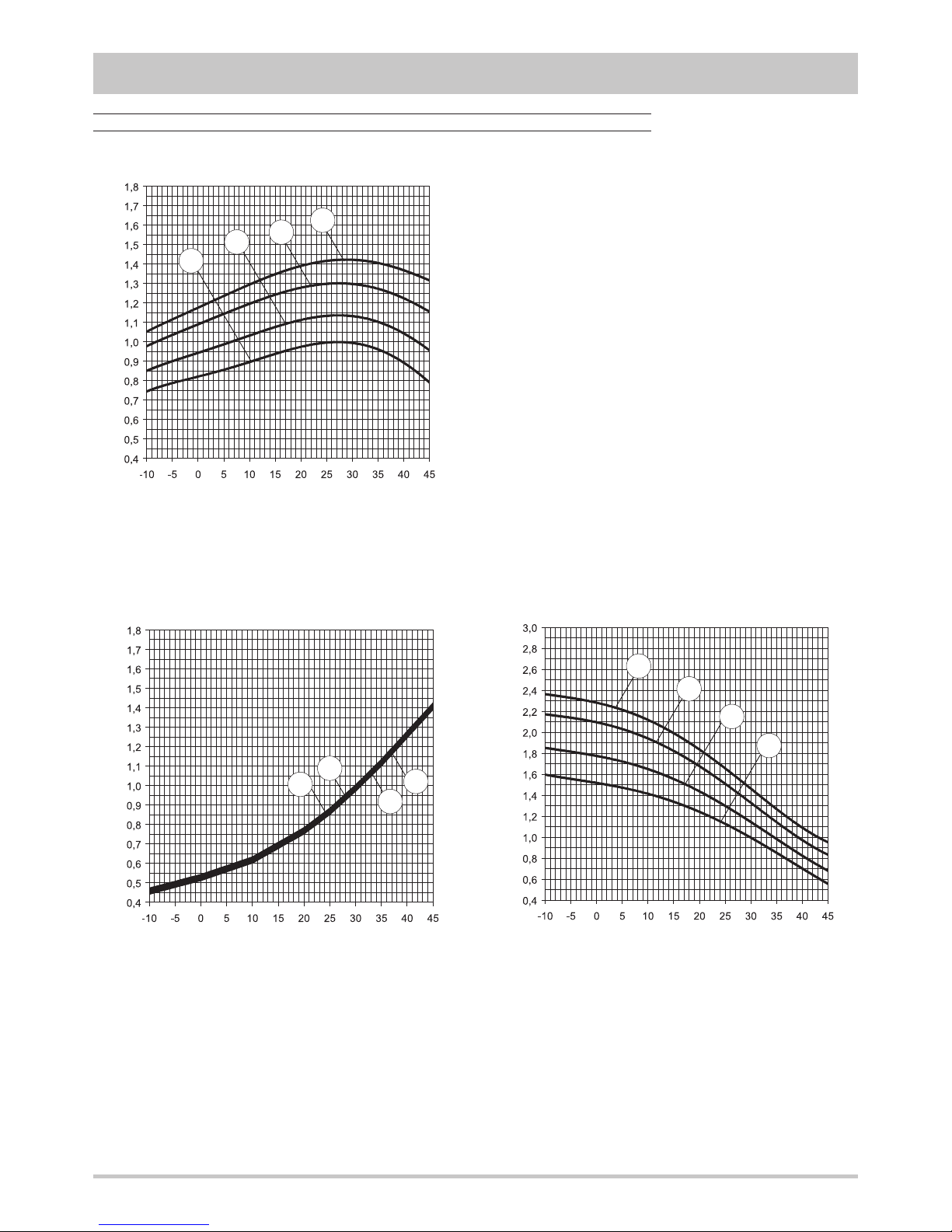

The graphs allow to get the corrective factors to
be applied to the nominal performances in order
to obtain the real performances in the selected
operating conditions.
The reference nominal conditions are :
- water-water units : W10W35 (source : water in
10°C out 7°C / plant : water in 30°C out 35°C)
- brine-water units : B0W35 (source : water in 0°C
out -3°C / plant : water in 30°C out 35°C)
Outlet temperature
plant side :
A = 55°C
B = 45°C
C = 35°C
D = 25°C
Inlet temperature - source side [°C] Inlet temperature - source side [°C]
COP ( brine )
Inlet temperature - source side [°C] Inlet temperature - source side [°C]
COP ( water )
Power input ( brine and water )
Inlet temperature - source side [°C]
TECHNICAL DATA AND PERFORMANCES
Heating capacity ( brine )
HEATING performances
Heating capacity (water )
A
A
AA
A
B
B
BB
B
C
C
CC
C
D
D
DD
D

15
COOLING performances
TECHNICAL DATA AND PERFORMANCES
The graphs allow to get the corrective factors to
be applied to the nominal performances in order
to obtain the real performances in the selected
operating conditions.
The reference nominal conditions are :
- water-water units : W30W7 (source : water in
30°C out 35°C / plant : water in 12°C out 7°C)
- brine-water units : B30W7 (source : brine in 30°C
out 35°C / plant : water in 12°C out 7°C)
Outlet temperature
plant side :
A = 24°C
B = 18°C
C = 12°C
D = 7°C
Cooling capacity ( brine and water )
Inlet temperature - source side [°C]
Inlet temperature - source side [°C] Inlet temperature - source side [°C]
Power input ( brine and water ) EER ( brine and water )
A
A
A
B
B
B
C
C
C
D
D
D
The performances of the units, when used as brine - water, are referred to applications in which the source side uid is a solution of
water and 30% ethylene glycol by volume.
Such a concentration guarantees a freezing temperature of about -15°C and allows the unit to work inside the declared operating
limits.

16
TECHNICAL DATA AND PERFORMANCES

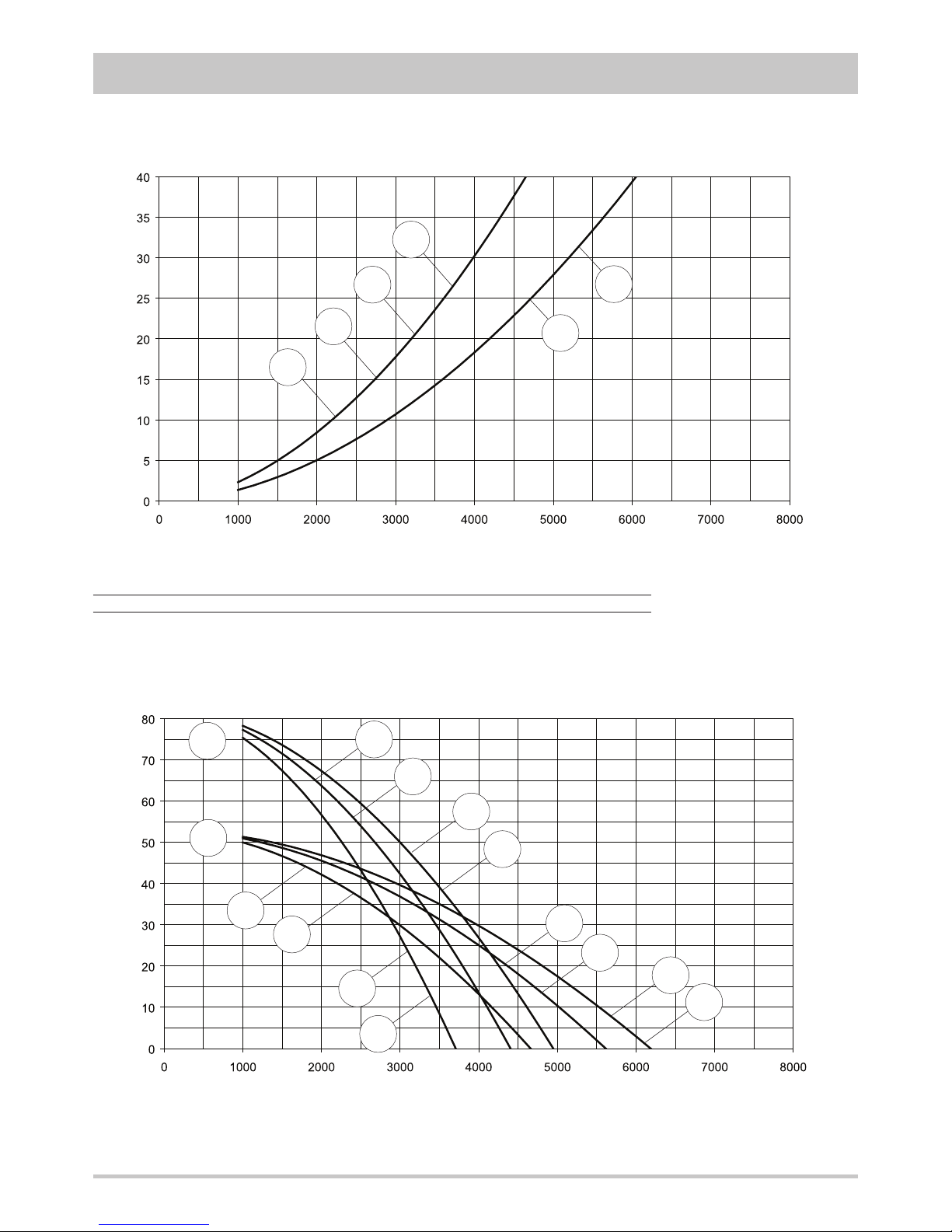

Plant side hydraulic performances
Pressure drops
A = unit with option “Domestic hot water production” : “3 way valve”
B = unit with option “Integrative electrical heaters”
C = unit with option “Passive cooling”
The graphs are referred to units operating with water at the temperature of 10°C (density 1000 kg/m3).
Available static head - unit without options
Flow rate [ l/h ]
Pressure drops [ kPa ]
12.1
27.1
23.1
C
B
A
14.1
17.1
20.1
Flow rate [ l/h ]
Available static head [ kPa ]
17.1
23.1
12.1
14.1
20.1
27.1

17
TECHNICAL DATA AND PERFORMANCES
The graphs are referred to units operating with water at the temperature of 10°C (density 1000 kg/m3).
Pressure drops - unit without options
Available static head - unit with option “Source side flow rate management” : “Pump”
Source side hydraulic performances
0
5
10
15
20
25
30
35
40
0 1000 2000 3000 4000 5000 000 000 000
12.1
14.1
17.1
20.1
23.1
27.1
Flow rate [ l/h ]
Flow rate [ l/h ]
Available static head [ kPa ]
12.1
14.1
17.1
23.1
20.1
27.1
Pressure drops [ kPa ]

18
Available static head
A = unit with option “Domestic hot water production” : “3 way valve”
B = unit with option “Domestic hot water production” : “3 way valve with primary heat exchanger”
Pressure drops - unit with option “Passive cooling”
Domestic hot water side hydraulic performances
The graphs are referred to units operating with water at the temperature of 10°C (density 1000 kg/m3).
TECHNICAL DATA AND PERFORMANCES
Flow rate [ l/h ]
Available static head [ kPa ]
Flow rate [ l/h ]
Pressure drops [ kPa ]
A17.1
20.1
23.1
27.1
17.1
20.1
23.1
27.1
14.1
12.1
12.1
14.1
B
12.1
14.1
17.1
20.1
27.1
23.1

19
TECHNICAL DATA AND PERFORMANCES
Operating limits
Temperature difference between unit inlet and outlet Plant side Source side
DT max Maximum value 11 5 °C
DT min Minimum value 3 1 °C
COOLING
Inlet temperature - source side [°C]
Outlet temperature - plant side [°C]
HEATING
Inlet temperature - source side [°C]
Outlet temperature - plant side [°C]
The graphs reported below show the operating area inside which the correct working of the unit is guaranteed. The dotted lines show
the operating area when brine solutions in the source side hydraulic circuit are used.
Passive
cooling

20
TECHNICAL DATA AND PERFORMANCES
Reference conditions
Performances referred to units operating in heating mode at nominal conditions W10W35.
Unit placed in free field on reflecting surface (directional factor equal to 2).
The sound power level is measured according to ISO 3744 standard.
The sound pressure level is calculated according to ISO 3744 and is referred to a distance of 1 meter from the external surface of the unit.
Electrical data
Power supply 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 ---V-ph-Hz
F.L.A. Maximum total current input 17,4 22,0 24,8 - - - A
F.L.I. Maximum total power input 3,7 4,7 5,3 - - - kW
M.I.C.
Maximum total start current 96 141 174 - - - A
Maximum total start current
with soft starter (option) 45 49 59 - - - A
Unit
Power supply 230-1-50 230-1-50 230-1-50 230-1-50 230-1-50 230-1-50 V-ph-Hz
F.L.A. Maximum total current input 2,1 2,1 2,1 2,1 2,1 2,1 A
F.L.I. Maximum total power input 0,41 0,41 0,41 0,41 0,41 0,41 kW
Source side pump (option)
Power supply 230-1-50 230-1-50 230-1-50 230-1-50 230-1-50 230-1-50 V-ph-Hz
F.L.A. Maximum total current input 0,9 0,9 0,9 0,9 0,9 0,9 A
F.L.I. Maximum total power input 0,17 0,17 0,17 0,17 0,17 0,17 kW
Domestic hot water production pump (with option “3 way valve with primary heat exchanger”)
Power supply
230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50 230 - 1 - 50
V-ph-Hz
400-3N-50 400-3N-50 400-3N-50 400-3N-50 400-3N-50 400-3N-50
F.L.A.
Maximum total current input
( 230V - 1 - 50Hz ) 39,1 39,1 39,1 39,1 39,1 39,1 A
Maximum total current input
( 400V - 3N - 50Hz ) 13,0 13,0 13,0 13,0 13,0 13,0 A
F.L.I. Maximum total power input 9,0 9,0 9,0 9,0 9,0 9,0 kW
Integrative electrical heaters
Noise levels
Modello
Sound power levels [dB]
by octave bands [Hz]
Sound power
level
Sound pressure
at 1 meter at 5 meters at 10 meters
63 125 250 500 1000 2000 4000 8000 [dB] [dB(A)] [dB(A)] [dB(A)] [dB(A)]
121 80,0 59,4 45,6 39,4 38,0 28,5 22,3 23,4 80 54 39 29 23
141 80,0 59,4 45,6 39,4 38,0 28,5 22,3 23,4 80 54 39 29 23
171 81,0 60,4 46,6 40,4 39,0 29,5 23,3 24,4 81 55 40 30 24
201 81,0 60,4 46,6 40,4 39,0 29,5 23,3 24,4 81 55 40 30 24
231 82,0 61,4 47,6 41,4 40,0 30,5 24,3 25,4 82 56 41 31 25
271 82,0 61,4 47,6 41,4 40,0 30,5 24,3 25,4 82 56 41 31 25
Frame 1
Model 121 141 171 201 231 271 U.M.
Power supply 400-3N-50 400-3N-50 400-3N-50 400-3N-50 400-3N-50 400-3N-50 V-ph-Hz
F.L.A. Maximum total current input 6,6 8,1 9,0 10,1 11,6 12,9 A
F.L.I. Maximum total power input 3,7 4,7 5,3 6,0 7,0 7,8 kW
M.I.C.
Maximum total start current 46 54 69 86 96 105 A
Maximum total start current
with soft starter (option) 30 33 40 47 51 54 A
