Fetco CBS-2131 XTS User manual

The 3 Liter and 1 Gallon CBS-2131 /
2132 XTS Touchscreen Series Airpot
Coffee Brewers are a perfect hot
beverage solution for high volume
self-service environments such as
convenience stores, cafeterias, specialty
coffee shops or office coffee service (OCS).
Now experience total control of this fully
featured Extractor®Brewing System via
an inviting touchscreen interface display
that is intuitive, easy to read and
simple to navigate.
* Shown with #D041 Airpot Dispenser (sold separately)
* Shown with #D063 Airpot Dispenser (sold separately)

Access all controls via an inviting touchscreen
interface display that blends intuitive icons with
dynamic time and volume data to provide instant
visual feedback at any point during programming,
diagnostics or the brew cycle.
Customize the start screen to tie your equipment
and product offerings into a consistent brand
message. You can also create and display
individual recipe names for quick and easy
access to your most used coffee blends.
Perfect taste begins with a simple touch...
User Friendly Touchscreen
Customizable Screens
The Extractor®Touchscreen Operating System
(ETOS) was engineered for quick and efficient
navigation through set-up, programming,
diagnostics and daily operational brewing modes.
Streamlined Programming,
Diagnostics and Metrics

Vaccum Lined
Stainless Steel Airpot
Sleek European cabinet design is attractive and fits well in
any front-of-house decor found in cafes, lounges, OCS or
corporate breakrooms.
Driven by a user friendly touchscreen interface and intuitive
software, the XTS series represents the next step in the
evolution of FETCO’s renown EXTRACTOR brewing technology.
Legendary Extractor®Control
Airpot Dispensing
Contemporary Design
XTS™Series
B
R
E
W
V
O
L
U
M
E
P
R
E
-
W
E
T
D
R
I
P
D
E
L
A
Y
B
R
E
W
T
I
M
E
Duplicate profiles and parameters to and from any of the
batch buttons on a single machine or copy the information
to an unlimited number of brewers via a removable SD card
(Sold separately).
Modern Convenience
Designed for flexibility and
portability, vacuum lined pump
lever airpots quickly turn virtually
any remote location into a hot and
fresh beverage service station.
Although designed specifically for smaller batch airpot
dispensing, these high quality brewers possess the legendary
features and reliable performance you’ve come to expect from
Extractor®branded products.
Cascading Spray Dome™
Hot tank water flows over clog-free channels built
into the dome and virtually eliminates spray head scale
buildup – a leading reason for service calls.

(1) Based on standard factory settings: 5.5 minute brew time; 0% prewet; 200°F water. 3 liters per batch.
(2) Sold with factory cord & plug for 120 Volt configuration. Optional user connection to a terminal block requiring L1, L2, N and ground to 120/208-240 VAC.
No airpot locator for this group . User selectable for optional, dual in-series heater configuration.
Water Connection Inlet
1/4” Male Flare Fitting
Minimum Flow Rate
11/2gpm [5.7 lpm]
Water Pressure
20-75 psig [138-517 kPa]
Plastic Brew Basket
Configuration Code
E213153
E213154
E213151
E213157
E213171
Optional(2)
E213172
Optional(2)
E213173
Optional(2)
Heater
Configuration
1 x 1.5 kW
1 x 1.7 kW
1 x 2.3 kW
1 x 3.0 kW
1 x 1.5 kW
2 x 1.5 kW
1 x 1.7 kW
2 x 1.7 kW
1 x 2.3 kW
2 x 2.3 kW
Voltage
100-120
100-120
100-120
200-240
120
120/208-240
120
120/208-240
120
120/208-240
Wires
2+G
2+G
2+G
2+G
2+G
3+G
2+G
3+G
2+G
3+G
Phase
1
1
1
1
1
1
1
1
1
1
Electrical
Connection
NEMA 5-15P
NEMA 5-15P
NEMA 5-20P
NEMA 6-15P
NEMA 5-15P
L1 / L2 / N+G
NEMA 5-15P
L1 / L2 / N+G
NEMA 5-20P
L1 / L2 / N+G
KW
1.1-1.6
1.3-1.8
1.7-2.4
2.2-3.1
1.6
3.1
1.8
3.5
2.4
4.7
Max Amp Draw
10.9-13.0
12.3-14.7
16.5-19.7
10.9-13.0
13.0
13.0
14.7
14.7
19.7
19.7
Gallon [Liter] /
Hour
3.9 [14.8](1)
4.4 [16.7](1)
5.8 [22.0](1)
9.7 [36.7](1)
3.9 [14.8](1)
5.8 [22.0](1)
4.4 [16.7](1)
8.7 [33.0](1)
5.8 [22.0](1)
11.0 [41.6](1)
Height
253/4”
[66 cm]
Width
113/4”
[31 cm]
Depth
203/8”
[52 cm]
Empty Weight
29 lbs
[13 kg]
Filled Weight
55 lbs
[25 kg]
Combined Filled Weight
66 lbs [34 kg]
BREWER + 1 FILLED D041 DISPENSER
Hot Water Tank Cap.
3.3 gal
[12.4 l]
Shipping Weight:
41 lbs
[18 kg]
Shipping Dimensions:
16” x 23” x 29”
[41 x 59 x 74 cm]
SIDE VIEW BACK VIEW
25-3/4”
[65.4 cm]
12-3/4”
[32.4 cm]
3-3/16”
[8.1 cm]
9-7/16”
24.0 cm]
11-3/4”
[29.8 cm]
20-5/16”
[51.6 cm]
1-1/32”
[2.6 cm]
4-13/16”
[12.2 cm]
7-1/2”
[19.1 cm]
NEMA PLUGS
CONFIGURATIONS
G
W
NEMA
5-15P NEMA 5-20P
W
G
SYMBOLS
Electrical Connector
On / Off Switch
Tank Drain
Water Inlet
* Approximate based on maximum power setting.
8oz.
12oz.
16oz.
20oz.
123
82
62
49
FRONT VIEW
#D041
3.0L Thermal Pump
Lever Airpot
#B012218B1
13” x 5”
Stainless Steel
#B014218BN2
13” x 5”
Plastic w/ Brown Insert
#F002
13” x 5”
Paper Coffee Filter
Product DIMS:
Height: 141/2”[36.8 cm]
Width: 7” [17.8 cm]
Depth: 9” [22.9 cm]
Weight:
Empty: 4.6 lbs [2.1 kg]
Filled: 11.1 lbs [5.1 kg]
Stainless Steel
Brew Basket
Configuration Code
E213153M
E213154M
E213151M
E213157M
E213171M
Optional(2)
E213172M
Optional(2)
E213173M
Optional(2)

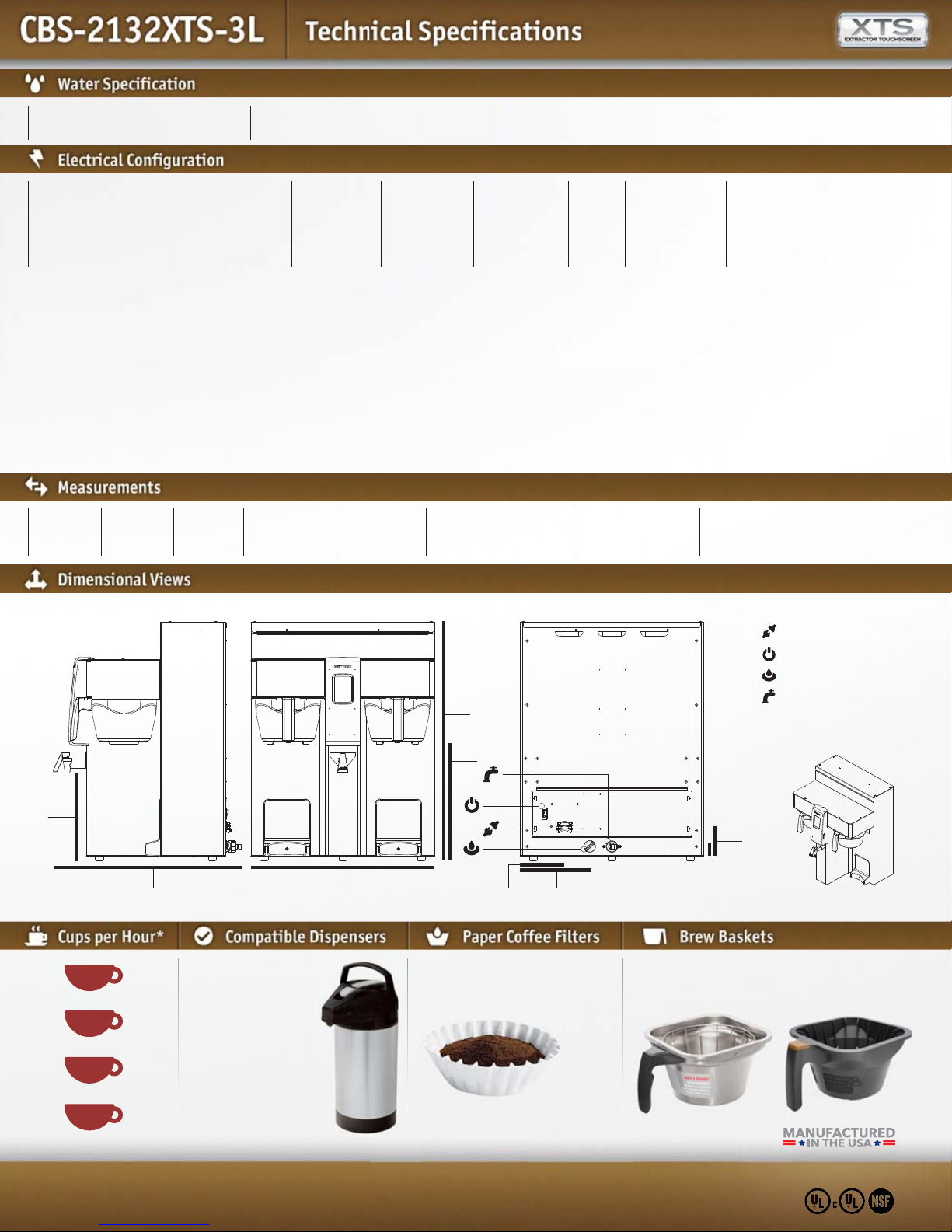

UNIVERSAL VOLTAGE OPTIONS
Patents: 6,148,717 & 6,565,906 & 6,576,282. Other Patents pending.
Designs, materials, specifications, physical dimensions, firmware and software protocol for equipment or replacement parts are subject to review and change by FETCO without notice.

(1) Based on standard factory settings: 5.5 minute brew time; 0% prewet; 200°F water. 3 liters per batch.
Water Connection Inlet
1/4” Male Flare Fitting
Minimum Flow Rate
11/2gpm [5.7 lpm]
Water Pressure
20-75 psig [138-517 kPa]
Plastic Brew Basket
Configuration Code
E213251
E213252
Heater
Configuration
2 x 2.3 kW
2 x 3.0 kW
Voltage
200-240
200-240
Wires
2+G
2+G
Phase
1
1
Electrical
Connection
Hardwired
Hardwired
KW
3.3-4.7
4.2-6.1
Max Amp Draw
16.5-19.7
21.3-25.5
Gallon [Liter] /
Hour
11.5 [43.5](1)
14.0 [53](1)
* Approximate based on maximum power setting.
Height
253/4”
[66 cm]
Width
193/4”
[50 cm]
Depth
203/8”
[52 cm]
Empty Weight
47 lbs
[21 kg]
Filled Weight
92 lbs
[41 kg]
Combined Filled Weight
114.4 lbs [51 kg]
BREWER + 2 FILLED D041 DISPENSERS
Hot Water Tank Cap.
5.8 gal
[22.1 l]
Shipping Weight:
58 lbs
[26 kg]
Shipping Dimensions:
23”x 25” x 29”
[59 x 64 x 74 cm]
SYMBOLS
Electrical Connector
On / Off Switch
Tank Drain
Water Inlet
8oz.
12oz.
16oz.
20oz.
224
149
112
90
#D041
3.0L Thermal Pump
Lever Airpot
#B012218B1
13” x 5”
Stainless Steel
#B014218BN2
13” x 5”
Plastic w/ Brown Insert
#F002
13” x 5”
Paper Coffee Filter
25-3/4”
[65.4 cm]
3-3/16”
[8.1 cm]
9-7/16”
24.0 cm]
19-3/4”
[50.2 cm]
20-5/16”
[51.6 cm]
1-1/32”
[2.6 cm]
4-13/16”
[12.2 cm]
7-1/2”
[19.1 cm]
12-3/4”
[32.4 cm]
SIDE VIEW BACK VIEWFRONT VIEW
Product DIMS:
Height: 141/2”[36.8 cm]
Width: 7” [17.8 cm]
Depth: 9” [22.9 cm]
Weight:
Empty: 4.6 lbs [2.1 kg]
Filled: 11.1 lbs [5.1 kg]
Stainless Steel
Brew Basket
Configuration Code
E213251M
E213252M

Water Connection Inlet
1/4” Male Flare Fitting
Minimum Flow Rate
11/2gpm [5.7 lpm]
Water Pressure
20-75 psig [138-517 kPa]
Height
273/4”
[71 cm]
Width
113/4”
[31 cm]
Depth
203/8”
[52 cm]
Empty Weight
29 lbs
[13 kg]
Filled Weight
55 lbs
[25 kg]
Combined Filled Weight
66 lbs [35 kg]
BREWER + 1 FILLED D063 DISPENSER
Hot Water Tank Cap.
3.3 gal
[12.4 l]
Shipping Weight:
41 lbs
[18 kg]
Shipping Dimensions:
16” x 23” x 29”
[41 x 59 x 74 cm]
* Approximate based on
maximum power setting.
8oz.
12oz.
16oz.
20oz.
123
82
62
49
#D063
1G Thermal Pump
Lever Airpot
#F002
13” x 5”
Paper Coffee Filter
Product DIMS:
Height: 161/2”[47 cm]
Width: 7” [17.8 cm]
Depth: 9” [22.9 cm]
Weight:
Empty: 9 lbs [4.1 kg]
Filled: 13.3 lbs [6 kg]
SIDE VIEW BACK VIEW
27-11/16”
[70.4 cm]
3-3/16”
[8.1 cm]
11-3/8”
[29.0 cm]
11-3/4”
[29.8 cm]
20-5/16”
[51.6 cm]
1-1/16”
[2.6 cm]
4-13/16”
[12.2 cm]
7-1/2”
[19.1 cm]
14-3/4”
[37.5 cm]
NEMA PLUGS
CONFIGURATIONS
NEMA
5-20P
W
G
SYMBOLS
Electrical Connector
On / Off Switch
Tank Drain
Water Inlet
FRONT VIEW
#B012218B1
13” x 5”
Stainless Steel
#B014218BN2
13” x 5”
Plastic w/ Brown Insert
/
Plastic Brew Basket
Configuration Code
E213152
E213158
E213174
Optional(2)
E213175
Optional(2)
E213176
Optional(2)
Heater
Configuration
1 x 2.3 kW
1 x 3.0 kW
1 x 1.5 kW
2 x 1.5 kW
1 x 1.7 kW
2 x 1.7 kW
1 x 2.3 kW
2 x 2.3 kW
Voltage
100-120
200-240
120
120/208-240
120
120/208-240
120
120/208-240
Wires
2+G
2+G
2+G
3+G
2+G
3+G
2+G
3+G
Phase
1
1
1
1
1
1
1
1
Electrical
Connection
NEMA 5-20P
NEMA 6-15P
NEMA 5-15P
L1 / L2 / N+G
NEMA 5-15P
L1 / L2 / N+G
NEMA 5-20P
L1 / L2 / N+G
KW
1.7-2.4
2.2-3.1
1.6
3.1
1.8
3.5
2.4
4.7
Max Amp Draw
16.5-19.7
10.9-13.0
13.0
13.0
14.7
14.7
19.7
19.7
Gallon [Liter] /
Hour
5.8 [22.0](1)
9.7 [36.7](1)
3.9 [14.8](1)(3)
5.8 [22.0](1)(3)
4.4 [16.7](1)(3)
8.7 [33.0](1)(3)
5.8 [22.0](1)(3)
11.0 [41.6](1)(3)
Stainless Steel
Brew Basket
Configuration Code
E213152M
E213158M
E213174M
Optional(2)
E213175M
Optional(2)
E213176M
Optional(2)
(1) Based on standard factory settings: 5.5 minute brew time; 0% prewet; 200°F water. 1 gallon per batch.
(2) Sold with factory cord & plug for 120 Volt configuration. Optional user connection to a terminal block requiring L1, L2, N and ground to 120/208-240 VAC.
No airpot locator for this group . User selectable for optional, dual in-series heater configuration.
(3) 3 liters per batch.
UNIVERSAL VOLTAGE OPTIONS
Patents: 6,148,717 & 6,565,906 & 6,576,282. Other Patents pending.
Designs, materials, specifications, physical dimensions, firmware and software protocol for equipment or replacement parts are subject to review and change by FETCO without notice.

Water Connection Inlet
1/4” Male Flare Fitting
Minimum Flow Rate
11/2gpm [5.7 lpm]
Water Pressure
20-75 psig [138-517 kPa]
Height
273/4”
[71 cm]
Width
193/4”
[51 cm]
Depth
203/8”
[52 cm]
Empty Weight
47 lbs
[21 kg]
Filled Weight
92 lbs
[42 kg]
Combined Filled Weight
115 lbs [52 kg]
BREWER + 2 FILLED D063 DISPENSERS
Hot Water Tank Cap.
5.8 gal
[22.1 l]
Shipping Weight:
58 lbs
[26 kg]
Shipping Dimensions:
23”x 25” x 29”
[59 x 64 x 74 cm]
* Approximate based on
maximum power setting.
8oz.
12oz.
16oz.
20oz.
224
149
112
90
#D063
1G Thermal Pump
Lever Airpot
#F002
13” x 5”
Paper Coffee Filter
Product DIMS:
Height: 161/2”[47 cm]
Width: 7” [17.8 cm]
Depth: 9” [22.9 cm]
Weight:
Empty: 9 lbs [4.1 kg]
Filled: 13.3 lbs [6 kg]
SYMBOLS
Electrical Connector
On / Off Switch
Tank Drain
Water Inlet
3-3/16”
[8.1 cm]
11-3/8”
[29.0 cm]
19-3/4”
[50.2 cm]
20-5/16”
[51.6 cm]
1-1/16”
[2.6 cm]
4-13/16”
[12.2 cm]
7-1/2”
[19.1 cm]
27-11/16”
[70.4 cm]
14-3/4”
[37.5 cm]
SIDE VIEW BACK VIEWFRONT VIEW
#B012218B1
13” x 5”
Stainless Steel
#B014218BN2
13” x 5”
Plastic w/ Brown Insert
/
(1) Based on standard factory settings: 5.5 minute brew time; 0% prewet; 200°F water. 1 gallon per batch.
Plastic Brew Basket
Configuration Code
E213253
Heater
Configuration
2 x 3.0 kW
Voltage
200-240
Wires
2+G
Phase
1
Electrical
Connection
Hardwired
KW
4.2-6.1
Max Amp Draw
21.3-25.5
Gallon [Liter] /
Hour
14.0 [53](1)
Stainless Steel
Brew Basket
Configuration Code
E213253M

fetco.com 847.719.3000
1.800.338.2699 USA
847.719.3001
Food Equipment Technologies Co.
600 Rose Road
Lake Zurich, IL 60047
USA
© Copyright 2014 FETCO®, Driven to Innovation™
is a mark of Food Equipment Technologies Company.
Features &Benefits
Feature
1
1
3
4
5
6
2
3
4
5
6
Allows for quick and easy access to brew controls.
Automatically discontinues operation of brew cycle
if basket is removed.
Mixed material is attractive and comfortable
in any front-of-house setting.
Safely dispenses hot water away from steam
and brew basket.
Withstands the harshest foodservice environments
and is durable and easy to clean.
Helps position airpot directly under brew basket drip
hole for spill free brewing.
Benefit
Touchscreen Interface
Brew Basket Sensors
Mixed Material Construction
Manual Water Faucet
Stainless Steel Finish
Fixed Dispenser Guide
2
Dispensers sold separately.
SS14010
