FETtec 4in1 ESC 65A User manual

Page 1
FETtec 4in1 ESC 65A
Manual

Page 2
Introduction..................................................................................................................................3
Features.......................................................................................................................................3
Safety warning .............................................................................................................................3
Connection Diagram ....................................................................................................................4
Layout Top................................................................................................................................4
Layout Bottom ..........................................................................................................................5
Connection to FC.........................................................................................................................6
4 - 6S........................................................................................................................................6
8S.............................................................................................................................................6
FETtec FC................................................................................................................................7
Betaflight FC.............................................................................................................................8
Connection............................................................................................................................8
Configuration ........................................................................................................................8
FETtec Configurator.....................................................................................................................9
Settings ....................................................................................................................................9
Dimension (in mm).....................................................................................................................11

Page 3
Introduction
Thank you for purchasing the FETtec 4in1 ESC 65A.
Features
•Active current limiting @ 65A
•Input voltage: 3S-8S
•High quality 40V MOSFETs
•STM32G071 @ 64MHz
•128 kHz Motor PWM
•Automatic input signal detection
◦Dshot 300-2400
◦PWM
◦OneShot 42/125
◦Onewire
◦S2M
•KISS FC Passthrough
•Betaflight Passthrough
Safety warning
•Remove propeller before flashing and configuration!
•The ESC can heat up to 100°C and more
•Please ensure that there is enough space and airflow to prevent any damage because of
overheating
•Please check periodically for firmware updates in the FETtec Configurator
•Do not file the mounting holes as this may cause damage

Page 4
Connection Diagram
Layout Top

Page 5
Layout Bottom
TLM - Telemetry (Serial)
GND - Reference Signal Ground
Bat+ - Battery+

Page 6
Connection to FC
4 - 6S
For usage an additional capacitor with the following specification is required.
Minimum 470uF
50V
ESR < 1ohm
We recommend to use the provided capacitor which comes with the ESC.
Note: A bigger cap with only 35V might not suffice.
8S
Its necessary to use the cap
The used FC must be able to run on 8s. The FETtec FCs need an extra BEC

Page 7

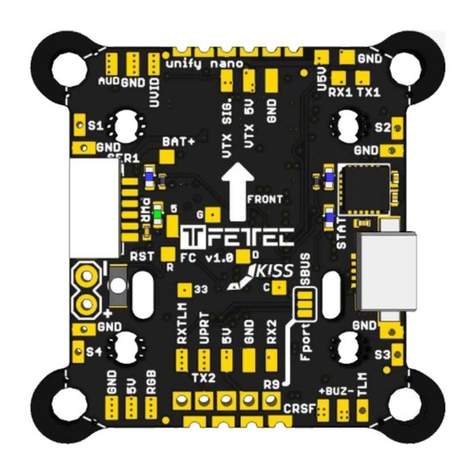

FETtec FC
Use the 8pin cable which comes with the FETtec 4in1 ESC 65Ato connect it to the FETtec FC
(It is possible to use 2 ESCs for a build with more than 4 motors.
If you only use 4 motors, please use the connector 1)

Page 8
Betaflight FC
Connection
Signal 1 - 4 have to be connected to the corresponding FC Motor outputs.
The TLM wire has to be connected to an available serial TX pin.
Configuration
In order to utilize ESC provided current and voltage sensor the following settings need to be
applied to Betaflight. (Feature, motor protocol and meter can be configured through the GUI
itself). In addition, the correct serial port need to be selected and assigned to ESC sensor.
feature ESC_SENSOR
set motor_pwm_protocol = DSHOT600
set current_meter = ESC
set battery_meter = ESC
set esc_sensor_halfduplex = ON

Page 9
FETtec Configurator
Please update your ESC periodically with the current Firmware version.
The ESC configuration tool is available at https://gui.fettec.net/ESC/index.html
The ESC firmware is available in remote or for download at https://github.com/FETtec/ESC-
Firmware
FC passthrough is available for the following platforms:
•KISS FC –Firmware 1.3-RC36j (or higher)
•Betaflight 4.1 firmware (Minimum requirement for Onewire is STM32F4)
Settings
Mainpage to connect to the ESC. Please select correct connectivity type and serial/COM port.
The Overview page allows to flash individual ESCs

Page 10
The Setting page allows to adjust all available ESC parameter
- Reverse rotation direction
- Slow start
- 3D mode
- PWM min & max signal
- ESC Beep enabled
- Current calibration
- Individual ESC ID (for use on onewire protocol)
In Telemetry page you can spin the motors, view and debug the Motor telemetry.

Page 11
Dimension (in mm)
Maximum outside dimensions: 38 x 48mm
Mounting hole arrangement: 30,5 x 30,5mm with M3 mounting hole (expandable to M4)
Weight: 13,6g
You can use a screw driver and force it into M4 by rotating it inside the hole carefully.
Do not file the mounting holes as this may cause damage!
