OPERATING INSTRUCTIONSELECTRIC MOWER GARDEN
ENContents
Electric Mower Garden
INSTRUCTION MANUAL
Thank you for your purchase of the electric mower garden. For your personal
safety, read and understand the Instruction Manual before using. Keep the Instruction
Manual in a safe place for future reference.
CONTENTS
PICTORIAL APPENDIX .................................................................................................................... 3
GENERAL SAFETY INSTRUCTIONS ............................................................................................. 8
Important Safety Instructions
Package
Instruction Manual
SYMBOLS .............................................................................................................................................. 9
MACHINE DESCRIPTION AND ITEMS DELIVERED ........................................................... 10
SAFETY INSTRUCTIONS ................................................................................................................. 11
PURPOSE OF USE ........................................................................................................................... 13
ASSEMBLY .......................................................................................................................................... 13
GRASSBOX ASSEMBLY ................................................................................................................. 14
CUTTING HEIGHT ADJUSTMENT .............................................................................................. 14
STARTING AND STOPPING ......................................................................................................... 15
MOWING ........................................................................................................................................... 15
MAINTENANCE ............................................................................................................................... 16
STORAGE ........................................................................................................................................... 16
TROUBLE-SHOOTING .................................................................................................................... 17
WARRANTY ....................................................................................................................................... 18
DECLARATION OF CONFORMIT ............................................................................................ 20
TECHNICAL SPECIFICATIONS ................................................................................................... 21
DISPOSAL .......................................................................................................................................... 22
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.

FZR 2002-E
8EN
General safety instructions
1. GENERAL SAFETY INSTRUCTIONS
Important safety warnings
Unpack the product carefully and be sure not to throw away any part of the package before
having found all components of the product.
Keep the product in a dry place out of reach of children.
Read all cautions and instructions. The failure to adhere to warning cautions and instructions
may result in an accident, fire and/or a serious injury.
Packaging
The product is placed in a package preventing damage during transport. This package is a raw
material therefore it can be handed-over for recycling.
Instructions for use
Before beginning to work with the machine, read the following safety rules and instructions for
use. Familiarize with operating elements and the proper use of the device. Keep the manual in a
safe place for future reference. We recommend keeping the original package including the inner
packaging materials, cash voucher and guarantee card for a period of warranty at minimum.
For a case of transportation, pack the machine into the original box from the manufacturer,
thus ensuring a maximum protection of the product during a possible transport (e.g. moving or
sending into a service station).
Note: If you hand the machine over to next persons, hand it over together with the manual.
Adherence to the attached instructions for use is a precondition for the proper use of the
machine. The operation manual includes also instructions for operation, maintenance and
repairs.
The manufacturer does not take any responsibility for accidents or damages
resulting from the failure to adhere to this manual.

9
OPERATING INSTRUCTIONSELECTRIC MOWER GARDEN
EN
Symbols
2. SYMBOLS
Read the operating instructions before using this
machine.
Keep bystanders away.
Beware of sharp blades. Blades continue to
rotate even after the engine has been switched
off. Before maintenance or if the cable is
damaged, unplug the machine from the mains.
Keep the power supply cable away from the
blades.
Blades continue to rotate even after the machine
has been switched off. Before any contact with
all parts of the machine, wait until the machine
has fully stopped.
Do not mow when it is raining and do not leave
the lawnmower in the open when it is raining.

FZR 2002-E
10EN
Machine description and items delivered | Safety instructions
3. MACHINE DESCRIPTION AND ITEMS
DELIVERED
Machine Description (See fig. 1)
Switch lever
Safety switch
Supply cable holder
Handle locking nut
Washer
Handle locking bolt
Lower part of the handle construction
Discharge chute cover
Upper part of the handle construction
Grassbox
Safety cable grip
Engine casing
Wheel
Lawnmower chassis
Central cutting height adjustment lever
1 -
2 -
3 -
4 -
5 -
6 -
7 -
8 -
9 -
10 -
11 -
12 -
13 -
14 -
15 -
Items Delivered
Carefully remove the machine from the packaging and check if you have all the following parts:
Lawnmower with a set of handles
2 lower parts of the handles
2 handle locking bolts
4 handle locking nuts
1 collecting box handle
1 right-hand part of the collecting box
1 left-hand part of the collecting box
1 top cover of the collecting box
1 collecting box flap
2 cable clips
1 supply cable holder

11
OPERATING INSTRUCTIONSELECTRIC MOWER GARDEN
EN
Safety instructions
4. SAFETY INSTRUCTIONS
WARNING! Please read these instructions carefully before operating the lawnmower.
Familiarize yourself with the machine’s controls and us it correctly. By following these
instructions, you can reduce the risk of fire, electric shock and personal injury.
Keep these instructions for future reference.
Incorrect use of this lawnmower could be dangerous!
The lawnmower could inflict serious injury to operating personnel and other persons and
in order to ensure reasonable safety and efficiency during its use, it is necessary to observe
the warnings and safety instructions.
The operating personnel are responsible for observance of the warnings and safety
instructions in this manual and upon the lawnmower.
Never use the lawnmower without the grassbox and safety guards correctly installed.
Advice
Read the instructions carefully. Be familiar with the controls and the proper use of the
machine.
Never allow children or people unfamiliar with these instructions to use the lawnmower. Local
regulations can restrict the age of the operator.
Never mow while people, especially children, or pets are nearby.
Keep in mind that the operator or user is responsible for accidents or hazards occurring to
other people or their property.
Preparation
While mowing, always wear sturdy footwear and long trousers. Do not operate the equipment
when barefoot or wearing open sandals.
Thoroughly inspect the area where the equipment is to be used and remove all objects which
can be thrown by the machine.
WARNING! Before using, always visually inspect to see that the blades, blade bolts and
cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in
sets to preserve balance.
Operation
Do not operate the machine in a confined space where dangerous carbon monoxide fumes
can collect;
Mow only in daylight or in good artificial light;
Avoid operating the lawnmower in wet grass, where feasible;
Always be sure of your footing on slopes;
Walk, never run;

FZR 2002-E
12EN
Safety instructions
For wheeled rotary machines, mow across the face of slopes, never up and down;
Exercise extreme caution when changing direction on slopes;
Never mow on excessively steep slopes;
Use extreme caution when reversing or pulling the machine towards you;
Stop the blade(s) if the lawnmower has to be tilted for transportation when crossing surfaces
other than grass, and when transporting the lawnmower to and from the area to be mowed;
Never operate the machine with defective guards, or without safety devices, for example
deflectors and/or grasscatchers, in place;
Start the engine carefully according to instructions and with feet well away from the blade(s);
Do not tilt the lawnmower when starting the engine except if the lawnmower has to be tilted
to start. In this case, do not tilt it more than absolutely necessary and lift only the part which is
further away from the operator;
Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at
all times;
Never pick up or carry the lawnmower while the engine is running;
Stop the engine before clearing blockages or unclogging the chute;
- before checking, cleaning, or working on the lawnmower;
- after striking a foreign object inspect the lawnmower for damage and make repairs before
restarting and operating the lawnmower;
- if the machine starts to vibrate abnormally (check immediately);
always stop the engine whenever you leave the lawnmower;
Maintenance and Storage
keep all nuts, bolts and screws tight to be sure the equipment is in good working condition;
check the grasscatcher frequently for wear and deterioration;
replace worn or damaged parts for safety;
before storing the lawnmower, clean it from grass residuals
Safety Warnings for Lawnmower Operation
Do not use the lawnmower if the cables are damaged or worn-out.
Do not connect damaged cable to the power supply and do not touch the damaged cabl
until disconnected from the power supply. Damaged cord could cause contact with energized
parts.
Do not touch the blades until the equipment is disconnected from the power supply and the
blades have completely stopped.
Keep the extension cables in safe distance from the blades. Blades could damage the cables
and cause contact with energized parts.
Disconnect the power supply (i.e. by unplugging the plug from the socket)
whenever you leave the machine unattended,
before deblocking,

13
OPERATING INSTRUCTIONSELECTRIC MOWER GARDEN
EN
Safety instructions | Purpose of use | Assembly
before checking, cleaning, or handling of the lawnmower;
after hitting a foreign object,
whenever the machine starts to vibrate abnormally
Read the safety machine operation instructions carefully.
Connect the machine only to supply circuit protected by a residual-current device (RCD with
leakage current of no more than 30 mA).
If the power cord is damaged, it must be replaced by a special cord or set available from the
manufacturer or the manufacturer’s service representative.
This equipment is not intended for use by persons (including children) with
limited physical, sensual or mental capacities or lack of experience or knowledge unless they
supervised or instructed by a person responsible for their safety.
Children must be supervised to ensure they do not play with the equipment.
5 .PURPOSE OF USE
THIS LAWNMOWER IS INTENDED FOR USE IN PRIVATE GARDENS.
Lawnmowers for use in private gardens are machines whose scope of use during the year
does not generally exceed 50 hours and which are primarily used for treating GRASSED
AREAS OR LAWNS but not public zones, parks or sporting grounds and which are intended
for use in agriculture or forestry. An essential precondition for the use of the lawnmower is
compliance with the operating manual supplied by the manufacturer. The operating manual
includes instructions concerning service and maintenance, as well as instructions for use.
WARNING! The lawnmower must not be used for trimming bushes, hedges and shrubs, for
cutting and pruning of climbers or grass on roofs or in balcony boxes or to clean footpaths,
nor must it be used as a chopper for shredding tree or hedge cuttings.
In addition, this lawnmower must not be used as a cultivator or for levelling irregularities in
the soil, e.g. molehills.
6. ASSEMBLY
This manual provides instructions for proper assembly and safe operation of your machine. It
is important that you read these instructions carefully. After complete assembly, the weight of
the machine is approx. 11 kg. If necessary, ask for assistance in removing the machine from the
packaging. Be careful in transporting the lawnmower to the lawn because the blades are sharp.
WARNING! Before the lawnmower assembly, check the accessories according to the
above information and make sure that all components are complete.

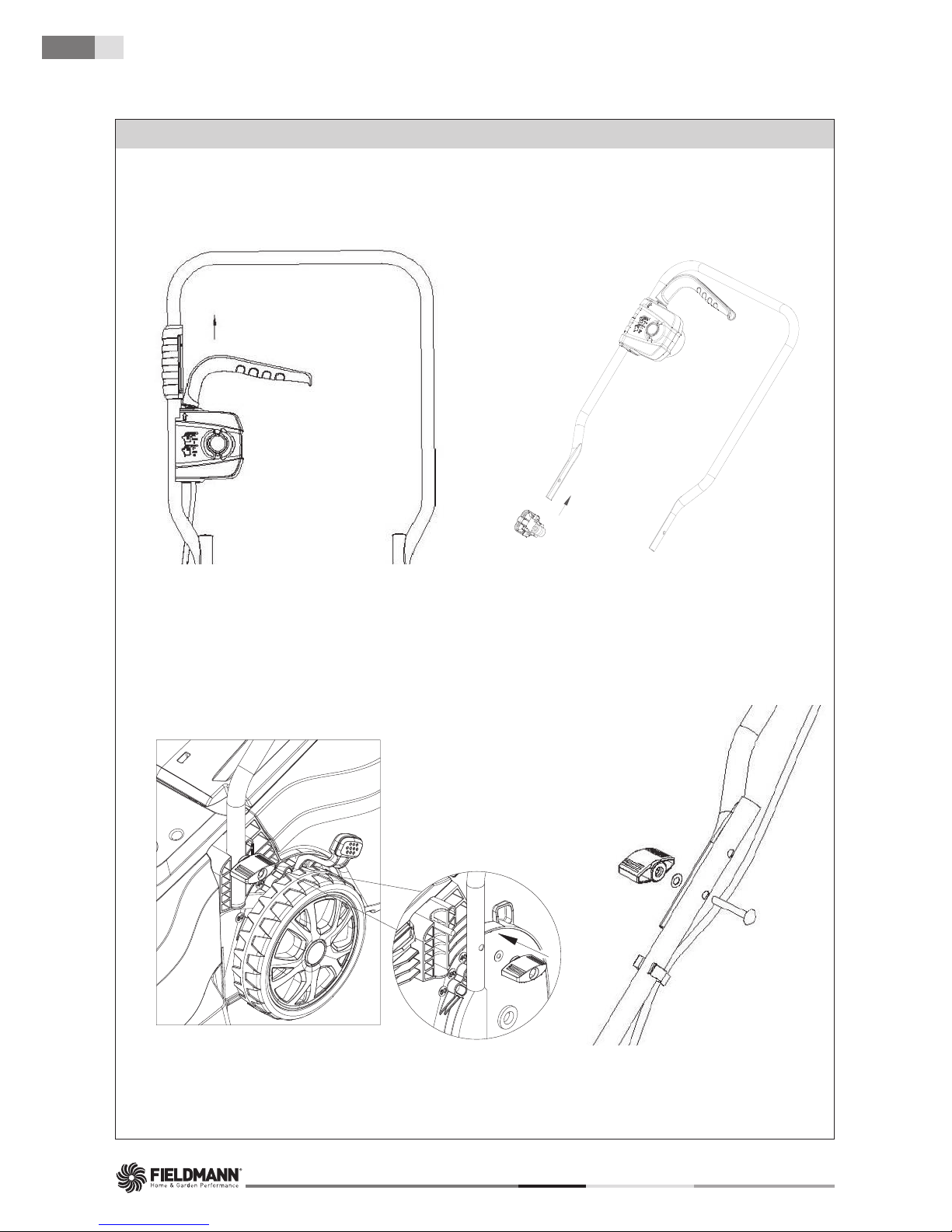

Attach the switch box to the upper part of the handle (A1)
Attach the supply cable holder 3 to the upper handle 9 (A2)

FZR 2002-E
14EN
Assembly | Grassbox assembly | Cutting height adjustment
Attach the lower handles 7 to the pre-arranged locations on the lawnmover chassis and
secure them with the nut and washer 4+5 (A3)
Attach the upper part of the handle using the bolt, washer and nut 4+5+6. The handle is
height adjustable in two positions I and II (A4)
Note: Make sure that the cable clips 11 are used for attaching the cable to the handle.
Note: Attach the cable to the cable knee piece 3 to ensure that the cable is sufficiently
loose. (Does not apply to UK models)
Note: Make sure the cables are not entrapped during folding/unfolding the upper handles.
Do not let the handles fall down.

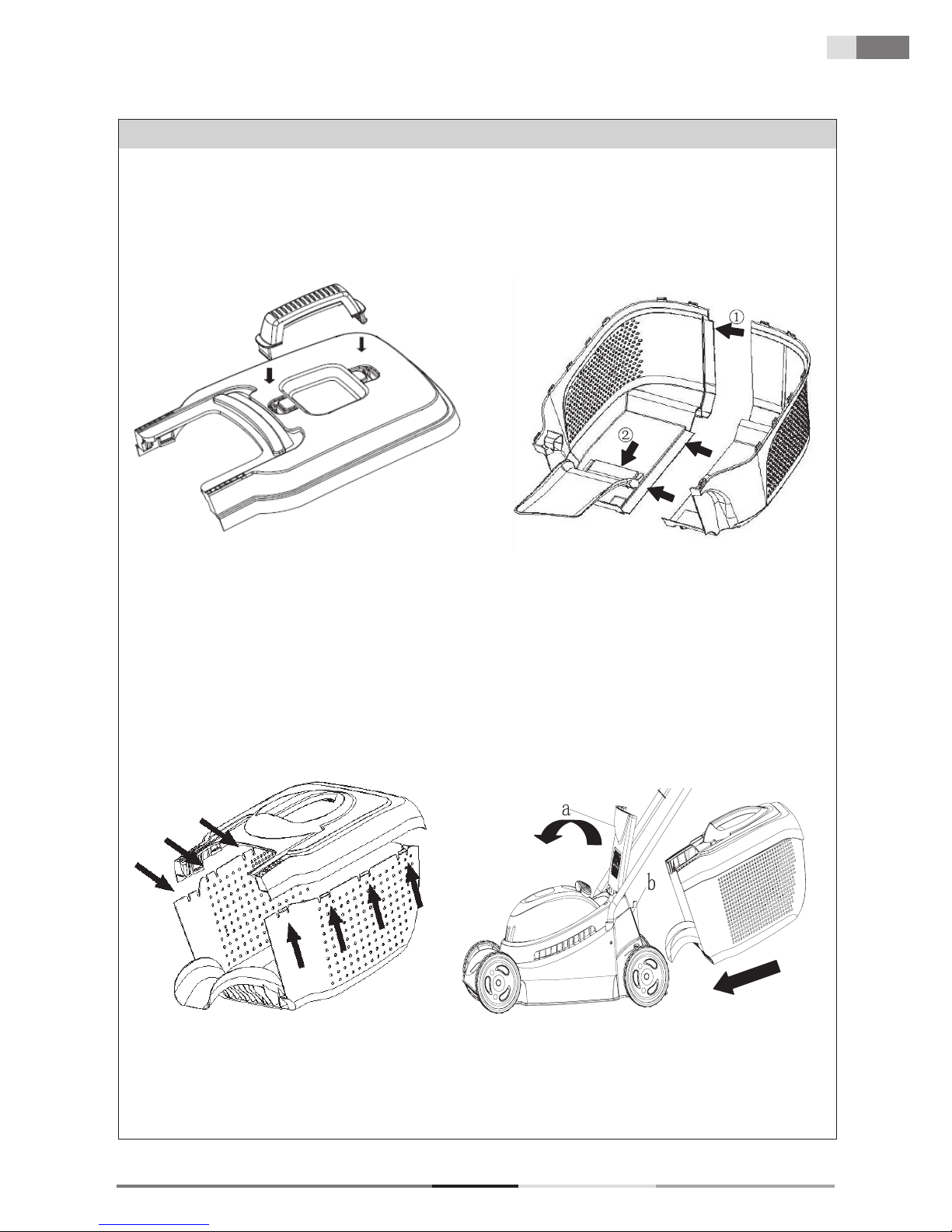

7. GRASSBOX ASSEMBLY
Mount the handle to the upper cover of the catcher (B1)
Connect the left and right part of the box and attch the flap to the opening of the lower part of
the box(B2)
Using clips, attach the upper part of the grassbox to the lower part, beginning from the rear
part. All clips must be correctly located. (B3)
Fitting fully assembled grassbox to the lawnmower (B4)
Lift the safety guard (B4-a)
Make sure that the discharge chute is clean and free of any debris
Attach the fully assembled grassbox 10 to locations in the rear parts of the platform as shown
in the picture (B4-b)
Attach the safety flap onto the top of the grassbox. Make sure that the grassbox is easily
attachable.
Note: If no grass collection is required, the lawnmower can be used without the grassbox
attached, with the safety guard 8 in the down position.
8. CUTTING HEIGHT ADJUSTMENT
Note: Before adjusting the height, release the switch lever 10 and wait till the engine stops.
The blades continue to rotate for a few seconds even after the machine has been switched
off and the rotating blade can cause injuries.

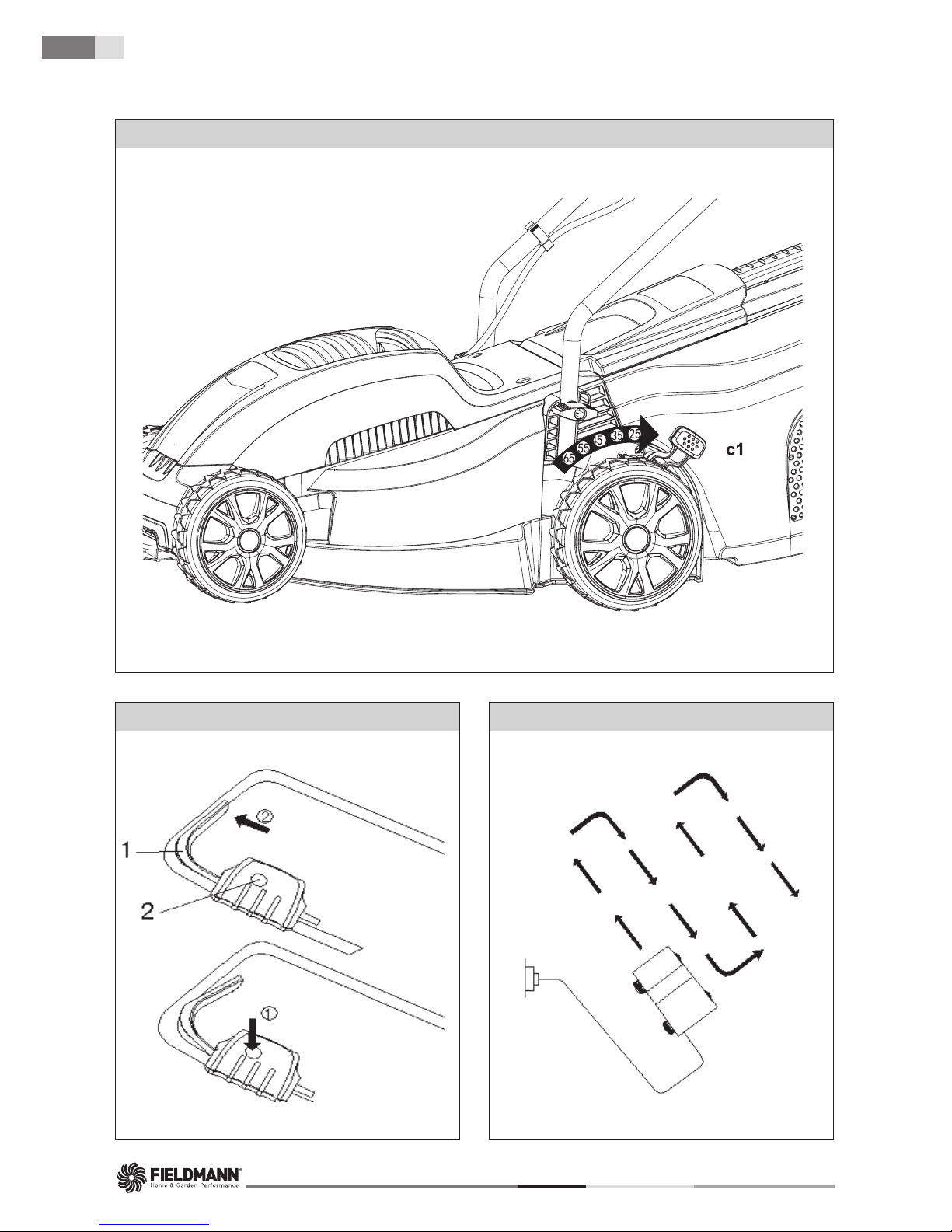

The cutting height can be adjusted by raising or lowering the front and rear wheels using the
small lever c1. To adjust, pull the small lever back towards you first.
This product allows for adjustment of 5 cutting heights.

15
OPERATING INSTRUCTIONSELECTRIC MOWER GARDEN
EN
Cutting height adjustment | Starting and stopping | Mowing
VÝŠKA SEKÁNÍ POLOHA KOLEČEK
Low 25mm
Low to medium 35mm
Medium 45mm
Medium to high 55mm
High 65mm
Note: PFor most lawns, medium cutting height is recommended. If you mow with too small
height, the cutting quality will be worse, the grass collection will be poor and the lawn can be
damaged
9. STARTING AND STOPPING
WARNING! Pake sure the blade stopped rotating before switching “on” again. Do not
rapidly switch on and off.
Starting
Press and hold the safety button 2
Press the switch lever 1 down towards the handle
Release the safety button 2
Stopping
Release the switch lever 1
10. MOWING
For cutting convenience, it may be best to start mowing at a point close to the power supply
and to work your way away from the supply. Mow the lawn at a right angle from the power
supply and place the power cable to side which has already been cut (E).
WARNING! When mowing do not allow the motor to labour in particularly heavy
conditions. When the motor labours the speed of the motor drops and you will hear a change
in the engine sound; when this occurs stop mowing, release the switch lever and raise the
cutting height. Failure to do so could damage the machine.

FZR 2002-E
16EN
Mowing | Maintenance | Storage
Note: The engine is protected by a safety cut out which is activated when the blade
becomes jammed or if the engine is overloaded. When this occurs, stop the machine and
remove the plug from the power supply. The safety cut out will only reset when the switch
lever 1 is released. Before continuing to mow, clear any obstructions and wait for a few
minutes for the safety cut out to reset. During this time do not operate the switch lever 1 as
this will prolong the time to reset the safety cut out. If the mower restarts, increase the cutting
height to reduce the load of the engine.
11. MAINTENANCE
WARNING! Before removing the grassbox, stop the lawnmower and unplug it from the
power supply.
Note: AIn order to ensure long and reliable operation of the lawnmower, carry out the
following maintenance tasks on regular basis. Check the machine for visible failures such
as loose, displaced or damaged blade, loose parts and worn-out or damaged parts. Check
whether all covers and guards are undamaged and correctly attached to the lawnmower.
Before using the lawnmower, carry out any necessary maintenance and repairs.
WARNING! For blade replacement, use the services of a professional maintenance firm.
WARNING! Never carry out any assembly operations or adjustments upon energized
lawnmower. Always make sure that the power button is in “Off” position and that the switch
box is disconnected from the power supply.
12. STORAGE
Thoroughly clean the outer surface of the machine using a soft brush and cloth. Do not use
water, solvents and polishing agents. Remove any grass and debris, particularly from the
vents.
Tilt the machine on the side and clean the blade area. If there is compacted grass in the blade
area, remove it using a wooden or plastic tool.
Store the machine in a dry place. Do not place any objects on top of the machine.
Unscrew the handle nuts 4 and fold the upper handles 9.
In folding/unfolding the upper handles, make sure that the cables are not entrapped or
tangled. Do not let the handles fall down.

17
OPERATING INSTRUCTIONSELECTRIC MOWER GARDEN
EN
Trouble-shooting
13. TROUBLE-SHOOTING
The following table presents the checks and operations you can carry out if your machine
does not work properly. If the problem is not identified/repaired, contact your service
representative.
WARNING! Before trouble shooting, switch off the equipment and unplug it from the mains.
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
Machine does not
work
Power supply is switched off
Defective power socket
Damaged extension cable
Defective/blown fuse
Lawnmower on long grass
Engine protection switch
activated
Safety mode activated
Switch on the power supply
Use another socket
Check the cable and, if damaged,
replace it
Remove the fuse
Raise the cutting height and tilt the
lawnmower
Let the engine cool down and raise
the cutting height
Let the engine cool down for a few
minutes and raise the cutting height
At this time do not operate the switch
lever 1 as this will prolong the time to
reset the safety cut out
The machine works
intermittently
Damaged extension cable
Damaged internal circuitry
of the machine
Engine protection switch
activated
Safety mode activated
Check the cable and, if damaged,
replace it
Contact your service representative
Let the engine cool down and raise
the cutting height. Let the engine cool
down for a few minutes and raise the
cutting height
At this time do not operate the switch
lever 1 as this will prolong the time to
reset the safety cut out

FZR 2002-E
18EN
Trouble-shooting | Warranty
The machine leaves
unmown remains
Too low cutting height
Blunt cutting blade
Bottom of the machine
is heavily fouled
Blade is mounted upside
down
Raise the cutting height (see Cutting
Height Adjustment)
Replace the blade
(see Blade Maintenance)
Clean the machine
(see Operations after Mowing/
Storage)
Mount the blade correctly
(see Blade Maintenance)
Cutting blade is not
rotating
Cutting blade is clogged
Loose nut/bolt of the blade
Unclog the blade Tighten the nut/
bolt of the blade
Excessive vibrations/
noise
Loose nut/bolt of the blade
Damaged cutting blade
Loosen the nut/bolt of the blade
Replace the blade
14. WARRANTY
For the purposes of this warranty, household usage means any use of the product within
a real property belonging to the purchaser and comprising part of the garden zone of his/her
residence.
The warranty period is 2 years for components and 2 years for work from the date of
purchase.
To carry out repair under this warranty
Bring the product to the authorized service representative
the dated purchase receipt
this warranty
Warranty is not valid if
IYou cannot present the dated purchase receipt.
IThe product was resold by the original purchaser
(this does not apply to the Republic of Ireland) or was used based on lease.
IThe product was modified to such an extent that the specification of the manufacturer has
been changed or non-original components have been used with the product.
IAny previous repair was carried by a person other than the authorised service representative.
IThe failure resulted from incorrect adjustment, incorrect use, negligence or accidental
damage.
IThe failure resulted from inadequate lubrication or maintenance.
IDamage to any part, especially the drive and cutting mechanism, resulted from an impact of
the product on solid objects.

19
OPERATING INSTRUCTIONSELECTRIC MOWER GARDEN
EN
Warranty
IThe failure of the product resulted from abnormal use.
IThe failure resulted from usual wear and tear.. The following parts are considered to be
expendable. Their lifetime depends on regular maintenance and thus are not usually covered
by the warranty:
- Blades
- Bearings
- Cables
IThe warranty does not cover the costs of routine maintenance of the product.
IIt is in your best interest to follow the operating instructions of your equipment because
proper care of your product should provide you with many years of excellent service.
IThis warranty in no way affects your statutory rights.

FZR 2002-E
20EN
Declaration of conformity
15. DECLARATION OF CONFORMITY
Product/Name: LAWN MOWER / FIELDMANN
Type/Model: FZR 2002-E ......................................................................................................... 230V, 1500W
The product complies with the following directives:
The Directive of the European Parliament and the Council No. 2006/95/EC dated
12 December 2006 on the harmonisation of the laws of Member States relating to electrical
equipment designed for use within certain voltage limits.
The Directive of the European Parliament and the Council No. 2004/108/EC dated
15 December 2004 on the harmonisation of the laws of the Member States relating to
electromagnetic compatibility and repealing Directive No. 89/336/EEC.
The Directive of the European Parliament and the Council No. 2006/42/EC dated
17 May 2006 on machinery, and amending Directive No. 95/16/EC.
The Directive of the European Parliament and the Council No. 2002/95/EC dated
27 January 2003 on the restriction of the use of certain hazardous substances in electrical
and electronic equipment.
and standards:
EN 60335-1:2002+A1:2004+A11:2004+A12:2006+A2:2006
EN 60335-2-77:2010
EN 62233:2008
EN 55014-1:2006
EN 55014-2:1997+A1+A2
EN 61000-3-2:2006
EN 61000-3-3:2008
EN ISO 3744:1995
ISO 11094:1991
CE Certification: ............................................................................................................................................... 13
FAST ČR, a.s. is authorised to act on behalf of the manufacturer.
Manufacturer:
FAST ČR, a.s.
Černokostelecká 2111, 100 00 Praha 10, Česká republika
Tax ID:: CZ26726548
In Prague, 14.11. 2013
Name: Zdeněk Pech
Chairman of Board Signature and stamps:
