Fieldpiece
Static Pressure Probes
Model: ASP2
OPERATOR’S MANUAL
Description
Use your ASP2 Static Pressure Probes to meas-
ure duct static pressure the right way. Slide your
ASP2 into the rubber hose of Fieldpiece models
AMN2, ADMN2, SDMN5, or any manometer with
appropriate sized ports, to greatly improve accura-
cy over using the hose alone. Designed for HVAC/R
techs, the magnetic flange and painted arrow
ensure proper orientation and allow hands free use.
How to use
1. Slide the rubber hose coming from the pressure
port of your manometer into the bottom (barbed
end) of the ASP2.
2. Zero your manometer to ambient pressure.
3. Drill a 1/4” (0.7cm) hole in the duct to insert the
ASP2. (Avoid insertion near bends/elbows in
duct work.)
5. Insert the ASP2 and use the arrow on the base
to align the arm so it points directly into the air
stream. Place the magnetic base of the probe
flush with the side of the duct to ensure the
probe is pointing parallel to the air stream.
6. Read static pressure from manometer.
7. Remove probe and plug any holes.
Two ASP2s in use with a Fieldpiece SDMN5 to
measure static pressure across a blower. Arrows
show direction of air flow.
Warning
Sealing holes is essential to maintaining
the effectiveness of an HVAC/R system.
Leaving open holes in flues or other exhaust
ventilation decreases preformance and
could present hazardous situations to occu-
pants.
!
!
Caution
Holes should not be made near vital parts
of any HVAC/R System, such as evaporator
coils, combustion chambers or heat
exchangers.
!
!
PRESSFOR 1 SECOND
AUTO-OFF BATTERY
CHECK
Fieldpiece
Static Pressure Probes
Model: ASP2
OPERATOR’S MANUAL
Description
Use your ASP2 Static Pressure Probes to meas-
ure duct static pressure the right way. Slide your
ASP2 into the rubber hose of Fieldpiece models
AMN2, ADMN2, SDMN5, or any manometer with
appropriate sized ports, to greatly improve accura-
cy over using the hose alone. Designed for HVAC/R
techs, the magnetic flange and painted arrow
ensure proper orientation and allow hands free use.
How to use
1. Slide the rubber hose coming from the pressure
port of your manometer into the bottom (barbed
end) of the ASP2.
2. Zero your manometer to ambient pressure.
3. Drill a 1/4” (0.7cm) hole in the duct to insert the
ASP2. (Avoid insertion near bends/elbows in
duct work.)
5. Insert the ASP2 and use the arrow on the base
to align the arm so it points directly into the air
stream. Place the magnetic base of the probe
flush with the side of the duct to ensure the
probe is pointing parallel to the air stream.
6. Read static pressure from manometer.
7. Remove probe and plug any holes.
Two ASP2s in use with a Fieldpiece SDMN5 to
measure static pressure across a blower. Arrows
show direction of air flow.
Warning
Sealing holes is essential to maintaining
the effectiveness of an HVAC/R system.
Leaving open holes in flues or other exhaust
ventilation decreases preformance and
could present hazardous situations to occu-
pants.
!
!
Caution
Holes should not be made near vital parts
of any HVAC/R System, such as evaporator
coils, combustion chambers or heat
exchangers.
!
!
PRESSFOR 1 SECOND
AUTO-OFF BATTERY
CHECK
Service
Return any defective ASP2 to Fieldpiece for war-
ranty service along with proof of purchase. Contact
Fieldpiece for out of warranty repair charges.
One year limited warranty
This accessory is warranted to the original pur-
chaser against defects in material and workman-
ship for a period of one year from the date of pur-
chase. During the warranty period, Fieldpiece will
replace or repair the defective unit, subject to verifi-
cation of the defect.
Any damage to the instrument from dirt, mechan-
ical abuse, or overexposure to damaging chemi-
cals, are not covered under this warranty. Also not
covered are defects resulting from abuse, neglect,
accident, unauthorized repair, alteration, or unrea-
sonable use.
Any implied warranties arising out of the sale of a
Fieldpiece Instrument, including but not limited to
implied warranties of merchantability and fitness for
a particular purpose, are limited to the above.
Fieldpiece shall not be liable for loss of use of the
instrument or other incidental or consequential
damages, expenses, or economic loss, or for any
claim or claims for such damage, expense, or eco-
nomic loss.
Local laws vary. Above limitations or exclusions
may not apply to you. This warranty gives you spe-
cific legal rights, and you may also have other rights
which vary by location.
Compatible instruments
Fieldpiece SDMN5

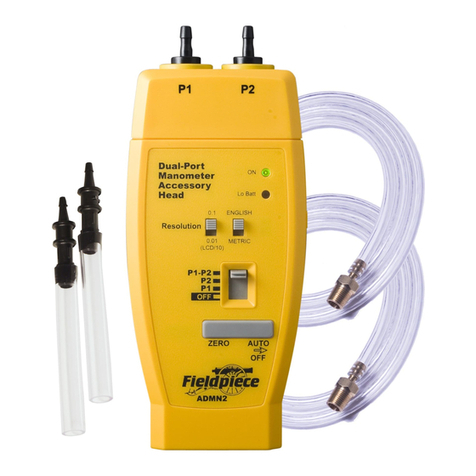

ADMN2 accessory head AMN2 accessory head
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
P1
P1
P2 ZERO
HOLD UNIT
ON/OFF
P2
88.88
88.88
APO
88.88
88.88
inWC
mmWC
mbar
psi
HOLD
PRESS FOR 1 SECOND
AUTO-OFF BATTERY
CHECK
v07
OFF
2000
ADMN2
Dual-Port
Manometer
Accessory
Head
P1
P2
P1-P2
ON
0.1 ENGLISH
METRIC
0.01
(LCD/10)
Lo Batt
Resolution
ZERO AUTO
OFF
P1 P2
ADMN2
Dual-Port
Manometer
Accessory
Head
P1
P2
P1-P2
ON
0.1 ENGLISH
METRIC
0.01
(LCD/10)
Lo Batt
Resolution
ZERO AUTO
OFF
P1 P2
ADMN2
Dual-Port
Manometer
Accessory
Head
P1
P2
P1-P2
ON
0.1 ENGLISH
METRIC
0.01
(LCD/10)
Lo Batt
Resolution
ZERO AUTO
OFF
P1 P2
ADMN2
Dual-Port
Manometer
Accessory
Head
P1
P2
P1-P2
ON
0.1 ENGLISH
METRIC
0.01
(LCD/10)
Lo Batt
Resolution
ZERO AUTO
OFF
P1 P2
AMN2
Manometer
Accessory
Head
ON
0.1
AUTO OFF
Converts
1” water
column to
1mVDC or
10mVDC
(selectable).
0.01
(LCD/10)
LO BATT
Resolution ON
Zero
Set
OFF
AMN2
Manometer
Accessory
Head
ON
0.1
AUTO OFF
Converts
1” water
column to
1mVDC or
10mVDC
(selectable).
0.01
(LCD/10)
LO BATT
Resolution ON
Zero
Set
OFF
AMN2
Manometer
Accessory
Head
ON
0.1
AUTO OFF
Converts
1” water
column to
1mVDC or
10mVDC
(selectable).
0.01
(LCD/10)
LO BATT
Resoluti on ON
Zero
Set
OFF
Service
Return any defective ASP2 to Fieldpiece for war-
ranty service along with proof of purchase. Contact
Fieldpiece for out of warranty repair charges.
One year limited warranty
This accessory is warranted to the original pur-
chaser against defects in material and workman-
ship for a period of one year from the date of pur-
chase. During the warranty period, Fieldpiece will
replace or repair the defective unit, subject to verifi-
cation of the defect.
Any damage to the instrument from dirt, mechan-
ical abuse, or overexposure to damaging chemi-
cals, are not covered under this warranty. Also not
covered are defects resulting from abuse, neglect,
accident, unauthorized repair, alteration, or unrea-
sonable use.
Any implied warranties arising out of the sale of a
Fieldpiece Instrument, including but not limited to
implied warranties of merchantability and fitness for
a particular purpose, are limited to the above.
Fieldpiece shall not be liable for loss of use of the
instrument or other incidental or consequential
damages, expenses, or economic loss, or for any
claim or claims for such damage, expense, or eco-
nomic loss.
Local laws vary. Above limitations or exclusions
may not apply to you. This warranty gives you spe-
cific legal rights, and you may also have other rights
which vary by location.
Compatible instruments
Fieldpiece SDMN5
ADMN2 accessory head AMN2 accessory head
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
T2
P1
P1
P2 ZERO
HOLD UNIT
ON/OFF
P2
88.88
88.88
APO
88.88
88.88
inWC
mmWC
mbar
psi
HOLD
PRESS FOR 1 SECOND
AUTO-OFF BATTERY
CHECK
v07
OFF
2000
ADMN2
Dual-Port
Manometer
Accessory
Head
P1
P2
P1-P2
ON
0.1 ENGLISH
METRIC
0.01
(LCD/10)
Lo Batt
Resolution
ZERO AUTO
OFF
P1 P2
ADMN2
Dual-Port
Manometer
Accessory
Head
P1
P2
P1-P2
ON
0.1 ENGLISH
METRIC
0.01
(LCD/10)
Lo Batt
Resolution
ZERO AUTO
OFF
P1 P2
ADMN2
Dual-Port
Manometer
Accessory
Head
P1
P2
P1-P2
ON
0.1 ENGLISH
METRIC
0.01
(LCD/10)
Lo Batt
Resolution
ZERO AUTO
OFF
P1 P2
ADMN2
Dual-Port
Manometer
Accessory
Head
P1
P2
P1-P2
ON
0.1 ENGLISH
METRIC
0.01
(LCD/10)
Lo Batt
Resolution
ZERO AUTO
OFF
P1 P2
AMN2
Manometer
Accessory
Head
ON
0.1
AUTO OFF
Converts
1” water
column to
1mVDC or
10mVDC
(selectable).
0.01
(LCD/10)
LO BATT
Resolution ON
Zero
Set
OFF
AMN2
Manometer
Accessory
Head
ON
0.1
AUTO OFF
Converts
1” water
column to
1mVDC or
10mVDC
(selectable).
0.01
(LCD/10)
LO BATT
Resolution ON
Zero
Set
OFF
AMN2
Manometer
Accessory
Head
ON
0.1
AUTO OFF
Converts
1” water
column to
1mVDC or
10mVDC
(selectable).
0.01
(LCD/10)
LO BATT
Resoluti on ON
Zero
Set
OFF
