Fieryred WIN13000-ROPE User manual

WIN13000-ROPE / WIN13000-ROPE-UFA
Please read this guide carefully before installation
USER MANUAL
ELECTRIC WINCH

Fieryred, founded in March, 2016 and born of the passion to fulfill four-wheel drive lovers' demand
for affordable, yet high quality 4x4 equipment, takes prides in designing, engineering and providing
rock solid 4x4 products to let you rediscover the fun of off-roading.
Based in the United States, Fieryred is a professional supplier of 4x4 equipment, currently provides
off-road recovery gears & tools as well as aftermarket vehicle parts that are designed to offer you
ultimate experience with exceptional value.
It is the passion, coupled with a continuing commitment to quality and unswerving dedication to
customer, that distinguishes Fieryred from the competition. At Fieryred, we strive to excel your
expectation, and permeate that conviction into every product that wears the Fieryred brand.
Wherever your passion takes you, Make Your Own Path.

General Safety:
Always keep hands, clothing, and jewelry away from the fairlead while spooling onto the drum.
Never operate this winch when under the influence of drugs, alcohol or medication.
After moving an item with the winch, secure the item. Do not rely on the winch to hold it for an
extended period.
Never use your winch to secure a load.
Never use winch or winch rope for towing.
This winch is designed only for pulling along a horizontal surface not for lifting a load under any
circumstances.
Never use inappropriate attachments to extend the length of the winch cable.
Please move the protective sleeve to part of the rope that might hit rough surfaces or sharp edges.
Please note that 5-6 layers of synthetic rope should be remained on the drum.
Be aware that the wireless remotes are not waterproof.
To avoid accidental activation, please do not put your wireless remote in the pocket during winching.
Never leave the winch remote control plugged in when installing, freespooling, servicing or when the
winch is not being used.
Never leave the remote control at a location where it can be activated accidentally.
Examine before use. Components may be affected by exposure to everyday weathering chemicals,
salts and rust. Replace any parts needed before using winch.
Please exercise proper inspection, cleaning and maintenance on a regular basis to prolong the life of
your synthetic winch rope.
Please read all instructions and warnings before operation. Improper equipment operation may
result in fire, injury, serious damage or even death. The instructions in this manual cannot cover all
possible winching situations that could occur. It is highly recommended that the winch be used in a
safe and responsible manner.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
WARNING

Winching Safety:
WARNING
Observe your winch while winching, while standing at a safe distance.
Never attempt to exceed the pulling limits of this winch.
Never engage or disengage the clutch control when: your winch has a load on it; the winch line is
under tension; or the drum is moving.
Always ensure the clutch is fully engaged or disengaged. Failure to do so will significantly reduce
winching capacity.
Always free spool the winch line from the drum instead of powering out them.
Never cross over or under the synthetic rope while it is in process of loading.
During winch pulls, you are required to run your engine and at the same time check the voltage gauge
of your vehicle.
When pulling a stuck vehicle, please put your vehicle in neutral.
Never operate the winch at an angle of more than 15°, because angles greater than this will deform or
damage parts of the winch.
It is recommended to watch drum for excessive winch line build-up, especially during angled pulls.
Because the build-up is likely to cause damage to both the winch and the winch line.
Always keep the synthetic rope from sharp objects.
If the motor becomes uncomfortably hot to touch, stop winching immediately and let it cool down for a
few minutes. Do not use for more than 3 minutes under full load without letting the motor cool down for
a few minutes.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Installation Safety:
WARNING
Mounting location should be strong enough to withstand the maximum pulling capacity of your winch.
Never weld mounting bolts.
Always use factory approved mounting hardware and accessories.
Always complete the winch installation and hook attachment before installing the wiring.
Never route electrical cables across sharp edges, through or near moving parts, or near parts that get
hot.
1.
2.
3.
4.
5.

What's in the box:
1 x Fieryred 13,000lbs Electric Winch & Control Box 1 x User Manual
1 x Hook
1 x Hook Strap 1 x Hawse Fairlead
1 x Screw & Nut Kit
1 x Cable
1 x Multifunctional Controller 1 x Signal Receiver

Specification:
WIN13000-ROPE / WIN13000-ROPE-UFA
Capacity: 13,000lbs (5,909kg)
Voltage: 12V DC
Max Amp Draw / Line Pull: 415A / 13,000lbs
Max Line Pull / Line Speed: 13,000lbs / 4.1 ft per min (1.25m per min)
Motor Type: Series Wound Motor
Motor: 4.92kW/6.6hp
Gear Train: 3-Stage Planetary
Gear Ratio: 265:1
Braking Action: Automatic Load-Holding Brake
Drum Size: 2.5'' x 9.6'' (Φ63.5mm x 224mm)
Synthetic Rope (Diameter): 0.37" (9.5mm)
Synthetic Rope (Length): 85.30 ft (26m)
Breaking Strength of
Synthetic Rope / Steel Cable: 23,809lbs (10,800kg)
Cable from Control Box to
Battery Lugs (Length): 5.91 ft (1.8m)
Cable with Switch (Length): 11.48ft (3.5m)
Waterproof: IP-67 Rating
Fairlead: Hawse Fairlead (10'’,25.4cm)
Hook Size: 3/8''
Control: Wireless Remote Control & Wired Remote Control
Product Dimension: 20.28 x 6.30 x 11.02in (51.5 x 16 x 28 cm)
Product Weight: 52.96 lbs (24.02kg)
Mounting Bolt Pattern: 10 x 4.5in (254 x 114.3mm)
Recommended: 650CCA Minimum for Winching

Line pull, line speed and current (first layer)
Line Pull
Line Speed
Current
lbs 0 2000
kg
ft/min
(m/min)
A
0
21.3
6.5
65
909
11.5
3.5
126
Rated line pull per layer
Rated line
pull per layer
Layer of cable
lbs
kg
13000
5909
1
10010
4550
2
8840
4018
3
7410
3368
4
winch battery
red
black
control box
red
black
Wiring Diagram:
Note:
To set up your wireless mode, you'll need to plug the signal receiver to the control box before operation.
black
winch battery
red
black
red
black
Wireless Controller
4000
1818
9.4
2.85
175
6000
2727
7.9
2.4
230
8000
3636
6.5
2.0
280
10000
4545
5.8
1.75
355
13000
5909
4.1
1.25
415
Total rope
on drum
ft
m
17
4.8
41
12.0
71
21.0
85
26.0
control box +

How to make your winching more efficient:

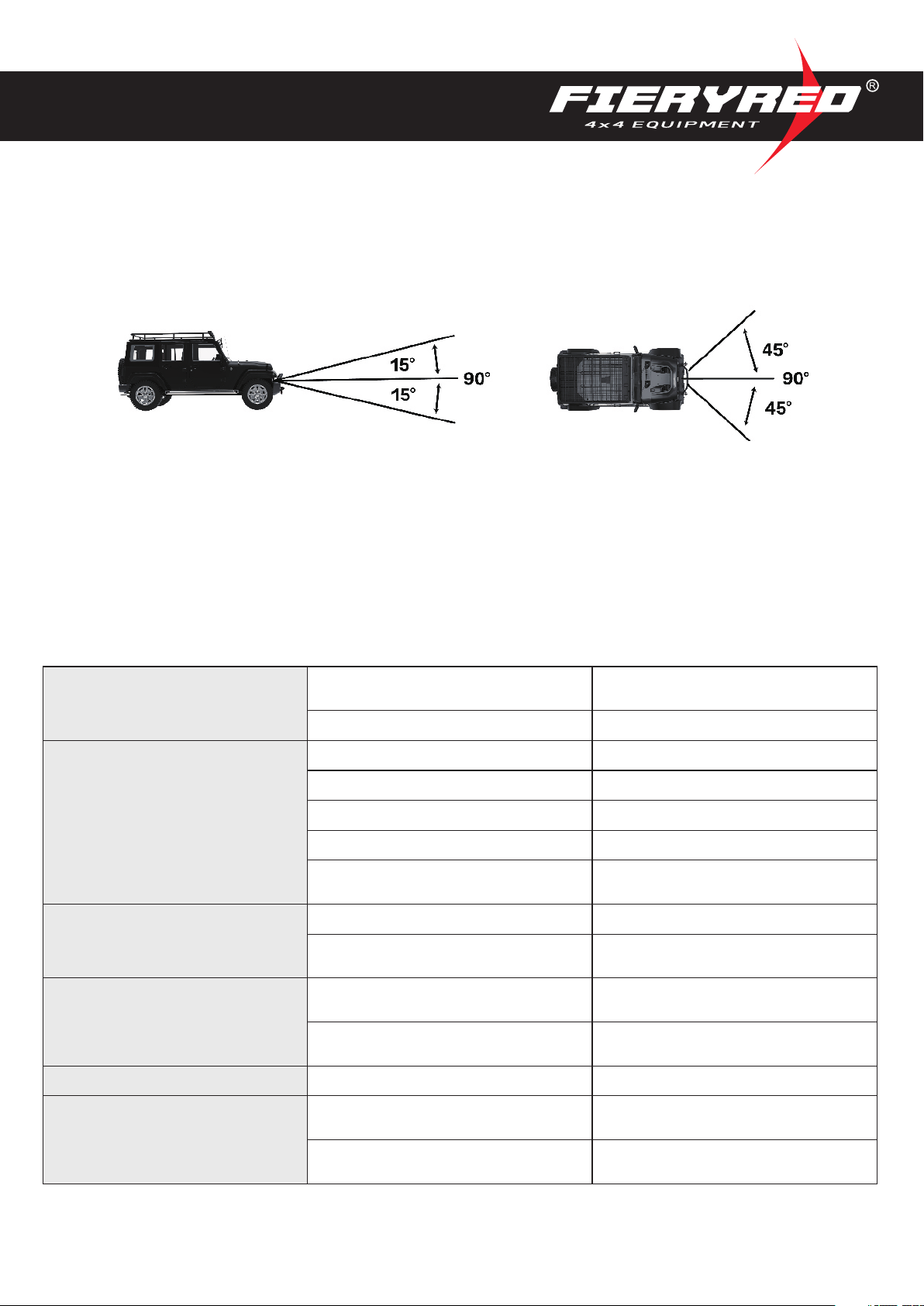

Avoid angled pull. The winch line should not exceed a 15-degree angle up and down from horizontal,
or a 45-degree angle left or right from straight ahead.
Use pulley blocks. Pulley blocks allow you the advantage of using a small force to move a heavy
resistance or object.
Remove obstructive terrain under the stuck vehicle. Remove gavel, mud, snow and rocks around the
tires, if your vehicle is stuck on rock or terrain, please flatten the terrain before winching.
1.
2.
3.
Troubleshooting:
Defective or stuck solenoid Repair or replace solenoid, or tap
solenoid to free contacts
Defective switch or wireless remote Replace switch or wireless remote
Winch only working
in one direction
Switch not connected properly Insert switch firmly to the connector
Remote control battery depleted Change the battery
Defective switch or wireless remote Replace switch or wireless remote
Loose battery cable Tighten nuts on cable connectors
Solenoid Malfunctioning Repair or replace solenoid, or
tap solenoid to free contacts
Motor does not turn on
Clutch not engaged Engage the clutch
Winch brake needs to be adjusted visit www.fieryred.com for
professional help
Motor runs but drum
does not turn
Battery depleted Recharge battery by running vehicle
engine
Insufficient current or voltage Clean, tighten or replace the
connector
Motor runs too slowly or
without normal power
Long period of operation Let winch cool down periodically
Motor runs too hot
Winch brake needs to be adjusted visit www.fieryred.com for
professional help
Rope is feeding onto the drum
incorrectly
Spool rope out and respool it
in a nice neat pattern
The winch is letting go
while under load

WARRANTY
Fieryred warrants that the electric components, mechanical components and the synthetic rope of the
electric winch that is purchased will be free from defects in materials and workmanship for a period of
two (2) years, three (3) years, and one (1) year respectively from the original date of purchase. This
Warranty applies only to the original purchaser of the winch. If a product fails to operate as a result of
defects in materials or workmanship, Fieryred will, at its option, replace it with the same or similar
product, or will issue a refund. Fieryred will pay for the cost of shipping or transportation of a defective
component.
Items not covered by this Warranty include: the removal or re-installation of the product, wire rope and
product finish. This warranty does not apply if the product has been damaged by accident, abuse,
misuse, collision, overloading, modification, misapplication, improper installation, or improper service.
Commercial or industrial use or application, or any hoisting application of the product, voids the
warranty.
The Warranty set forth above is the only warranty. There are no other warranties, express or implied,
including but not limited to implied warranties of merchantability or fitness for a particular purpose.
For more information, please visit https://fieryred.com/
