Filler BAL-5120 User manual

Tabletop Aluminum Cap Sealer – Pneumatic
BAL-5120 BAL-5115 BAL-5113
Dimension
Height : 40cm
Weight : 7.8kg
Size of clip : BAL-5120 15mm
Introduction:
Portable and convenient laptop
sealing machine specialized in
aluminum lips. Competitive price,
easy operating, can achieve safety
speed and time saving requirements.
Application:
Injection pharmacy,medicine,
cosmetic,contact lenses…etc.
Accessories :
item Name of article No. Quantity Description
1Manual 1 copy
2Special screw
(round head) 3 PCS (backup)
3 PCS
1 PC
1 PC
1 tin
(backup)3Special screw (flat
head)
4Cross-screwdriver
5Nut fixing tool
6Accessory
Structure :
Bottle fixing
tool
Thickness
adjustment nut
for the clip head
Retardation
adjustment
Clip head
Acceleration
adjustment
Height measure tool
Air pressure
pipe connecter
Pressure meter
Pressure volume
adjustment
Air pressure
pipe
Note : Only 2 pieces of clip and above attach the tool and
accessories.
Spring
cushion
Height
fixing screw

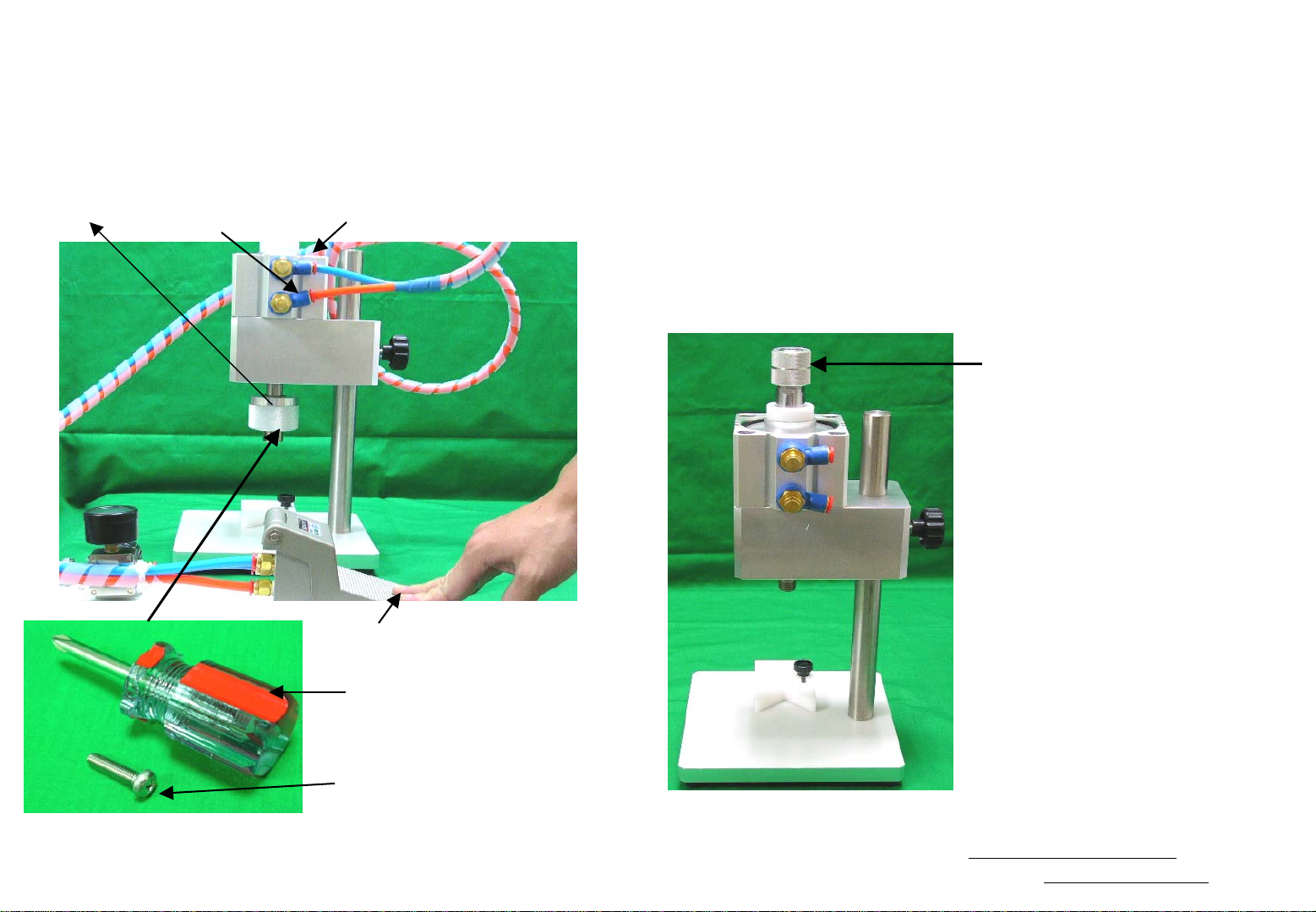

Assembling Procedure :
First, screw the clip head (1) and fasten by the nut fixing tool.
Connect the blue pipe which is on the above of the pedal switch
socket to the above pipe connecter (2) on the main part, then
connect the orange pipe to the below pipe connecter (3)
on the main part. Press the pedal (4) to make the clip head
drop down and screw up(5) by tool(6), assembling procedure
completed. ( 2 )( 3 )
( 4 )
( 6 )
( 5 )
Disassembling Procedure : reverse step according to the
assembling procedure.
When the clip head can’t suit the size of aluminum lip in normal use,
adjust the nut(1) to loosen or fasten.
Screw down the nut clockwise--loosen
Screw up the nut counterclockwise--fasten
( 1 )
Filler Co., Ltd.
Tel :[phone]-6873 http://www.filler.com.tw
Fax :[phone] E-mail: [email protected]
(1)

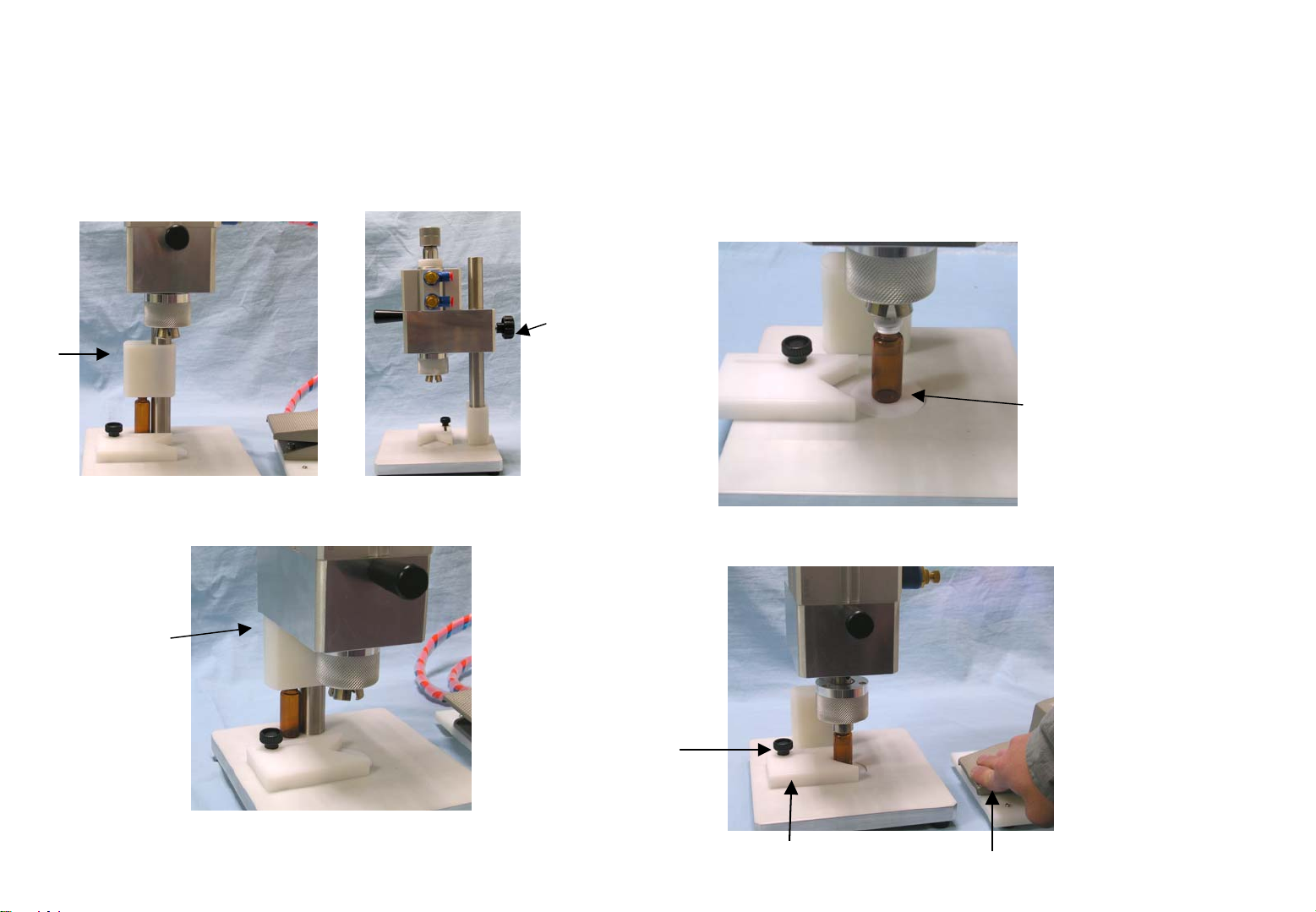

Height Adjustment:
1 . Put the bottle without the plug and cap under the height
measure tool (1).
Loosen the screw (2) to put down the main machine on the
height measure tool (3) then screw it on.
2 . Put the bottle with the plug and cap under the clip head (1), please note
the position should be in the center of cushion.
Press the pedal to put down the clip(2) then move the fixing bottle
tool (3) to fasten the bottle.
Start the sealing process.
( 1 ) ( 2 ) ( 2 )
(3)
(1)
( 4 )
( 3 ) ( 2 )
