INSTRUCTION MANUAL
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: [phone] : Toll Free Fax: [phone]
[5195300 (01/20)]

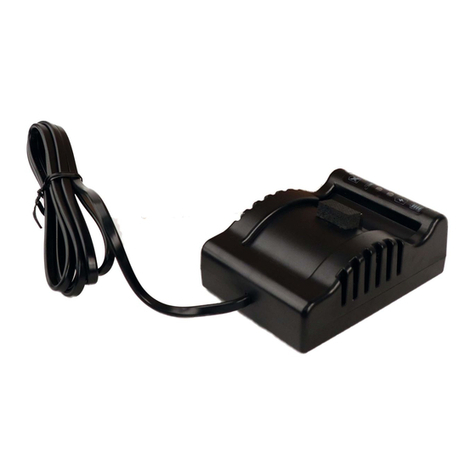

Instrucon Manual for Volt Edge 20V max* Li-ion Baery Charger
* Maximum initial battery pack voltage (measured without a workload) is 20 volts. Measured
under workload, nominal voltage is 18 volts.
The label on your product may include the following symbols.
Vvolts A Amperes Hz Hertz
Ah Amp hours ⎓ Direct Current ⚠ Safety Alert Symbol
Wh Watt Hours ~ Alternating Current Read Owner’s Manual
Important Safety Instructions - Save These Instructions.
Recycle Battery
Danger: To reduce the risk of fire or electric shock, Carefully follow these instructions.
Warning: Before using, read and follow all instructions and cautionary markings on charger, battery pack and product using battery pack.
Warning: To reduce the risk of injury, basic safety precautions should always be followed including:
 Do not incinerate the battery pack, even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic
fumes and materials are created when the battery packs are burned.
 Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing
the battery from the charger may ignite the dust or fumes.
 If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse
water over the open eye for 15 minutes or until irritation ceases.
 Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.
Warning: To reduce the risk of injury, basic safety precautions should always be followed including:
 Charge battery packs only in Volt Edge 20V max Lithium-ion compatible chargers.
 Do not store or charge the battery pack in locations where the temperature may reach above 95°F (35°C) or below 40°F (4°C).
 Do not use the battery pack in locations where the temperature may reach above 120°F (49°C) or below -4°F (-20°C).
20V, 5A Lithium
Battery Kit (5281506)
Retain a copy of receipt for your Fimco Product.
As it will be required to validate any warranty service.
Volt Edge products are warranted against manufac-
turer or workmanship defects for One (1) year from
date of purchase for home owner usage and 90 days
for commercial usage.

Page 2
Warning:
Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into charger or other Volt Edge
products. Do not crush, drop or damage battery pack. Do not use battery pack or charger that has received a sharp blow, been dropped, run over or
damaged in any way. Damaged battery packs should be taken to a lithium battery recycling center.
Warning:
Fire hazard. Do not store or carry battery so that metal objects can contact exposed battery terminals. Transporting batteries can possibly cause fires,
if the battery terminals inadvertently come in contact with conductive materials.
Warning:
Shock hazard. Do not allow any liquid to get inside charger.
Warning:
Burn hazard. To reduce the risk of injury, charge only designated Volt Edge 20Vmax batteries. Other types of batteries may burse, causing personal
injury and damage.
Caution:
Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a con-
ductive nature, such as, but not limited to, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger cavities.
Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.
Warning:
 Do not attempt to charge the battery pack with any chargers, other than the ones in this manual. The charger and battery pack are specifically
designed to work together.
 The chargers are not intended for any uses other than charging designated Volt Edge 20Vmax Lithium-ion batteries. Any other uses may
result in risk of fire, electric shock or electrocution.
 Be sure voltage selector is in correct voltage position before plugging in.
 For use in the U.S.A., the voltage selector switch must be placed in the 120 volt position. For use in countries, other than the U.S.A., the volt-
age selector may need to be placed in other than the 120 volt position. Confirm the voltage available at each country location before using
this product.
 Do not expose charger to rain or snow.
 Pull by plug, rather than cord when disconnecting charger. This will reduce the risk of damage to electric plug and cord.
 If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.
 Make sure that cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
 Do not use an extension cord, unless it is necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.
 Do not operate charger with damaged cord or plug.
 Do not operate charger if it has received a sharp blow, been dropped or otherwise damaged in any way.
 Do not disassemble the charger.
 Disconnect the charger from the outlet before attempting any cleaning. This will reduce the rise of electric shock. Removing the battery pack
will not reduce this risk.
 The charger is designed to operate on standard household electric power (120V). Do not attempt to use it on any other voltage.
 The power unit is intended to be correctly oriented in a vertical or floor mount position.
Declaration of Conformity:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
 This device may not cause harmful interference.
 This device must accept any interference received, including interference that may cause undesired operation.
This device complies with:
 Appendix Y to Subpart B of Part 430-Uniform Test Method for Measuring the Energy Consumption of Battery Chargers. DOE energy conser-
vation standards specified in the Code of Federal Regulations at 10 CFR 430.32(z).
 This device complies with CEC, Section 1605.1(w) of energy efficiency standars for federally regulated battery chargers of California Code of
Regulations.
 This device complies with NRCAN(EEV), CSA-C381.2-17 May 2017 and Canada’s Energy Efficiency Regulations.
 This device complies with cETLus certification based on Conforms to UL STD.1310 Certified to CSA STD.CC22 NO.223.
Storage Recommendations:
 The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold.
 Long storage will not harm the battery pack or charger.
 Do not store a battery connected to a charger
Charging Instructions:
The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow
charging procedure.
Charging Procedure
1. Plug the charger into an appropriate outlet before inserting battery pack. The green LED will flash once indicating charger is ready to use.
2. Insert the battery pack into the charger.
3. The green LED will flash indicating the battery is being charged.
4. The completion of charger is indicated by the green LED remaining on continuously. The pack is fully charged and may be used at this
time or left on the charger.
a. Recharge discharged batteries as soon as possible after use or battery life may be greatly diminished. For longest battery life,
do not discharge batteries fully. It is recommended that the batteries be recharged after each use.
5. If the battery remains on the charger for more than 2 hours after charging is complete, the green LED will slowly blink.

Page 3
Charger Diagnostics:
This charger is designed to detect certain problems that can arise with the battery packs or the power source. Problems are indicated by the red and
green LEDs.
Temperature Delay
When the charger detects a battery that is excessively hot or excessively cold, it automatically starts a Temperature Delay, suspending charging
until the battery temperature returns to acceptable temperatures. The red LED will flash indicating the battery is outside the required temperature
range and not charging. Once the temperature is within the required range, charging will begin.
Broken Battery
The charger can detect a weak or damaged battery. The red and green LED will alternate flashing. If you see this warning, do not continue to
charge the battery and remove the battery from the charger.
Leaving the battery in the charger:
The charger and battery pack can be left connected with the green LED indicating the charger is maintaining the battery continuously. The charger will
keep the battery pack fresh and fully charged.
Important charging notes:
1. Longest life and best performance can be obtained if the battery pack is charged with the air temperature is between 50°F (10°C) and
80°F (26°C).
2. The charger and battery pack may become warm to the touch while charging. This is normal and does not indicate a problem. Ensure the
vents are not blocked to allow cooling.
3. The battery pack should be recharged when it no longer powers the equipment. Do not continue to attempt using the battery if low power
is indicated. You may recharge a partially discharged battery pack without damaging the battery pack.
4. Do not freeze or submerge the charger in water or any other liquid.
Warning:
Shock Hazard. Do not allow any liquid to get inside the charger. Never attempt to open the battery pack for any reason. If the plastic housing of the
battery pack breaks for cracks, return to a recycling center and replace the charger.
The receiver is designed to power all High-Flo 12V pumps. The receiver will output 12V DC and is limited to 15A max. current.
To install the receiver, the pump will be removed. The base plate and adjustable support will be placed under the pump and screwed down with the
longer screws supplied in the kit. The receiver has already been pinned to the base plate, but it can be removed to make screw installation easier by
sliding the pin out. Then the receiver is slid into the adjustable support bracket. It will click into the first position, sized for the Pro Series pumps and the
4.5 pump. The second position is for the 2.4 pump and the third position is for the 1.2 pump. The tabs will have to be pressed with a small flat blade
screwdriver to adjust the position or remove the receiver from the base.
1.2 GPM Pump Configuration:
Place pump on base plate and screw down
to tank or frame, using the (4) #10-24 x 3/4”
screws. Click the receiver into the third
position of the adjustable support.
2.4 GPM Pump Configuration:
Place pump on base plate and screw down
to tank or frame, using the (4) #10-24 x 3/4”
screws. Click the receiver into the second
position of the adjustable support.
4.5 GPM & Pro Series Pumps
Configuration:
Place pump on base plate and screw down
to tank or frame, using the (4) #10-24 x
1-1/4” screws. Click the receiver into the
first position of the adjustable support.
4.5 GPM & Pro Series Pumps
w/Manifold Configuration:
Place pump on base plate and screw down
to tank or frame, using the (3) #10-24 x
1-1/4” and (1) #10-24 x 1-1/2” screws. The
1-1/2” screw goes through the manifold sup-
port bracket. Click the receiver into the first
position of the adjustable support.
2.4 GPM Pump w/Manifold Configuration:
Place pump on base plate and screw down to
tank or frame, using the (3) #10-24 x 3/4” and (1)
#10-24 x 1” screws. The 1” screw goes through
the manifold support bracket. Click the receiver
into the second position of the adjustable support.
Clamp On Ferrite Ring
Magnet
For 1.2 GPM Pump or any
pump with remote prob-
lems. The magnet should
be installed on the black
wire as close to the pump
as possible. Wire should
be looped around the magnet so the wire
runs twice through the inside before snap-
ping it shut. Black wire can be gently pulled
from the pump to provide enough wire to
loop the magnet twice.

Page 4
Operating Procedure:
1. Charge the battery following the charging procedure.
2. Ensure all fasteners are tight and pump connections are secure.
3. Install the battery ensuring the base is connected and it is fully seated.
4. Press the power button and confirm the green LED turns on. Signaling the power is on.
5. Test the remote by pressing the OFF button on the remote and both green and red receiver LEDs will turn on. Signaling the power out-
put is off while the power is on.
6. Press the ON button on the remote. The red LED will turn off and power output will return.
7. Press the power button again to turn the receiver off.
8. Connect the receiver 2-pin connector to the pump.
9. Press the power button to turn the receiver on and the pump will run.
10. When spraying is complete press the power button to turn off the receiver.
11. Recharge the battery to properly maintain the battery pack.
Receiver Diagnostics:
The receiver is designed to detect certain problems that can arise with the battery packs or the pump. Problems are indicated by the red and green
LEDs.
Battery Life
When the battery is approaching fully discharged, the green LED will begin to flash. When the battery is fully discharged, power will stop
being supplied to the pump and the green LED will continue flashing. Power off the receiver and charge the battery.
Protection Mode
When the receiver identifies a problem with the pump, the power output will stop and the red LED will flash and the green LED will remain
illuminated. The red LED will blink in cycles to identify the problem. Press the power button turning the receiver off to reset the system. Wait
30 seconds and press the power button to resume operation.
Red LED flashing two times: Open circuit protection. The receiver power is on without powering consumption.
Red LED flashing three times: Incorrect voltage. Voltage being supplied to the receiver is outside the range.
Red LED flashing four times: High current protection. The pump has drawn current above the limit.
Red LED flashing ten times: Temperature protection. The system has measured the temperature to be outside safe operating
temperatures.
Remote Button Identification:
The small LED at the top of remote turns red when transmitting.
The red LED is also the pairing button.
The ‘ON’ button will only turn on the Volt Edge Receiver.
The ‘OFF’ button will only turn off the Volt Edge Receiver.
Pairing Procedure:
1. Ensure the receiver power cord is not connected.
2. Install a charged battery pack into the receiver.
3. Power ON the Volt Edge receiver. Within 15 seconds press and hold the pairing button for 5 seconds. The green LED on the receiver
will quickly turn off and back on when pairing is successful.
4. Power OFF the Volt Edge receiver.
5. Power ON the Volt Edge receiver and press the OFF and then ON button to confirm pairing is successful.
Storage Recommendations:
 The best storage place is one that is cool and dry, away from direct sunlight and excess heat, cold or moisture.
Remote Capabilities:
 The remote can control the receiver up to 50 feet away. Obstructions and radio interference can reduce the effective distance.
 A remote can be paired to multiple receivers at one time.
 A receiver can only be paired to one remote at a time.
 A receiver/remote relationship can only be separated by pairing with another remote.

Page 5
Exploded View/Parts List
20V, 5A
Lithium Battery Kit
(5281506)
Problem Possible Cause Possible Solution
Charger
not plugged in
Plug charger into a working outlet.
Check outlet with another device.
Temperature is
too hot or too cold
Move charger and battery to a climate-controlled environment and wait for
the product to reach room temperature.
Battery pack not inserted
into charger
Remove battery pack and re-install battery pack. Ensure the bottom edge
of the battery is seated first, then push the clips in.
Remote battery is
discharged
Replace the battery with CR2032 size button cell battery.
Receiver is not on
The green light must be illuminated on the receiver for the remote to control
it.
Remote is not
paired with receiver
Follow the Pairing Instructions to pair a remote and receiver.
Radio Interference Move the receiver and remote away from the electronic interference.
Battery not connected Remove battery pack and carefully reinstall.
Battery discharged Remove battery, charge and reinstall.
Bad electrical
connection
Follow wires from receiver to plug. Disconnect and reconnect
2-pin plug.
Pump fuse is blown Check fuse on pump wire and replace if necessary.
TROUBLESHOOTING
Remote
does not control the
receiver
Battery
will not charge
Receiver does not
power pump &
green LED is off
Receiver does not
power pump &
green LED is on

Page 6
LIMITED WARRANTY FOR NEW FIMCO EQUIPMENT
WHO MAY USE THIS LIMITED WARRANTY. This limited warranty (the “Limited Warranty”) is provided by Fimco to the original purchaser (“you”)
of the Equipment (as dened below) from Fimco or one of Fimco’s authorized dealers. This Limited Warranty does not apply to any subsequent
owner or other transferee of the Equipment. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE.
WHAT THIS LIMITED WARRANTY COVERS AND FOR HOW LONG. Fimco warrants that any new Equipment will be free from defects in material
and workmanship for a period of one (1) years (homeowner), 90 days (commercial user), aer delivery of the Equipment to you (the “Warranty
Period”). The Warranty Period is not extended if Fimco repairs or replaces the Equipment.
WHAT IS NOT COVERED BY THIS LIMITED WARRANTY. This Limited Warranty does not apply to: (1) used Equipment; (2) any Equipment that has
been altered, changed, repaired or treated since its delivery to you, other than by Fimco or its authorized dealers; (3) damage or depreciaon due
to normal wear and tear; (4) defects or damage due to failure to follow Fimco’s operator’s manual, specicaons or other wrien instrucons, or
improper storage, operaon, maintenance, applicaon or installaon of parts; (5) defects or damage due to misuse, accident or neglect, “acts of
God” or other events beyond Fimco’s reasonable control; (6) accessories, aachments, tools or parts that were not manufactured by Fimco,
whether or not sold or operated with the Equipment; or (7) rubber parts, such as res, hoses and grommets.
HOW TO OBTAIN WARRANTY SERVICE. To obtain warranty service under this Limited Warranty, you must (1) provide wrien noce to Fimco of
the defect during the Warranty Period and within thirty (30) days aer the defect becomes apparent or the repair becomes necessary, at the
following address: Fimco, 1000 FImco Lane, North Sioux City, SD 57049; and (2) make the Equipment available to Fimco or an authorized dealer
within a reasonable period of me. For more informaon about this Limited Warranty, please call: 800-831-0027
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the condions set forth above are fullled and the Equipment or any part
thereof is found to be defecve, Fimco shall, at its own cost, and at its opon, either repair or replace the defecve Equipment or part. Fimco will
pay for shipping and handling fees to return the repaired or replacement Equipment or part to you.
LIMITATION OF IMPLIED WARRANTIES AND OTHER REMEDIES. THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES,
AND FIMCO’S SOLE LIABILITY, FOR ANY BREACH OF THIS LIMITED WARRANTY. TO THE EXTENT APPLICABLE, ANY IMPLIED WARRANTIES, INCLUD-
ING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN
DURATION TO THE WARRANTY PERIOD, AND THE REMEDIES AVAILABLE FOR BREACH THEREOF SHALL BE LIMITED TO THE REMEDIES AVAILABLE
UNDER THIS EXPRESS LIMITED WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU. IN NO EVENT SHALL FIMCO’S LIABILITY UNDER THIS LIMITED WARRANTY EXCEED THE ACTUAL
AMOUNT PAID BY YOU FOR THE DEFECTIVE EQUIPMENT, NOR SHALL FIMCO BE LIABLE, UNDER ANY CIRCUMSTANCES, FOR ANY CONSEQUENTIAL,
INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT. SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Warranty
FCC WARNING:
Please note that changes or modifications of this product is not expressly approved by the party responsible for compliance, could
void the user’s authority to operate the equipement.
FCC STATEMENT:
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can readiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Declaration of Conformity:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
 This device may not cause harmful interference.
 This device must accept any interference received, including interference that may cause undesired operation.
