fine fixtures MLEC1818 User manual

LED BATHROOM MIRROR
INSTALLATION INSTRUCTION
WWW.FINEFIXTURES.COM
Address: 206 Wembly Road - New Windsor, NY 12553
Phone: [phone] | E-mail: info@nextures.com
WWW.FINEFIXTURES.COM
FOR MODELS:
# MLEC2424# MLEC1818 # MLEr1830# MLEC3030 # MLEr1824 # MLEr2424
# MLEr3030 # MLEr3060# MLEr2430 # MLEr2448 # MLEr2460 # MLEr3036

WWW.FINEFIXTURES.COM
Address: 206 Wembly Road - New Windsor, NY 12553
Phone: [phone] | E-mail: info@nextures.com
WWW.FINEFIXTURES.COM
1.
Please choose portrait or landscape
installation method first.
2.
Horizontally level the hanging bar.
Mark on the wall the hanging bar holes.
3.
Drill the holes.
5.
Cut off electric power before connection!
6.
Connect as per above diagram.
LUMINAIRE MAIN SUPPLY
IMPUT WIRING DIAGRAM
4.
Install the expansion plug in to the holes,
Screw the hanging bar to the wall tightly.
POWER OFF
Brown/Red/
Black
Yellowgreen/
Green
Blue / Black/
White
Brown/Black
Yellowgreen/
Green
Blue /White
LIVE
EARTH
NEUTRAL
7.
Hung up the mirror.
Shake left and right to check stability.
8.
Turn on the power.

3.
Drill the holes.
5.
Cut off electric power before connection!
6.
Connect as per above diagram.
LUMINAIRE MAIN SUPPLY
IMPUT WIRING DIAGRAM
POWER OFF
Brown/Red/
Black
Yellowgreen/
Green
Blue / Black/
White
Brown/Black
Yellowgreen/
Green
Blue /White
LIVE
EARTH
NEUTRAL
WWW.FINEFIXTURES.COM
Address: 206 Wembly Road - New Windsor, NY 12553
Phone: [phone] | E-mail: info@nextures.com
WWW.FINEFIXTURES.COM
1.
Choose portrait or landscape
installation method first.
Measurethe distance between the 2 holes.
4.
Install the expansion plug in to the holes,
Tight screws up to 1/4” before touching the wall.
7.
Hung up the mirror.
Shake left and right to check stability.
8.
Turn on the power.
2.
Lever ruler horizontal.
Mark the distance between the holes on the wall.

WWW.FINEFIXTURES.COM
Address: 206 Wembly Road - New Windsor, NY 12553
Phone: [phone] | E-mail: info@nextures.com
WWW.FINEFIXTURES.COM

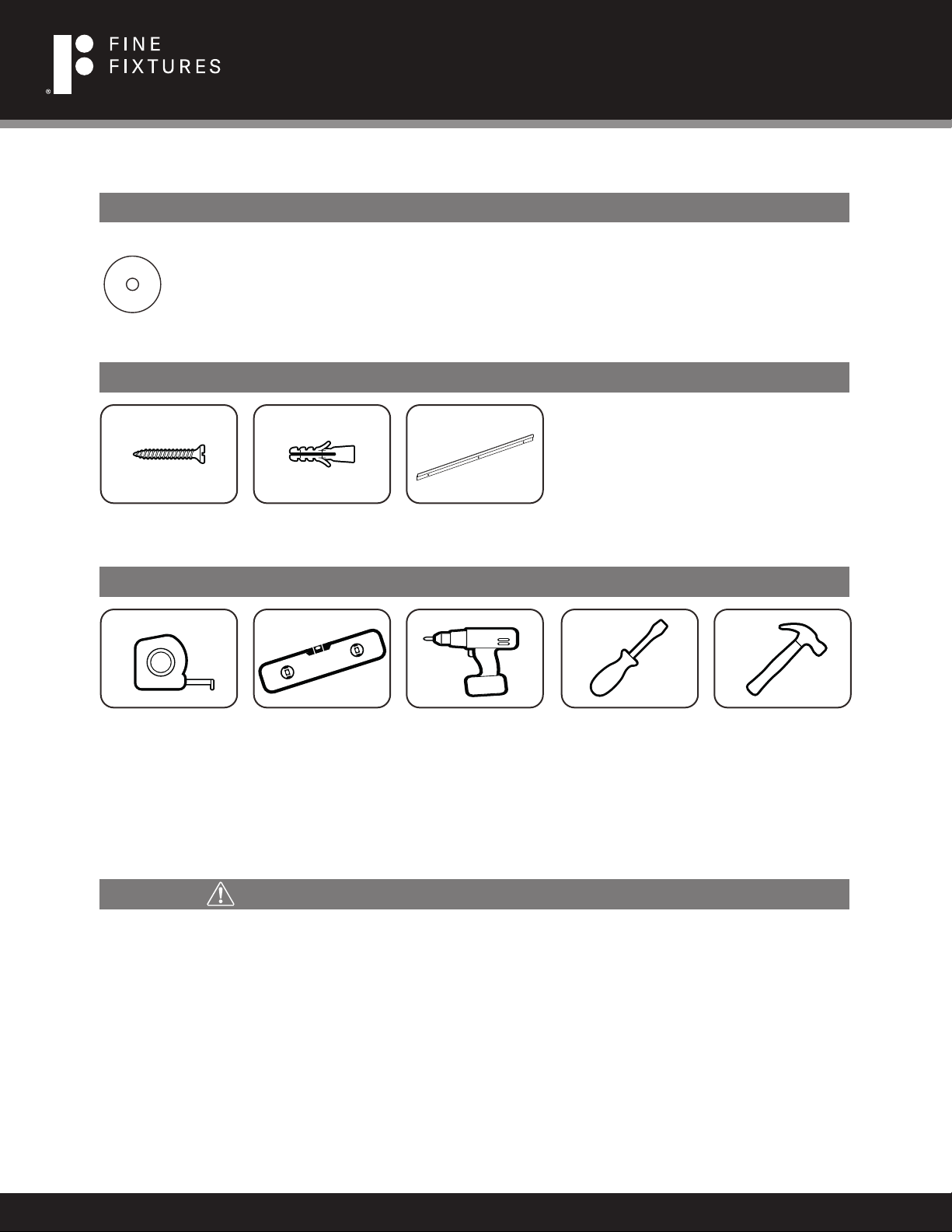

M4 SCREW D6 EXPANSION PLUG HANGING BAR
MEASURE TAPE LEVEL DRILL SCREWDRIVER HAMMER
Part List
Touch switch, Press-hold for color change
Function Usage
Installation Tools Needed
1. Please do not use if the product have any lost or broken pieces.
2. During installation, never put sharp or pointy materials against mirror surface.
Otherwise it may result in leakage or personal injury.
3. DO NOT forget to turn off the power switch in storm days.
Otherwise lightning may damage electric elements of the product.
4. During operation, DO NOT pull out the power plug to stop the product.
Otherwise electric elements of the product may be damage.
5. Please pull out the power plug if the product won’t be used for long time.
6. In case of functional failure of the product, user are not alowed to disassemble
and repair without authorization.
Otherwise our company will not be responsible for any safety accidents.
Notes:
