Fineart FINE 2000BEAM User manual

http://en.fineart-light.com
- 1 -
Contents
Contents………………………………………………………………...1
FINE2000/2500 BEAM measurement……..………………………..3
Introduction….………………………………………………………… 4
Safety direction…………………………………...……………..........4
Protection from burst...…………………………………………………4
Protecting against electric shock………………………….…………. 4
Protecting against ultraviolet radiation or lamp explosion…..…….. 5
Protecting against burning or fire…………………….………………. 5
Protecting against injury due to falls.…………….…………………...6
Transportation……………………….…………………………………6
Included accessories…………..……………………………………….6
Transport locks….………………………………………………………7
Single package………………………………………………………….7
Lamp……………………………………………………………............ 7
Lamp information.……………………………………………………… 7
Lamp replacement.…………………………………………………….8
AC power supply……………………………………………………..10
Fuse……………………………………………………………………. 10
Power supply adjustment……………………………………............10
Power consumption……………………………………………..........10
Data…………………………………………………………….............12
Fixtures connection……………………………………………………12
Data connection………………………………………………………. 12
Rigging………………………………………………………………....13
Clamping the fixture to a truss………………………………………. 13
Controlling panel…………………………………………………......14
DMX address and setting……………………………………………..14
FINE2000/2500 BEAM function description……………………...15
P/N 399903650603 Version C

http://en.fineart-light.com
- 2 -
Color…………………………………………………………................15
Cobo…………………………………………………………................15
Dimmer and shutter system…………………………………………..15
Color temperature correction………………………………………....15
Auto focus………………………………………………………...........16
Pan and tilt………………………………………………………..........16
Speed control……………………………………………………..........16
Controlling channels……………………………………………..….16
Controlling channels…………………………………………………...16
DMX channel …………………………………………………………..18
Menu control……………………………………………………….......25
Routine maintenance……………………………………………….. 30
Cleaning………………………………………………………………...30
FINE 2000E/2500E BEAM wiring sketch
FINE 2000M/2500M BEAM wiring sketch
Declaration:
This equipment has good capability and complete package when
delivering from factory.All users should read this manual carefully
and follow the operation introduction strictly, Distributor /Manufacture
will not be responsible for any trouble or damage because of wrong
operations. The products and feature will be updated without notice in
advance. Regarding newest software, hardware and file information,
please visit http://en.fineart-light.com.

http://en.fineart-light.com
- 3 -
FINE 2000/2500 BEAMmeasurement

http://en.fineart-light.com
- 4 -
Introduction
Thanks for purchasing FINE 2000/2500BEAM product.Adopted
1200W/1500W metal halide lamp this Moving Head with professional
CMY color mixing system and color temperature correction(CTC) has
been designed and made with total quality to ensure excellent perfor-
mance and best meet your expectations and requirements.

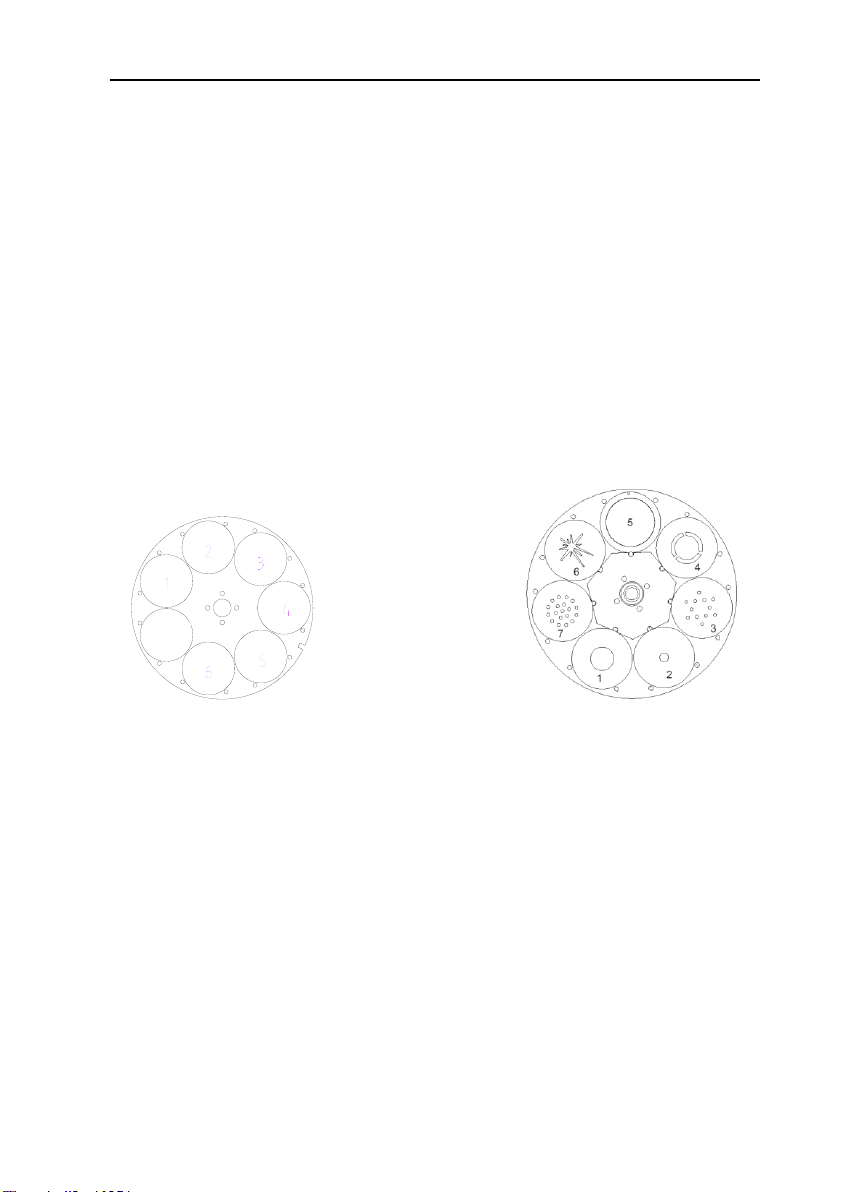

Provides one color wheel (six color and null) and one gobo wheel (six
interchangeable metal gobo and null). And it also has 0-100% dimmer,
strobe, Pan 540 degrees, Tilt 255 degrees. There are two ballasts
available, that is electronic ballast and electromagnetic ballast for
your option.
Safety direction
Warning: This product is only for professional application, not for
family use. Note：This product presents risks of lethal or severe injury
due to fire and heat, electric shock, ultraviolet radiation, lamp explo-
sion and falls. Read this manual before powering or installing the
fixture, and follow the safety precautions listed below to know all
warnings in this manual and contents printed on the fixture. If you
have questions about how to operate the fixture, please contact
FINE ART distributor or call GUANGZHOU CHAI YI LIGHT CO., LTD
directly.
Protection from burst
Shields, lenses or ultraviolet screens shall be changed if they
have become visibly damaged to such an extent that their
effectiveness is impaired
The lamp shall be changed if it has become damaged or
thermally deformed
Protecting against electric shock
Disconnect from the mains supply before removing or installing

http://en.fineart-light.com
- 5 -
the lamp, fuse and so on.Always keep earthing connection.
Make sure that the main power supply you use is up to local
construction and electronic code regulation, the over-load
protection and reliable earthing are essential.
Do not make the equipment expose in the rain or in the moist
environment.
For any query not included in the manuals, please get service
from a qualified technician.
Protecting against ultraviolet radiation or lamp explosion
Do not operate the machine without lens or shield and damaged
machine.
Allow the fixture to cool for at least 15 minutes before replacing
the lamp, and please protect your hands and eyes with gloves
and safely glasses.
Please do not stare at the light beam.
Change the damaged lamp or lamp over before its service life.
Protecting against burning or fire
Do not use directly short-circuit the thermostatic switch or fuses.
Keep all combustible materials (fabric, wood, paper) at least 1
meter away from the fixture and keep flammable materials far
away from the fixture.
Do not illuminate surface within 3 meters of the fixture.
Provide a minimum clearance of 0.1 meters around fans and air
vents.
Do not put any filters or other materials on the lens.
Allow thee fixture to cool for at least 15 minutes before transit.
Do not revise the fixture or install any parts not from
GUANGZHOU CHAI YI LIGHT CO., LTD.
Do not operate the fixture when the ambient temperature
exceeds 40.

http://en.fineart-light.com
- 6 -
Protecting against injury due to falls
Do not lift or carry the fixture by one person.
To inspect that the truss hooks are in good condition and can
bear about 10 times weight of the fixtures.
Ensure the cover and all riggings are securely fastened, safety
wires are necessary to use as an accessory.
Install or remove the fixture, please keep the chain wheel under
working position
.
Transportation
Important！Unlock fixture before operation.
Included accessories
FINE 2000/2500BEAM packed in flight case, package is 1pcs/case or
2pcs/case, in each package, it includes：
User’s manual 2 suspend fasteners
Warranty card 1 safety rope
1 signal wire
Fuse configuration
Power
supply
Fuse
200/240V
15A 6×30(Main fuse)
6.3A 5×20(Fuse for PCB)
3.15A 5×20(Fuse for PCB)
10A 5×20(Fuse for PCB)
100/120V
20A 6×30(Main fuse)
6.3A 5×20(Fuse for PCB)
3.15A 5×20(Fuse for PCB)
10A 5×20(Fuse for PCB)

http://en.fineart-light.com
- 7 -
Transport locks
Head and arms can be locked for transportation or service, refer to
the lock as figure 1, unlock it before operating the fixture.
Single package
Unpacking the fixture
1、Open the flight case cover
2、With one person on each side, lift the fixture out of the flight case.
3、Unlock Pan and Tilt before operating fixture.
Packing the fixture
1、Disconnect the fixture from power and allow it to cool
2、Lock head and arms as figure 2
3、Place the fixture in the bottom of the flight case, and cover the
case without forcing.
Lamp
Lamp information
FINE 2000/2500 BEAM comes with a OSRAM HTI1200W/D7/60
(PHILIPS MSR GOLD™1200 SA/DE)or HTI1500W/D7/60(PHILIPS
MSR GOLD™ 1510 SA/DE) lamp, this lamp offers Color temperature
6000K, color rendering index: more than 90, life expectancy: 750
hours. The lamp is available for warm boot function, which is only
Figure 1：Pan and tile lock
Figure 2: single package

http://en.fineart-light.com
- 8 -
supported by FINE 2000 product with electronic ballast.
The ends of the lamp have unique keys, shown in Figure 4. To ensure
proper installation, do not use other lamps without SFC 10-4 key.
Warning! Installing any other lamp may damage the fixture.
The lamp has service life as 750 hours, to reduce the risk of explosion,
replace the lamp before usage exceeds 125% of its service life.
Important! Do not touch the quartz bulb of the lamp by bare hand,
always keep the lamp clean and free of oil, clean the lamp by alcohol
with a dry cloth, especially when you accidentally touch the bulb.
Lamp replacement
Important! Do not touch the quartz bulb of the lamp by bare hand,
always keep the lamp clean and free of oil, clean the lamp by alcohol
with a dry cloth, especially when you accidentally touch the bulb.
Replacing lamp
1、Cut off the power and allow the lamp to cool. Lock the head
horizontally with the top up.

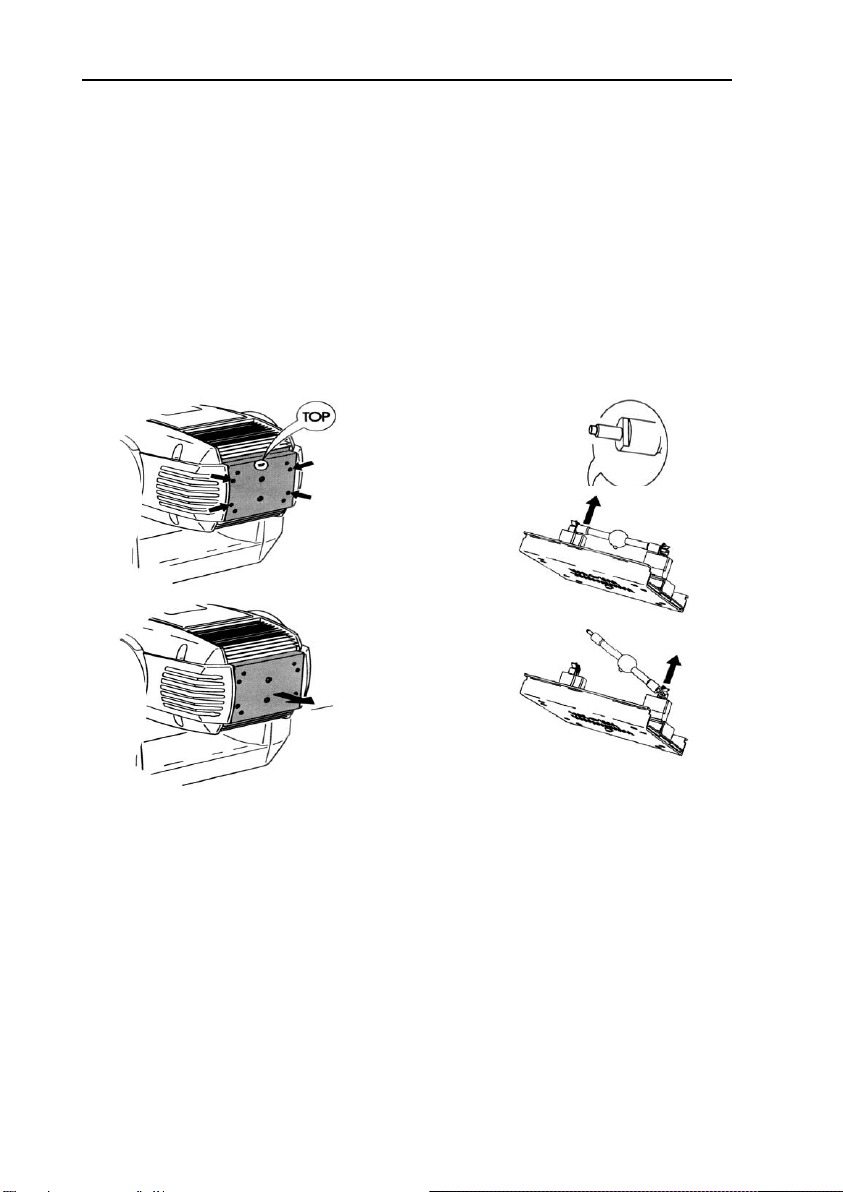

Figure 3: Open the rear
cover
Figure 4: Disconnect the lamp

http://en.fineart-light.com
- 9 -
Figure 5: Lamp installation
Figure 6
2、Refer to figure 3, open the 1/4 turn fastener on the back of the
control panel, and draw back the lamp
holder.
3、Refer to figure 4, To disassembly the
lamp, loose the poles of the lamp with a
screwdriver from the socket, then pull
out two poles one by one respectively.
4、Refer to figure 5, To install the lamp,
Aim two poles of the lamp to the
matched socket in advance (Ensure the
direction of lamp’s nipple toward the
socket), then push two poles into the socket synchronously.
5、Lift the lamp holder so that lamp is level with the center of the
reflector. Push the lamp holder straight in until it seats, make sure
the lamp passes through the reflector opening. Lastly lock the
1/4-turn fasteners.
6、Note: avoid any damage to lamp, during changing or installing
lamp, do not touch reflector and spare parts around.
Lamp adjustment
1、Switch on the fixture, and allow it to
reset. Using either a controller or the
lighting console, turn on the lamp and
project an open white beam on a flat
surface.
2、Using a 6-angel 3mm screwdriver to
UP-DOWN adjust the lamp until the
light spot focus in the center of light
beam vertically.
3、If there is big light spot, turn the top IN-OUT
adjustment screw counterclockwise until the light is evenly
distributed. If the light is brighter around the edge than it is in the
center, or if light output is low, turn the top adjustment if the light is
brighter around the edge than it is in the center, or if light output is

http://en.fineart-light.com
- 10 -
low, turn the top IN-OUT adjustment screw clockwise until the
light is bright and evenly distributed.
AC Power supply
Warnin! For protection from electric shock, the
fixture must be earthed. The AC mains supply
shall be fitted with a fuse or circuit breaker and
ground-fault protection.
Important! Check up the power supply before
connecting with the fixture.
Fuses
NOTE! Install the appropriate fuses in the holders near the power
switch.
20Amain fuse for use with AC supplies of 100-120 volts
15Amain fuse for AC supplies of 200-250 volts (Install the
appropriate fuses in the holders near the power switch.)
Power supply adjustment
A little difference for different model, refer to correct version
FINE 2000E/2500E (electronic ballast edition)：
100-120V~ 50/60Hz or 200-240V~ , 50/60Hz
FINE 2000M/2500M (electromagnetic ballast）：
200-240V~ 50/60Hz
Power consumption
FINE2000E BEAM 1450W
FINE2000M BEAM 1520 W
FINE2500E BEAM 1890W
FINE2500M BEAM 1970W
UP-DOWN
IN-OUT
Fixture: 7

http://en.fineart-light.com
- 11 -
FINE 2000/2500 BEAM green energy mode
The fixture provides the function of auto lowdown power consumption.
When dimmer is off or CMYfilters overlapped entirely up to more than
5 seconds, amp power will low down 50%. That can prolong the lamp
life and protect the filters and save power.
Power connection
Warning! Type Y power supply connection. If the external flexible
cable or cord of this fixture is damaged, it shall be replaced by a
special cord or cord exclusively available from the manufacturer or his
service agent in order to avoid a hazard.
Check the transformer or ballast frequency consitensy with local
power. Wrong installation of the fixture may cause hot damage.
100/120V power supply is not applied for FINE 2000/2500M.
Important! Connecting FINE 2000 with main power supply
directly, do not connect with the dimmer machine in order to
avoid any damage to the fixture. There is a 3-pin socket supplied
by the factory, correctly connect it with power supply as following
table: yellow/green wire is for earthing, if you have more query,
please ask for help of experienced electrician.
Set base switch to“I” position when power is supplied.
Wire color
Plug
Mark
Brown
Live wire
L
Blue
None live
wire
N
Yellow /
green
Earth wire

http://en.fineart-light.com
- 12 -
Data
Important! Never exceed 1 data input and 1 data output connection.
FINE 2000/2500BEAM has 3-pin connector and 5-pin connector for
DMX input and output, pin 1 is for earth connecting, pin 2 is for
negative pole connecting and pin 3 is for positive pole connecting.
Fixtures connection
Use shielded twisted-pair cable designed for DMX512 devices:
standard microphone cable cannot transmit control data reliably
over long runs. 24 AWG cable is suitable for runs up to 300
meters.A DMX512 amplifier is recommended for longer runs.
Never use two outputs to separate the link. You may use
DMX512 amplifier to separate the serial link into branches.
Do not overload the link. There are 32 devices totally can be
connected on a serial link at most.
Terminate the link by installing a termination plug in the output
socket of the terminal fixture. The termination plug, which is a
male XLR plug with a 120Ω, 0.25W resistor soldered between
pins 2 and 3, soaks up the control signal so it does not reflect
and cause interference. If a signal distributor is used, please
terminate connection among all links.
Data connection
1、Connect the DMX data input from the controller to the FINE
2000 3-pin input (male) socket.
2、Using the sockets that match your data cable, connect the
output of the fixture closest to the controller to the input of the
next fixture.
3、Insert a male 120Ω XLR termination plug in the 3-pin output
of the terminal fixture on the link.

http://en.fineart-light.com
- 13 -
Rigging
FINE 2000/2500 BEAM can be stamped to a truss in any orientation.
The fast-lock system enables quick and easy fastening of the clamp
brackets in 4 positions as shown in Figure 8.
Figure 8: Clamp bracket positions
Warning！
Warning!Always use 2 clamps to fix the fixtures. The 1/4 turn
fasteners lock in position when turned fully clockwise. The fasteners
are locked only when turned fully clockwise. Attach an approved
safety wire to the attachment hole in the base. Never use the carrying
handles for secondary attachment.
Clamping the fixture to a truss
1. To inspect that the truss hooks are in good condition and can bear
about 10 times the weight of the light unit. Ensure the truss or
pipe structure can bear 10 times the weight of all the equipment
including lights, truss hooks, cables and accessories.
2. Lock each clamp securely to a clamp bracket with a 12M bolt and
lock nut.
3. Install a clamp points in the base. Insert the fasteners into the

http://en.fineart-light.com
- 14 -
Figure 9
base and turn the two levers a full 1/4 turn clockwise to lock.
Install the second clamp.
4. If the truss can be lowered, fixtures can be clamped on directly
from flight case. If the fixture must be lifted, block should be put
under the working area. Working safely from a stable platform,
hang the fixture on the truss with the arrow towards the area to be
illuminated. Tighten the rigging clamps.
5. Install a safety wire that can bear at least 10 times weight of the
fixture. The attachment is designed to fit a clamp.
6. See to it that the horizontal and vertical locks have been unlocked.
Ensure there are no explosive or inflammable materials 1 meter
around the fixture.
Controlling panel
LCD control panel is used to set the address and particular features.
DMX address and setting
The DMX address named as the start channel, it is used to receive
instructions from the controller, and it is an independent control. If two
fixtures working in the same way, address sharing can be useful for
diagnostic purposes and synchronous control, particularly when

http://en.fineart-light.com
- 15 -
combined with the inverse pan and tilt rotation.
Refer the menu control on the Users manual to fixture personnel
setting.
FINE 2000/2500 BEAM function description
Color
The color mixing system uses continuous dichroic cyan, magenta,
and yellow (CMY) color filters. It is a subtractive system that removes
color from white light. Inserting all three filters results in loss of light;
for maximum brightness, mix 2 colors at a time.
Gobo
A gobo wheel with six changeable image pieces.
Dimmer and shutter system
0—100% electric dimmer, timely open and blackout. Frequency is up
to 10Hz, random and variable frequency make dimmer open and
slowly dims or closed and slowly opens.
Color temperature correction
The color temperature correction (CTC) system uses a continuous
0-178 mireds color filter that lowers the color temperature from 6000K
to 2900K.
Color wheel
Gobo wheel
Install filters and
gobos with
coating down,
towards the
lamp.

http://en.fineart-light.com
- 16 -
Auto-focus
Zoom lens beam angle: spot light 4.2°, soft light 9°-22°
Pan and Tilt
Pan 540°, tilt 255°, for maximum positioning accuracy, select 16-bit
mode.
The pan/tilt speed (fast, norm, or slow) may be selected on the pan/tilt
speed channel.
Speed control
The speed may be adjusted from silence to movement. It is effected
by tracking control. Pan/Tilt/Effect speeds are separated controlled.
Controlling channels
Totally 21 channels mode, or 21 channels mode
21 Channel function：
Channel 1：Open、strobe、reset
Channel 2：dimmer
Channel 3：CMY cyan
Channel 4：CMY magenta
Channel 5：CMY yellow
Channel 6：CTC color temperature
Channel 7：color wheel
Channel 8：gobo
Channel 9：frost、gobo focus
Channel 10：Color Marco (reserved)
Channel 11：CMY macro
Channel 12：Lamp Power adjustment
Channel 13：Fan speed adjustment
Channel 14：Pan/Tilt macro (Reserved)

http://en.fineart-light.com
- 17 -
Channel 15：Pal/Tilt macro speed (Reserved)
Channel 16：pan rotating (8bit)
Channel 17：pan rotating (16bit)
Channel 18：tilt rotating (8bit)
Channel 19：tilt rotating (16bit)
Channel 20：pan、tilt、speed adjustment
Channel 21：effect speed adjustment
25 Channel function：
Channel 1：Open、strobe、reset
Channel 2：dimmer
Channel 3：CMY cyan
Channel 4：CMY magenta
Channel 5：CMY yellow
Channel 6：CTC color temperature
Channel 7：color wheel
Channel 8：gobo
Channel 9：frost、gobo focus
Channel 10：Color Marco (reserved)
Channel 11：CMY macro
Channel 12：Lamp Power adjustment
Channel 13：Fan speed adjustment
Channel 14：Pan/Tilt macro (Reserved)
Channel 15：Pal/Tilt macro speed (Reserved)
Channel 16：pan rotating (8bit)
Channel 17：pan rotating (16bit)
Channel 18：tilt rotating (8bit)
Channel 19：tilt rotating (16bit)
Channel 20：pan、tilt、speed adjustment
Channel 21：effect speed adjustment
Channel 22：CMY cyan (16bit)
Channel 23：CMY magenta (16bit)
Channel 24：CMY yellow (16bit)
Channel 25：CTC temperature (16bit)

http://en.fineart-light.com
- 18 -
DMX channel Start code=0
21-channel
25-channel
Value
percent
Function
1
0-19
20-49
50-72
73-79
80-99
100-119
120-127
128-147
148-167
168-187
188-190
191-193
194-196
197-199
200-202
203-207
208-217
218-227
228-237
238-247
248-255
0-17
8-19
20-28
29-31
31-39
39-47
47-50
50-58
58-65
66-73
74-75
75-76
76-77
77-78
78-79
80-81
82-85
85-89
89-93
93-97
97-100
shutter，strobe，reset，
on/off
Shutter, close
open
Strobe fast to slow
Shutter open
Strobe fast to slow
Strobe fast to slow
Shutter open
Random strobe, fast
Random strobe,
medium
Random strobe, slow
Random opening
pulse, fast
Random opening
pulse, slow
Random close pulse,
fast
Random close pulse,
slow
Shutter, open
Reset fixture
Shutter open
Lamp on
Shutter open
Lamp off
2
0-255
0-100
Dimmer0-100

http://en.fineart-light.com
- 19 -
3
0-255
0-127
128-255
0-100
0-50
50-100
Cyan
white→cyan
CMY color mixing
At least 0-100%
At most 0-100%
4
0-255
0-127
128-255
0-100
0-50
50-100
Magenta
white→magenta
CMY color mixing
At least 0-100%
At most 0-100%
5
0-255
0-127
128-255
0-100
0-50
50-100
yellow
white→yellow
CMY color mixing
At least 0-100%
At most 0-100%
6
0-255
0-100
CTC
6000K-3200K

http://en.fineart-light.com
- 20 -
7
0
1-31
32
33-63
64
65-95
96
97-127
128
129-159
160
161-16
5
166-170
170-175
176-180
181-185
186-214
215-243
244-247
248-251
252-255
0
1-12
13
14-24
25
26-36
37
38-49
50
51-61
62
63-64
65-66
67-68
69-70
71-72
73-83
84-95
96
96-98
99-100
color
white
white→color 1,1
Color 1,1
Color 1,1→color 1,2
Color 1,2
Color 1,2→color 1,3
Color 1,3
Color 1,3→color 1,4
Color 1,4
Color 1,4→white
white
Color wheel I
Color 1,4
Color 1,3
Color 1,2
Color 1,1
white
Color rainbow effect
fast→slow(CW)
Slow→fast(CCW)
CMY color mixing
change from channel
3-5
Any color, fast
Any color, medium
Any color, slow
