Finn GM - EA700E PRO User manual

REV. 01 20161 / 28
USE
AND
MAINTENANCE
MANUAL
ELECTRO-HYDRAULIC
MOBILE SINGLE POST LIFT
GM - EA700E
PRO

REV. 01 20162 / 28
PRINTING CHARACTERS AND SYMBOLS
Throughout this manual, the following symbols and printing characters are used to facilitate reading:
Indicates the operations which need proper care
Indicates prohibition
Indicates a possibility of danger for the operators

Indicates the direction of access for motor vehicles to the lift
BOLD
TYPE
Important information
WARNING: before operating the lift and carrying out any adjustment, read
carefully chapter 7 “installation” where all proper operations for a better
functioning of the lift are shown.

REV. 01 20163 / 28
CONTENTS
1
GENERAL INFORMATION
4
2
PRODUCT IDENTIFICATION
6
3
PACKING, TRANSPORT AND STORAGE
7
4
PRODUCT DESCRIPTION
8
5
TECHNICAL SPECIFICATION
9
6
SAFETY
16
7
INSTALLATION
18
8
OPERATION AND USE
24
9
MAINTENANCE
27
10
TROUBLESHOOTING
28

REV. 01 20164 / 28
CHAPTER 1 –GENERAL INFORMATION
This chapter contains warning instructions to operate the lift properly and prevent injury to operators
or objects.
This manual has been written to be used by shop technicians in charge of the lift (operator) and routine
maintenance technician (maintenance operator).
The operating instructions are considered to be an integral part of the machine and must remain with it
for its whole useful life.
Read every section of this manual carefully before operating the lift and unpacking it since it gives
helpful information about:
- SAFETY OF PEOPLE
-SAFETY OF THE LIFT
-SAFETY OF LIFTED VEHICLES
The company is not liable for possible problems, damage, accidents, etc. resulting from failure to
follow the instructions contained in this manual.
Only skilled technicians of AUTHORISED DEALERS or SERVICE CENTRES AUTHORISED by
the manufacturer shall be allowed to carry out lifting, transport, assembling, installation, adjustment,
calibration, settings, extraordinary maintenance, repairs, overhauling and dismantling of the lift.
THE MANUFACTURER IS NOT RESPONSIBLE FOR POSSIBLE DAMAGE TO PEOPLE,VEHICLES OR
OBJECTS IF SAID OPERATIONS ARE CARRIED OUT BY UNAUTHORIZED PERSONNEL OR THE LIFT IS
IMPROPERLY USED.
Any use of the machine made by operators who are not familiar with the instructions and procedures
contained herein shall be forbidden.
1.1 MANUAL KEEPING
For a proper use of this manual, the following is recommended:
keep the manual near the lift, in an easily accessible place.
keep the manual in an area protected from the damp.
use this manual properly without damaging it.
Any use of the machine made by operators who are not familiar with the instructions and
procedures contained herein shall be forbidden.
This manual is an integral part of the lift: it shall be given to the new owner if and when the lift is
resold.
1.2 OBLIGATION IN CASE OF MALFUNCTION
In case of machine malfunction, follow the instructions contained in the following
chapters.

REV. 01 20165 / 28
1.3 CAUTIONS FOR THE SAFETY OF THE OPERATOR
Operators must not be under the influence of sedatives, drugs or alcohol when operating the machine.
Before operating the lift, operators must be familiar with the position and function
of all controls, as well as with the machine features shown in the chapter
“Operation and use”
1.4 WARNINGS
Unauthorized changes and/or modifications to the machine relieve the
manufacturer of any liability for possible damages to objects or people. Do not
remove or make inoperative the safety devices, this would cause a violation of safety
at work laws and regulations.
Any other use which differs from that provided for by the manufacturer of the
machine is strictly forbidden.
The use of non genuine parts may cause damage to people or objects
1.5 SCRAPPING
When your machine’s working life is over and it can no longer be used, it must be made inoperative by
removing any connection to power sources.
These units are considered as special waste material, and should be broken down into uniform parts
and disposed of in compliance with current laws and regulations.
If the packing are not polluting or non-biodegradable, deliver them to appropriate handling station.
DECLARATION OF WARRANTY AND LIMITATION OF LIABILITY
The manufacturer has paid proper attention to the preparation of this manual. However, nothing
contained herein modifies or alters, in any way, the terms and conditions of manufacturer agreement
by which this lift was acquired, nor increase, in any way, manufacturer’s liability to the customer.
TO THE READER
Every effort has been made to ensure that the information contained in this manual is correct, complete
and up-to date. The manufacturer is not liable for any mistakes made when drawing up this manual
and reserves the right to make any changes due the development of the product, at any time.

REV. 01 20166 / 28
CHAPTER 2 –PRODUCT IDENTIFICATION
The identification data of the machine are shown in the label placed on the control unit.
Use the above data both to order spare parts and when getting in touch with the
manufacturer (inquiry). The removal of this label is strictly forbidden.
Machines may be updated or slightly modified from an aesthetic point of view and, as a consequence,
they may present different features from these shown, this without prejudicing what has been
described herein.
2.1 WARRANTY CERTIFICATE
The warranty is valid for a period of 12 months starting from the date of the purchase invoice.
The warranty will come immediately to an end when unauthorized modifications to the machine or
parts of it are carried out.
The presence of defects in workmanship must be verified by the Manufacturer’s personnel in charge.
2.2 TECHNICAL SERVICING
For all servicing and maintenance operations not specified or shown in these instructions, contact
your Dealer where the machine has been bought or the Manufacturer’s Commercial Department.
Only skilled personnel who are familiar with the lift and this manual shall be allowed to carry out
packing, lifting, handling, transport and unpacking operations.
LOGO
Type: ……….
Model: ……….
Serial Number: ……….
Year of manufacturing: ……….
Capacity: ……….
Voltage: ……….
Power: ……….

REV. 01 20167 / 28
CHAPTER 3 - PACKING, TRANSPORT AND STORAGE
3.1 PACKING (ref. fig.1)
The lifting set is delivered in following components as shown in the figure 1.
N. 1 column unit packed in a steel frame, wrapped with plastic films including accessories.
N.1 base unit wrapped with plastic films.
N.1 arm frame, wrapped with plastic films.
N.1 mobile jack wrapped with plastic films.
N. 1 power unit packed in a carton box.
The average weight of packages is 900kg.
If requested, optional accessories are available to satisfy each customer’s requirements.
Figure 1 –PACKING
3.2 LOADING/UNLOADING AND TRANSPORTATION
When loading/unloading or transporting the equipment to the site, be sure to use suitable hoisting
means as shown in the figure 2. Be sure also to hoist and transport the components securely so that
they cannot drop, taking into consideration the package’s size, weight and center of gravity.
Hoist and handle only one package at a time
Fig. 2a
Fig. 2b
Fig. 2c

REV. 01 20168 / 28
3.3 STORAGE AND STACKING OF PACKAGES
Packages must be stored in a covered place, out of direct sunlight and in low humidity, at a
temperature between -10°C and +40°C.
Stacking is not allowed.
3.4 DELIVERY AND CHECK OF PACKAGES
When the lift is delivered, check for possible damages due to transport and storage; verify that what
is specified in the manufacturer’s confirmation of order is included. In case of damage in transit, the
customer must immediately inform the carrier of the problem.
Packages must be opened paying attention not to cause damage to people (keep a safe distance when
opening straps) and parts of the lift (be careful the objects do not drop from the package when
opening).

REV. 01 20169 / 28
CHAPTER 4 - LIFT DESCRIPTION
4.1 LIFT DESCRIPTION (ref. fig.3)
The lift is suitable for lifting a vehicles having maximum weight 2500kg.
The electro hydraulic operation is described in detail in chapter 8.
This chapter describes the lift’s principal elements, allowing the user to be familiar with the lift.
As shown in figure 3, this lift is composed of the single column (1), the carriage (2), rear telescopic
arms (3), H arm (4) and front telescopic arms (5).
By operation of the mobile jack (6), the lift can be moveable.
The lift can be anchored to floor by means of the base (7).
Raising motion is carried out by pushing the lifting button on the control panel (8) to operate a power
unit to deliver the hydraulic fluid to cylinder inside the columns.
Lowering motion is controlled by pushing the lowering button on the control panel and carried out
under the carriage weight and the load lifted.
The mechanical safety is built in the carriage and can be released by means of the electromagnet when
the lowering button is pressed.
Two limit switches are installed on the lift. One is for the max. lifting height, another is for the safety
height from which the alarm can be heard till the lift is lowered fully.

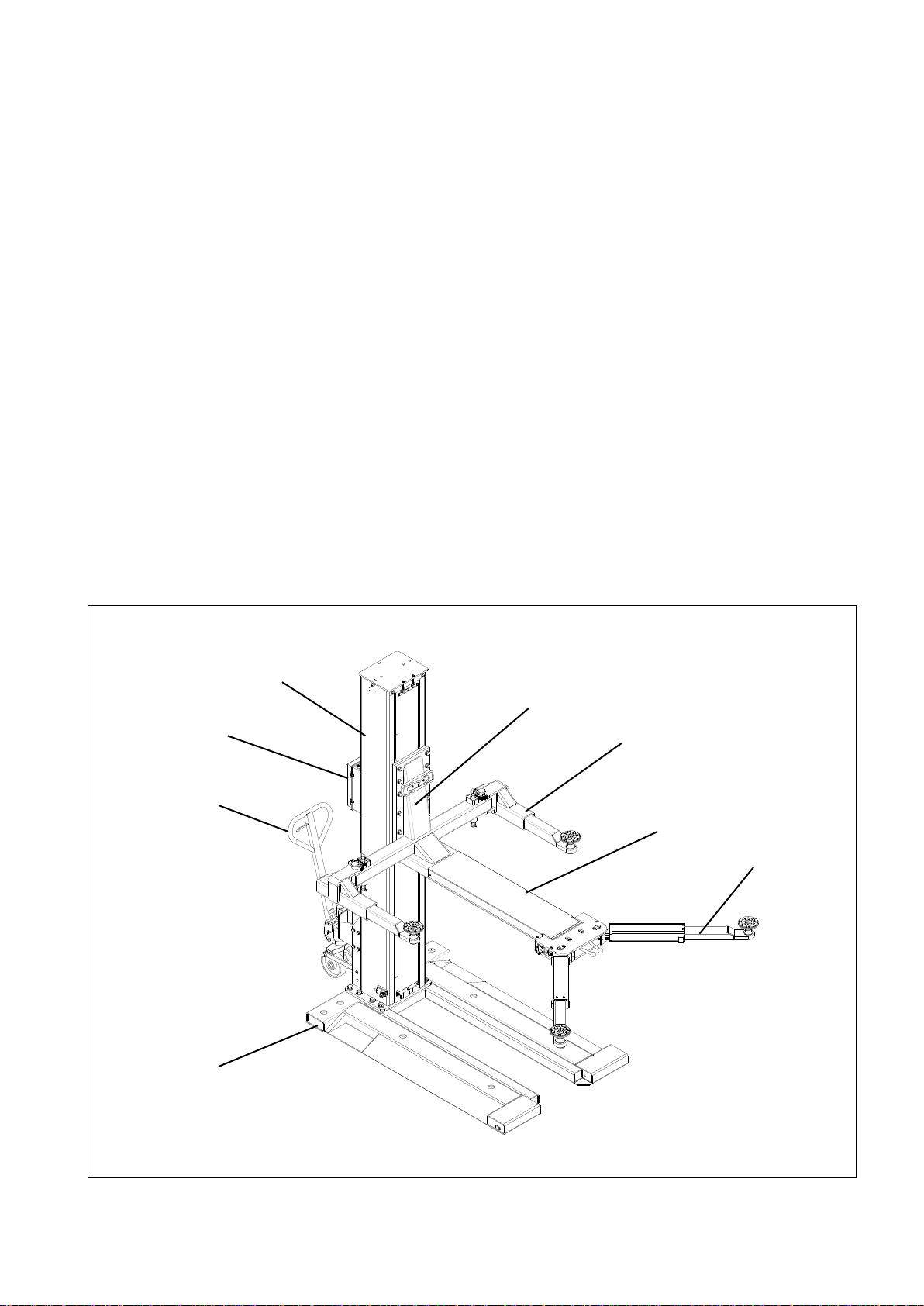

Figure 3 –LIFT SET
1
2
3
4
5
6
7
8

REV. 01 201610 / 28
CHAPTER 5 - TECHNICAL SPECIFICATION
5.1 SIZE AND MAIN FEATURES (ref. fig. 4)
CAPACITY
2500Kg
Max. lifting height
1870mm
Overall height
2602mm
Min. lowered height
115mm
Lifting time
65 s
Noise level
75 dB(A)/1m
Working temperature
-10 °C ～40 °C
Package weight
900Kg
5.2 ELECTRIC MOTOR
Type
MS90L4-B14
ML90L4-B14
Voltage
400V/50Hz/3Ph
230V/50Hz/1Ph
Power
1.5 KW
1.5 KW
N°Poles
4
4
Speed
1450 rpm
1450 rpm
1400 rpm
1400 rpm
Motor enclosure type
B14
Insulation class
IP 54
Motor connection must be carried out referring to the attached wiring diagrams.
The motor direction of rotation is shown in the label placed on the motor.
Before use of the lift, make sure to check if the motor specification shown in the nameplate of the
motor conforms to the local electric supply.
If there is over 5% fluctuation on the electrical power supply, it is suggested to use the voltage
stabilizer to protect the electrical components and system from overloading.
5.3 PUMP
Type
Gear
Flow rate
3.2 cm3/g
Continuous working pressure
180 bar
Peak pressure
200 bar

REV. 01 201611 / 28
Figure 4 –LIFT LAYOUT

REV. 01 201612 / 28
5.4 HYDRAULIC POWER UNIT
The power unit is equipped with

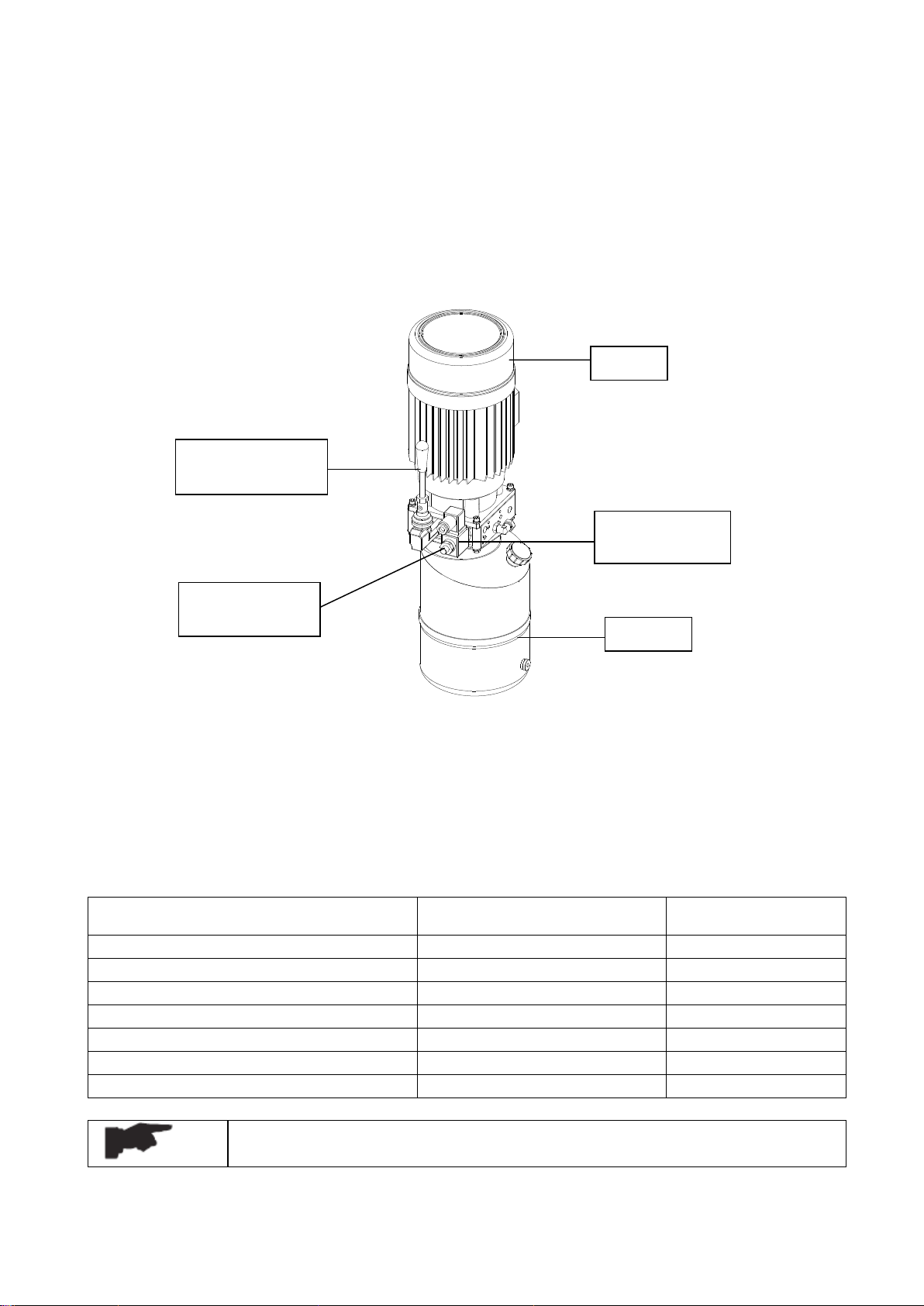

Figure 5 –POWER UNIT
5.5 OIL
Use wear proof oil for hydraulic drive, in conformity with ISO 6743/4 rules (HM class). The oil with
features similar to those shown in the table is recommended.
TEST STANDARDS
FEATURES
VALUE
ASTM D 1298
Density 20°C
0.8 kg/l
ASTM D 445
Viscosity 40°C
32 cSt
ASTM D 445
Viscosity 100°C
5.43 cSt
ASTM D 2270
Viscosity index
104 N°
ASTM D 97
Pour point
30 °C
ASTM D 92
Flash point
215 °C
ASTM D 644
Neutralization number
0.5 mg KOH/g
CHANGE HYDRAULIC OIL AT 1YEAR INTERVALS
Motor
Oil tank
Solenoid
lowering valve
Emergency
lowering screw
Emergency hand
pump

REV. 01 201613 / 28

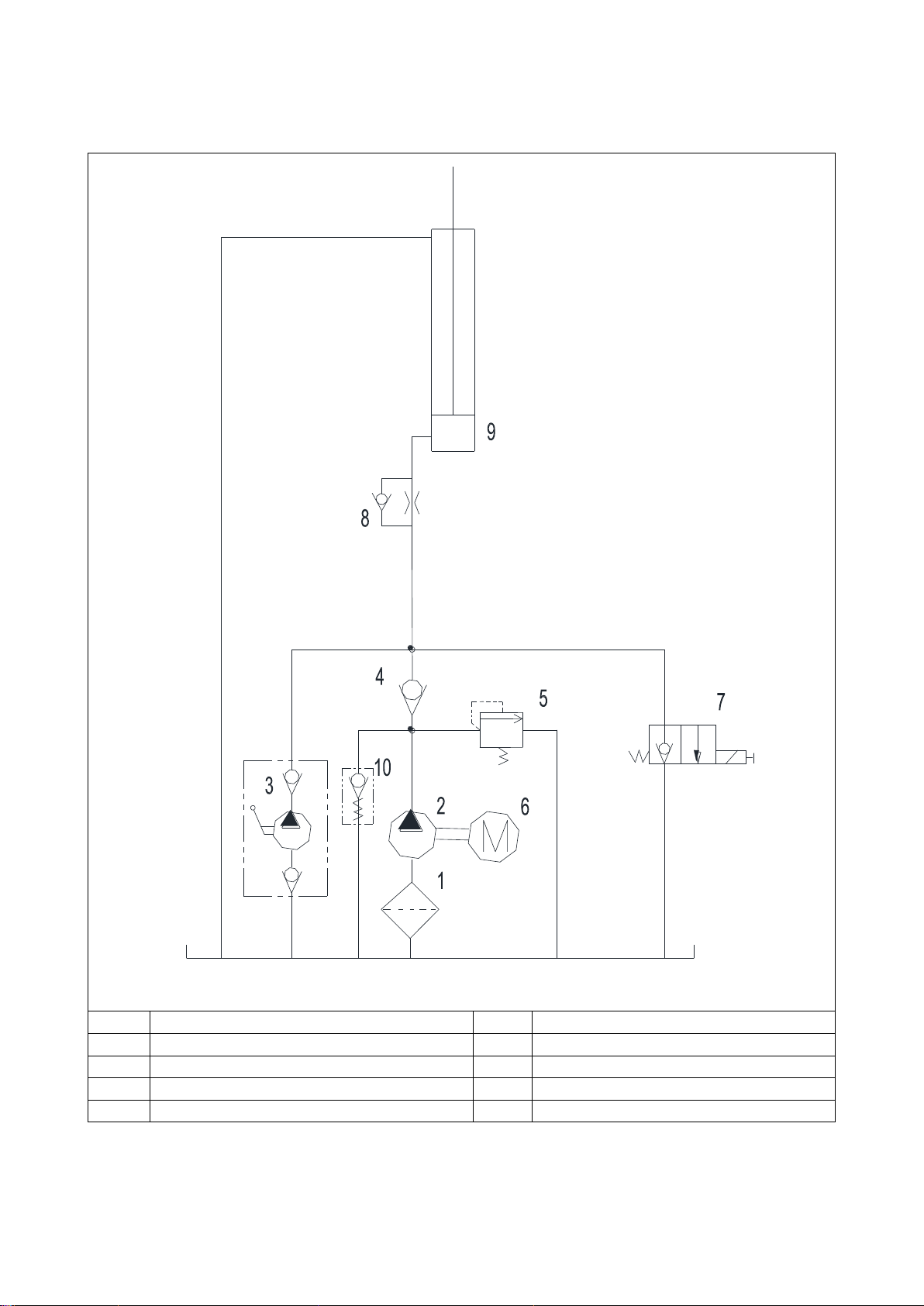

Figure 6 - HYDRAULIC SCHEME
1
Oil filter
6
Motor
2
Gear pump
7
Solenoid lowering valve
3
Emergency hand pump - optional
8
Flow restrictor
4
Non return valve
9
Hydraulic cylinder
5
Pressure overload valve
10
Startup valve - for 1PH power unit

REV. 01 201614 / 28

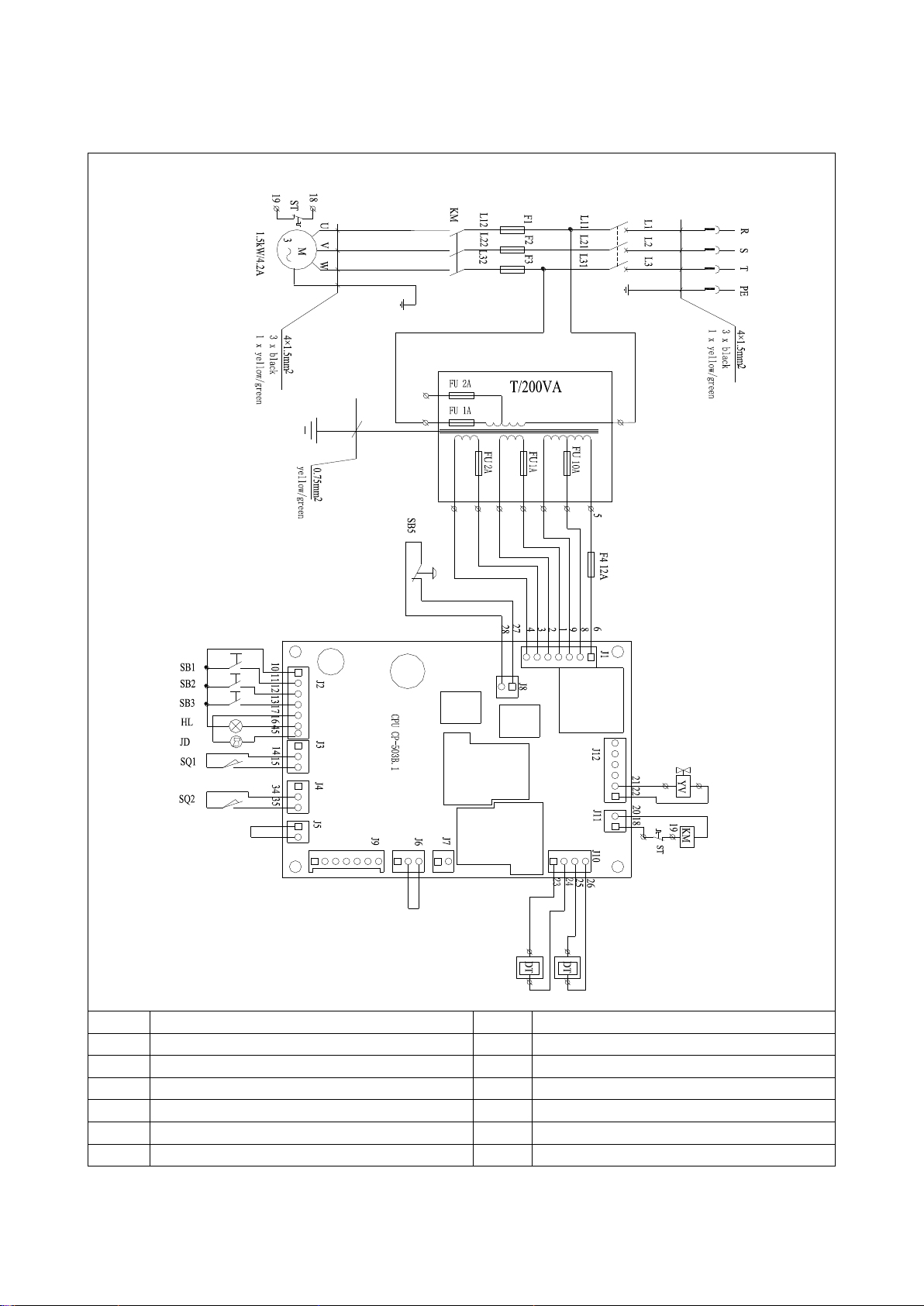

Figure 7a –ELECTRICAL DIAGRAM –400V/3Ph/50Hz
220V
380V
0V
0V
0V
28V 19V
14V
0V
9V
220V
380V
0V
220V
380V
0V
0V
0V
28V 19V
14V
0V
9V
QF
Power switch
SB5
Emergency stop knob
KM
Contactor DC24V
SQ1
Top limit switch
M
Motor 1.5KW/4P
SQ2
Safety height limit switch
T
Transformer 200VA
JD
Beeper
SB1
Lifting button
HL
Pilot lamp
SB2
Lowering/final lowering button
YV
Lowering solenoid valve
SB3
Safety engaging button
DT
Safety release electromagnet

REV. 01 201615 / 28

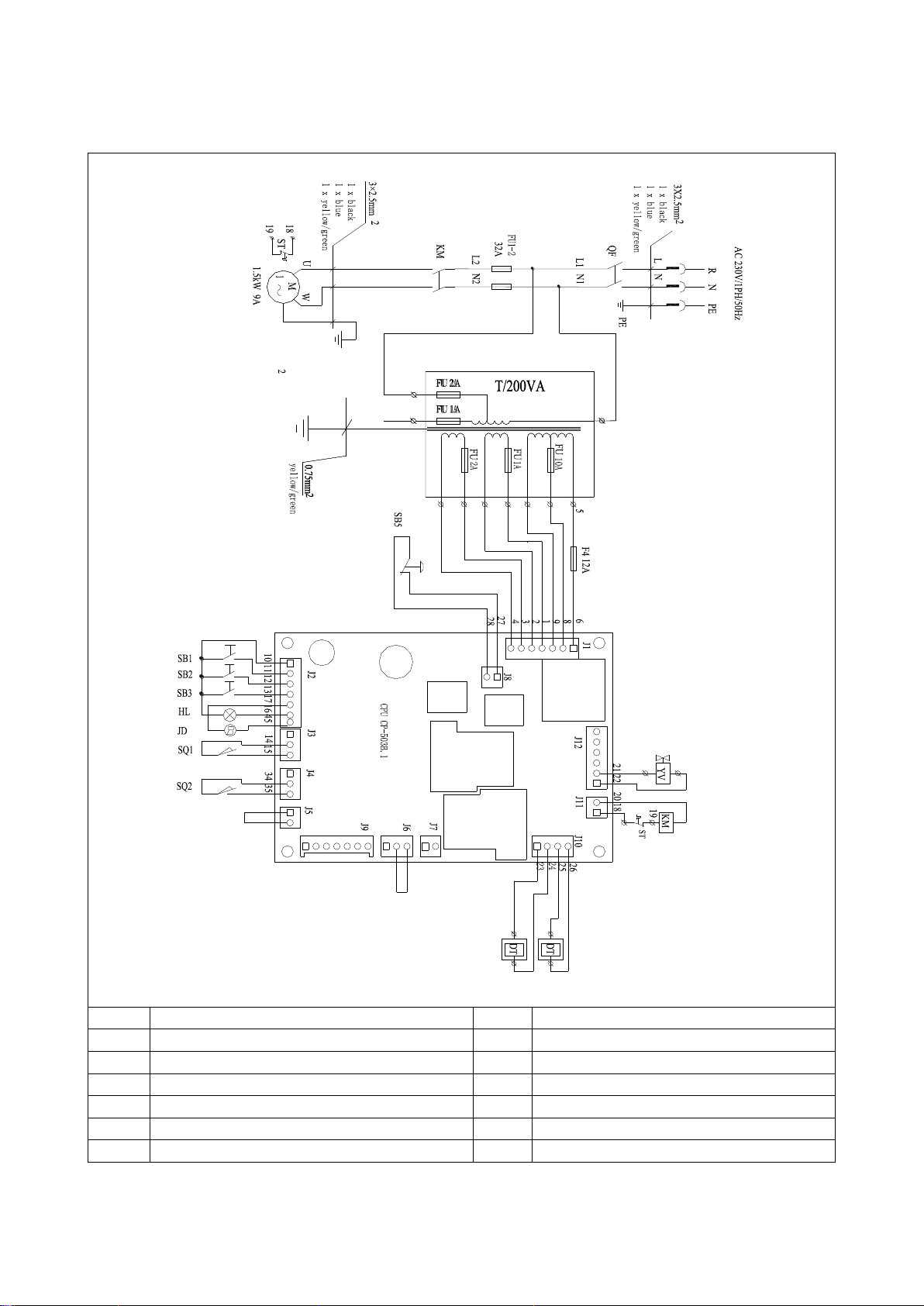

Figure 7b –ELECTRICAL DIAGRAM –230V/1PH/50Hz
220V
380V
0V
0V
0V
28V 19V
14V
0V
9V
220V
380V
0V
220V
380V
0V
0V
0V
28V 19V
14V
0V
9V
QF
Power switch
SB5
Emergency stop knob
KM
Contactor DC24V
SQ1
Top limit switch
M
Motor 1.5 KW/4P
SQ2
Safety height limit switch
T
Transformer 200VA
JD
Beeper
SB1
Lifting button
HL
Pilot lamp
SB2
Lowering/final lowering button
YV
Lowering solenoid valve
SB3
Safety engaging button
DT
Safety release electromagnet

REV. 01 201616 / 28
CHAPTER 6 –SAFETY
Read this chapter carefully and completely because it contains important information for the safety of
the operator and the person in charge of maintenance.
The lift has been designed and built for lifting vehicles and making them
stand above level in a closed area. any other use is forbidden:
The manufacturer is not liable for possible damages to people, vehicles or
objects resulting from an improper or unauthorized use of the lift.
For operator and people safety, the safety area shown in the figure 8 must be vacated during lifting and
lowering. The lift must be operated only from the operator’s control site, as shown.
Operator’s presence under the vehicle, during working, is only admitted when the vehicle is lifted are
not running
Never use the lift when safety devices are off-line. People, the lift and the
vehicles lifted can be seriously damaged if these instructions are not followed.
Figure 8 - SAFETY AREA
6000
2000
1000
6.1 GENERAL WARNINGS
The operator and the person in charge of maintenance must follow accident-prevention laws and rules
in force in the country where the lift is installed
They also must carry out the following:
•neither remove nor disconnect hydraulic, electric or other safety devices;
•carefully follow the safety indications applied on the machine and included in the manual;
•observe the safety area during lifting;
•be sure the motor of the vehicle is off, the gear engaged and the parking brake put on;
•be sure only authorized vehicles are lifted without exceeding the maximum lifting capacity;
•Verify that no one is on the platforms during lifting or standing.

REV. 01 201617 / 28
6.2 SAFETY DEVICES
To avoid overloading and possible breaking, the following safety devices have been used:
A pressure overload valve in the hydraulic unit to prevent excessive weight.
A flow restrictor placed in the hydraulic system to prevent the lift from lowering in case of
pipeline failure.
Alarm can be heard during the final lowering phase to avoid the crushing risks.
Automatic mechanical back-up safety holds on the lift in the elevated position.
The pressure overload valve has been preset by the manufacturer to a proper
pressure. DO NOT try to adjust it to overrun the rated lifting capacity.
6.3 SAFETY SIGNS
All safety warning signs (ref. fig.9) displayed on the lift are with the purpose to draw the operator’s
attention to dangerous or unsafe situations. The labels must be kept clean and they have to be replaced
if detached or damaged. Read the meaning of the labels carefully and memorize it.
It is strictly forbidden to modify any safety device. Always ensure the safety device
for proper operation during the service.
Fig. 9

REV. 01 201618 / 28
CHAPTER 7 –INSTALLATION
Only skilled technicians, appointed by the manufacturer, or by authorized
dealers, must be allowed to carry out installation. Serious damage to people and
to the lift can be caused if installations are made by unskilled personnel.
7.1 CHECKING FOR ROOM SUITABILITY
The lift has been designed to be used in a place free of overhead obstructions.
The place of installation must not be next to washing areas, painting workbenches, solvent or varnish
deposits. The installation near to rooms, where a dangerous situation of explosion can occur, is strictly
forbidden. The relevant standards of the local Health and Safety at Work regulations, for instance, with
respect to minimum distance to wall or other equipment, escapes and the like, must be observed.
7.2 LIGHTING
Lighting must be carried out according to the effective regulations of the place of installation. All areas
next to the lift must be well and uniformly lighted.
7.3 FLOOR REQUIREMENT
The lift must be placed on a concrete floor in conformity with local regulations.
The surface where the lift must be placed must be even and leveled in all directions.
The surface where the lift must be placed must be even and leveled in all
directions. Small differences in floor slope may be compensated for by proper
shimming. Any major slope change will affect the level lifting performance.
Failure to do so could cause lift failure resulting in personal injury or death.

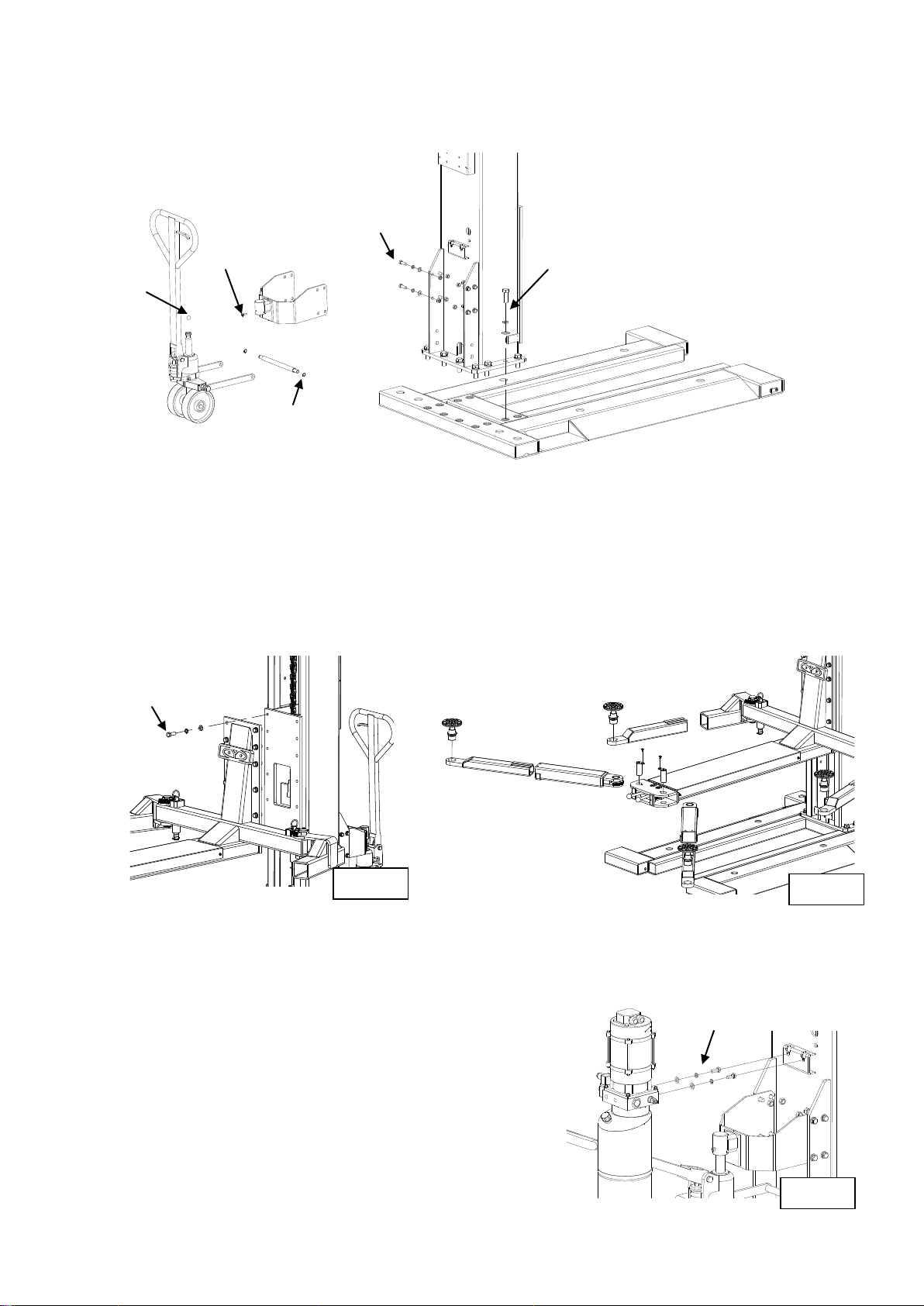

7.4 INSTALLATION OF COLUMN TO BASE (ref. fig.10)
Unauthorized persons are not allowed to enter during assembly.
Once the lift is unpacked, check the machine visually for any sign of damage.
Keep the packing materials for the possible future transportation.
Make sure to u se caution to prevent the column from falling over during
installation process.
Transport the packages using the proper hoisting equipment with the load capacity 1000kg at
least to the installation site.
Remove the package of the base and place it on the flat surface.
Remove the package of the column.
Take the accessories from the column.
Install the column to the base using the supplied screws and washers as shown. Make sure to u se
caution to prevent the column from falling over.
 In the meanwhile, install the mobile jack with the column as shown.

REV. 01 201619 / 28
Figure 10 –INSTALLATION OF COLUMN TO BASE
7.5 INSTALLATION OF ARMS
 Install the arm frame to the carriage using the supplied screws and washers as shown in the
figure 11.
 Fit the telescopic arms to the arm frames as shown in the figure 12.
 Fit adaptors to the arm holes as shown in the figure 12.
7.6 INSTALLATION OF POWER UNIT (ref. fig.13)
Place the power unit onto the bracket on the back side
of the column with the screws and washes attached as
shown.
Secure it by tightening the screws.
Screw M20X60
Washer D.20
Locking washer D.20
Screw M12X40
Washer D.12
Locking washer D.12
Nut M12
Screw M8X20
Seeger D.16
Steel ball
D.20
Screw M16X45
Washer D.16
Locking washer D.16
Fig. 12
Fig. 11
Fig. 13
Screw M10X25
Washer D.10
Locking washer D.10

REV. 01 201620 / 28
7.7 CYINDER CENTERING AND CHAIN INSTALLATION
Make sure to install the chain protection on the pulley. Failure to do so can
cause the chain being out of the pulley resulting in the possible accident.
Fit the cylinder is located in the center hole in the column base as shown in the figure 14.
Install the chain protection on the pulley as shown in the figure 15.
7.8 CONNECTION OF HYDRAULC HOSE (ref. fig.16)
Clean the hoses and fittings.
Inspect all threads for damage and make sure that all hose fittings are in good condition.
Seal the fittings properly and connect the hoses as shown.
Tighten the hose fittings thoroughly.
Figure 16 –INSTALLATION OF COLUMN TO BASE
7.9 MAKE THE ELECTRICAL HOOKUP
The hookup work must be carried out by a qualified electrician.
Make sure that the power supply is right.
Make sure the connection of the phases is right. Improper electrical hook-up can
damage motor and will not be covered under warranty.
The control unit must be kept dry. Damage to power unit caused by water or other
liquids such as detergents, acid etc., is not covered under warrant.
Fig. 14
Screw M6X14
Washer D.14
Locking washer D.14
Chain
protection
Fig. 15
Cylinder
Restrictor
Hydraulic hose 1/4
L730
Rilsan hose
10X6.5X1850
