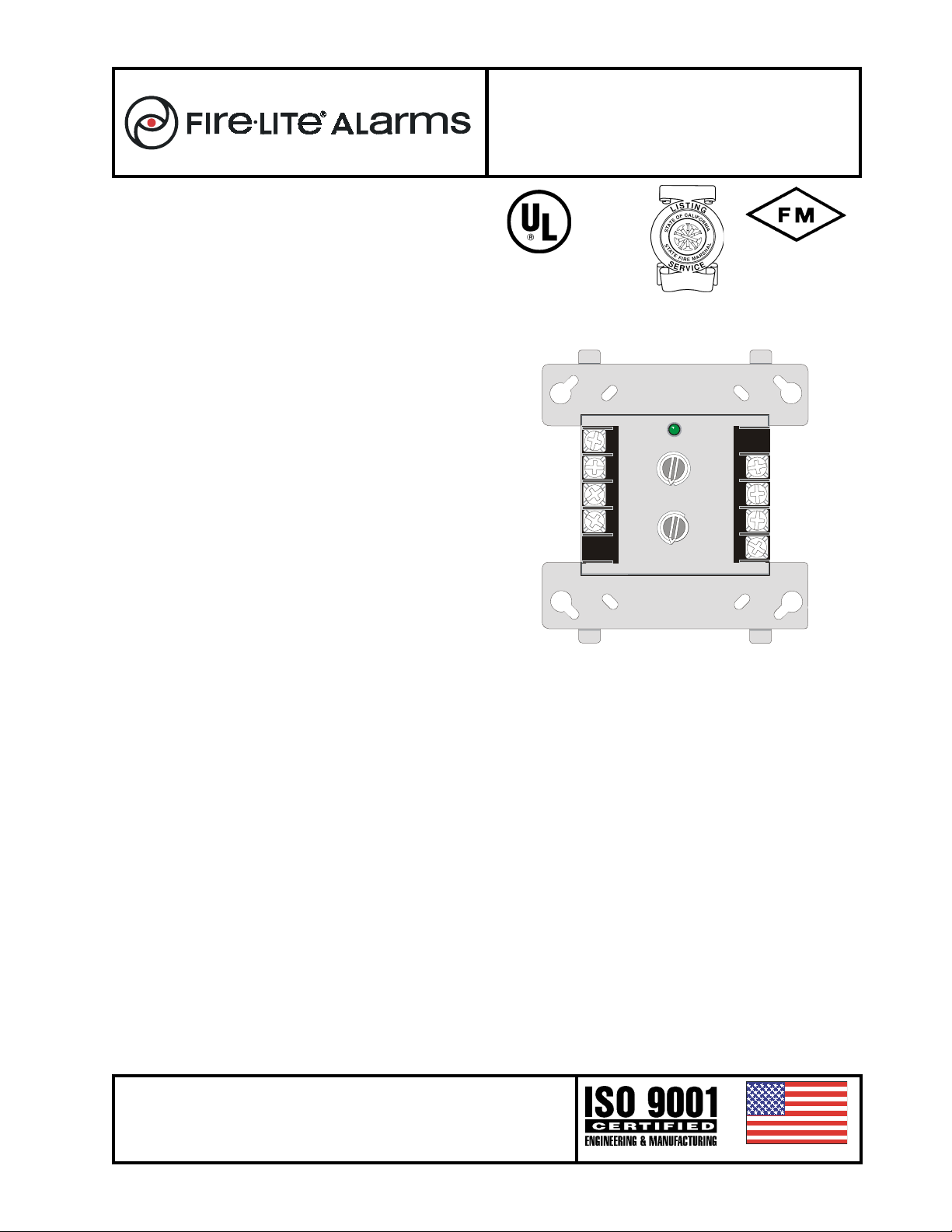

Fire-Lite Alarms MMF-300 Series User manual

DF-52121 — Page 1 of 3
GENERALGENERAL
GENERALGENERAL
GENERAL
Four different monitor modules are available for Fire•Lite Alarm’s
MS-9200 and MS-9600 intelligent fire alarm control panels
to suit a variety of applications. Monitor modules are used to
supervise a circuit of dry-contact input devices, such as con-
ventional heat detectors and pull stations, or monitor and
power a circuit of two-wire smoke detectors (MMF-302).
MMF-300 (Replaces M300) — The MMF-300 Moni-
tor Module is a standard-sized module (typically mounts to a
4" [101.6 mm] square box) that supervises either a Class A
(Style D) or Class B (Style B) circuit of dry-contact input de-
vices.
MMF-301 (Replaces M301) — The MMF-301 is a Min-
iature Monitor Module (a mere 1.3" (33.02 mm) H x 2.75"
(69.85 mm) W x 0.5" (12.70 mm) D) used to supervise a
Class B (Style B) circuit. Its compact design allows the MMF-
301 to be mounted in a single-gang box behind the device it
is monitoring.
MMF-302 (Replaces M302) — The MMF-302 Inter-
face Module is a standard-sized module used to monitor and
supervise compatible two-wire, 24 volt, smoke detectors on
a Class A (Style D) or Class B (Style B) circuit.
MDF-300 (New) — The MDF-300 Dual Monitor Module
is a standard-sized module (typically mounts to a 4" [101.6
mm] square box) that supervises two Class B (Style B) cir-
cuits of dry-contact input devices.
MMF-300 MONITOR MODULEMMF-300 MONITOR MODULE
MMF-300 MONITOR MODULEMMF-300 MONITOR MODULE
MMF-300 MONITOR MODULE
• Built-in type identification automatically identifies this de-
vice as a monitor module to the control panel.
• Powered directly by two-wire SLC loop. No additional
power required.
• High noise (EMF/RFI) immunity.
• SEMS screws with clamping plates for ease of wiring.
• Direct Decade 01 – 99 (MS-9200) and 01-159 (MS-9600)
entry of address.
• LED flashes green during normal operation and latches
on steady red to indicate alarm.
The MMF-300 Monitor Module is intended for use in intelli-
gent, two-wire systems, where the individual address of each
module is selected using the built-in rotary switches. It pro-
vides either a two-wire or four-wire Class A or Class B fault-
tolerant Initiating Device Circuit (IDC) for normally-open-con-
tact fire alarm and supervisory devices. The module has a
panel-controlled LED indicator. The MMF-300 can be used
to replace M300 modules in existing systems.
MMF-300 Applications — Use to monitor a zone of
four-wire smoke detectors, manual fire alarm pull stations,
waterflow devices, or other normally-open dry-contact alarm
activation devices. May also be used to monitor normally-
open supervisory devices with special supervisory indica-
tion at the control panel. Monitored circuit may be wired as
an NFPA Style B (Class B) or Style D (Class D) Initiating
Device Circuit. A 47K ohm End-of-Line Resistor (provided)
DF-52121 E-325
MMF-300, MMF-302 and MDF-300
52121m300.wmf
terminates the Style B circuit. No resistor is required for su-
pervision of the Style D circuit. Maximum IDC resistance is
1,500 ohms.
MMF-300 Operation — Each MMF-300 uses one of
99 (MS-9200) or 159 (MS-9600) available module addresses
on an SLC loop. It responds to regular polls from the control
panel and reports its type and the status (open/normal/short)
of its Initiating Device Circuit (IDC). A flashing LED indicates
that the module is in communication with the control panel.
The LED latches steady on alarm (subject to current limita-
tions on the loop).
MMF-300 Specifications
Nominal operating voltage: 15 to 32 VDC.
Maximum current draw: 5.1 mA (LED on).
Average operating current: 400 µA (LED flashing).
EOL resistance: 47K ohms.
Temperature range: 32°F to 120°F (0°C to 49°C).
Humidity range: 10% to 93% noncondensing.
Dimensions: 4.5" (114.3 mm) high x 4" (101.6 mm) wide x
1.25" (31.75 mm) deep. Mounts to a 4" (101.6 mm) square
x 2.125" (53.975 mm) deep box.
8910
11
12
13
14
15
0
1
2
3
4
567
89
0
1
2
3
4
567
TENS
ONES
LOOP
LOOP ADDRESS
ADDRESS
8
9
7
6
5
9
8
7
6
5
0
1
2
3
4
4
3
2
1
0
TENS
ONES
89
0
1
2
3
4
567
8910
11
12
13
14
15
0
1
2
3
4
567
MMF-300 Series/MDF-300MMF-300 Series/MDF-300
MMF-300 Series/MDF-300MMF-300 Series/MDF-300
MMF-300 Series/MDF-300
Addressable Monitor ModulesAddressable Monitor Modules
Addressable Monitor ModulesAddressable Monitor Modules
Addressable Monitor Modules
Section: Addressable Devices
April 23, 2001
www.firelite.com
This document is not intended to be used for installation purposes. We try to keep our
product information up-to-date and accurate. We cannot cover all specific applica-
tions or anticipate all requirements. All specifications are subject to change without
notice. For more information, contact Fire•Lite Alarms, One Fire-Lite Place, Northford,
Connecticut 06472. Phone: [phone], Toll Free FAX: [phone], FAX
Back:[phone]. Made in the U.S.A.
7300-0075:185

Page 2 of 3 — DF-52121
MMF-301 MINI MONITOR MODULEMMF-301 MINI MONITOR MODULE
MMF-301 MINI MONITOR MODULEMMF-301 MINI MONITOR MODULE
MMF-301 MINI MONITOR MODULE
• Built-in type identification automatically identifies this de-
vice as a monitor module to the MS-9200.
• Powered directly by two-wire SLC Loop. No additional
power required.
• High noise (EMF/RFI) immunity.
• Tinned, stripped leads for ease of wiring.
• Direct-dial entry of address (01-99).
The MMF-301 Mini Monitor Module can be installed in a
single-gang junction directly behind the monitored unit. Its
small size and light weight allow it to be installed without rigid
mounting. The MMF-301 is intended for use in intelligent,
two-wire systems where the individual address of each mod-
ule is selected using rotary switches. It provides a two-wire
initiating device circuit for normally-open-contact fire alarm
and security devices. The MMF-301 can be used to replace
M301 module in existing systems.
MMF-301 Applications — Use to monitor a single de-
vice or a zone of four-wire smoke detectors, manual fire
alarm pull stations, waterflow devices, or other normally-open
dry-contact devices. May also be used to monitor normally-
open supervisory devices with special supervisory indica-
tion at the control panel. Monitored circuit/device is wired as
an NFPA Style B (Class B) Initiating Device Circuit. A 47K
ohm End-of-Line Resistor (provided) terminates the circuit.
MMF-301 Operation — Each MMF-301 uses one of
159 (MS-9600 only) available module addresses on an SLC
loop. It responds to regular polls from the control panel and
reports its type and the status (open/normal/short) of its Ini-
tiating Device Circuit (IDC).
MMF-301 Specifications
Nominal operating voltage: 15 to 32 VDC.
Average operating current: 375 µA maximum.
EOL resistance: 47K ohms.
Temperature range: 32°F to 120°F (0°C to 49°C).
Humidity range: 10% to 93% noncondensing.
Dimensions: 1.3" (33.02 mm) high x 2.75" (69.85 mm) wide
x 0.5" (12.70 mm) deep.
Wire length: 6" (152.4 mm) minimum.
MMF-302 INTERFACE MODULEMMF-302 INTERFACE MODULE
MMF-302 INTERFACE MODULEMMF-302 INTERFACE MODULE
MMF-302 INTERFACE MODULE
• Supports compatible two-wire smoke detectors.
• Supervises IDC wiring and connection of external power
source (resettable).
• High noise (EMF/RFI) immunity.
• SEMS screws with clamping plates for ease of wiring.
• Direct-dial entry of address (01-99).
• LED flashes during normal operation (this is a program-
mable option).
• LED latches steady to indicate alarm on command from
control panel.
The MMF-302 Interface Module is intended for use in intel-
ligent, addressable systems, where the individual address
of each module is selected using built-in rotary switches. This
module allows intelligent panels to interface and monitor two-
wire conventional smoke detectors. It transmits the status
(normal, open, or alarm) of one full zone of conventional de-
tectors back to the control panel. All two-wire detectors be-
ing monitored must be UL compatible with the module.
MMF-302 Applications — Use the MMF-302 to moni-
tor a zone of two-wire smoke detectors. The monitored cir-
cuit may be wired as an NFPA Style B (Class B) or Style D
(Class A) Initiating Device Circuit. A 3.9 K ohm End-of-Line
Resistor (provided) terminates the end of the Style B or D
(class B or A) circuit (maximum IDC loop resistance is 25
ohms). Install ELR across terminals 8 and 9 for Style D ap-
plication.
MMF-302 Operation — Each MMF-302 uses one of
159 (MS-9600 only) available module addresses on an SLC
loop. It responds to regular polls from the control panel and
reports its type and the status (open/normal/short) of its Ini-
tiating Device Circuit (IDC). A flashing LED indicates that
the module is in communication with the control panel. The
LED latches steady on alarm (subject to current limitations
on the loop).
MMF-302 Specifications
Nominal operating voltage: 15 to 32 VDC.
Maximum current draw: 5.1 mA (LED on).
Average operating current: 270 µA (LED flashing).
EOL resistance: 3.9K ohms.
External supply voltage
(between Terminals T3 and T4):
DC voltage:
18 to 28 volts power limited. Ripple voltage:
0.1 VRMS maximum. Current: 90 mA per module maximum.
Temperature range: 32°F to 120°F (0°C to 49°C).
Humidity range: 10% to 93% noncondensing.
Dimensions: 4.5" (114.3 mm) high x 4" (101.6 mm) wide x
1.25" (31.75 mm) deep. Mounts to a 4" (101.6 mm) square
x 2.125" (53.975 mm) deep box.
MDF-300 DUAL MONITOR MODULEMDF-300 DUAL MONITOR MODULE
MDF-300 DUAL MONITOR MODULEMDF-300 DUAL MONITOR MODULE
MDF-300 DUAL MONITOR MODULE
•Built-in type identification automatically identifies this de-
vice as two monitor modules to the control panel.
•Powered directly by the two-wire SLC loop. No additional
power required.
•High noise (EMF/RFI) immunity.
•SEMS screws with clamping plates for ease of wiring.
•Direct-dial entry of address 01 –159 on the MS-9600.
•LED flashes green during normal operation and latches
on steady red to indicate alarm.
The MDF-300 Dual Monitor Module is intended for use in
intelligent, two-wire systems, where the individual address
of each module is selected using the built-in rotary switches.
It provides two independant two-wire fault-tolerant Initiating
Device Circuits (IDCs) at two separate, consecutive ad-
MMF101-wired.wmf
0
10
11
12
13
14 15
ADDRESS
LOOP
1
2
3
4
TENS ONES
6
7
8
95
01
2
3
4
6
7
8
95

DF-52121 —Page 3 of 3
dresses. It is capable of monitoring normally open-contact
fire alarm and supervisory devices, or either normally open
or normally closed security devices. The module has a single
panel-controlled red LED indicator.
MDF-300 Applications - Use to monitor a zone of four-
wire smoke detectors, manual fire alarm pull stations,
waterflow devices, or other normally-open dry-contact alarm
activation devices. May also be used to monitor normally-
open supervisory devices with special supervisory indica-
tion at the control panel. Monitored circuit may be wired as
an NFPA Style B (Class B) Initiating Device Circuit. The
47K ohm End-of-Line Resistors (provided) terminate the Style
B circuit. Maximum IDC resistance is 1,500 ohms.
MDF-300 Operation - Each MDF-300 uses two of 99
(MS-9200) or 159 (MS-9600) available module addresses
on an SLC loop. It responds to regular polls from the control
panel and reports its type and the status (open/normal/short)
of its Initiating Device Circuit (IDC). A flashing LED indicates
that the module is in communication with the control panel.
The LED latches steady on alarm (subject to current limita-
tions on the loop).
MDF-300 Specifications
Nominal operating voltage: 15 to 32 VDC.
Maximum current draw: 5.1 mA (LED on).
Average operating current: 750 µA (LED flashing).
EOL resistance: 47K ohms.
Maximum IDC wire resistance: 1,500 Ohms.
Temperature range: 32°F to 120°F (0°C to 49°C).
Humidity range: 10% to 93% noncondensing.
Dimensions: 4.5" (114.3 mm) high x 4" (101.6 mm) wide x
1.25" (31.75 mm) deep. Mounts to a 4" (101.6 mm) square x
2.125" (53.975 mm) deep box.
Accessories: SMB500 electrical box.
INSTALLATIONINSTALLATION
INSTALLATIONINSTALLATION
INSTALLATION
MMF-300, MMF-302 and MDF-300 modules mount directly
to a standard 4" (101.6 mm) square, 2.125" (53.975 mm)
deep, electrical box. They may also be mounted to the
SMB500 surface-mount box. Mounting hardware and instal-
lation instructions are provided with each module. All wiring
must conform to applicable local codes, ordinances, and regu-
lations. These modules are intended for power-limited wir-
ing only.
The
MMF-301 module is intended to be wired and mounted
without rigid connections inside a standard electrical box. All
wiring must conform to applicable local codes, ordinances,
and regulations.
ARCHITECTS’/ENGINEERS’ARCHITECTS’/ENGINEERS’
ARCHITECTS’/ENGINEERS’ARCHITECTS’/ENGINEERS’
ARCHITECTS’/ENGINEERS’
SPECIFICATIONSSPECIFICATIONS
SPECIFICATIONSSPECIFICATIONS
SPECIFICATIONS
Specifications of these and all Fire•Lite Alarms products
are available from Fire•Lite Alarms.
MOUNTING DIAGRAMSMOUNTING DIAGRAMS
MOUNTING DIAGRAMSMOUNTING DIAGRAMS
MOUNTING DIAGRAMS
for standard-sized modules
52121mt1.wmf
PRODUCT LINE INFORMATIONPRODUCT LINE INFORMATION
PRODUCT LINE INFORMATIONPRODUCT LINE INFORMATION
PRODUCT LINE INFORMATION
MMF-300 Monitor Module.
MMF-301 Mini Monitor Module.
MMF-302 Two-Wire Detector Monitor Module.
MDF-300 Dual Monitor Module.
SMB500 Optional Surface-Mount Backbox.
